Mechanic AUTO X450 Film Cutting / Laminating Integrated Intelligent High-precision Cutting Machine

Mechanic AUTO X450 Film Cutting / Laminating Integrated Intelligent High-precision Cutting Machine

Features:

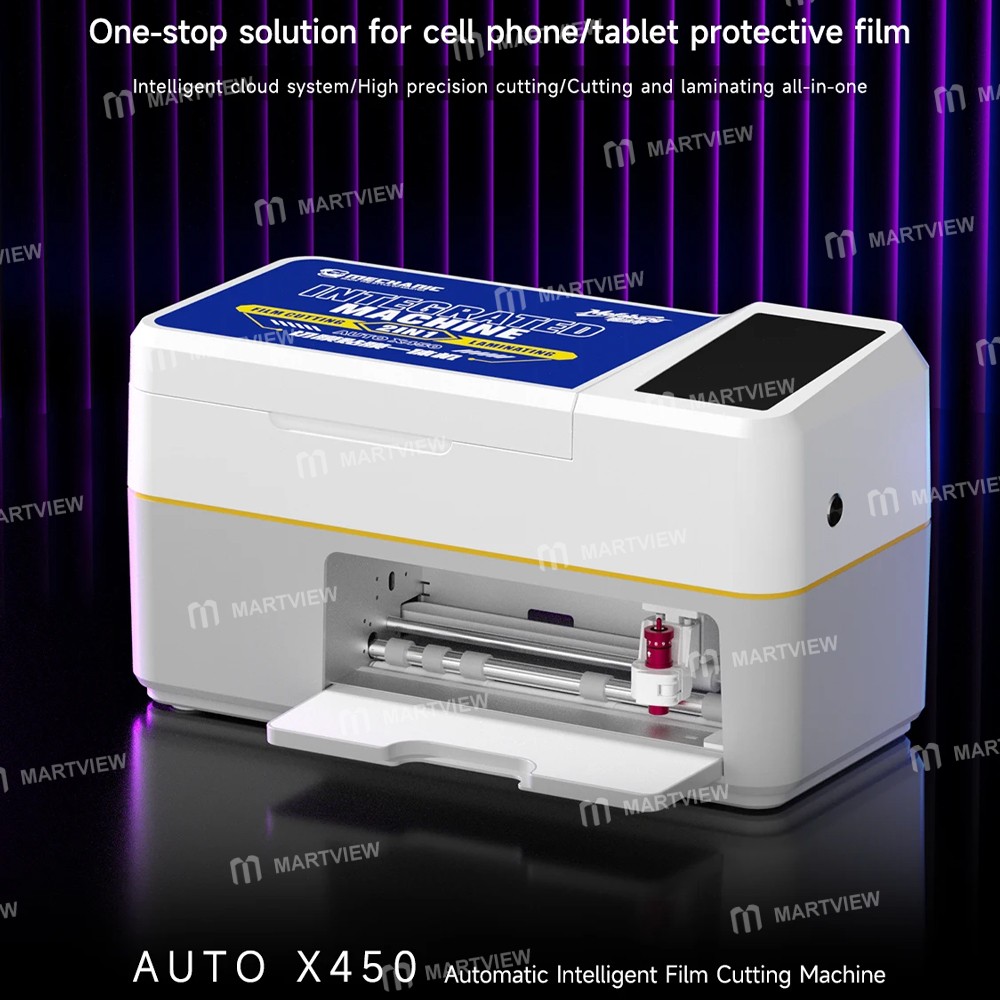

• One-stop solution for cell phone/tablet protective film: Intelligent cloud system/High precision cutting/Cutting and laminating all-in-one

• Compatible with 12.9-inch tablets and the smallest 129*61mm phone film, error rate industry-leading

• Precision cutting + UV curing + intelligent film laminating three-in-one, eliminating the cost of purchasing multiple devices

• Imported high-precision cutting head: 0.1mm ultra-precision cutting, 1-10 gear cutter head, flexible adjustment, convenient to cut

• Intelligent film: Place the cell phone, select the film type, automatically align the cell phone, intelligent film laminating.

• UV Curing: Place the cell phone, select UV mode, and curing automatically.

• 5.5-inch high-definition touch screen, multi-language interface, novice 10 minutes to get started, real-time visualization of data reports

Specification:

• Name: Film Cutting and Laminating Integrated Machine

• Model: Auto X450

• Maximum film feeding width: 235mm

• Maximum cutting width: 217mm (compatible with 12.9-inch tablets)

• Maximum cutting pressure: 1000g

• Maximum cutting speed: 500mm/s

• Compatible sizes for film laminating: Max: 188*88mm; Min:129*61mm (Excluding three-proof and foldable screen phones)

• Cutting accuracy: 0.1mm

• Air pump pressure: About 100Kpa

• Driving method: Stepping motor

• Control panel: 5.5-inch touch screen

• Connection method: Bluetooth,WiFi

• Input: DC 24V 2.75A

• Power: 48W

• Working temperature: 5℃~35℃

• Product size: 412*187*215mm

• Overall net weight: 8.59kg

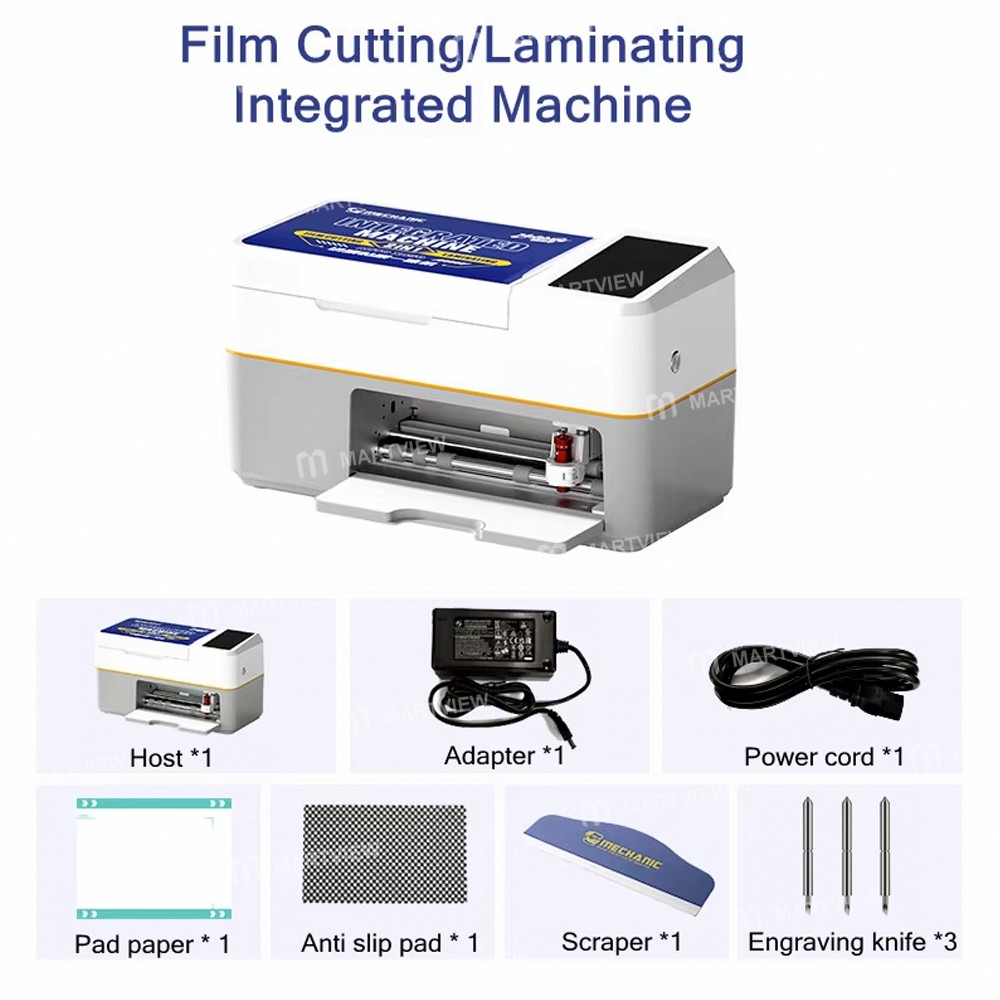

Package includes:

• 1 x Cutting Machine

• 1 x Spacer

• 1 x Scraper

• 1 x Adapter

• 1 x Power Cord

• 3 x Engraving Knife

• 1 x Knife Holder
