Mechanic D65T-B11 6.5X-65X Industrial Trinocular Stereo Microscope for PCB Repair with Large Base

Mechanic D65T-B11 6.5X-65X Industrial Trinocular Stereo Microscope for PCB Repair with Large Base

Features:

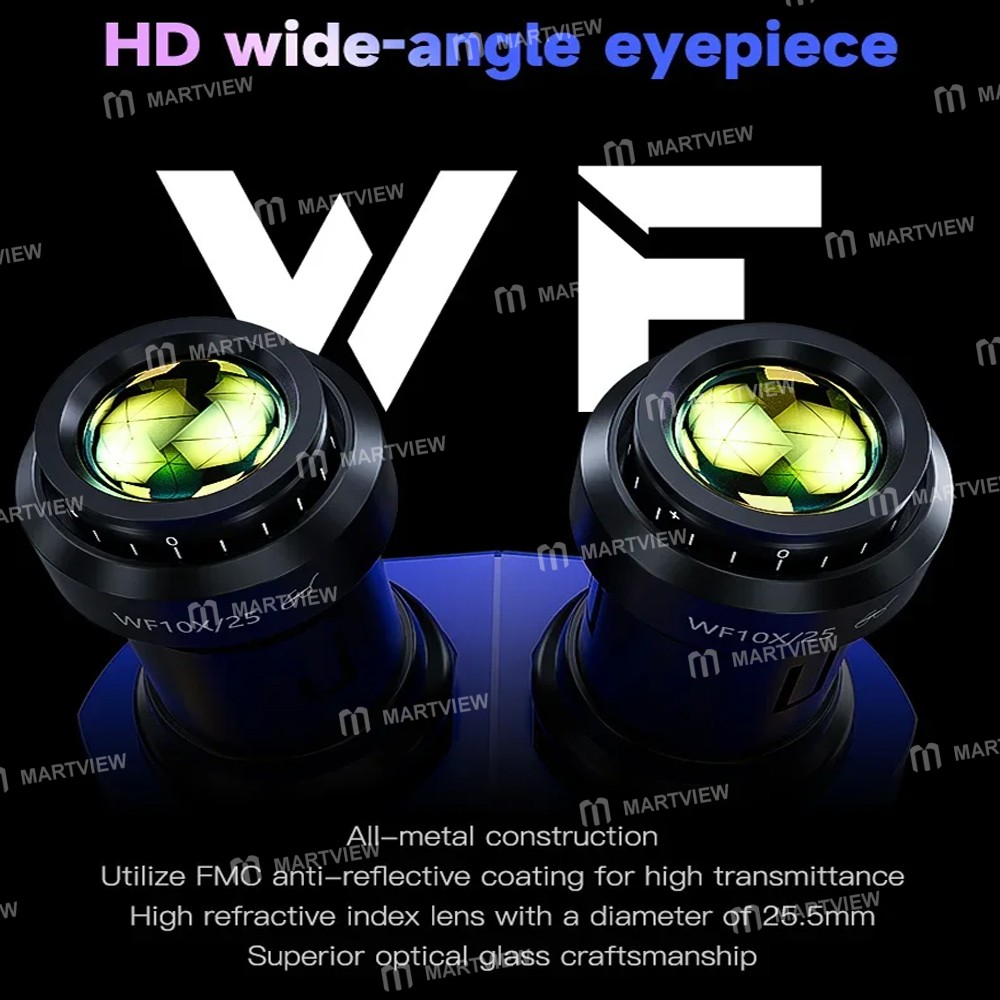

• All-metal construction, utilize FMC anti-reflective coating for high transmittance, high refractive index lens with a diameter of 25.5mm, superior optical glass craftsmanship

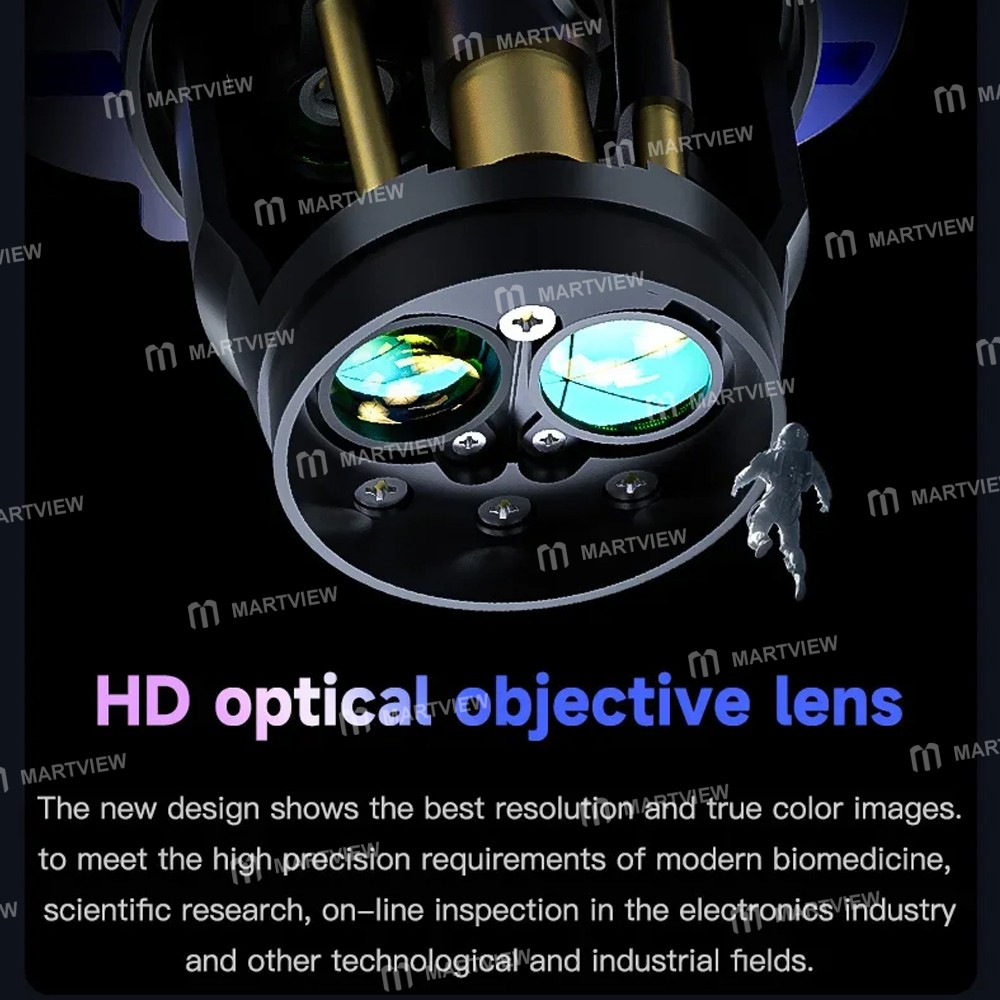

• The new design shows the best resolution and true color images. to meet the high precision requirements of modern biomedicine, scientific research,on-line inspection in the electronics industry and other technological and industrial fields.

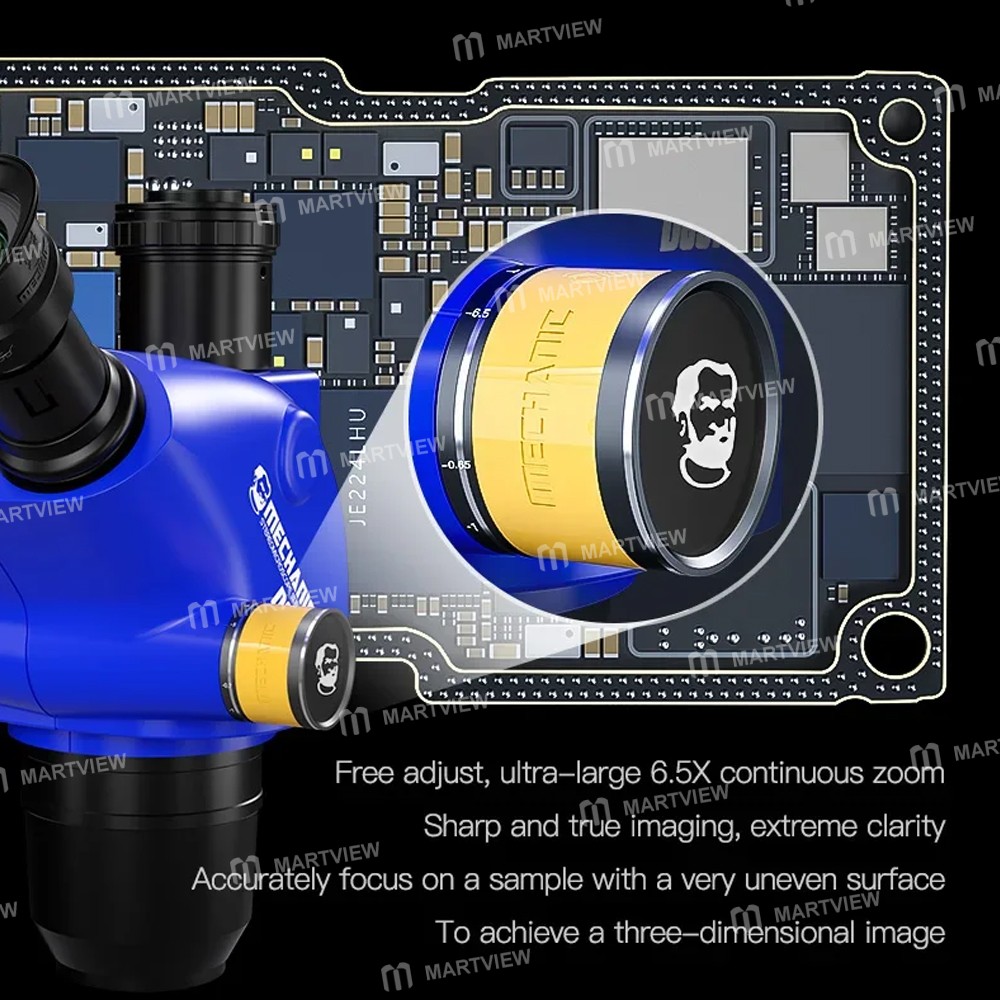

• Free adjust, ultra-large 6.5X continuous zoom, sharp and true imaging, extreme clarity, accurately focus on a sample with a very uneven surface to achieve a three-dimensional image

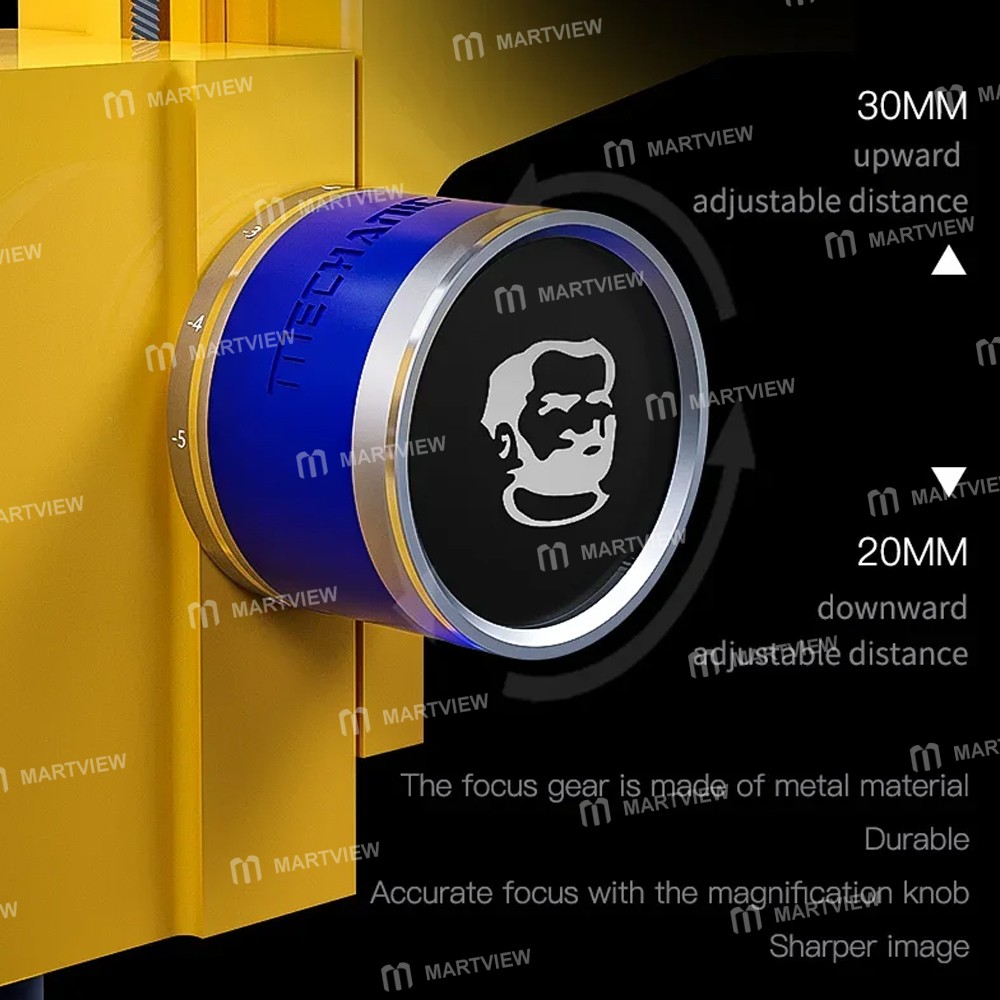

• The focus gear is made of metal material, durable, accurate focus with the magnification knob sharper image

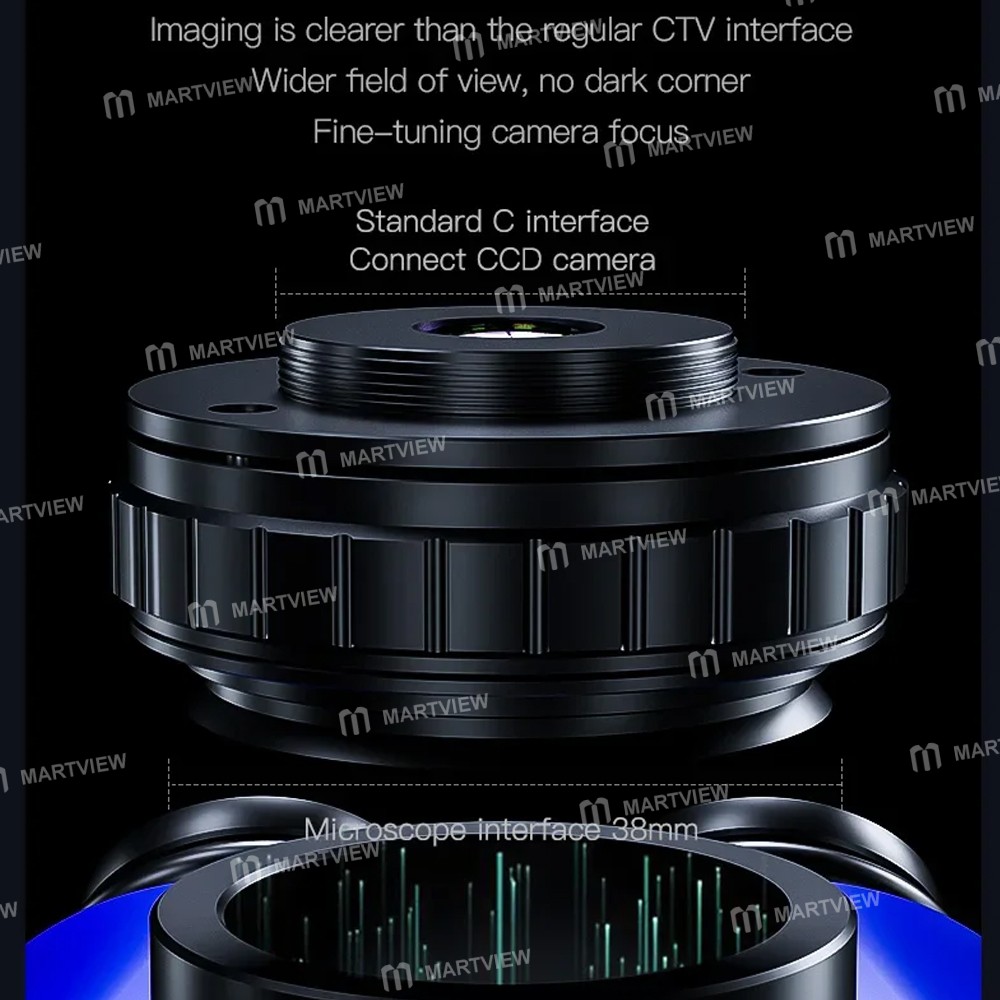

• With CTV 2/5 adapter, imaging is clearer than the regular CTV interface, wider field of view, no dark comer, fine-tuning camera focus

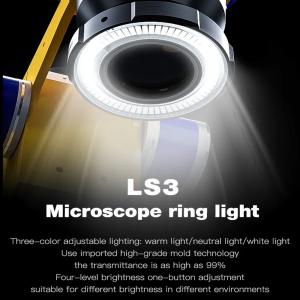

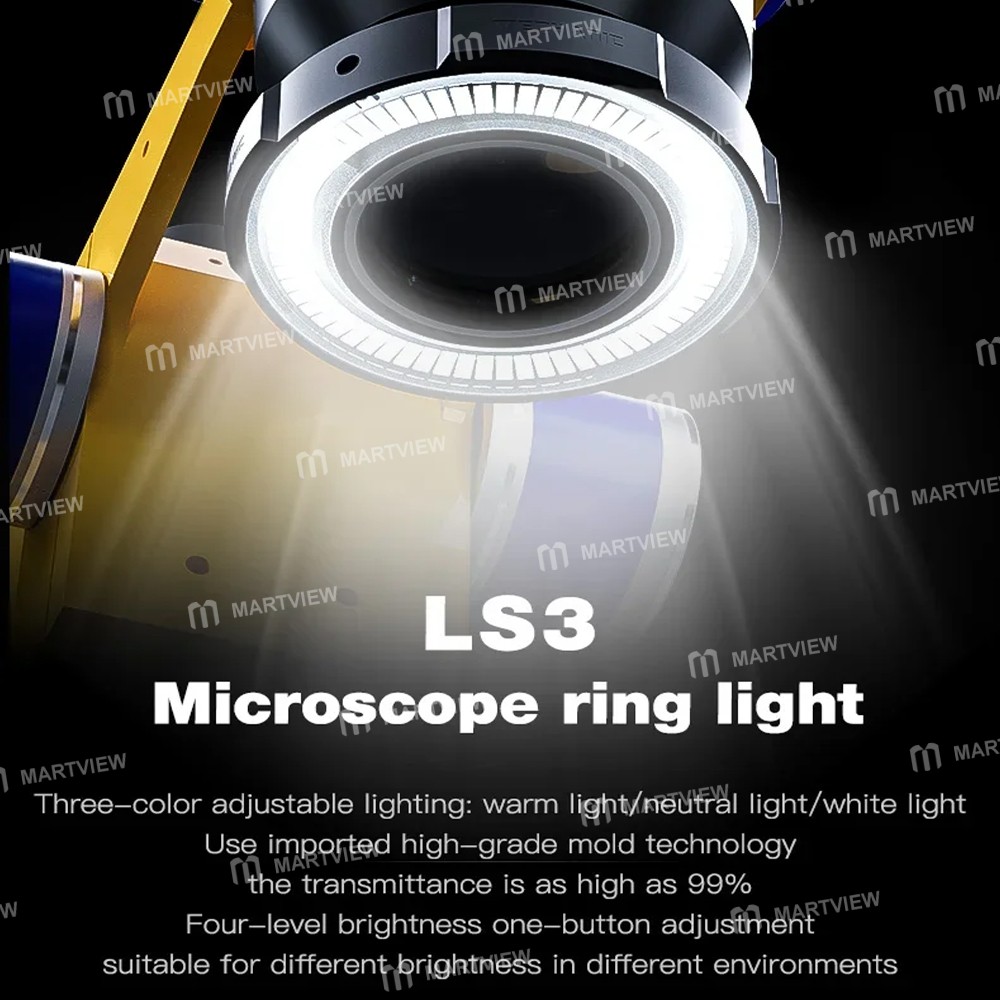

• With LS3 microscope ring light, three-color adjustable lighting:warm light/neutral light/white light, use imported high-grade mold technology, the transmittance is as high as 99%

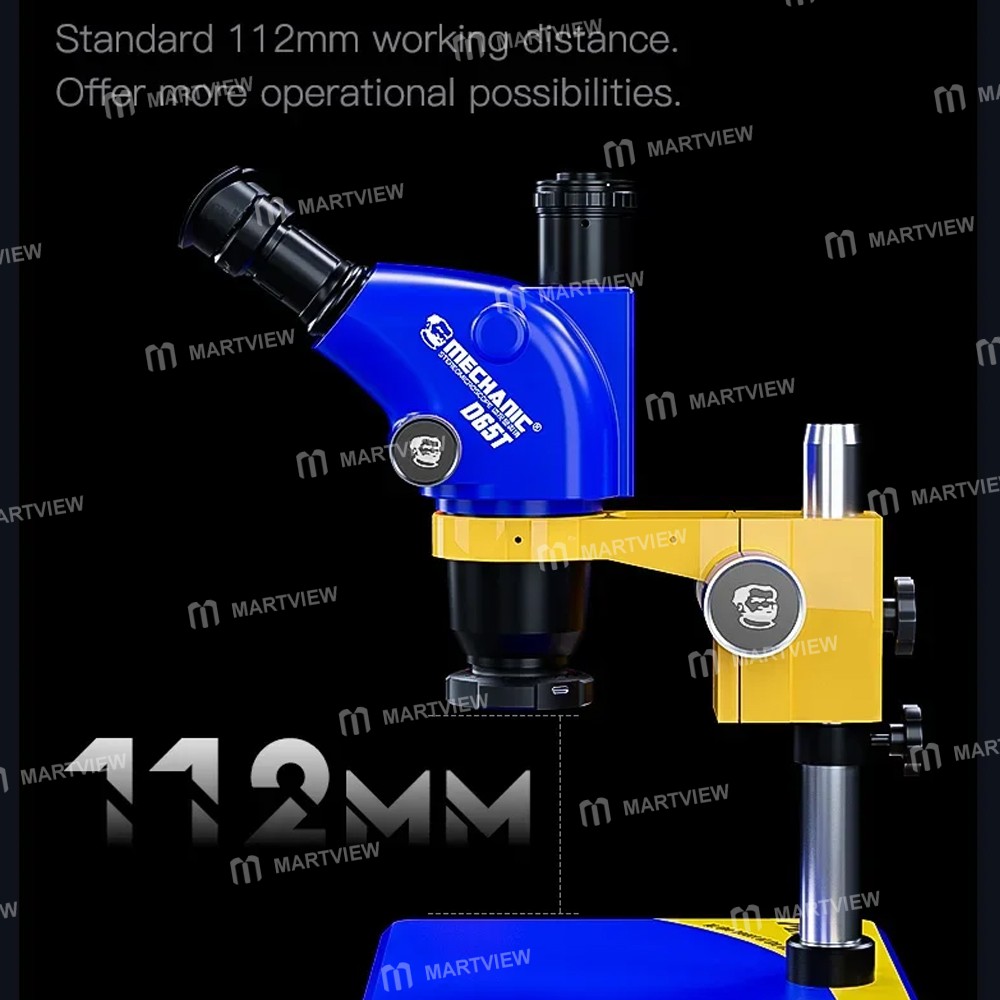

• A larger workspace, standard 112mm working distance, offer more operational possibilities

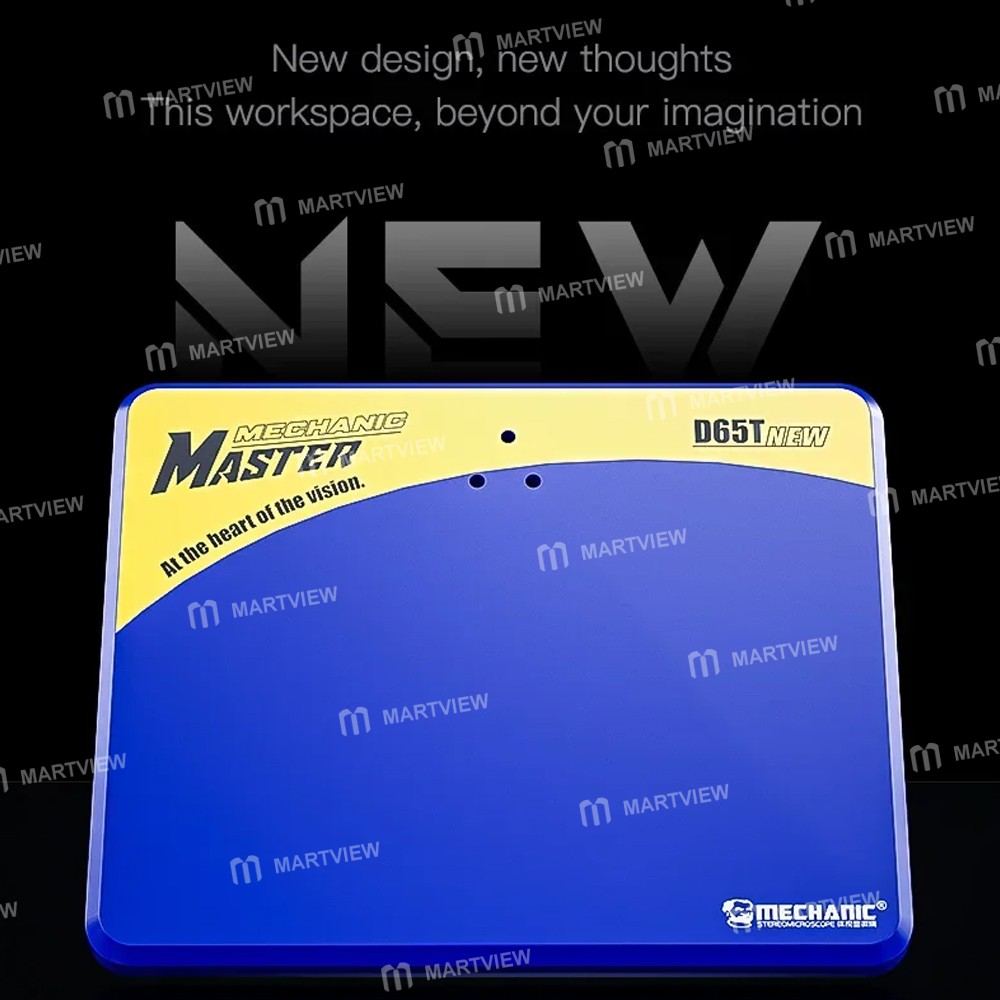

• Brand new base design, new design,new thoughts, this workspace, beyond your imagination

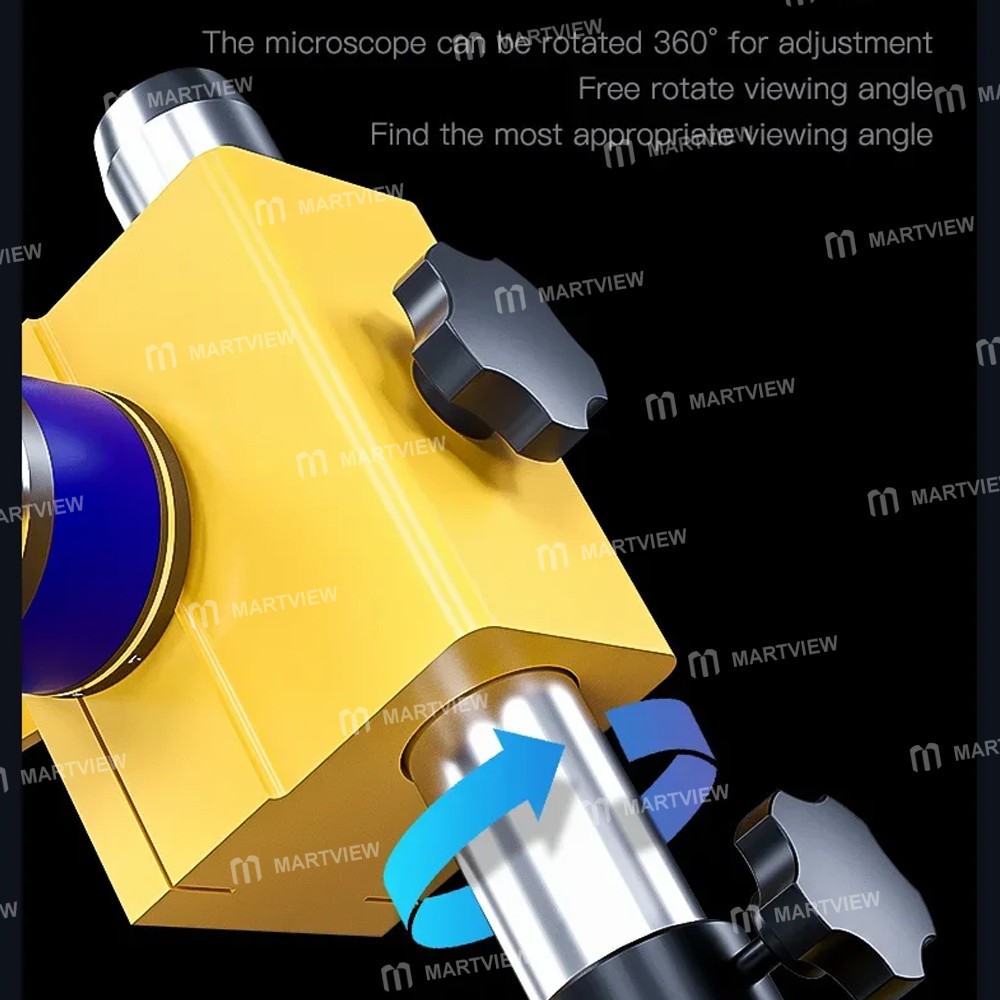

• Free control angle: The microscope can be rotated 360° for adjustment, free rotate viewing angle, find the most appropriate viewing angle

Specification:

• Non-adjustable eyepieces: WF 10X/25MM

• Zoom ratio: 1:10

• Observation head: 45 inclination,360 rotation,interpupillary distance 54-76mm bilateral vision adjustment ±5 diopters

• Adjustable eyepiece: Standard equipment: WF10X25 high-eyepoint wide-angle eyepiece for the convenience of spectacled observers

• Objective: 0.65X-6.5X continuous zoom, objective zoom ratio 1:10 to ensure image surface focus

• Auxiliary objective: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X are available as options

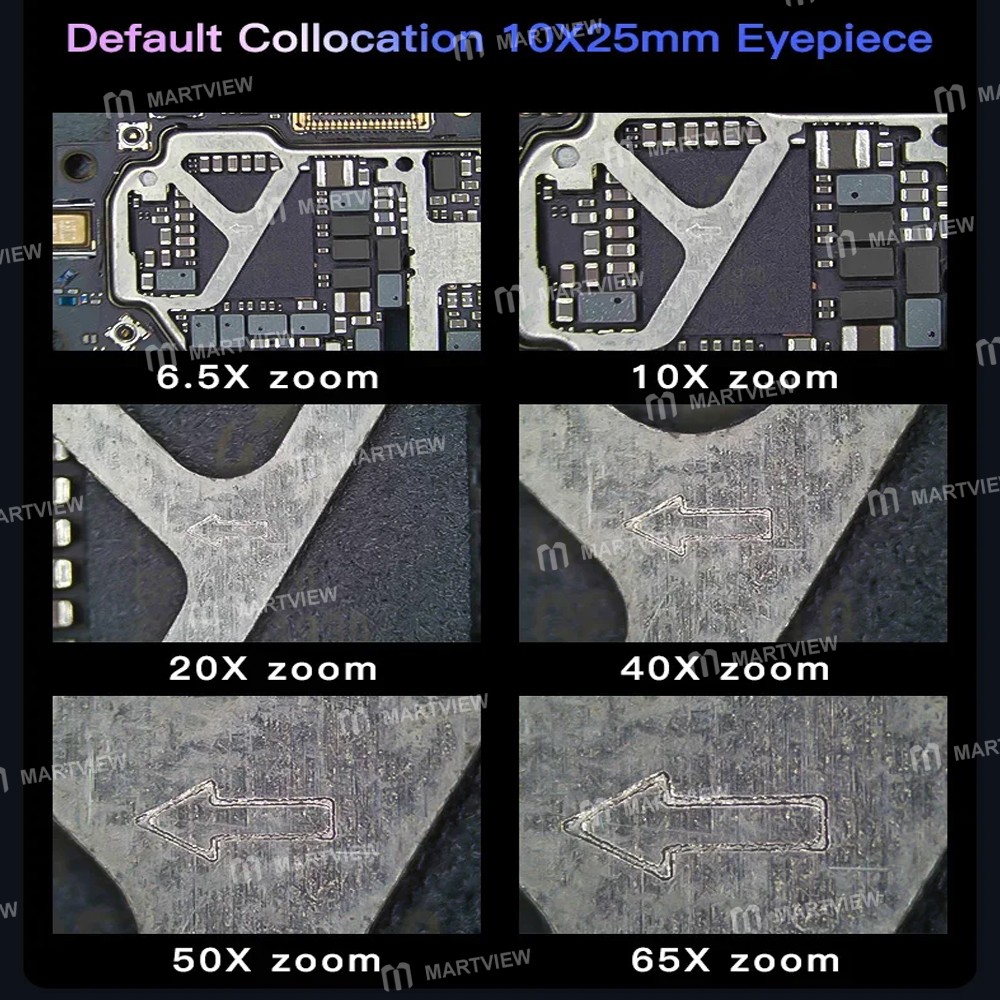

• Magnification: 6.5X-65X, optional eyepiece and auxiliary objective can be expanded to 2X-260X, continuous zoom

• Working distance: 112mm

• Focus bracket: The inner diameter is 76mm,and the column bore diameter is 32mm

• Work platform: 320mm * 260mm

• Base: B11 column type large plate base,can be equipped with other bases see the base series diagram for details

• Dimensions: 200mm(W)*273mm(D)*240mm(H)

• Illuminating: A variety of LED ring lights can be selected

• see the LED light source series diagram for details

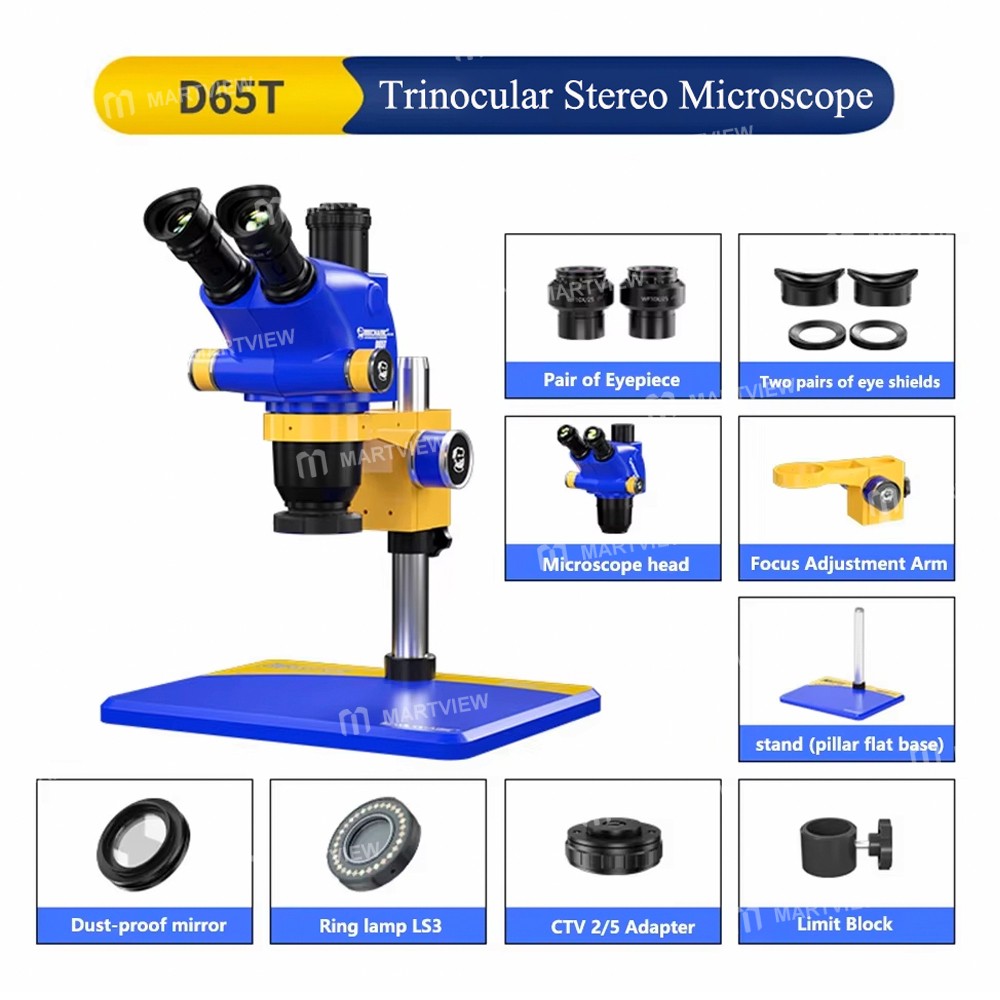

Package includes:

• 1 x Microscope Head

• 2 x Eyepiece

• 2 x Eye Shields

• 1 x Focus Adjustment Arm

• 1 x Stand (Pillar Flat Base)

• 1 x Dust-proof Mirror

• 1 x LS3 Ring Lamp

• 1 x CTV 2/5 Adapter

• 1 x Limit Block
