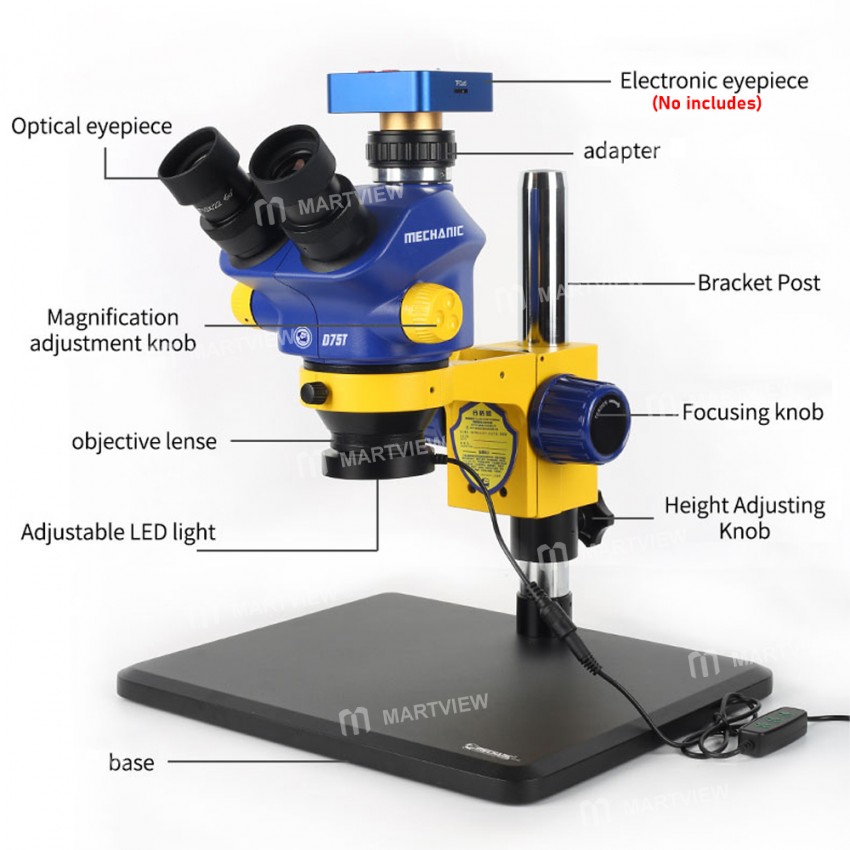

Mechanic D75T-B11 0.7-5.0X High Precision HD Trinocular Stereo Microscope for Phone Repair

Mechanic D75T-B11 0.7-5.0X High Precision HD Trinocular Stereo Microscope for Phone Repair

Features:

• External display device/0.7-5.0X multiple clear eyepieces/Simple, fast and convenient operation/Newly upgraded LED fill light

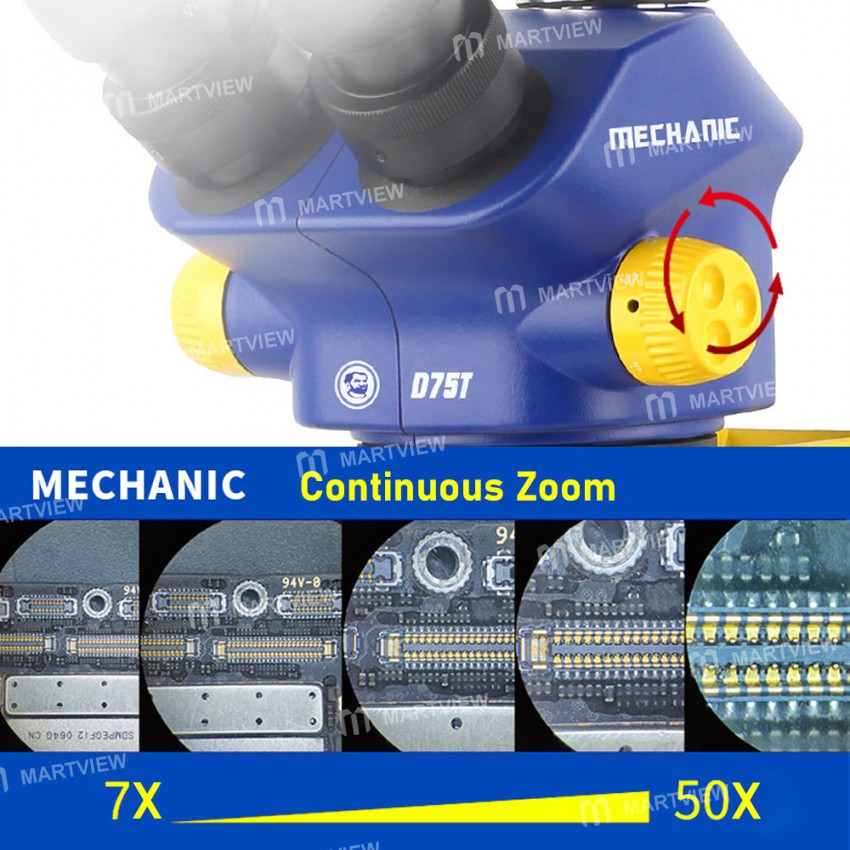

• 0.7-5.0X continuous zoom optical system, large magnification continuous zoom, sharp imaging without distortion, very high definition, can correctly focus samples with a large uneven surface, to obtain a three-dimensional image.

• 10x high-definition wide-angle eyepiece, made of all-metal material, FMC anti-reflection coating with high light transmittance, high refractive index lens diameter of 25.5mm

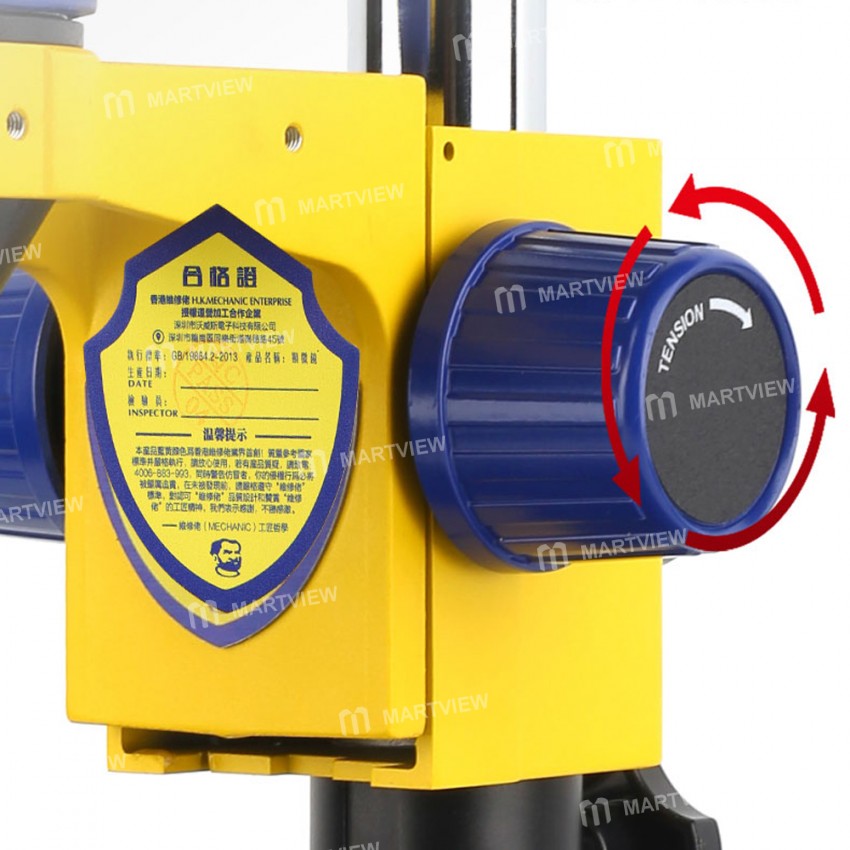

• The focusing gear rack is made of metal material, which is durable and accurate with the magnification, making the image clearer

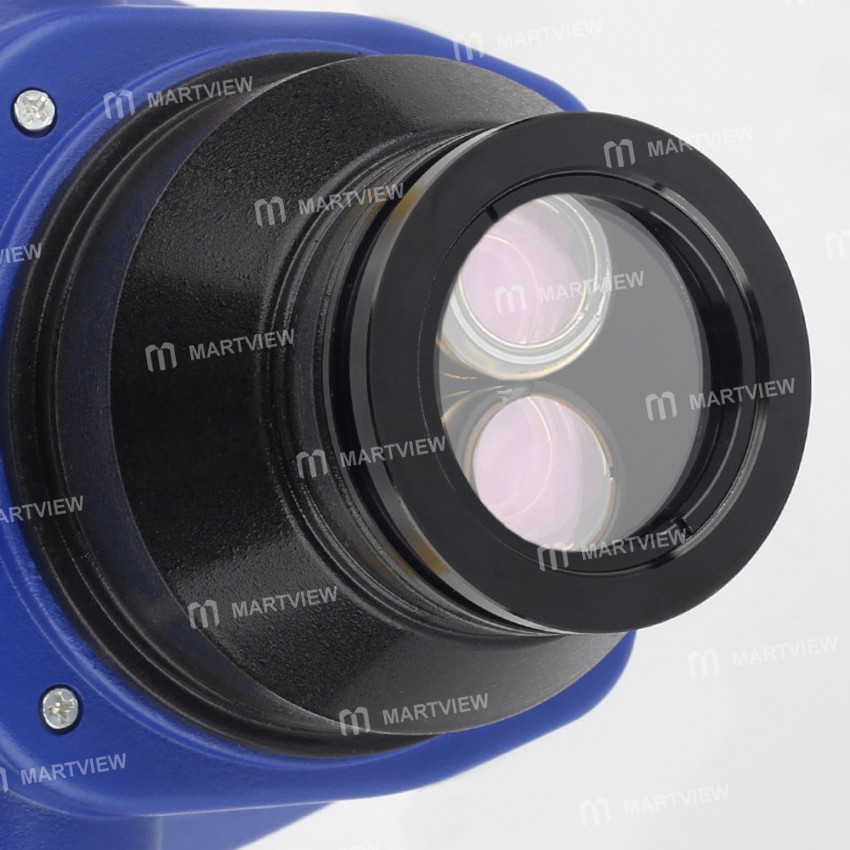

• The high-definition optical objective lens, manufactured by precision craftsmanship, high-definition coated objective lens, pure copper material lens barrel, no glare, clear picture, not letting go of every small detail

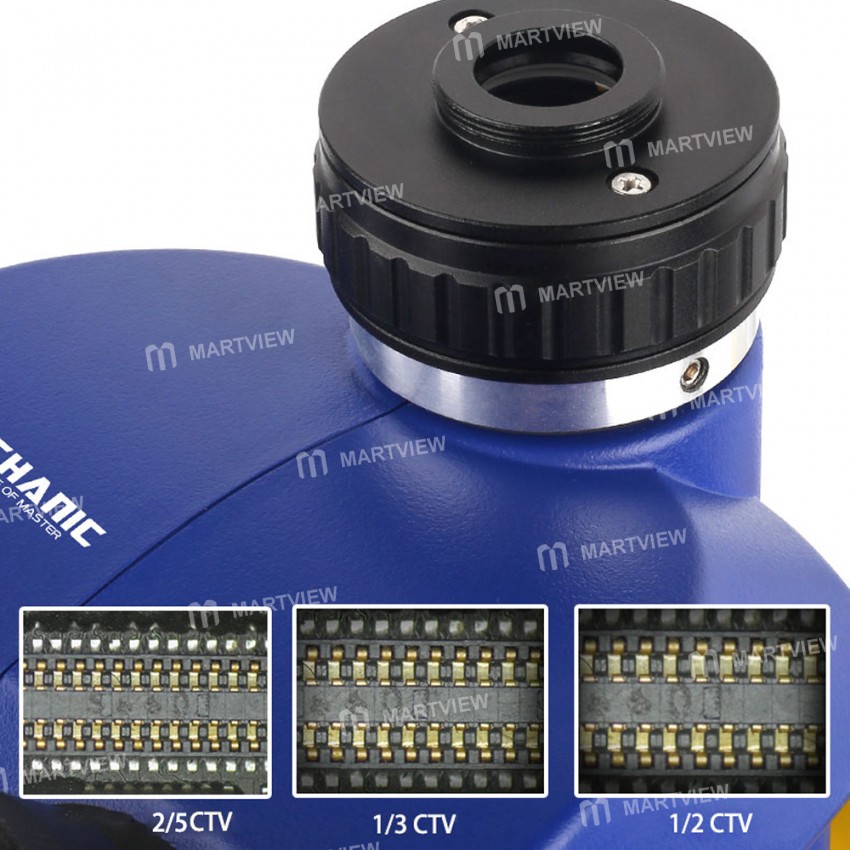

• CTV2/5 adapter, clearer image than ordinary TV interface, wider field of view, no vignetting

• Larger working space, standard 100mm working distance, giving more operation possibilities

• 10-level brightness adjustment Ultra-thin aluminum alloy shell, anti-drop, durable, small size

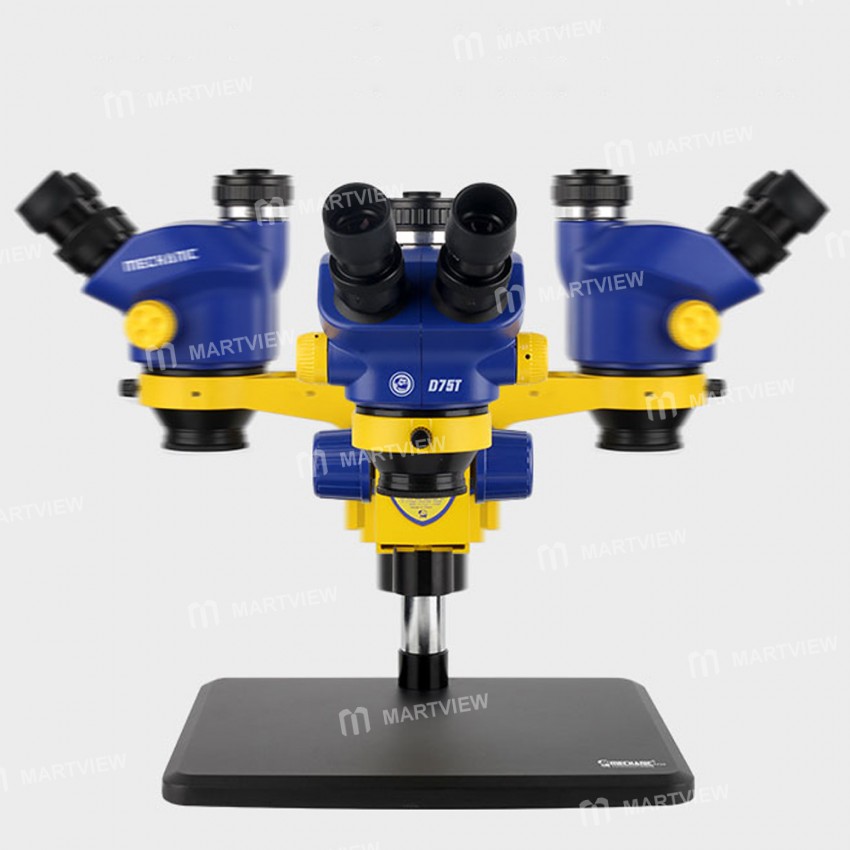

• The microscope body can be adjusted 360°, freeing up the workbench without affecting other operations

• Suitable for electronic maintenance, cultural relic identification, medical research, biological observation, etc.

Specification:

• Magnification: Standard configuration: 7X-50X, optional eyepiece and auxiliary objective can be extended to 3.5X-270X, continuous zoom

• Eyepieces: Standard configuration: WF10X22, high eye point wide-angle eyepiece, convenient for observers wearing glasses

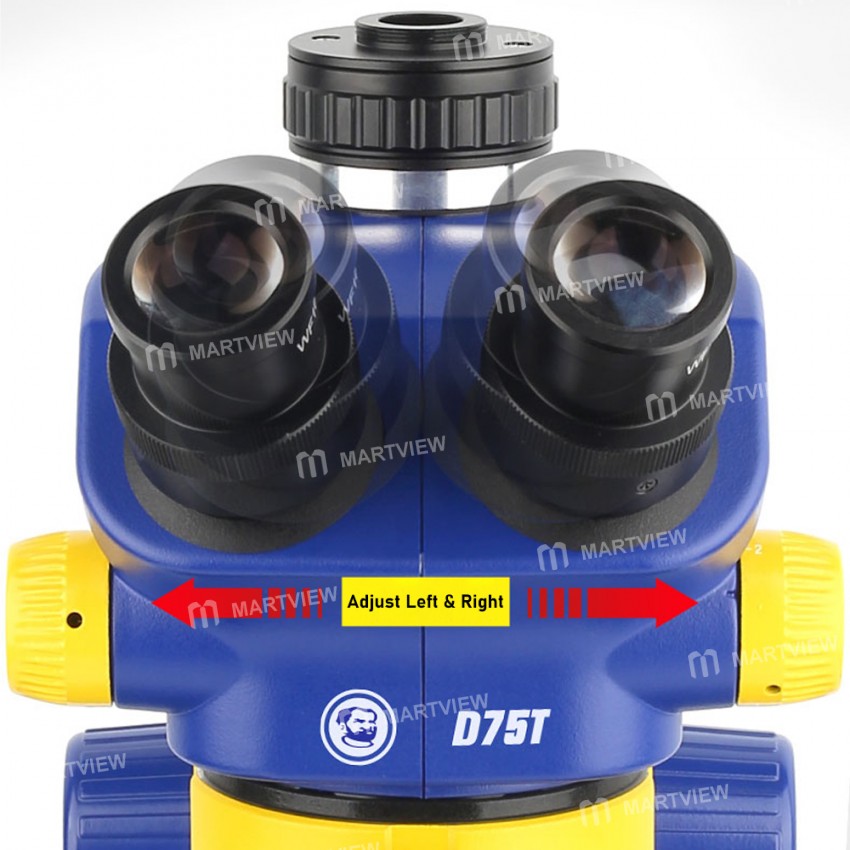

• Observation head: 45° tilt, 360° rotation, interpupillary distance 54-76MM; bilateral diopter adjustment (±5) diopter

• Objective lens: 0.7X--5X continuous zoom, the zoom ratio of the objective lens is 1:7.14, to ensure the parfocality of the image plane

• Auxiliary objective lens: 0.5X/0.7X/1X/1.5X/2X optional

• Focusing bracket: inner diameter 76mm, column aperture 32mm

• Working distance: 100mm

• Base: B11 base

• Lighting: LED Ring Light

• Dimensions: 200*273*240mm

• Column height: 240mm

Package includes:

• 1 x Trinocular microscope

• 1 x Microscope Base

• 1 x LED ring light

• 2 x WF10X/22 eyepiece

• 1 x CTV 2/5 Adapters
