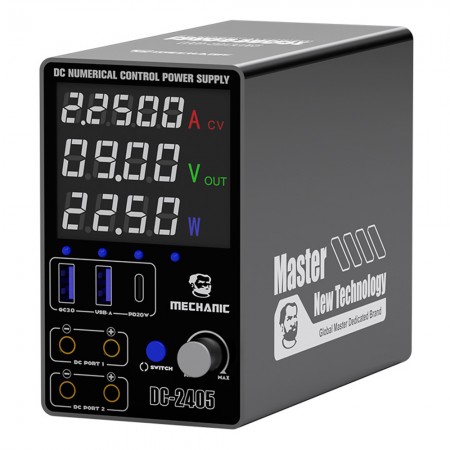

Mechanic DC-2405 Intelligent Temperature Control Dual-Channel DC Numerical Control Power Supply

Mechanic DC-2405 Intelligent Temperature Control Dual-Channel DC Numerical Control Power Supply

Features:

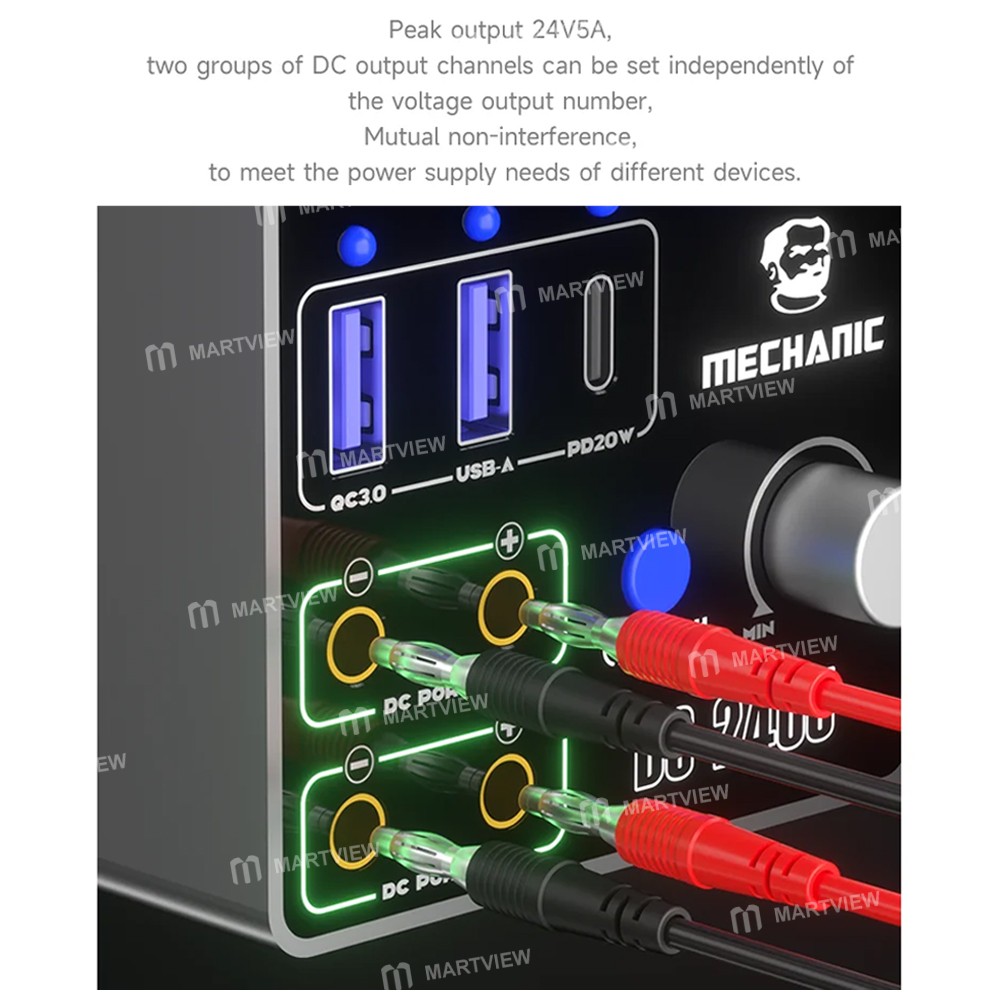

• Dual-channel DC output, peak output 24V/5A, two groups of DC output channels can be set independently of the voltage output number, mutual non-interference, to meet the power supply needs of different devices

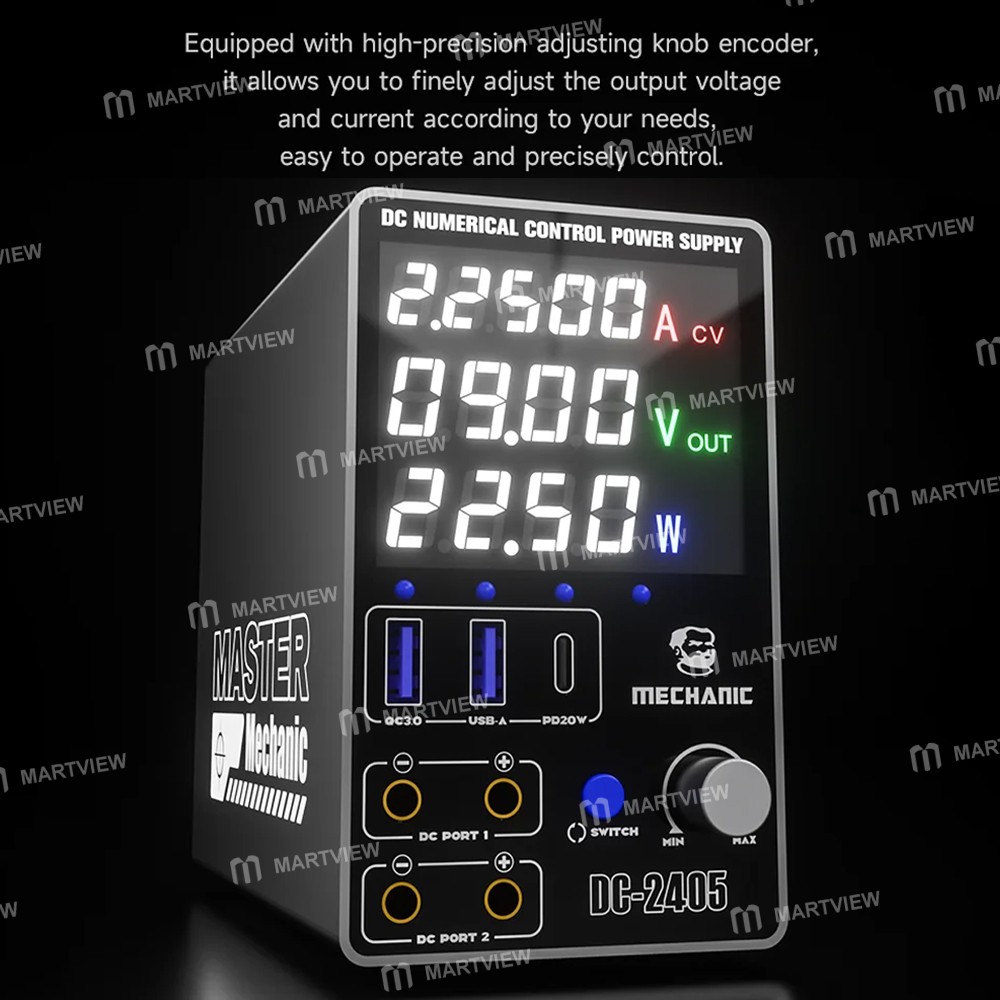

• Equipped with a high-precision adjusting knob encoder, it allows you to finely adjust the output voltage and current according to your needs, easy to operate and precisely control

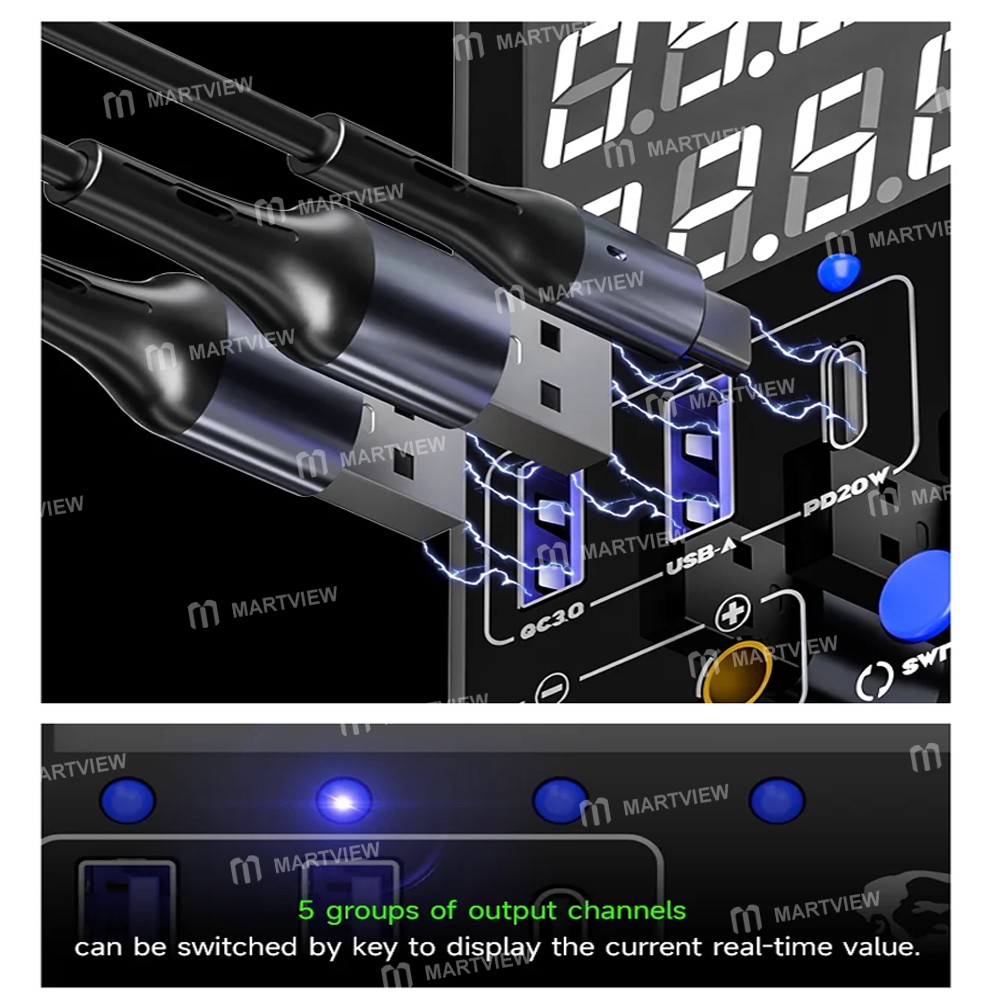

• Fast charging protocol output, equipped with three charging protocol ports, support PD3.1, QC3.0, USB-A charging protocol output

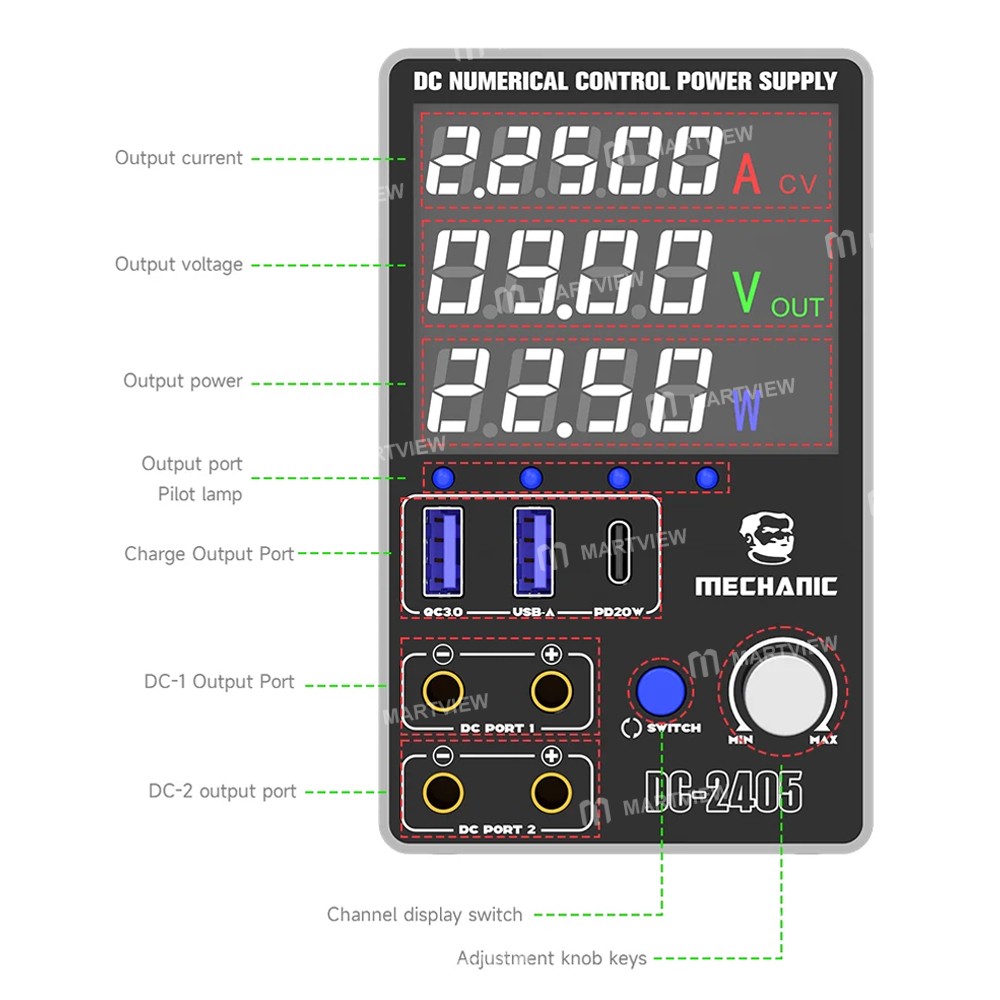

• 5 groups of output channels, can be switched by key to display the current real-time value

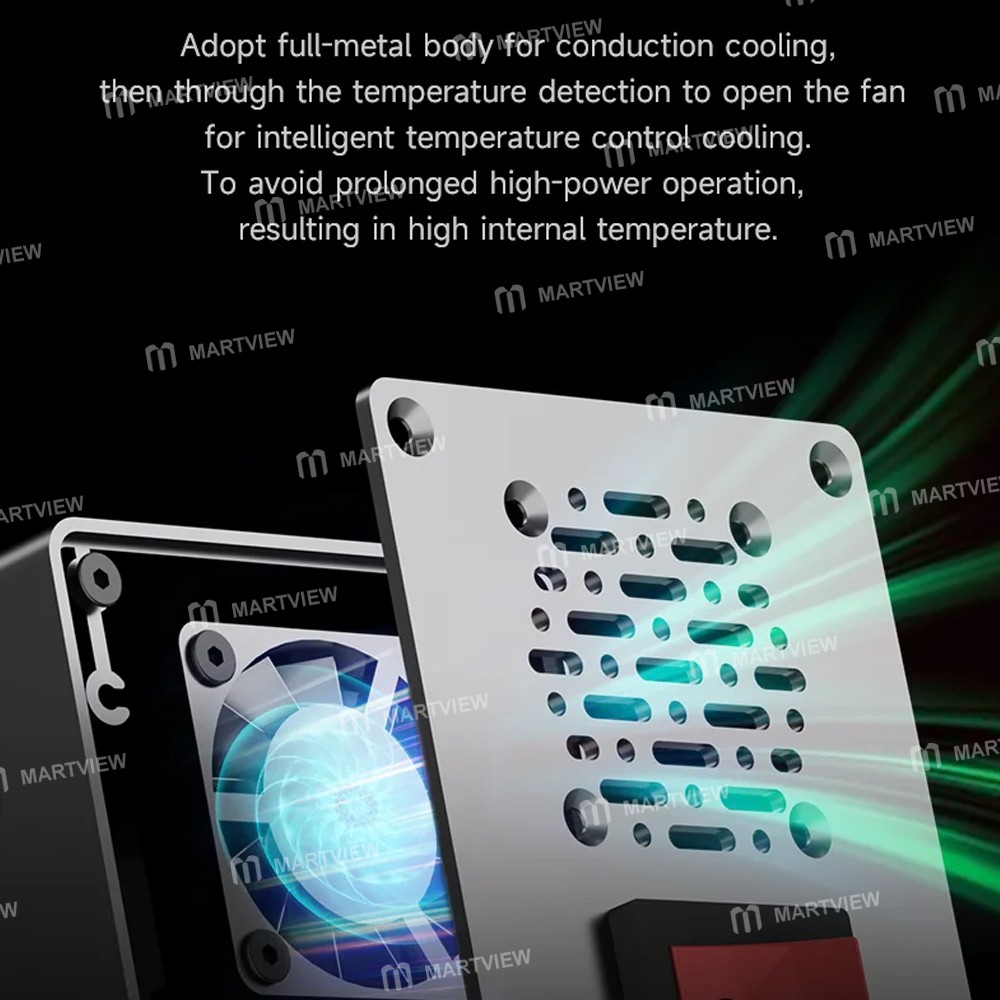

• Intelligent temp-control heat dissipation, adopt full-metal body for conduction cooling, then through the temperature detection to open the fan for intelligent temperature control cooling to avoid prolonged high-power operation, resulting in high internal temperature

• Built-in over-current, over-voltage, short-circuit, and other multiple protection mechanisms, to ensure that the output can be cut off in time under abnormal conditions, to protect the equipment and load from damage

Specification:

• Name: DC Numerical Control Power Supply

• Model: DC-2405

• Voltage: AC110V/220V

• Fuse: 3A (AC 220V)

• Output voltage: DC 0~24V

• Maximum output current: 5A

• Maximum instantaneous current: 7A(1 second)

• Maximum output power: 120W

• Current display accuracy: ±1mA

• Voltage adjustment step: 10mV

• Size: 137*118*72mm

• Net Weight: 795g

Package includes:

• 1 x Power Supply

• 2 x Clip Cable

• 1 x Power Cable
