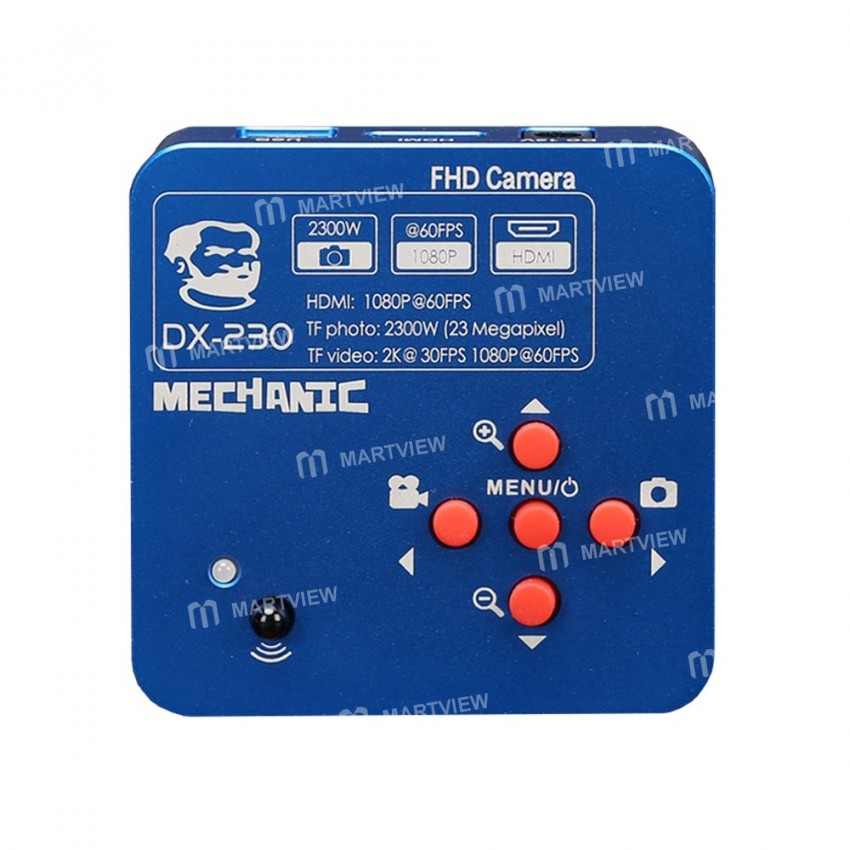

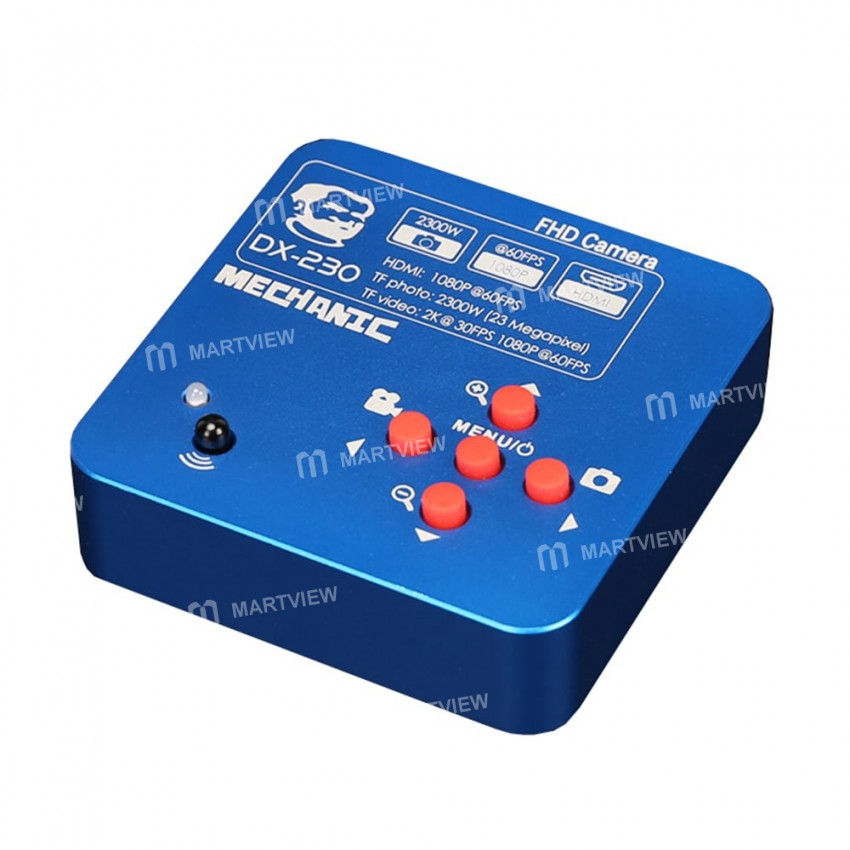

Mechanic DX-230 Professional HD Microscope Camera – 1080P, 60FPS, 23MP, HDMI & USB, 2300W

Mechanic DX-230 1080P 60FPS 2300W HDMI/USB 23MP Microscope Professional HD Camera

Key Features: 23 MP sensor, 1080p 60 FPS HDMI output, 30 FPS USB streaming, 8× digital zoom, dual‑output HDMI & USB, remote control, TF‑card up to 64 GB.

Technical Specifications:

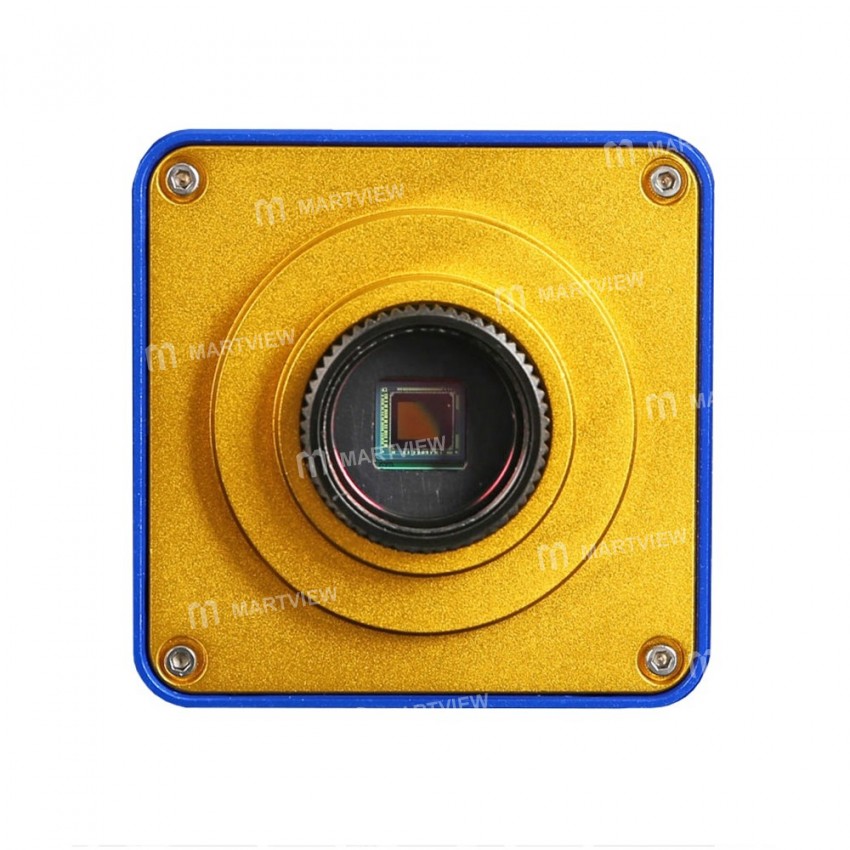

• Model: Panasonic 2300W CMOS sensor

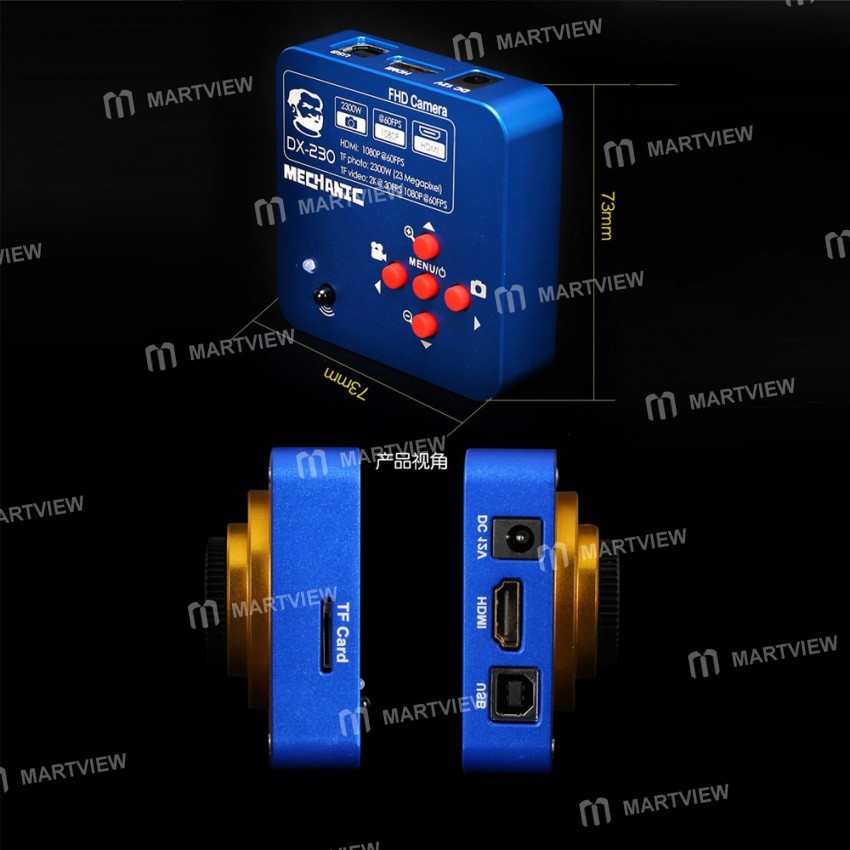

• Dimensions: approx. 7.3 × 7.3 × 3.0 cm
• Image sensor size: 1/2.3 inches
• Effective pixels: 23 megapixels
• Pixel size: 1.35 × 1.35 µm
• Frame rate: 30 fps (USB), 60 fps (HDMI)
• HDMI resolution: 1920 × 1080 @ 60 fps
• USB video resolution: 1920 × 1080 @ 30 fps (also 1280 × 720 @ 30 fps, 640 × 480 @ 30 fps)
• Video formats: MP4, MOV (recorded to TF card)
• TF‑card slot: up to 64 GB
• Digital zoom: 8×
• USB interface: Standard USB 2.0 (Type B)
• Output interfaces: HDMI (Type A), USB (Type B), TF‑card
• Photo resolution: 23 MP
• Video resolution: 2K @ 30 fps, 1080p @ 60 fps
• HDMI output ratio: supports 4:3, 16:9, 16:10 (no distortion)
• White balance: Auto / Manual / One‑button RGB individual adjustment
• Exposure: Manual / Automatic
• Image adjustments: Sharpness, Contrast, Saturation (adjustable)
• Effects: Black‑and‑white, Negative
• Mirror: Horizontal & vertical flip
• Language: Chinese / English
• Remote control: Supported – video recording without screen shake
• Input voltage: DC 12 V (supports 5‑9 V) with 55‑21 mm large connector
• Power consumption: Max 0.15 W (12 V 0.12 A)

Packing Includes:
1 × Camera
1 × Adapter
1 × Remote Control
1 × B‑type Square USB Cable
1 × Manual
