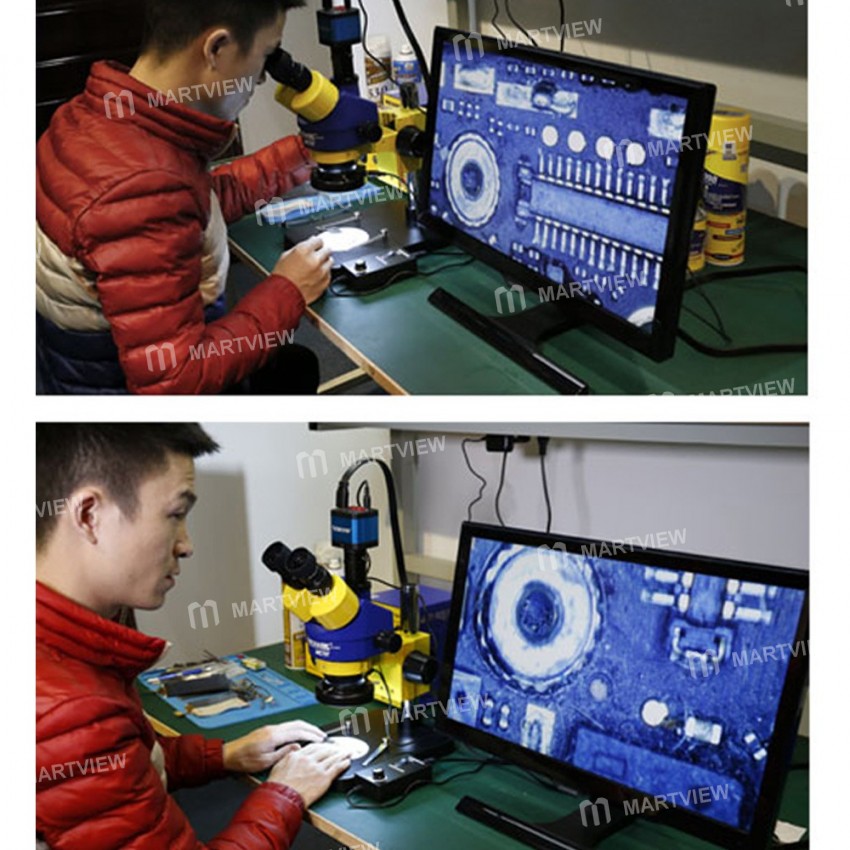

MECHANIC MC75T-B1 7-45X Trinocular Stereo Microscope With Camera Display Big Base Extension Holder LED Light Stereo Zoom Microscope for Phone MainBoard Repair Electronics Industry

$669.00
In stock
SKU
MV103344
  • Buy 3 for $649.60 each and save 3%
  • Buy 5 for $636.22 each and save 5%
  • Buy 10 for $616.15 each and save 8%

MECHANIC MC75T-B1 7-45X Trinocular Stereo Microscope With Camera Display Big Base Extension Holder LED Light Stereo Zoom Microscope for Phone MainBoard Repair Electronics Industry

Feature:

  • 7X-45X zoom magnification power with crisp sharp images
  • With LED Light,Continuously adjustable
  • With Display
  • With HD Camera, record every detail.
  • Widefield of view
  • Sturdy all-metal pillar stand
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true color microscope images
  • Large working distance
  • Sturdy all-metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Adjustable interpupillary distance
  • Adjustable bracket, lifting range:50mm; easy to operate
  • Binocular Head, 45° inclined, Interpupillary Adjustment 54-76mm
  • Eyepiece:WF10X/20mm High Eyepiece
  • Effective distance: 100mm, the use of auxiliary objective lens can be extended 26mm-287mm
  • Auxiliary objective lens: 0.5X / 165MM 1.5X / 45MM 2X / 30MM (not include)
  • Magnification:7X-45X

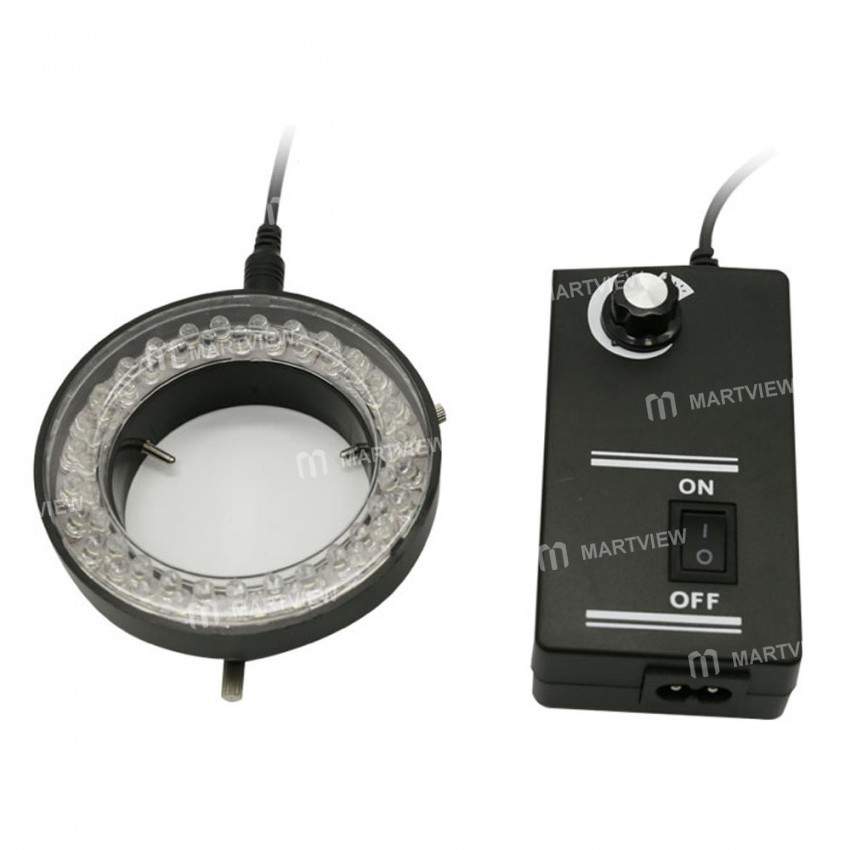

LED Light

  • Diameter size: 60mm
  • Outer diameter size: 94mm
  • Output voltage: AC90-240W
  • Maximum output power: 4.5W
  • Number of bulbs: 56
  • Brightness of each bulb: MAX3500 mcd
  • Maximum light: 60000 lux
  • Working distance: 40-160mm

HD Camera and Display

  • Size: 56mm x 53mm x 53mm
  • Image Sensor: 14 megapixel Panasonic sensor 1 / 2.3 inch
  • USB interface: standard 2.0 interface
  • TF card: maximum support 32G (not included), click here to buy TF card
  • Color: R / G / B adjustable
  • Clarity: Full HD
  • Pixel size: 1.43 * 1.43um
  • Support: Freeze / OSD / Camera / Video
  • Display size: 11.6 inches
