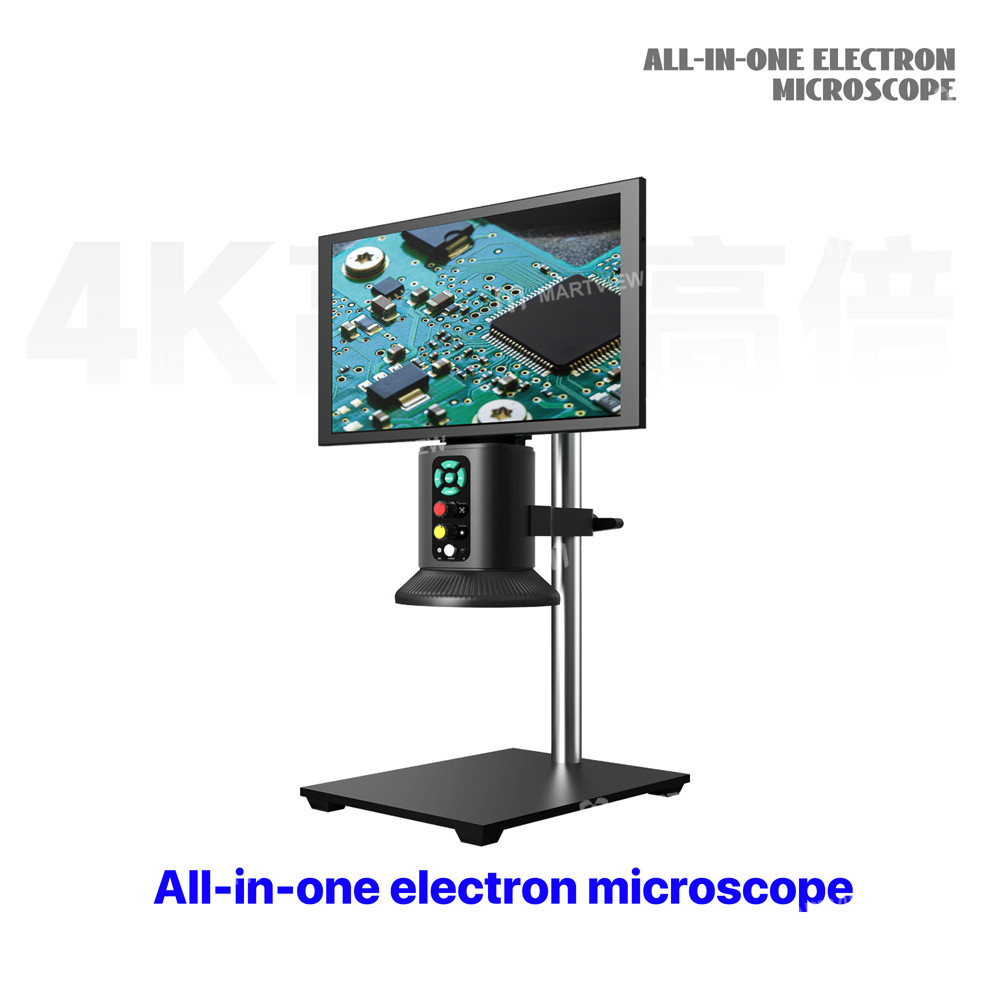

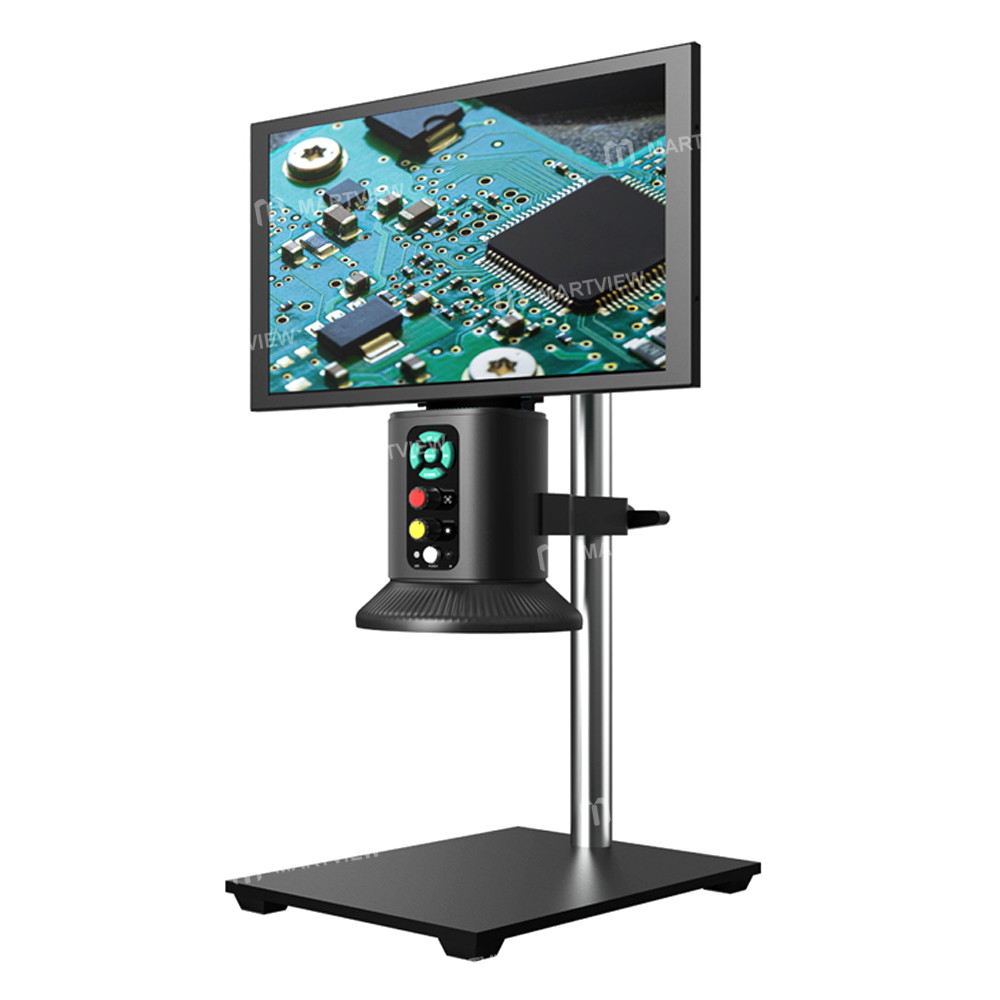

Mechanic MFC Series All-in-One Electron Microscope with Display for PCB Repair

Mechanic MFC Series All-in-One Electron Microscope with Display for PCB Repair

Features:

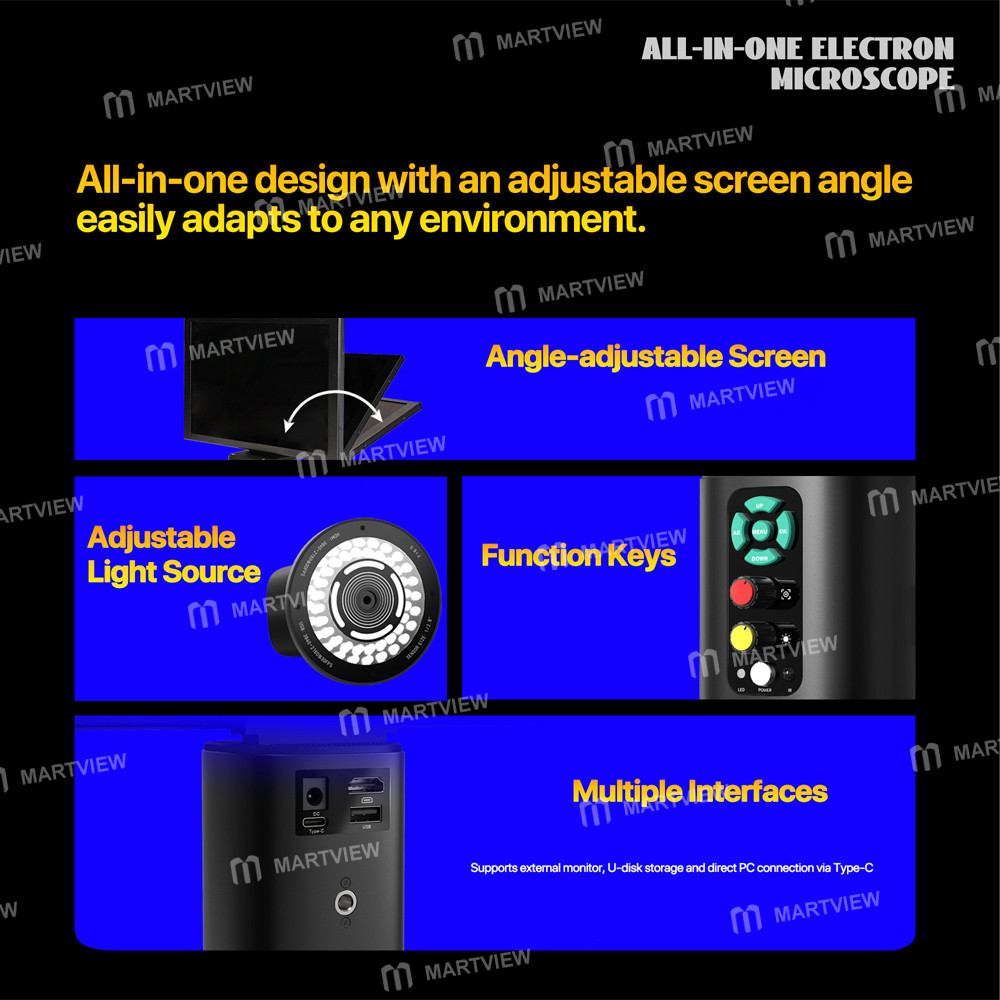

• All-in-one design + adjustable screen angle, easily adapts to various environments

• Multiple ports support external monitors, USB flash drive storage, and direct Type-C connection to a computer

• Features a 10.1-inch IPS HD screen with clear and detailed image quality

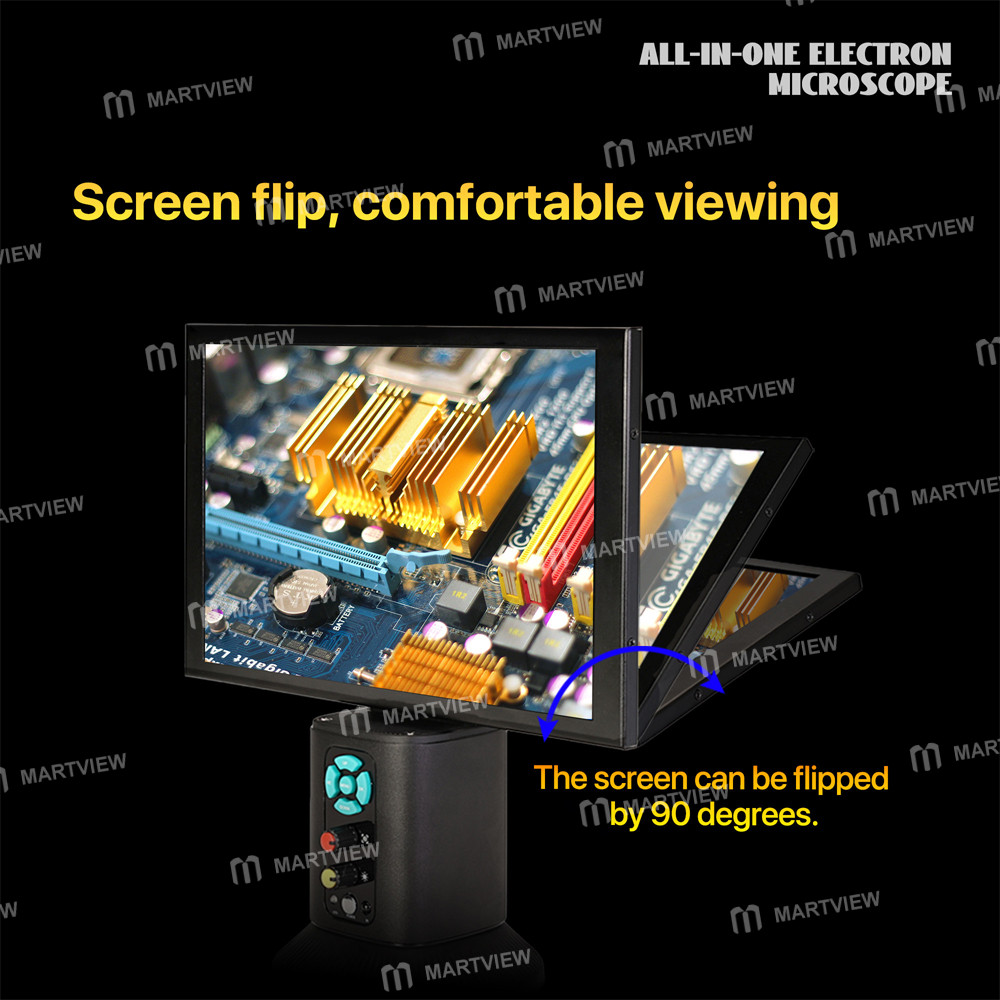

• Screen can be flipped 90° for convenient viewing

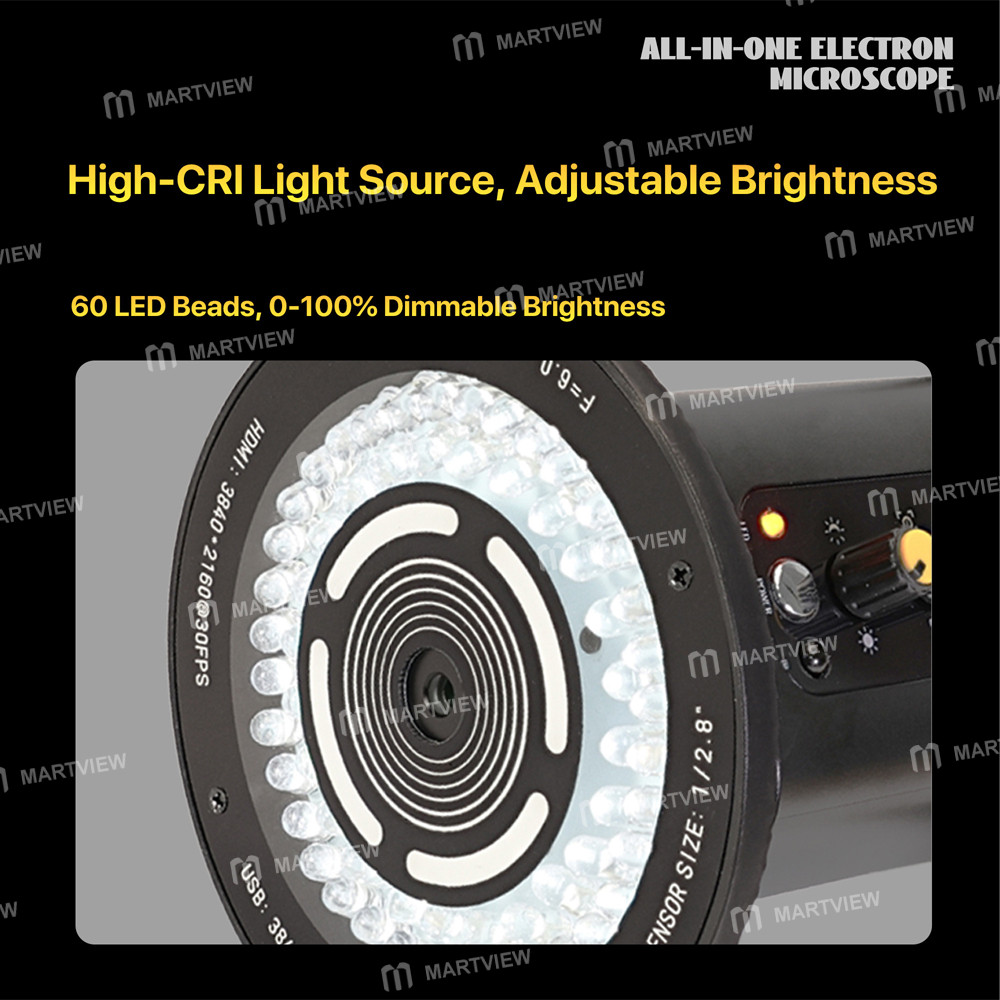

• High-intensity illumination with adjustable brightness; 60 LED bulbs, brightness adjustable from 0–100%

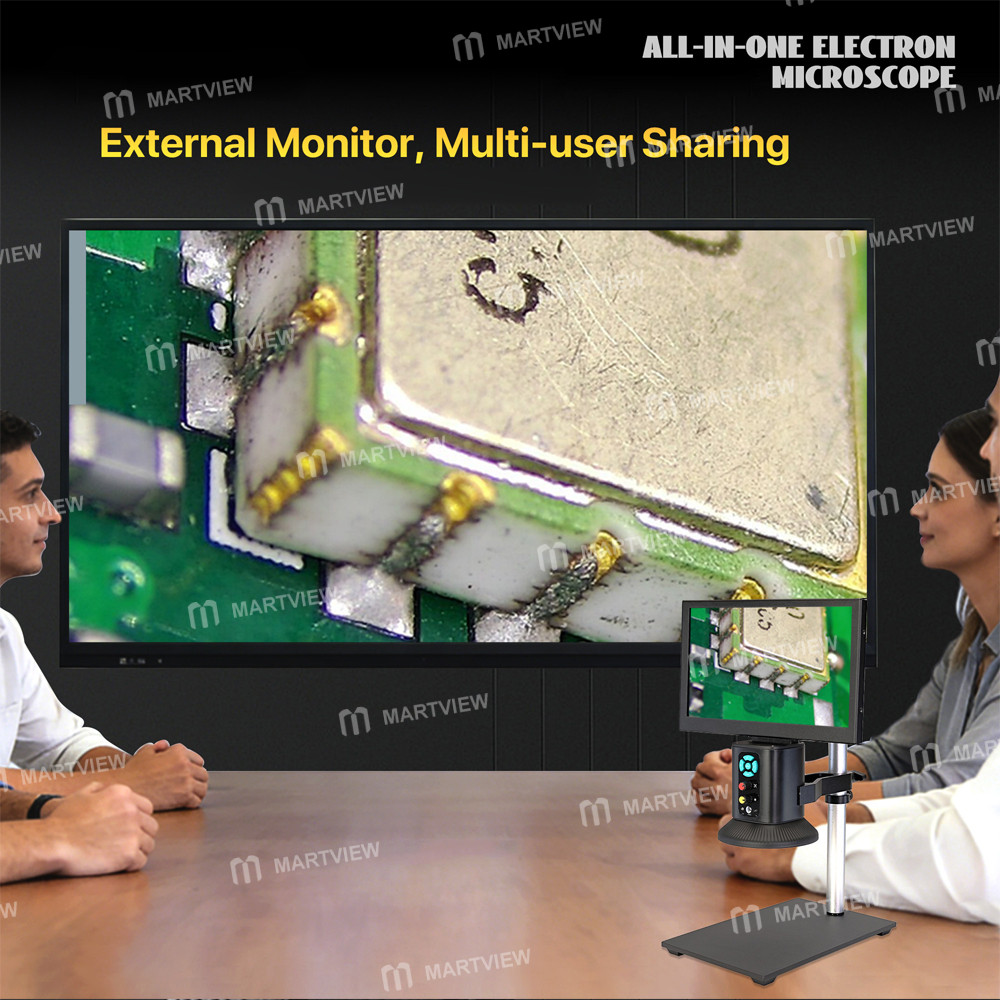

• Supports external monitors for multi-user sharing

• Connect to a computer for measurements; install measurement software to measure dimensions, take photos and videos, and transfer/store data (software included free; Windows 10 or later is recommended)

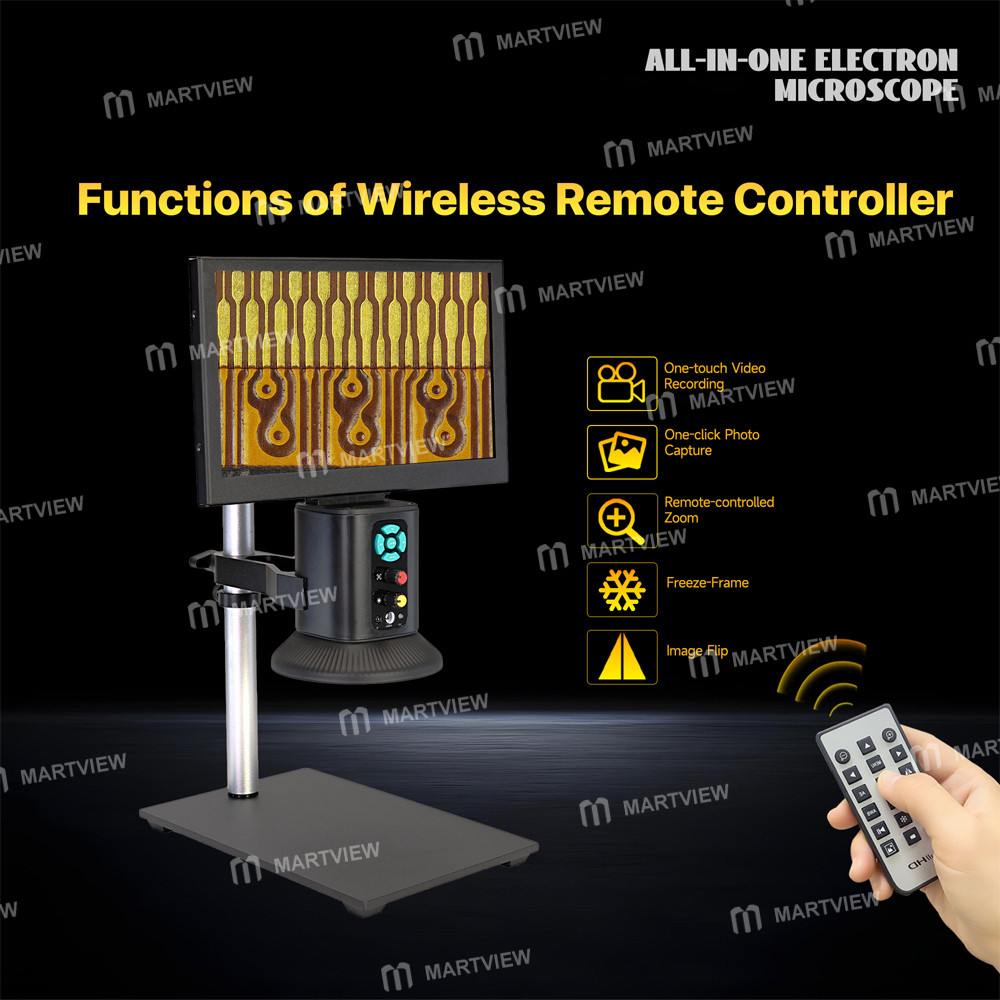

• Wireless remote control functions: one-touch video recording, one-touch photo capture, remote zoom, and image freeze. Image flip

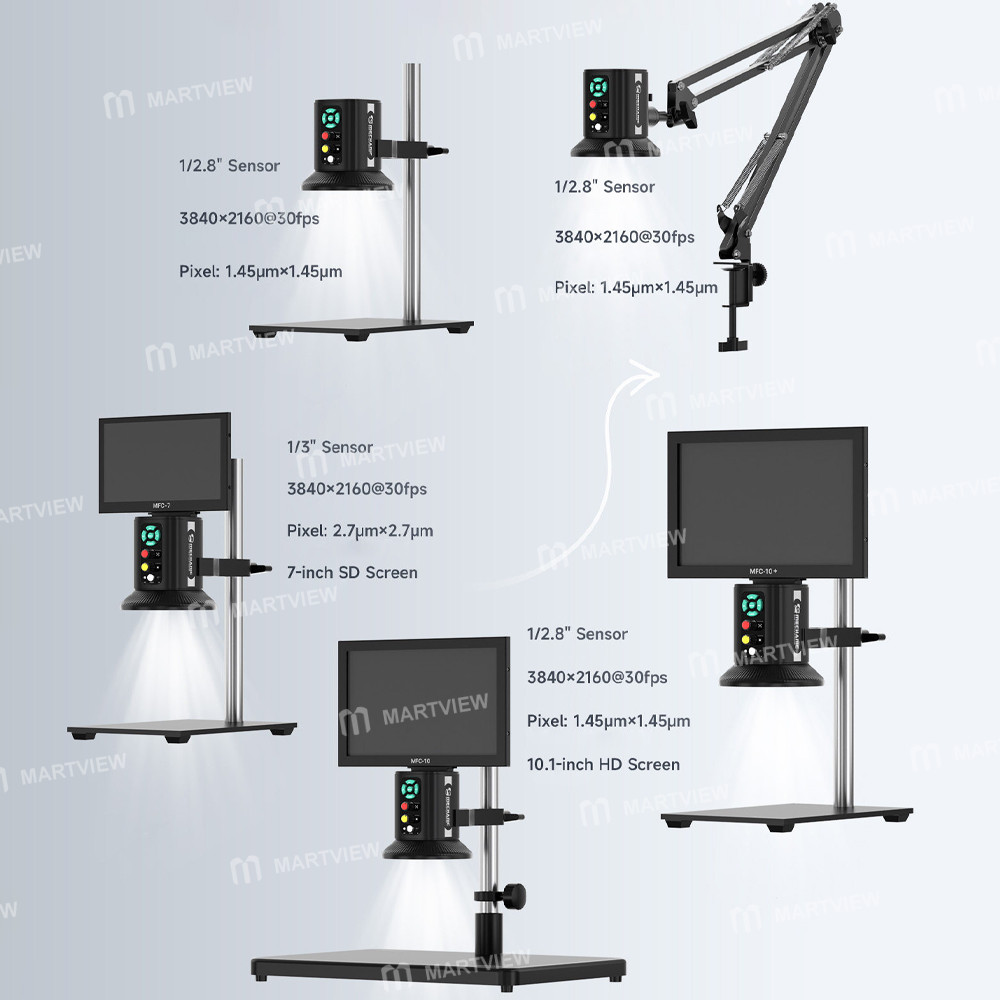

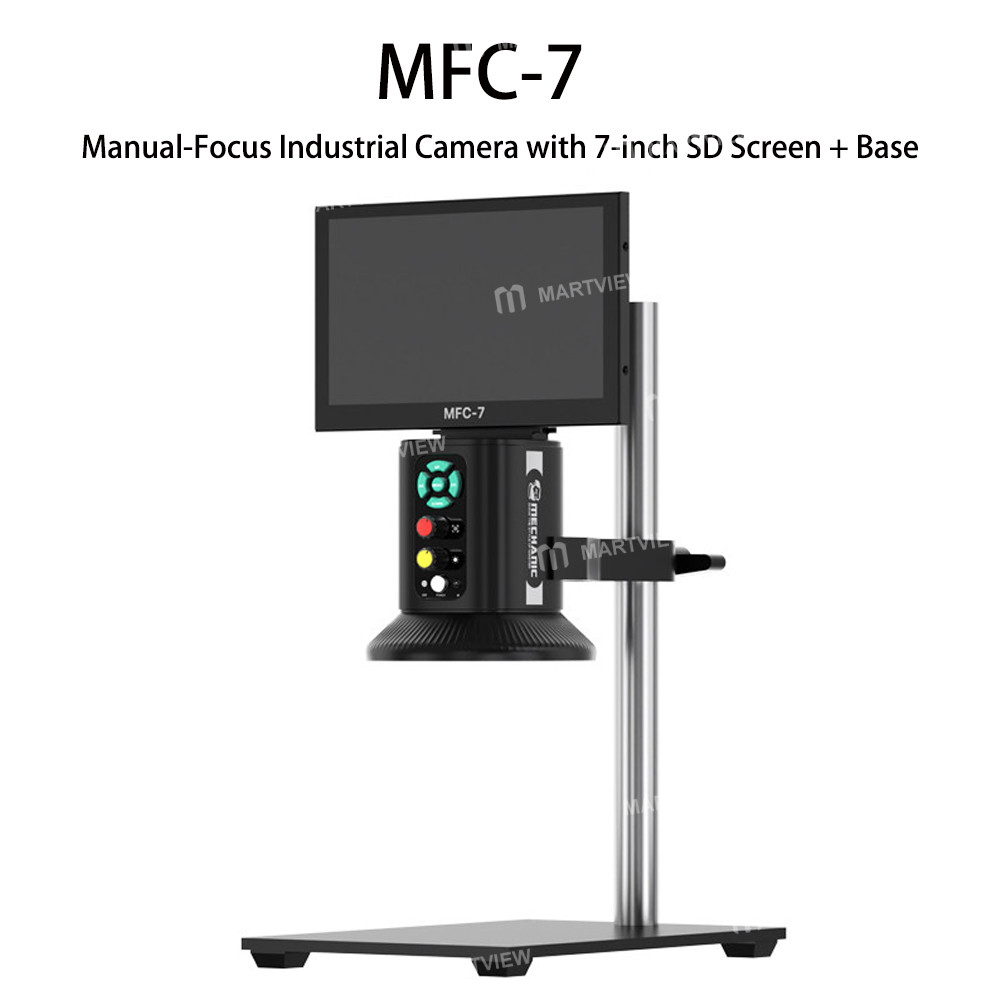

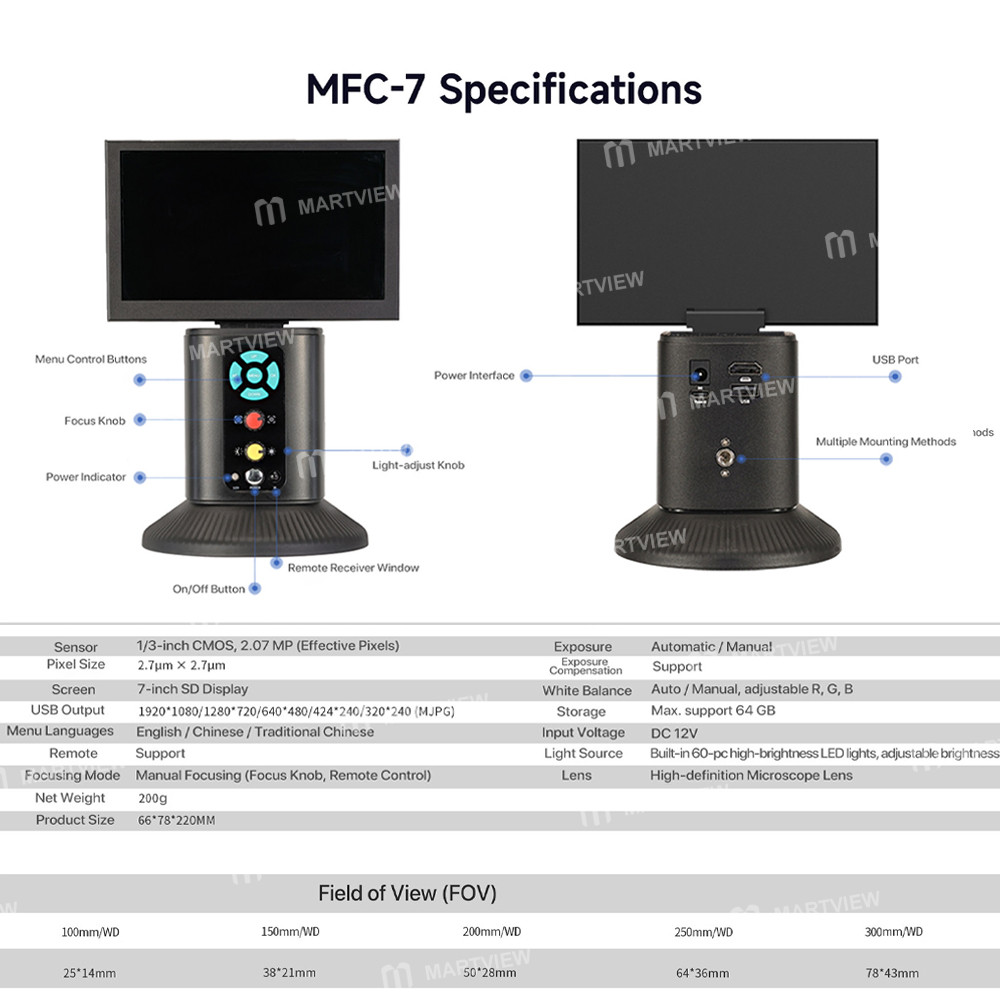

MFC-7 Specifications:

• Sensor: 1/3-inch CMOS sensor, 2.07-megapixel CMOS sensor

• Exposure: Auto/Manual

• Focusing Method: Manual focus (focus knob, remote control)

• Lens: HD microscope lens

• Pixel Size: 2.7 μm × 2.7 μm

• Exposure Compensation: Supported

• Screen: 7-inch SD display

• White Balance: Auto/Manual; supports adjustable R, G, B

• USB Output: 1920 × 1080 / 1280 × 720 / 640 × 480 / 424 × 240 / 320 × 240 (MJPG)

• Storage: Supports up to 64GB

• Menu Languages: English / Chinese / Traditional Chinese

• Input Voltage: 12V DC

• Remote Control: Supported

• Light Source: Built-in 60 high-brightness LEDs, adjustable brightness

• Net Weight: 200 grams

• Product Dimensions: 66 × 78 × 220 mm

• Field of View (FOV): 100 mm working distance (WD): 25 × 14 mm; 150 mm WD: 38 × 21 mm; 200 mm WD: 50 × 28 mm; 250 mm WD: 64 × 36 mm; 300 mm WD: 78 × 43 mm

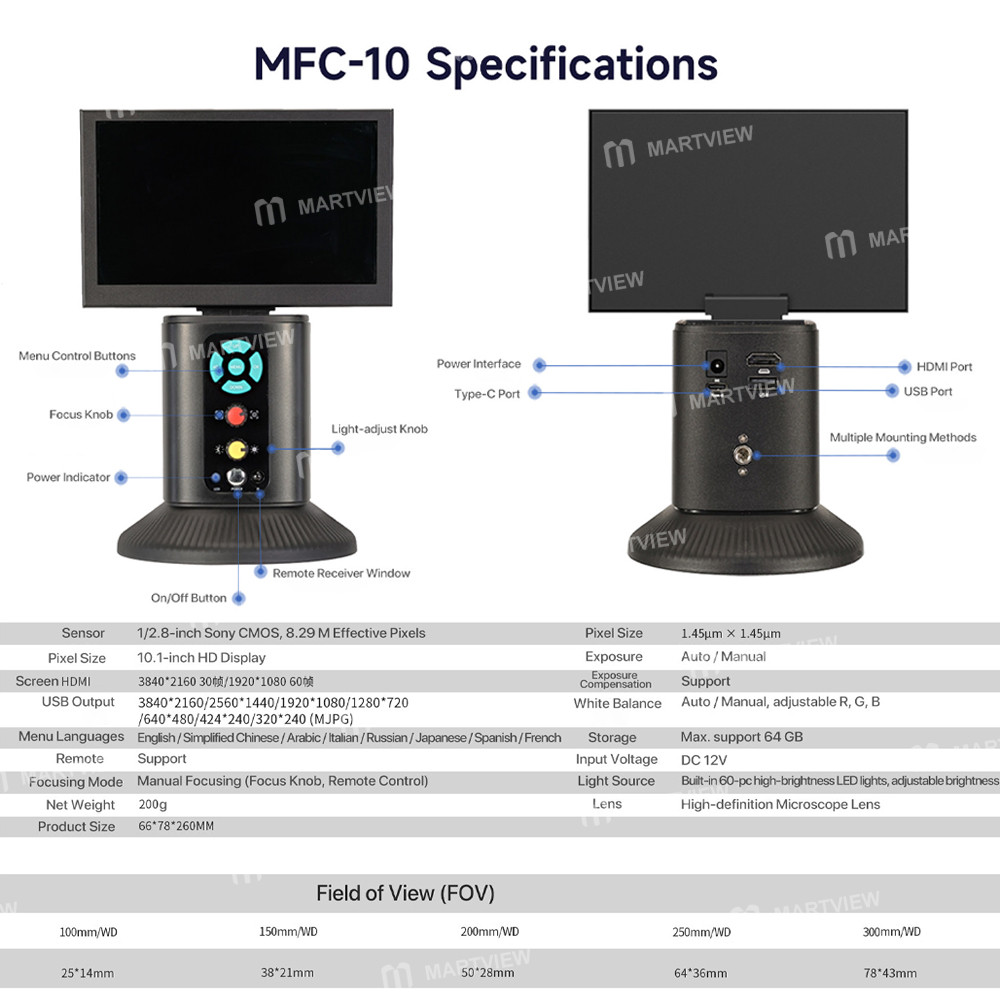

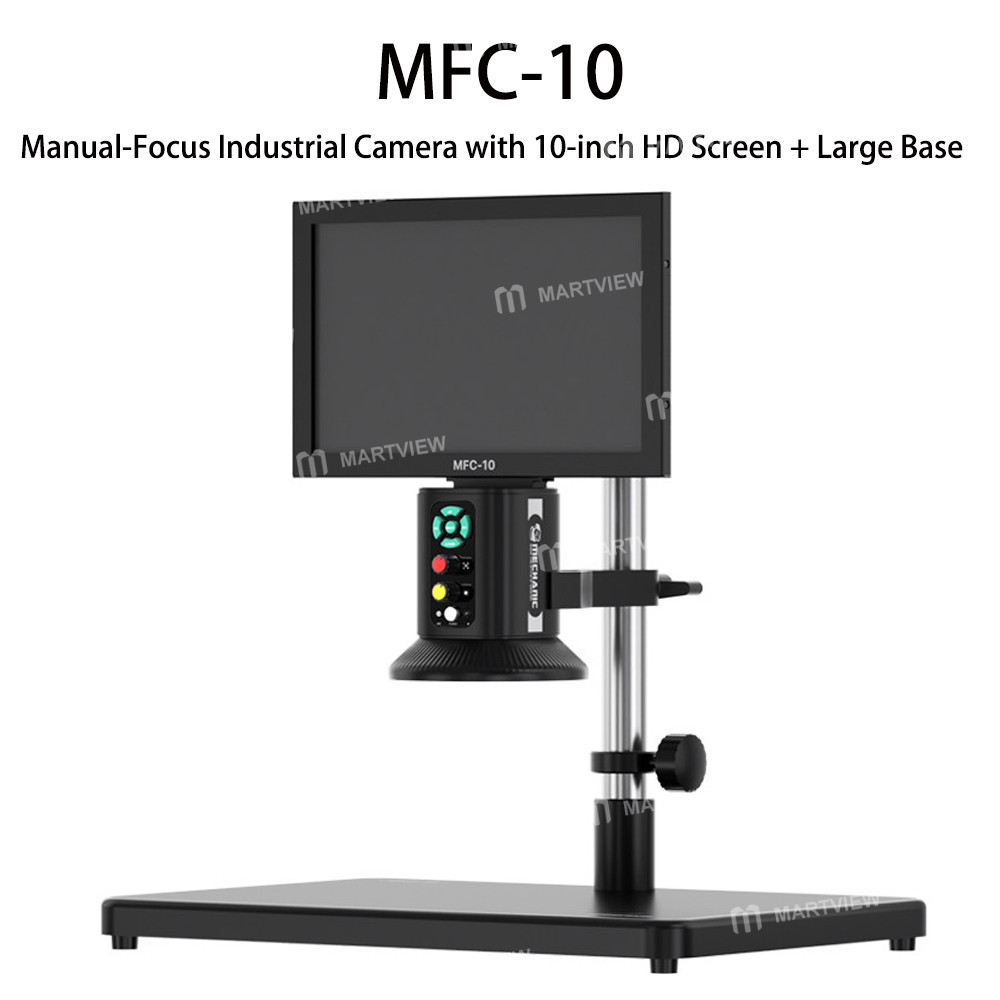

MFC-10 Specifications:

• Sensor: 1/2.8-inch Sony 8.29-megapixel CMOS sensor

• Lens: High-definition microscope lens

• Pixel size: 1.45 μm × 1.45 μm

• Display: 10.1-inch high-definition display

• Exposure: Auto/Manual

• Focusing Method: Manual focus (focus knob, remote control)

• HDMI Output: 3840×2160@30 fps / 1920×1080@60 fps

• Exposure Compensation: Supported

• USB Output: 3840×2160 / 2560×1440 / 1920×1080 / 1280×720 / 640×480 / 424×240 / 320×240 (MJPG)

• White Balance: Auto/Manual; supports adjustable R, G, and B

• Menu Languages: English/Chinese/Arabic/Italian/Russian/Japanese/Spanish/French

• Storage: Supports up to 64GB

• Remote Control: Supported

• Input Voltage: 12V DC

• Light Source: Built-in 60 high-brightness LEDs, adjustable brightness

• Net Weight: 200 grams

• Product Dimensions: 66 × 78 × 260 mm

• Field of View (FOV): 100 mm working distance (WD): 25 × 14 mm; 150 mm WD: 38 × 21 mm; 200 mm WD: 50 × 28 mm; 250 mm WD: 64 × 36 mm; 300 mm WD: 78 × 43 mm

Package includes:

• According to your choice
