Mechanic MP-2405 24V / 5A Three-channel Digital Adjustable Linear DC Power Supply with Pointer Meter

Mechanic MP-2405 24V / 5A Three-channel Digital Adjustable Linear DC Power Supply with Pointer Meter

Features:

• Mechanical MP-2405 digital curve power supply, high sensitivity mechanical pointer/high brush current curve, three-channel digital synchronous display

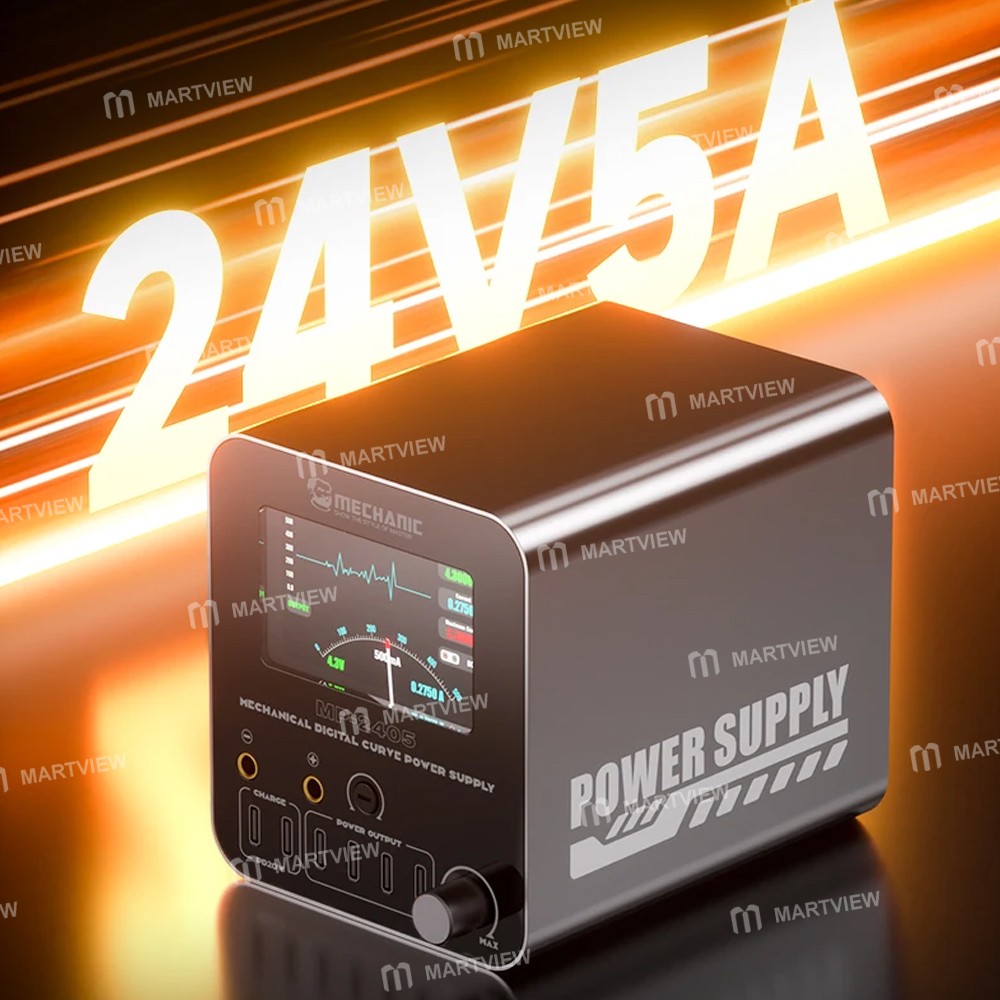

• 24V/5A Output Power: Adjustable DC power supply, peak output power 24V/5A

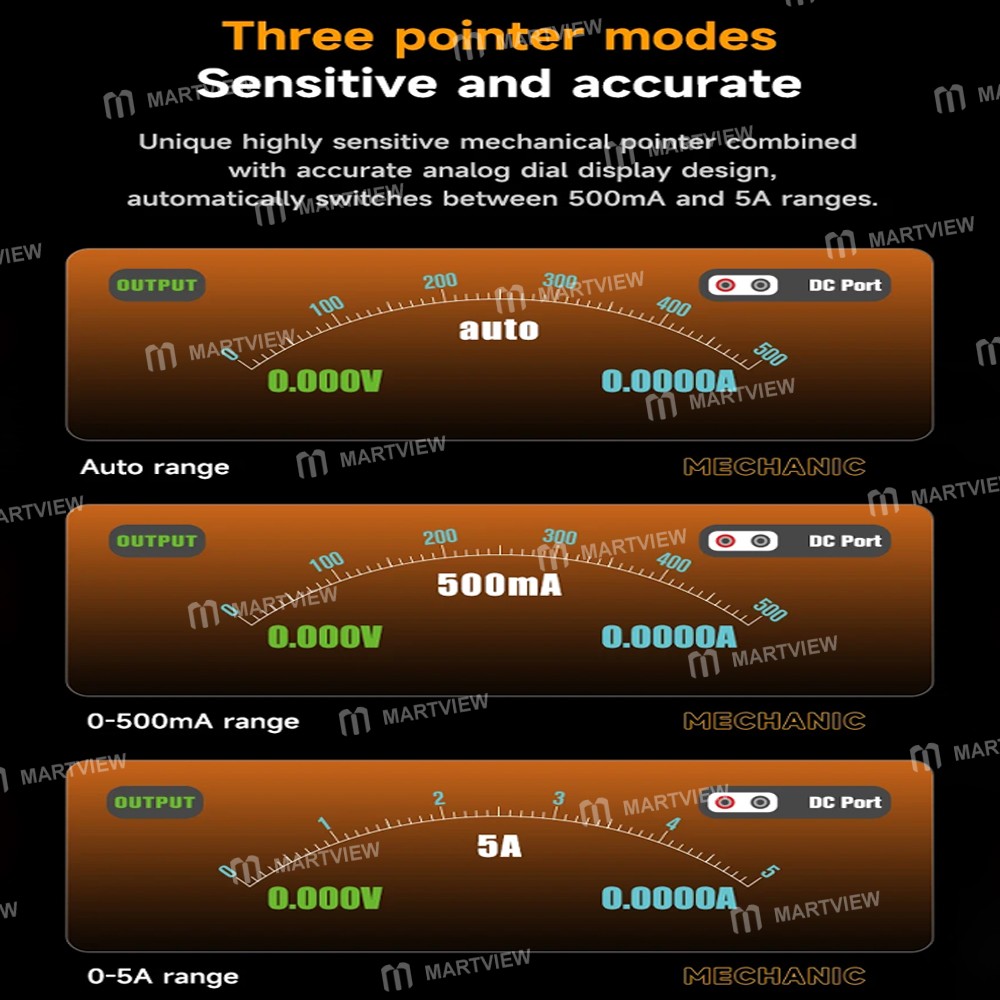

• Three pointer modes, Sensitive and accurate: Unique highly sensitive mechanical pointer combined with accurate analog dial display design, automatically switches between 500mA and 5A ranges

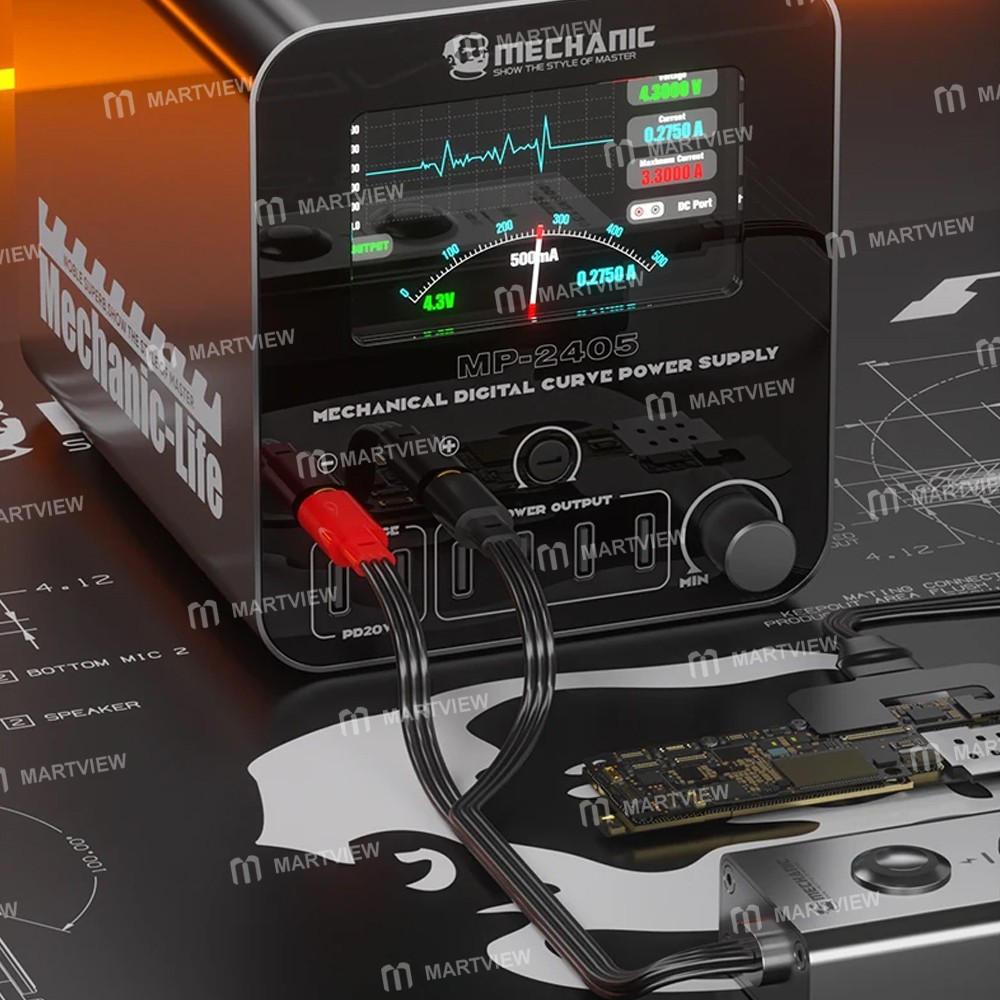

• 25 seconds Current curve change: Can clearly capture 25 seconds of current runout changes, better use of experience analysis to determine the fault

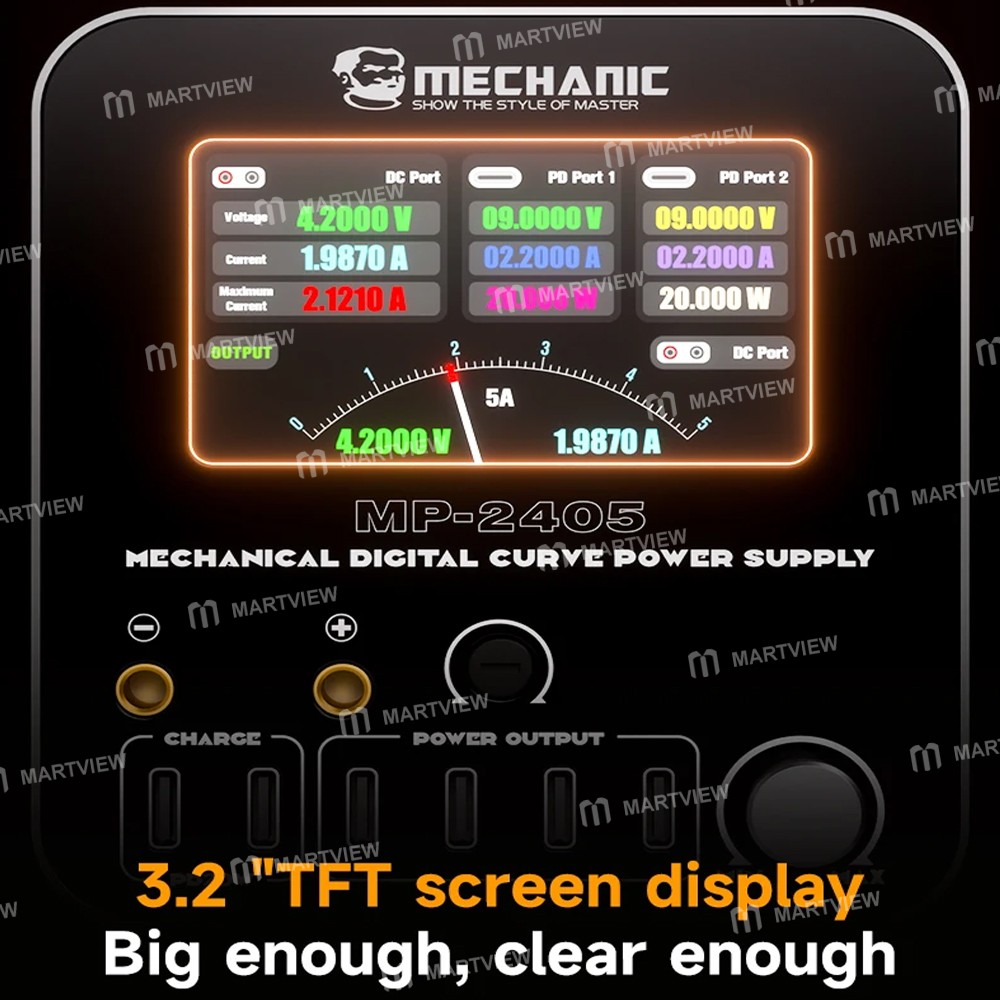

• The 3.2-inch TFT screen display is big enough and clear enough: It has a high bit rate display, a fast response to the high brush screen current curve, and an accurate view of current, voltage, current curve, and charging power display

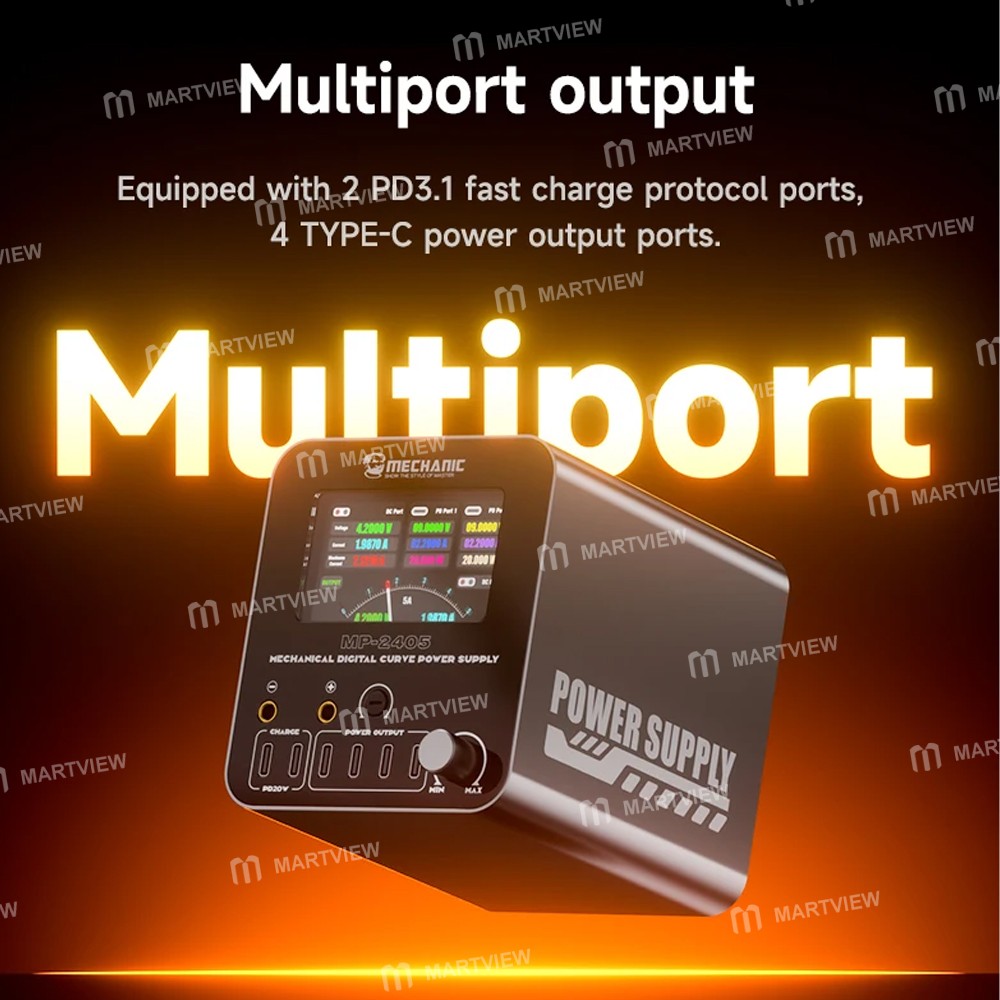

• Multiport output: Equipped with 2 PD3.1 fast charge protocol ports, 4 Type-C power output ports

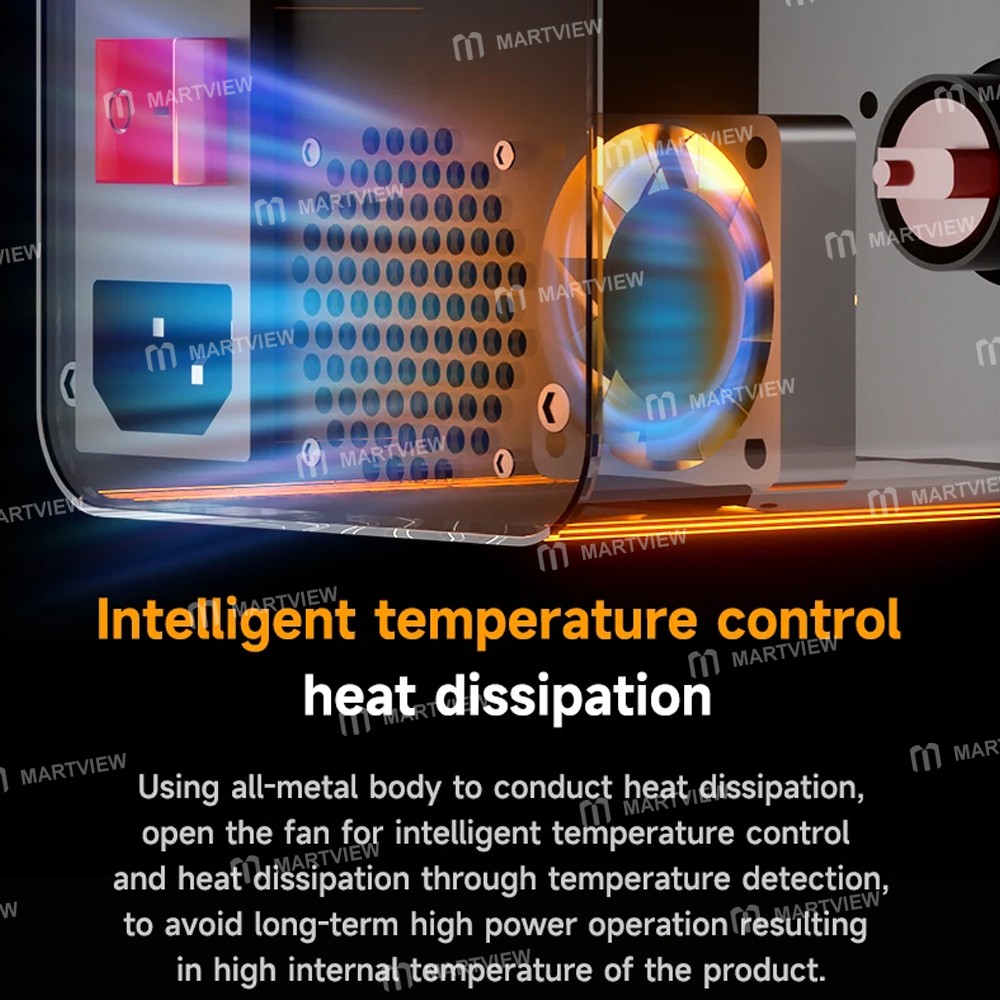

• Intelligent temperature control heat dissipation: Using an all-metal body to conduct heat dissipation, open the fan for intelligent temperature control and heat dissipation through temperature detection, to avoid long-term high power operation resulting in high internal temperature of the product

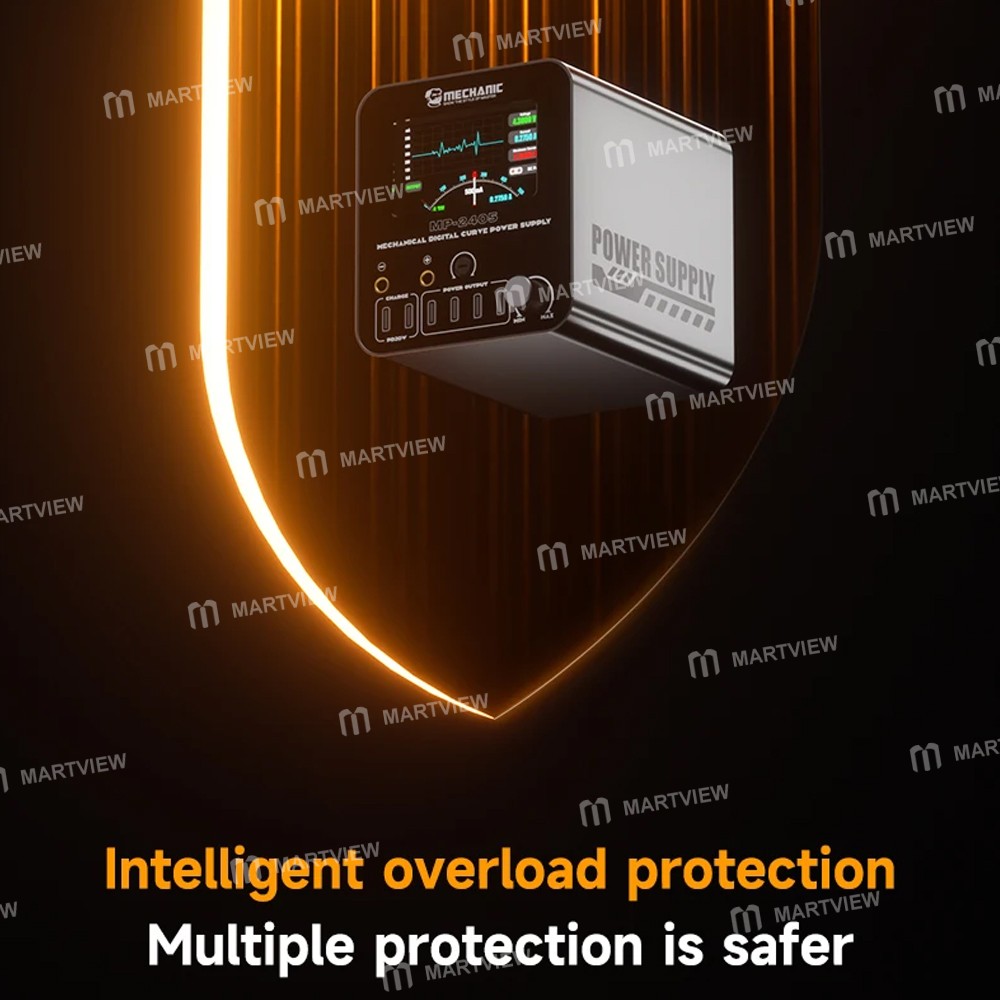

• Intelligent overload protection, Multiple protection is safer: Built-in multiple protection mechanisms, such as overcurrent, overvoltage, and short circuit, ensure that the output can be cut off in time under abnormal conditions to protect the device and load from damage

Specification:

• Name: Mechanical Digital Curve Power Supply

• Model: MP-2405

• Voltage: AC110V/220V

• Power fuse: 3A(220V AC)

• Output voltage range: DC 0-24V

• Maximum output current: 5A

• Maximum instantaneous current: 7A (1 second)

• Maximum output power: 120W

• Current display accuracy: ±1mA

• Voltage adjustment step: 10mV

• Product size: 125*98*110mm

• Net weight: 0.9kg

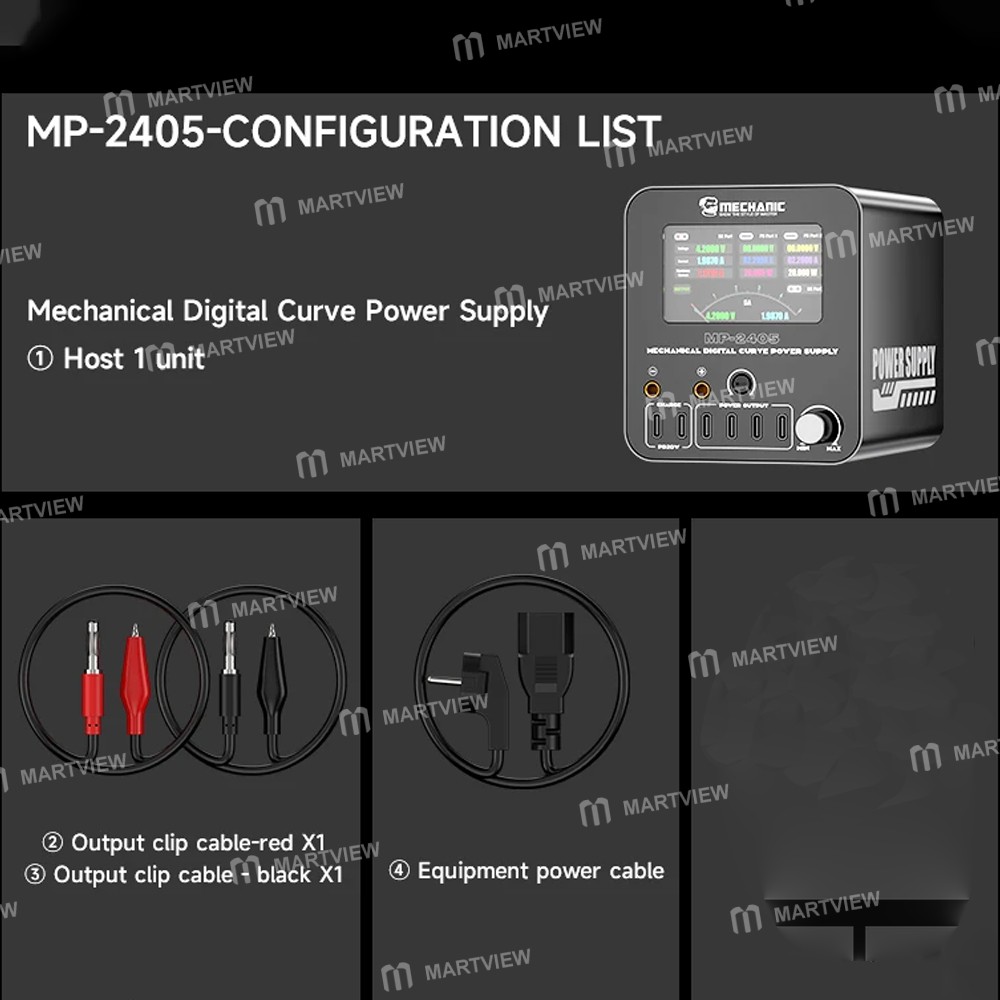

Package includes:

• 1 x Power Supply

• 1 x Output Clip Cable

• 1 x Power Cable
