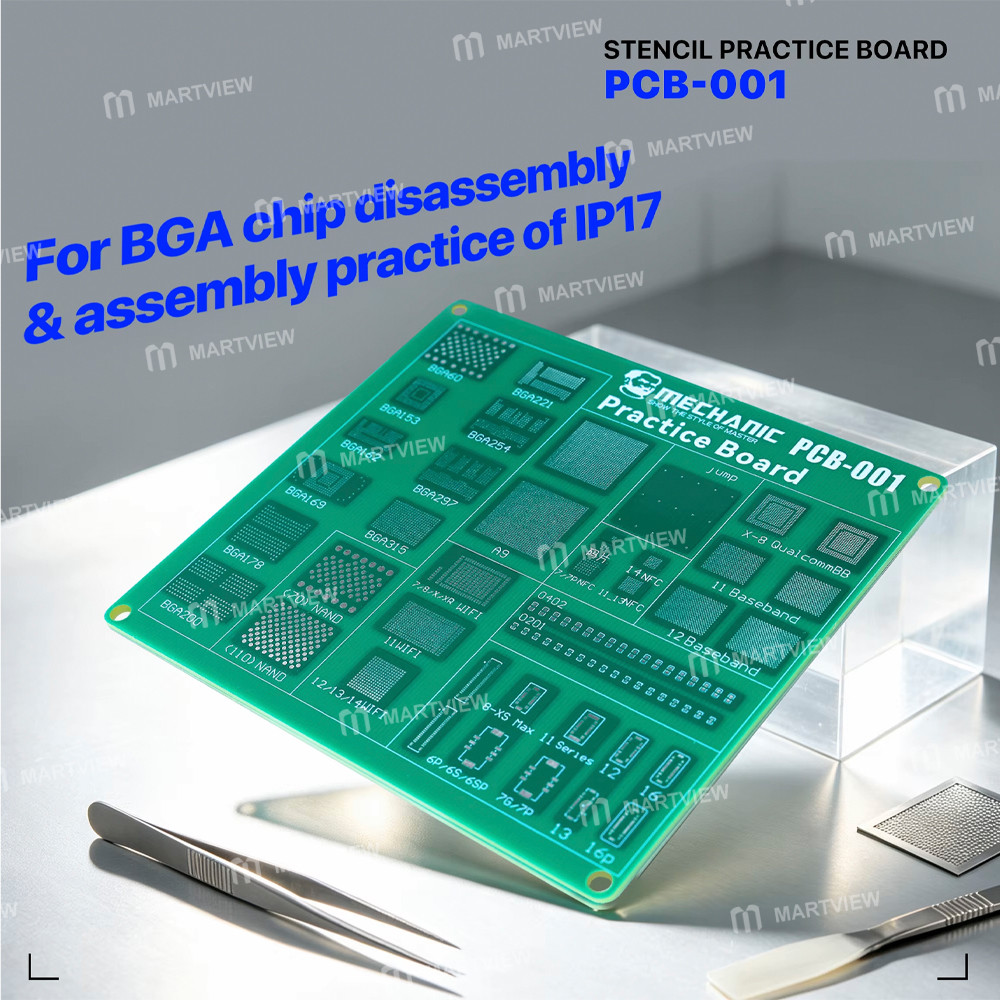

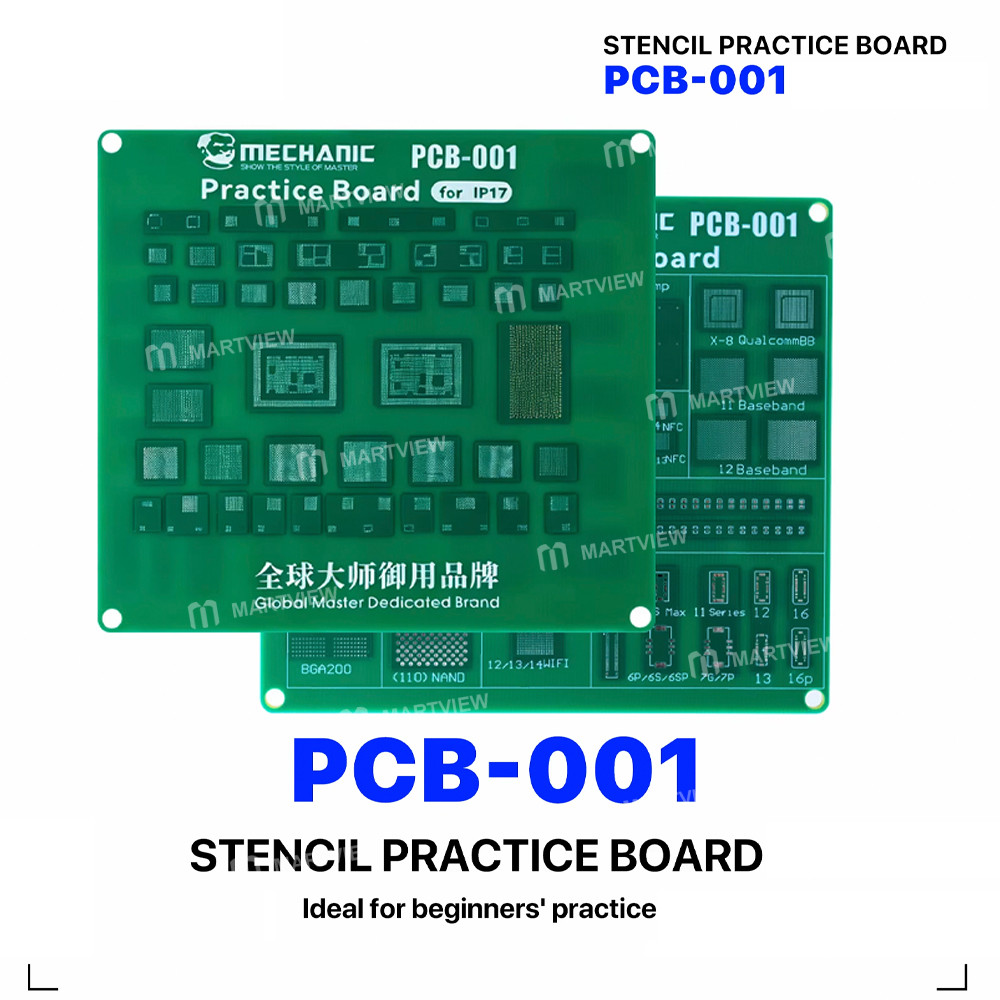

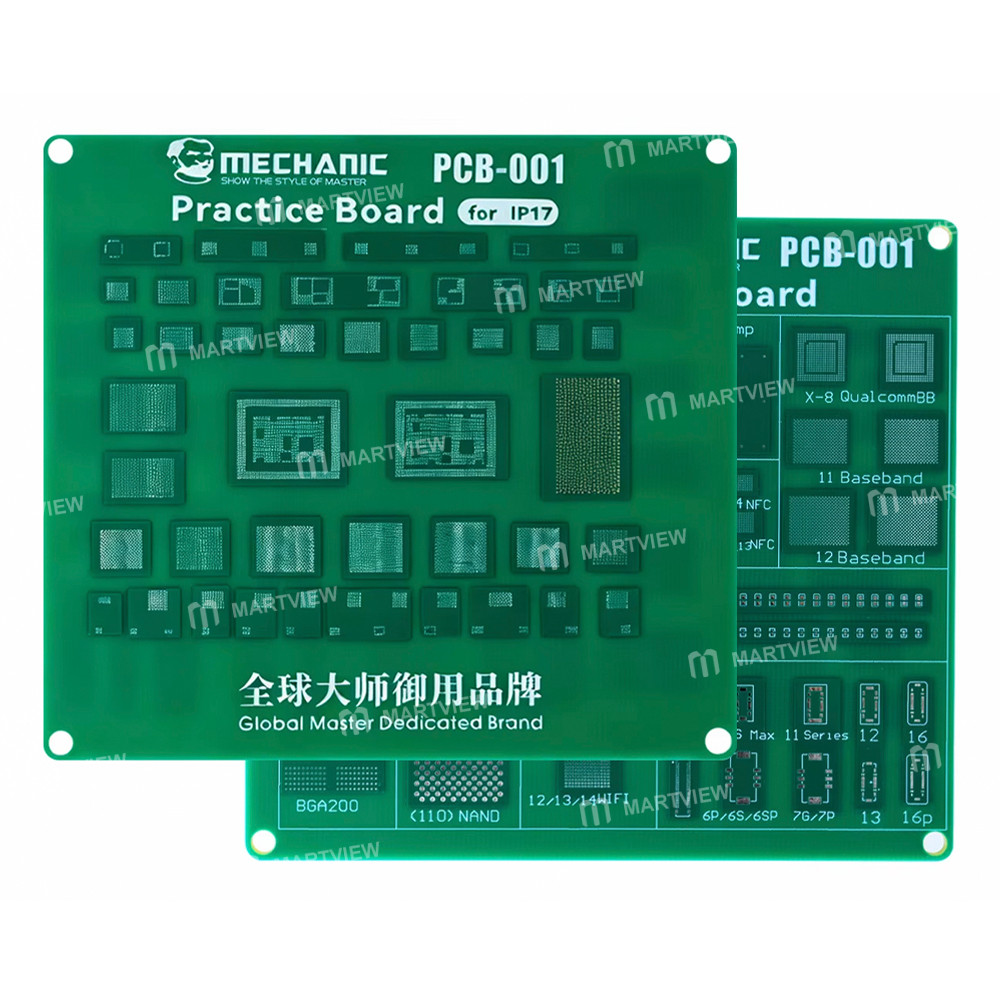

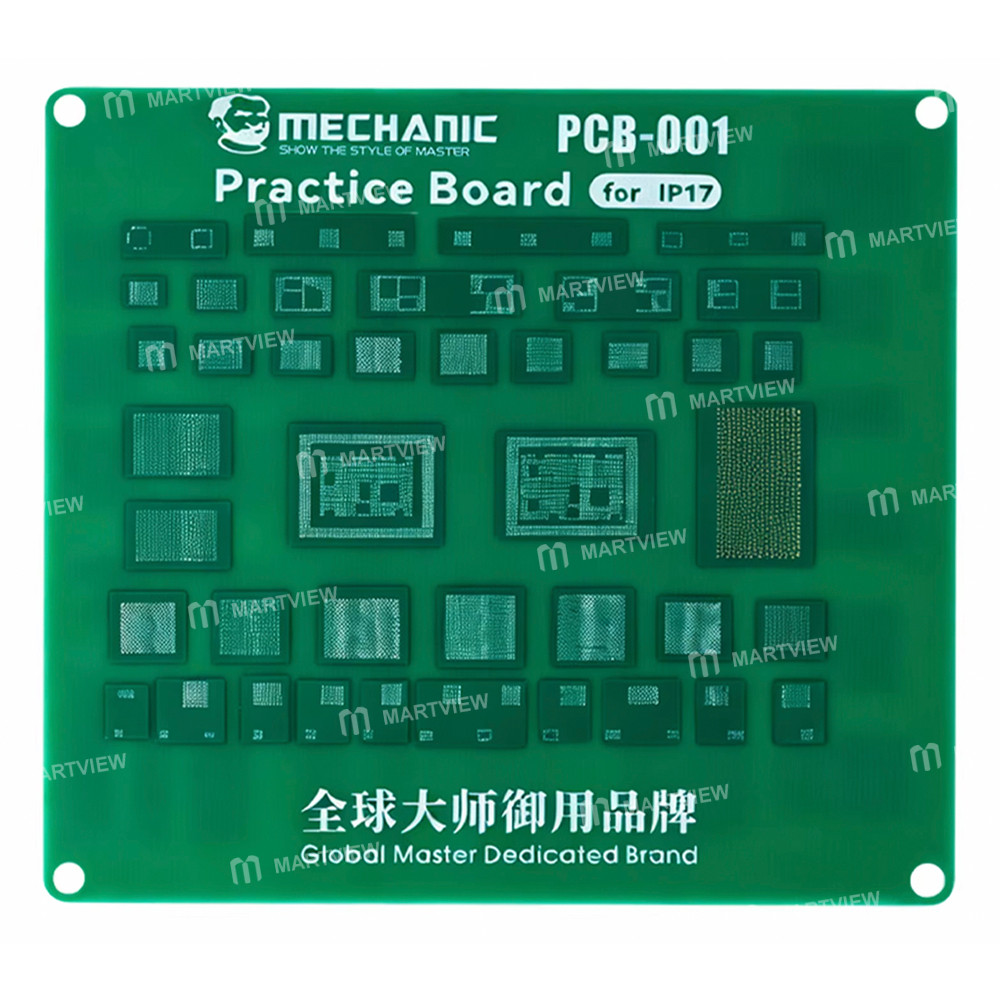

Mechanic PCB-001 BGA Chip & Connector Socket Stencil Practice Board Support iPhone 17 Series

Mechanic PCB-001 BGA Chip & Connector Socket Stencil Practice Board Support iPhone 17 Series

Features:

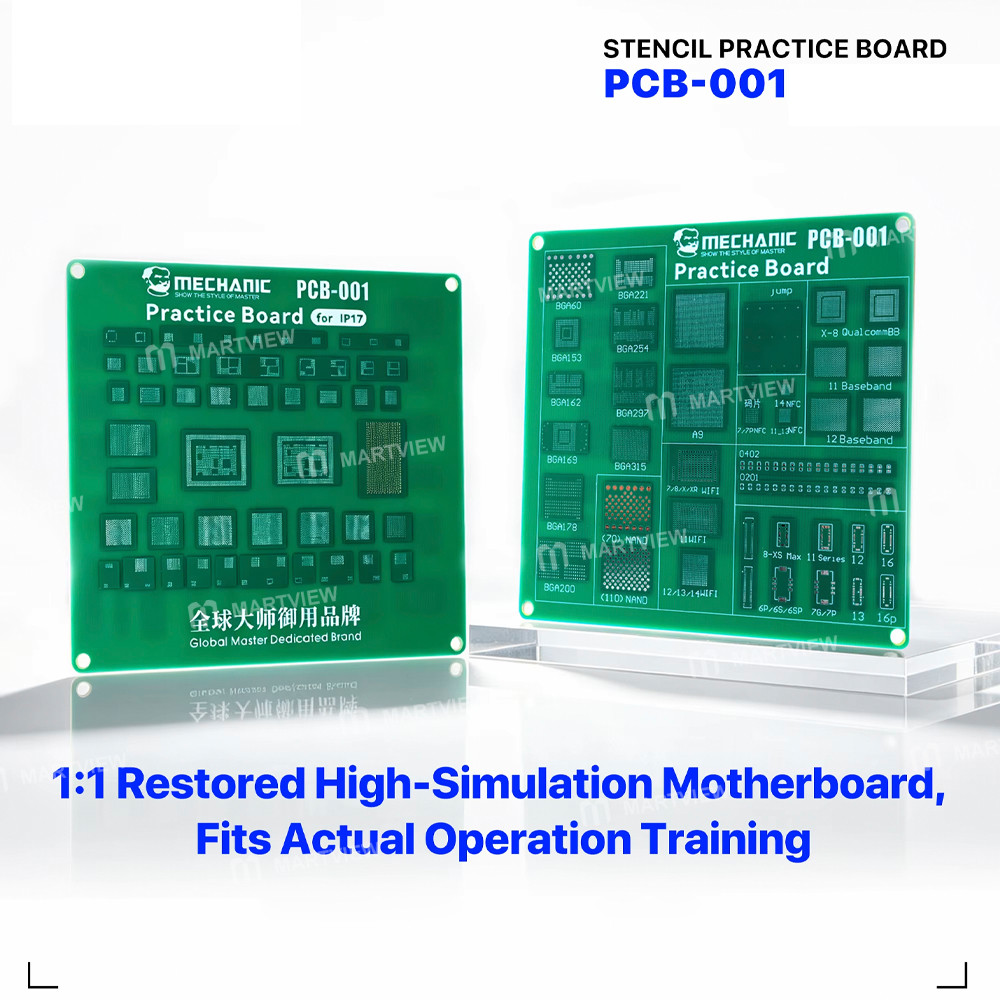

• This practice board is a high-fidelity reproduction of a real motherboard, featuring accurate component placement, pad layouts, and circuit patterns. It allows trainees to practice in a setting that is 100% true to life, ensuring that skills learned translate directly to real repair jobs.

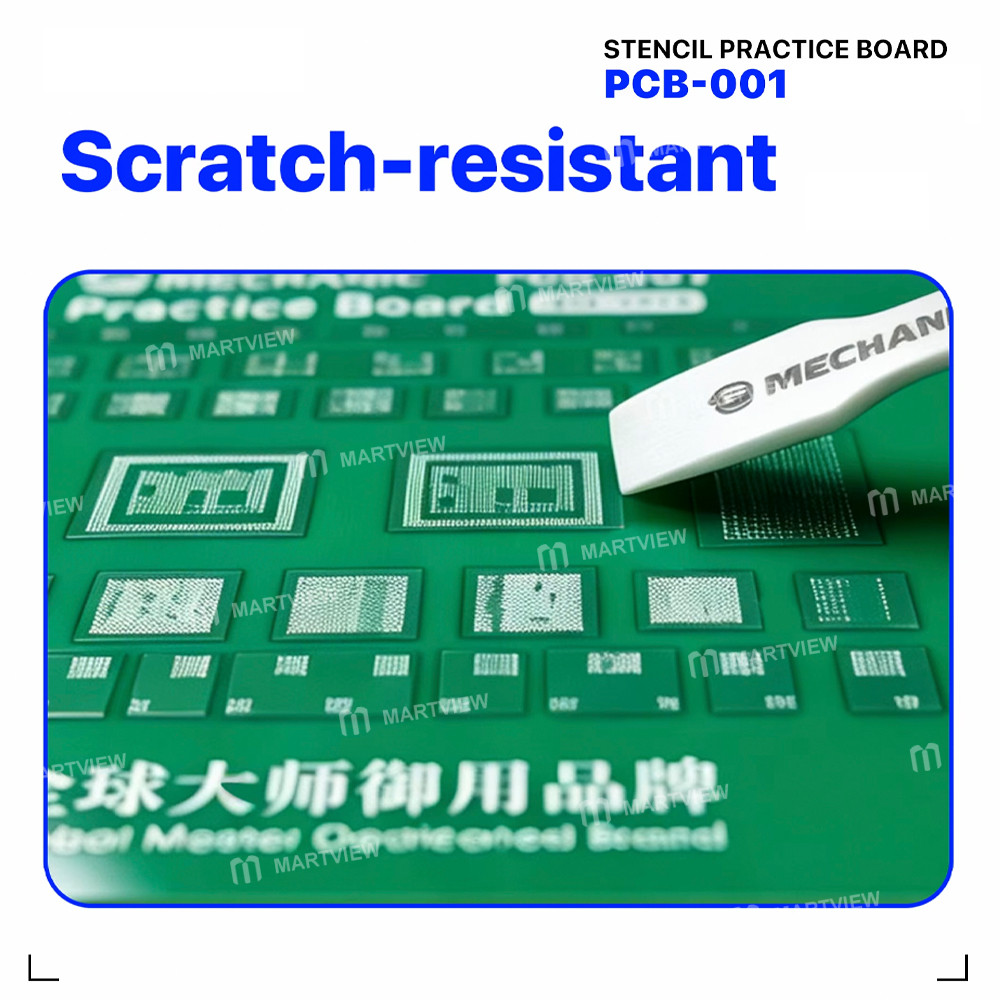

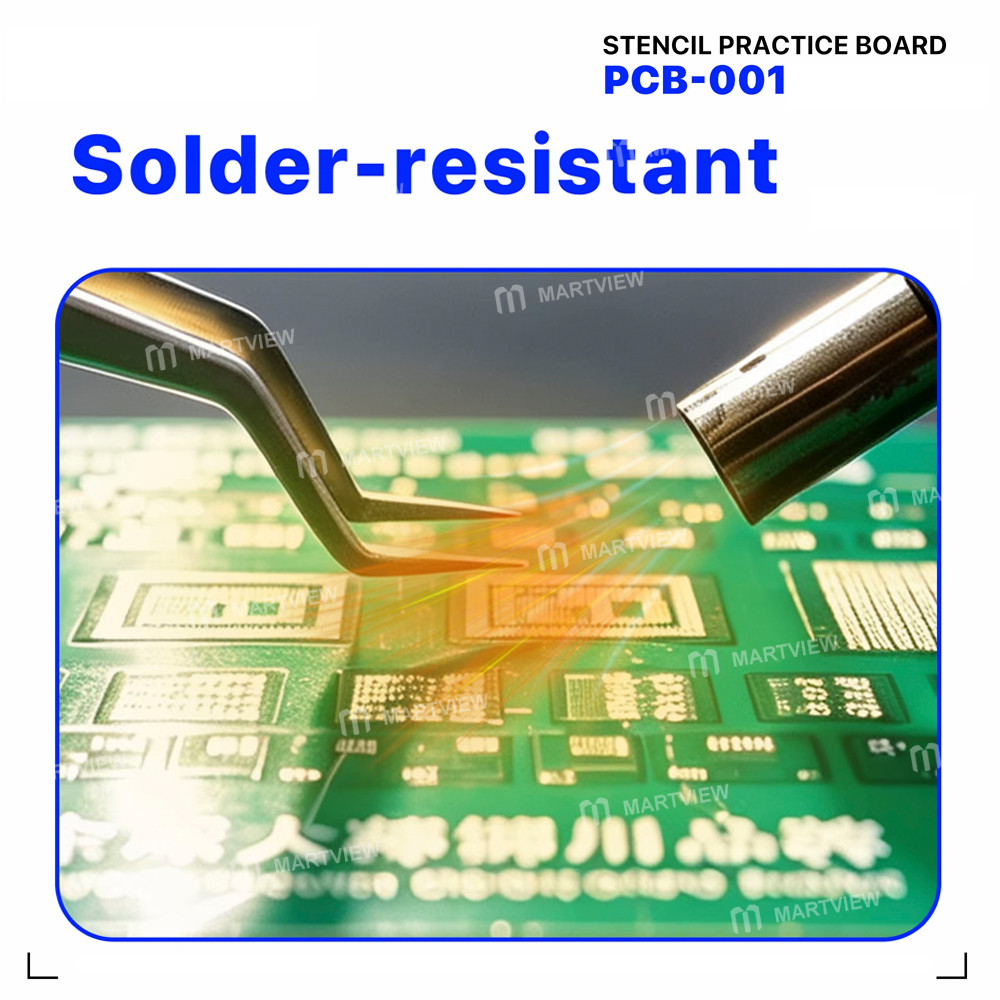

• Crafted with a tough, wear-resistant coating, the PCB-001 withstands repeated scraping, scratching, and soldering without degrading. This robust construction ensures long-term durability, making it ideal for intensive practice sessions.

• Unlike disposable practice materials, the Mechanic PCB-001 is built to last. Its reusability means you can practice hundreds of times on a single board, dramatically cutting down on material expenses while maximizing learning outcomes.

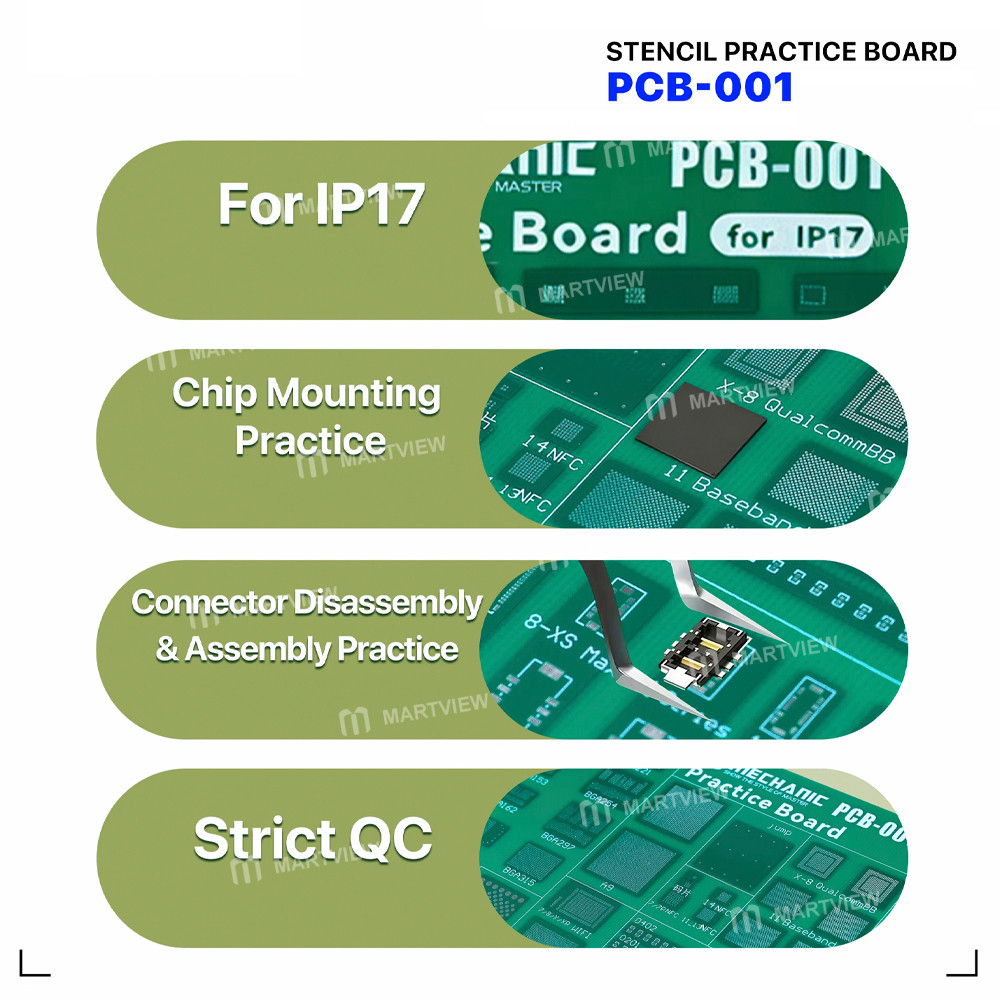

• Specifically designed with newcomers in mind, the board provides a clear, structured layout for learning essential skills such as stencil printing, chip mounting, connector disassembly and assembly, BGA rework, and soldering and desoldering

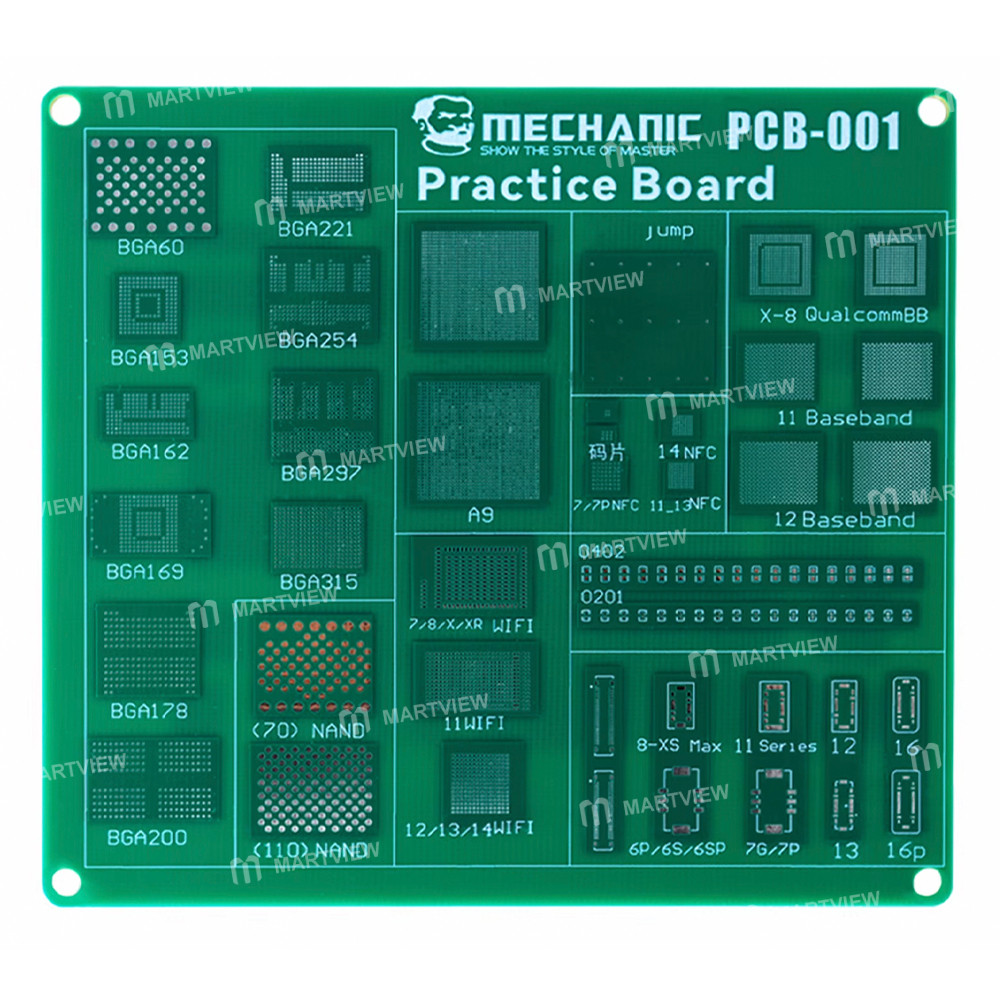

The PCB-001 is equipped with a variety of component footprints and pad layouts to support multiple training exercises, including:

• BGA Chip Mounting Practice – Supports multiple BGA sizes such as BGA153, BGA162, BGA169, BGA178, BGA200, BGA221, BGA254, BGA297, and BGA315.

• Connector Disassembly & Assembly Practice – Includes pads for NFC, baseband chips, Wi-Fi modules, and more.

• Stencil Printing Practice – Perfect for mastering solder paste application with steel stencils.

• NAND and Power IC Rework – Covers common ICs used in modern smartphones, including models for iPhone 6P/6S/6SP/7G/7P/11/12/13/14, X-8 Qualcomm BB, and others.

Package includes:

• 1 x Practice Board
