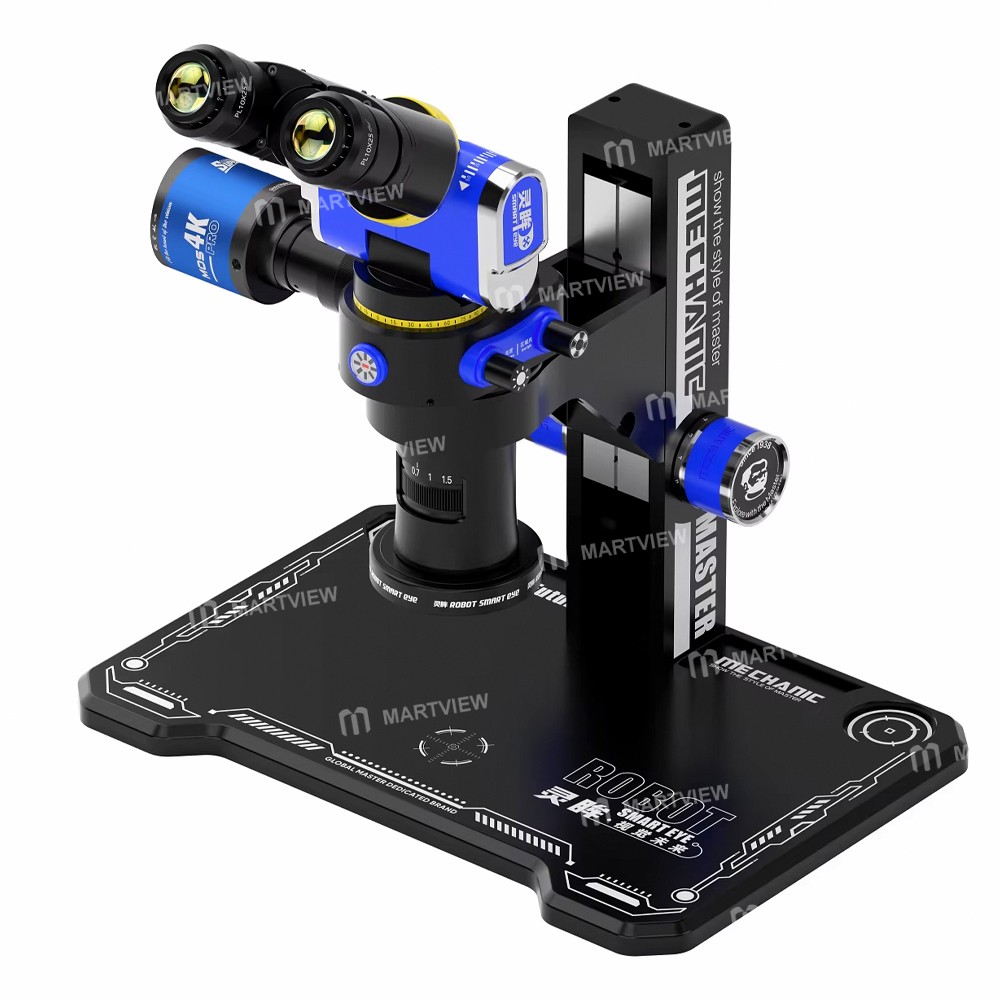

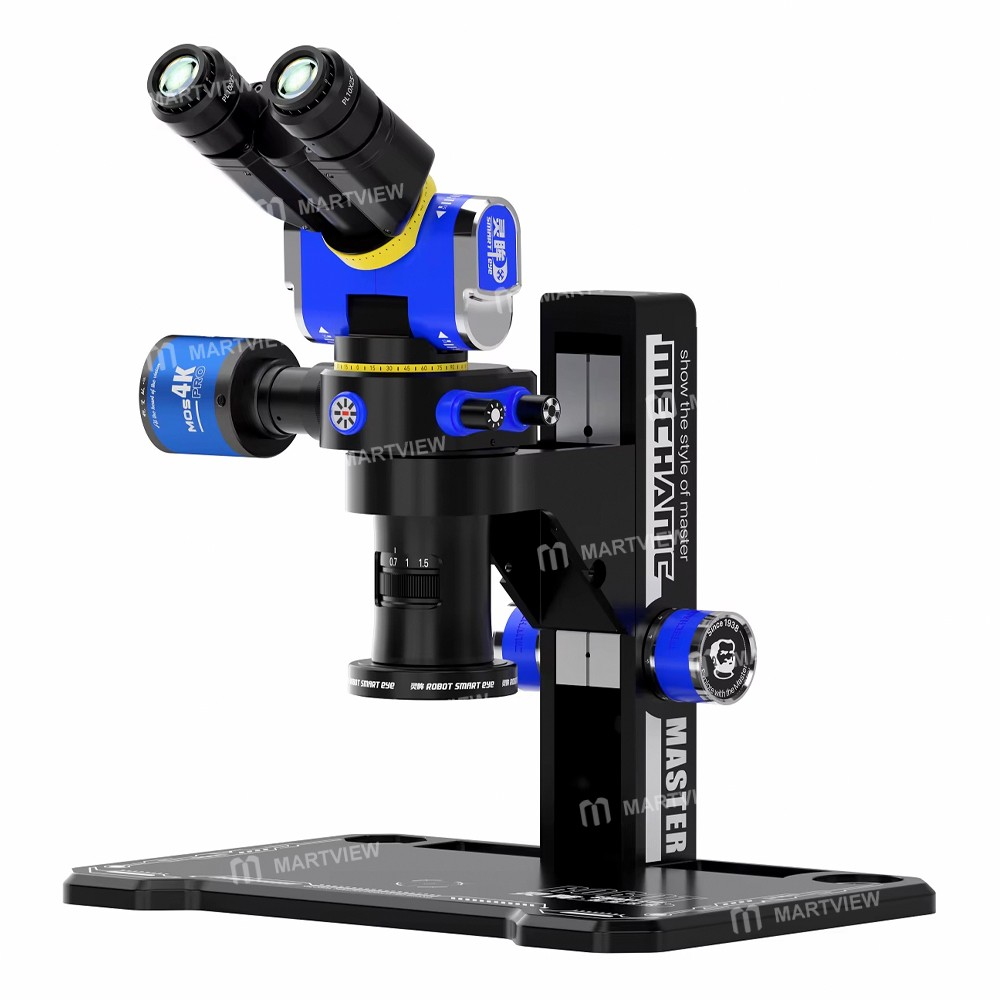

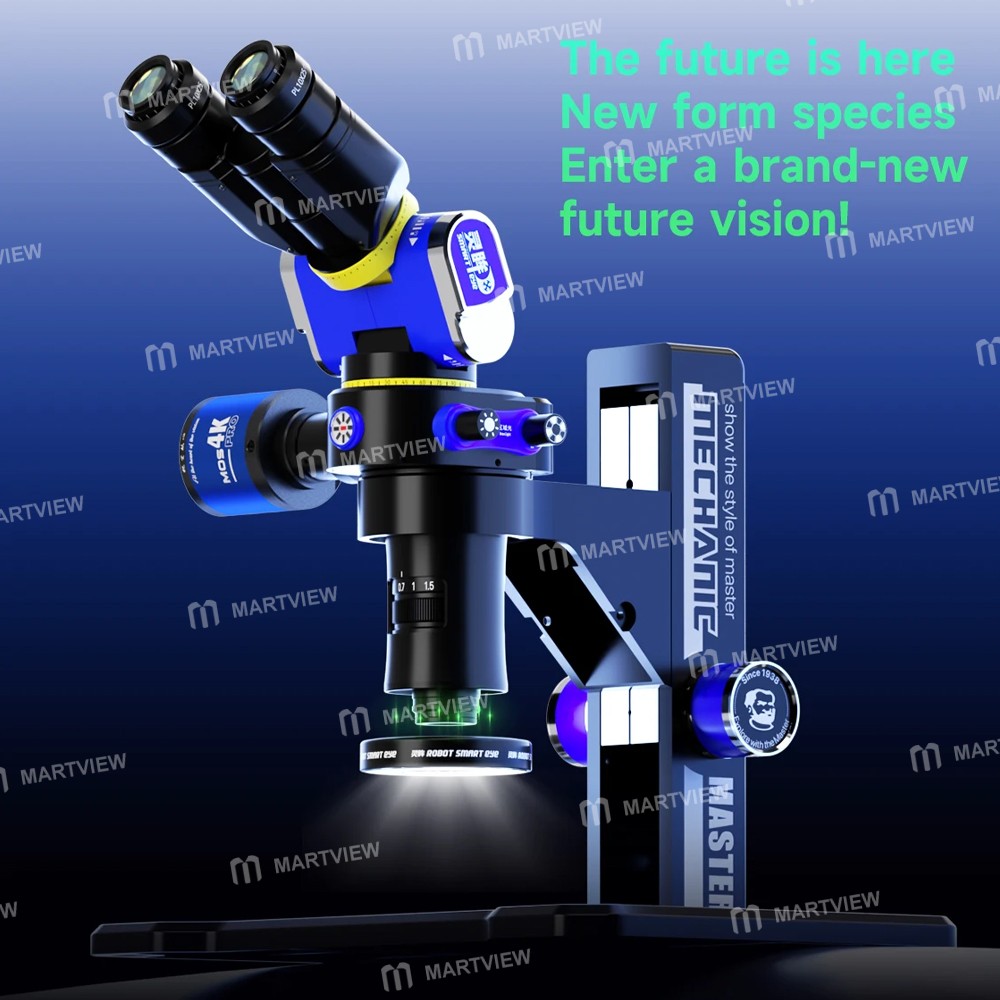

Mechanic Robot Smart Eye 7X-45X Foldable / Rotatable Human-Machine Integrated Microscope

Mechanic Robot Smart Eye 7X-45X Foldable / Rotatable Human-Machine Integrated Microscope

Features:

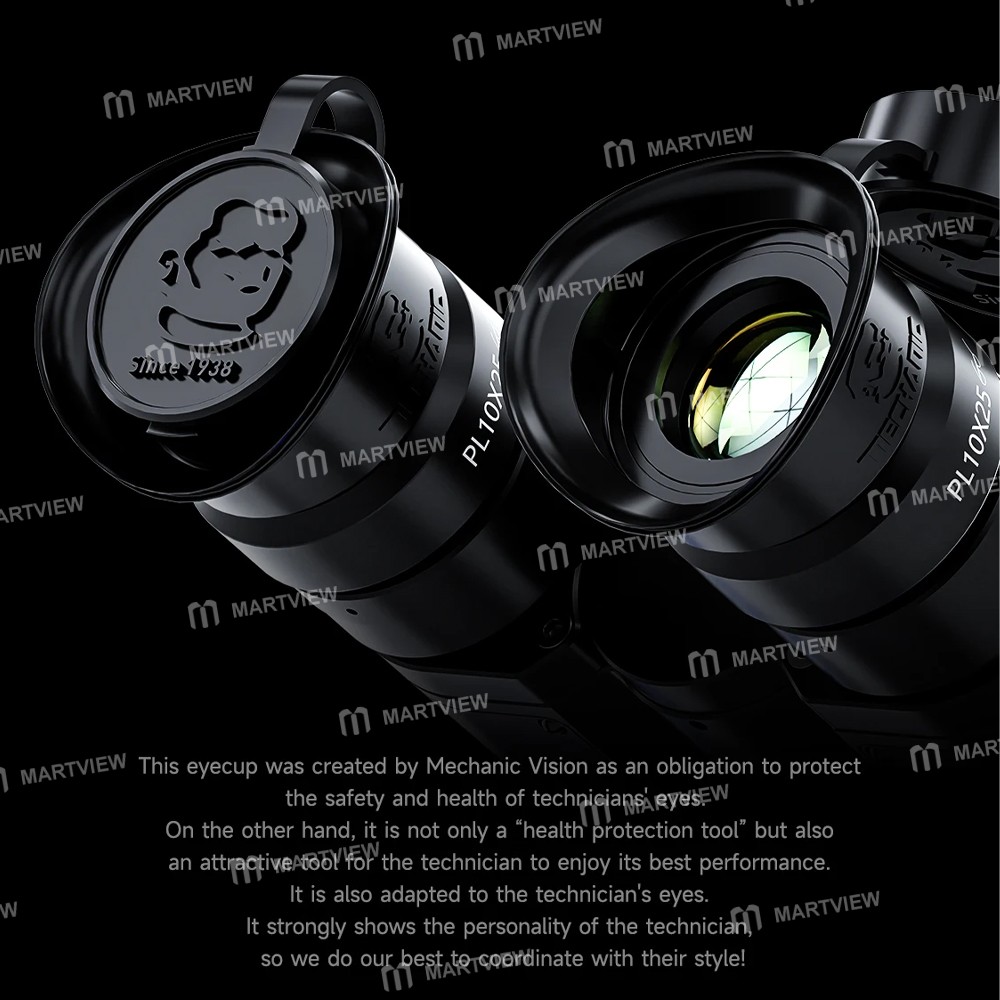

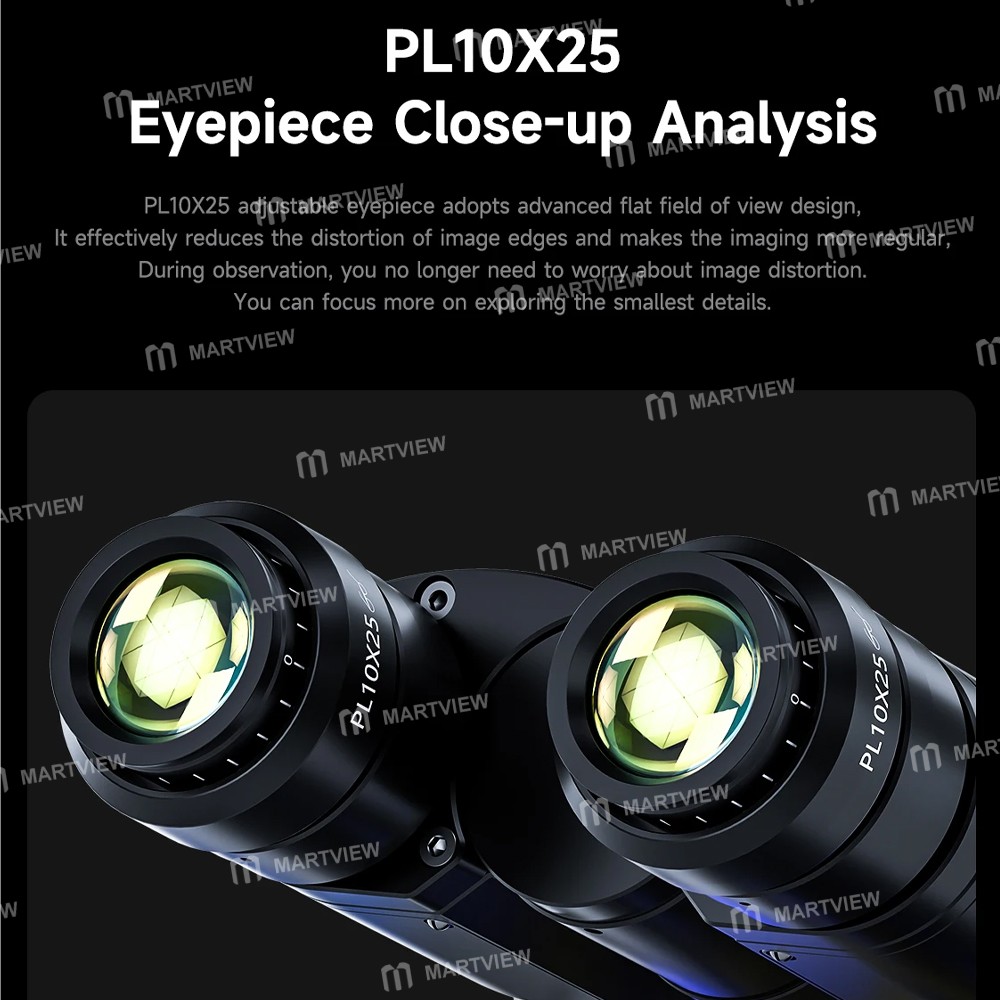

• PL10X25 adjustable eyepiece adopts advanced flat field of view design, it effectively reduces the distortion of image edges and makes the imaging more regular, during observation, you no longer need to worry about image distortion

• The pupillary distance (The distance between the centers of the pupils of the two eyes) varies from person to person, and usually ranges from 48-75mm for adults. The dial adjusts the horizontal distance between the left and right eyepieces to match the user's actual pupil distance

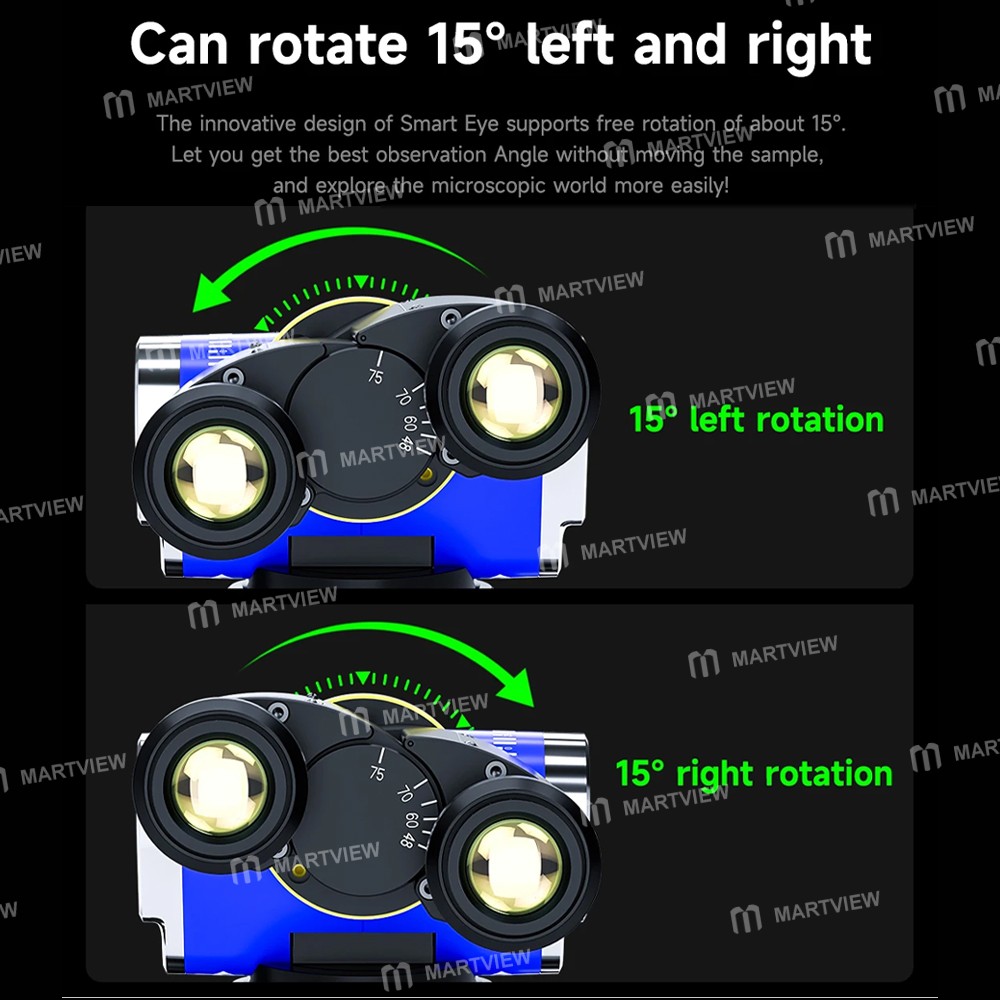

• The innovative design of Smart Eye supports free rotation of about 15°. Let you get the best observation Angle without moving the sample, and explore the microscopic world more easily

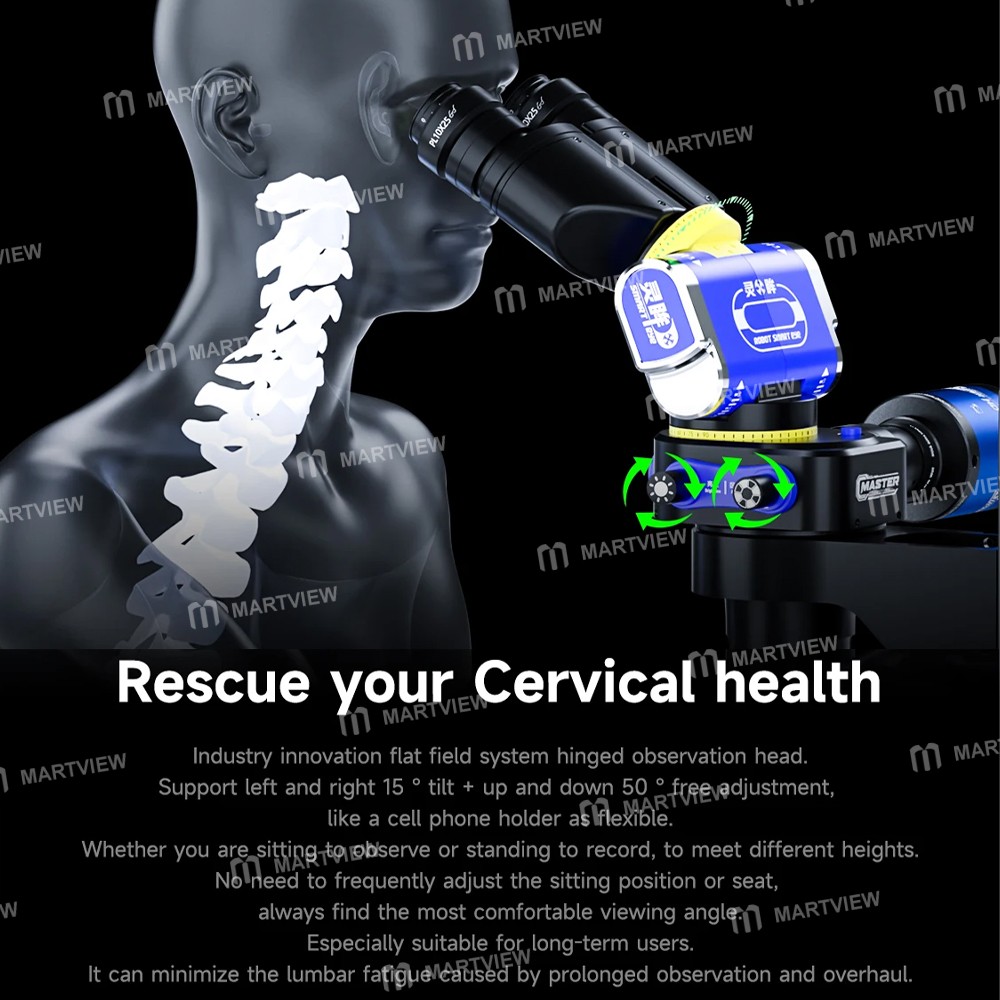

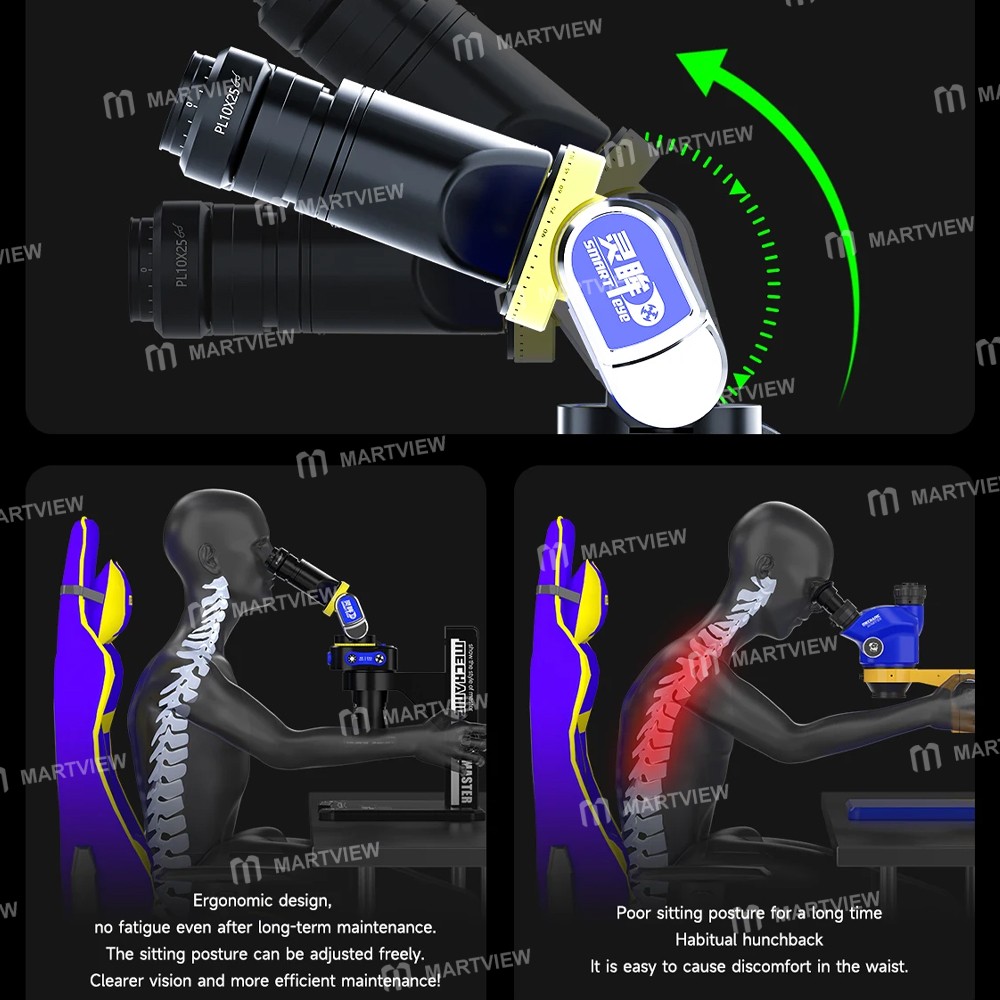

• Industry innovation flat field system hinged observation head. Support left and right 15° tilt up and down 50° free adjustment, like a cell phone holder as flexible. Especially suitable for long-term users, it can minimize the lumbar fatigue caused by prolonged observation and overhaul

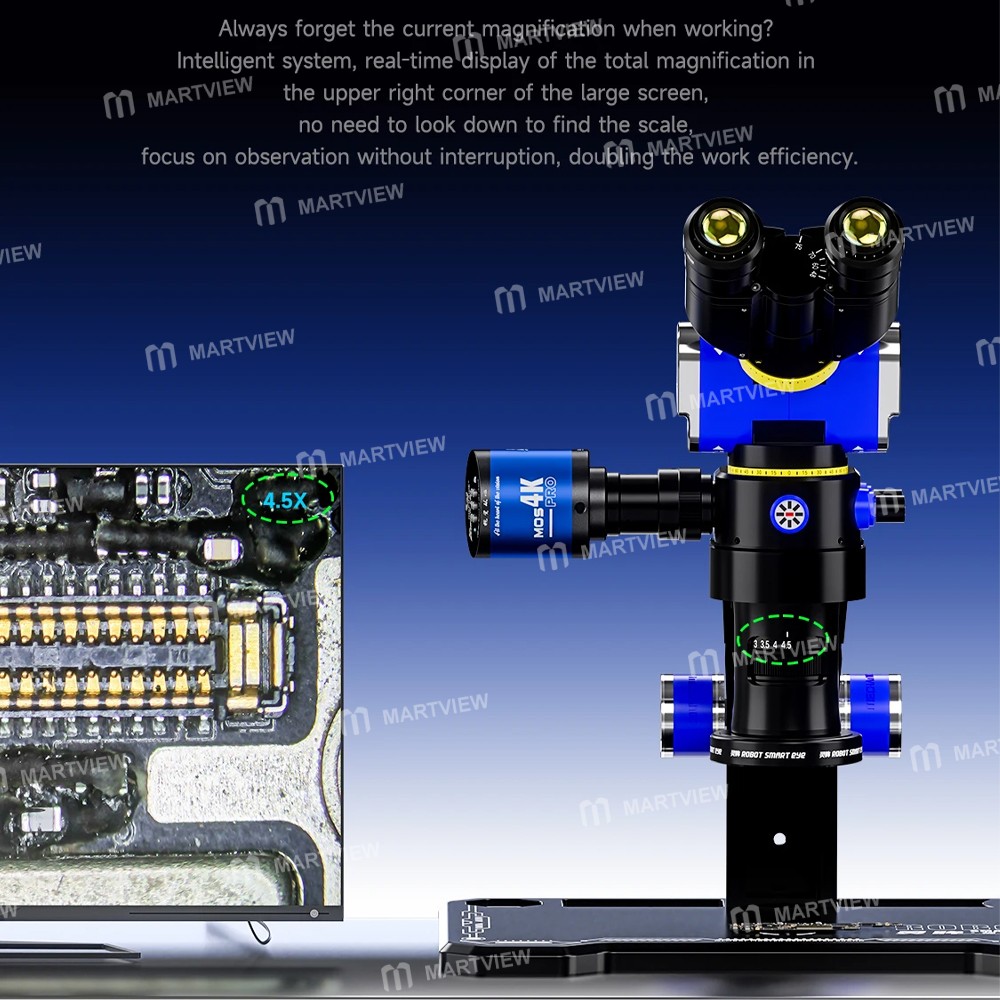

• Intelligent system, real-time display of the total magnification in the upper right corner of the large screen, no need to look down to find the scale, focus on observation without interruption, doubling the work efficiency

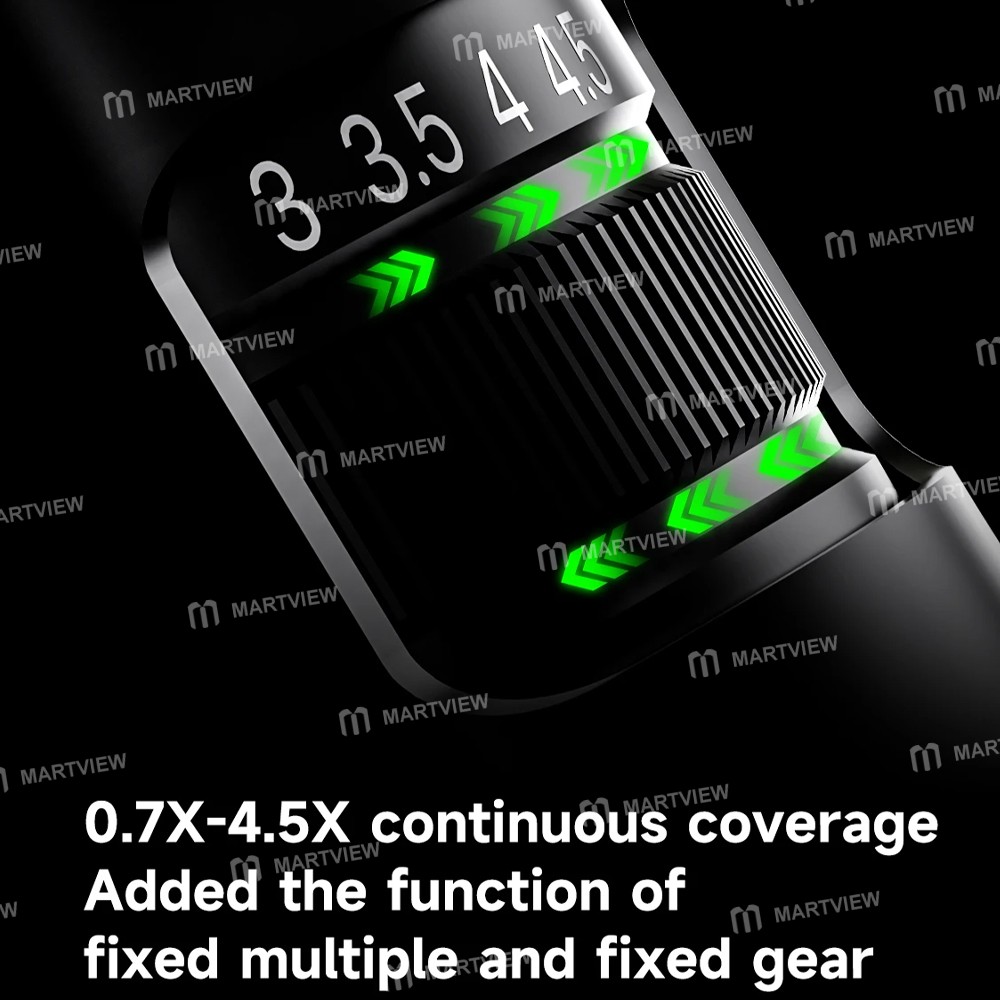

• 0.7X-4.5X continuous coverage, added the function of fixed multiple and fixed gear, infinite parallel optical system, disruptive innovative design. 7X to 45X big magnification continuous fixed multiple and fixed gear function

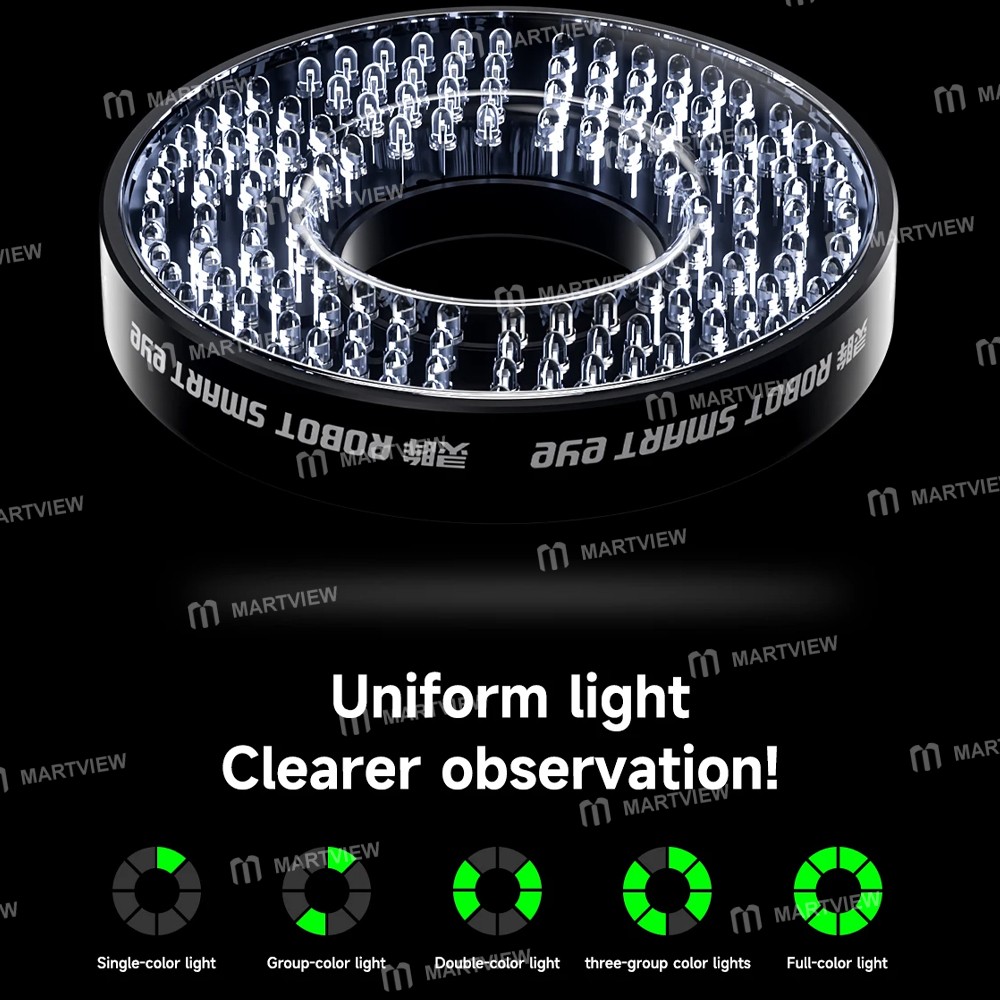

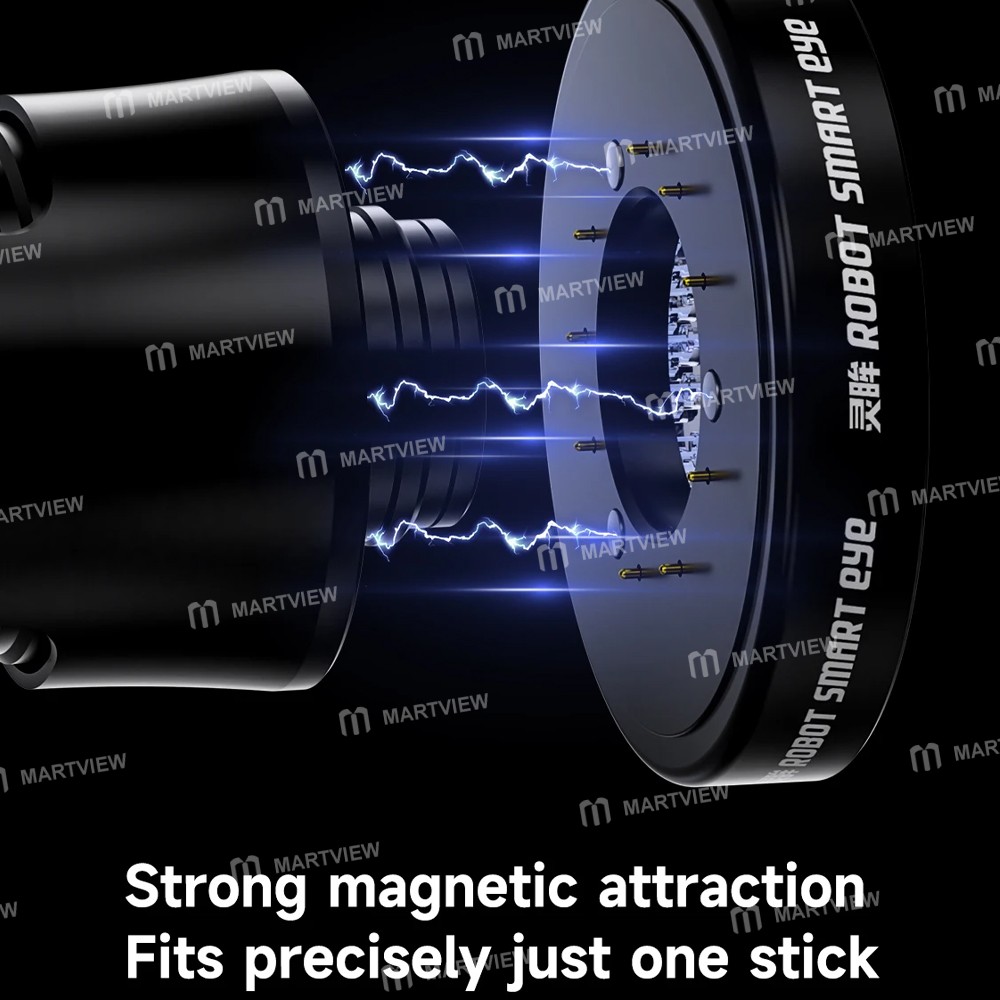

• Strong magnetic attraction, fits precisely just one stick. The ring light has a built-in magnet,one put and one suck. Easily adsorb the LED ring light source. Make your desktop more simple

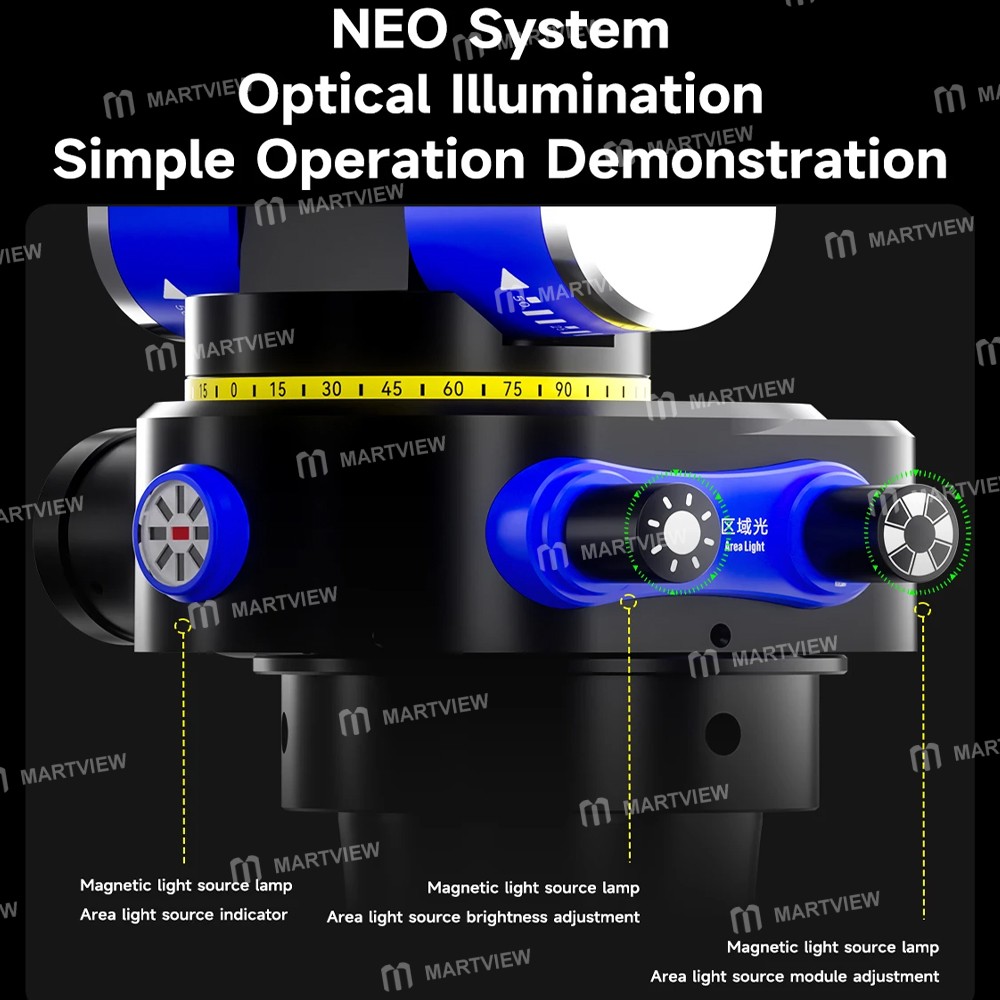

• Revolutionary magnetic light source design, get rid of the traditional "octopus cable". NEO system optical illumination,144 LED zoned illumination support brightness memory function. You can judge the illumination area by the color of the ring light strip on the top of the microscope

Specification:

• Adjustable eyepiece: PL10X/25mm

• Zoom ratio: 1:6.4

• Observation head: 45 tilt, 360 rotation,interpupillary distance 54-76mm, bilateral visual adjustment ±5 diopter

• Non-adjustable eyepiece: Standard configuration: WF10X25, high eye point wide-angle eyepiece, providing convenience for observers wearing glasses

• Optional eyepiece: WF10X22mm/WF15X15mm/WF20X10mm

• Objective lens: Continuous magnification from 0.7X to 4.5X, with an objective magnification ratio of 1:6.4, ensuring uniform focus on the image plane

• Auxiliary objective lens: 0.5X, 0.75X,1.5X and 2X are optional

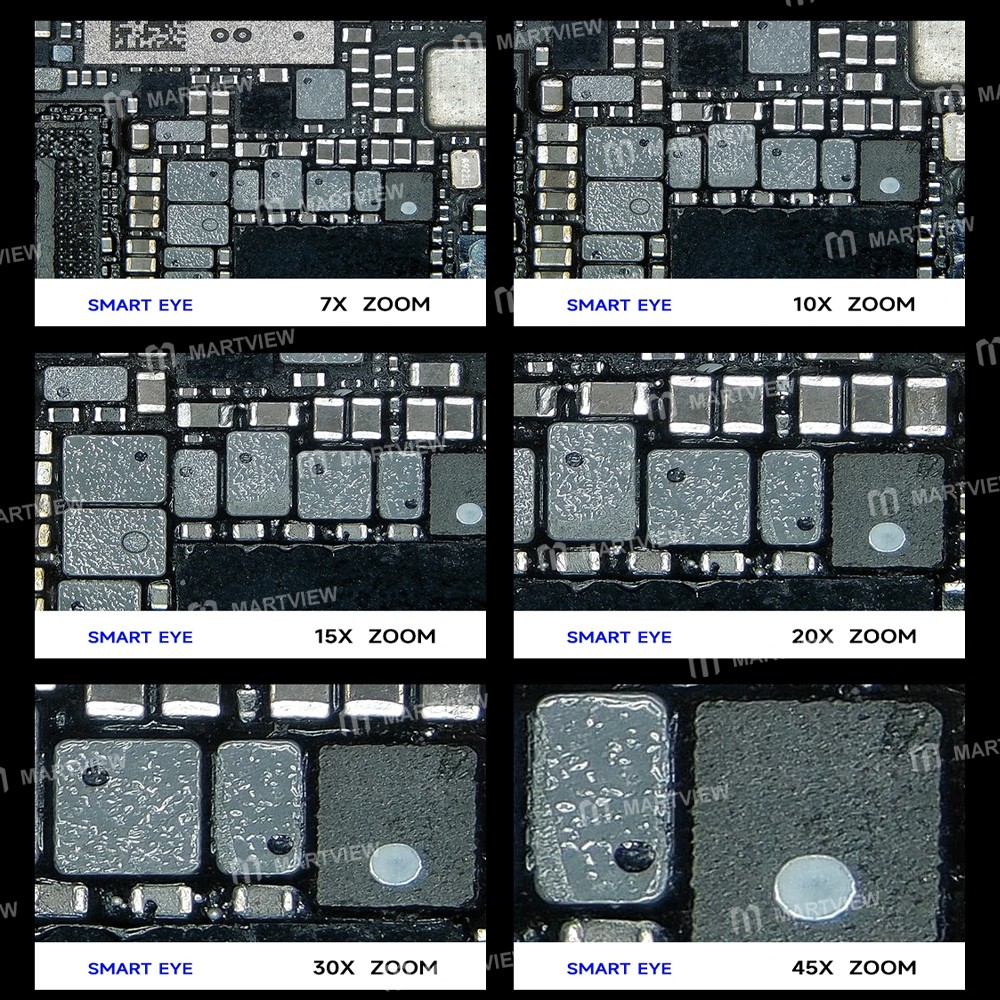

• Magnification factor: 7X-45X, with the optional eyepiece and auxiliary objective lens, it can be expanded to 3.5X-270%, Continuous zoom

• Focusing bracket: The inner diameter is 76mm and the column hole diameter is 32mm

• Working distance: 100mm

• Work platform: 320*260mm

• External dimensions: 200*273*280mm

• Lighting: Optional LED ring lights are available. For details, please refer to the LED light source series diagram

MOS4K Pro Camera:

• Name: Microscope 4K camera

• Models: MOS4K Pro

• Transducers: IMX 678 Sensor 55MP

• HDMI Output: 3840*2160@30FPS

• USB Output: 3840*2160@30FPS

• Exposure: Favor

• Stockpile: Supports up to 64GB

• Input Voltage: DC 5V-12V

• Lens Interface: C/CS

• Reparation: Auto/Manual/Exposure

• Centerline: Favor

• Remote Controls: Remote control operation

• Menu Language: English/Chinese

• FPS: 1080P@60FPS; 720P@120FPS

• Delineate: Supports 8 straight lines with adjustable color thickness and position

• White Balance: Auto/Manual/One-touch white balance, support RGB adjustable void

• Net Weight: 188g

• Product Size: 56*56*72mm

• Package Size: 136*136*79mm

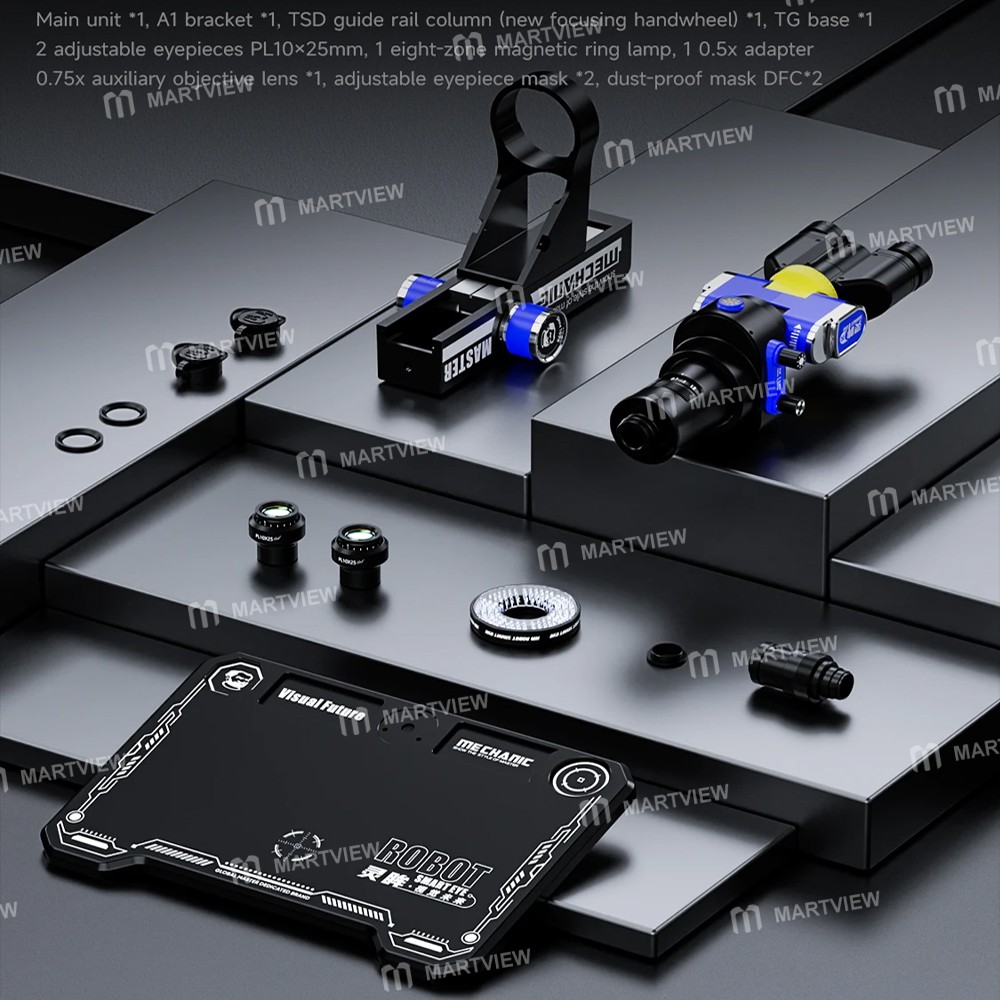

Package includes:

• 1 x Microscope

• 1 x Bracket

• 1 x Column (New Focusing Handwheel)

• 1 x Base

• 1 x Pair of PL10x25 Eyepieces

• 1 x Ring Lamp

• 1 x 0.5X CTV Lens

• 1 x 0.75X Objective Lens

• 1 x Eyepiece Mask

• 2 x DFC Dust-proof Mask
