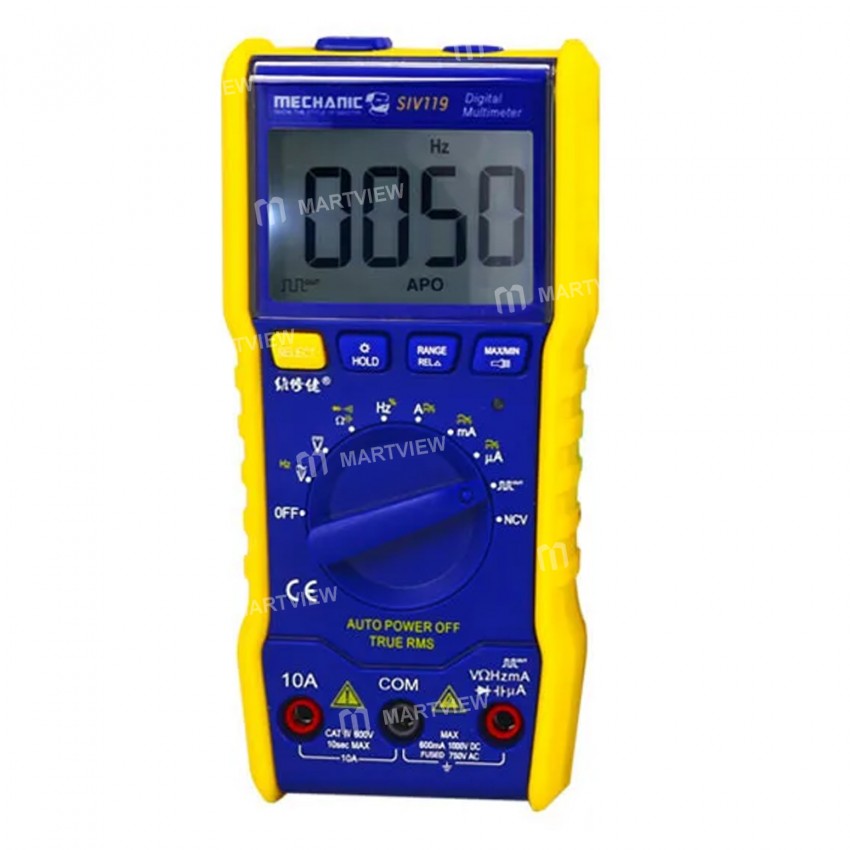

Mechanic SIV119 / SIV120 Pocket Multifunction Automatic Digital Display High-Precision Multimeter

Mechanic SIV119 / SIV120 Pocket Multifunction Automatic Digital Display High-Precision Multimeter

Specification:

• Brand: MECHANIC

• Product Type: smart pocket digital universal meter

• Model: SIV119/SIV120

• DC voltage: 6V/60N/600V/1000V ±(0.5%+4)

• AC voltage: 6V/60W/600V/750V ±(0.8%+3)

• DC current: 60μA/6mA/60mA/10A ±(0.8%+8)

• AC current: 600μA/6mA/60mA/10A ±(1.0%+8)

• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ ±(0.8%+5)

• Capacitance: 99.99nF/999.9nF/9.999uF/99.99uF/999.9uF ±(2.5%+60)

• Frequency: 10Hz~10MHz ±(5.0%+10)

• Duty cycle: 0.1~99% ±(10%+5)

• Frequency: 10Hz~1KHz ±(0.01%+5)

• Effective measurement: Yes

• NCV: Yes

• Automatic / Manual: Yes

• Frequency response: Yes 40Hz-1kHz only suitable for sine wave and triangle wave

• Diode: Yes

• Pass test: Yes 1V

• Relative measurement: Yes

• Maximum / Minimum value: Yes

• Data retention: Yes

• LCD backlight: Yes

• Automatic shut-down: Yes About 15 minutes

• Input resistance: Yes >10MΩ

• Square wave output: Yes (Only SIV119) 50Hz-5KHz

• Temperature: Yes(Only SIV120)

Package includes:

• 1 x Multimeter(without Battery)

• 2 x Test Lead
