Mechanic Vision Series 2K / 4K HD Industrial Microscope Camera for MotherBoard PCB Welding Repair

Mechanic Vision Series 2K / 4K HD Industrial Microscope Camera for MotherBoard PCB Welding Repair

Features:

• Vision series cameras, with outstanding optical performance and imaging technology, are strongly upgraded, breaking through the boundaries to present a unique and stunning image

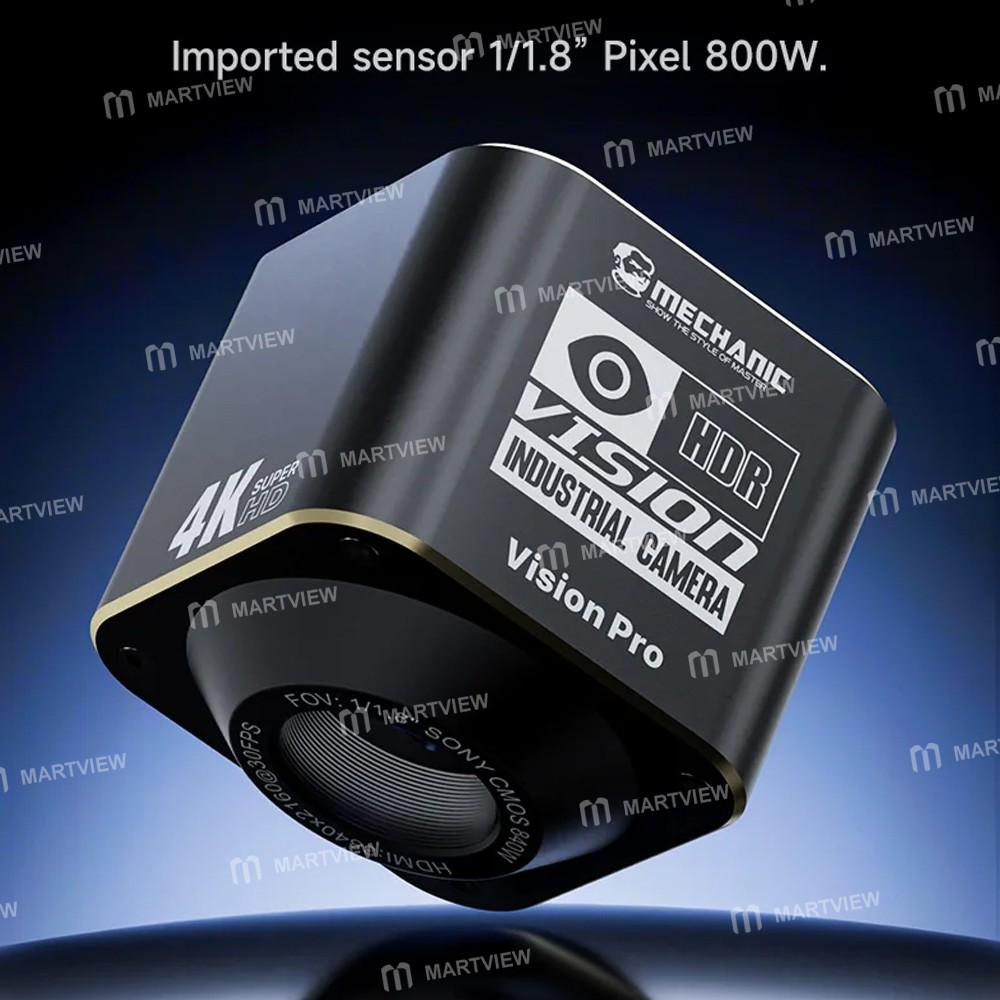

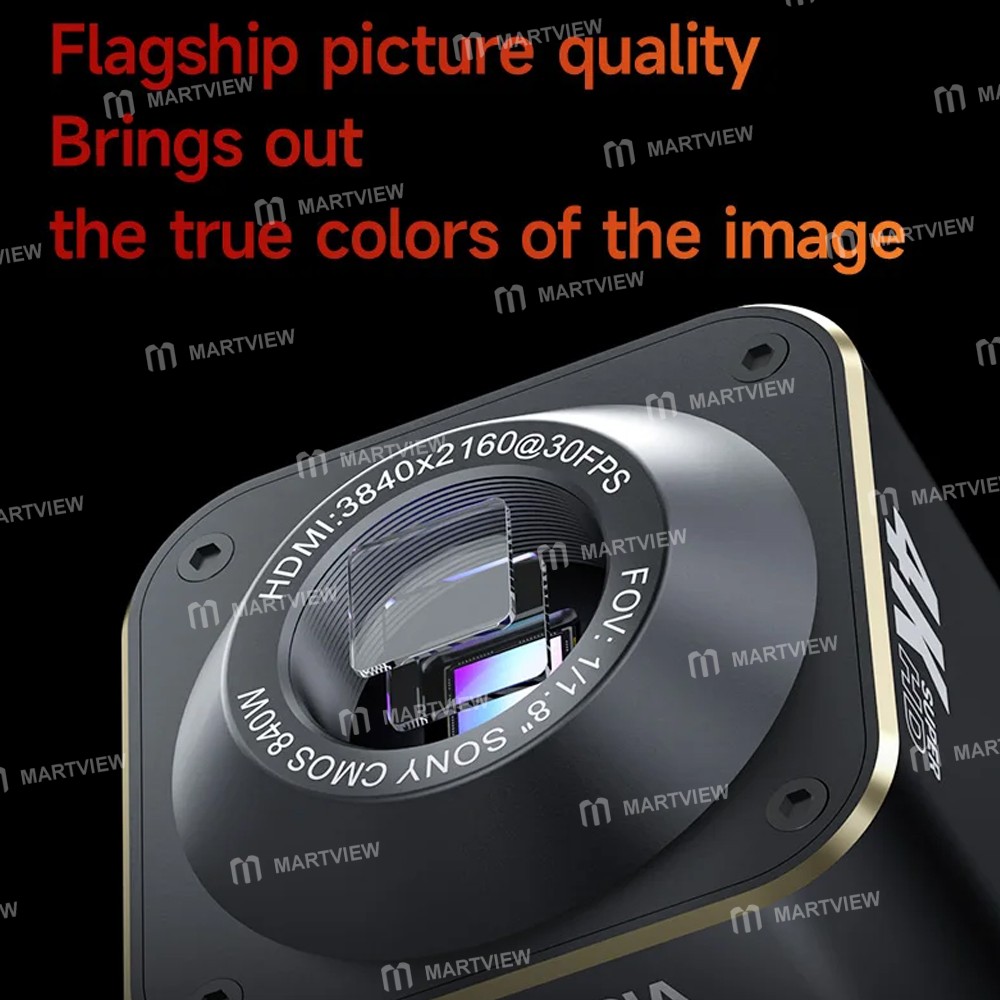

• Panoramic camera with imported 1/1.8-inch Sony sensor, recreating new heights in history, the improvement is a leap; excellent picture quality and dynamic range are visible to the naked eye

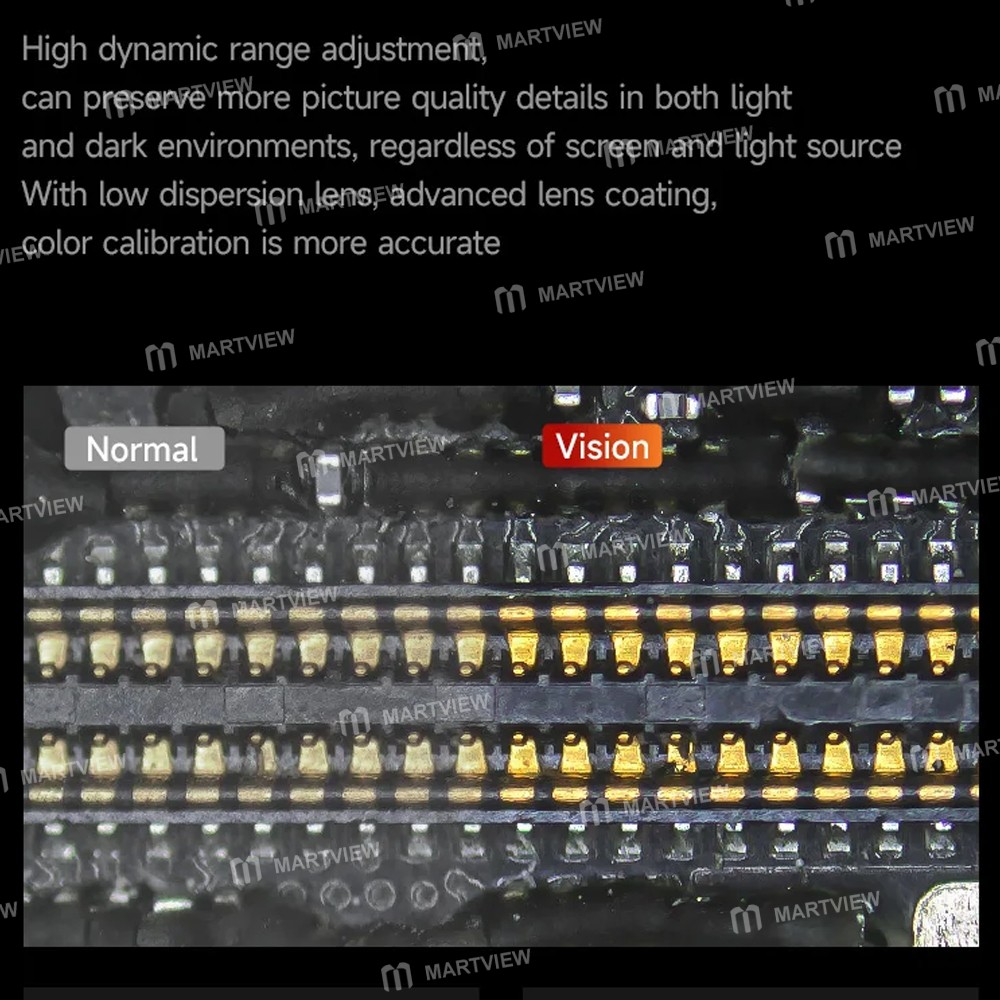

• High dynamic range adjustment can preserve more picture quality details in both light and dark environments, regardless of screen and light source, with a low dispersion lens, advanced lens coating, color calibration is more accurate

• Equipped with a color temperature sensor, in the complex light source indoor environment or different working scenarios, all can present the true color temperature

• Adopting aviation-grade aluminum alloy, anodized by anodic sandblasting, creating a delicate metallic texture, superimposed double-layer oxidation process, significantly improve wear resistance and corrosion resistance

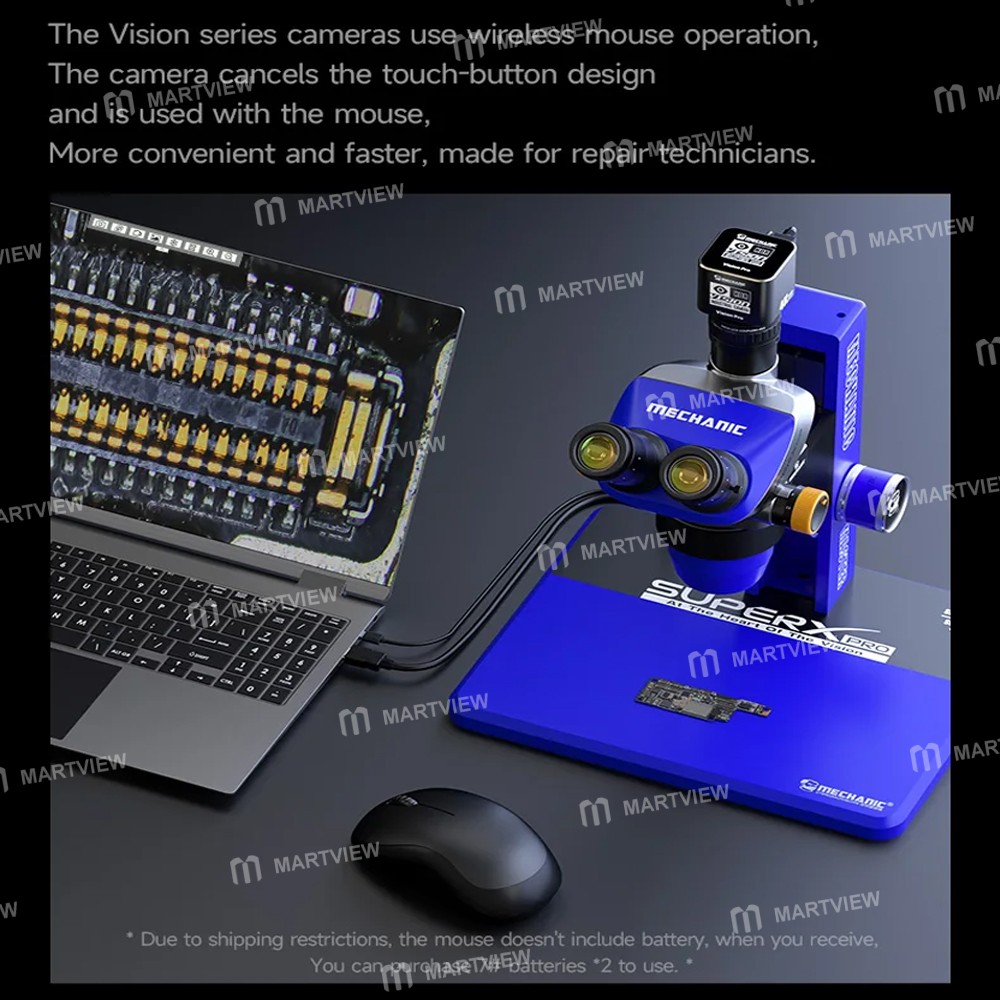

• The Vision series cameras use wireless mouse operation: The camera cancels the touch-button design and is used with the mouse, more convenient and faster, made for repair technicians

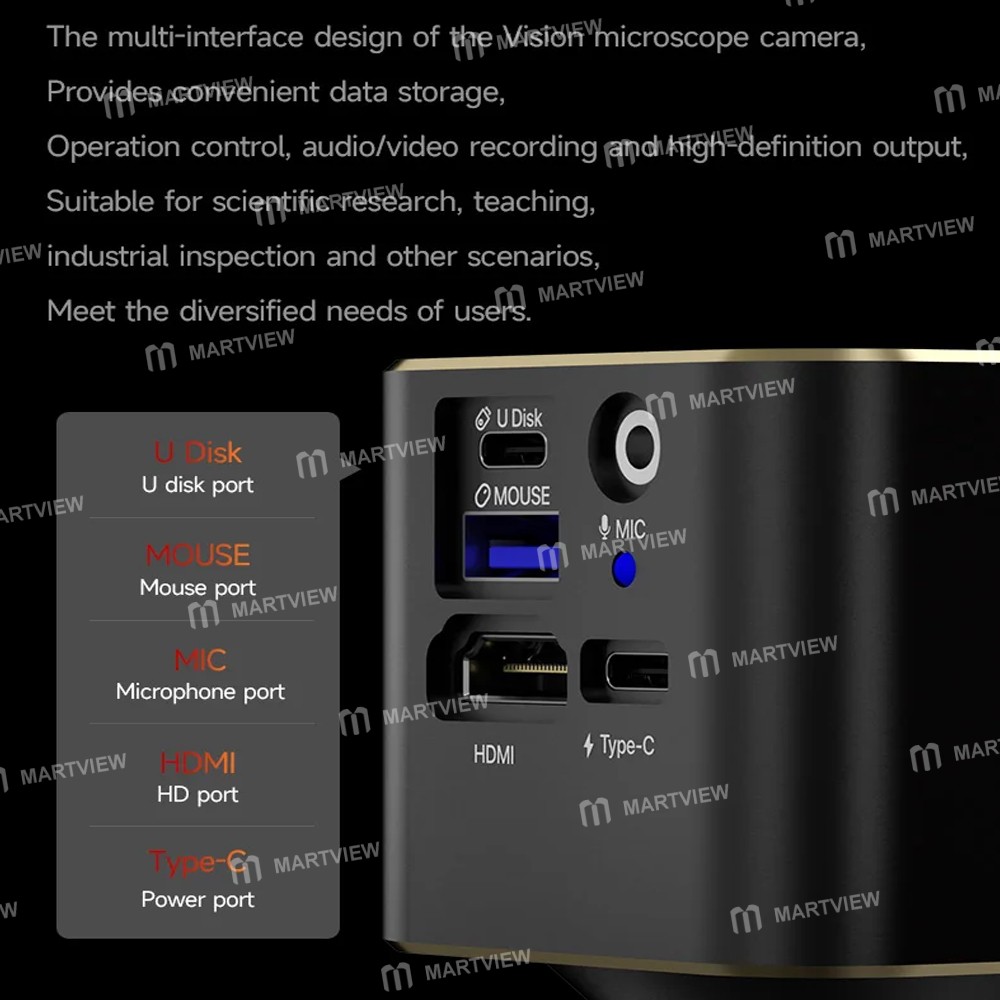

• The multi-interface design of the Vision microscope camera provides convenient data storage, operation control, audio/video recording, and high-definition output, suitable for scientific research, teaching, industrial inspection, and other scenarios, it meets the diversified needs of users

Specification:

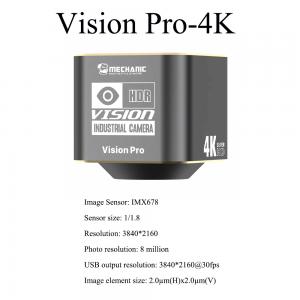

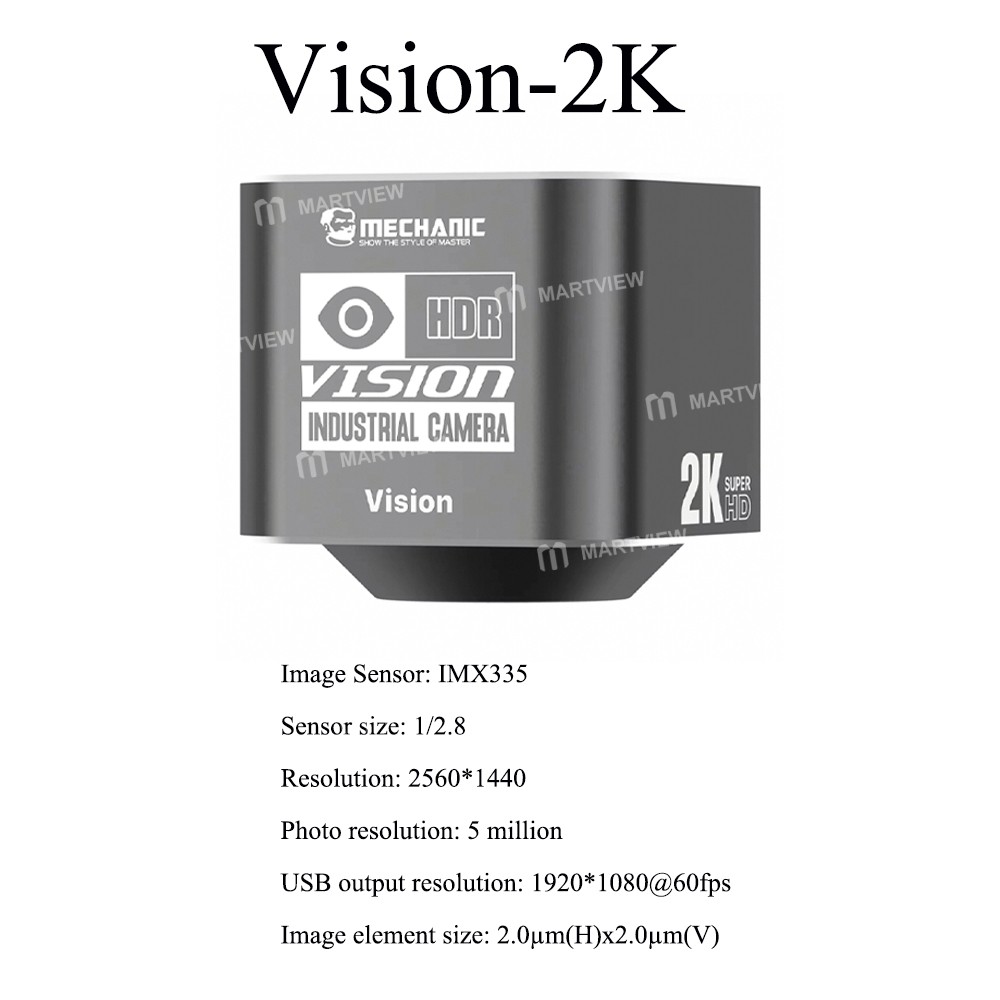

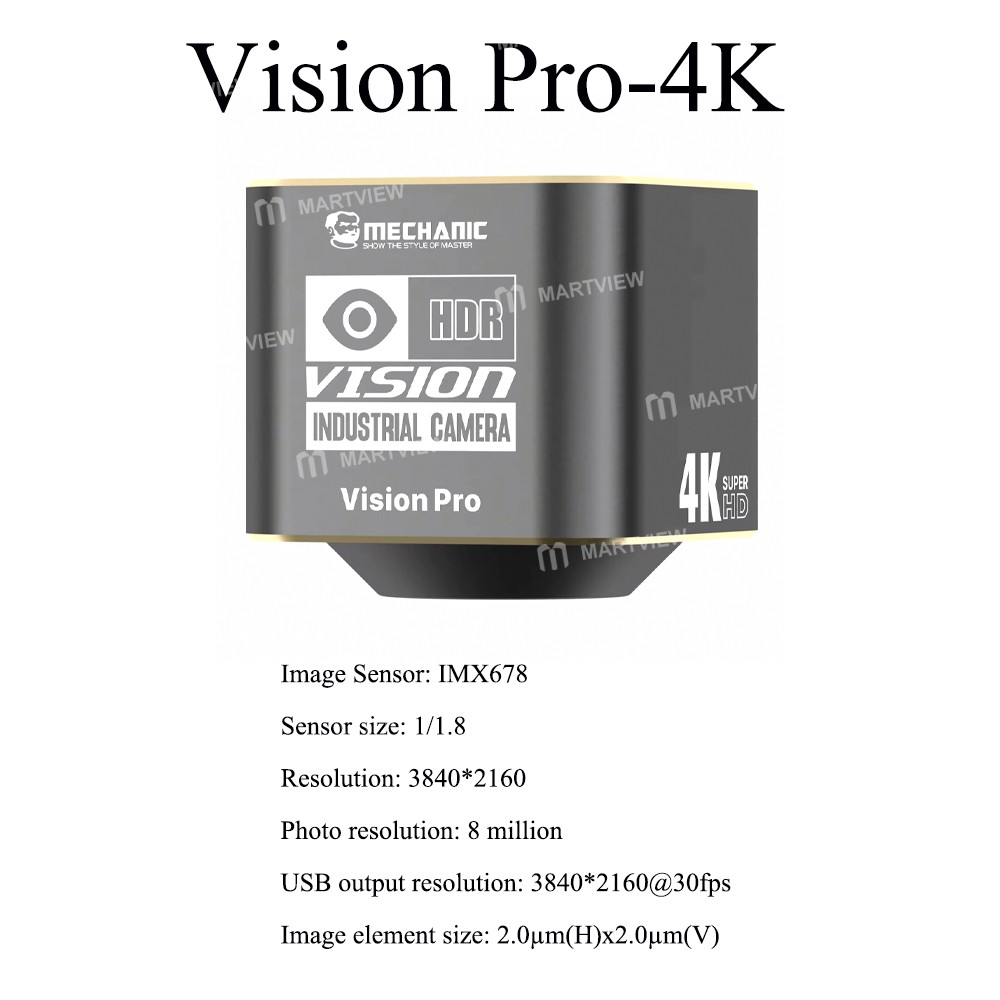

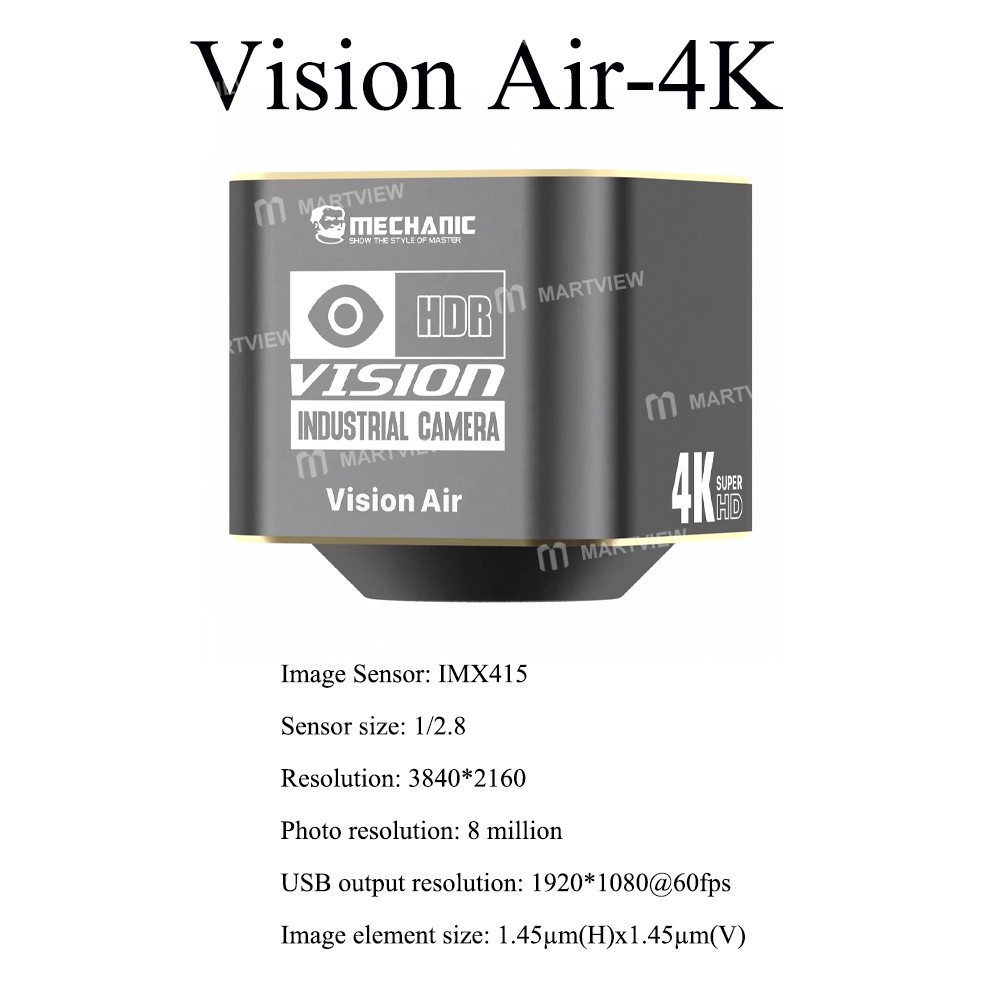

• Model: Vision/Vision Air/Vision Pro

• Image Sensor: IMX335/IMX415/IMX678

• Video Output: YUV, MJPEG, H.264

• Sensor Size: Vision & Vision Air is 1/2.8; Vision Pro is 1/1.8

• Pixel size: Vision & Vision Pro is 2.0μm(H)×2.0μm(V); Vision Air  is 1.45μm(H)×1.45μm(V)

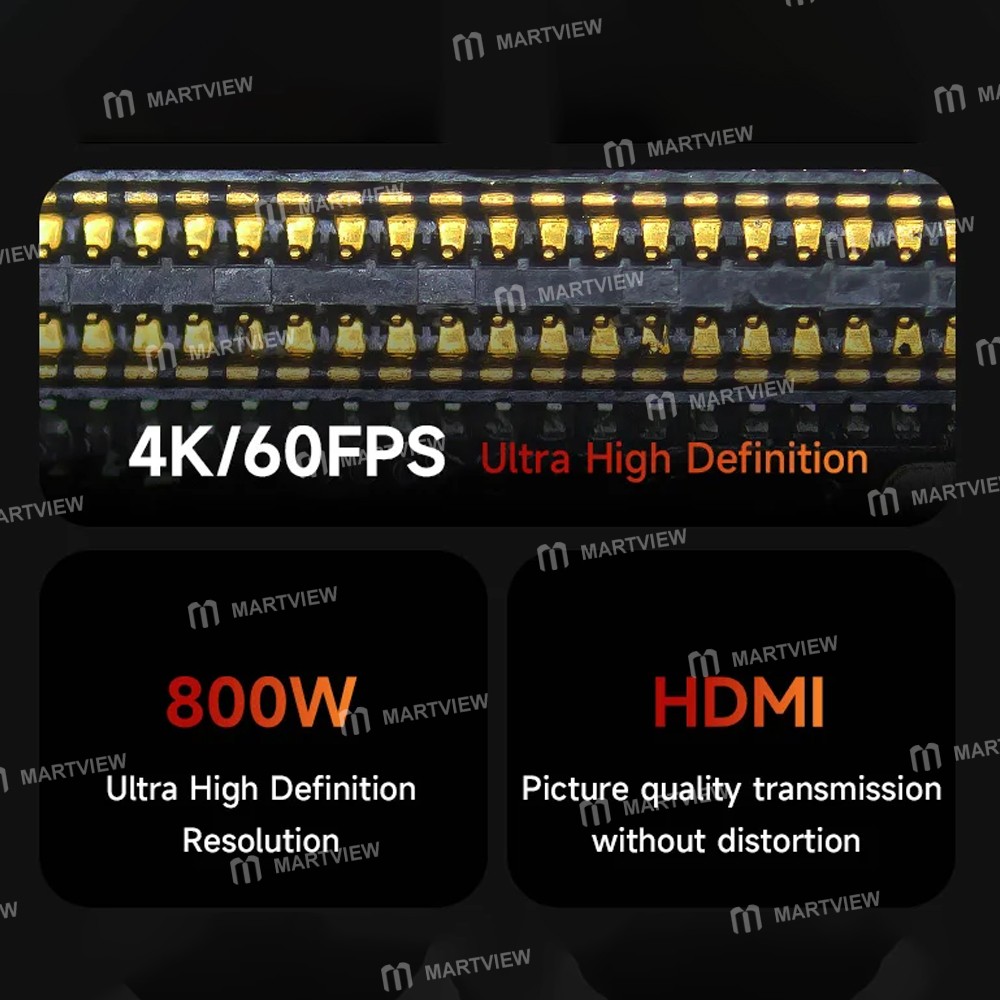

• Resolution: Vision & Vision Air is 2560*1440; Vision Pro is 3840*2160

• Photo Resolution: Vision & Vision Air is 500W; Vision Pro is 800W

• Video Recording: 1080P

• USB Port: Type-C, Type-A

• USB Output Resolution: Vision & Vision Pro is 1920*1080@60fps; Vision Pro is 1920*1080@60fps, 3840*2160@30fps

• Shutter Mode: Progressive scanning

• Spectral Response (Wavelength): 380~720nm

• Exposure Time (USB): 200μs~33ms

• Dual Output: HDMI, USB

• Supports Drive-Free Protocol: Support

• White Balance: Automatic, manual, one-touch

• Lens Port: C Interface

• Video Output Port: HDMI, USB

• Storage: USB flash drive

• Operating Voltage: 5V/2A

• Case Size: 60*60*65mm

• Language Setting: Chinese, Traditional Chinese, English, German, French, Japanese, Russian, Italian

Package includes:

• 1 x Camera

• 1 x Mouse (without Battery)
