Mijing 3005D 31V / 5A Multifunctional High Precision Adjustable DC Stabilized Power Supply

Mijing 3005D 31V / 5A Multifunctional High Precision Adjustable DC Stabilized Power Supply

Features :

• 31V/5A full digital power control single, 10mV/1mA high accuracy and resolution

• Low noise and ripple, CV/CC given voltage and constant current mode

• Highly reliable OCP, OVP, arbitrarily set protection, power, and memory function, has Keypad lock to prevent misuse

• An intelligent temperature control fan effectively reduces noise

• With USB interface

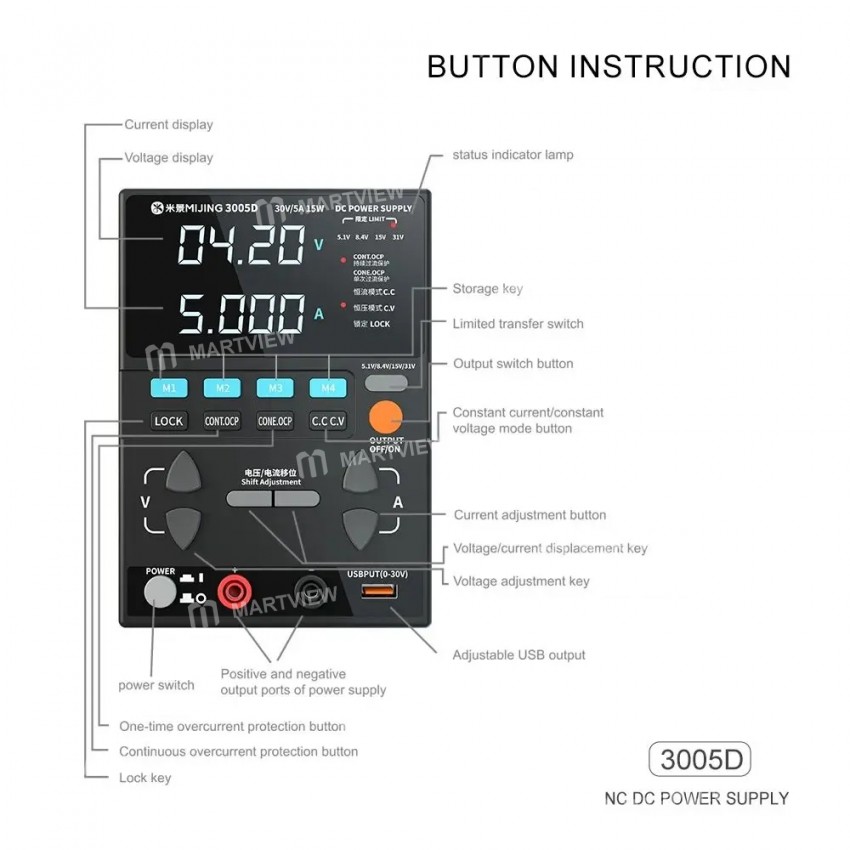

• Professional power supply design with intuitive operability

• Simple and intuitive operation, fast and accurate selection of voltage and current can be realized

• To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can

• Four memory channels with customizable storage voltage/current/output mode/protection mode

• Just press the button to recall and save area a key to bring up the user to store the data and save user settings

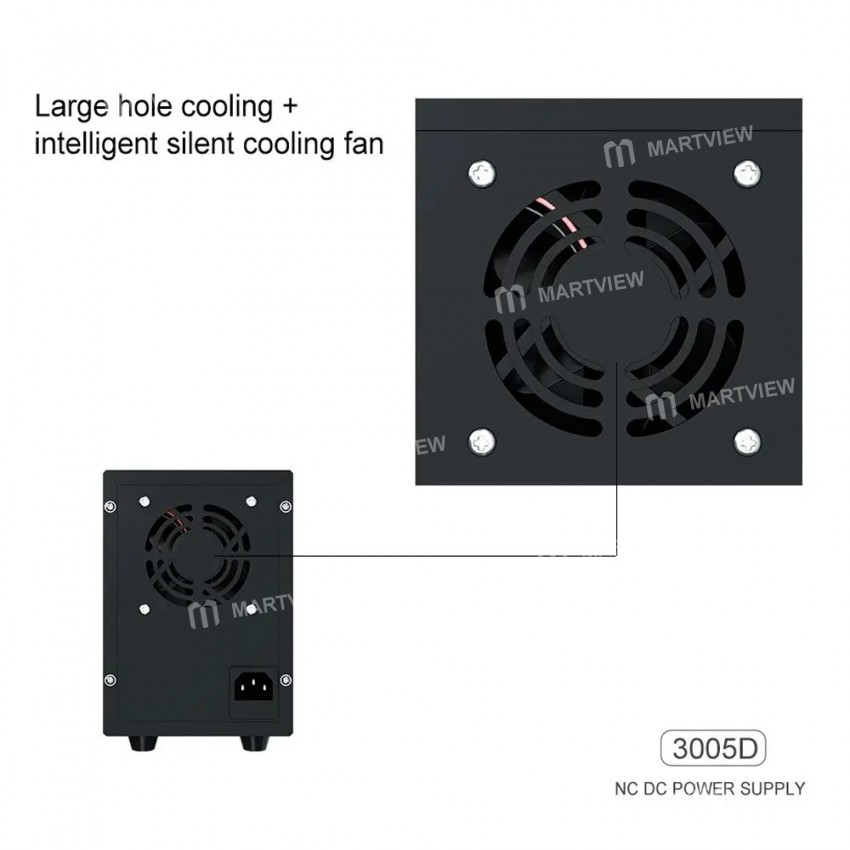

• Large hole cooling + intelligent silent cooling fan

Specification:

• Voltage: 110V/220V

• Output voltage: 0~31V

• Output current: 0~5A

• Output: 150W

• Protection type: Overcurrent protection, overvoltage protection, overtemperature protection

• Voltage: 10mV

• Current resolution: 1mA(2mARated current 3A)

• Interface: USB

• Conversion: ≈88%

• Steady current state CC: 0~The rated current is continuously adjustable

• Steady current state CV: 0~The rated voltage is continuously adjustable

Package includes :

• 1 x Power Supply

• 1 x Power Cable
