Mijing M-Triangel LWS-301 Intelligent Laser Soldering Station

Mijing M-Triangel LWS-301 Intelligent Laser Soldering Station

Specification:

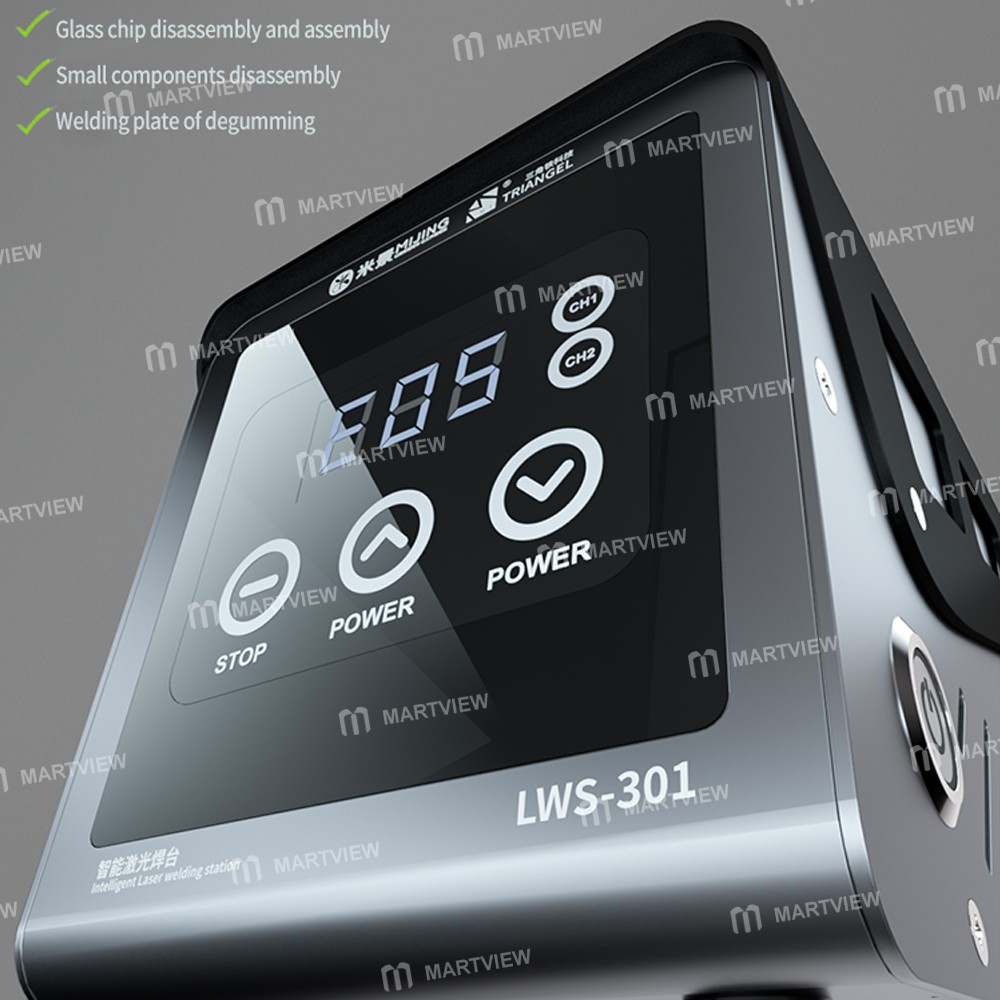

• Name: LWS-301 Intelligent Laser Welding Station

• Laser power: 15W*2, 10 levels adjustable

• Laser spot size:10mm/6mm

• Cooling method: air cooling

• Power: 100-220V±10%, 50HZ/60HZ±5%

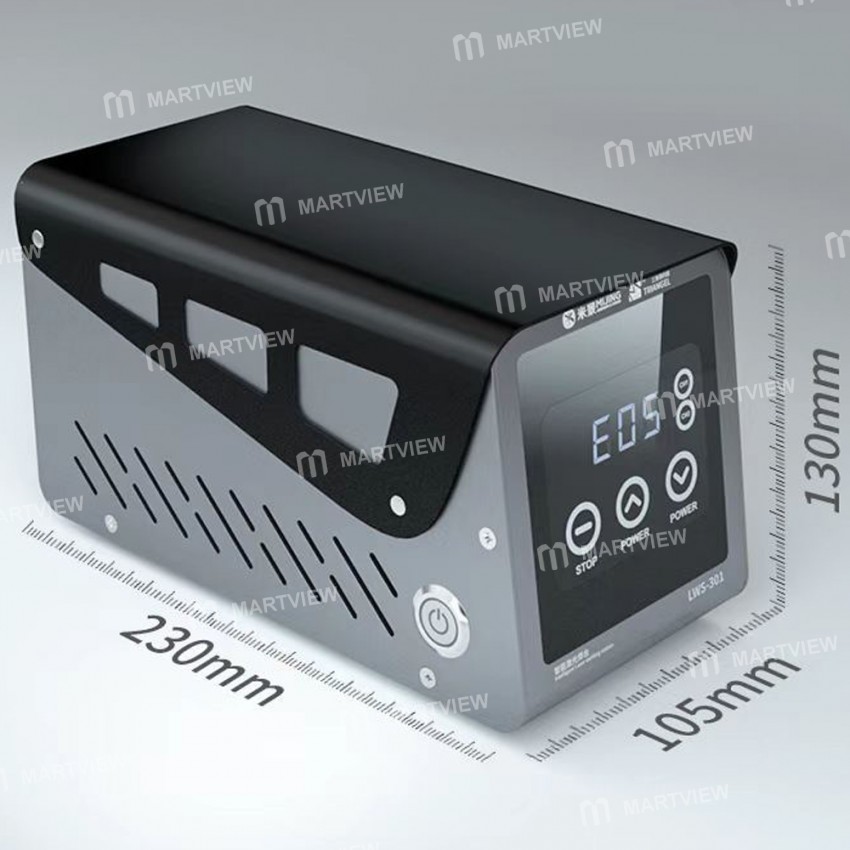

• Machine size: 216*110*129mm

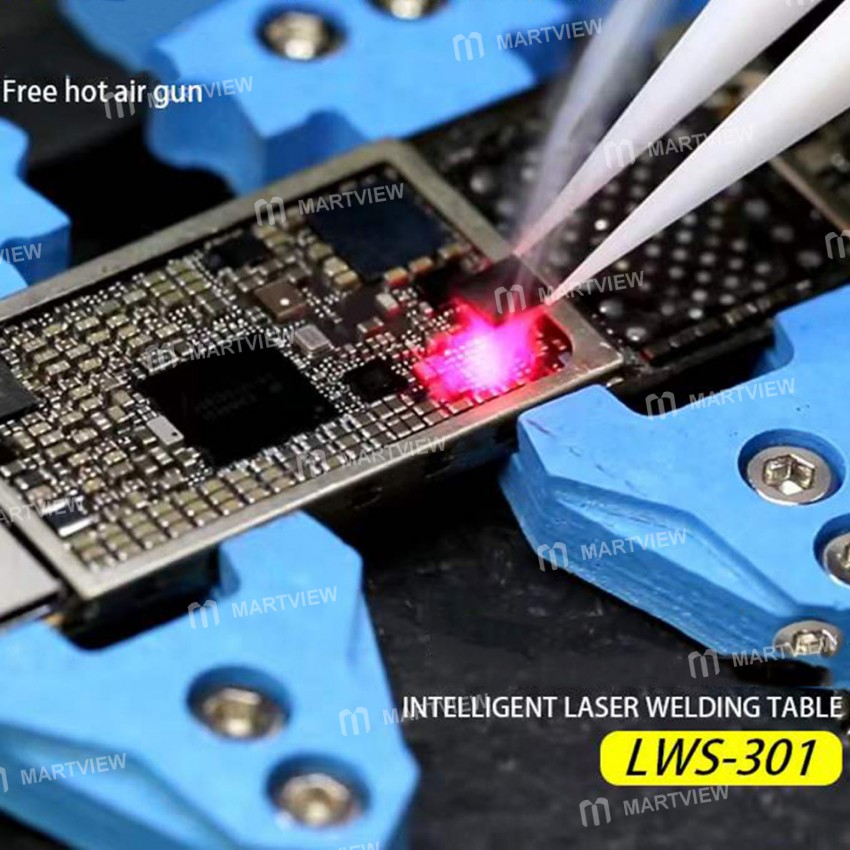

• Scope of application: Disassembly and assembly of glass chips, disassembly and assembly of small components, and removal of glue from pads

• Features: Breaking the traditional air gun disassembly and assembly of chips, the power is adjustable, the heating area is adjustable, the chip is disassembled in seconds, and the board layer and surrounding components are not damaged.

• Warm reminder: Please use special ceramic tweezers to remove chips and components

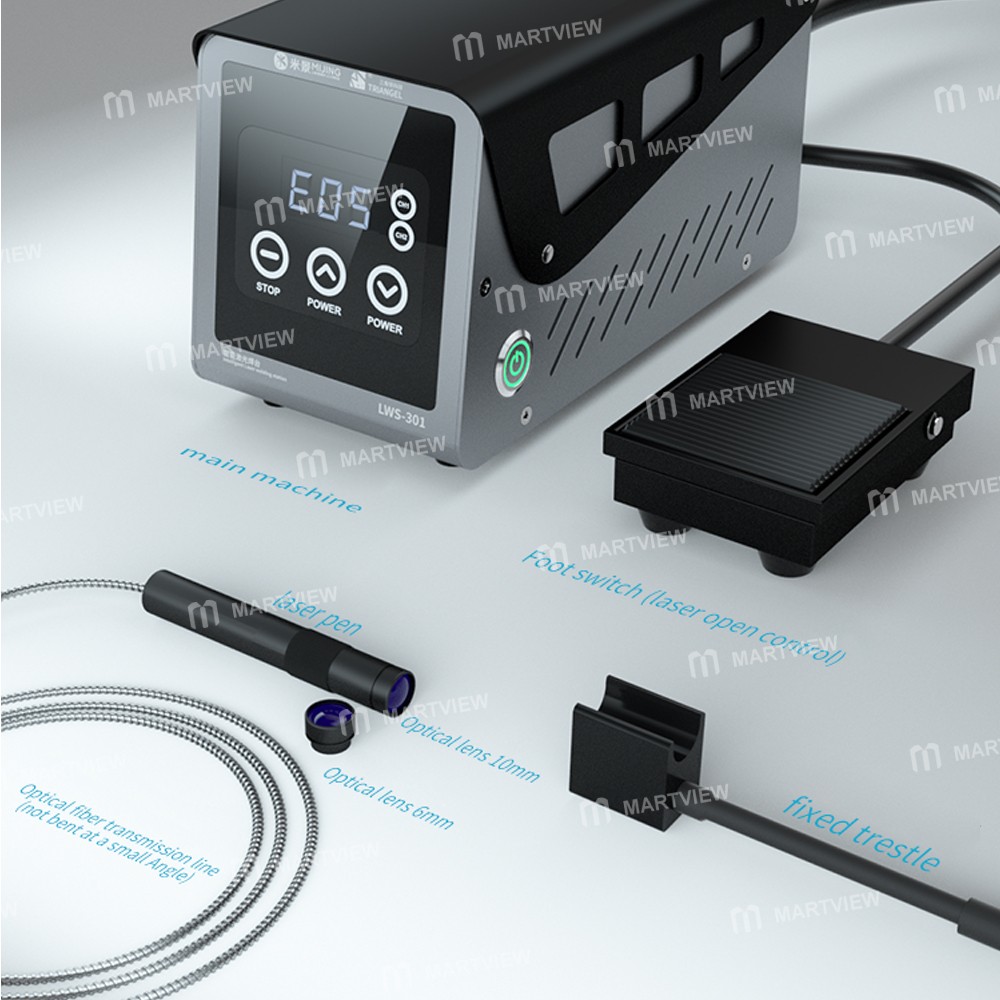

Package includes:

• 1 x LWS-301 host
• 1 x Laser pen

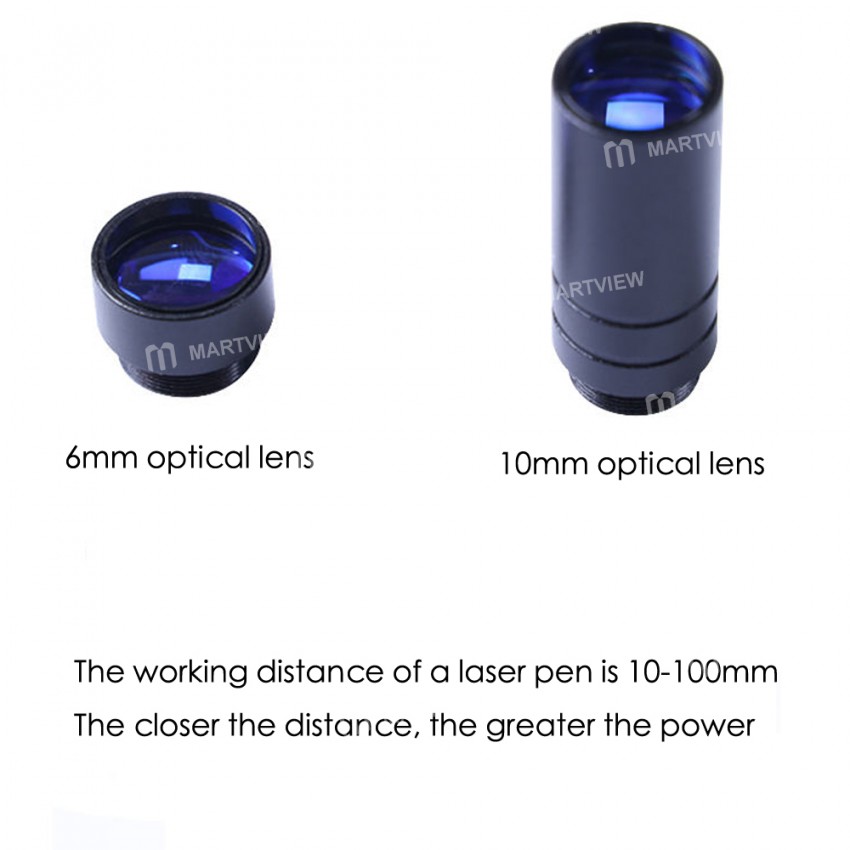

• 1 x 6mm Optical lens
• 1x 10mm Optical lens
• 1 x Footswitch

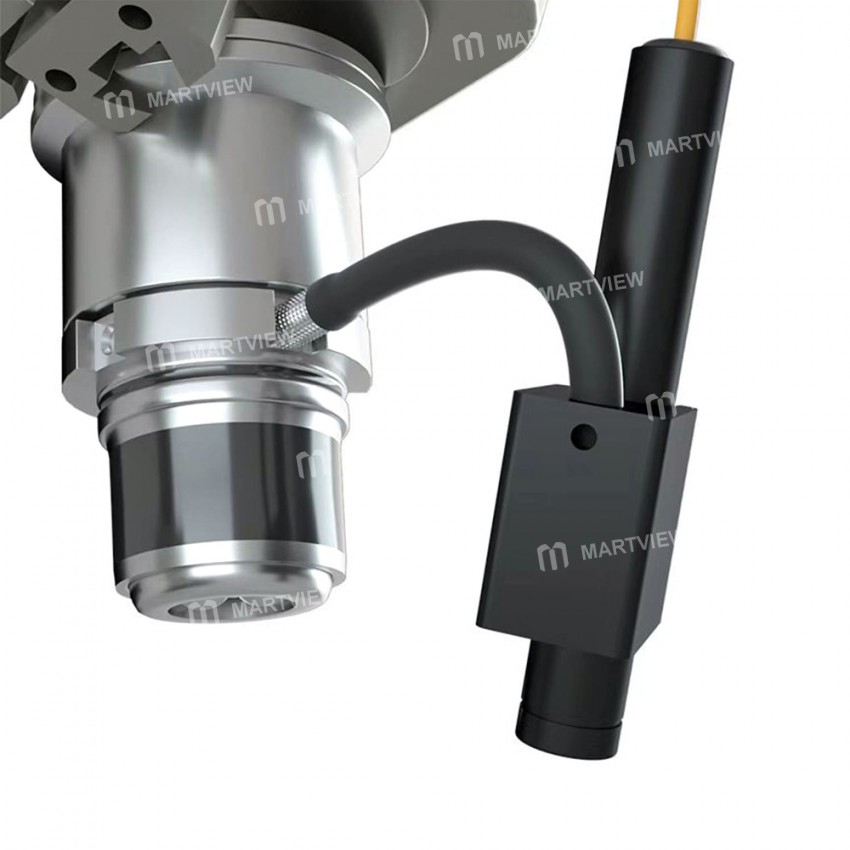

• 1 x Fixed bracket

Notes:

• Do not stare at human eyes with the laser pen head or aim the laser pen at other parts of the human body
• Do not violently hit the machine
• When the machine is not working, please cut off the power supply in time. Try not to store flammable and explosive materials near the pen head
• When using this product, please use a plug with a grounding function
• In order to ensure the normal use of the machine, please do not disassemble the machine privately and change the internal and external structure of the equipment
• In order to ensure the normal use of the machine, the laser fiber optic cable cannot be bent 90°, otherwise, it will easily cause the fiber optic cable to be damaged
