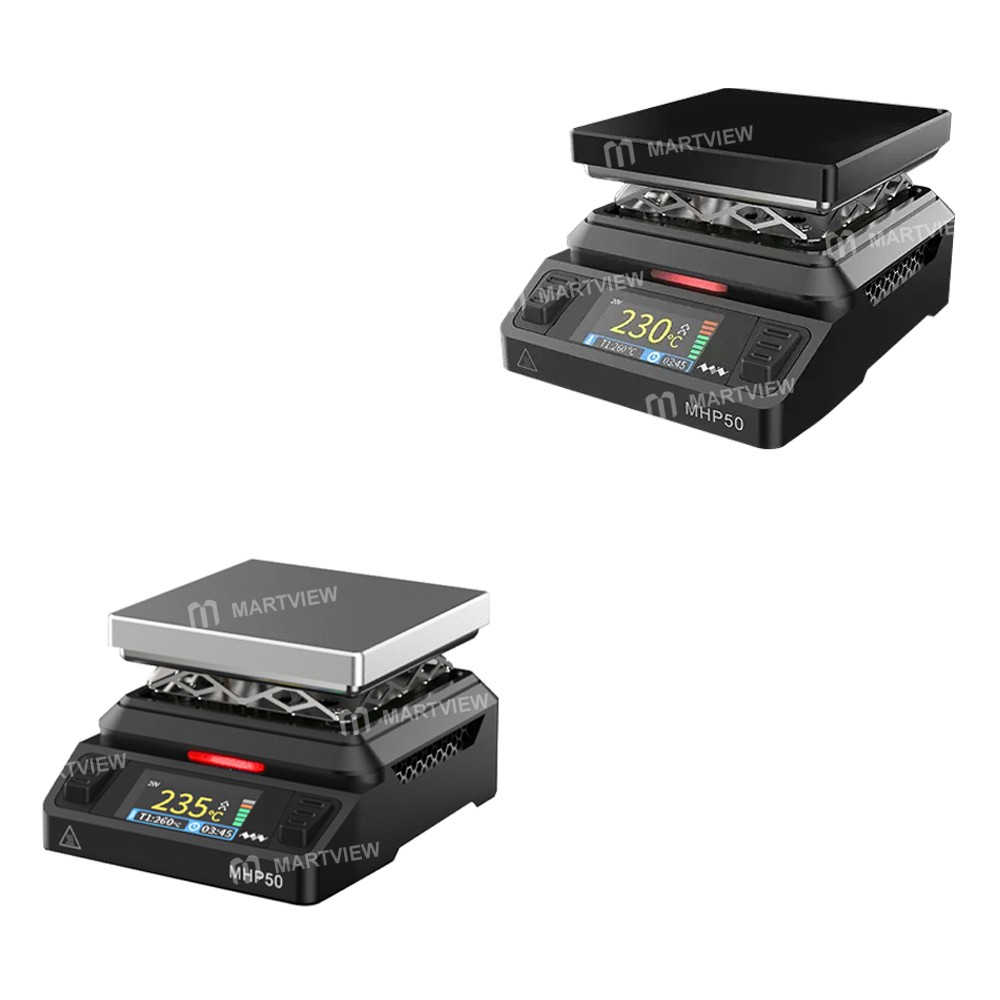

Miniware MHP50 Mini Intelligent Digital Display Constant Temperature Hot Plate Preheater

Miniware MHP50 Mini Intelligent Digital Display Constant Temperature Hot Plate Preheater

Features:

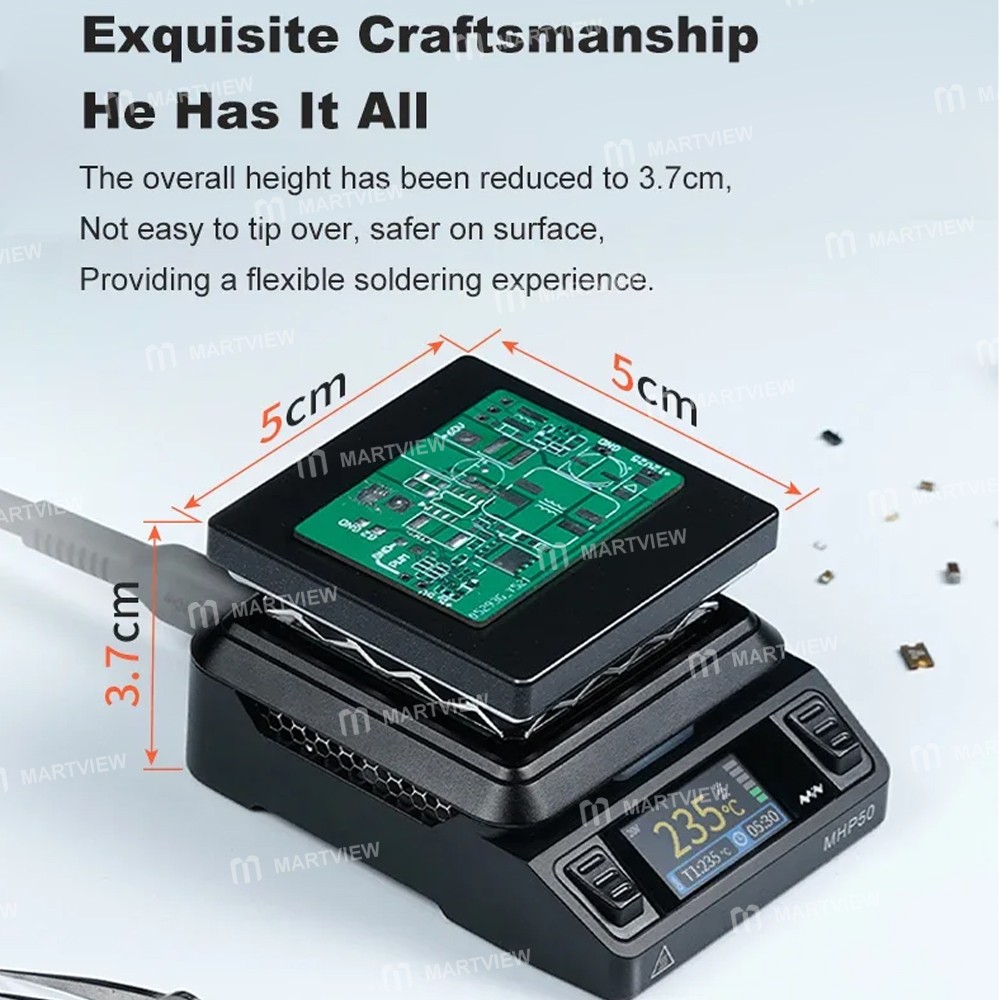

• 5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios

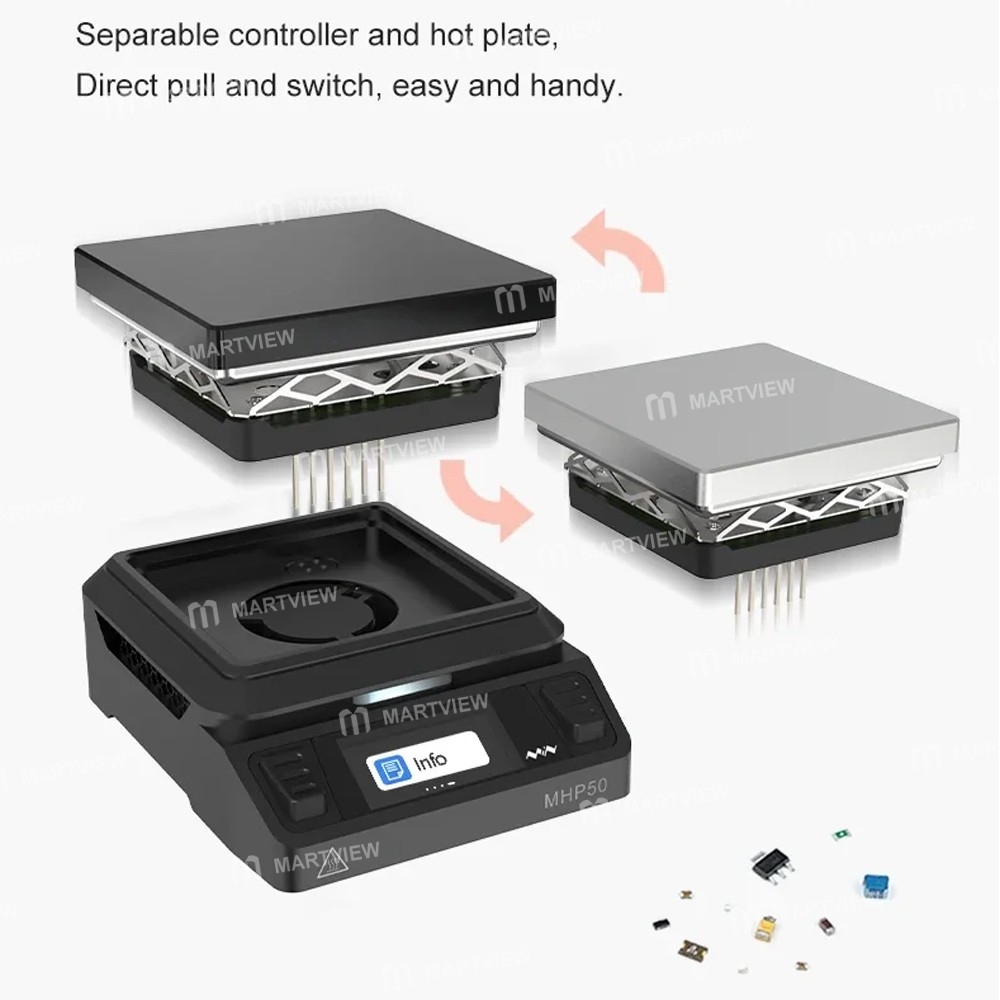

• Separable controller and hot plate, flexible to replace

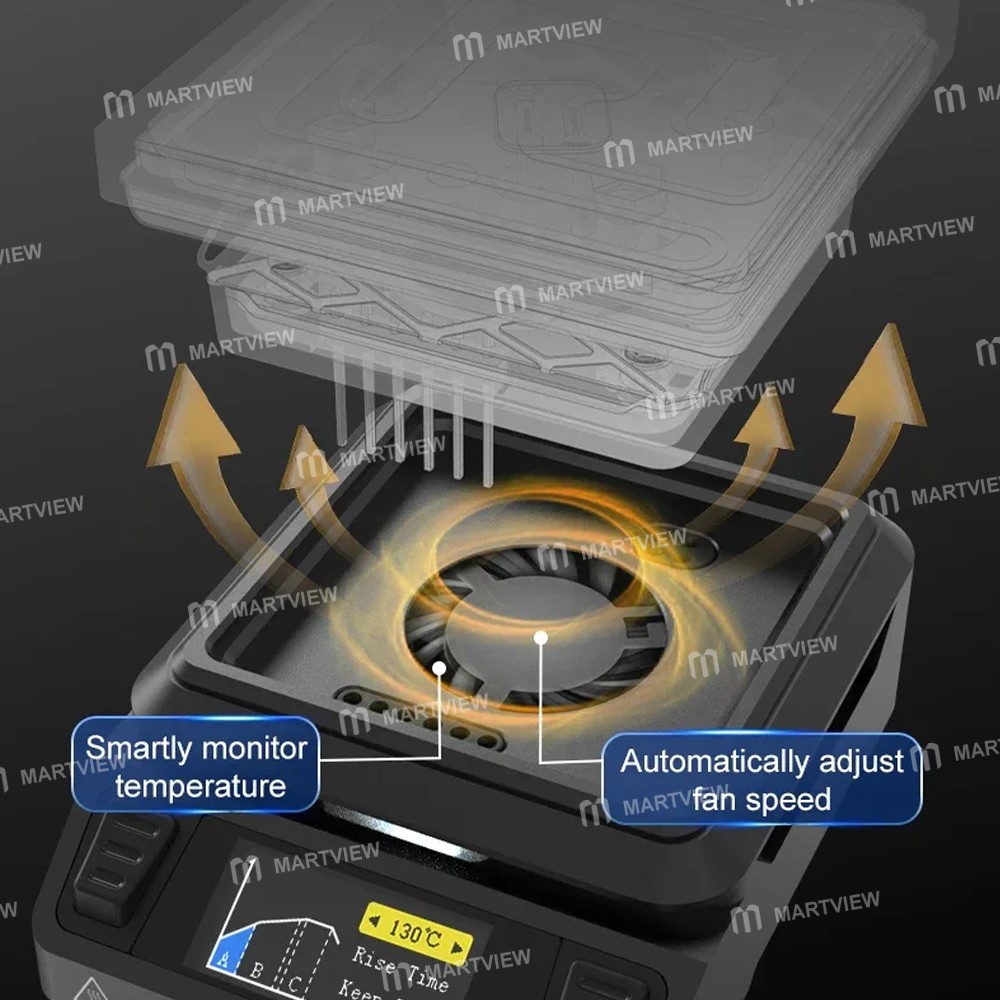

• Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation

• Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage

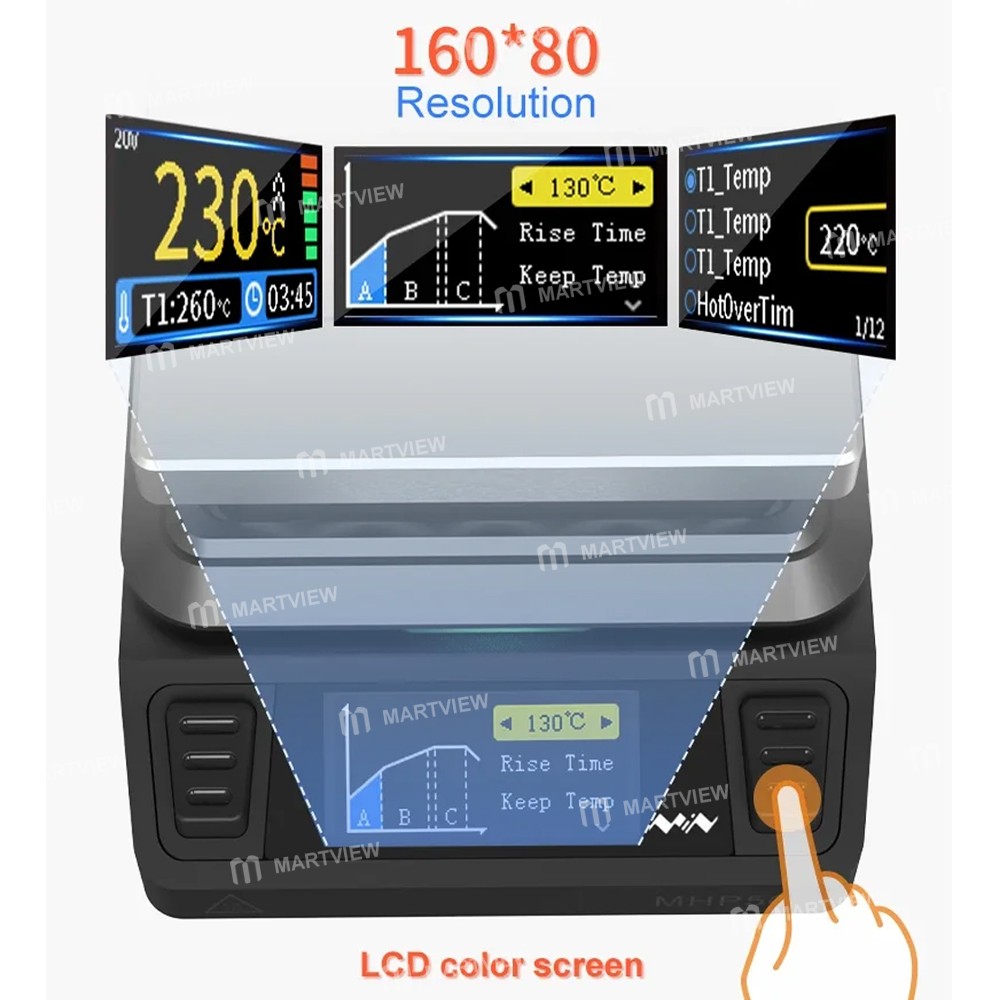

• 160*80 resolution color LCD display, clear and rich parameter display

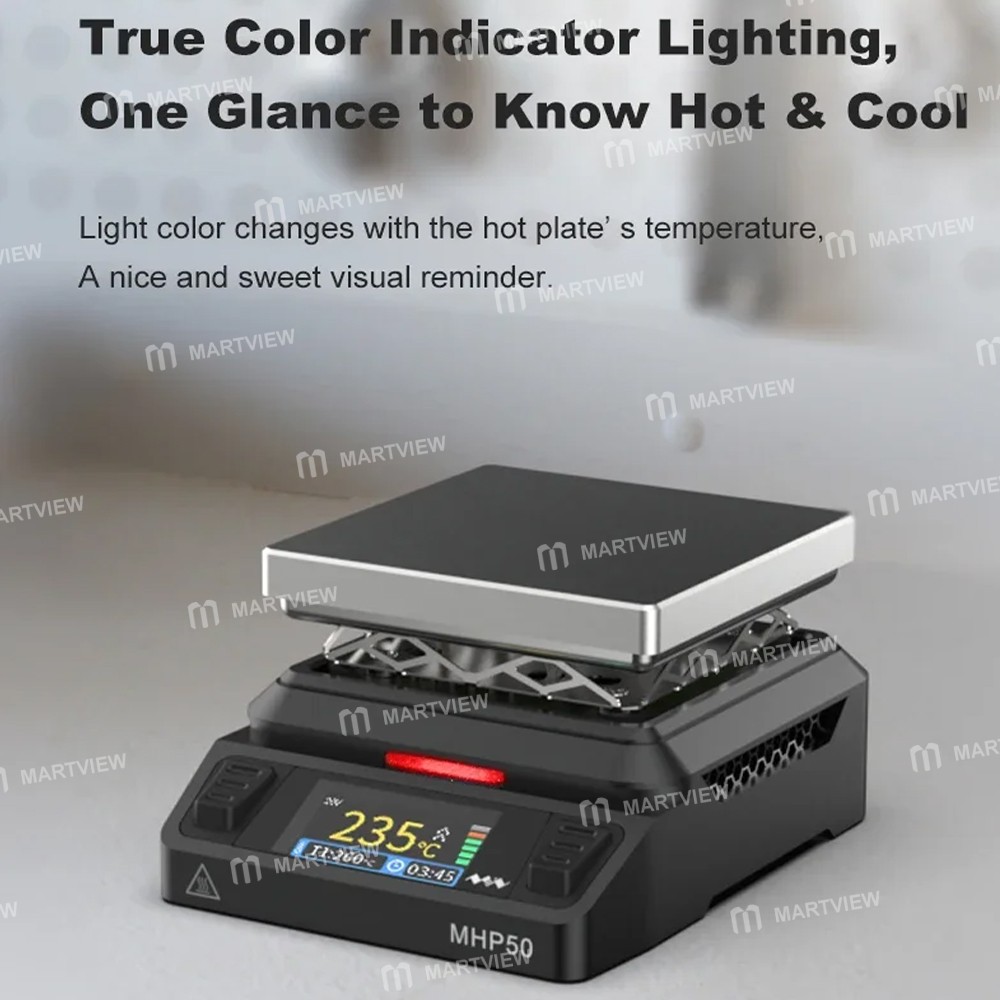

• Built-in OLED display and true color LED, light color changes with heating temperature

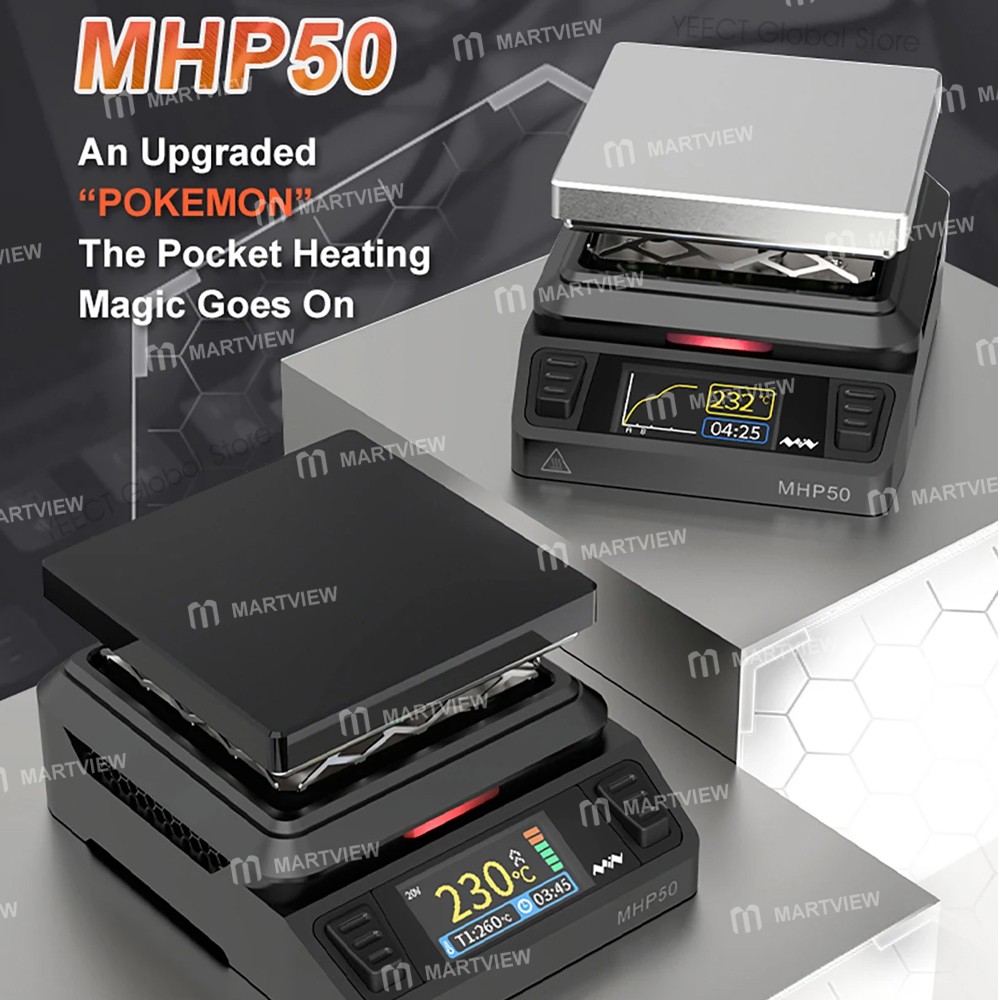

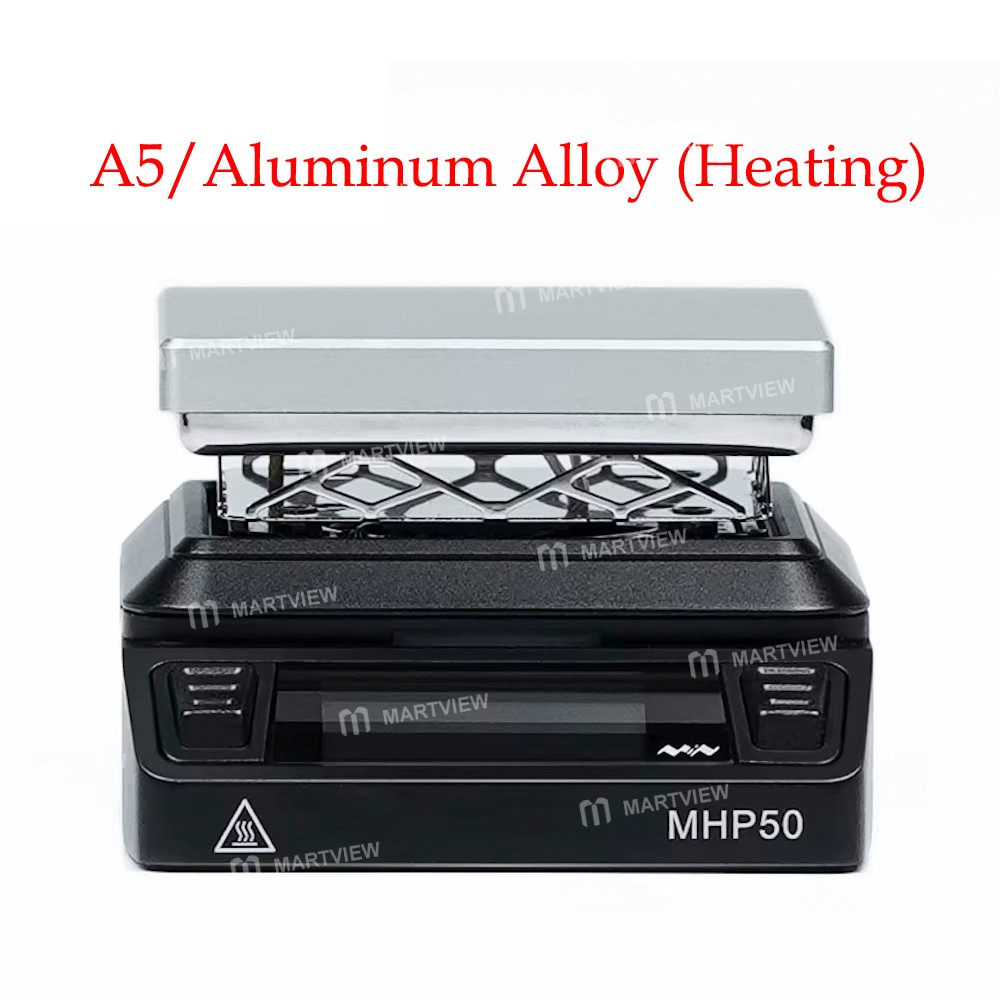

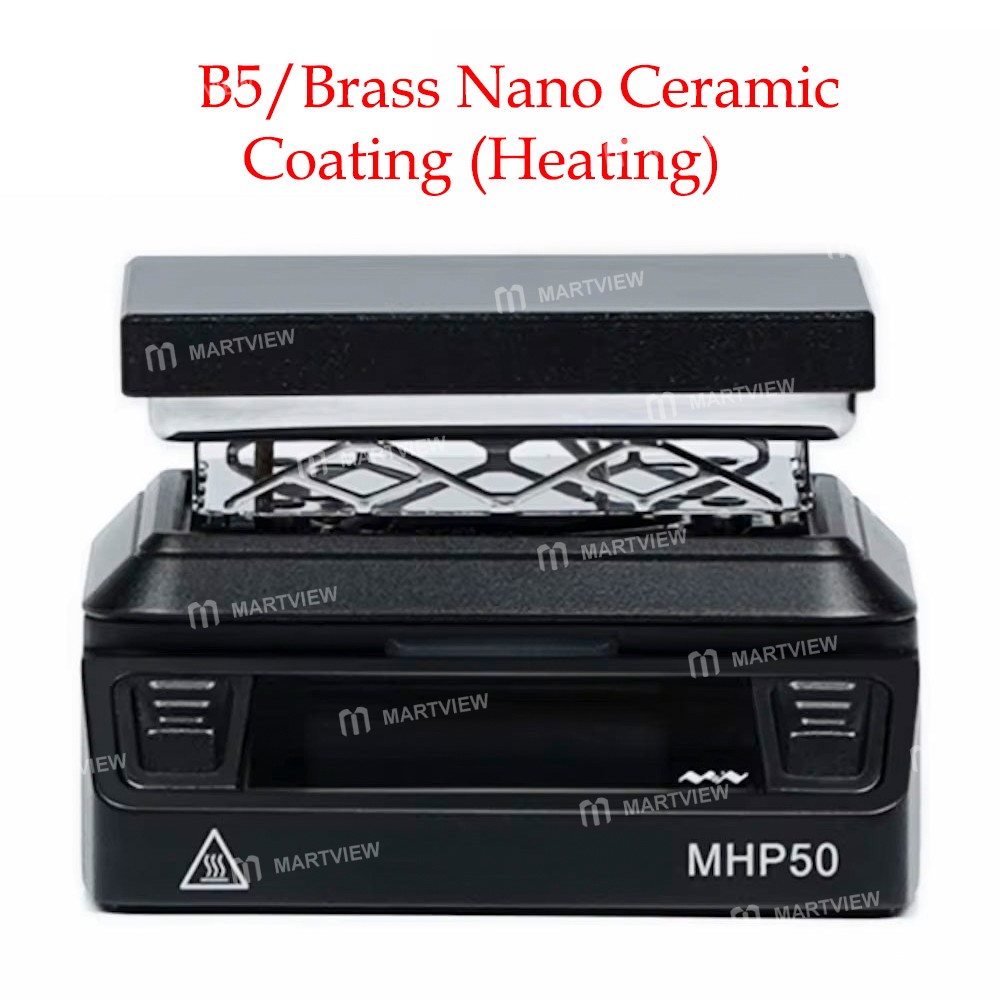

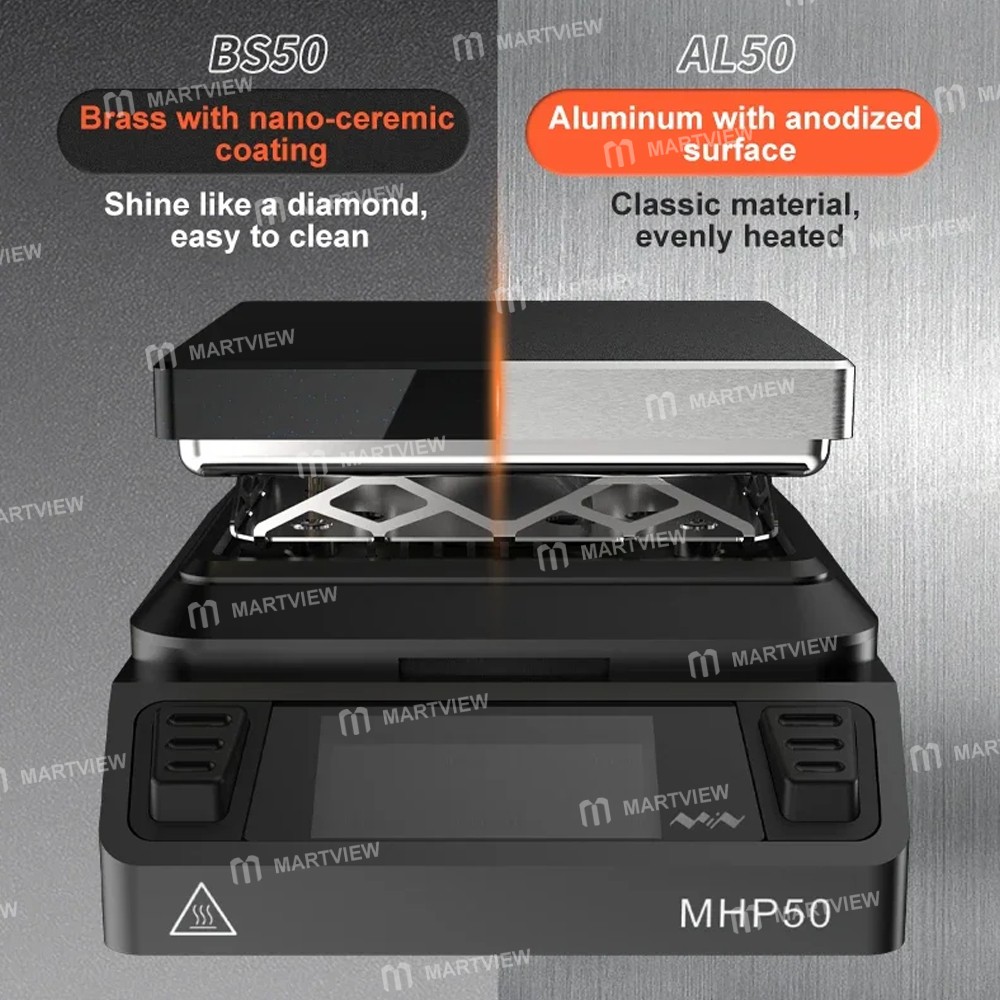

• Two hot plates with different heating materials for your choice: aluminum alloy and brass with nano-ceramic coating, each with its own heating strengths for your needs

• Hot plate adopts a futuristic design stainless steel bracket, artistic and practical

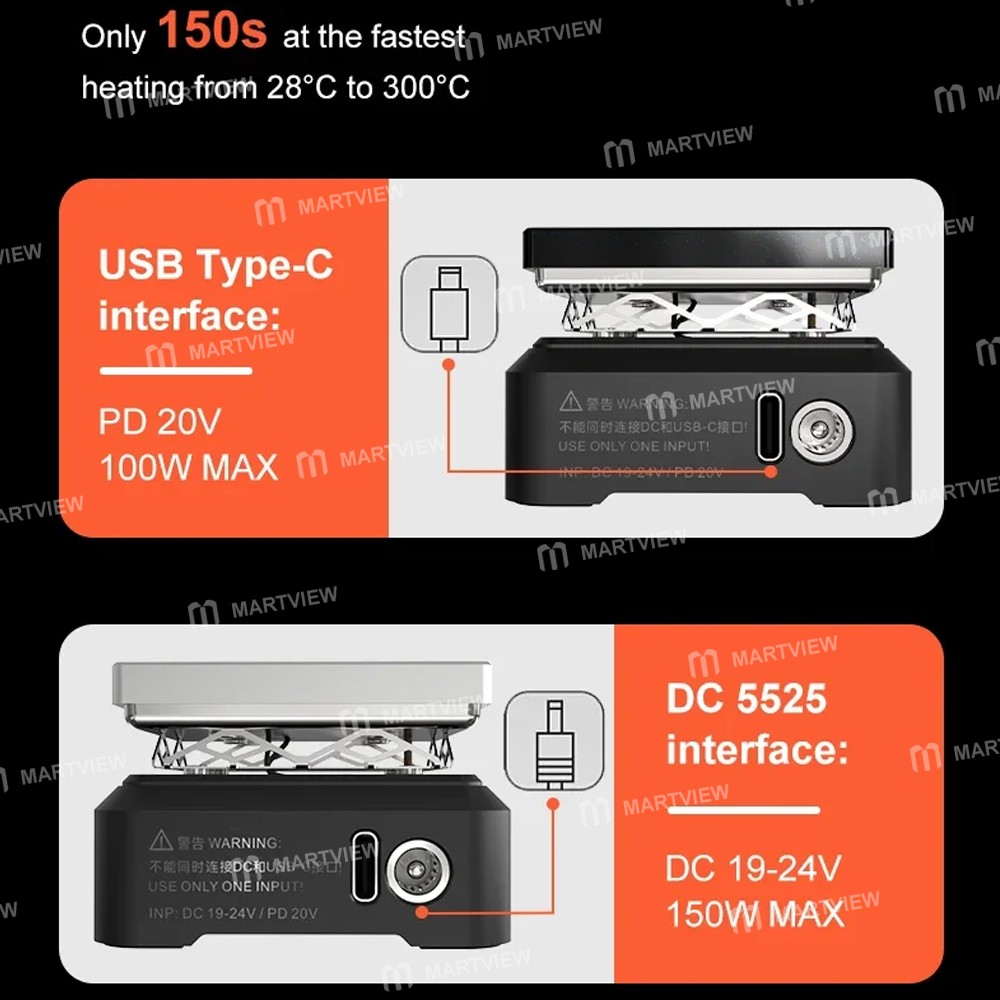

• Dual-mode power inputs: DC 5525 power jack for 19-24V input upto 150W; standard PD 20V power input to reach 100W

• Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input)

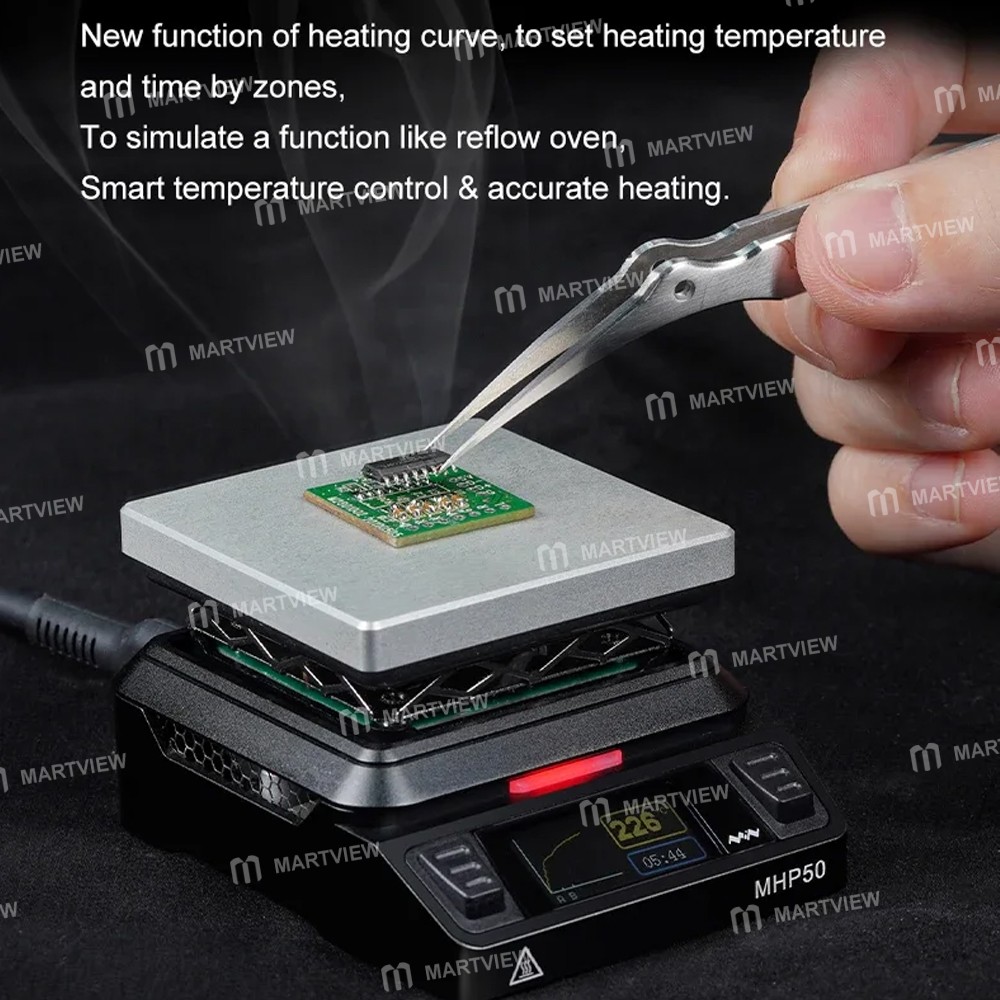

• Innovative heating curve function, you can customize the heating temperature and duration by sections to achieve a similar reflow soldering effect

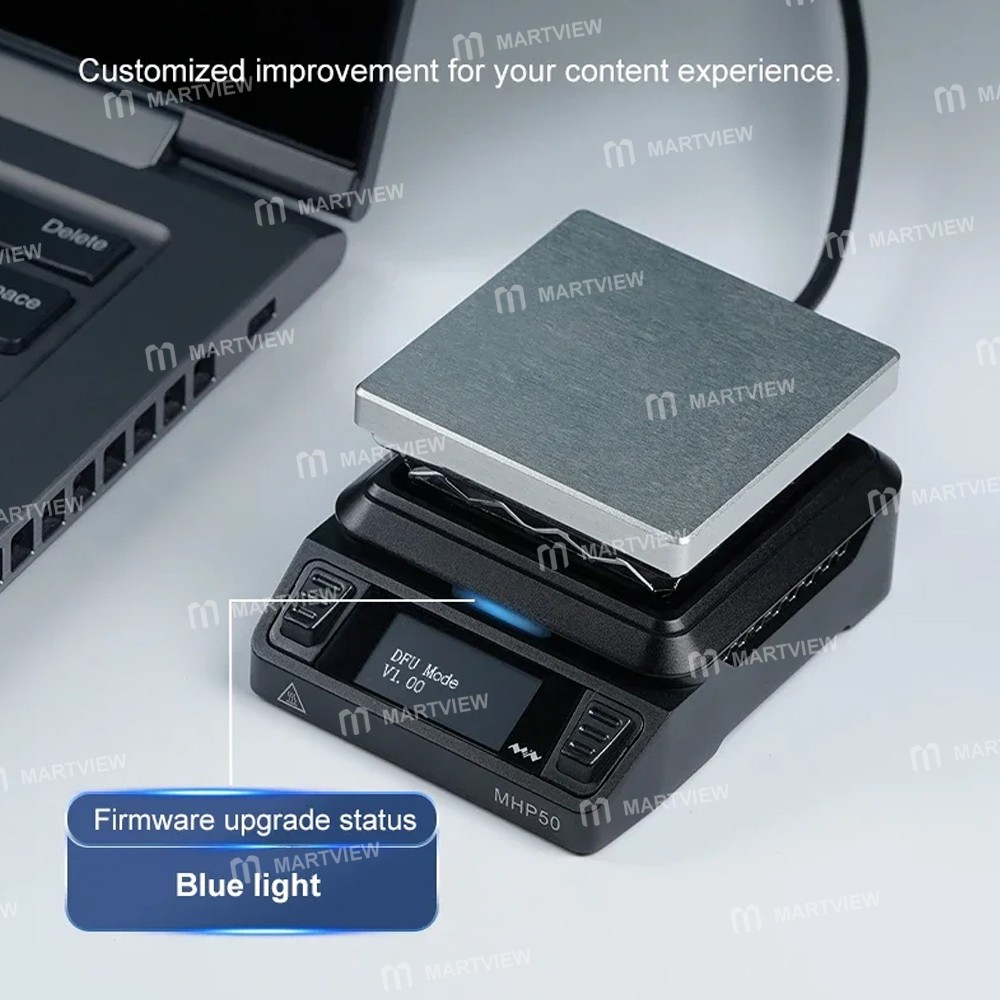

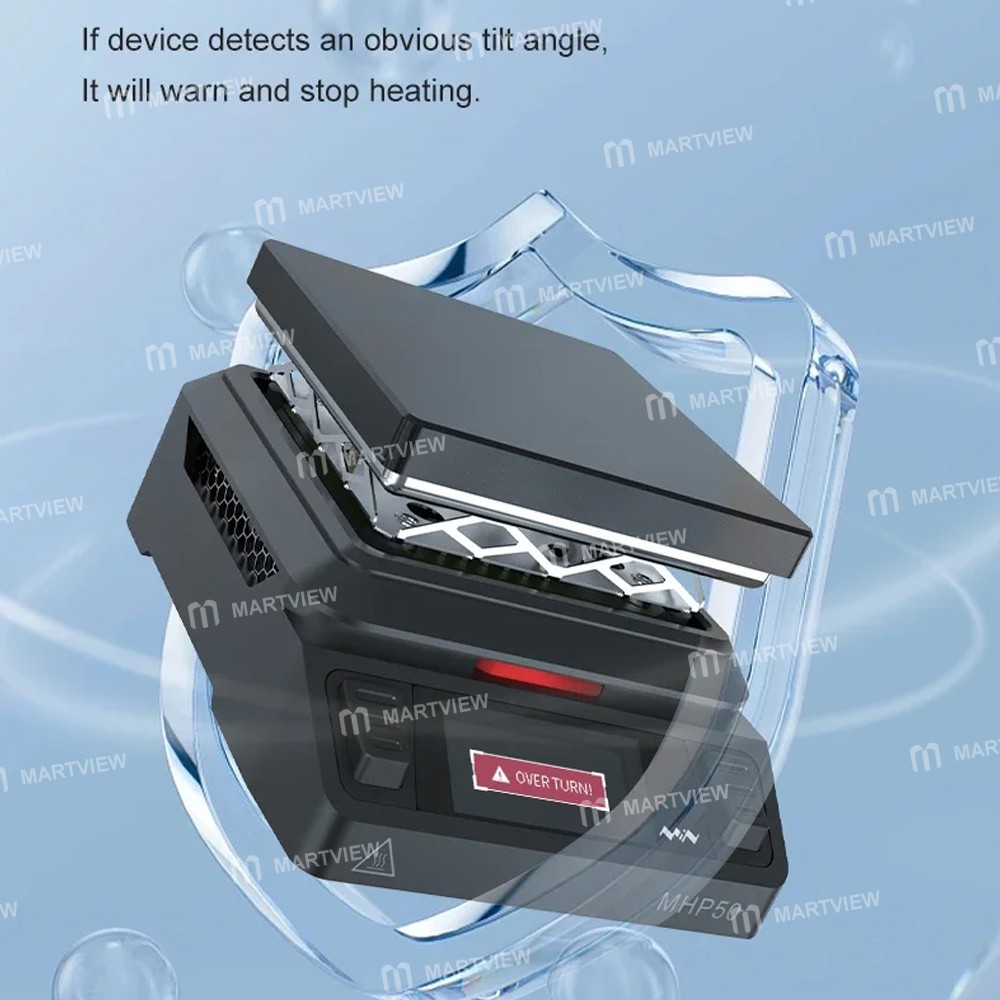

• Multiple intelligent functions: preset temperature, overturn protection, brightness adjustment, firmware upgrade

• Use scenarios: MHP50 mini hot plate preheater can be put into your pocket, for preheating, and desoldering circuit boards, components, LED lamp beads, etc.

Specification:

• Controller Model:  MHP50

• Hot Plate Model: AL50 (Aluminum) / BS30 (Brass)

• Heating Area: 50mm*50mm

• Temperature Range: 100-350°C

• Temperature Stability: 0.03

• Max Power: DC 5525 150W / PD 100W

• Power Input: DC 5525 19-24V / PD20V (Use only one input)

• Size: Controller: 71.5*55.5*22.5mm   Hot plate: 50*50*29mm

• Weight: Controller: 78g   AL50: 60g   BS50: 87g

• Smart Modes: Multi smart modes: preset temperatures, heating curves, overturn protection, brightness adjustment, firmware upgrade

Package includes:

• 1 x MHP50 Controller

• 1 x PD Cable (20V 5A)
