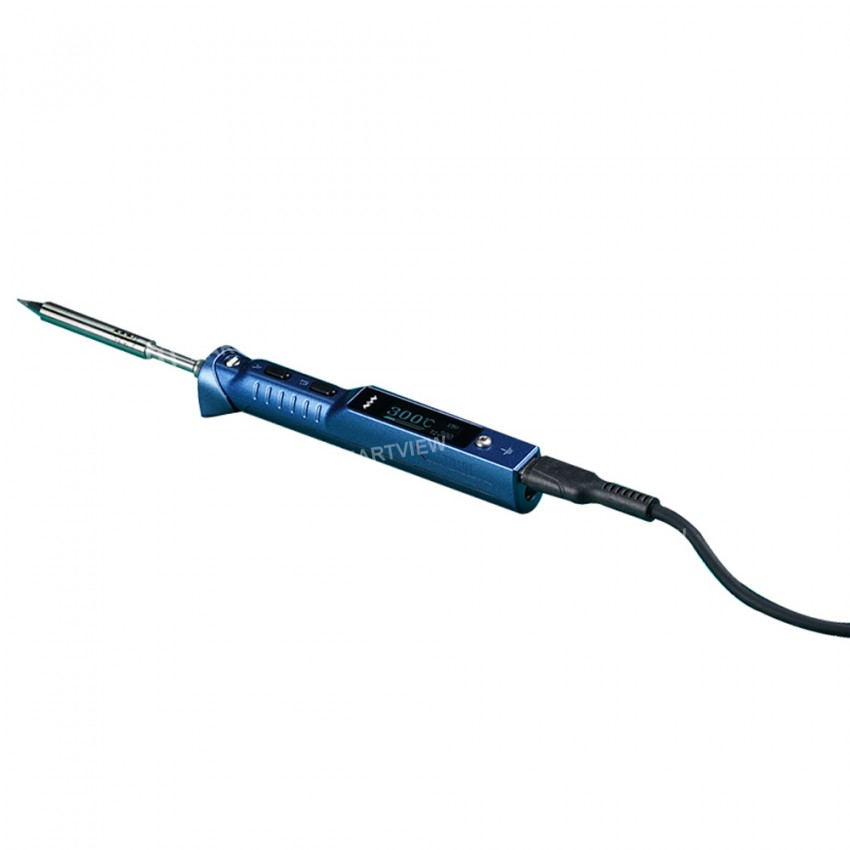

Miniware TS101 USB Portable Adjustable Temperature Electric Soldering Iron

Miniware TS101 USB Portable Adjustable Temperature Electric Soldering Iron

Features:

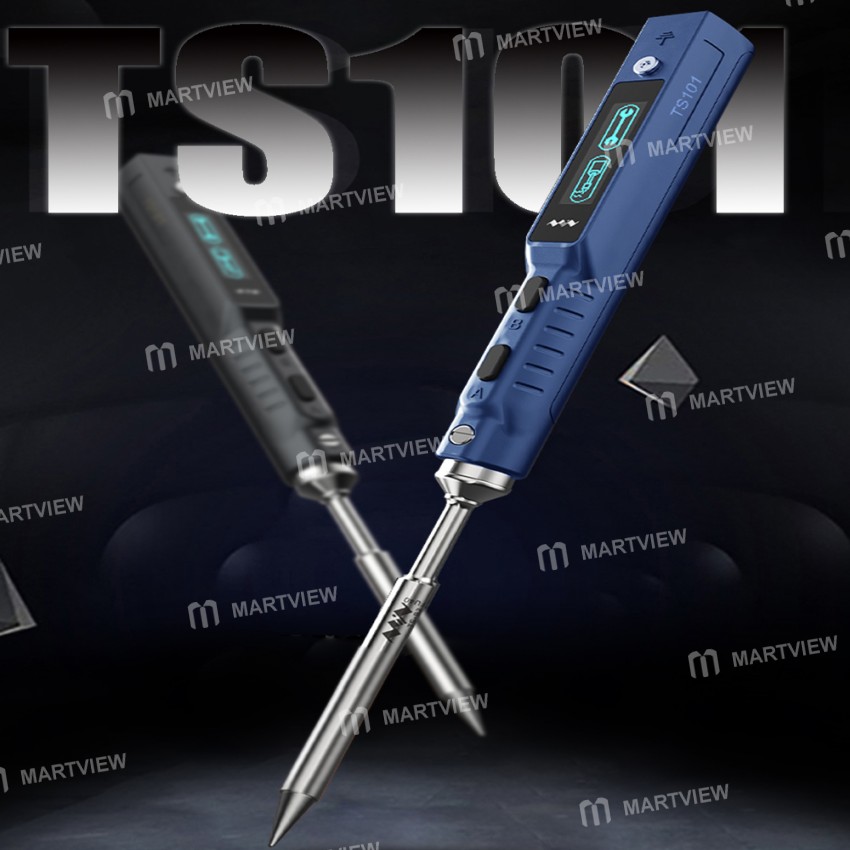

• Based on TS100, TS101 is upgraded and optimized in performance and functions to improve user experience

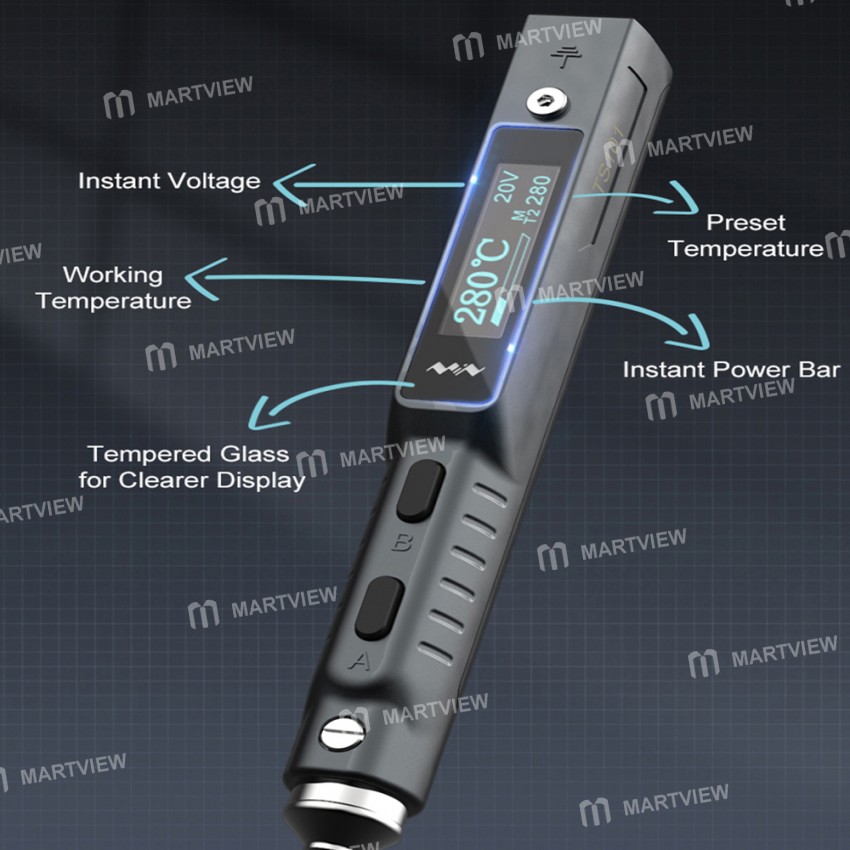

• The TS101 master's overall appearance is sharp and tough, with a larger 128 * 32 pixels OLED screen that displays more heat data

• The classic A-B key operation continues the TS100 operation habit and reduces the user learning cost

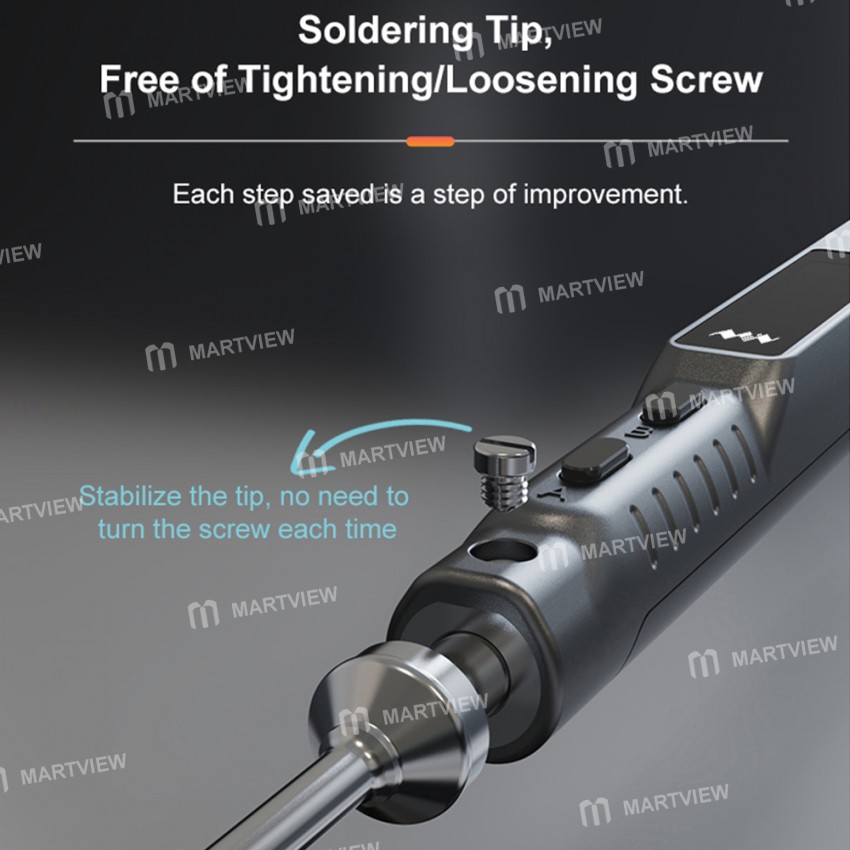

• The insert end of the soldering iron head of the controller is fixed with a ball screw

• There is no need to loosen the hexagonal screw before inserting and removing the soldering iron head

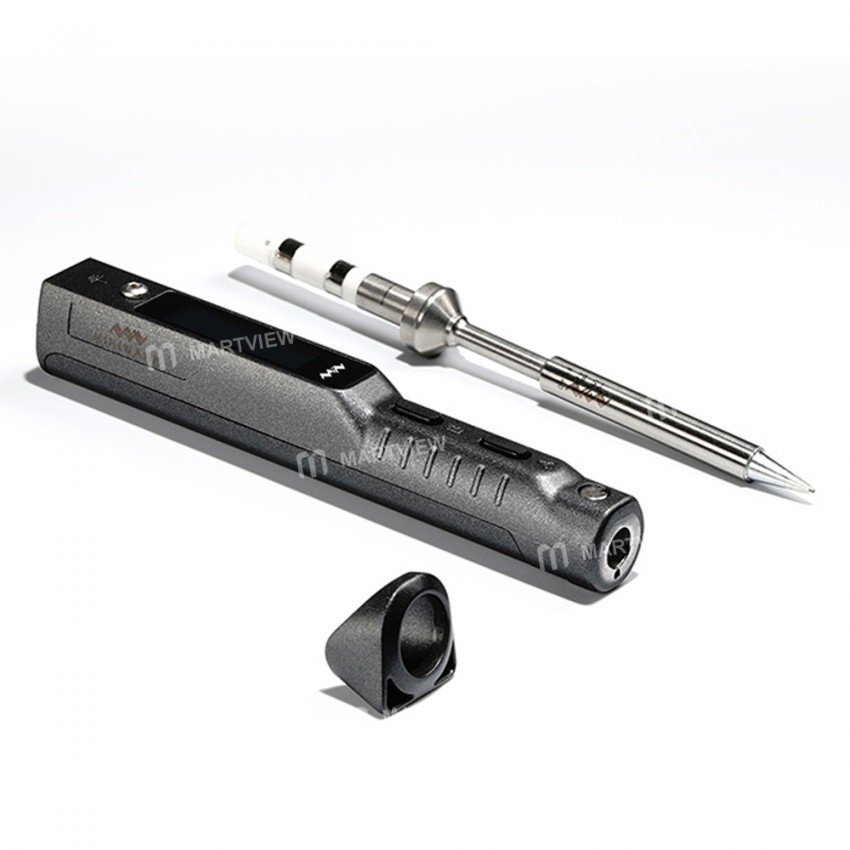

• A new handy and practical accessory, a cat-like non-slip cap that not only acts as a simple stand to support the iron and prevent it from rolling but also can be used for finger non-slip and removing the soldering tip

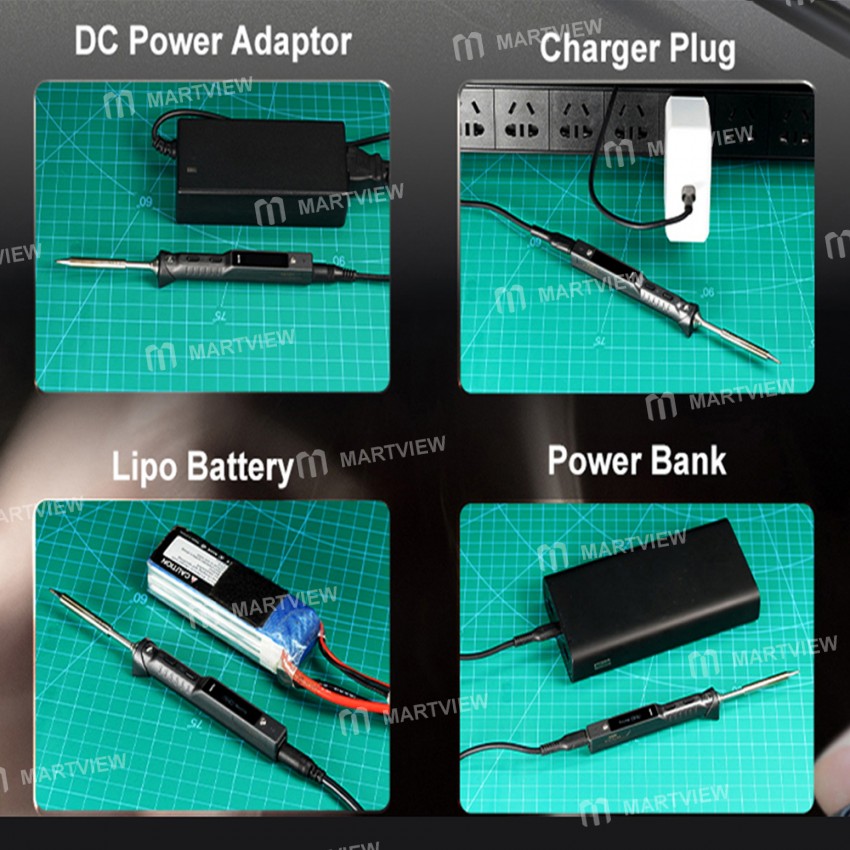

• TS101 soldering iron adopts DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W)

• The USB-C interface replaces the original Micro USB interface for firmware upgrades and is used as a standard PD power input up to 45W

• The temperature adjustment range is also optimized to 50-400℃ to adapt to more application scenarios

• In terms of intelligent operation, TS101 menu Settings are more detailed, and the newly added "Boost" heating function can heat up quickly in a short time to meet the welding requirements of special scenarios

• TS101 and TS100 use the same soldering tip, so your existing TS100 tip can continue to be used for this upgraded version of the soldering iron

Specification:

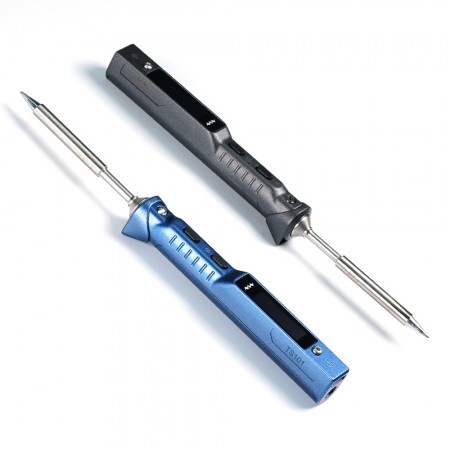

• Shell color: Dark Gray/Blue

• USB Interface: USB-C (Power supply and connection to computer)

• Working Voltage: DC 9-24V 9-65W(Max)

• Power: PD 9~28V 9~90W(Max)

• Power Input: DC 5525 Wide Voltage, PD3.1

• Temperature Range: 50-400℃

• Temperature Stability: ±2%

• Tip Resistance: <2Ω

• Ground Controller Size: L98mm, φ16.5mm

• Tip Size: L105mm, φ15.5mm (Different models of tips will be slightly different.)

• Wight: 33g (Controller+Tip)

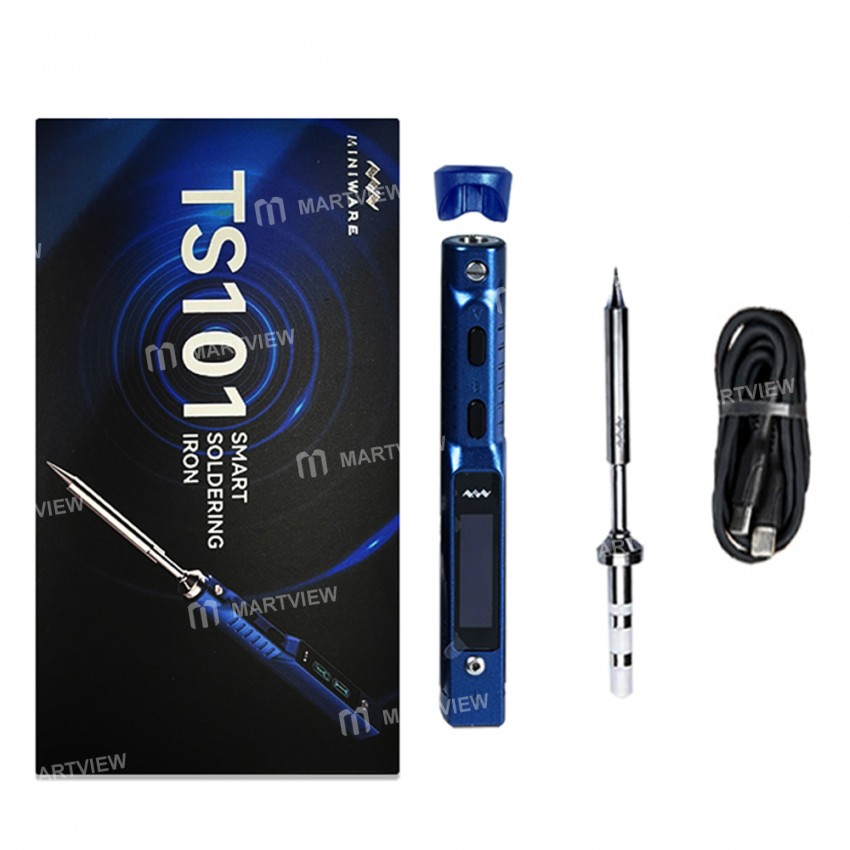

Package includes:

• 1 x TS101 Controller

• 1 x Soldering Tip (TS-BC2)

• 1 x Anti-slip Cap

• 1 x USB-C Silicone Cable
