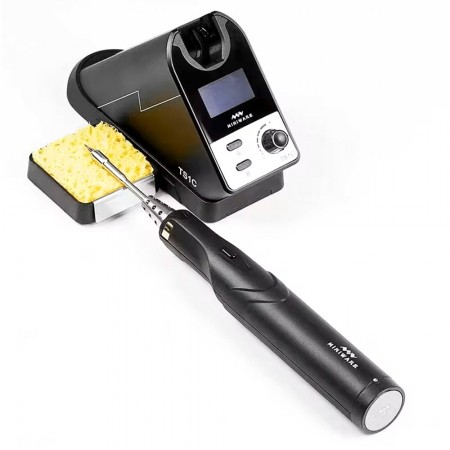

Miniware TS1C PD 45W Smart Digital Display Cordless Soldering Station for PCB SMD Repair

Miniware TS1C PD 45W Smart Digital Display Cordless Soldering Station for PCB SMD Repair

Features:

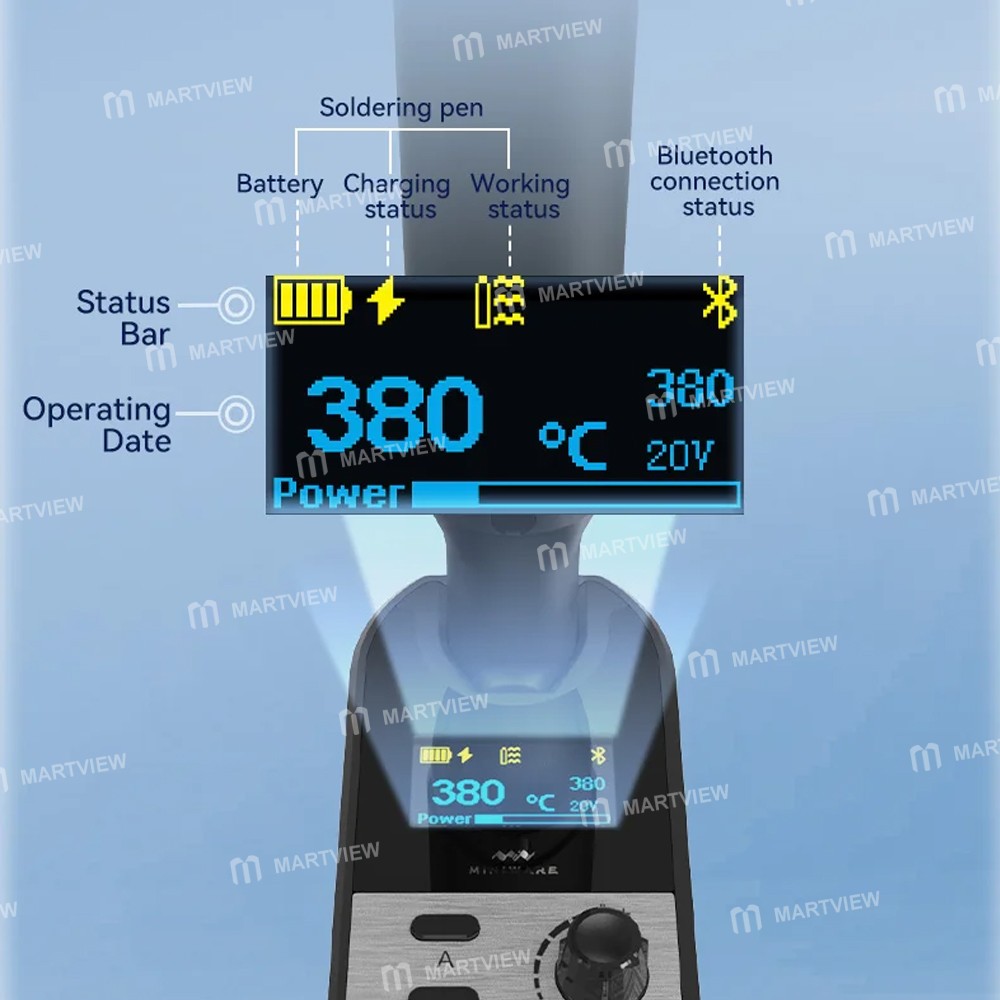

• 128*64 pixel OLED display screen, the temperature, and status are displayed separately. The charging status, working status, power, and BT connection status of the soldering iron handle can be seen at a glance

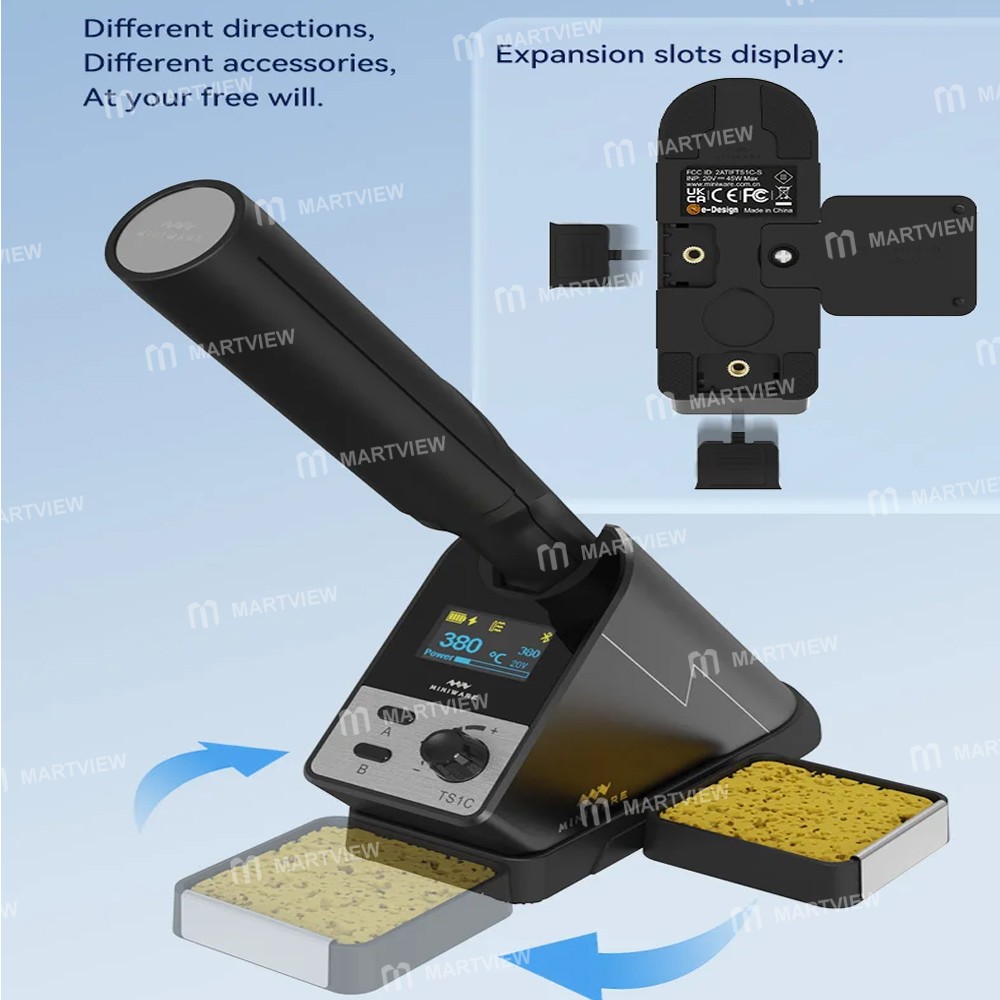

• The base has three expansion slots, which can be installed with different expansion accessories, and different directions for different accessories at your disposal

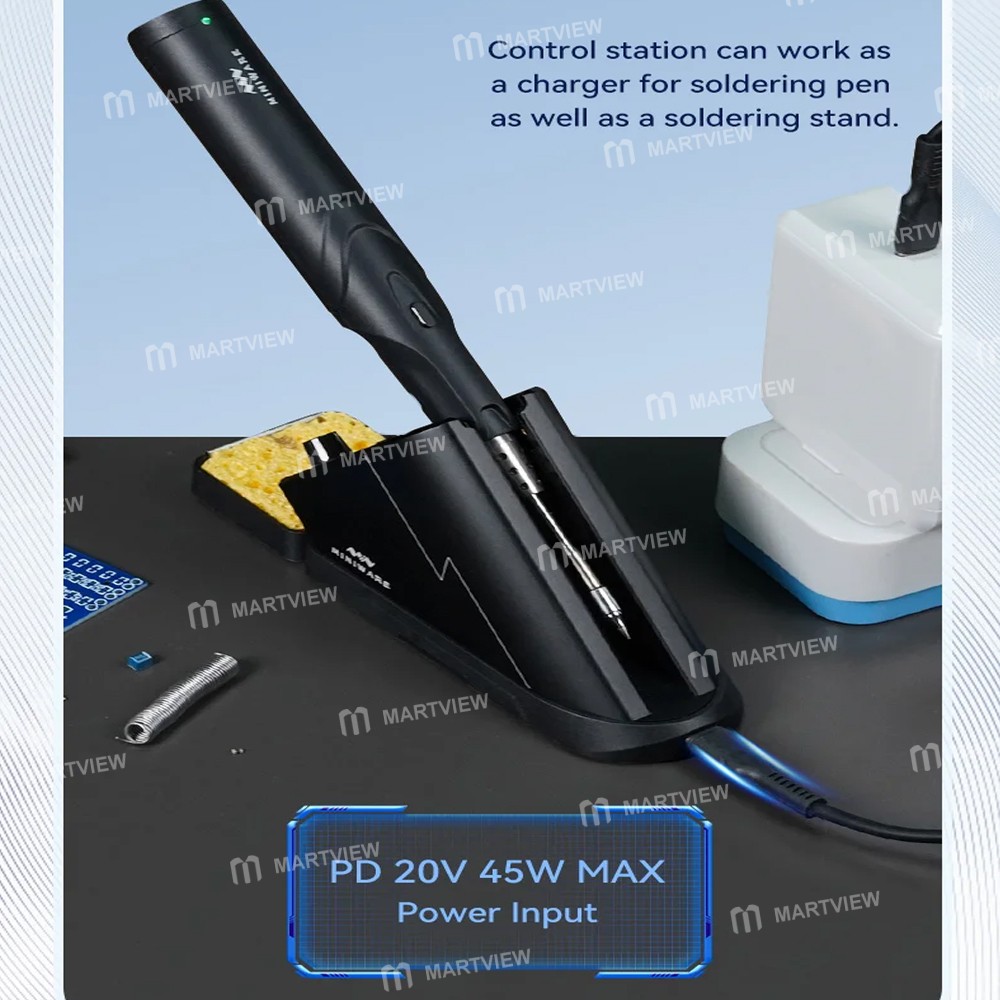

• Max PD20V 45W input power supply, experiences smooth charging, and the control base can recharge the handle while acting as a soldering iron stand

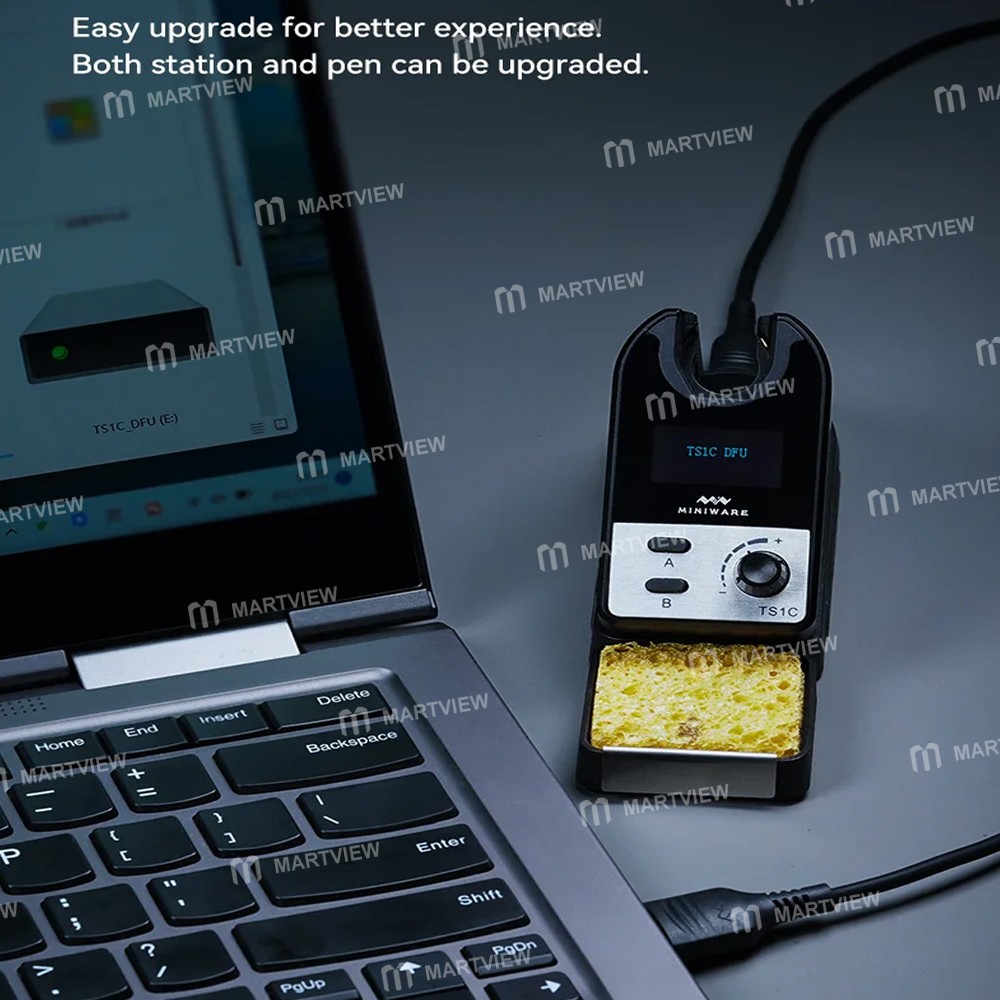

• The embedded e-Design firmware upgrade software, DFU (Device Firmware Upgrade), can be easily upgraded to optimize the user experience; The control base and the soldering iron handle can be upgraded separately

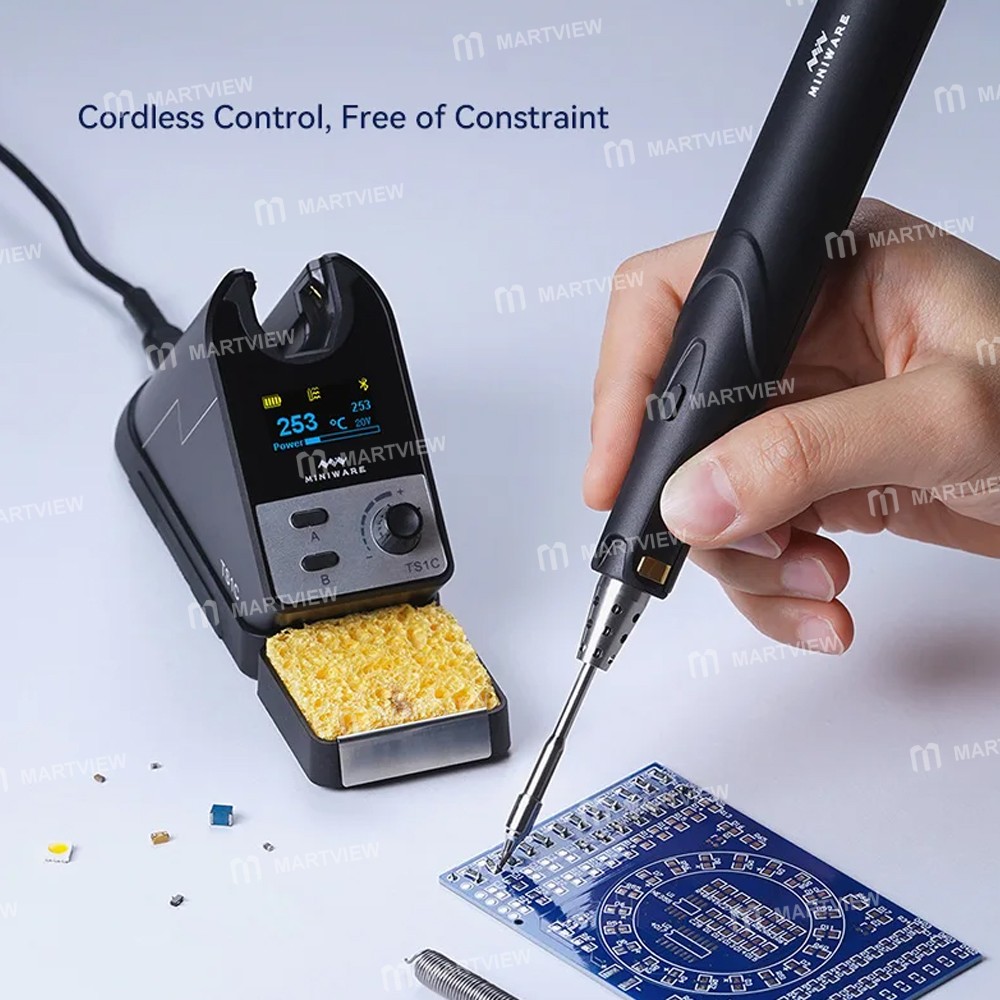

• Split type soldering iron design, BT communication, remote control, and adjustment, soldering free from power cord bondage, unrestricted.

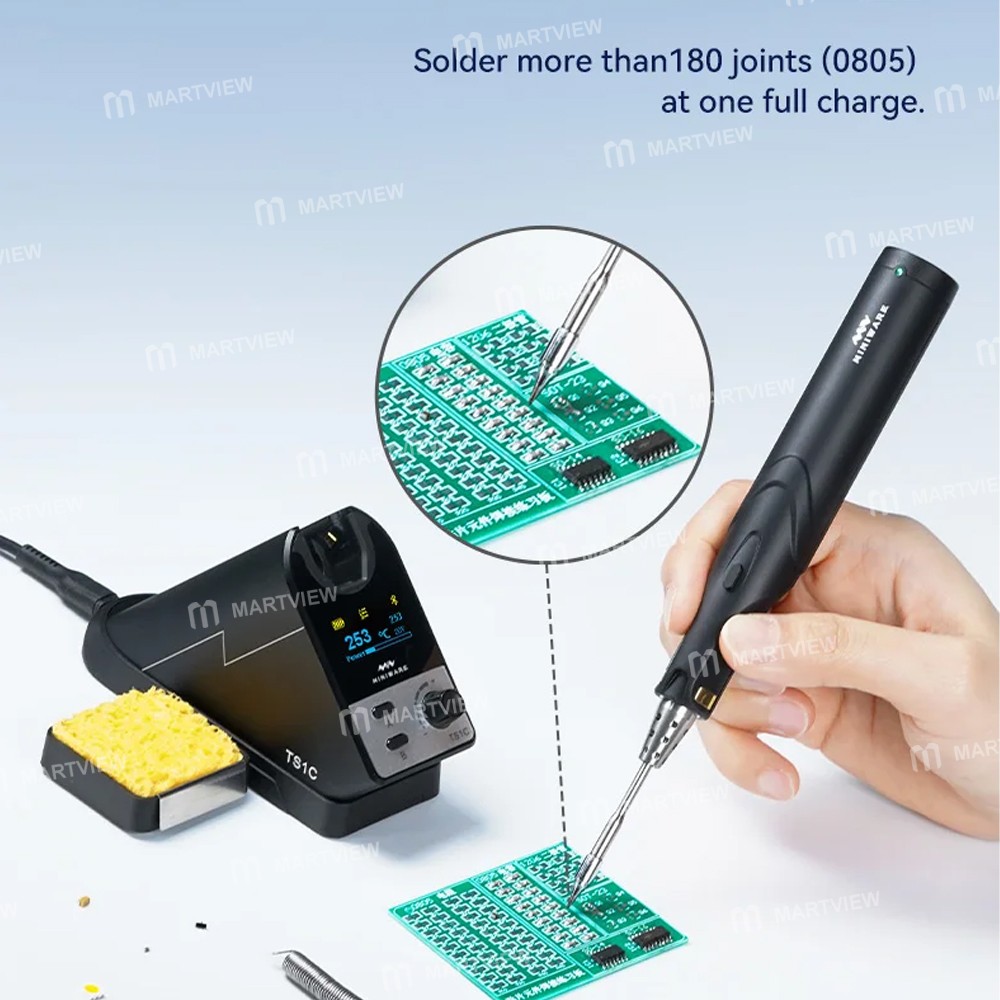

• The soldering iron handle has up to 36W welding power, and a single fully charged can continuously solder more than 180 soldering joints. It comes with a standard universal 3.5mm audio interface soldering bit of TS-B02

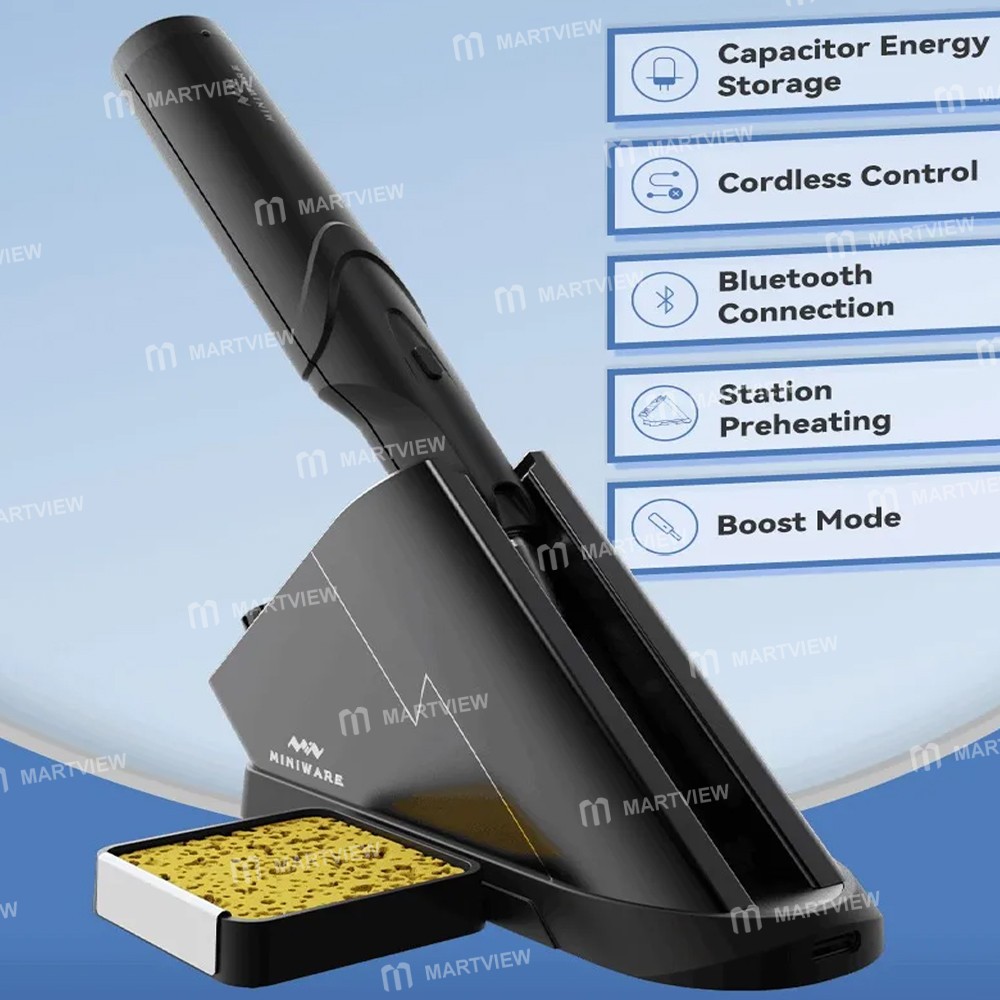

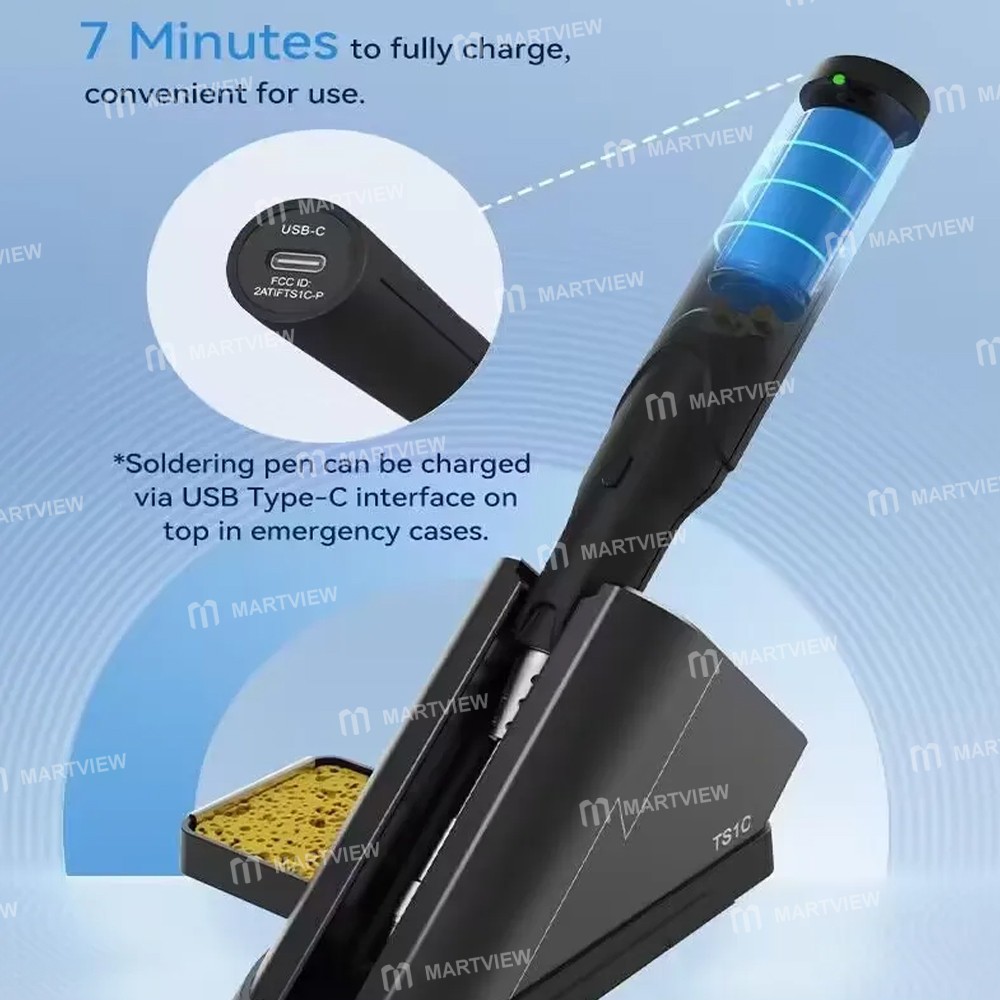

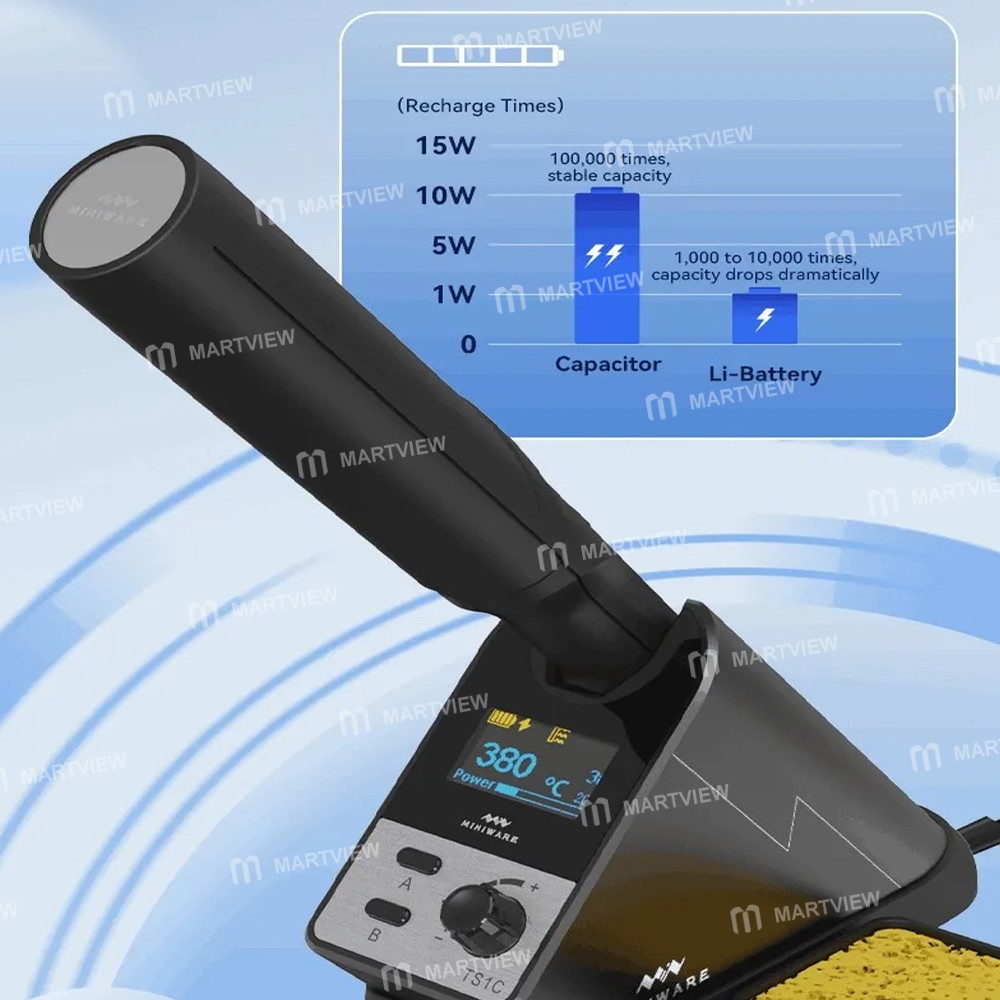

• Capacitive energy storage, efficient charging, and discharging, only 7min the handle can be fully charged, the power continues to be stable and efficient. Or you can use the USB Type-C port on the soldering iron handle to supply the power

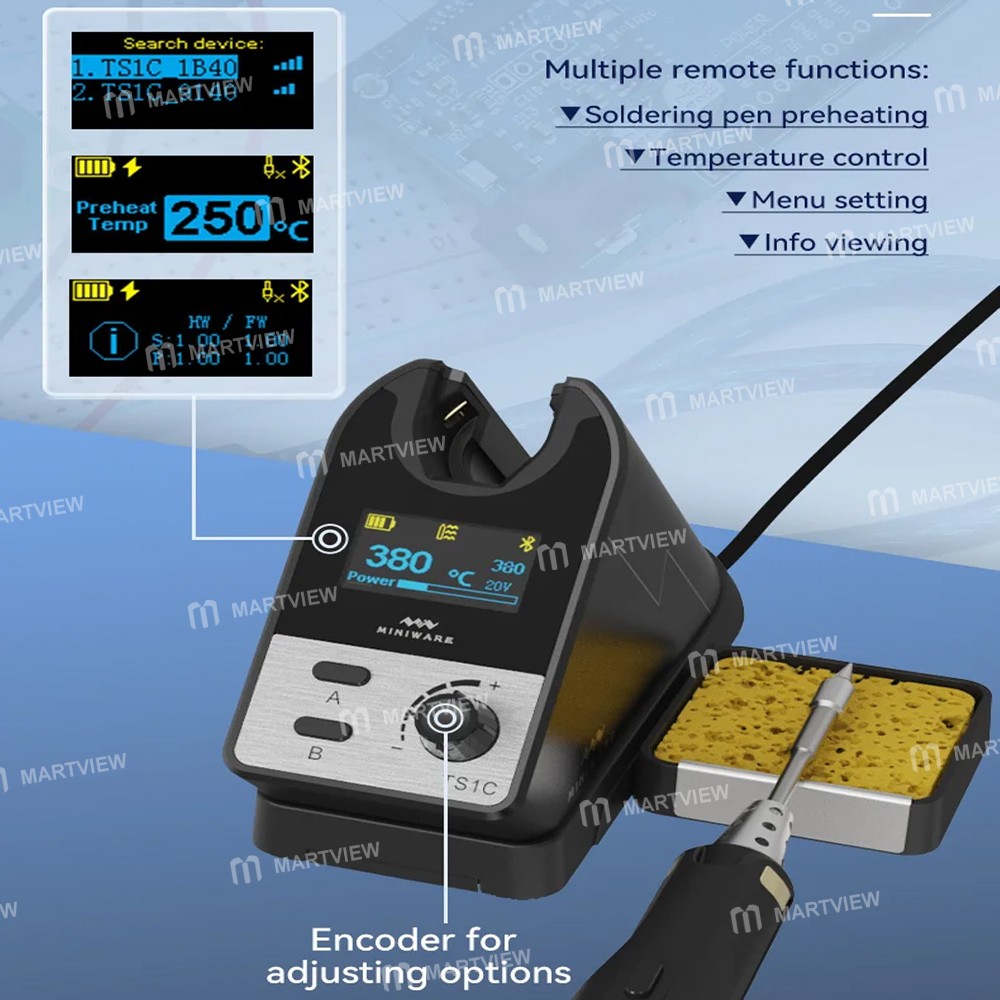

• Multi-functional design, supports standby pre-heating of the soldering iron handle, temperature adjustment, menu settings, and display information

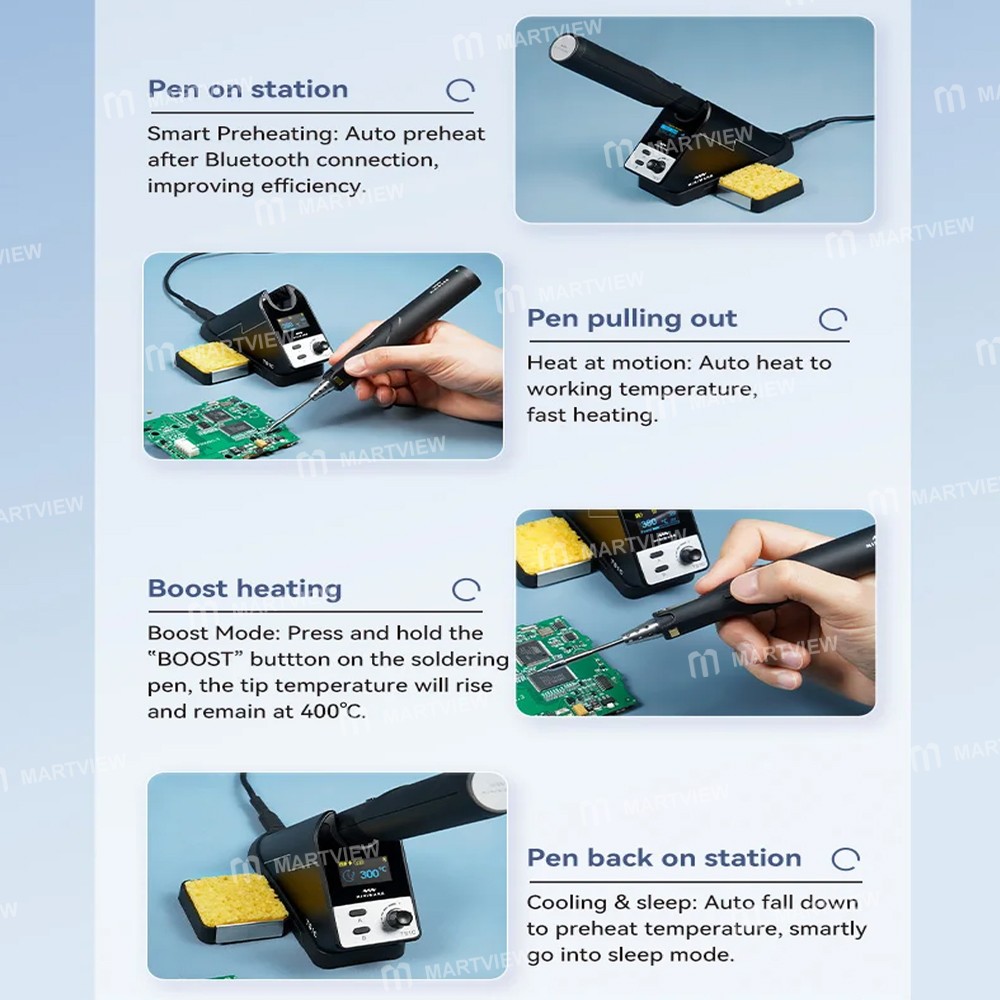

• Put the handle on the base, BT connection, it will automatically preheat to improve the working efficiency

• Pull out the handle, and it automatic heating to working temperature, fast heating up.

• One button to heat up, press and hold the handle "BOOST" button, and instantly heat up to 400℃

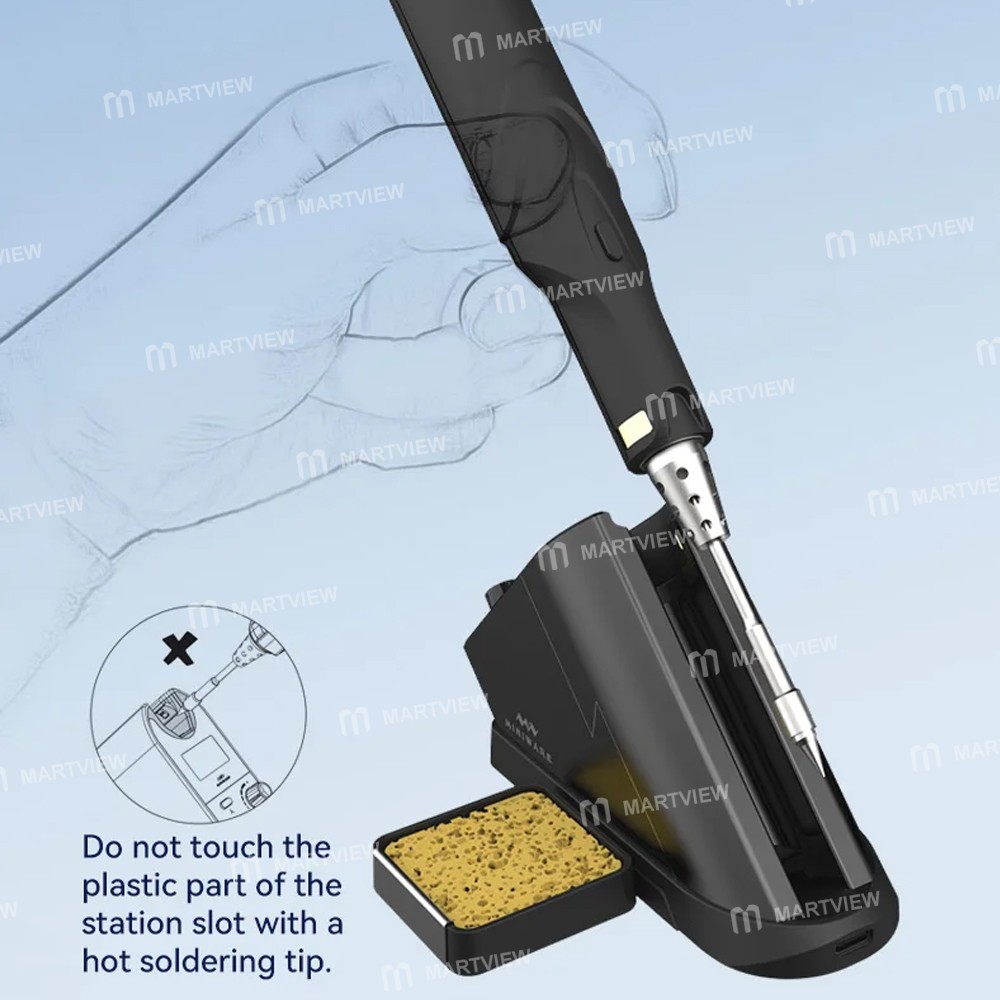

• After the handle is put back to the base, automatically back down to preheat temperature, intelligent sleep state

• It has capacitor under-voltage, over-temperature, and charging protections that are smarter and safer to use

Specification:

• Soldering Iron Handle:

• Model: TS1C-P

• Interface: USB Type-C

• Capacitance: 750F

• Charging time: 7 minutes

• Maximum heating power: 36W

• Temperature range:  100~400℃(212°F~752°F)

• Temperature stability: ±3%

• Soldering tip: 3.5mm audio interface soldering tips (TS80/80P soldering tip series)

• Safety protection: Capacitor under voltage protection, capacitor charging protection, over temperature protection

• Size: φ23*133mm

• Weight: 62g (without soldering tip)

Control Base:

• Model: TS1C-S

• Screen: 128*64 pixel OLED

• Interface: USB Type-C

• Safety protection: Over current protection

• Maximum input voltage: PD2 20V

• Maximum input power: 45W

• Weight: 186g (Including a sponge slot)

• Size: Control Station: 44.5*122*73mm; Sponge Slot: 42*43*10mm

• Other: Three expansion slots for multiple expandable accessories

Package includes:

• 1 x Soldering Iron Handle

• 1 x Soldering Iron Tip

• 1 x Control Base

• 1 x Sponge

• 1 x USB Cable
