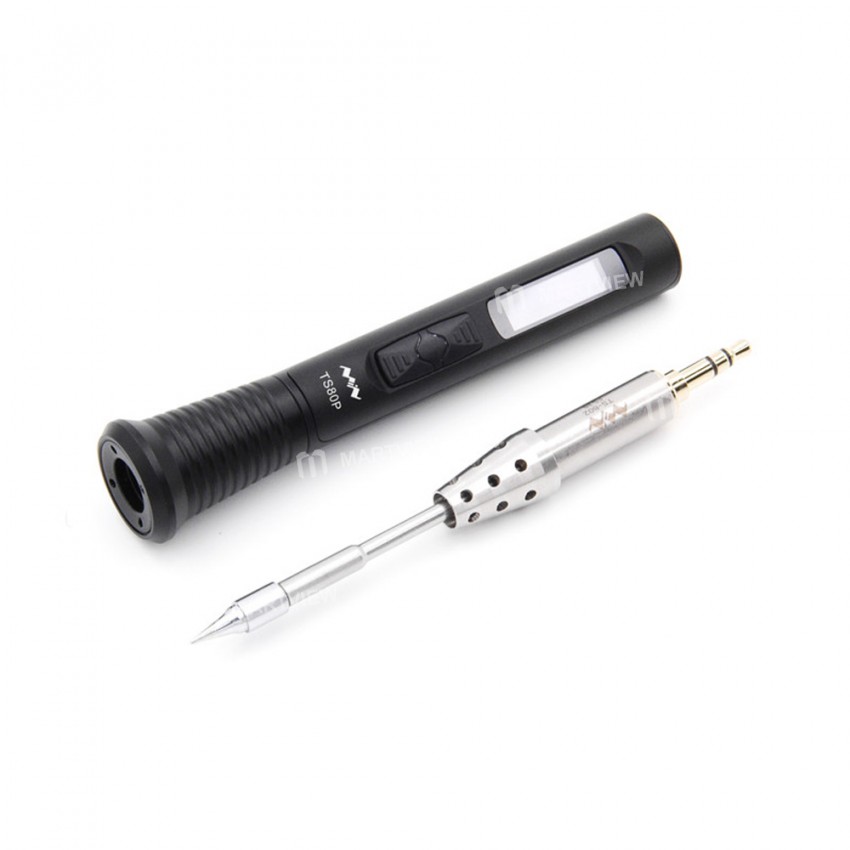

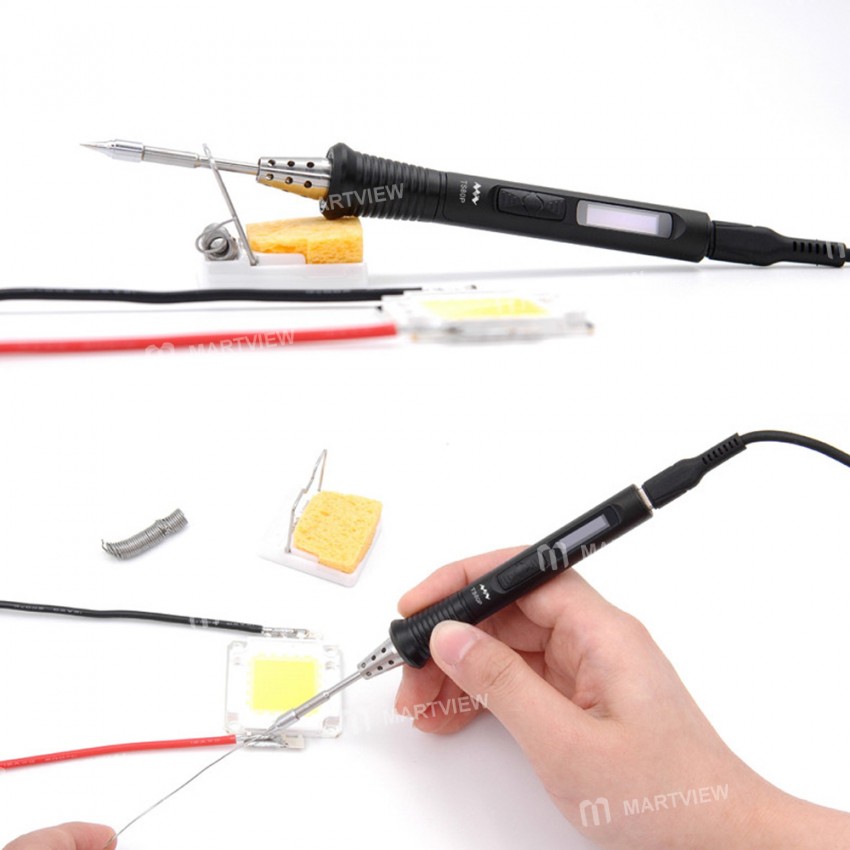

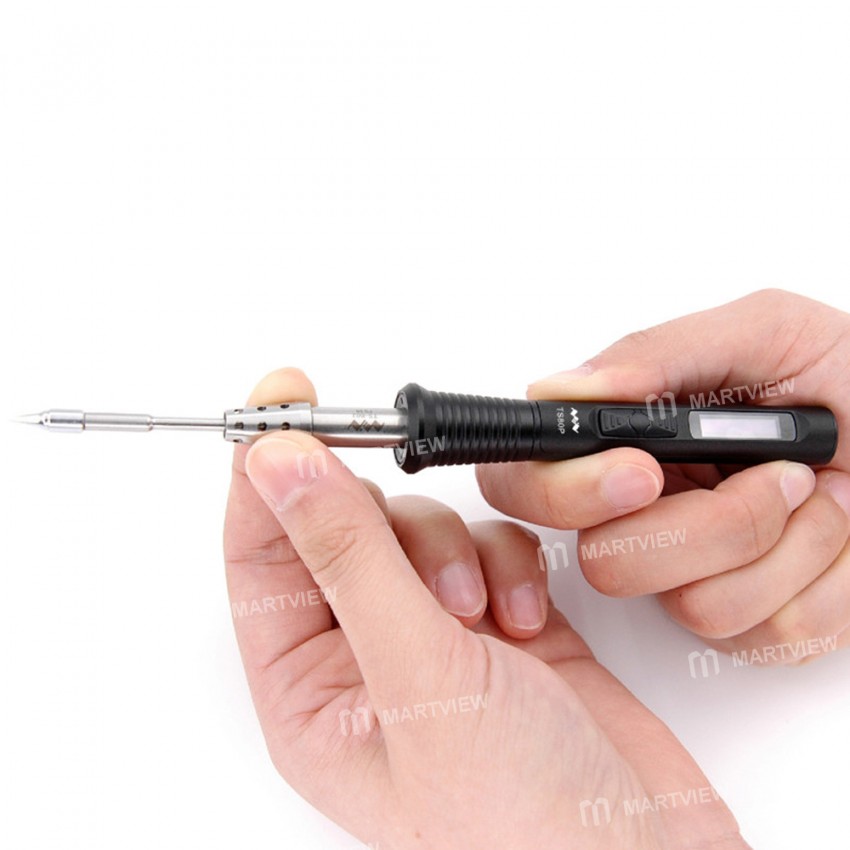

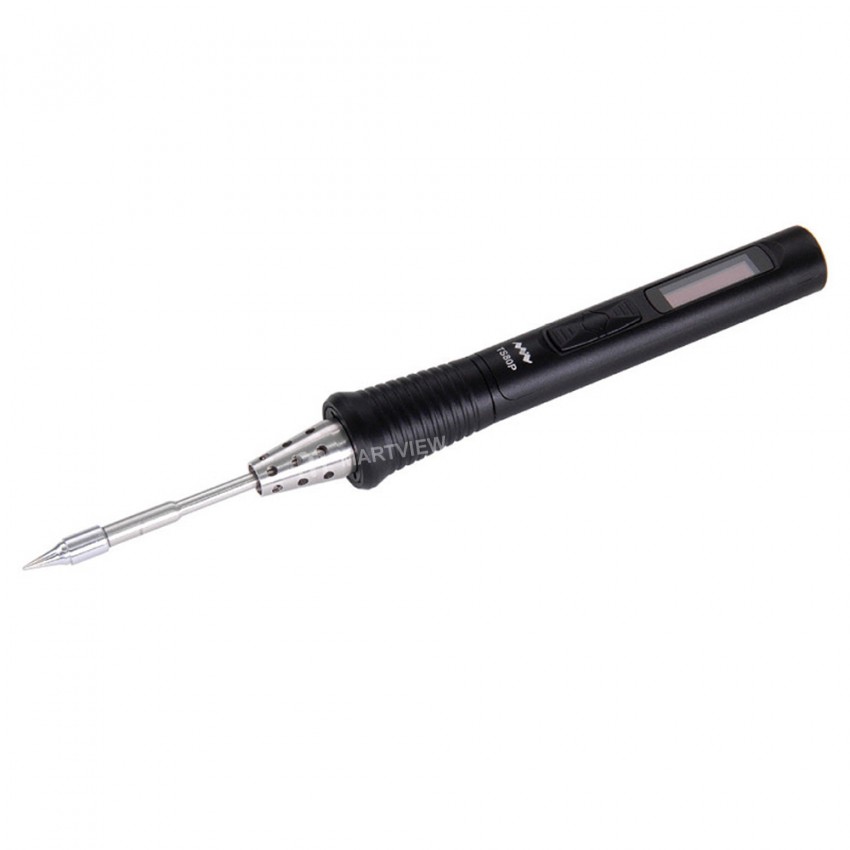

TS80P 30W Mini Intelligent Electric Soldering Iron with PD2.0 QC3.0 Charge

TS80P 30W Mini Intelligent Electric Soldering Iron with PD2.0 QC3.0 Charge

Features:

• TS80P is an upgraded version of TS80 intelligent soldering iron

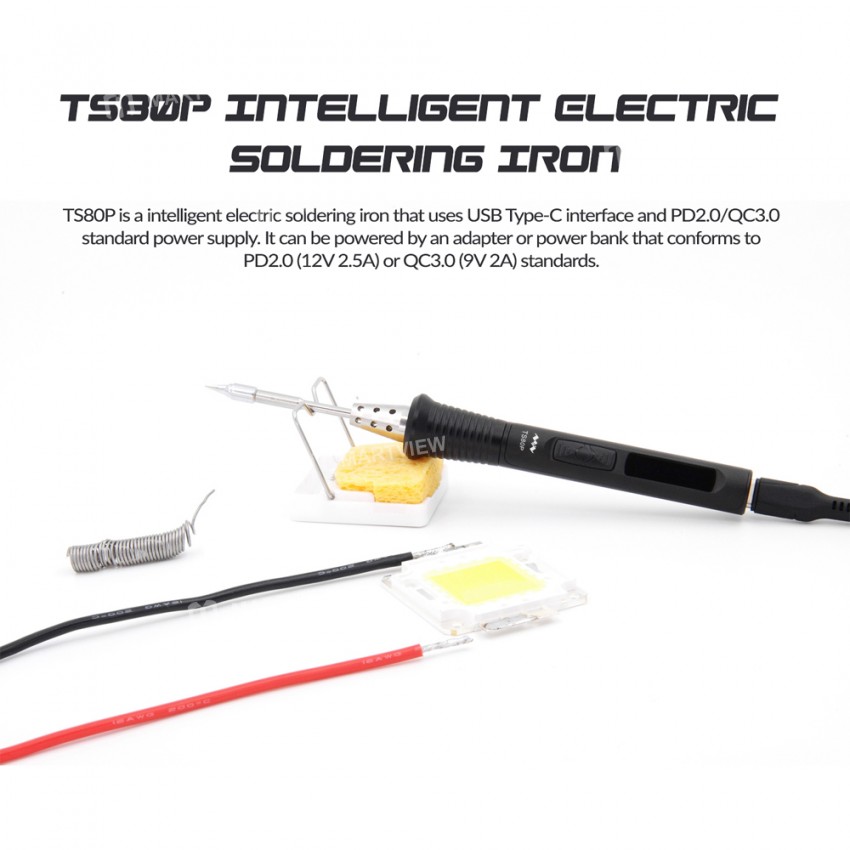

• TS80P is an intelligent electric soldering iron that uses a USB Type-C interface and PD2.0/QC3.0 standard power supply. It can be powered by an adapter or power bank that conforms to PD2.0 (12V 2.5A) or QC3.0 (9V 2A) standards

• The output power is increased from 18W of the primitive model to a maximum of 30W, and the fastest heating from room temperature to 300℃ takes only 8 seconds, and the performance is more superior

• The housing of the TS80P control end is made of aluminum alloy and integrated with CNC. The structure is compact, ergonomic, beautiful and fashionable, and has a sense of technology

• Equipped with an OLED display, it is convenient for you to control the status of the soldering iron at any time

• The TS80P is equipped with a new easy-push type soldering iron head fastener to provide users with a better holding experience. The soldering iron head can be loosened with a simple push to achieve quick replacement.

• The built-in STM32 main control chip can intelligently control the temperature rise and fall and has multiple modes such as sleep, automatic shutdown, and safety protection.

• The code application layer is open source, you can develop soldering iron firmware according to your needs

• The TS80P universal TS80 series soldering iron head adopts an internal heating ceramic heating core. Through the pure copper thermal conduction part, the heat is quickly transferred to the point of the soldering iron head. The temperature control performance is fine. The soldering iron head can be easily and quickly replaced by the easy-to-push fastener

Specification:

• Main material: aluminum alloy

• Main color: black+silver

• Type: TS80P-more, TS80P-main (optional)

• Temperature range: 100-400℃ (maximum)

• Power input: 9V 2A (QC3.0) / 12V 2.5A (PD2.0)

• Power: maximum 30W

• Fastest heating time (room temperature rose to 300℃): 8 seconds

• Interface type: USB Type-C

• Temperature error: ±3%

• Display screen: OLED

• Resistance of soldering iron head to the ground: ＜2Ω

• Soldering iron head model: B02

• Soldering iron head interface: 3.5mm audio head

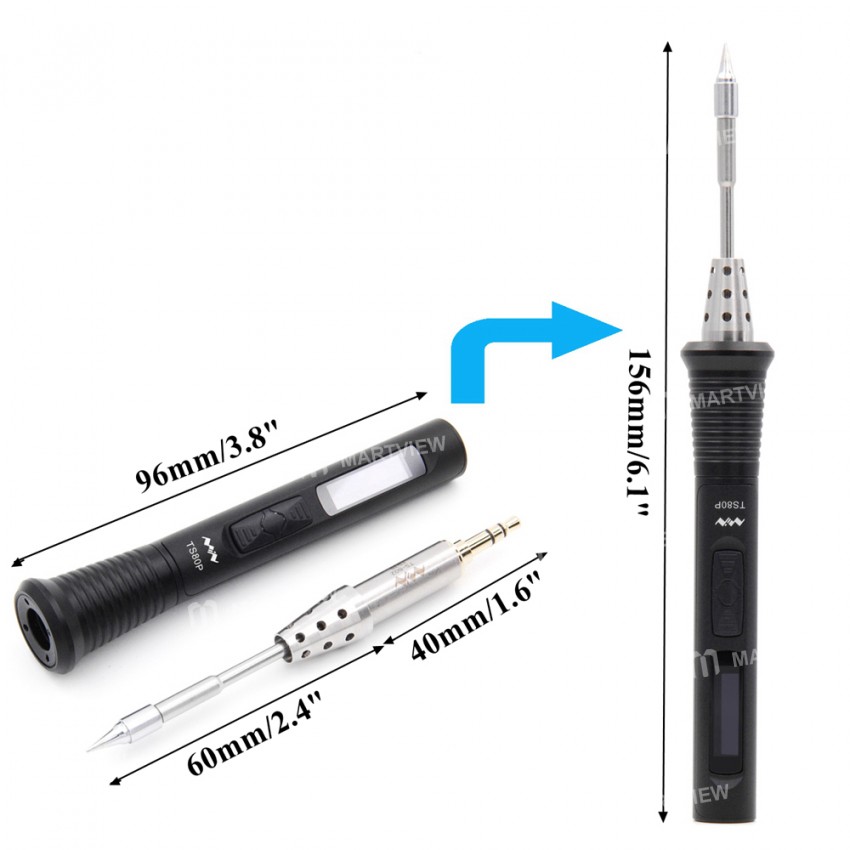

• Control end length: 96mm / 3.8in

• Soldering iron head length: 100mm (60+40mm) / 3.9in

• Control end+soldering iron weight: 38g / 1.3ounce

• Soldering iron head weight: 14g / 0.5ounce

• Package size:122 * 66 * 30mm

• Package weight:62g

Package includes:

• 1 x TS80P Controller

• 1 x Soldering Iron Head (B02)
