MiPiTester eMMC UFS ISP Adapter and EMMC UFS ISP Cable for MiPi Tester Box Mini / Gear 2
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -7.3% |
| 10 | NaN | -11.3% |
Product details
Description
MiPiTester eMMC UFS ISP Adapter and EMMC UFS ISP Cable for MiPi Tester Box Mini / Gear 2

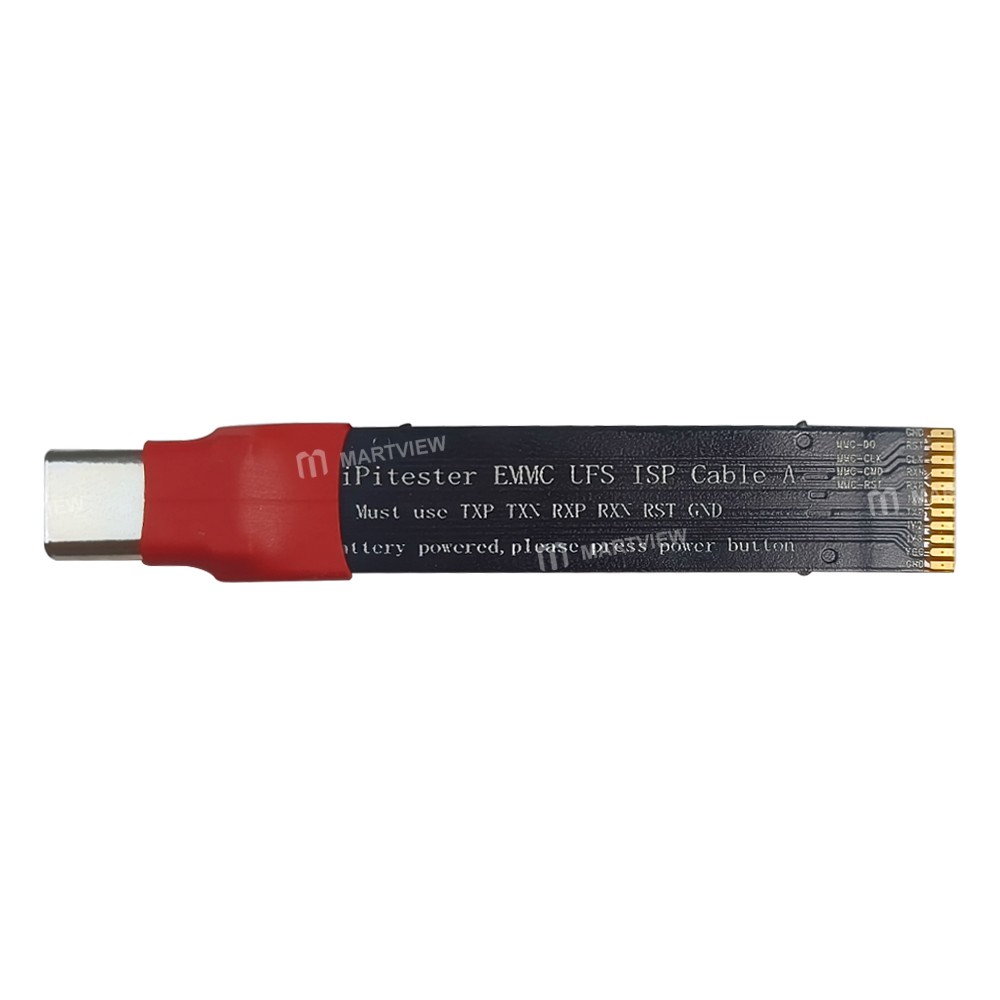

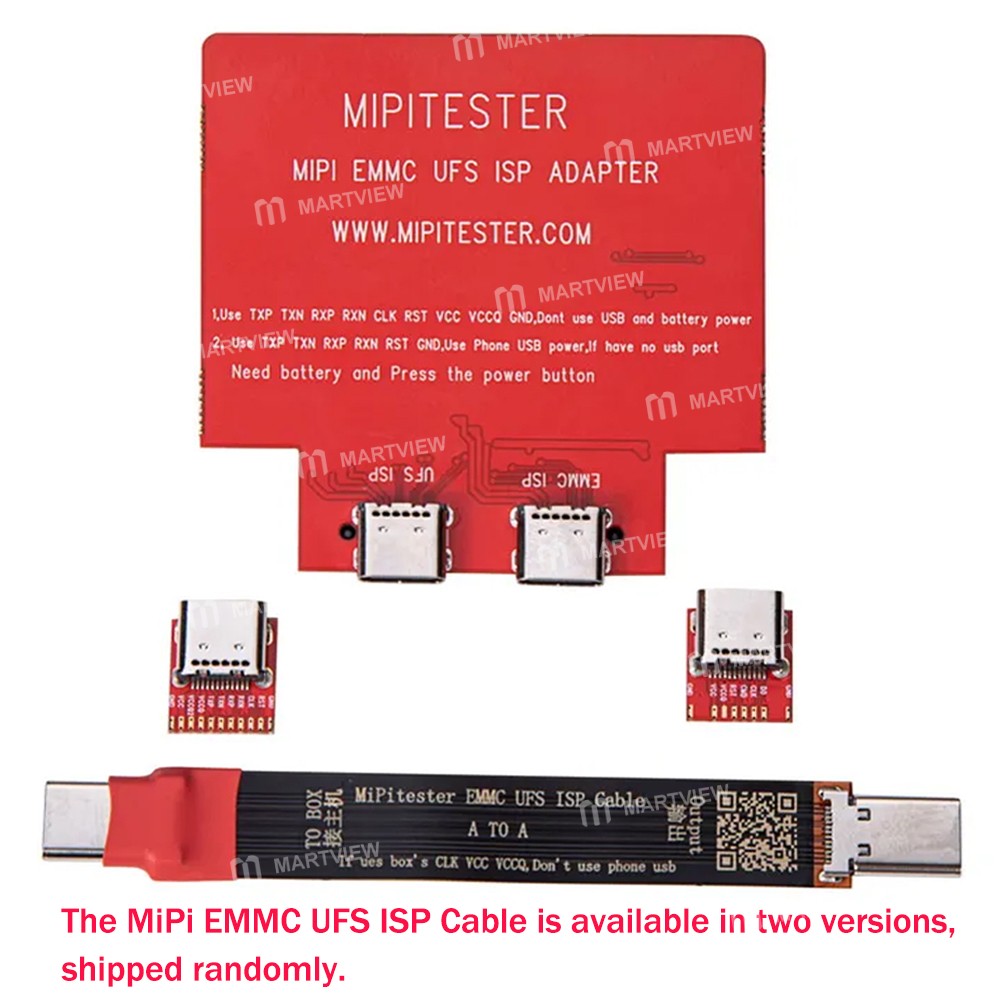

The MiPi EMMC UFS ISP Cable is available in two versions, Shipped Randomly
Features:

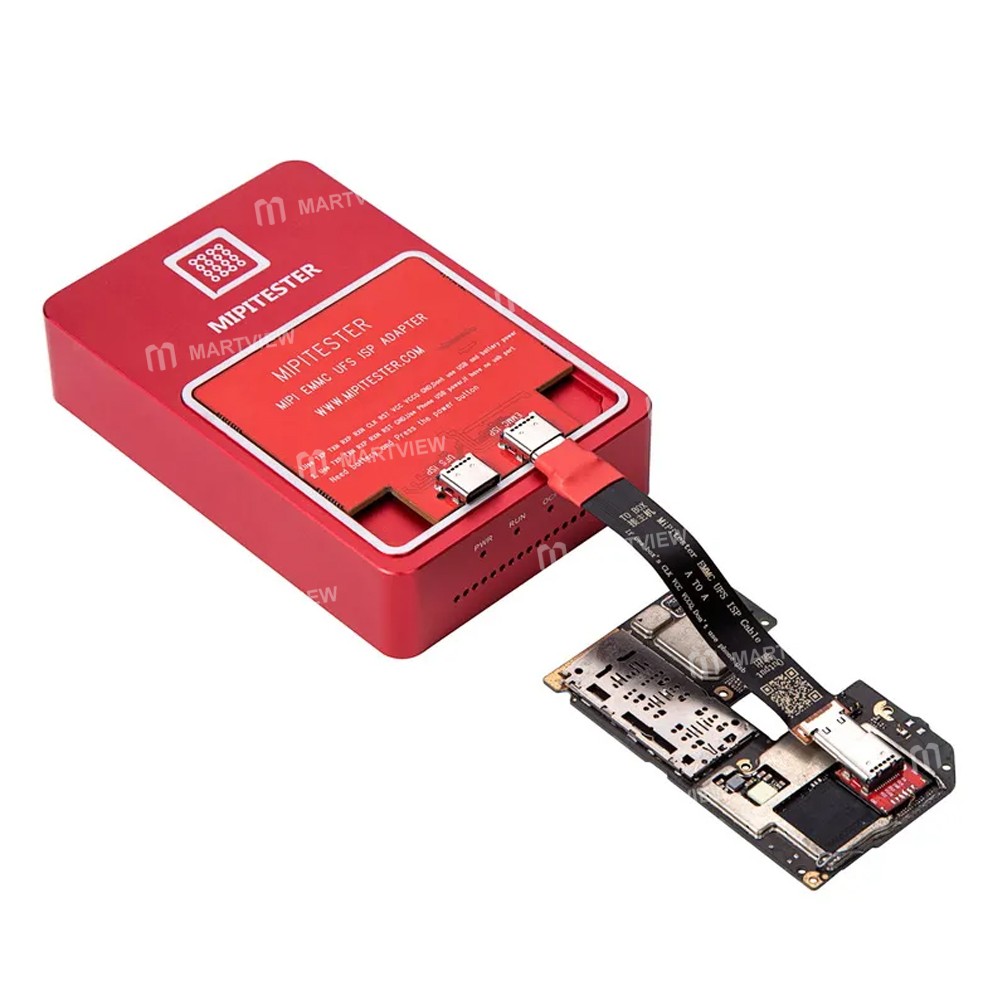

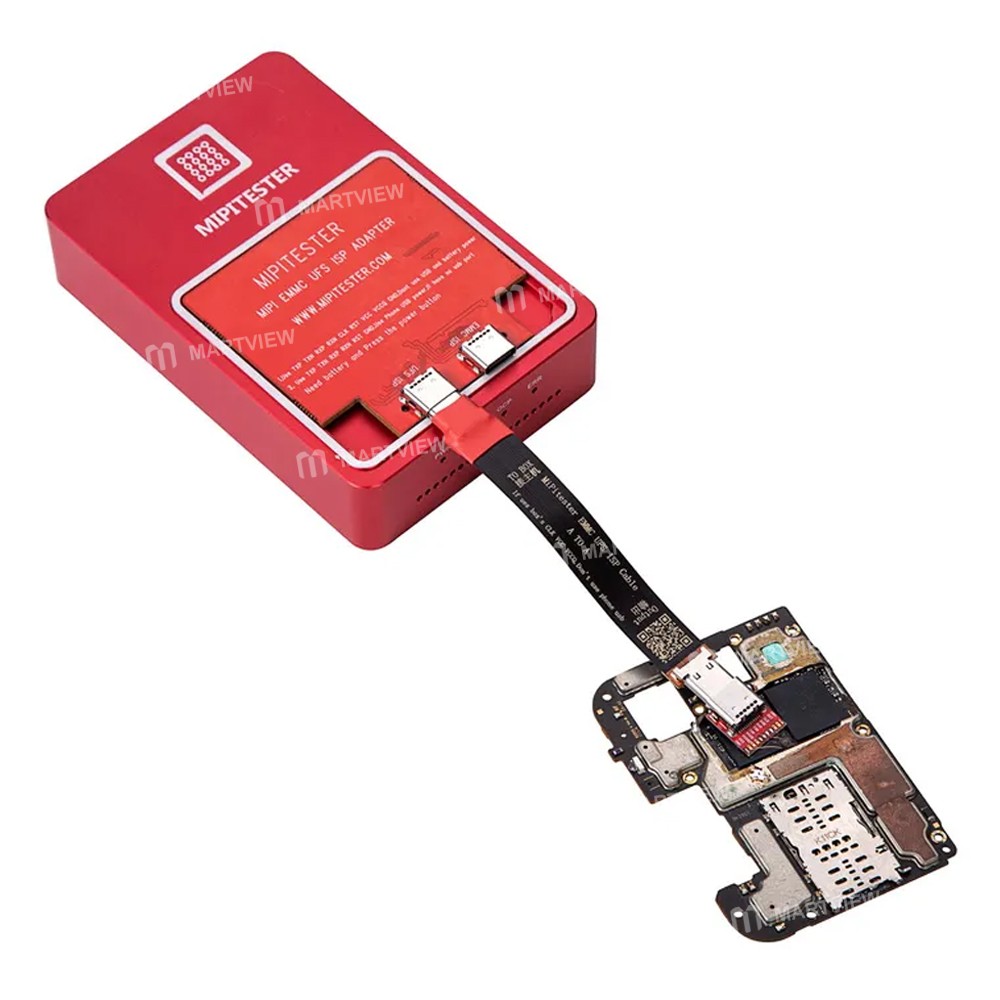

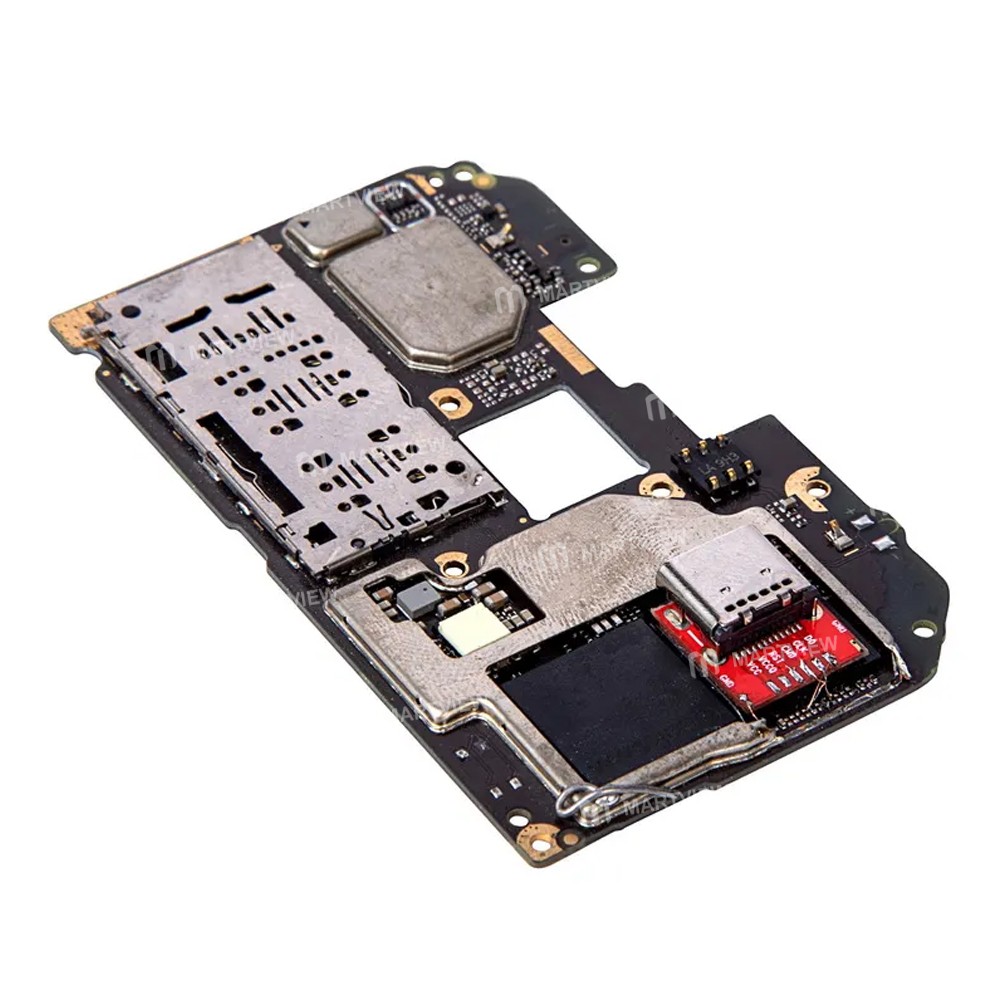

- MiPi Tester eMMC / UFS ISP Adapter allows you to service any device with ISP pinouts via UFS/eMMC interface
- Recommended to use a regulated power supply without USB. Press and hold the on button, the current 100~200mA, UFS power up successfully
- Using a USB power supply and a battery device manager requires a CPU port. If not, the UFS power-up is unsuccessful and can not be online
- UFS2.0, 2.1, 2.2 use VCC-3.3 V, VCCQ2-1.8V; UFS3.0, 3.1, 4.0 TX, RX, CLK, RST, GND all access to the flywire. The seat can no longer use a USB and a power supply; only use the host power supply.
- GND TX RX signal can not exceed 15mm, GND junction point as close as possible to TX RX to keep equal length, some CPUs need RST signal wiring
Package includes:

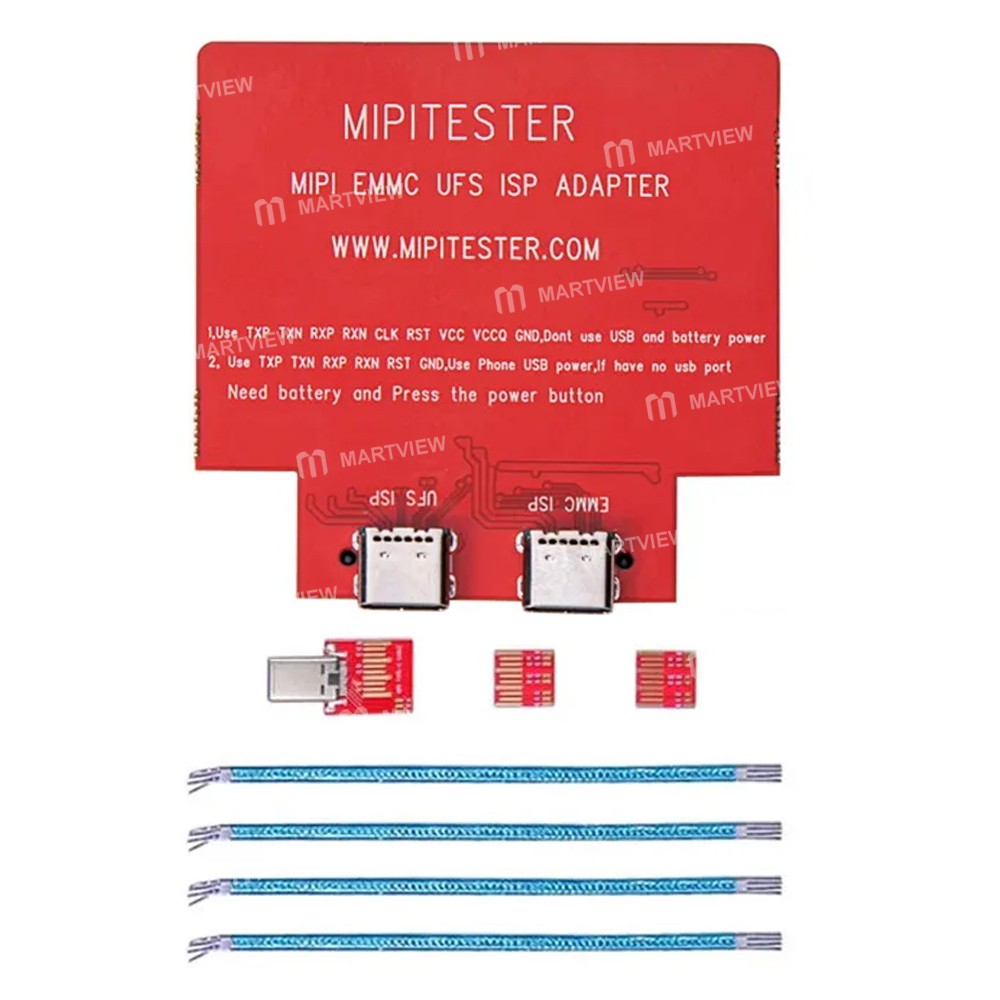

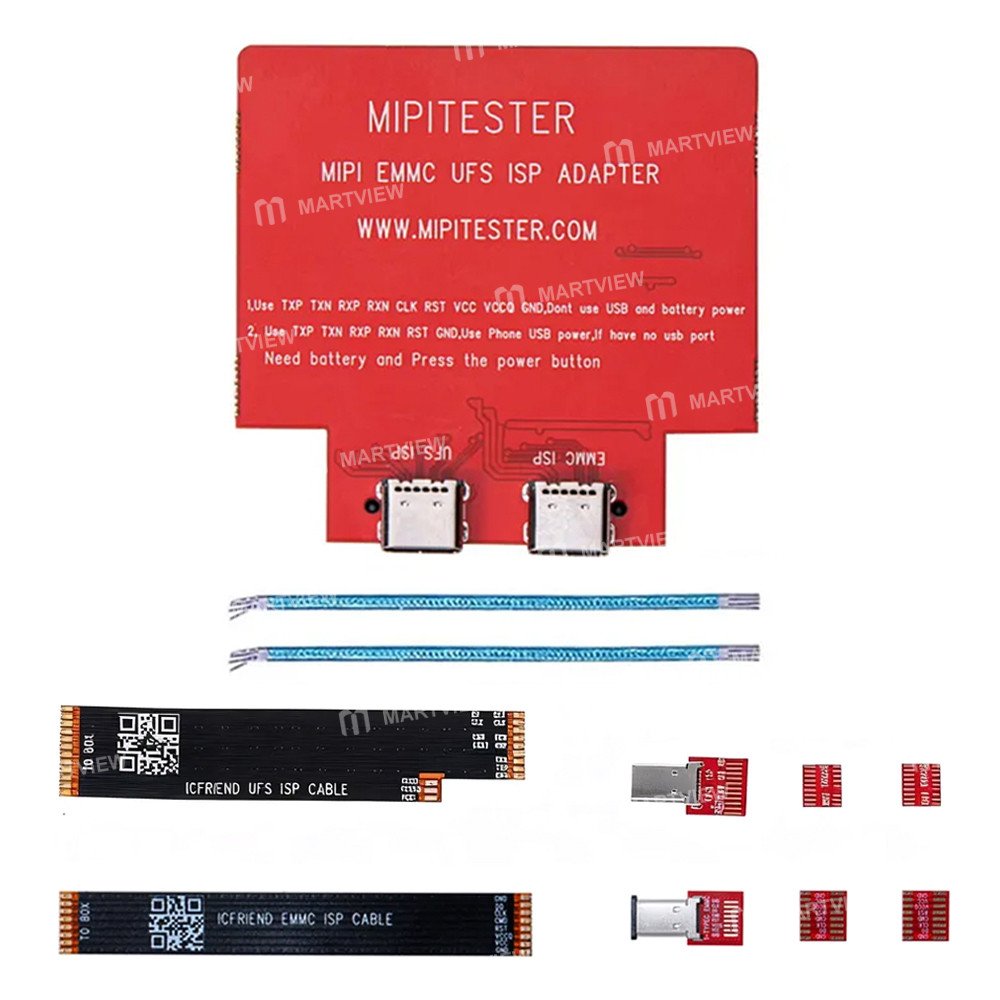

- 1 x MiPi eMMC / UFS ISP Adapter
- 1 x MiPi EMMC UFS ISP Cable
- 2 x Connector
