MiPiTester eMMC UFS ISP B1 Adapter and EMMC UFS ISP Cable for MiPi Tester Box
This product is available in two versions, which will be dispatched at random upon shipment!!!
Features:
- MiPi Tester eMMC / UFS ISP Adapter allows you to service any device with ISP pinouts via UFS/eMMC interface
- Recommended to use a regulated power supply without USB. Press and hold the on button, the current 100~200mA, UFS power up successfully
- Using a USB power supply and a battery device manager requires a CPU port. If not, the UFS power-up is unsuccessful and can not be online
- UFS2.0, 2.1, 2.2 use VCC-3.3 V, VCCQ2-1.8V; UFS3.0, 3.1, 4.0 TX, RX, CLK, RST, GND all access to the flywire. The seat can no longer use a USB and a power supply; only the host power supply.
- GND TX RX signal can not exceed 15mm, GND junction point as close as possible to TX RX to keep equal length, some CPUs need RST signal wiring

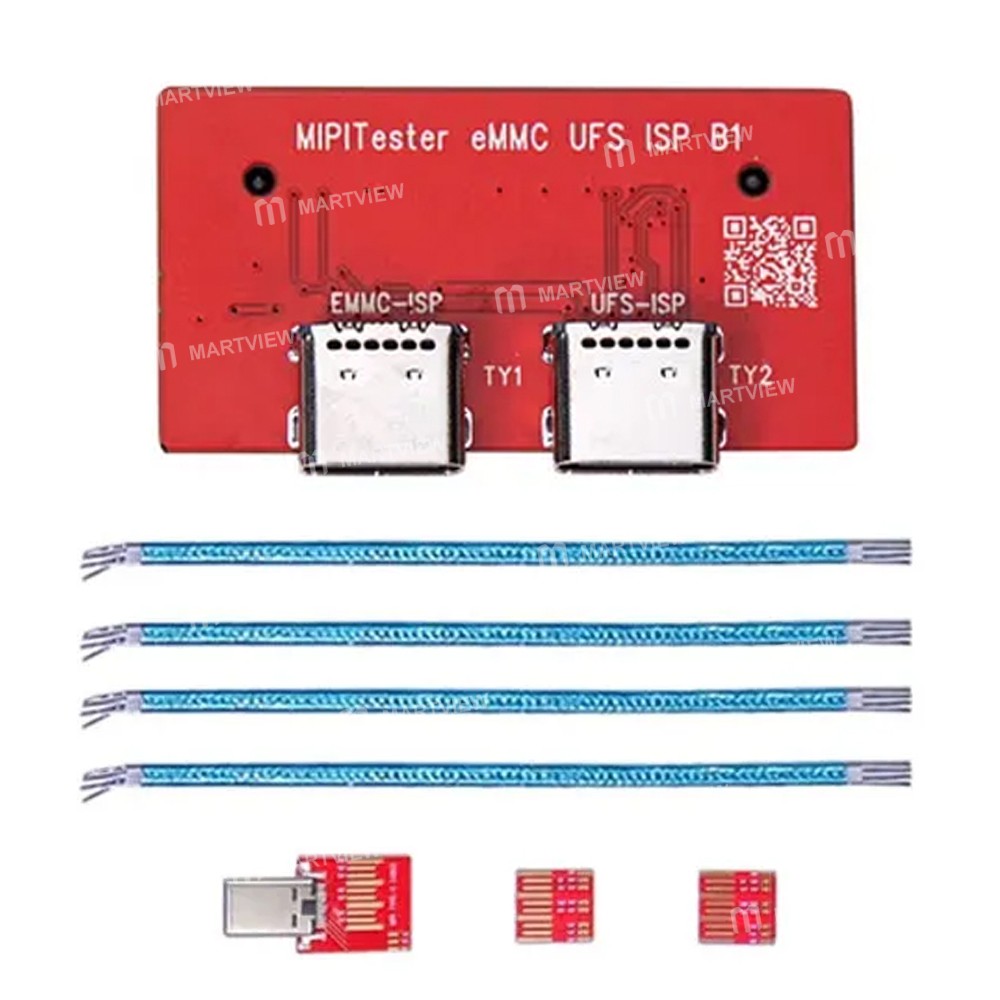

Package includes:

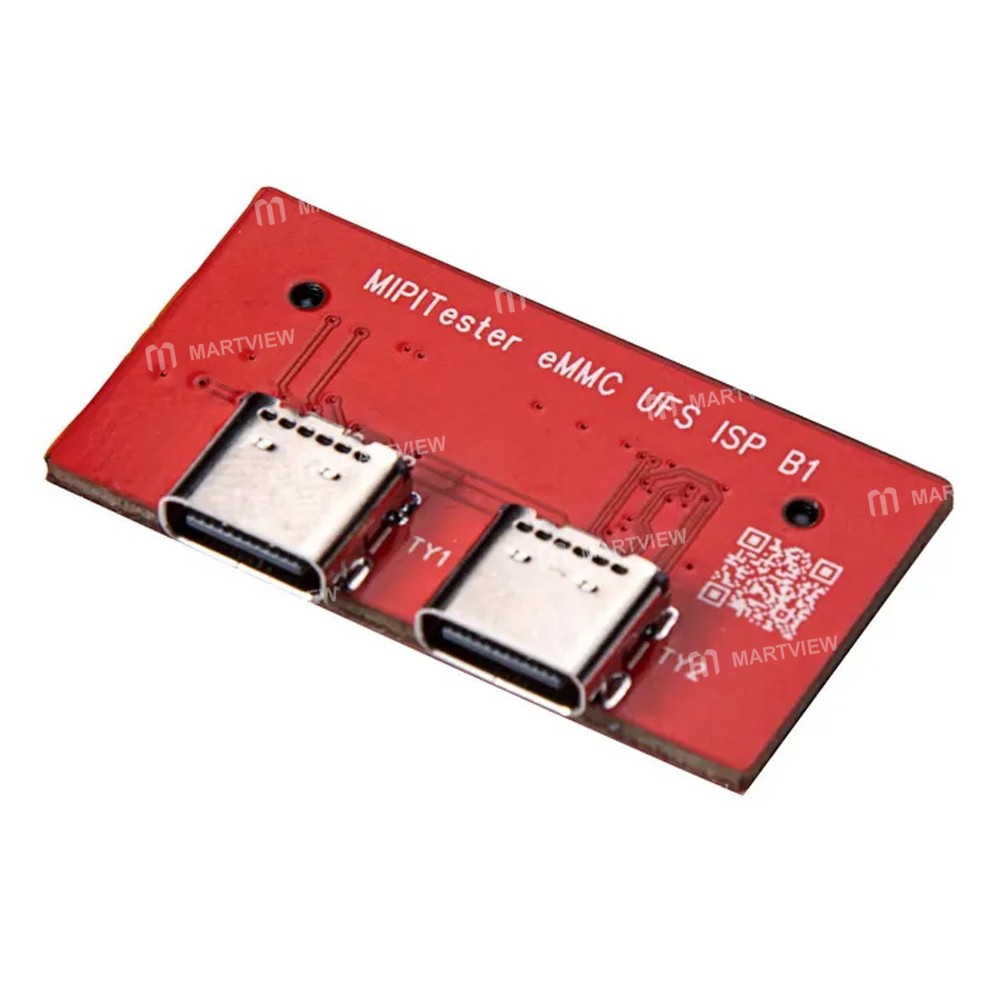

- 1 x MiPi eMMC / UFS ISP B1 Adapter

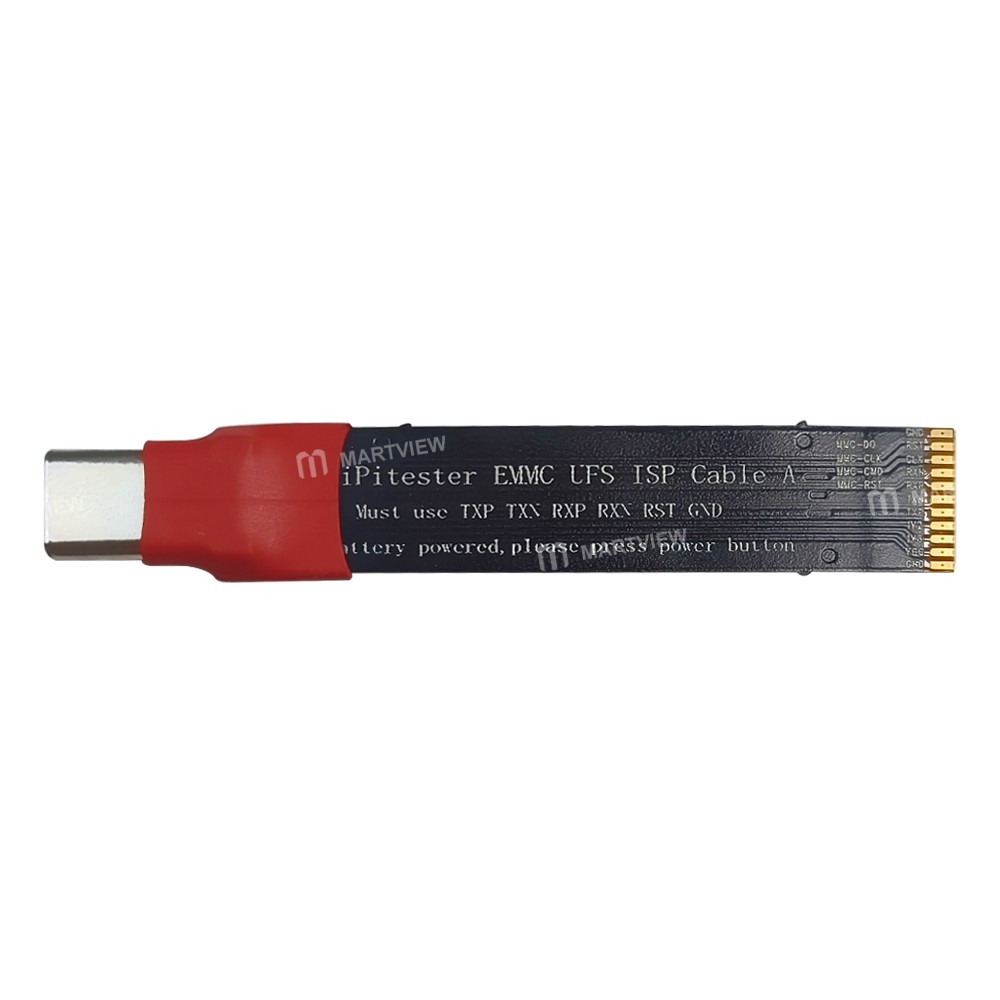

- 1 x EMMC UFS ISP Cable
