Multifunction 6-24V Automotive LED Circuit Tester for Automobile / Motorcycle Maintenance

Multifunction 6-24V Automotive LED Circuit Tester for Automobile/Motorcycle Maintenance

Features:

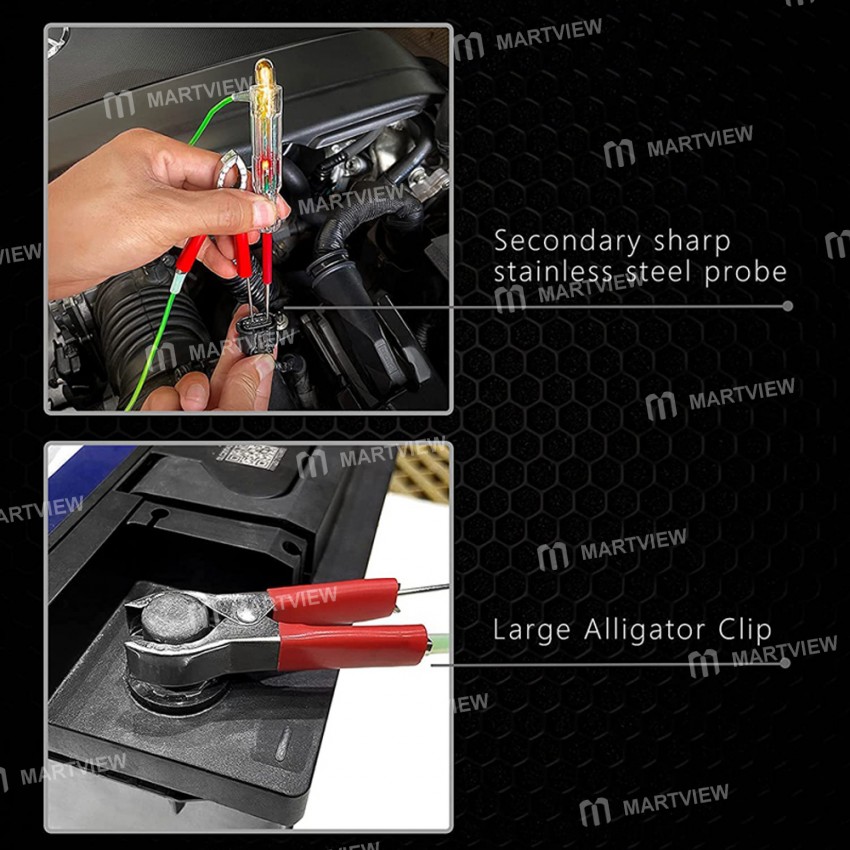

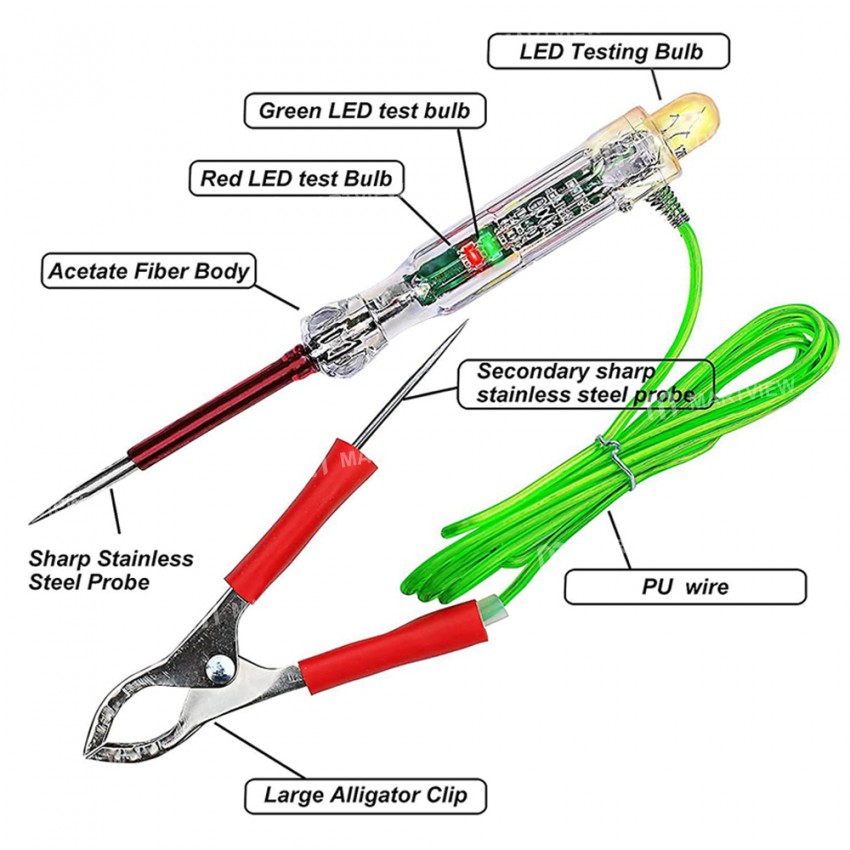

• An automotive circuit tester probe made of metal, used for threading, with a large alligator clip for convenient one-handed operation

• also, it can reach tight areas that are hard to reach

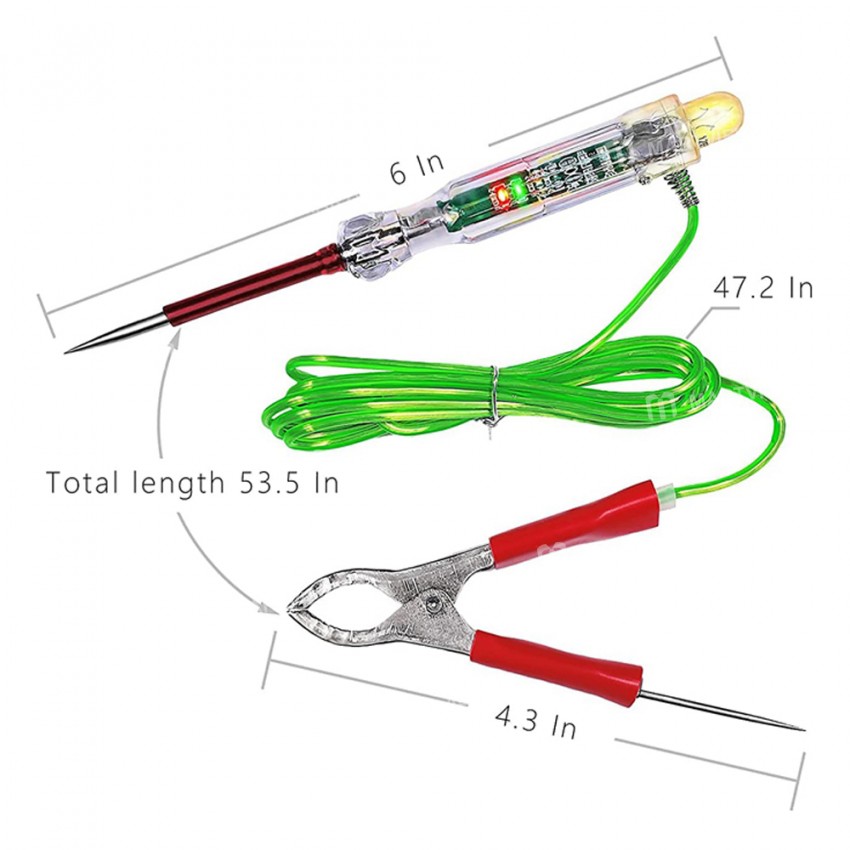

• The ABS body provides superior durability over other products, as it is shatter-resistant. A 47-inch PU wire that provides heat insulation, wear resistance, and tensile strength to test light for the car

• A 6-24v automotive screwdriver test light, a widely used circuit test, excellent for various circuits on automobiles

• This automotive tester can also be used for other 6-24v circuit tests, including battery tests, headlight tests, brake light tests, fault connections, and injector signal tests

• This led test light circuit tester bulb has high visibility and long service life. It can indicate the state of the circuit

• The brightness of the top 3W lamp can be changed with the measured voltage and can be replaced

• alligator clamps of the circuit breaker tester can be connected to either negative or positive ground, with the probe touching the other side

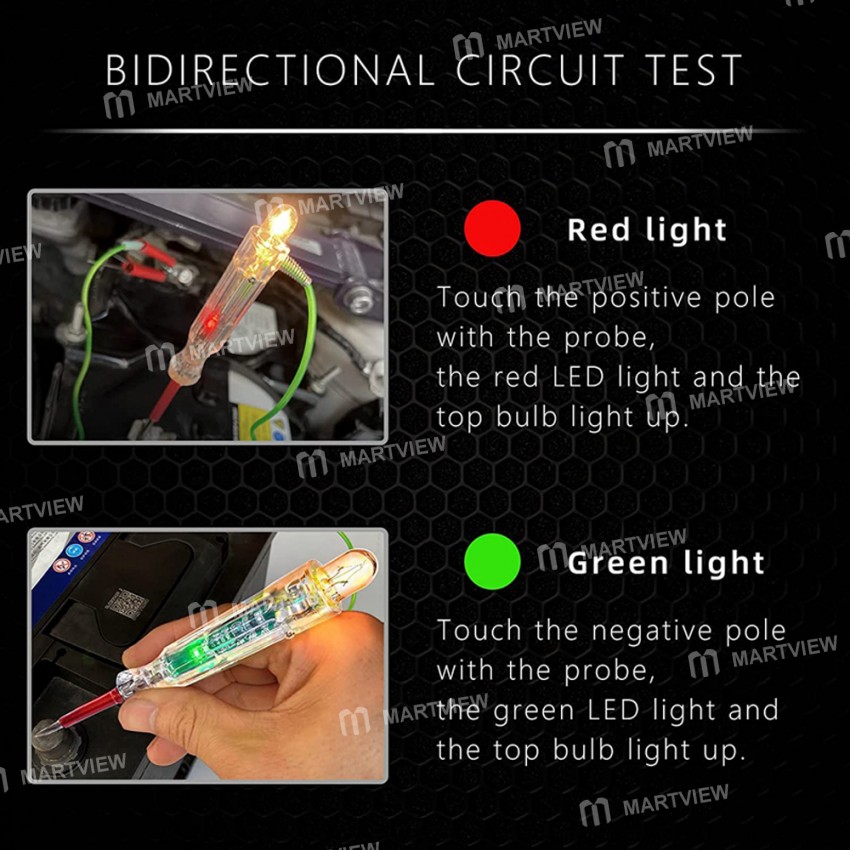

• During a positive connection, the red LED will be on, and during a negative connection, the green LED will be on

Function:

• Speedometer sensor pulse signal

• Check whether the high voltage line is leaking

• Measure fuel injector pulse signal

• Measuring Oxygen Sensor Heater Current

• Crossover can bridge relay contact terminals

• Measure the ignition pulse signal of an independent high-voltage package

• Detect throttle sensor 5V voltage

• Jumper relay contact terminals

• Measure the ignition pulse signal from the computer

• Measuring glass lift motor lift voltage

• Measure generator control signal

• Measuring idle speed motor control signal

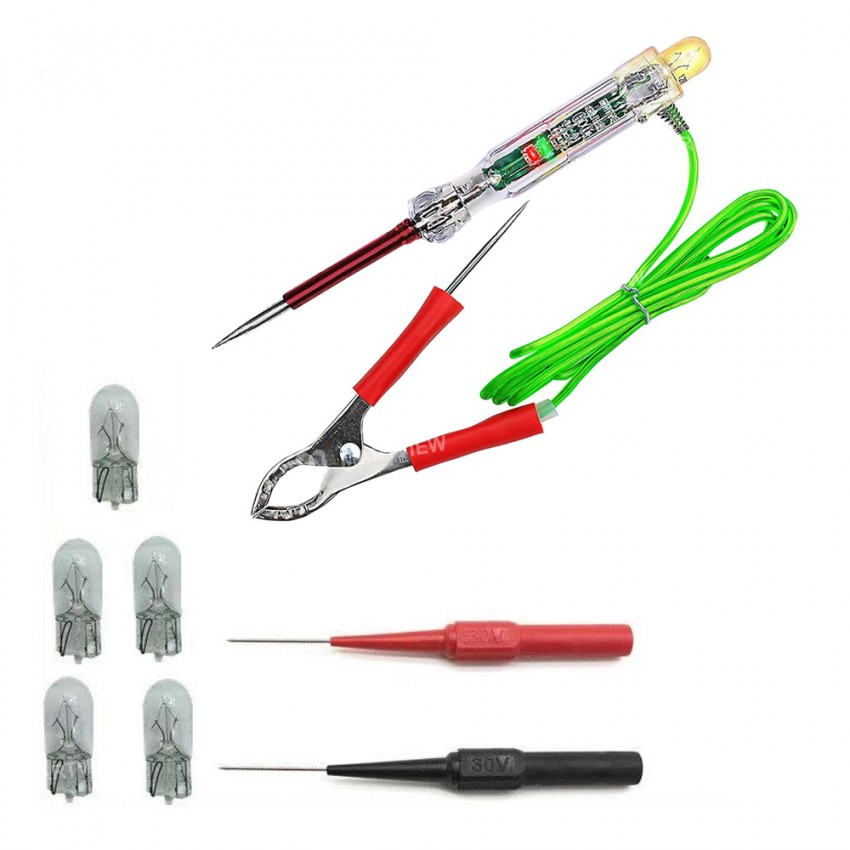

Package includes:

• 1 x Automotive Circuit Tester
• 5 x Light bulb
• 2 x Probes
