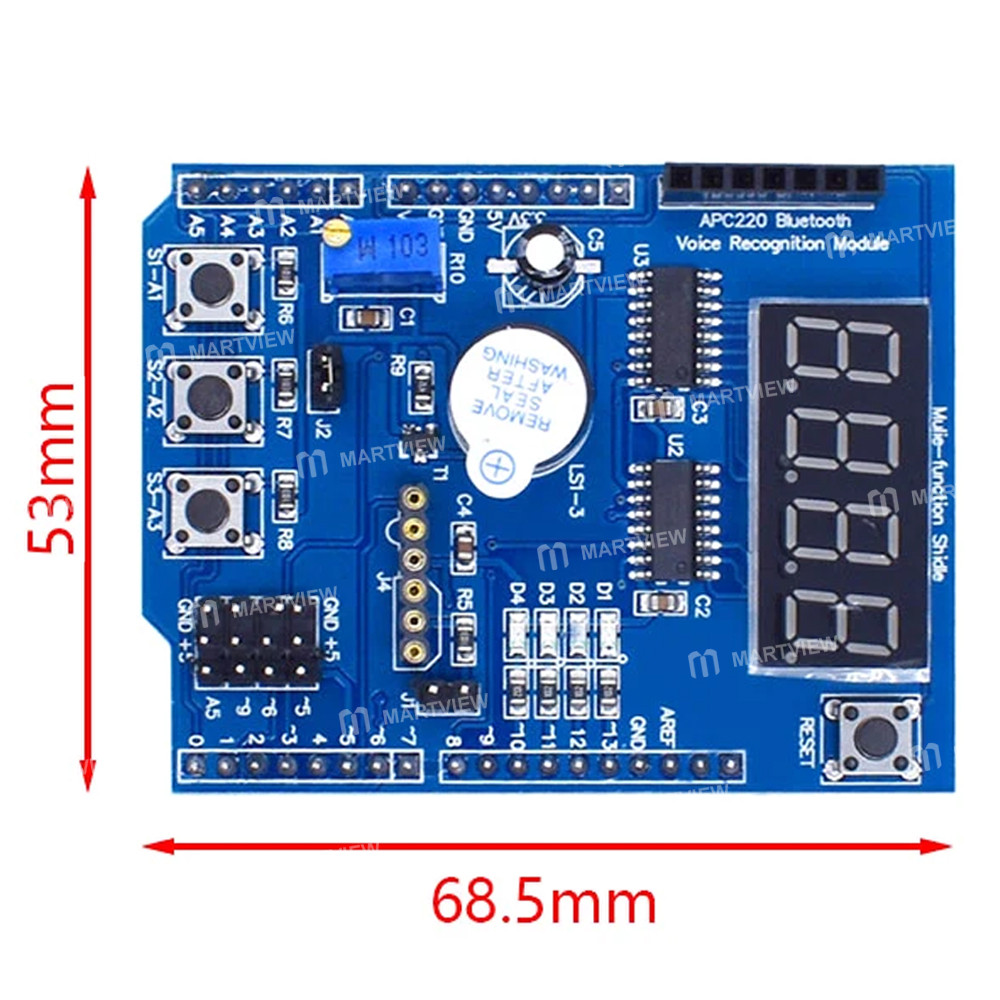

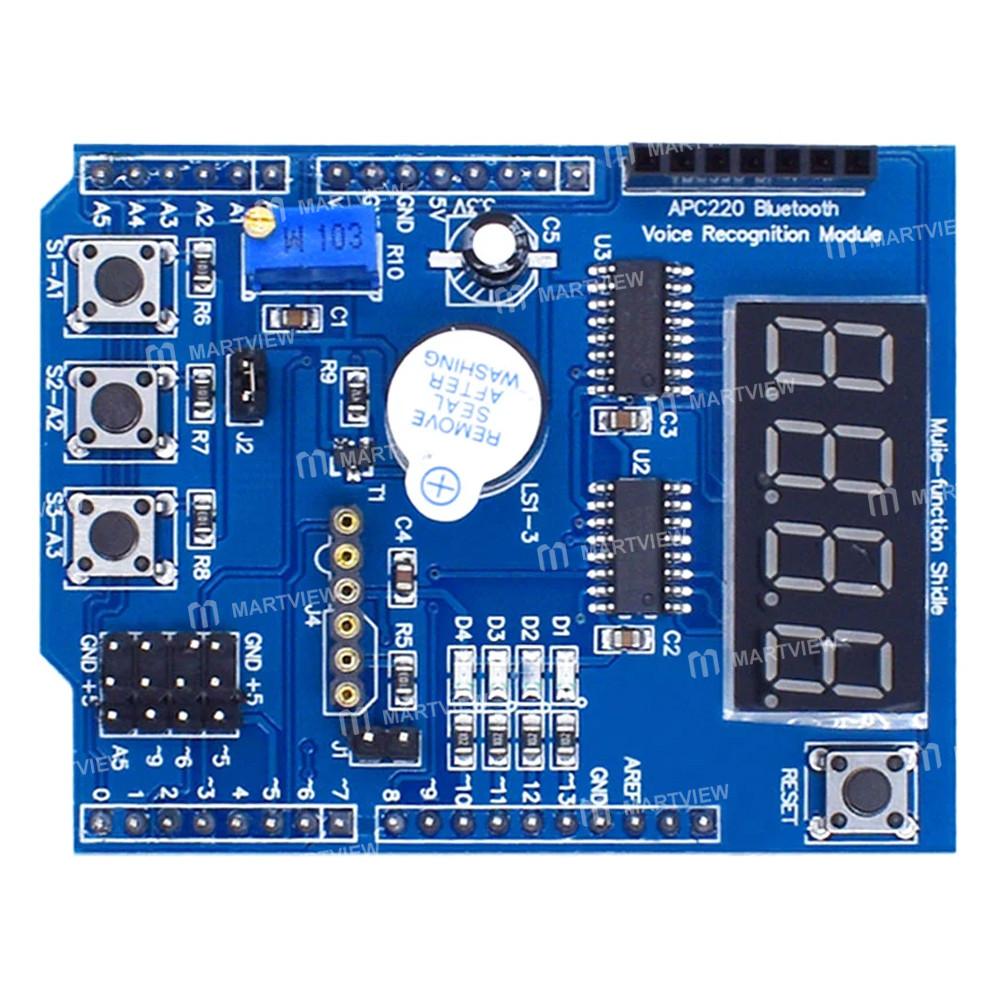

Multifunctional Microcontroller Development Expansion Board Basic Learning Kit for Arduino UNO R3

Multifunctional Microcontroller Development Expansion Board Basic Learning Kit for Arduino UNO R3

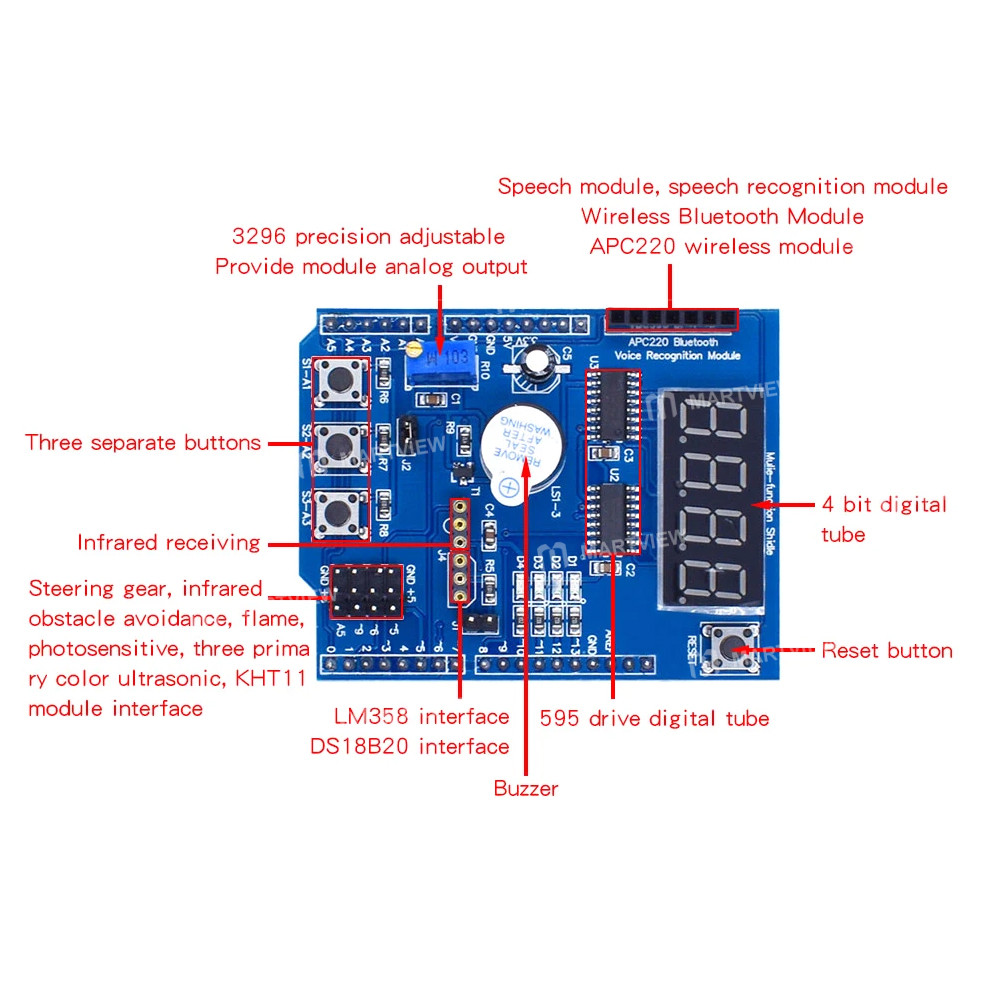

Features:

• Seamless docking with mainstream controllers such as 2009 UNO Lenardo 2560 on the market

• 4 LED indicator light: To know the importance of LED indicator light, in the a ctual engineering, with this indicator light can be directly used to indicate the working state of the program, convenient program debugging

• DS18B20 temperature sensor interface, you can do temperature measurement experiments, this product does not include DS18B20 Oh, if necessary, another shot

• LM35 temperature sensor interface, you can do temperature measurement experiment, this product does not include LM35 Oh, if necessary, another shot

• 3296 precision adjustable potentiometer, provides analog input, can be used to control LED brightness rotation steering gear Angle, digital voltage, etc

• Four-digit digital tube, 74HC595 drive province IO learning SPl, you can do digital tube display experiment, can display temperature, voltage,counting values and so on

• Three independent buttons,a reset button, you can do button experiment, man-machine interface

• The buzzer can be experimented with can alarm, pronunciation, etc.

• Bluetooth, wireless interface, speech module, speech recognition module, can be used for wireless communication experiments

• Steering gear interface, easy to drive the steering gear

• Infrared detection interface,convenient and infrared docking, to achieve traffic statistics, etc

Directions for use:

• The extension board is directly connected to the LD3320 non-specific speech recognition module to achieve voice control lights

• The extension board is directly connected with the Bluetooth wireless serial port module, which can realize the control of lighting by mobile phone and the movement of smart car

• The extension board is directly connected with APC220 wireless serial port module to realize long-distance data transmission

• The expansion plate is directly connected with the infrared photoelectric sensor, which can realize the functions of obstacle avoidance for the intelligent car with traffic statistics

• The extension board is directly connected with the SYN6288 recording free voice module to realize the voice broadcast function

• The expansion plate is directly connected with SG90, MG945, MG995 and other steering gear to realize complex movements of the machine

• Expansion board directly with ordinary infrared remote control decoding, to achieve car control, light control, relay control with common temperature sensor interface, convenient temperature measurement

Package includes:

• 1 x Expansion Board
