Official Original Raspberry Pi 4 Model B Develop Main Control Board

Official Original Raspberry Pi 4 Model B Develop Main Control Board

Features:

• Raspberry Pi 4 model b is the latest product in the popular Raspberry Pi range of computers

• It offers ground-breaking increases in processor speed multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+ while retaining backward compatibility and similar power consumption for the end user

• Raspberry Pi 4b provides desktop performance comparable to entry-level x86 pc systems

• This product's key features include a high-performance 64-bit quad-core processor dual display support at resolutions up to 4k via a pair of micro-HDMI ports, hardware video decode at up to 4K P60, up to 8GB of ram, dual-band 2.4/5.0 GHz wireless LAN Bluetooth 5.0, gigabit ethernet, USB 3.0, and PoE capability (via a separate PoE hat add-on)

• The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market

Specification:

• Model: Raspberry Pi 4B

• Processor: Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8)64-bit SoC 1.5GHz

• Memory: 1GB, 2GB or 4GB 8GB LPDDR4

• The Internet: 2.4 GHz And 5.0 GHz IEEE 802.11b/g/n/ac Wireless LAN

• Bluetooth: Bluetooth 5.0

• Ethernet: Gigabit Ethernet

• USB: 2×USB3.0 Ports; 2×USB2.0 Ports

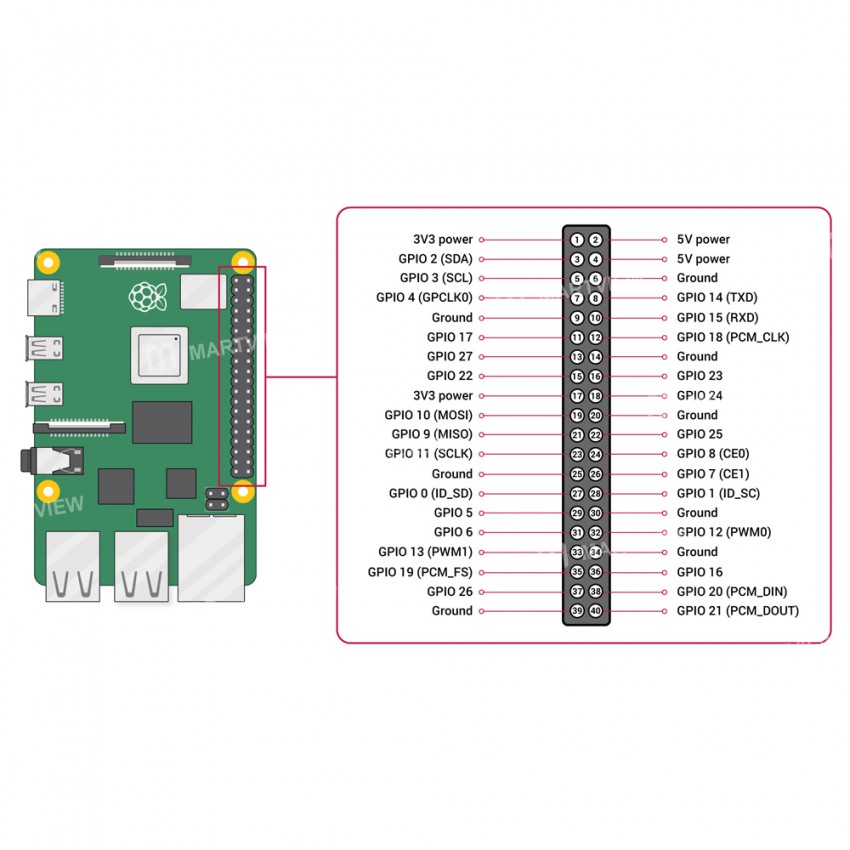

• GPIO: Standard 40-pin GPIO Header

• Video&Sound: 2×micro HDMI; 2-lane MIPI DSI Display; 2-lane MIPI CSI Camera; 4-pole Stereo Audio and Composite Video

• Multimedia: H.265(4Kp60 decode);H.264(1080p60 Decode, 1080p30 encode); OpenGL ES, 3.0 Graphics

• SD Card Support: Micro SD Card Slot For Loading Operating System and Data Storage

• Input Power: 5V DC via USB-C Connector; 5V DC Via GPIO Header; Power Over Ethernet (PoE)

• Environment:0~50°C

Package includes:

• 1 x Raspberry Pi 4B Board
