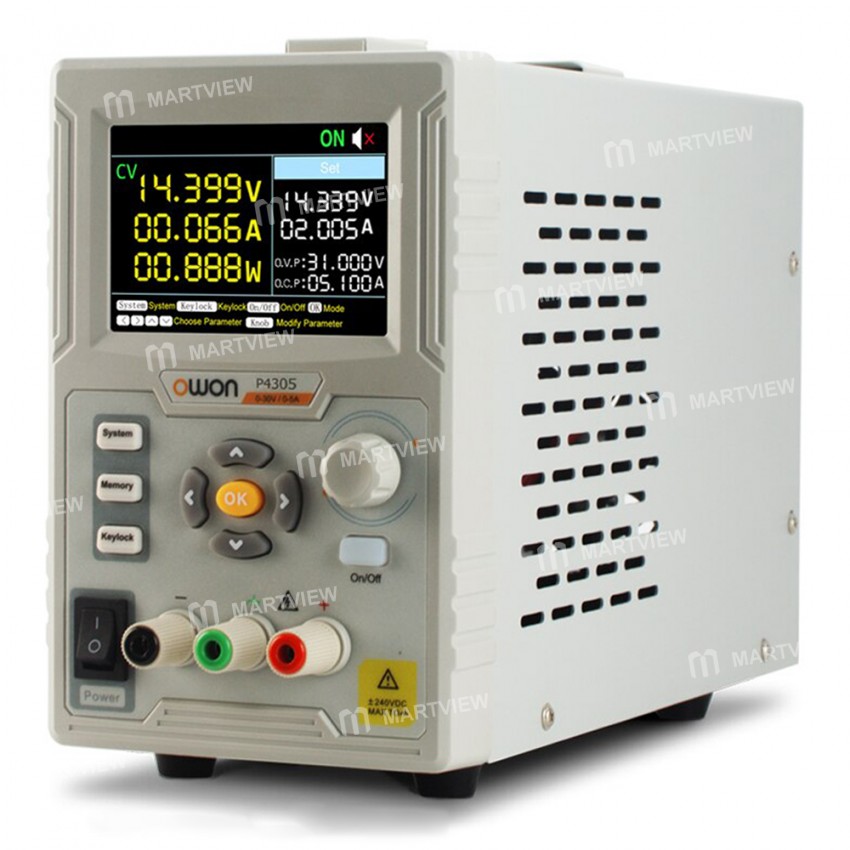

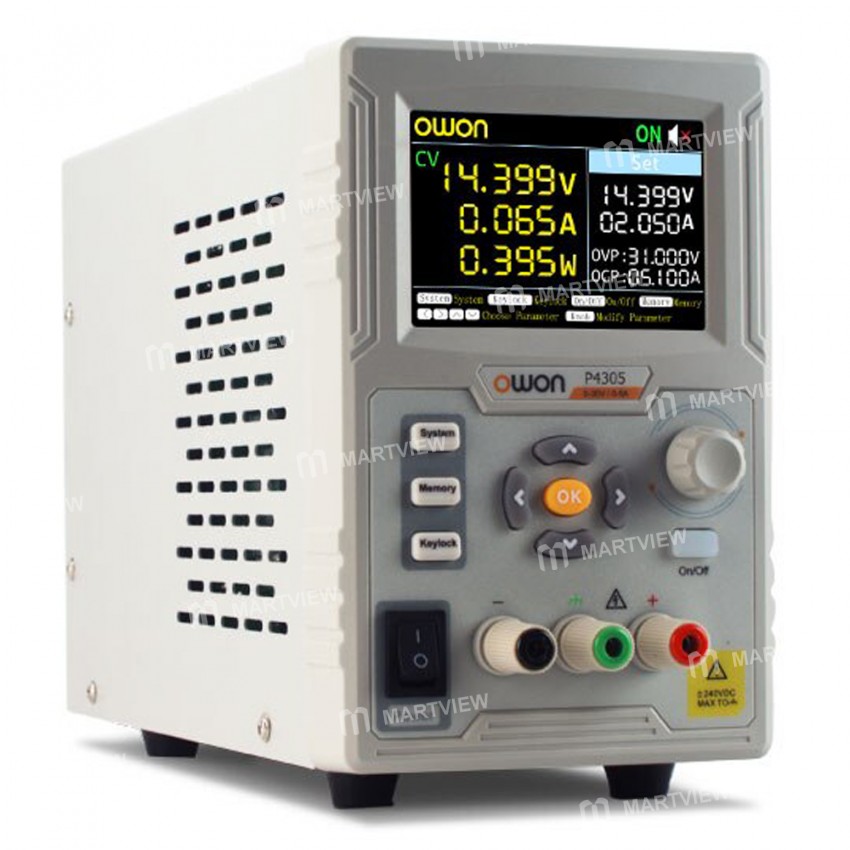

OWON P4305 / P4603 Portable LCD Display Single Channel Linear Programmable Regulated DC Power Supply

OWON P4305/P4603 Portable LCD Display Single Channel Linear Programmable Regulated DC Power Supply

Features:

• OWON P4305/P4603 Single Channel Linear Programmable Power Supply

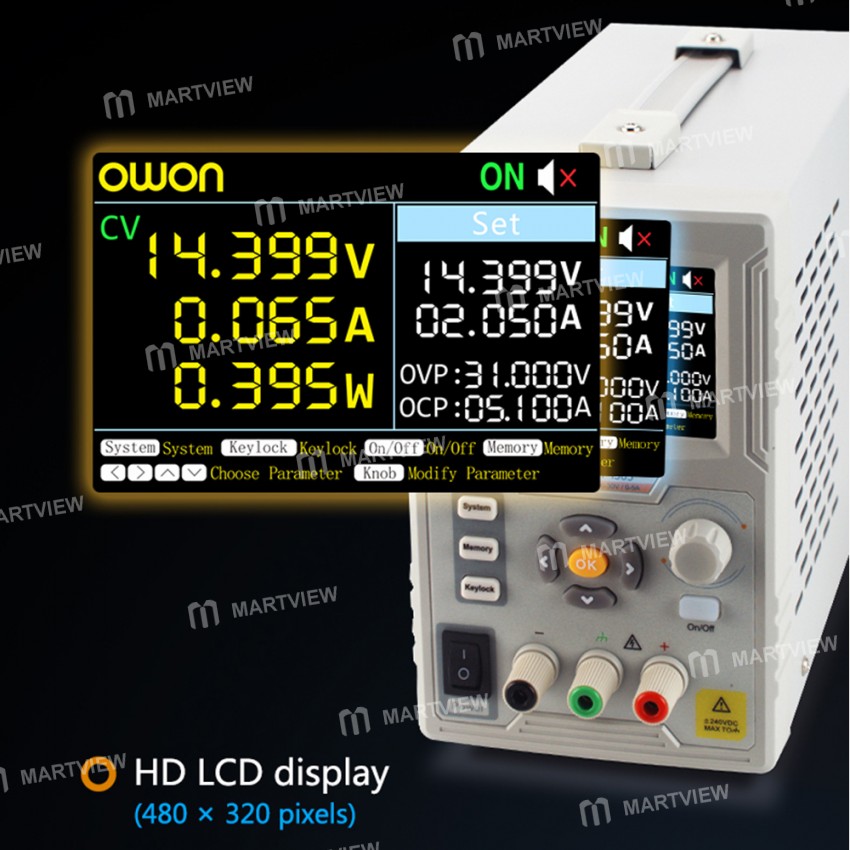

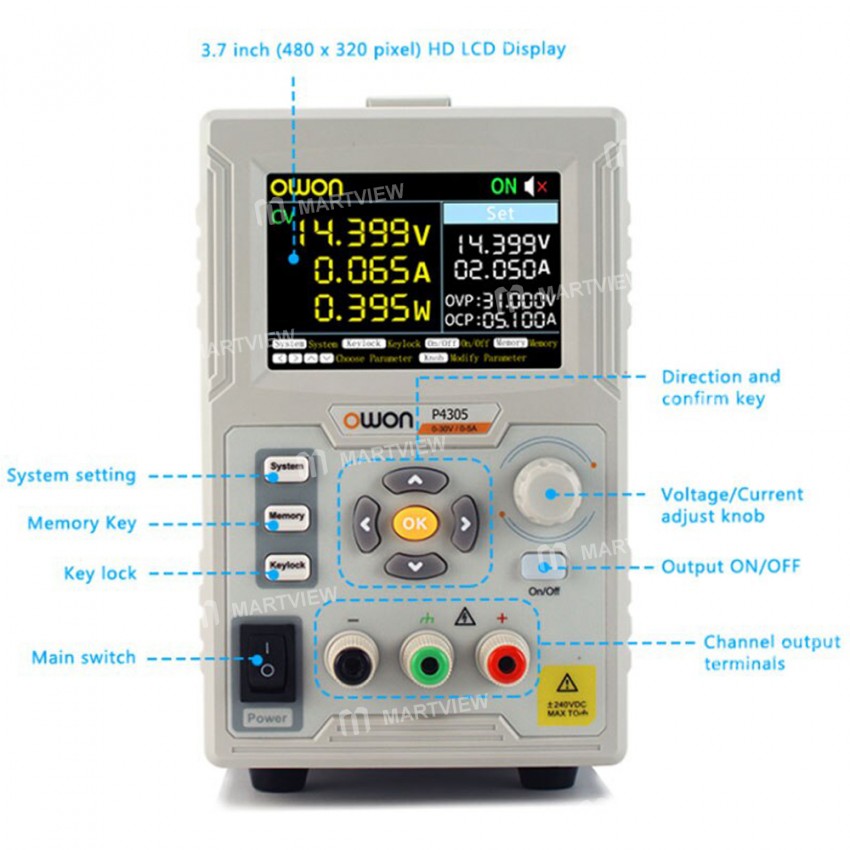

• Large LCD display with 3.7-inch (480x320) TFT LCD for at-a-glance measurement results

• High resolution, high resolution, 1mV/1mA (P4000 series) high accuracy measurement, meets the measurement needs of various industries

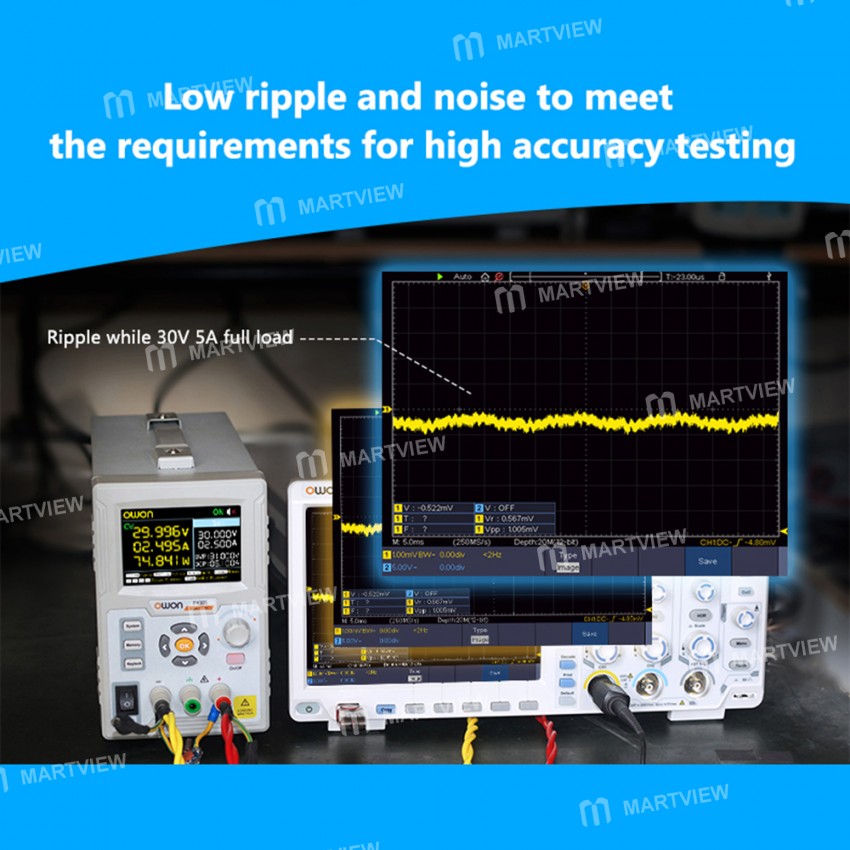

• Low ripple and low noise to meet high-accuracy measurement requirements

• Efficient storage, 5 sets of commonly used data can be stored for easy recall at any time

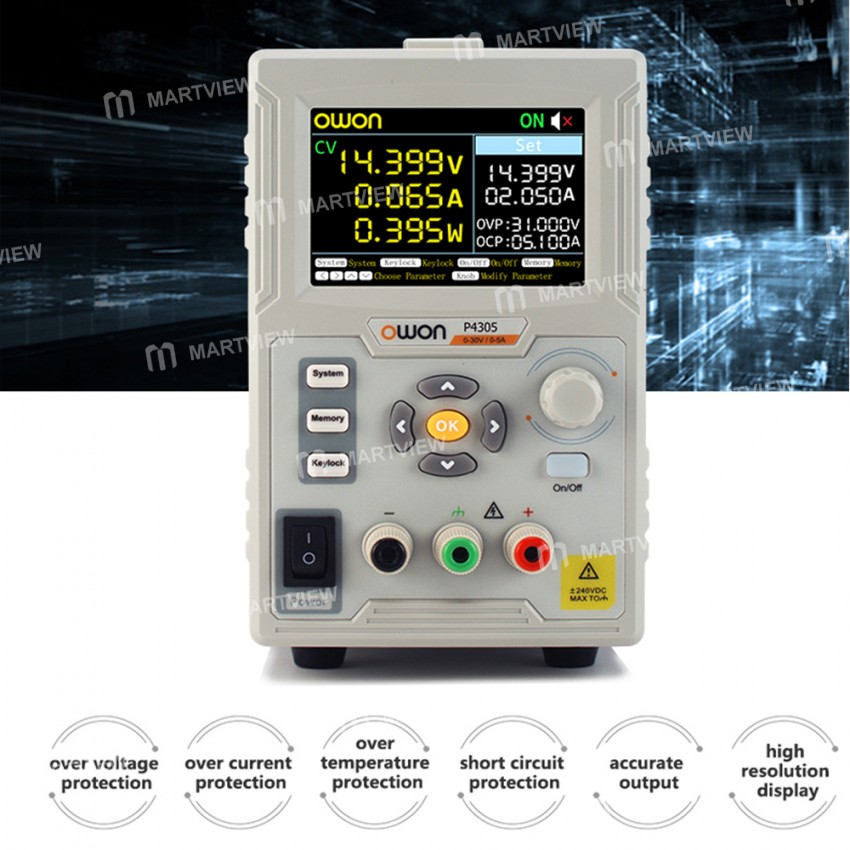

• Stable, CE compliant, supports SCPI protocol, compact, portable, and easy to use

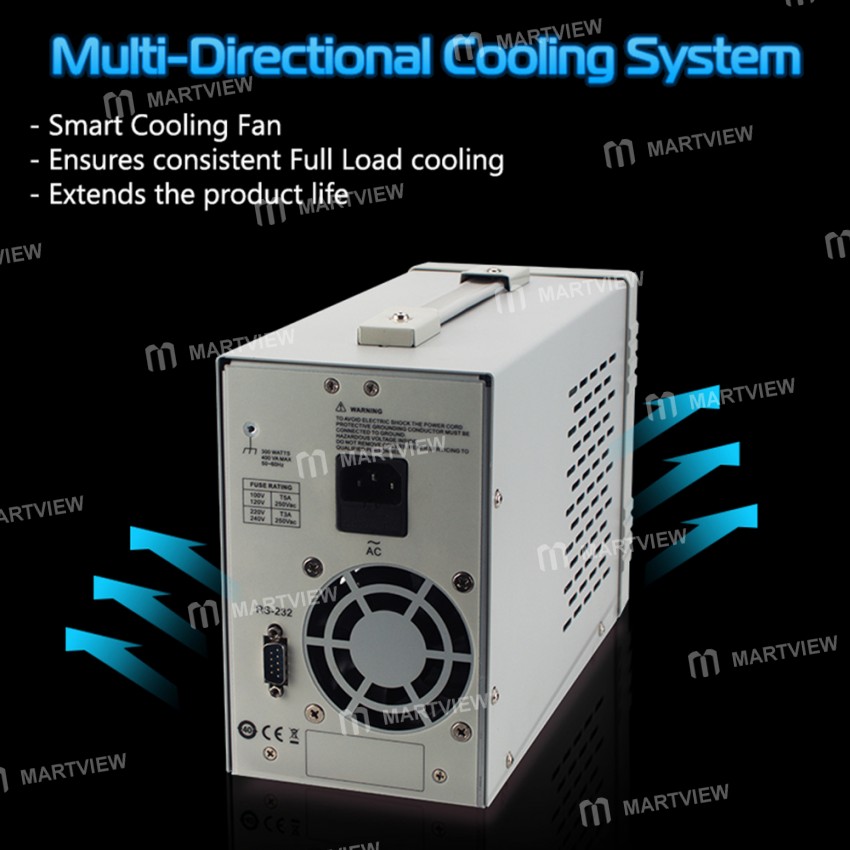

• Intelligent fan, multi-directional heat dissipation, to ensure long-term stable operation at full load and extend the service life

• Full digital DC stabilized power supply, Large display/Portable durable/Stable output

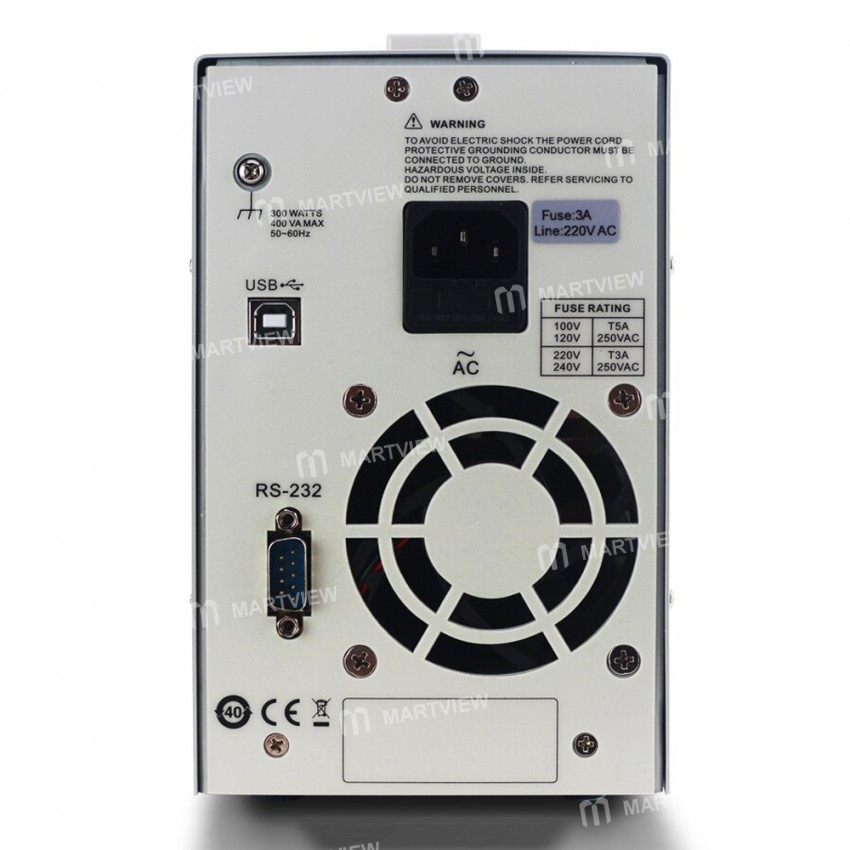

• Support RS232 digital communication

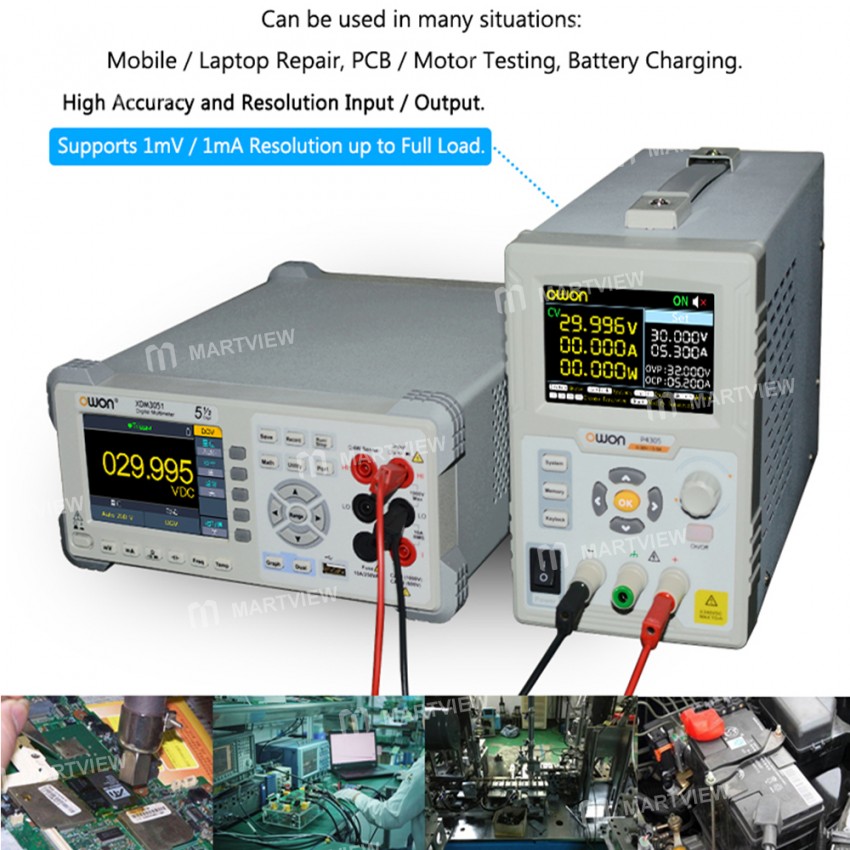

• Can be used in many situations such as mobile phones or laptops PCB repair, motor testing, battery charging

Specification:

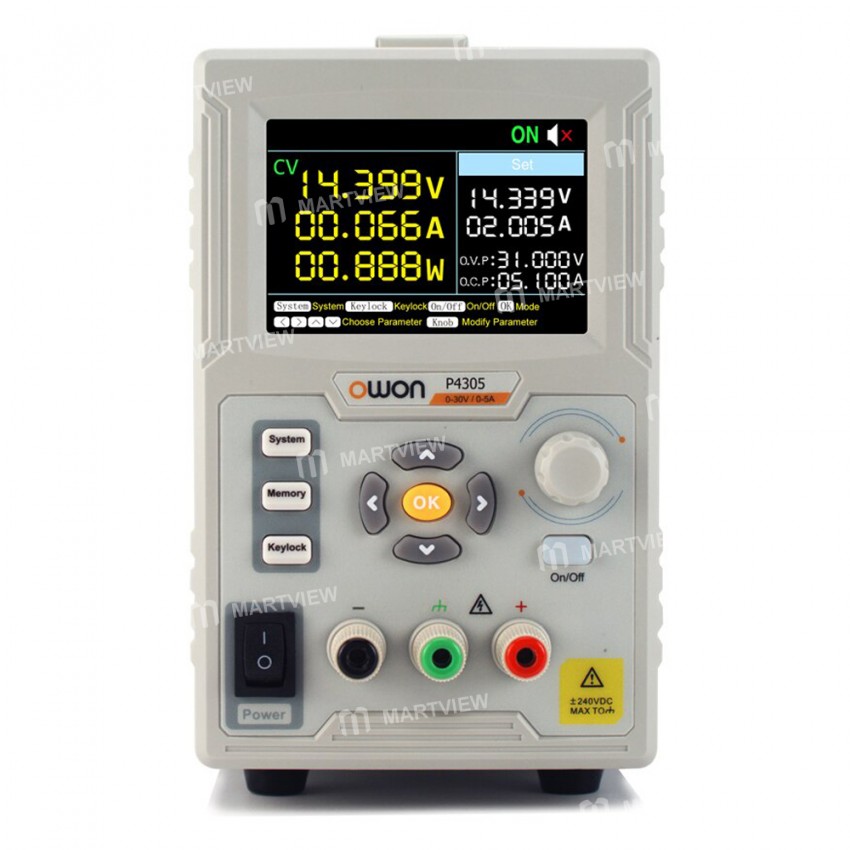

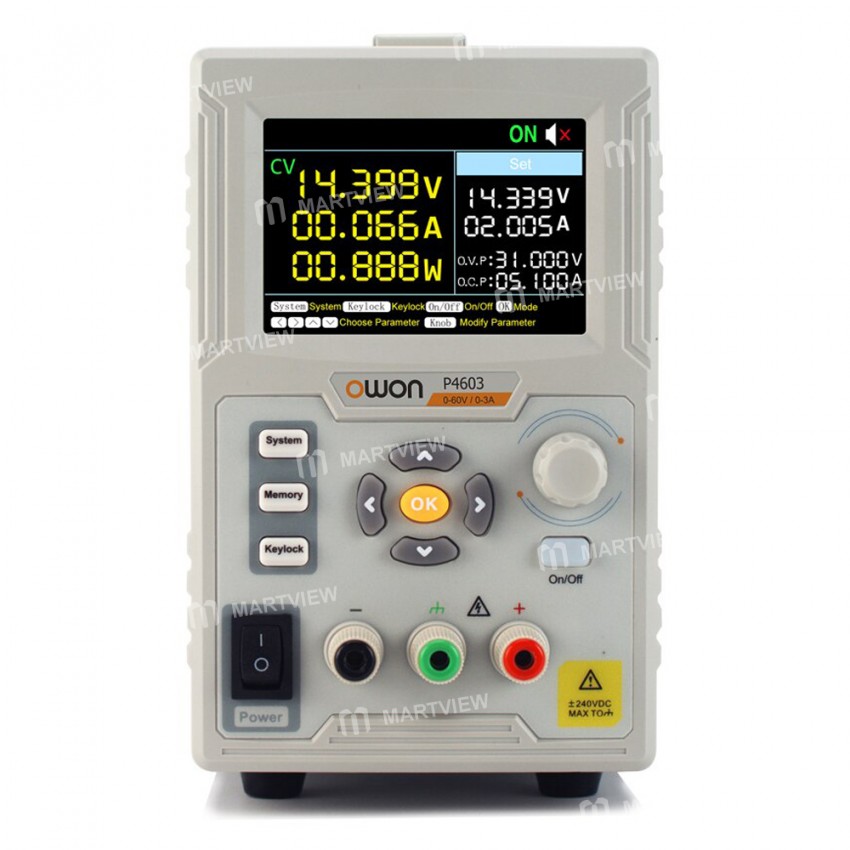

• Model: P4305/P4603

• Channel: Single Channel Output

• Total Output Power: 150W/180W

• Channel Output: 0-30V/0-5A; 0-60V/0-3A

• Display: 3.7-inch color LCD display

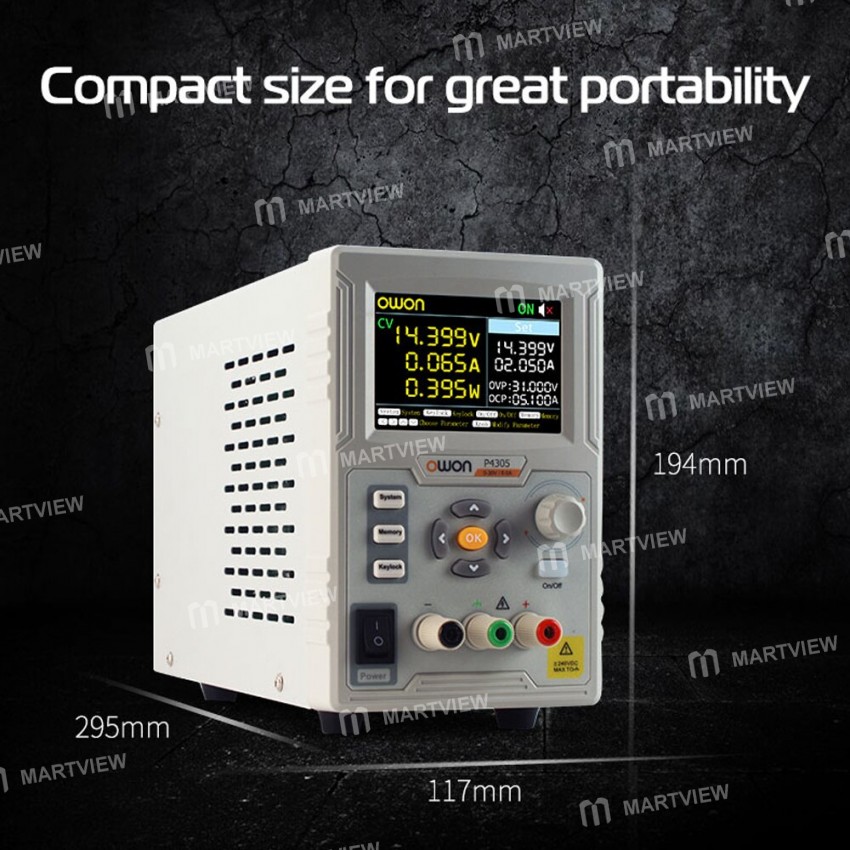

• Dimension: 117*194*295mm

• Interface: RS232

• Rated Output Voltage(0℃-40℃): 0-30V/0-60V

• Rated Output Current(0℃-40℃): 5A/3A

• Load Regulation: Voltage: ≤0.01%+3mV; Current: ≤0.01%+3mA

• Power Regulation: Voltage: ≤0.01%+3mV; Current: ≤0.01%+3mA

• Setting Resolution: Voltage:1mV ; Current: 1mA

• Readback Resolution: Voltage: 1mV; Current: 1mA

• Setpoint accuracy(25℃±5℃): Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA

• Readback Resolution (25℃±5℃): Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA

• Ripple/Noise (20Hz-20MHz): Voltage(Vp-p): ≤4mVp-p; Voltage(rms): ≤1mVrms Current: ≤4 Arms

• Output Temperature Coefficient (0℃-40℃): Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA

• Readback Temperature Coefficient: Voltage: ≤0.03%+10mV; Current: ≤0.1%+5mA

• Response Time: 100μs

• Storage: 5 groups of data

• Working Temperature: 0-40℃

Package includes:

• 1 x Power Supply

• 1 x Power Cable

• 1 x Test Line

Notes: The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters
