Owon SPE3051 30V / 5A Programmable Single-channel Linear DC Power Supply with 2.8-inch Display

Owon SPE3051 30V/5A Programmable Single-channel Linear DC Power Supply with 2.8-inch Display

Features:

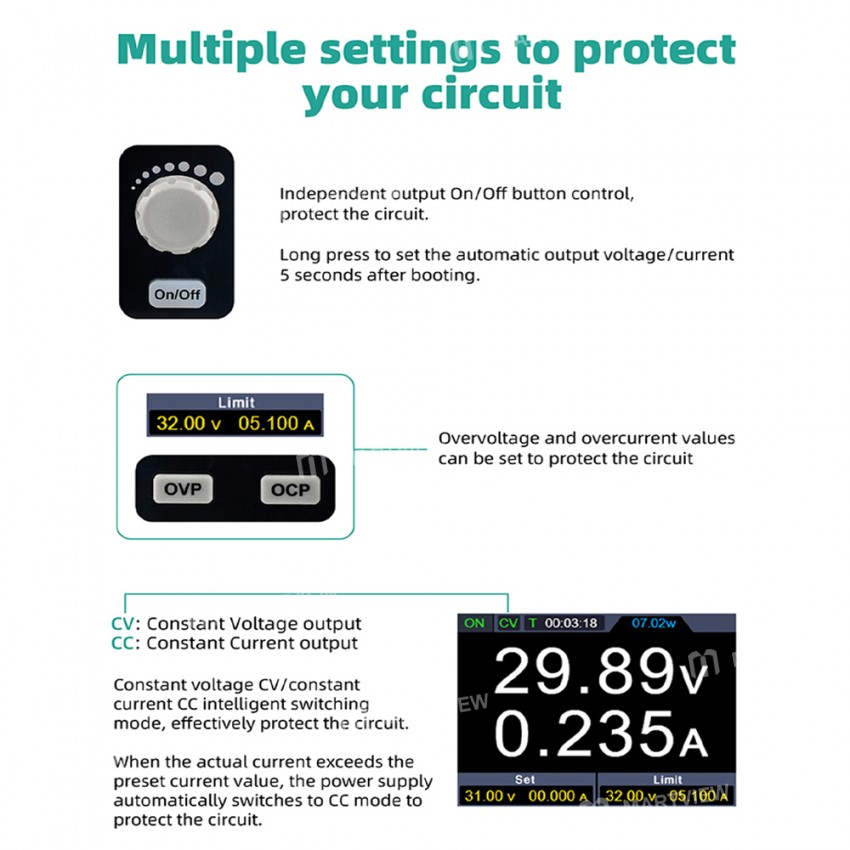

• Independent output switch control to protect the circuit

• Long press to set automatic voltage/current output after 5 seconds of power on

• Over-voltage and over-current value protection circuits can be set

• Constant voltage CV/constant current CC intelligent switching mode to effectively protect the circuit

• When the actual current exceeds the preset current value, the power supply automatically switches to CC mode to protect the circuit

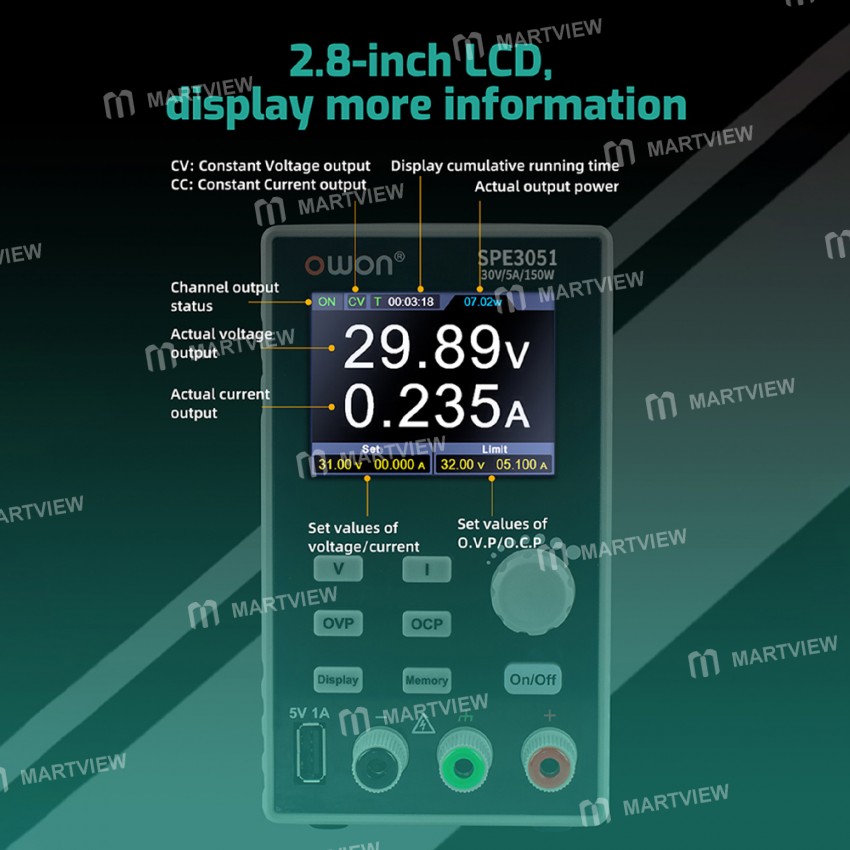

• 2.8" LCD for more complete display information

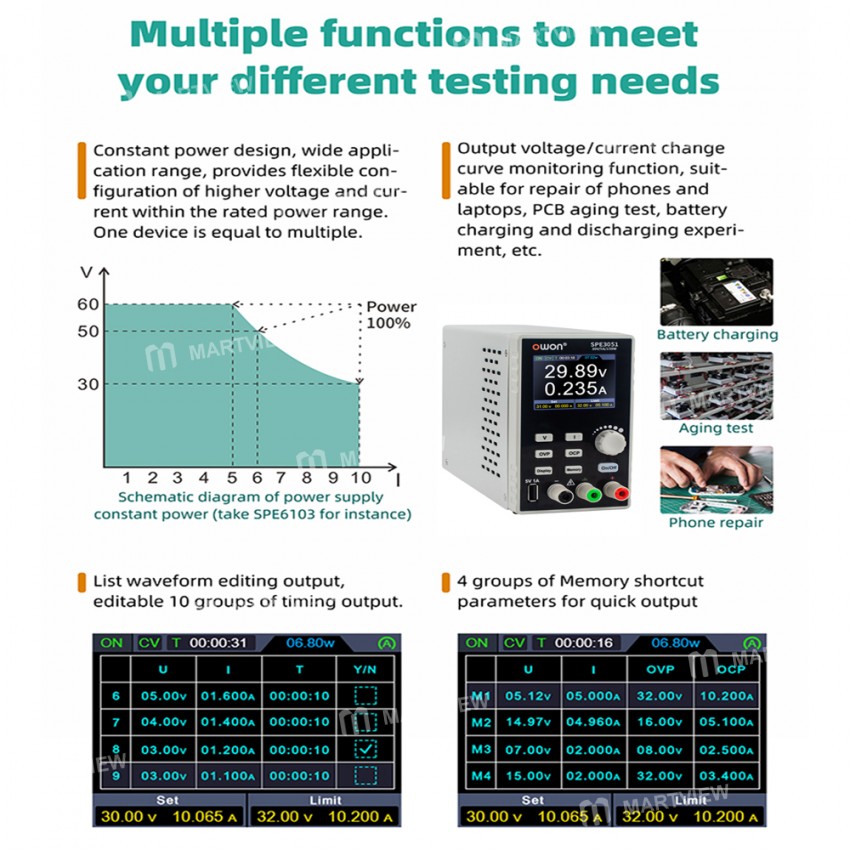

• Constant power design with a wide range of use, allowing the user to provide a flexible configuration of higher voltage and larger electrical charge within the rated power range One unit equals multiple units

• Output voltage/current change curve monitoring function, suitable for mobile phone and notebook repair, PCB aging test, battery charging and discharging experiments, etc.

• List waveform editing output, 10 sets of timed output can be edited

• 4 groups of Memory shortcut parameters called function

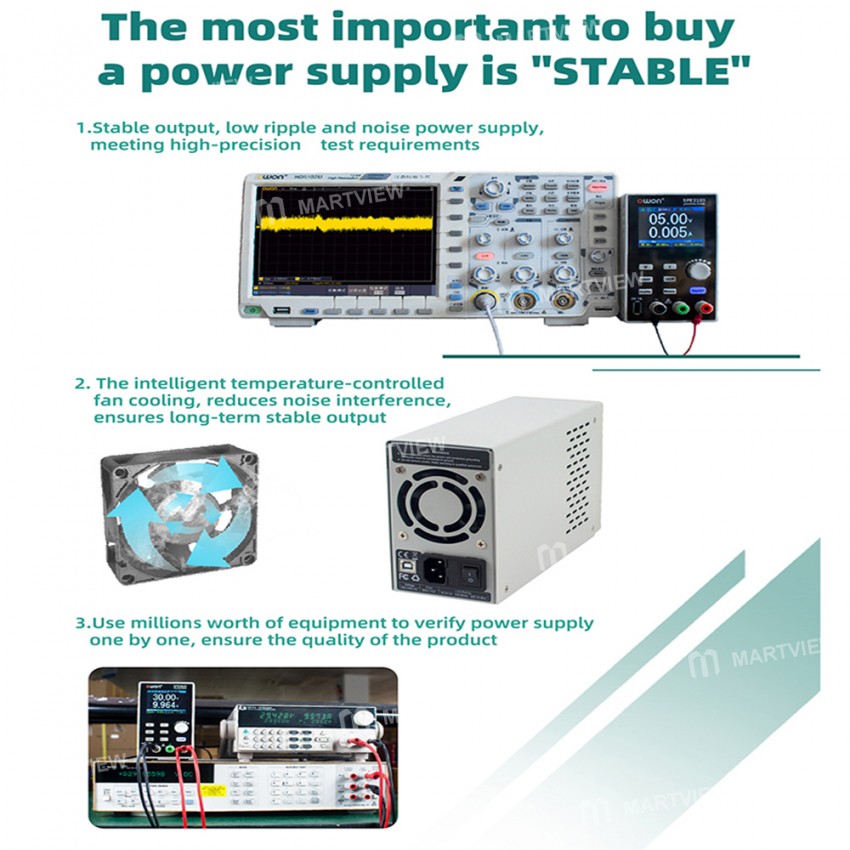

• The stable output of low ripple noise power supply to meet the requirements of high precision testing

• Intelligent temperature-controlled fan heat dissipation to reduce noise disturbance and make the power supply output stable for a long time

Specification:

• Model: SPE3051

• Rated Output: Voltage: 0-30V; Current: 5A; Output Power: 150W

• Load Regulation:  Voltage: ≤30mW; Current: ≤20mA

• Power Regulation: Voltage: ≤30mW; Current: ≤20mA

• Setting Resolution: Voltage: 10mV; Current: 1mA

• Readback Resolution: Voltage: 10mV; Current: 1mA

• Value Resolution: Voltage: ≤0.1% ±20mV; Current: ≤0.05% ±10mA

• Readback Value Resolution: Voltage: ≤0.1% ±20mV; Current: ≤0.1% ±10mA

• Ripple/Noise(*): Voltage(Vpp): ≤30mVp-p; Voltage(RMS): ≤3mVrms; Current(RMS): ≤30mAp-p

• Output temperature coefficient: Voltage:100ppm/℃; Current: 200ppm/℃

• Readback temperature coefficient: Voltage: 100ppm/℃; Current: 200ppm℃

• Response Time(50%-100% Rated load): ≤1.0ms

• Storage: 4 groups of data

• Working Temperature: 0-40℃

Package includes:

• 1 x Power Supply

• 1 x Power Cable
