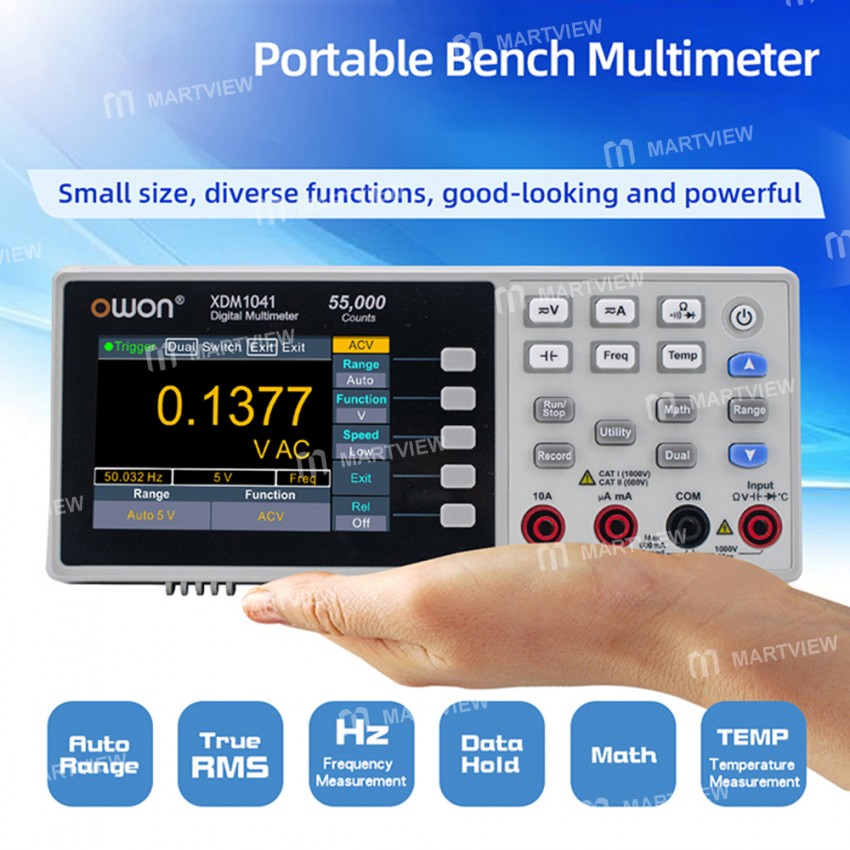

Owon XDM1041 Portable True RMS 4 1 / 2 Digital Display Bench Multimeter with USB Port

Owon XDM1041 Portable True RMS 4 1/2 Digital Display Bench Multimeter with USB Port

Features:

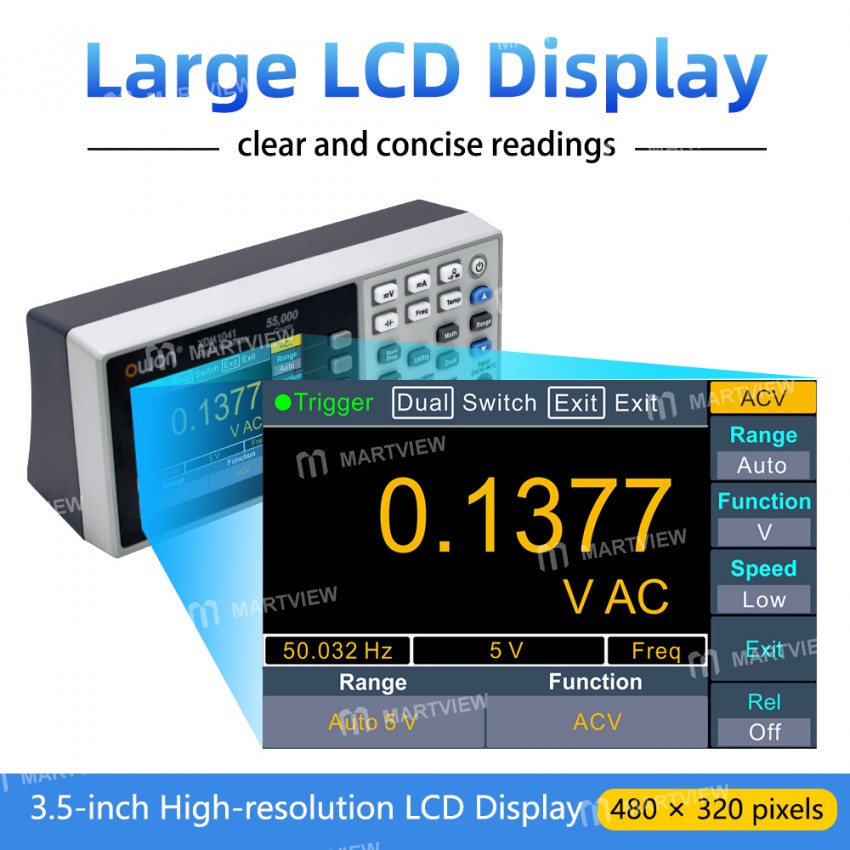

• 3.5-inch high-resolution LCD, providing a clear display

• Display max 55000 counts(>4digits), DC voltage accuracy up to 0.05%

• OMultiple measurement functions: DC/AC Voltage, DC/AC Current, resistance, capacitance measurement, continuity test, diode test,

• temperature measurement, AC and frequency (AC Hz) measurement, Max/Min/average measurement, relative measurement (REL_%)

• Reading rates up to 65 readings per second

• AC True RMS measurement, measurement bandwidth: 20 Hz-1kHz

• Manual or auto-record the measured data into internal memory, and displayed it in the table

• SCPI supported, remote control the multimeter through PC software via USB port

• Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer

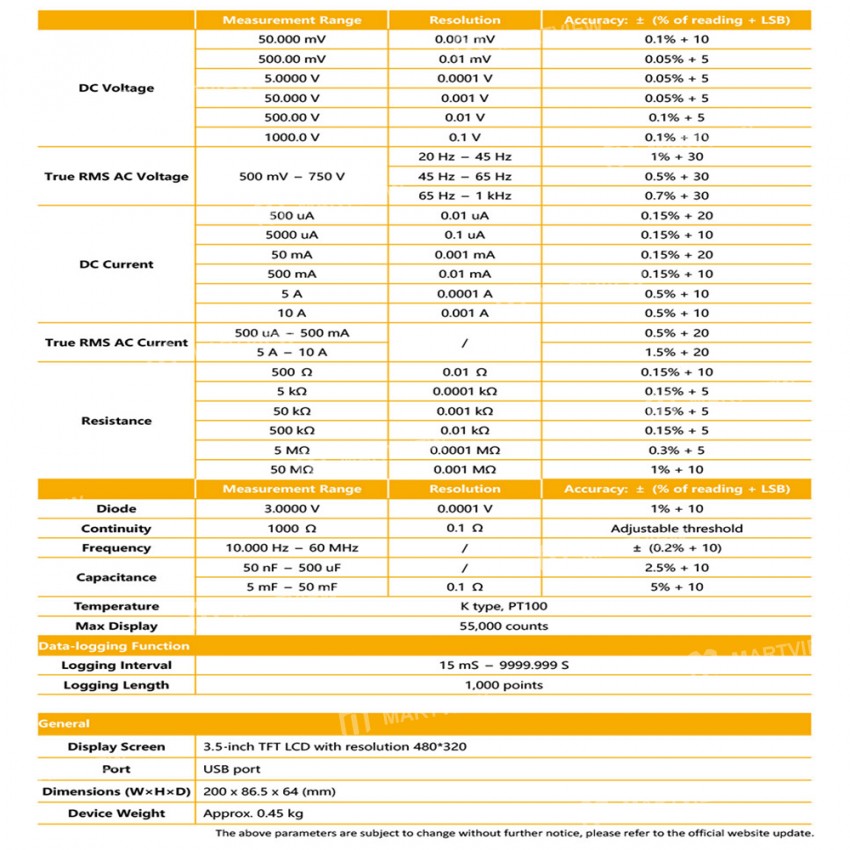

Specification:

• Material: ABS
• Display: 3.5-inch TFT LCD (480*320 Resolution)
• Max. Display: 55,000 counts
• DC Voltage: 50mV/500mV/5V/50V/500V/1000V
• True RMS AC Voltage: 500mV~750V
• DC Current: 500μA/5000μA/50mA/500mA/5A/10A
• True RMS AC Current: 500μA~500mA, 5A~10A
• Resistance: 500Ω/5kΩ/50kΩ/500kΩ/5MΩ/50MΩ
• Frequency: 10Hz~60MHz
• Capacitance: 50nF~500uF, 5mF~50mF
• Diode: 3V
• Continuity: 1000Ω
• Temperature: K type, PT100 (K-type temperature probe is not included)
• Data Logging Interval: 15ms~9999.999s
• Data Logging Length: 1,000 points

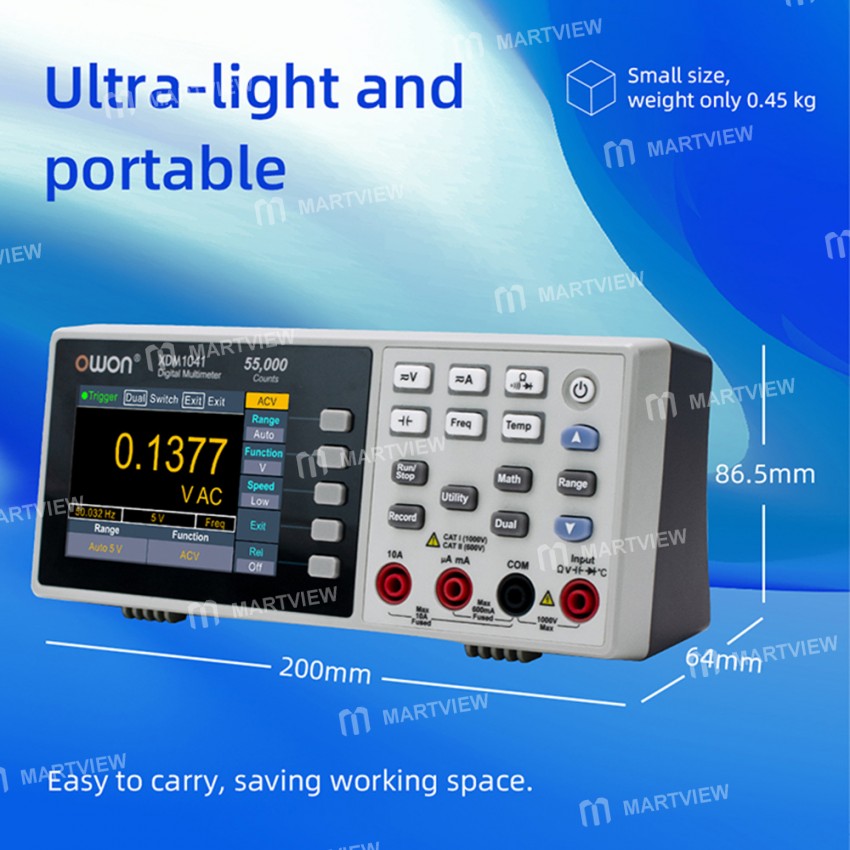

• Item Size: 200 * 86.5 * 64mm
• Item Weight: 619g
• Package Weight: 819g
• Package Size: 24.5 * 17 * 8cm

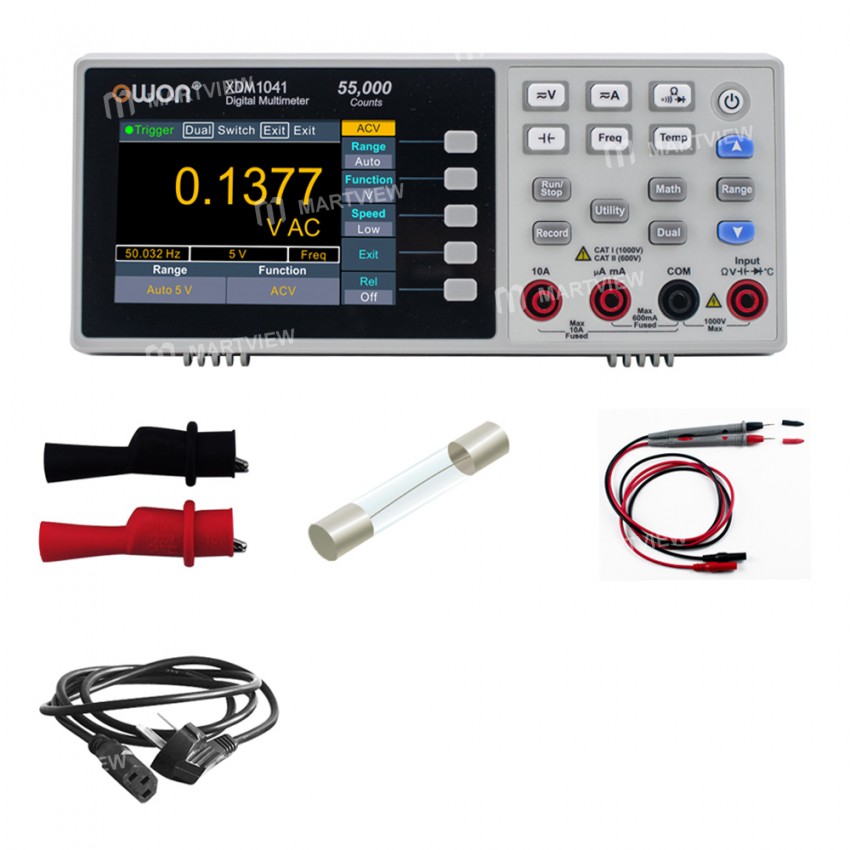

Package includes:

• 1 x Multimeter

• 1 x Power Cord

• 1 x Fuse

• 1 x Multimeter Lead

• 1 x Alligator Clip

• 1 x USB data cable
