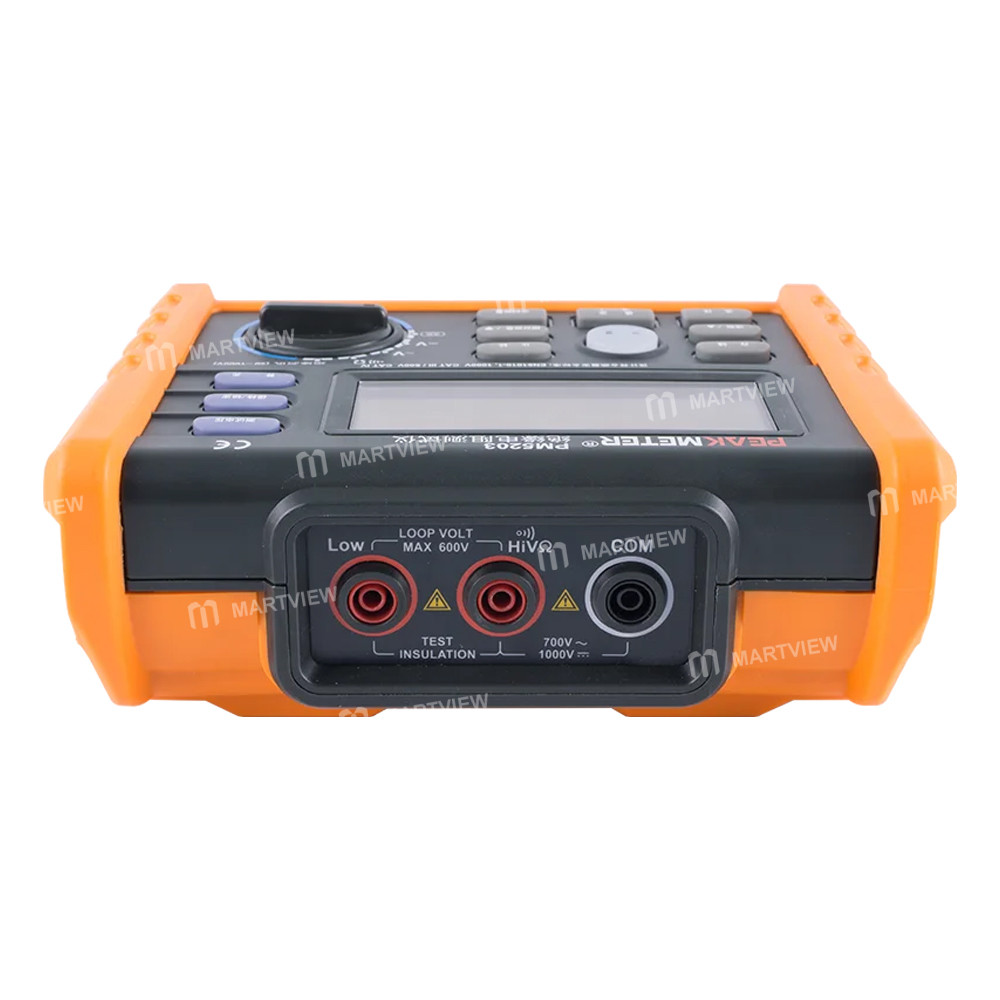

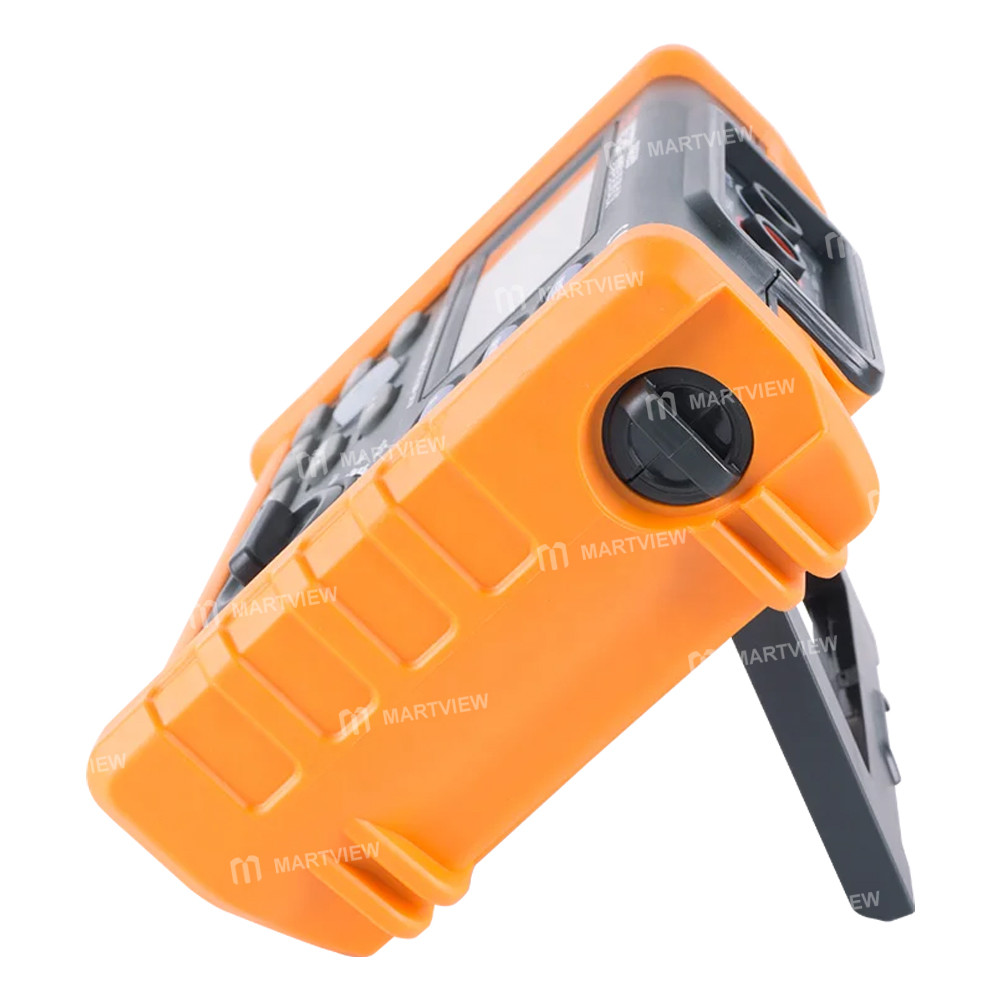

PEAKMETER MS5203 Digital Insulation Resistance Meter Tester – Multimeter & Megohm Meter, 0.01‑10 GΩ Range

Key Features Summary:
• IEC 61010‑1 CAT III 1000 V / CAT IV 600 V compliant
• Auto‑calculate PI and DAR
• Store / Load function
• Compare function
• Auto discharge for capacitive loads
• Timer & lock functions for insulation testing
• Low‑battery indication
• DCV & ACV testing
• Continuity test
• Auto power‑off

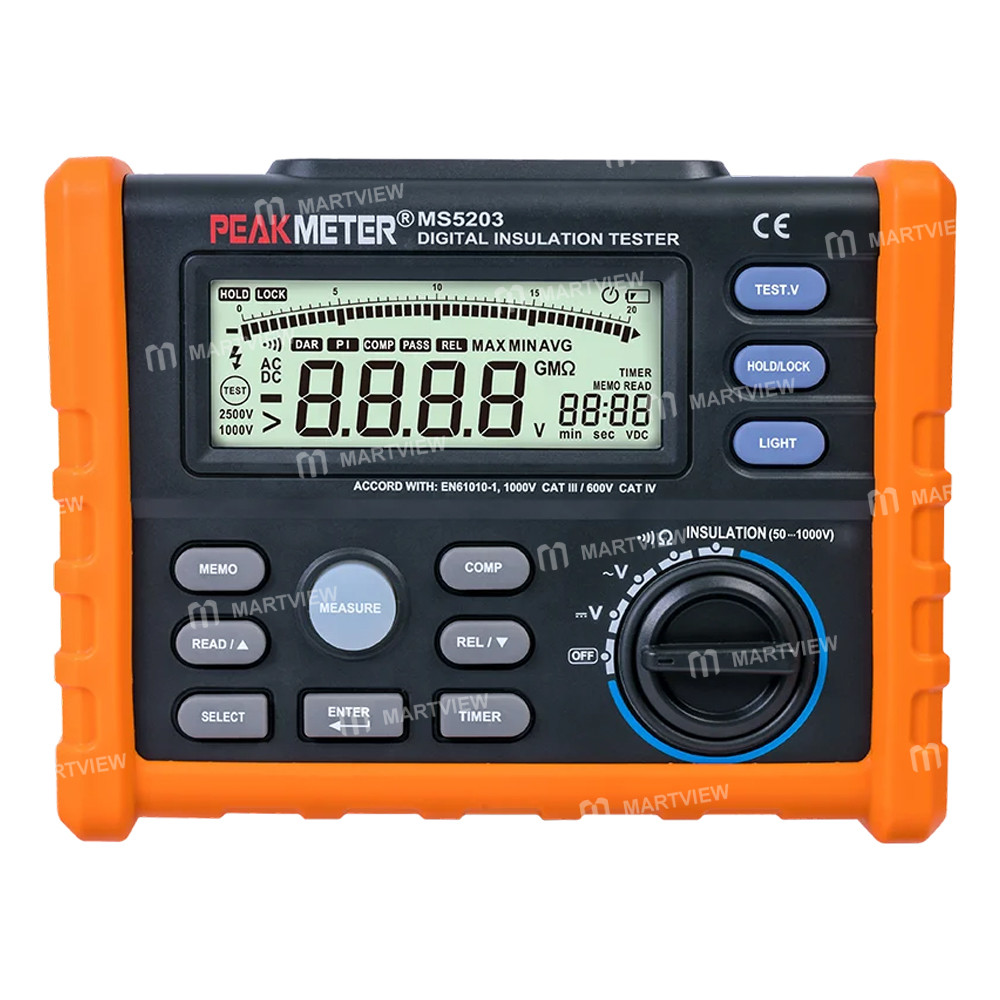

• Dual digital & analog display

Product Features:
• Design according to IEC 61010‑1 CAT III 1000 V / CAT IV 600 V
• Auto Calculate PI and DAR
• Store / Load Function
• Compare function
• Auto discharge for capacitive load
• Timer Function for insulation test
• Lock function for insulation test
• Low Battery Indication
• DCV and ACV Test
• Continuity test
• Auto power Off
• Digital and analog display

Product Specification:
INSULATION TESTS:
‑ 50 V (0 %–+20 %) 0.01 MΩ–50 MΩ ±(3 %+5)
‑ 100 V (0 %–+20 %) 0.01 MΩ–100 MΩ ±(3 %+5)
‑ 250 V (0 %–+20 %) 0.01 MΩ–250 MΩ ±(3 %+5)
‑ 500 V (0 %–+20 %) 0.01 MΩ–500 MΩ ±(3 %+5) 1.00 GΩ–5.00 GΩ ±(5 %+0.1 GΩ)
‑ 1000 V (0 %–+20 %) 5.00 GΩ–10.00 GΩ ±(10 %+0.2 GΩ)
SHORT CIRCUIT CURRENT: 1.8 mA
Multimeter functions:
‑ DC Voltage Test: 0.1–1000 V ±0.5 %
‑ AC Voltage Test: 0.1–750 V ±1 %
‑ Continuity Test: 0.01 Ω–200 Ω ±0.5 %

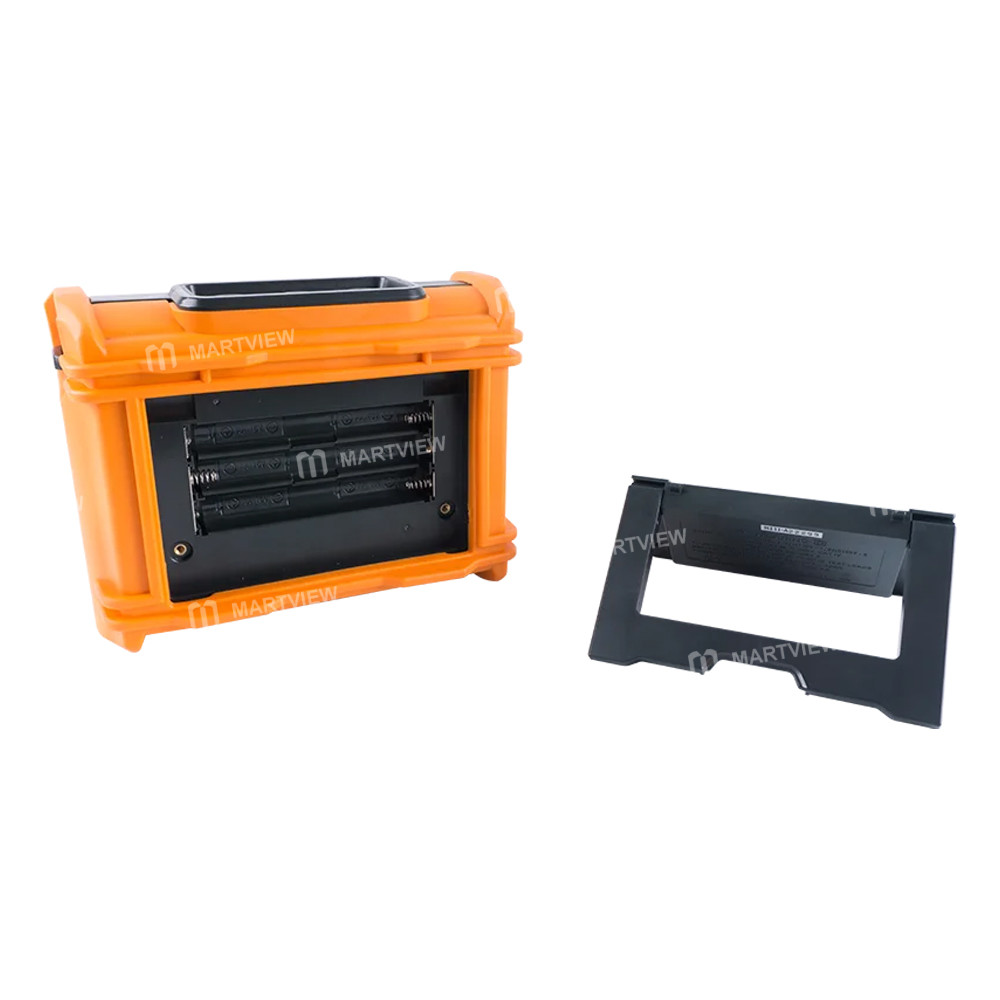

Power Supply: 6 × 1.5 V AA batteries
Product Size: 180 mm × 140 mm × 65 mm (7.1″ × 5.5″ × 2.6″)
Product Weight: 950 g (2.1 lb)
Category: CE ETL CAT III 1000 V / CAT IV 600 V
Packing size: 340 × 265 × 103 mm
Packing weight: 2060 g

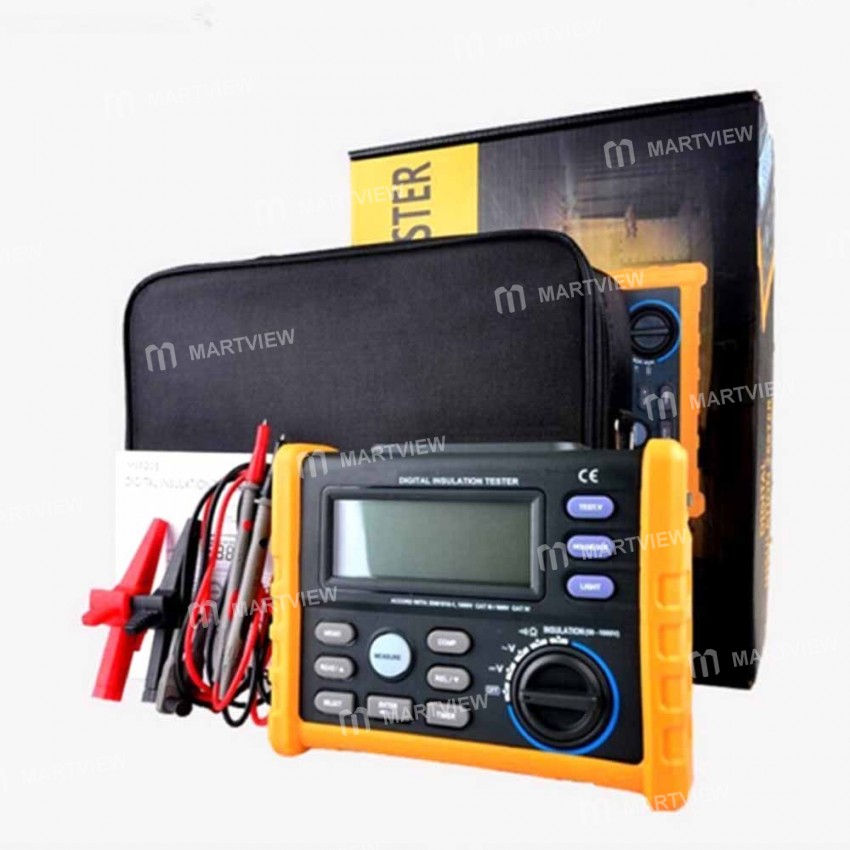

Package Includes:
1 × MS5203 DIGITAL INSULATION TESTER
1 × Colorful Box
1 × User Manual
1 × Holder
1 × Rubber Cover
1 × Meter Bag
1 × Alligator clips
1 × Test cable
1 × Signage
1 × Sponge mats
1 × Static film

Kindly Notice:
As HYELEC is our former brand and the new brand is PEAKMETER, items may carry both logos. Rest assured, the product quality is identical for both brands.
