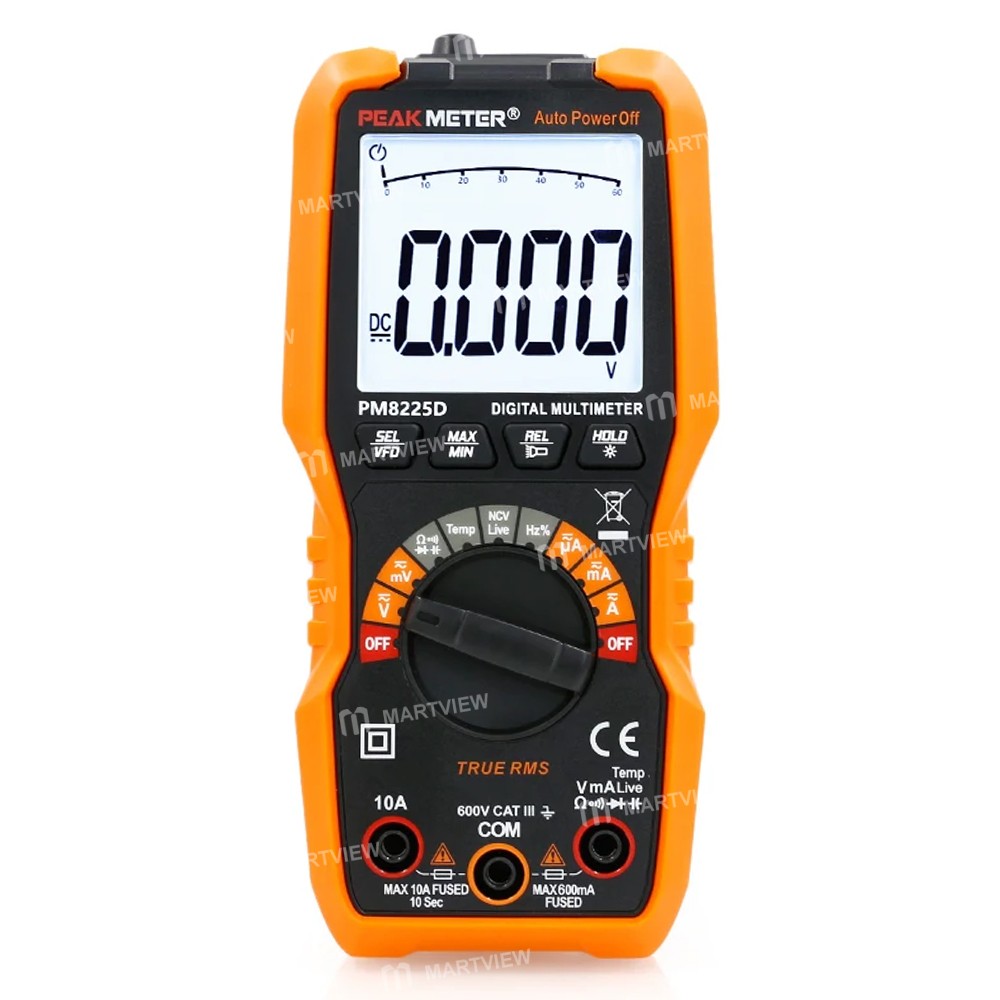

PEAKMETER PM8225D High-Precision Anti-Burning Digital Multimeter with Low Pass Filter Measurement

PEAKMETER PM8225D High-Precision Anti-Burning Digital Multimeter with Low Pass Filter Measurement

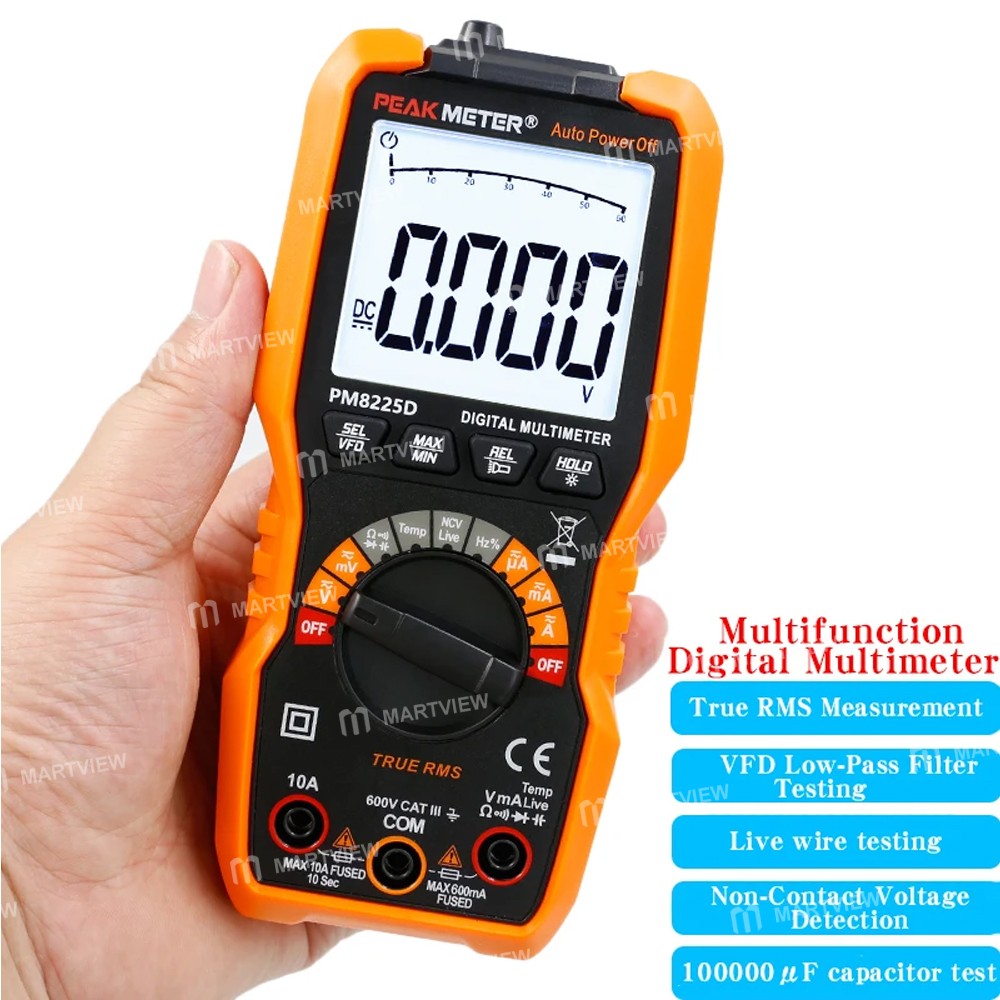

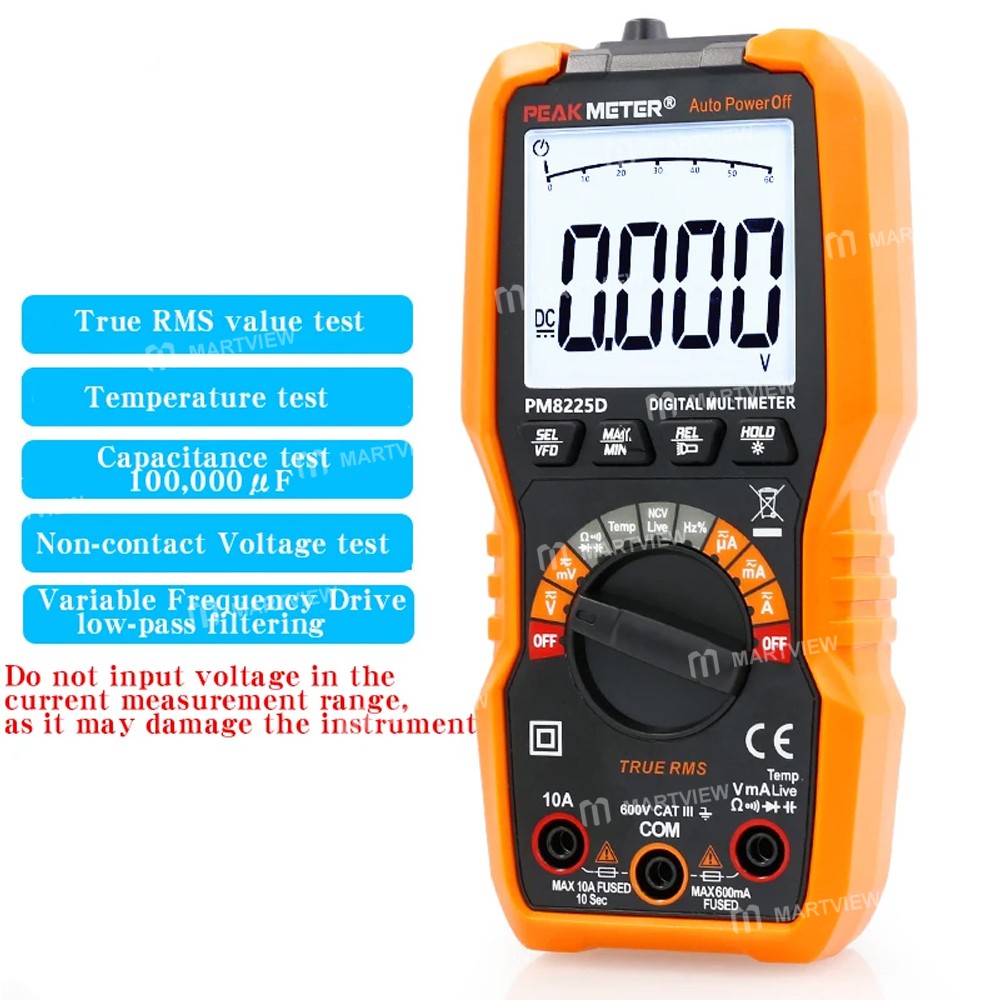

Function:

• True RMS Test

• VFD Low Pass Filter Measurement

• Firewire Test

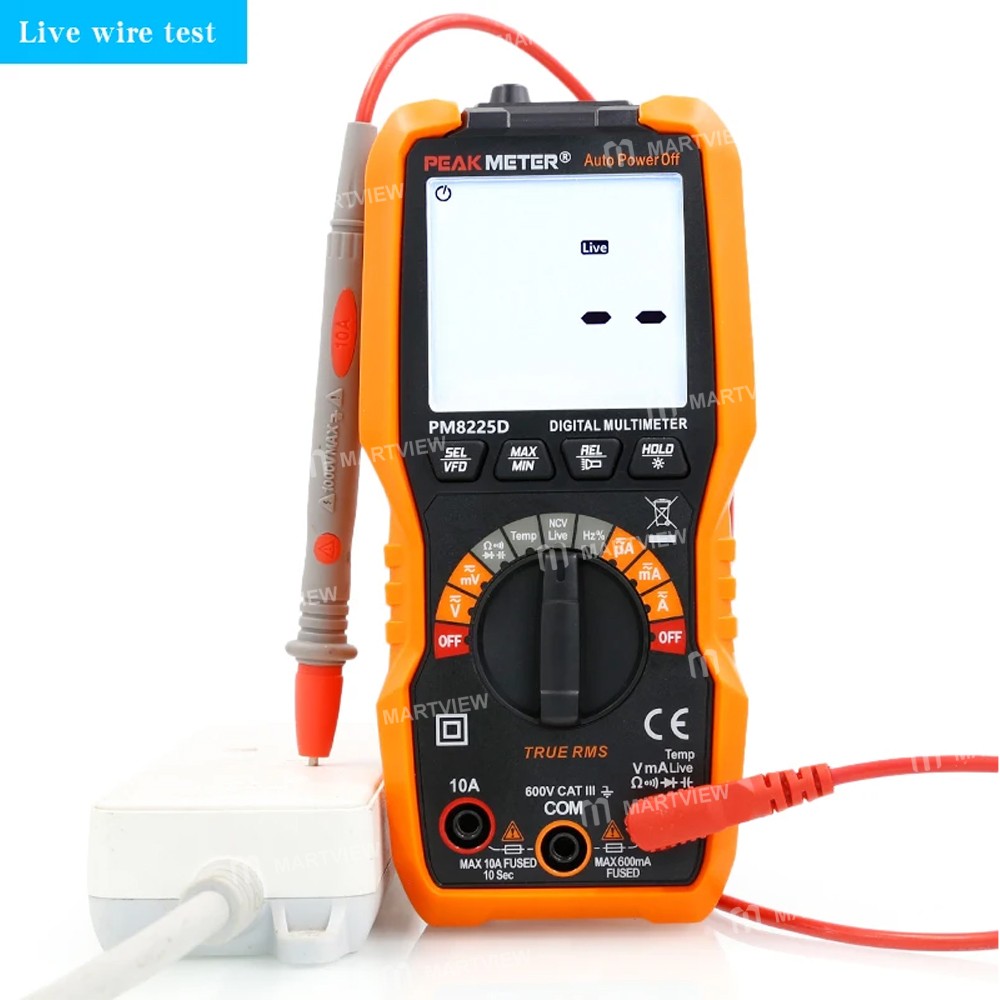

• NCV non-contact power test

• 100000uF Capacitance Test

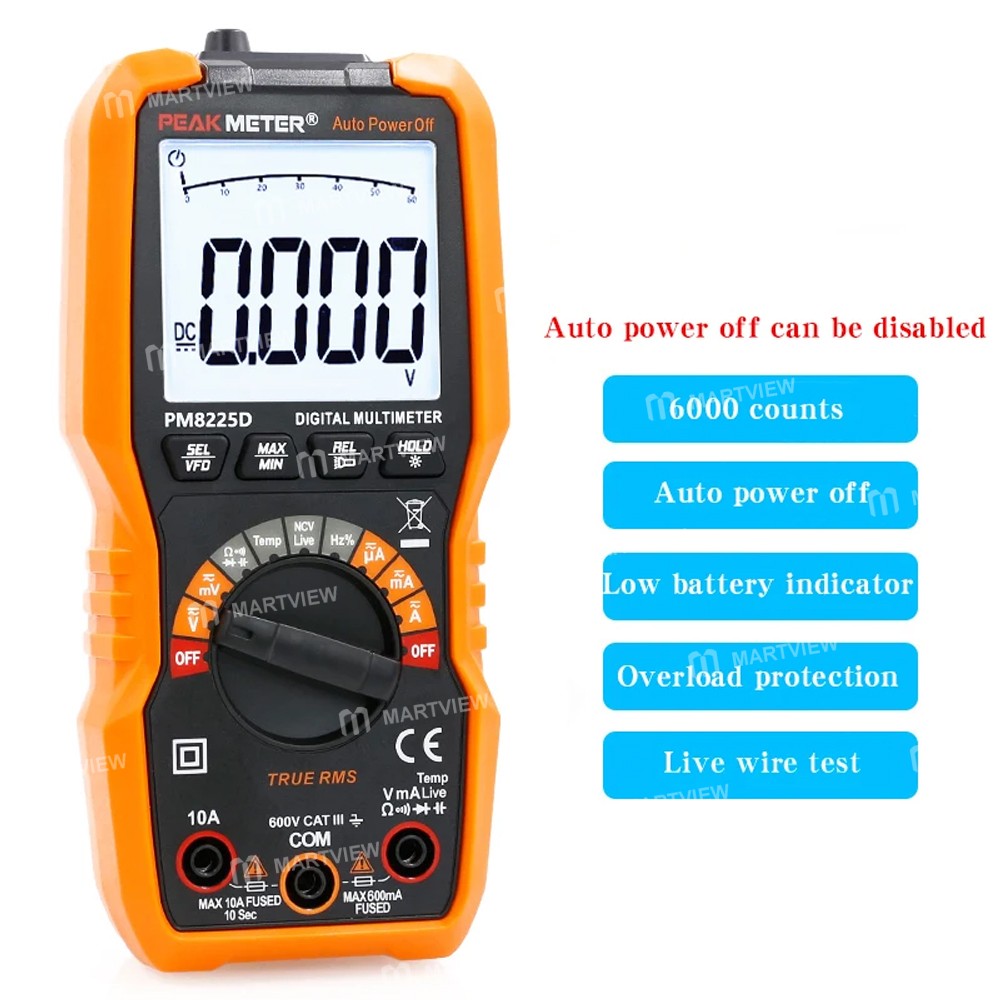

• 6000 counts measurable

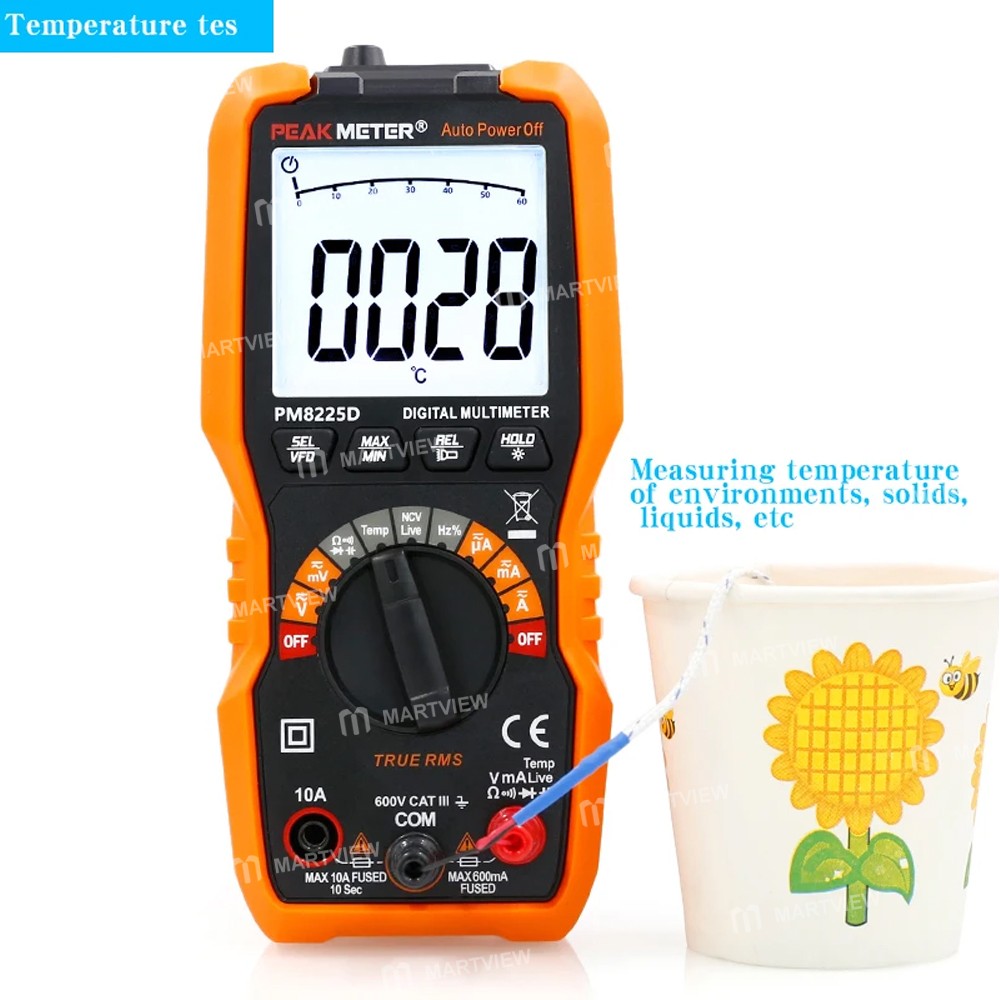

• Temperature measurement

• 10 minutes auto shutdown (can be canceled)

• Low voltage indication

• Overload protection

• With a backlight/flashlight

Specification:

Model number	PM8225D
AC current	1uA~10A±(1.5%+3)
DC current	1uA~10A±（1.2%+3)

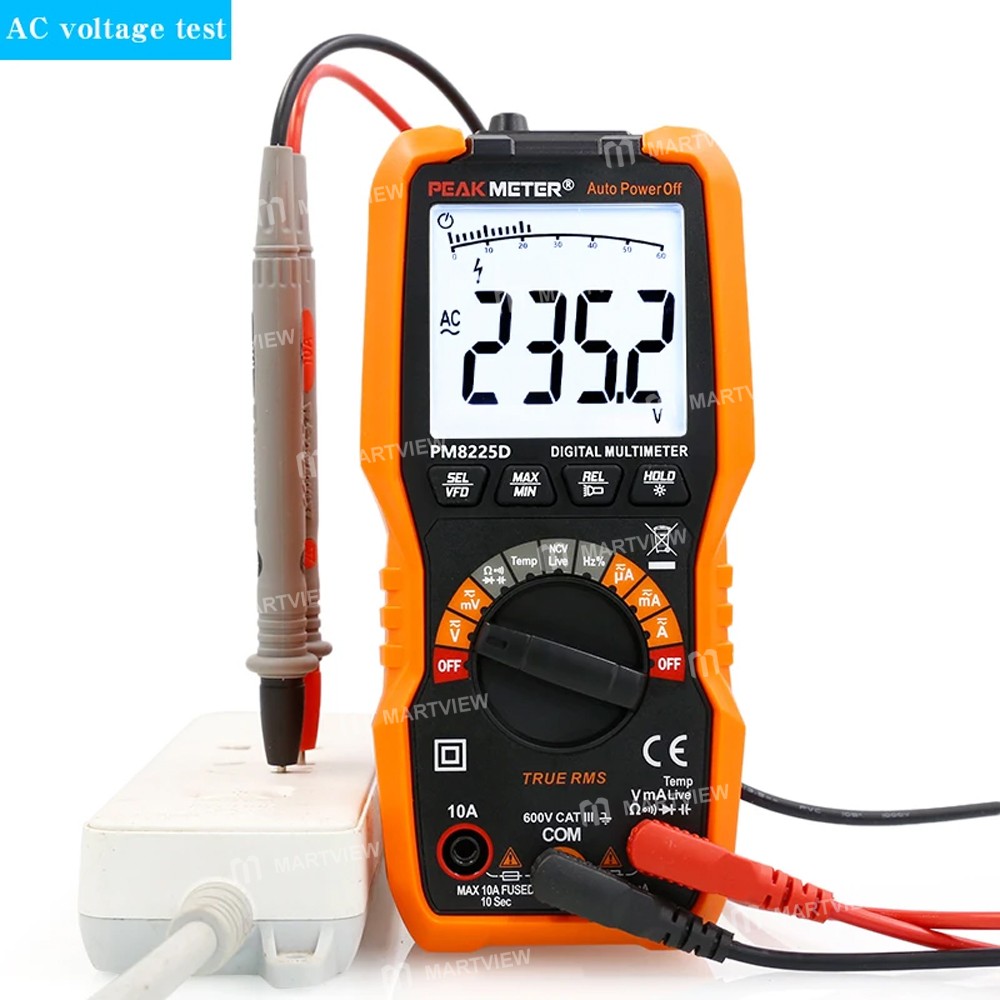

AC voltage	0.1mV~600v±(0.8%+3)

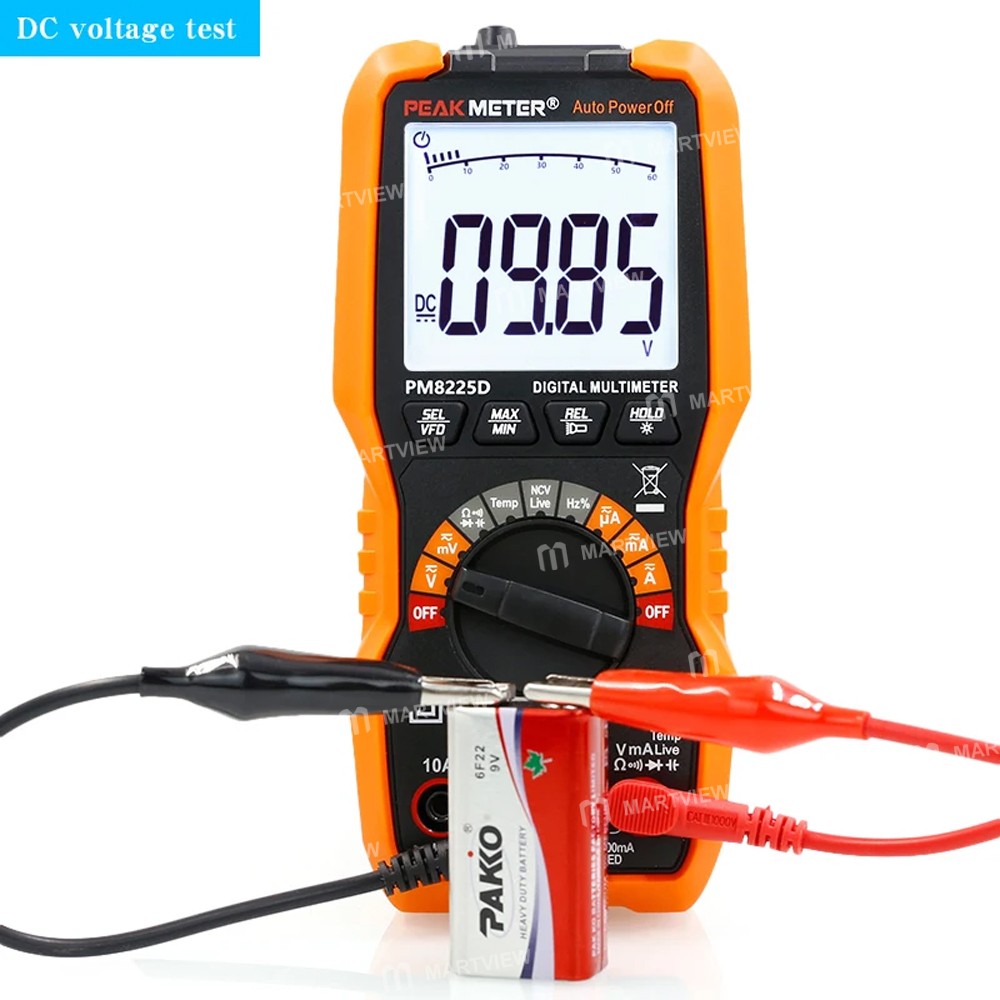

DC voltage	0.1mV~600V±(0.5%+3)

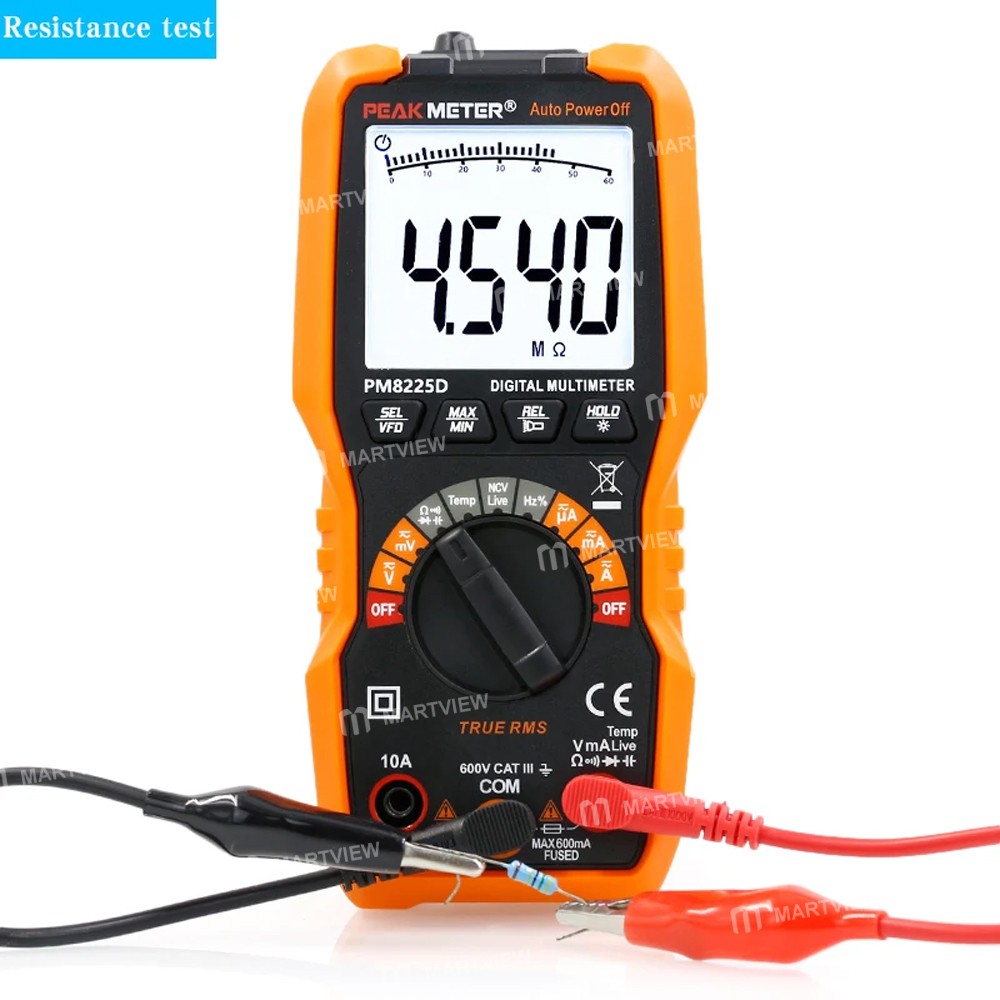

Resistance	1Ω~60MΩ±(2.0%+5)
Capacitance	0.01nF～100mF±（5%+5)
Frequency	0.01Hz～10MHz±（1%+5)
Temperature	（-20~1000℃）±（2.0%+2）
VFD	VFD Low Pass Filtering

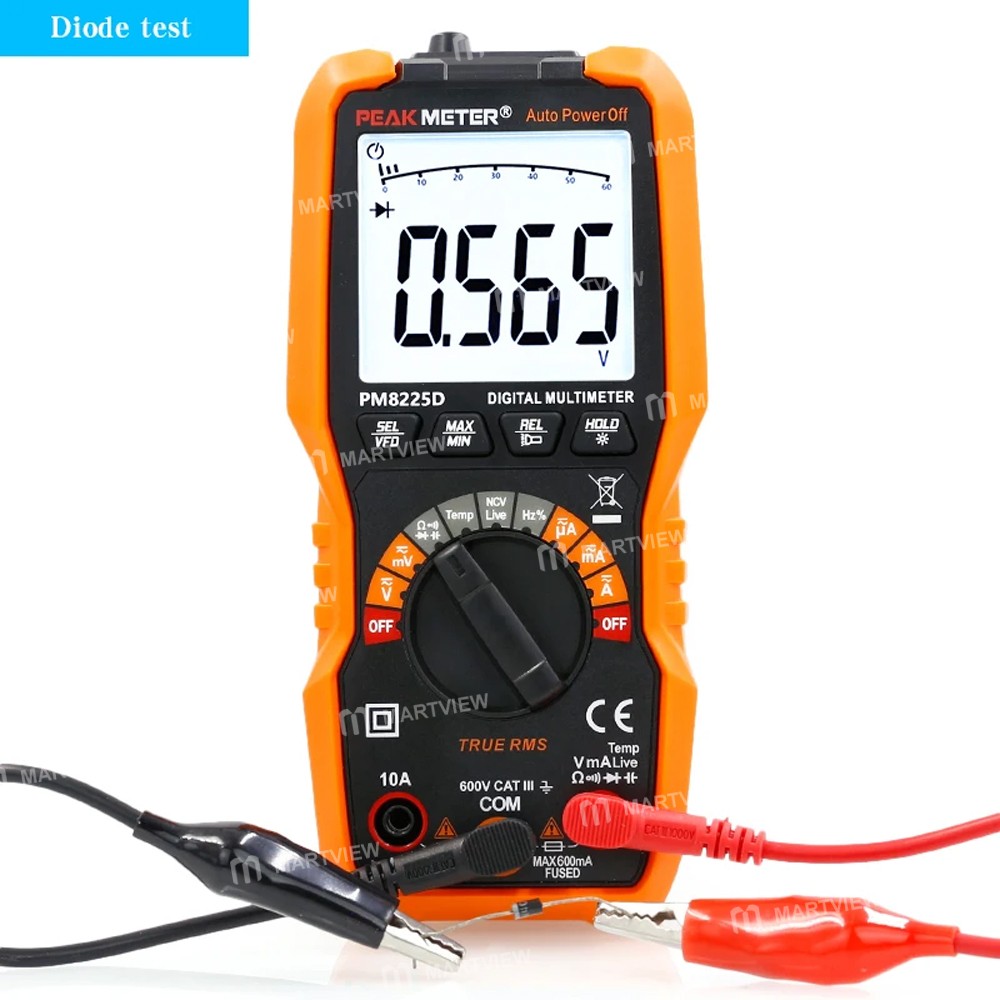

Diode	Yes

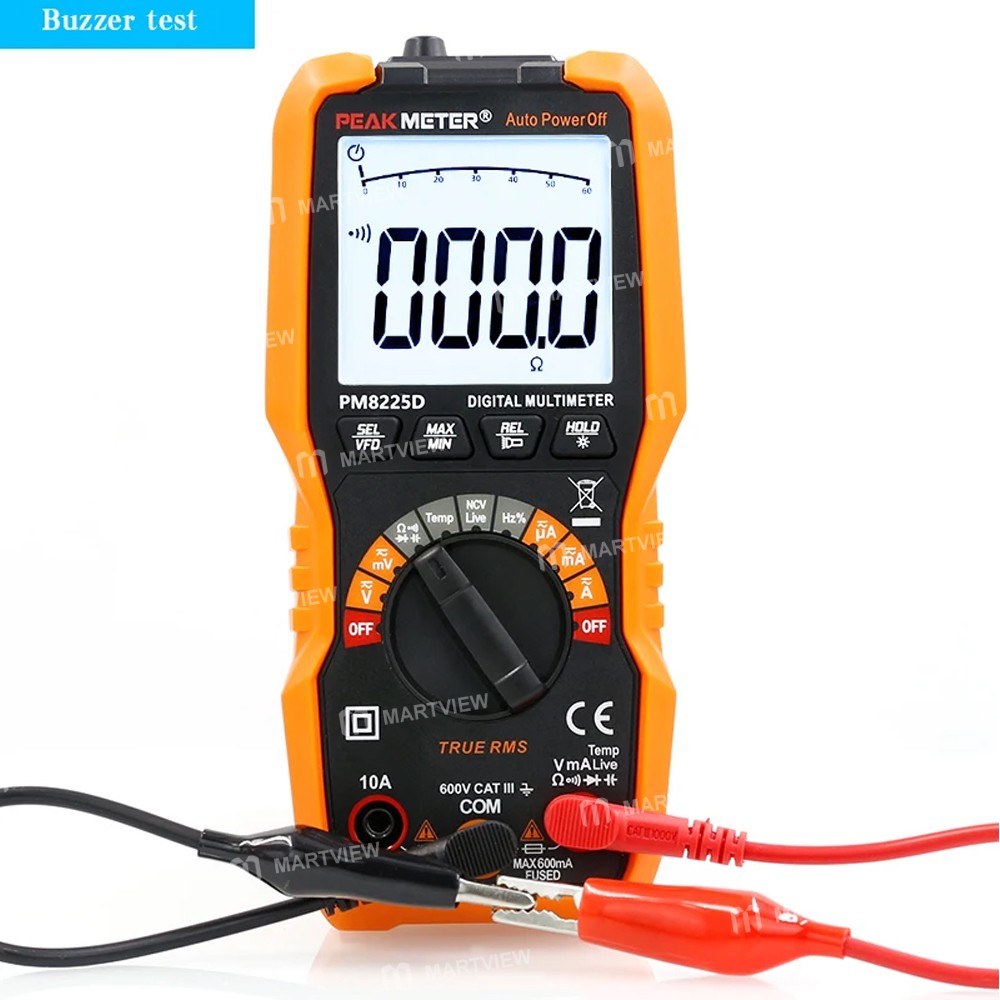

On-Off Buzzer	Yes
NCV	Yes
Data Hold	Yes
Flashlight/Backlight	Yes
Auto Shutoff	Yes
Low Voltage Indicator	Yes
Monitor	6000 count

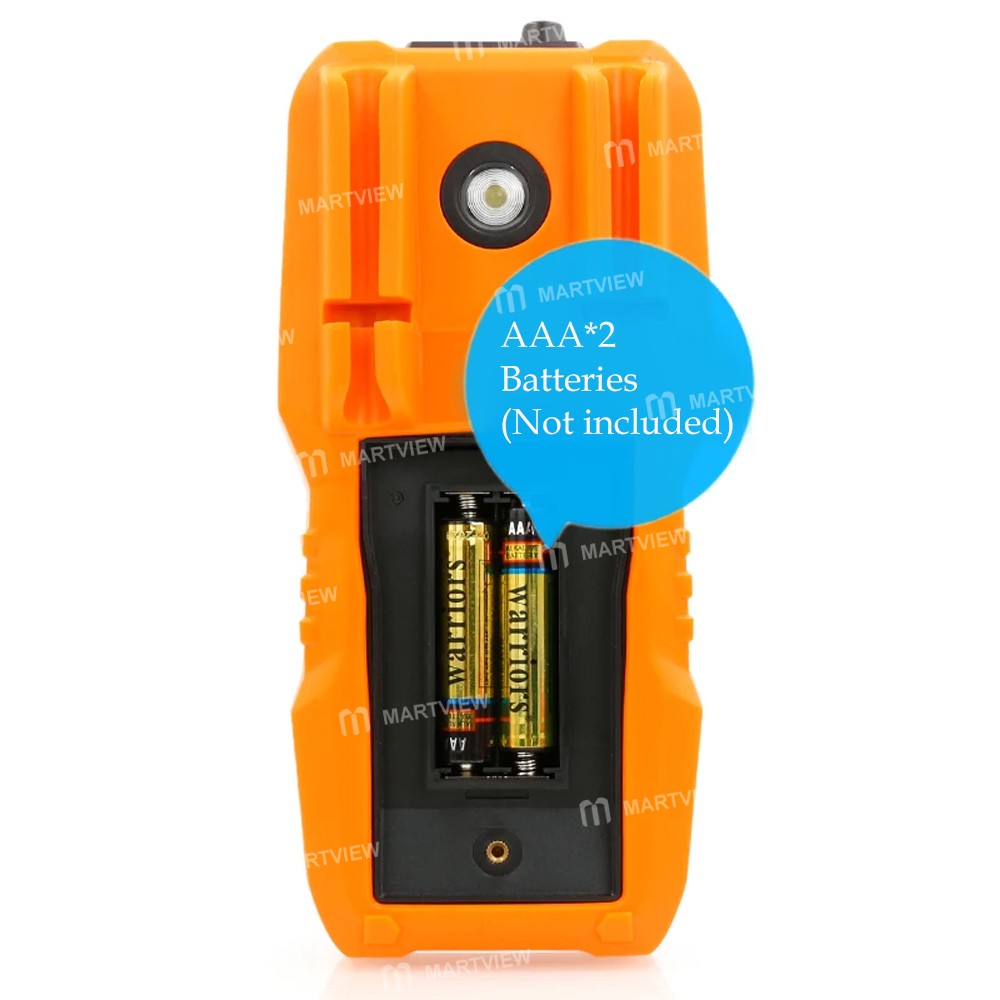

Power Supply	2 x AAA batteries (Not includes)

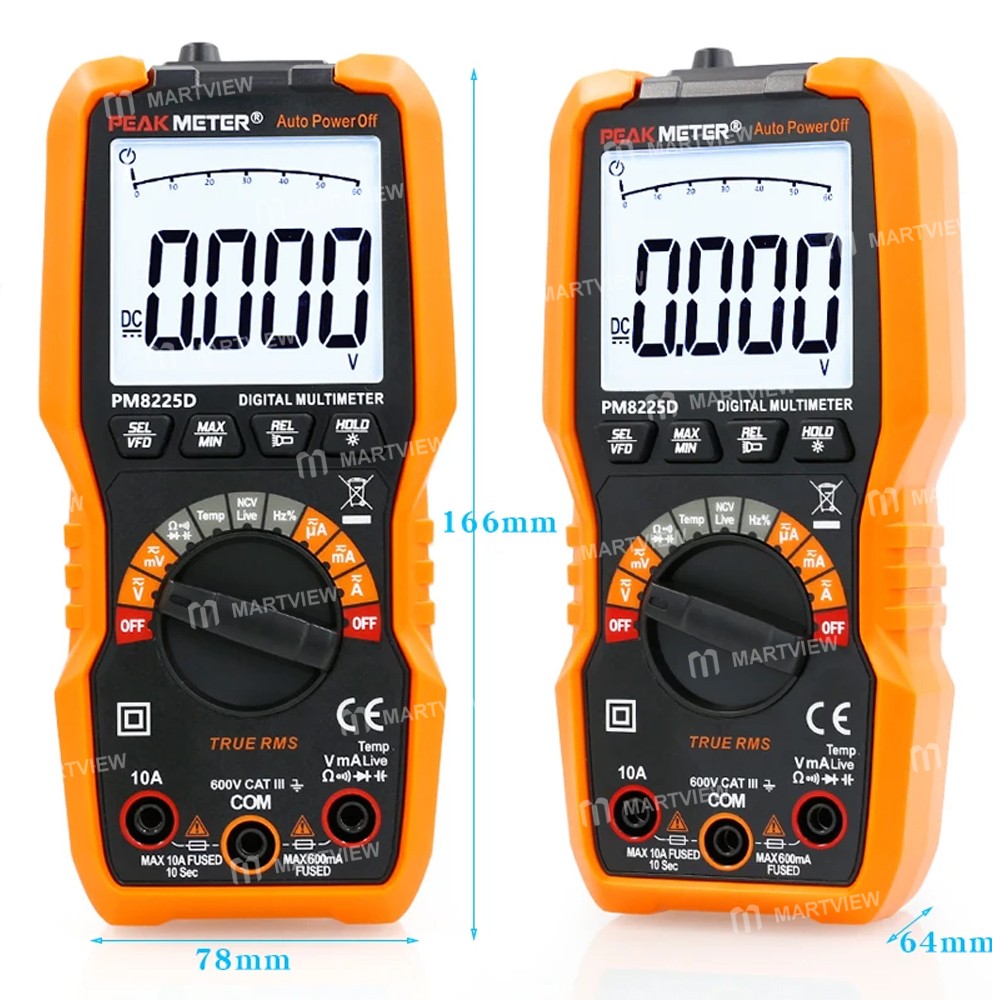

Dimensions	166*78*64(mm)
Weight	About 268g

Package includes:

• 1 x Multimeter (without Battery)

• 1 x Test Leads
