QianLi Thermal Imager Camera for Mobile Phone PCB

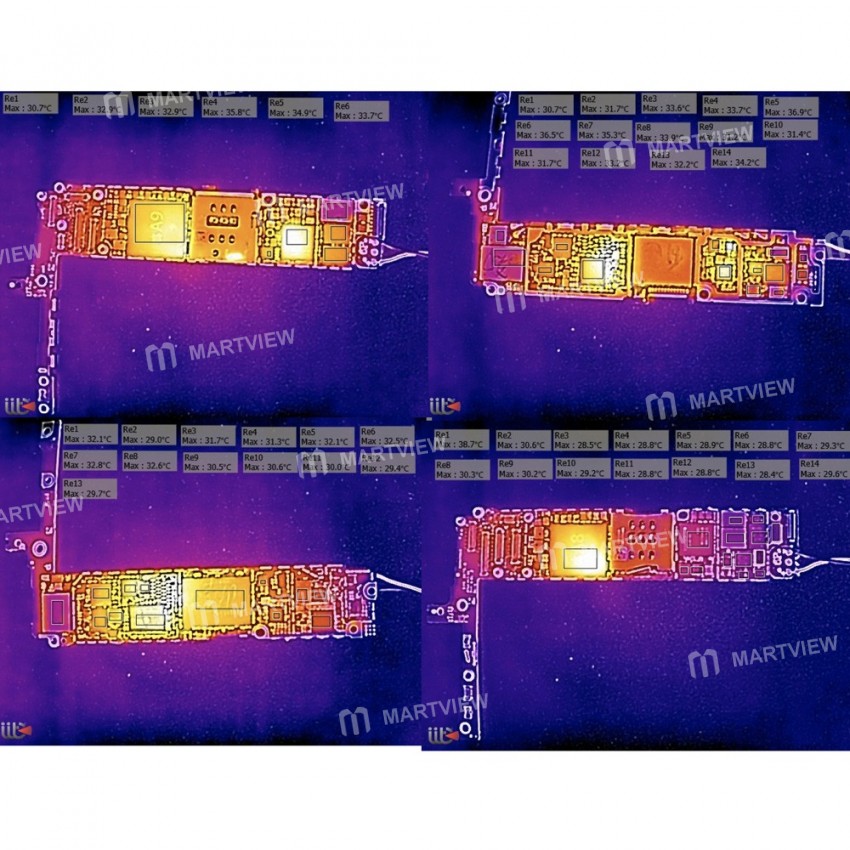

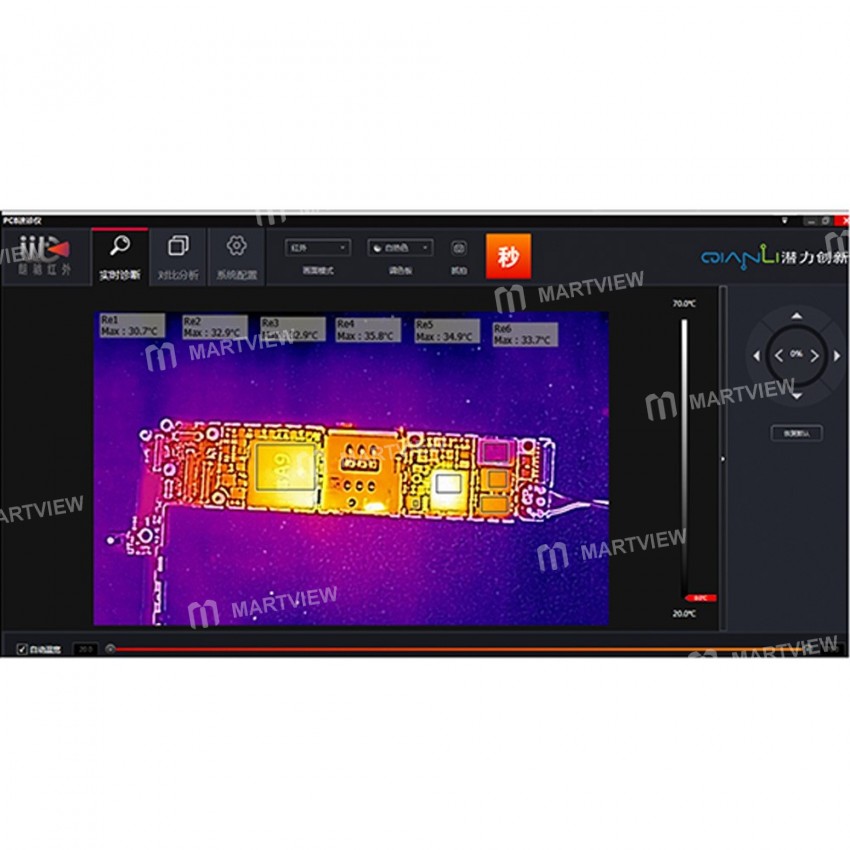

PCB speed diagnostic instrument is the world's first dual-spectral interleaved positioning technology, through powerful PC-side intelligent analysis software, the use of intelligent algorithms can detect the motherboard chip, the resistance of the capacitor operating temperature; can quickly locate the capacitor current leakage, short circuit; Through the normal / abnormal motherboard comparison mode analysis, quickly and accurately identify the problem chip to help maintenance staff to troubleshoot the motherboard, greatly improving the efficiency and maintenance accuracy of a new generation of maintenance equipment

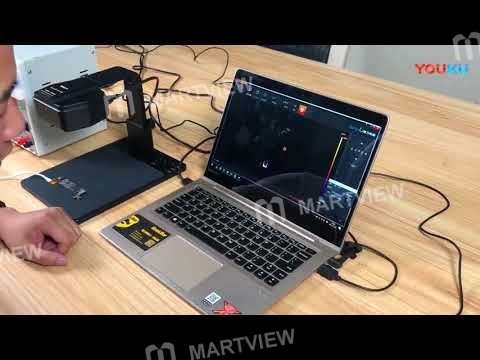

Easy to use. Connect the device and installing the software, that can be used. When used, the motherboard need to connect the power

Features:

• One key to check the motherboard leakage

• Monitor the status of the motherboard

• Quickly check the short circuit

• Comparative analysis quickly find out liers

• Resolution: 160x120

• Wavelength range: 7.5-13.5 μm

• Lens angle: 57 ° x44 °

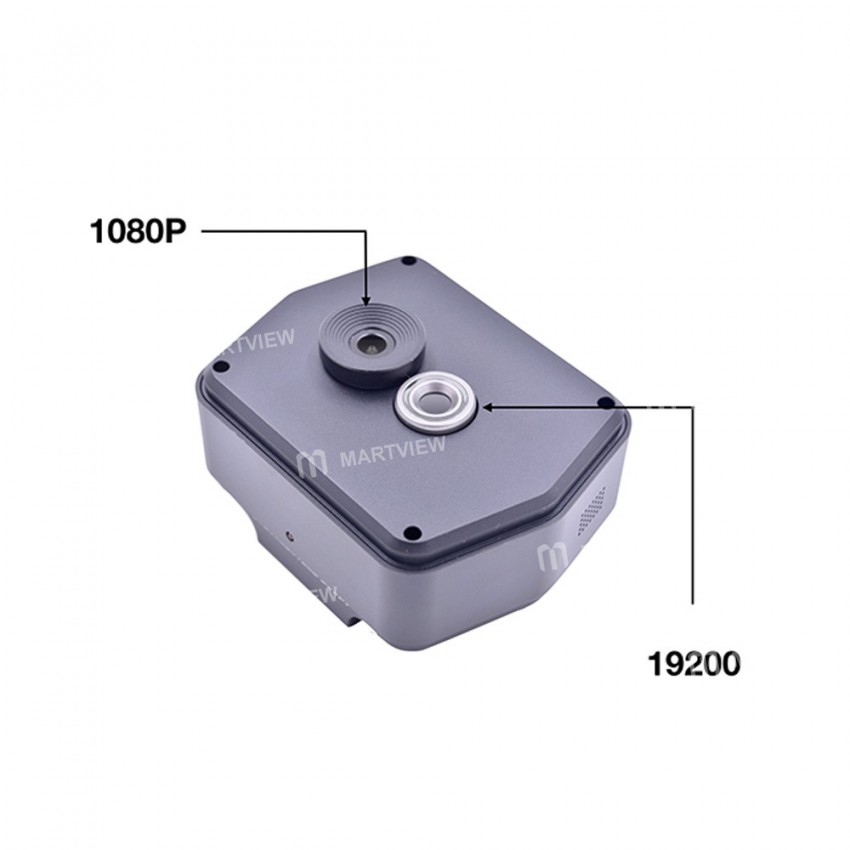

• Visible part of the parameters: resolution 1920x1080

• Display Mode: Visible / Infrared Thermography / Dual Optical Interlace positioning

• Power: Input power voltage 5-26V DC

• Power consumption: 2.2W (maximum 3W)

• Temperature function: full temperature

Software download for Click here

Package includes:

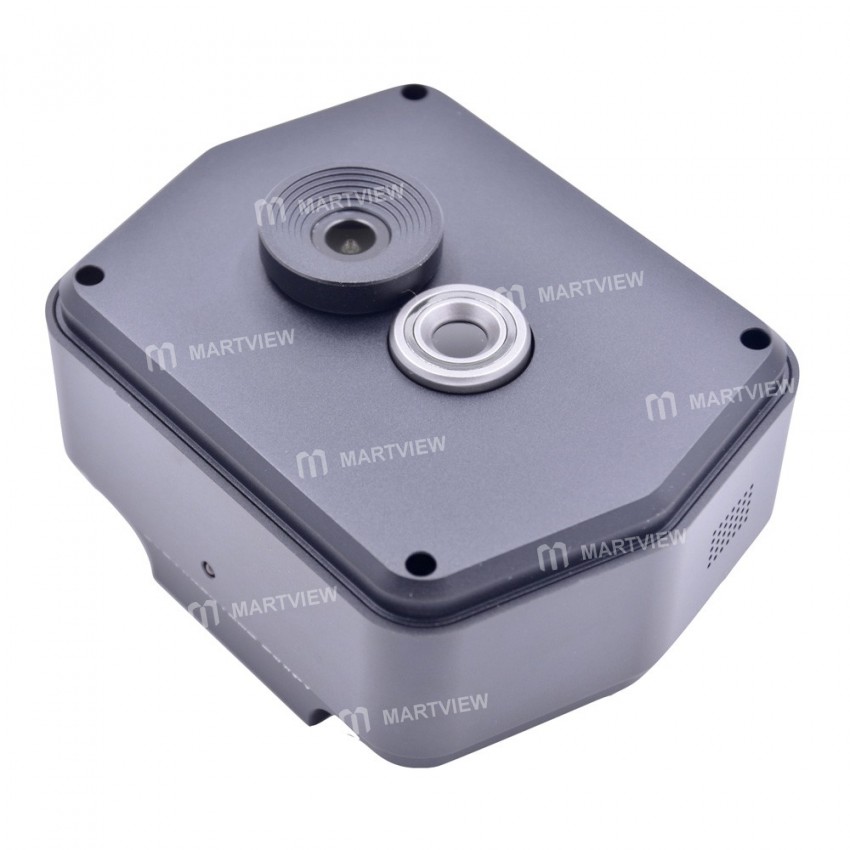

• 1 x Host

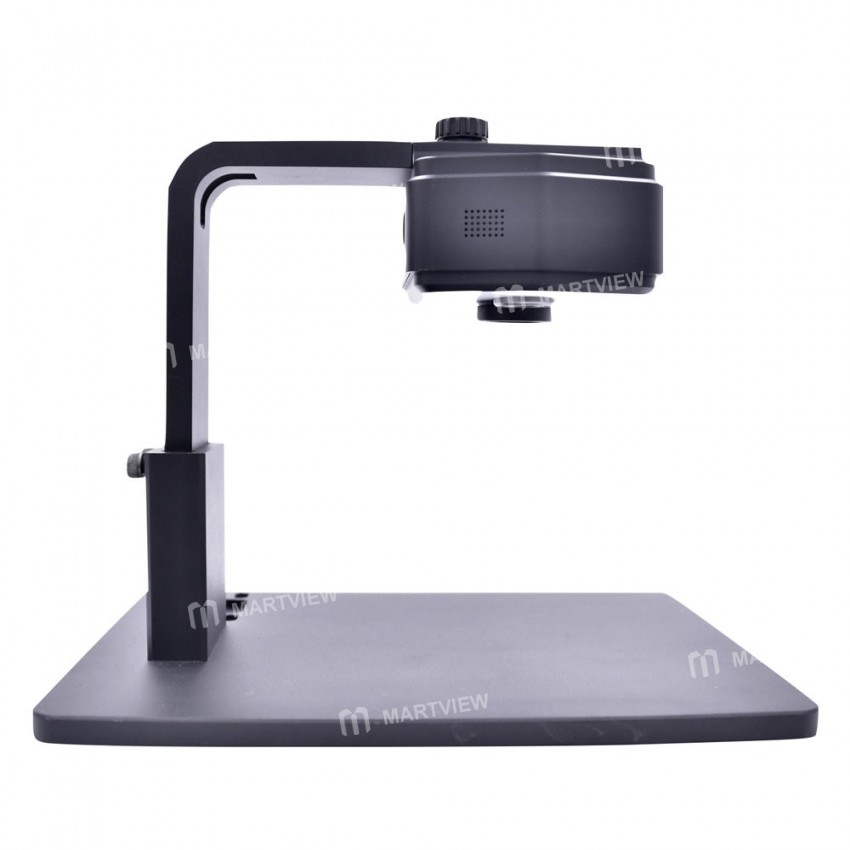

• 1 x Bracket
• 1 x Anti-static mat
• 3 x Small knob
• 1 x power supply
• 1 x Cable
• 1 x Instruction manual
