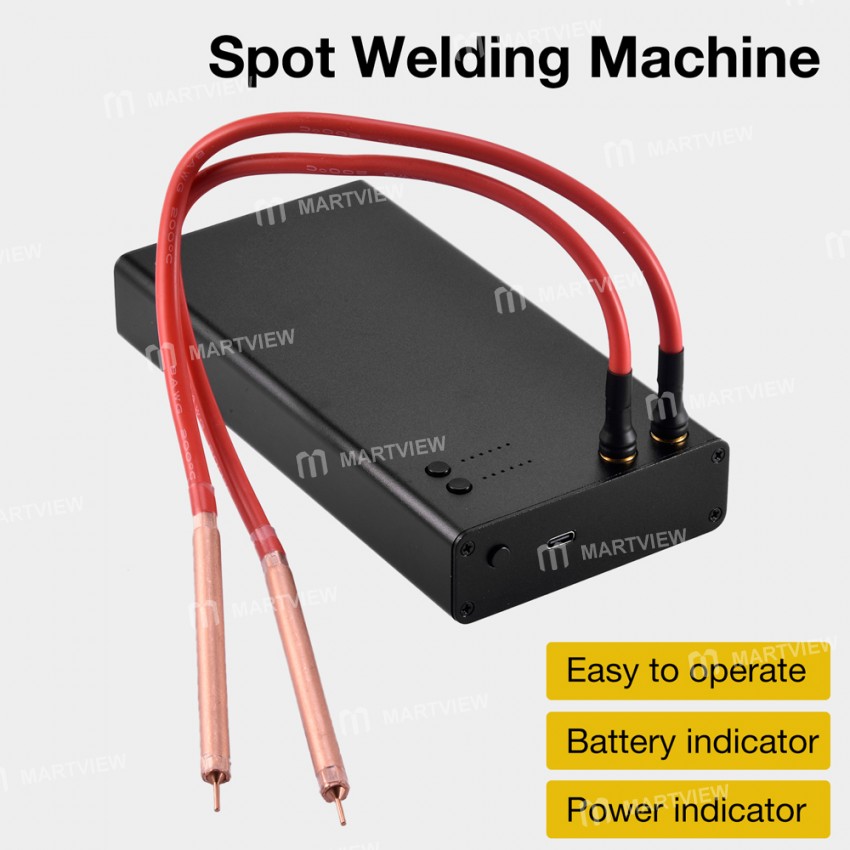

Portable Spot Welding Machine Handheld DIY Point Welder

Portable Spot Welding Machine Handheld DIY Point Welder

Features:

• Made of aluminum alloy material, with anodic oxidation surface, wear-resistant and beautiful.

• It can weld hundreds of welding points on commonly used nickel-plated sheets within 0.1mm-0.12mm.

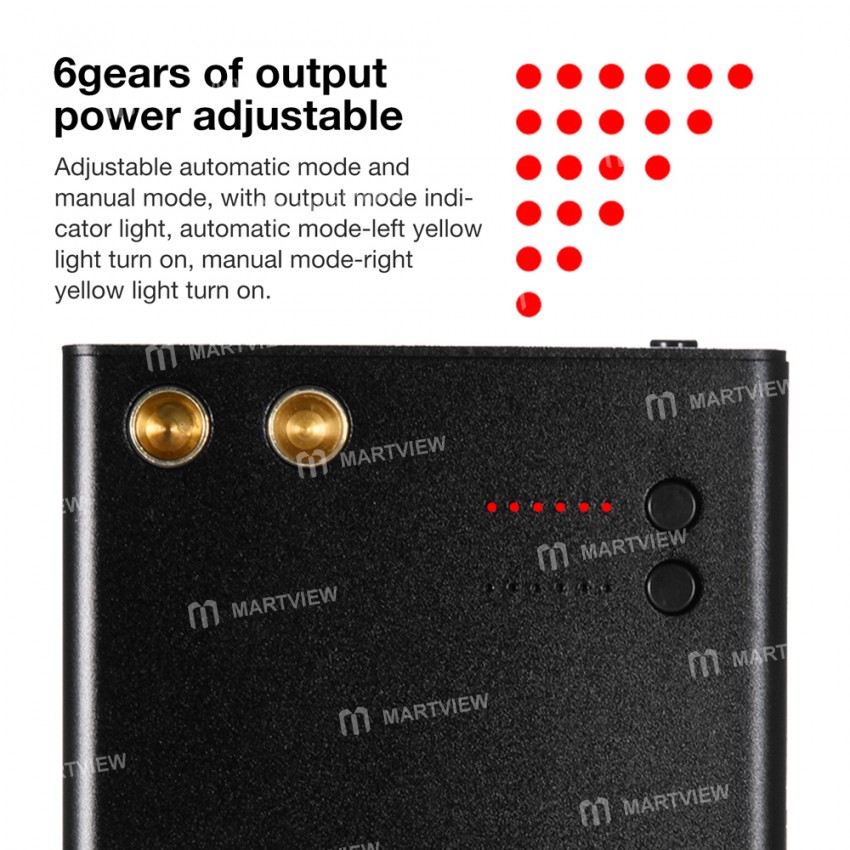

• 6 gears of output power-adjustable, welding more accurate.

• Output gears indicator light(red), the number of indicator lights corresponding to the output gears.

• Equipped with electricity indicator light(blue), different numbers to shows different electric quantity, 1 light(5-25%,flash<5%), 2 lights(25-50%), 3 lights(50-75%), 4 lights(75-100%).

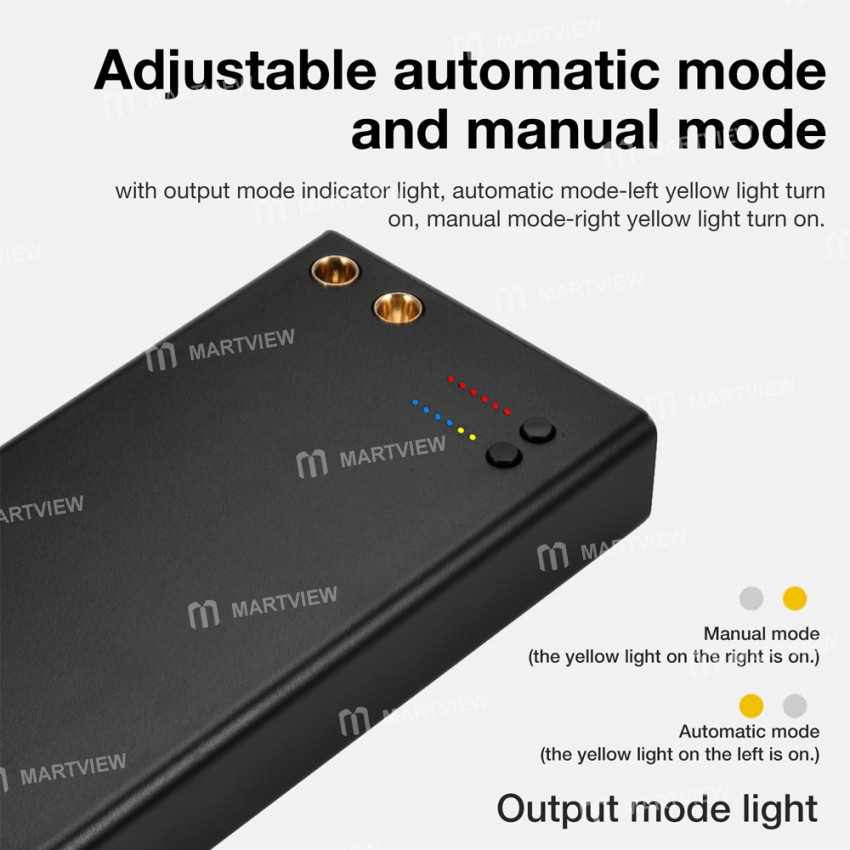

• Adjustable automatic mode and manual mode, with output mode indicator light, automatic mode-left yellow light turn on, manual mode-right yellow light turns on.

• Type-C interface 2A input, 6500mAh spot welding machine can be fully charged within 3 hours.

• 400mm long spot welding pen for flexible operation.

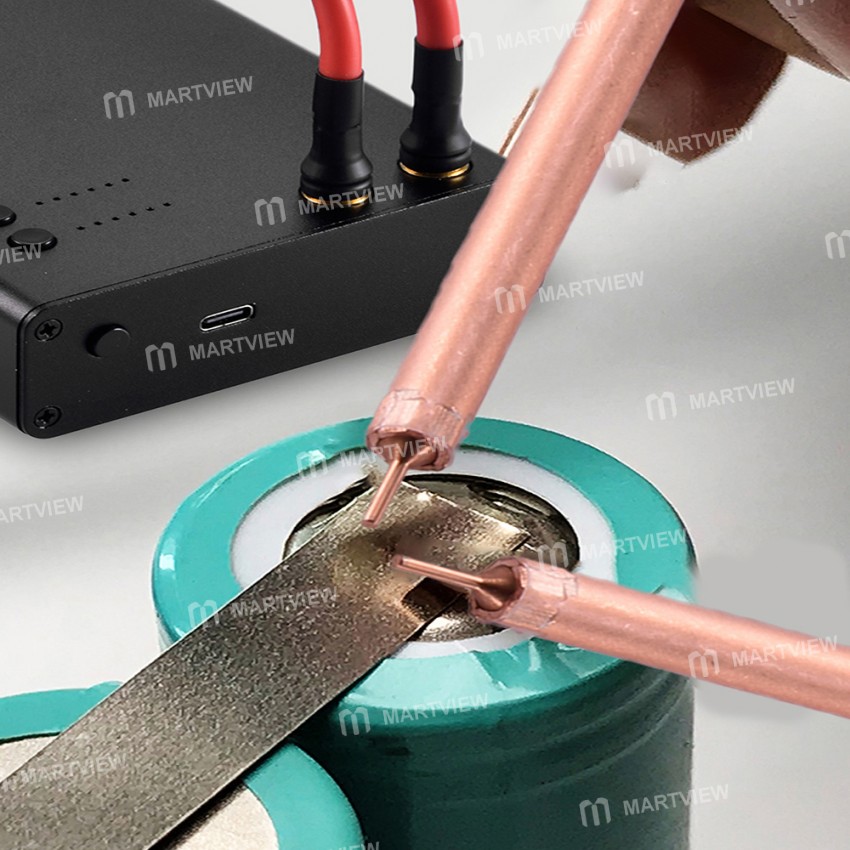

• Mainly used in the welding of nickel sheet of cylindrical battery, NI-MH battery, nickel-cadmium battery like 18650 and etc.

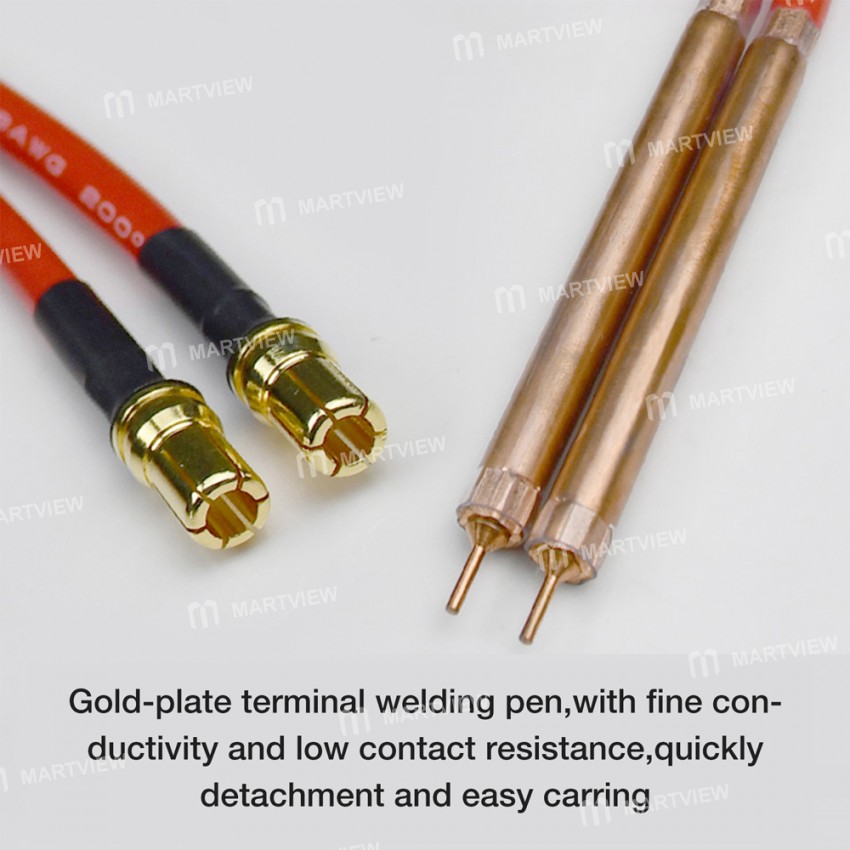

• 10. Gold-plate terminal welding pen, with fine conductivity and low contact resistance, quick detachment, and easy caring.

• 2mm thicken pure copper strip, supper low internal resistance to increase overcurrent capability.

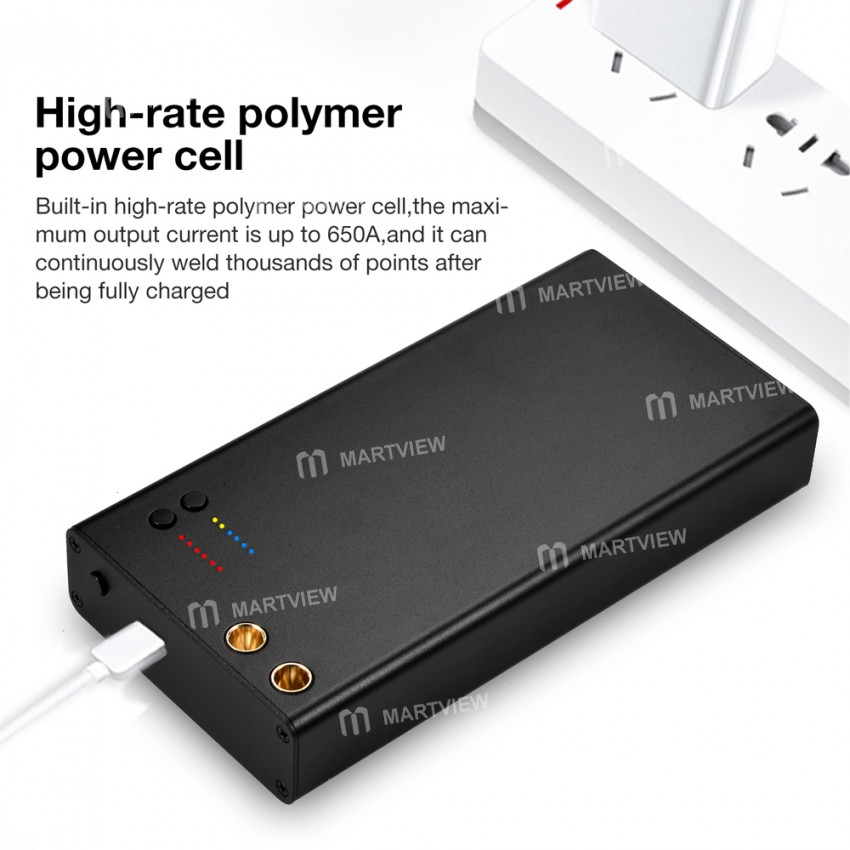

• Built-in high-rate polymer power cell, the maximum output current is up to 650A, and it can continuously weld thousands of points after being fully charged.

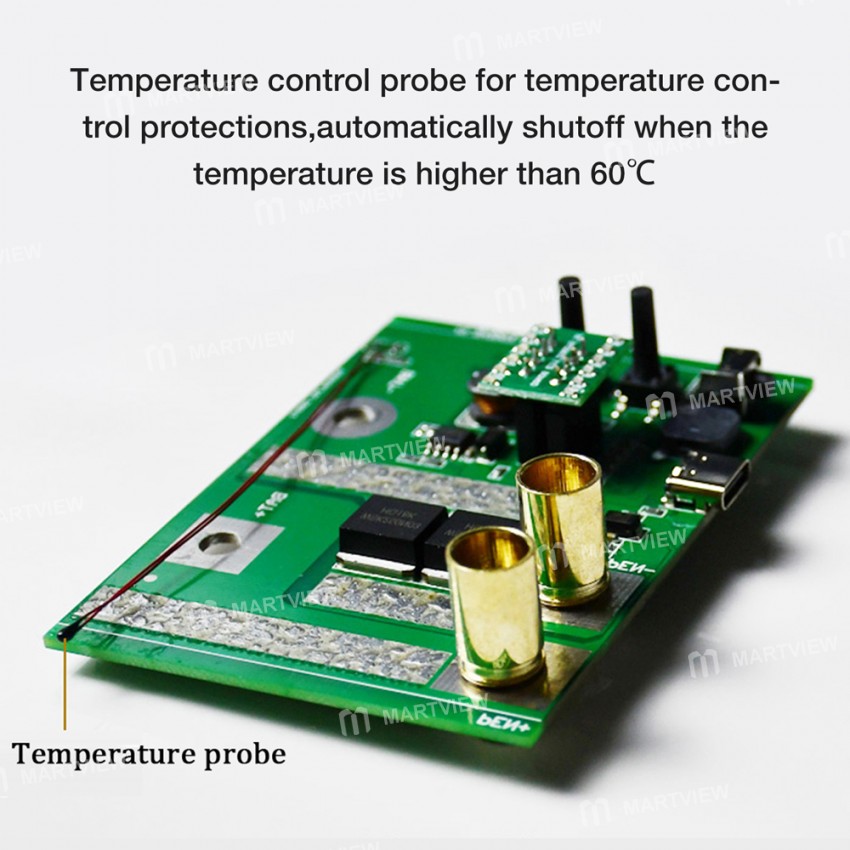

• Temperature control probe for temperature control protections, automatically shut off when the temperature is higher than 60℃.

• Gears: 1-6 gears

• Input interface: type-c

• Input current: 5V, 2A

• Welding output voltage: 4.2V (max)

• Welding output current: 650A (max)

• Design welding current: 1000A

• Welding thickness: 0.1-0.12mm

Packing includes:

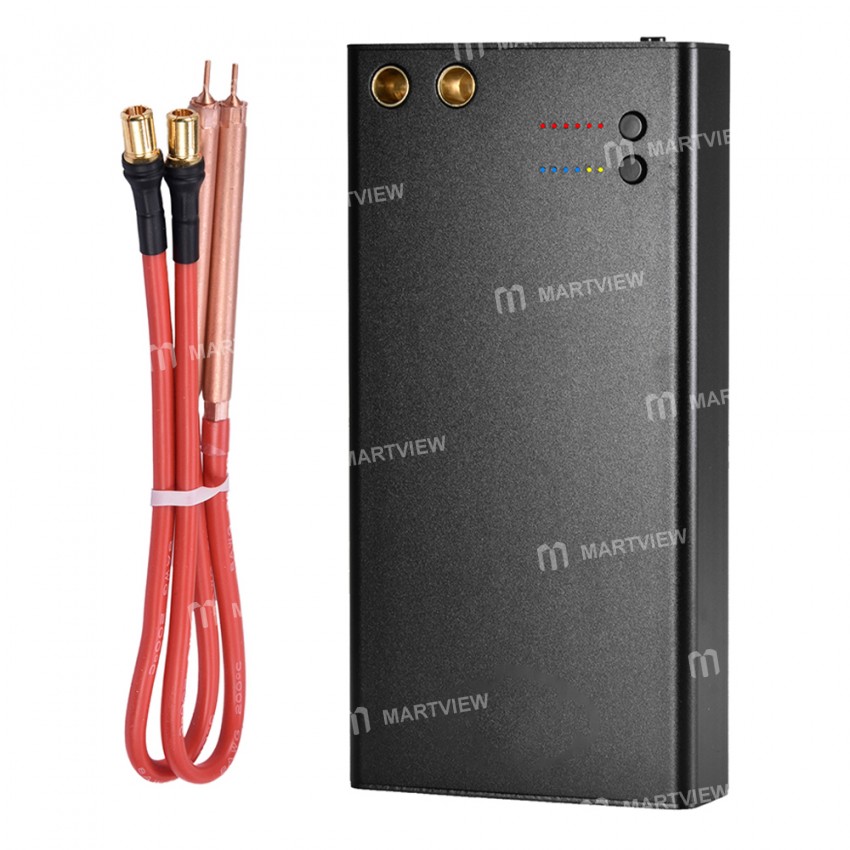

1 x Spot Welding Machine
2 x Spot Welding Pen
