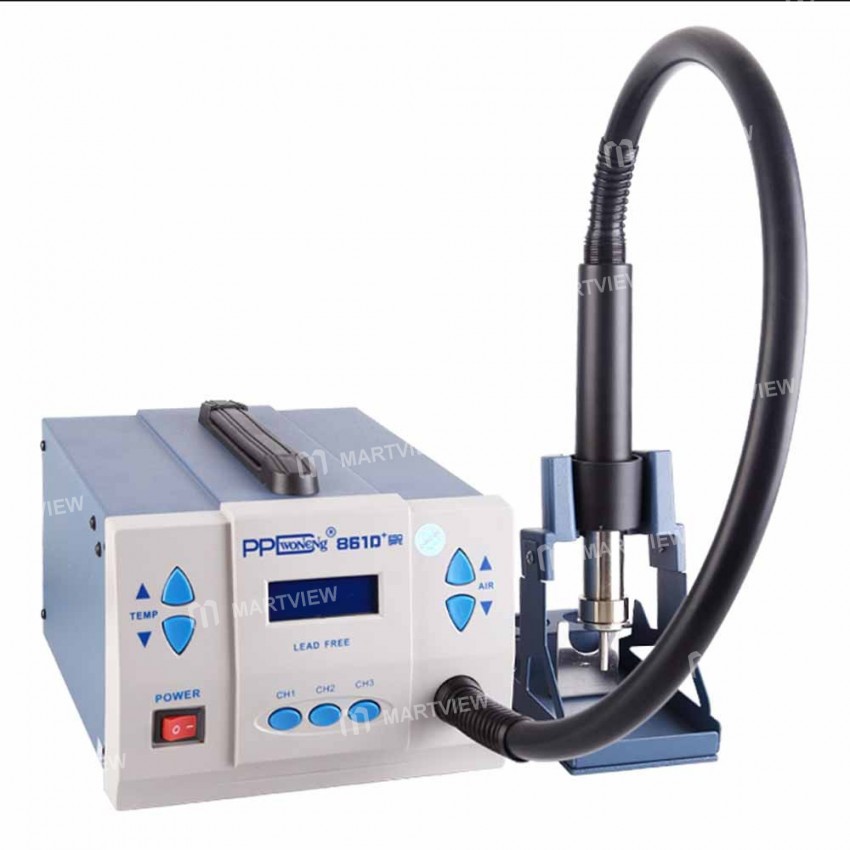

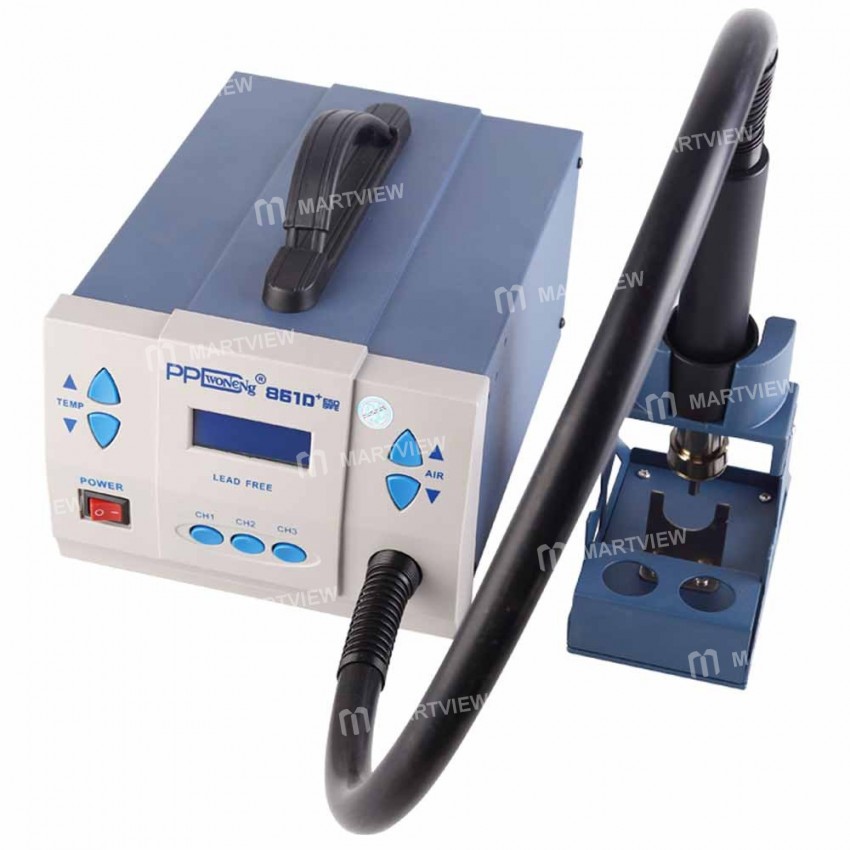

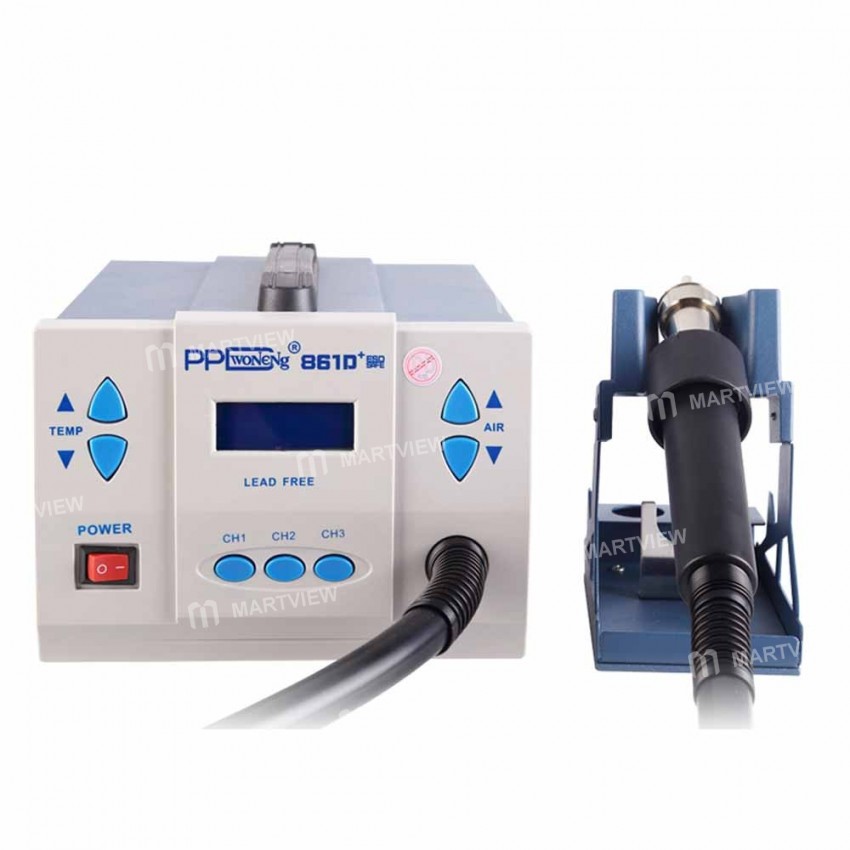

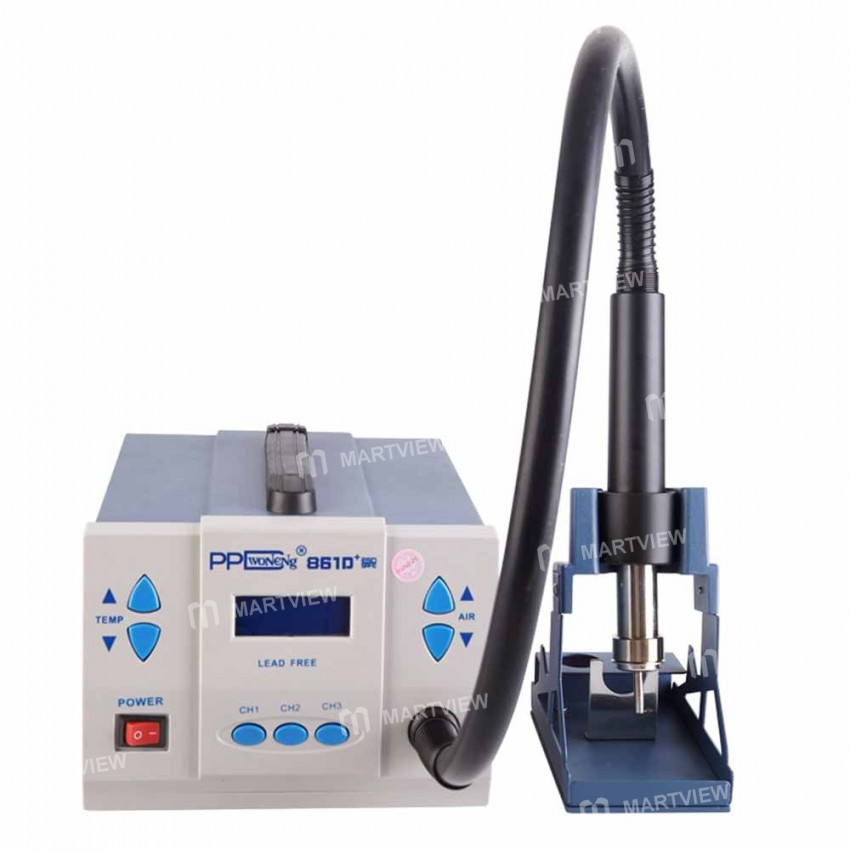

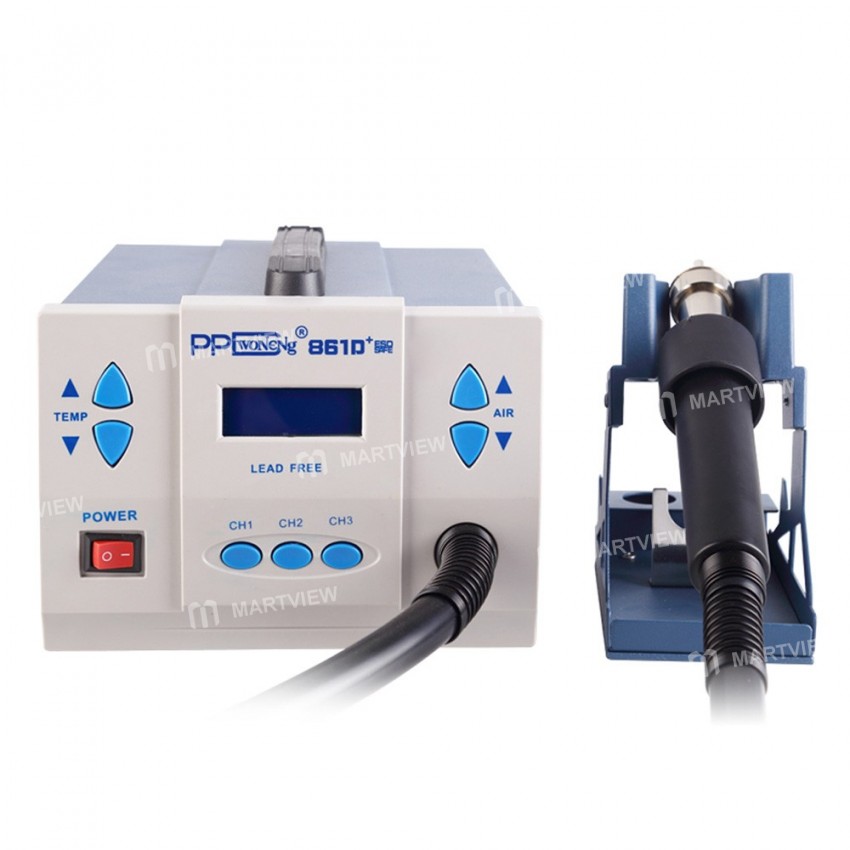

PPD 861D+ 861D Plus 1000W 110V / 220V Lead‑Free Hot Air Rework Station – Ideal for Phone Repair, BGA Chip & IC Rework

PPD 861D+ / 861D Plus 1000W Lead‑Free Hot Air Rework Station – 110V/220V, 3 Nozzles (CH1‑CH3)

Key Features:

• Powerful 1000W heating, rapid temperature rise • Three independent channels with adjustable air flow and temperature • Password protection & key lock for safety • Magnetic handle holder with auto‑sleep mode • Closed‑loop sensor & microcomputer control for precise, wind‑free temperature stability • Brushless vortex fans with adjustable airflow (1‑120, up to 120 L/min) • Automatic cooling extends heater life and protects the hot‑air gun

• Power: 1000 W
• Voltage: selectable AC 110 V / 220 V
• Temperature range: 100 °C ~ 500 °C
• Air‑volume ratio: 1 ~ 120
• Maximum airflow: 120 L/min

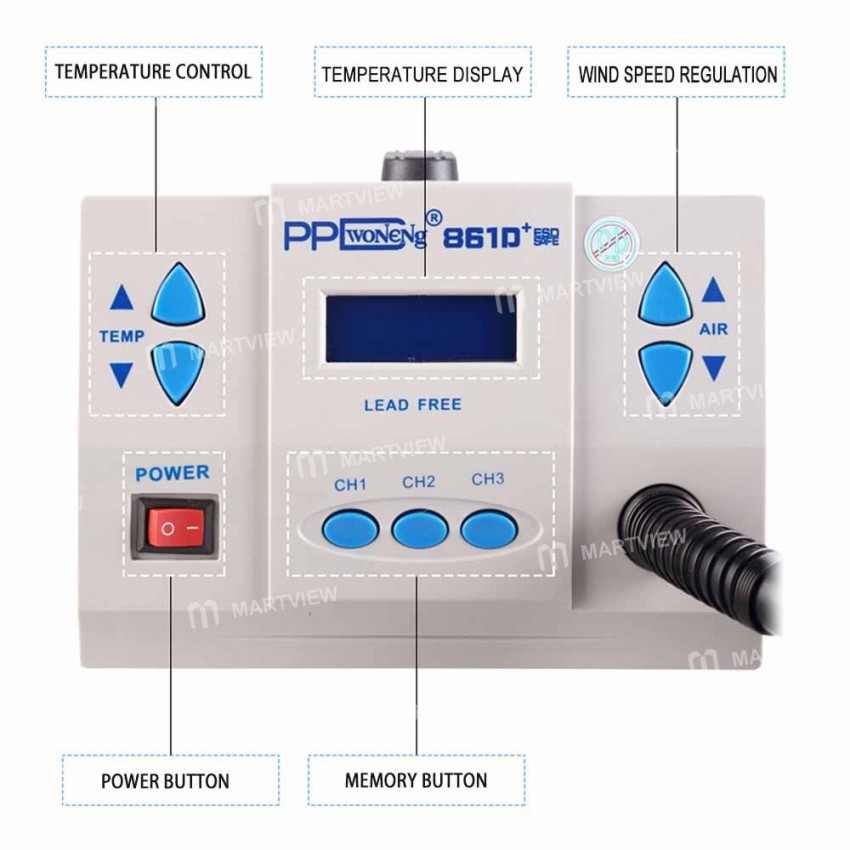

• Three channels (CH1, CH2, CH3) – each channel independently set for air volume and temperature
• Password protection and key‑lock function

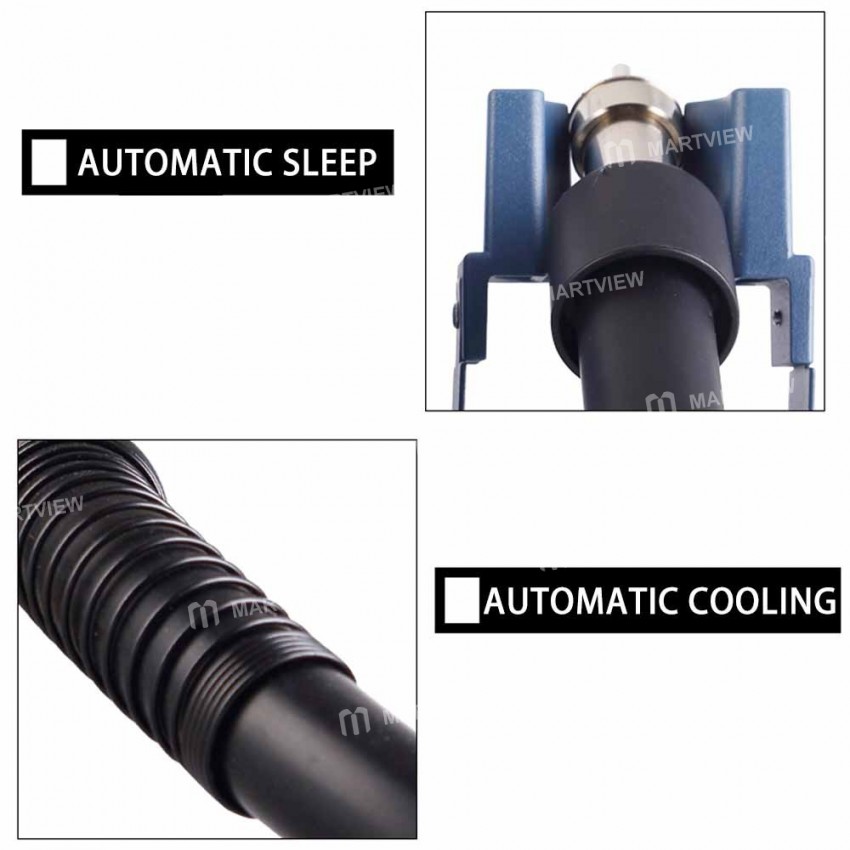

• Magnetic switch control in handle holder triggers automatic sleep mode
• Automatic sleep function with customizable dormant‑state parameters
• Sensor closed‑loop, microcomputer zero‑trigger temperature control – fast heating, precise adjustment, stable temperature unaffected by airflow
• Brushless vortex fans – wide adjustable airflow range for various applications
• Automatic cooling of airflow to extend heating element lifespan and protect the hot‑air handle

Package Includes:
1 × PPD861D+ Hot Air Rework Station
1 × Power Cable
1 × Hot‑Air Holder
3 × Nozzles
