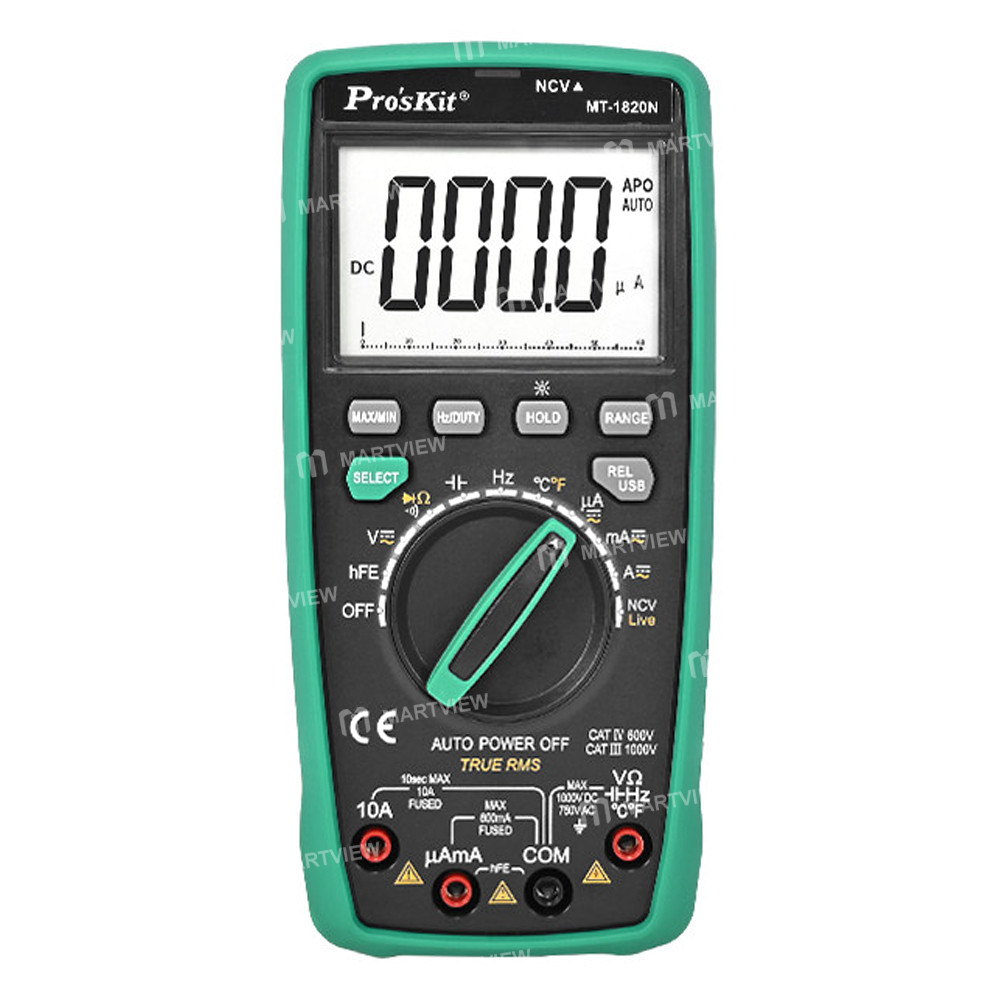

Pro'skit MT-1820N Online Version Digital Display Multi-function Anti-Burning Multimeter with USB Connector

Pro'skit MT-1820N Online Version Digital Display Multi-function Anti-Burning Multimeter with USB Connector

Features:

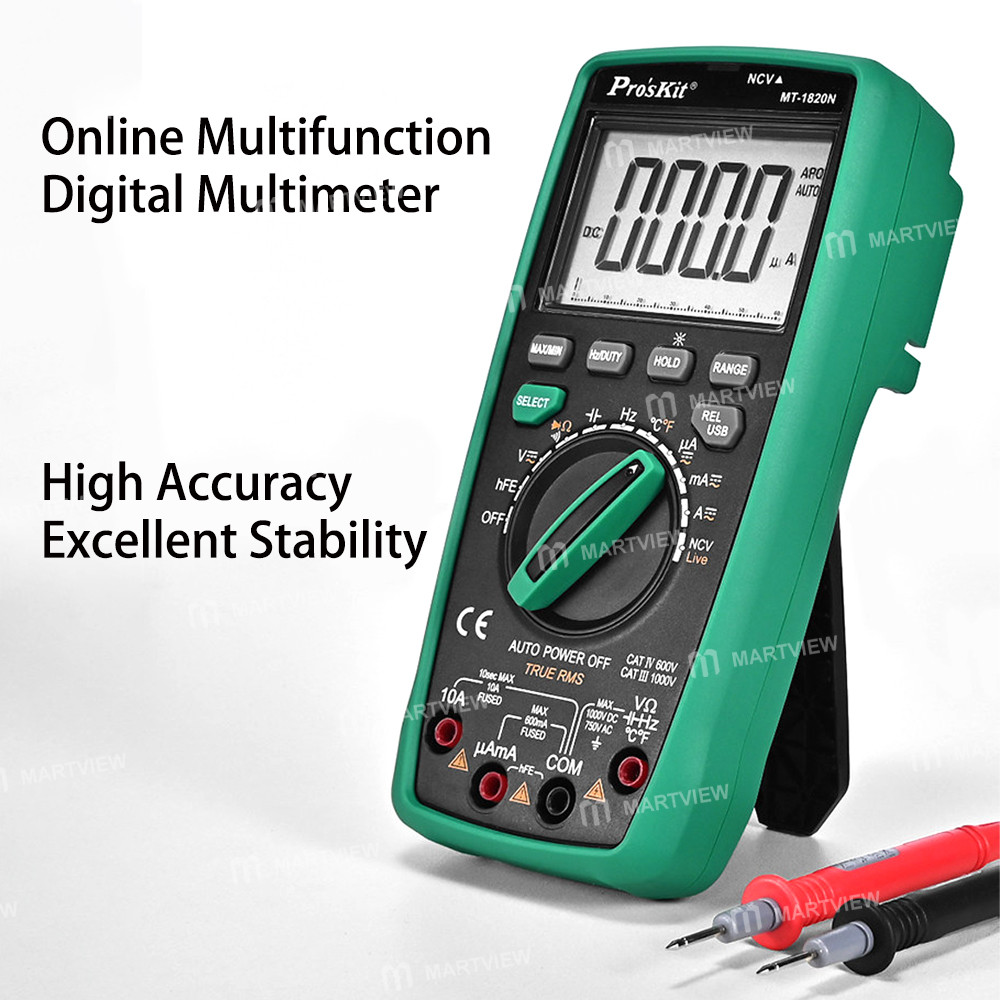

• Online Multifunctional Multimeter: High precision, excellent stability, suitable for multiple scenarios

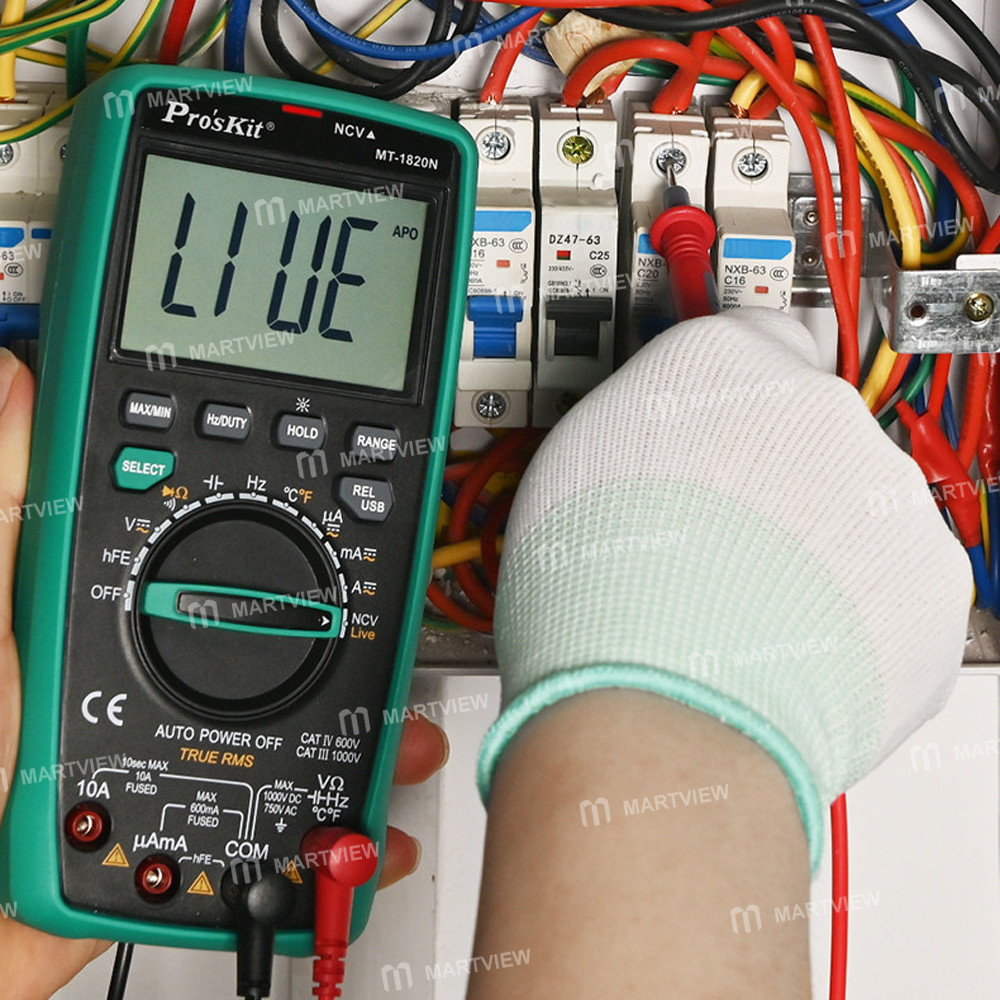

• Live Wire Detection: In LVE mode, insert the red probe into the circuit under test. The meter will flash an alarm when detecting live wire; no alarm occurs with neutral wire.

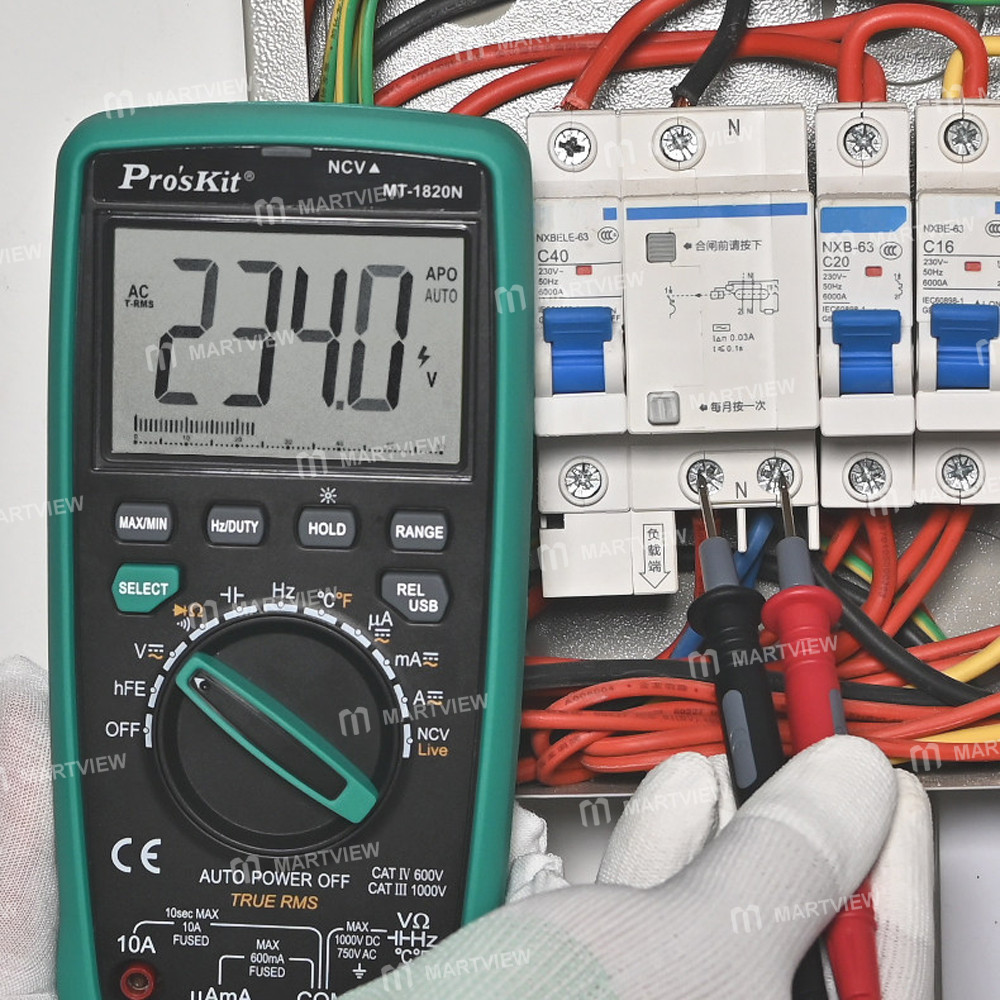

• AC/DC Voltage Testing: Switch to DC or AC mode to measure alternating or direct current voltage. Insert the red probe into the live wire and the black probe into the neutral wire or circuit to read the data.

• NCV Testing: Switch to NCV mode. Approach the voltage source to initiate measurement. Voltage intensity increases progressively with distance.

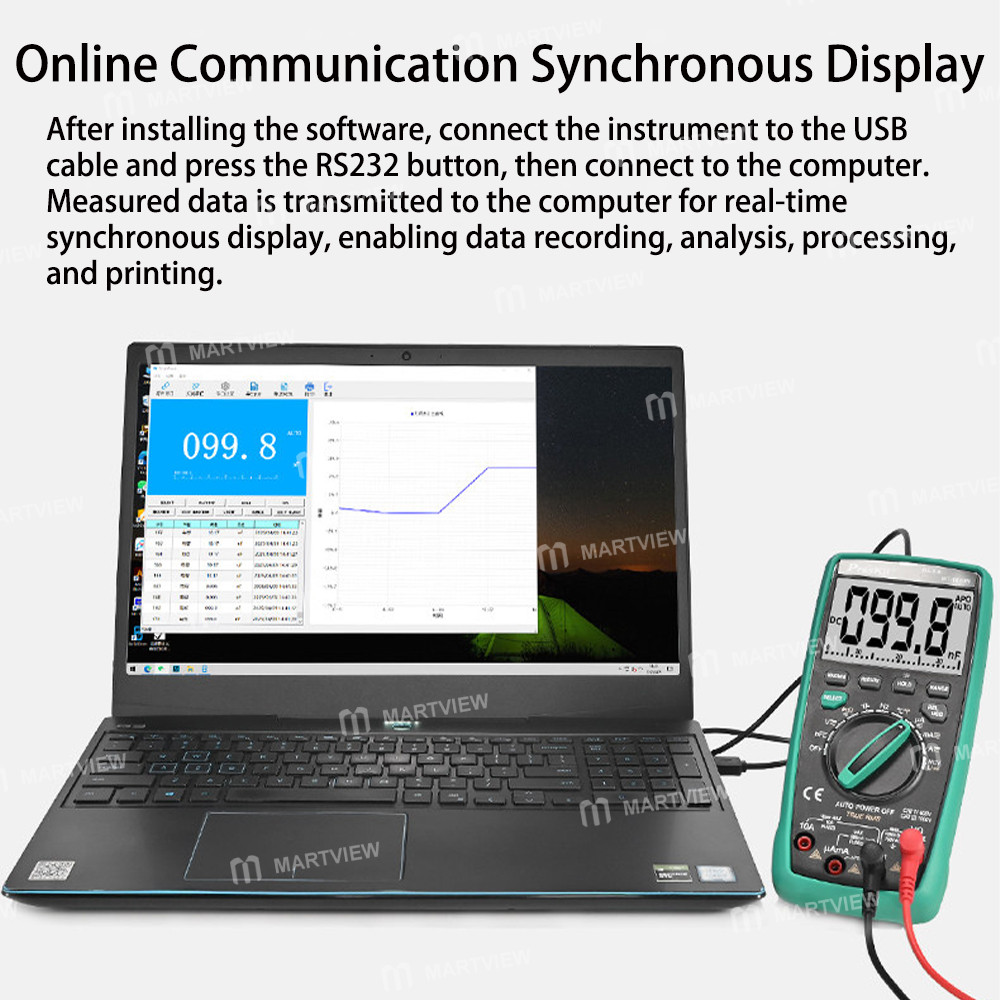

• Online Communication & Synchronized Display: After installing the software, connect the meter via USB cable and press the RS232 button. Link to a computer to transmit measurement data for real-time synchronized display. Data can be recorded, analyzed, processed, and printed.

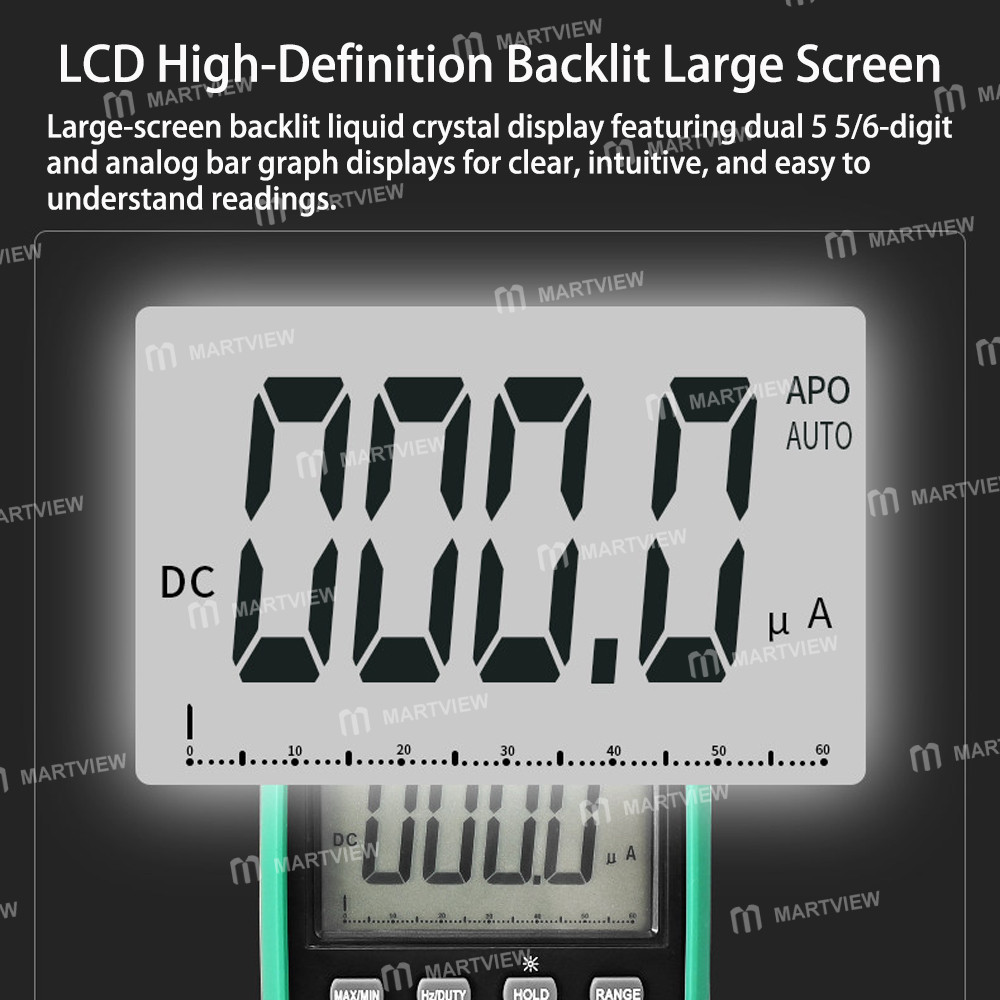

• LCD High-Definition Backlit Display: Large backlit LCD screen with dual 5 5/6-digit count and analog bar graph displays for clear, intuitive, and easy-to-understand readings.

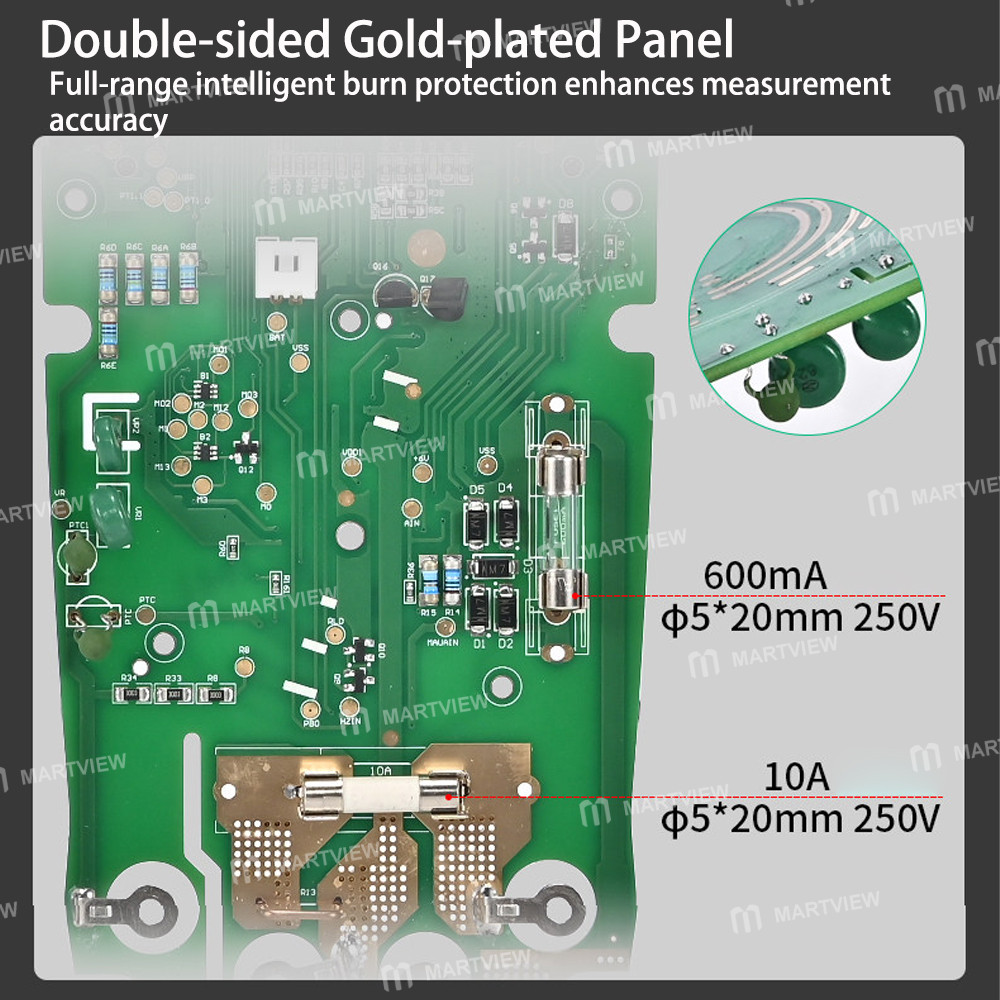

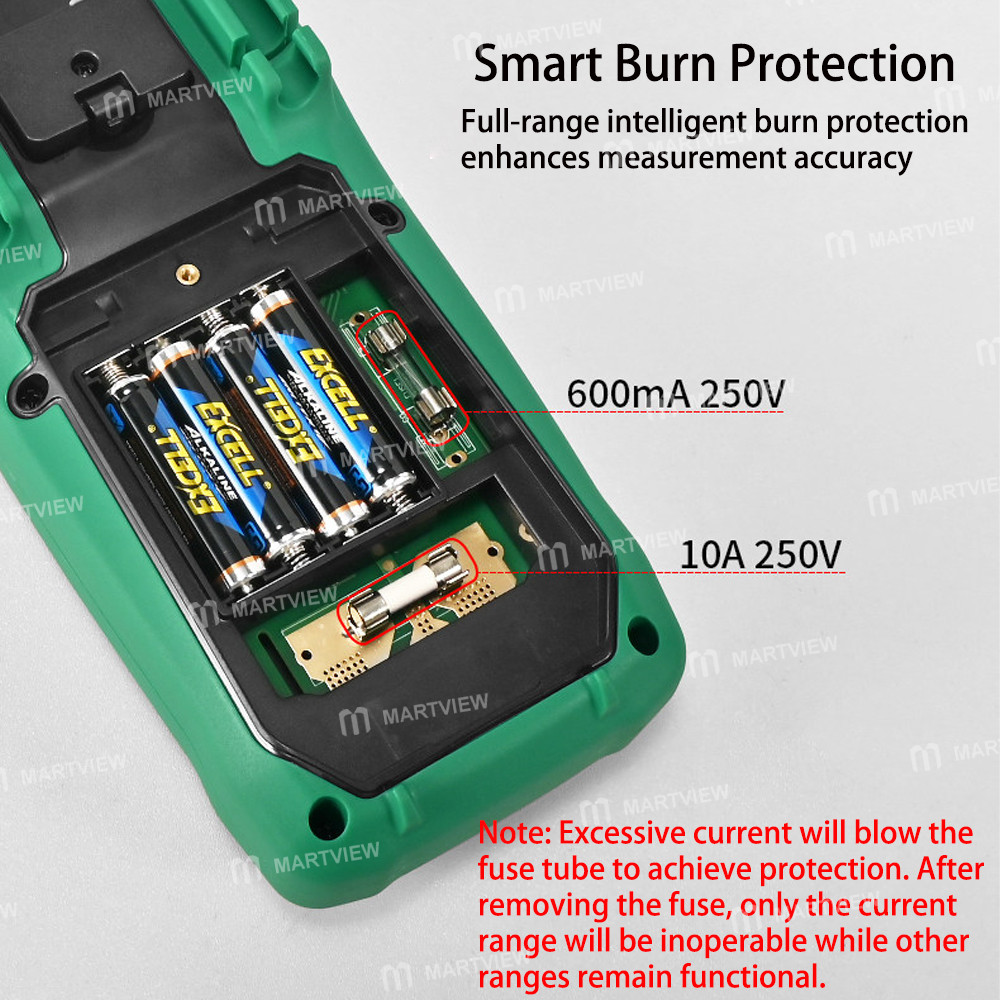

• Intelligent Burn Protection: Full-range intelligent burn protection enhances measurement accuracy (Note: Excessive current will blow the fuse tube for protection. Removing the fuse will disable only the current range; other ranges remain functional).

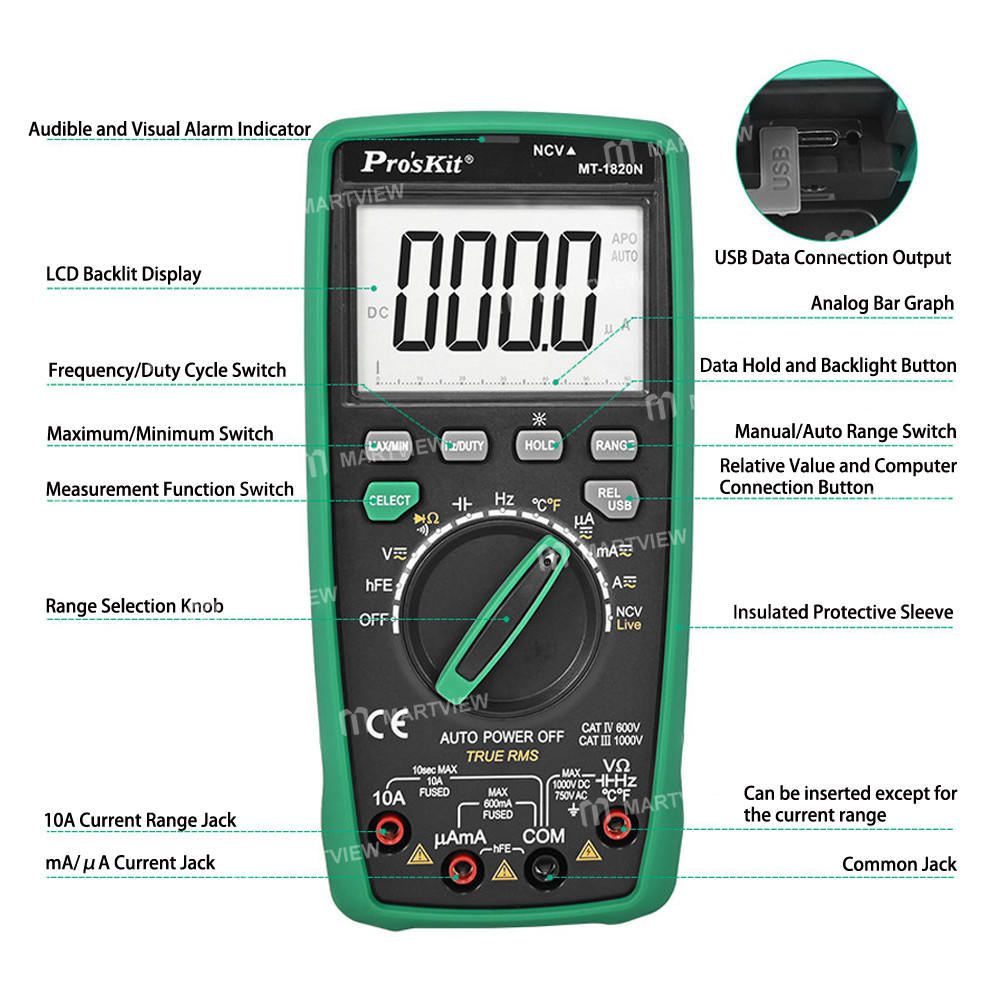

• Range selector knob design: Matte-finish dial with distinct tactile feedback, clearly differentiated ranges for simple operation

• Instrument stand: Flip-out stand for convenient data reading and operation

• Battery compartment design: Powered by 4 common AA batteries for ease of use (Batteries not included in packaging; purchase separately)

• USB Communication: Instrument features a USB communication port for data transfer and storage via host computer software.

• Probe Storage Slot: Conveniently stores and organizes test probes for easy access and storage.

Specifications:

• Model: MT-1820N

• DC Voltage: 600mV to 600V ±(0.5%+4); 1000V ±(1%+6)

• AC Voltage: 6V to 600V ±(0.8%+10); 750V ±(1%+10)

• DC Current: 600μA to 600mA ±(1%+10); 6A to 10A ±(1.2%+15)

• AC Current: 600μA to 600mA ±(1%+10); 6A to 10A ±(1.2%+15)

• Resistance: 600Ω ±(0.8%+5); 6KΩ to 6MΩ ±(0.8%+4); 60MΩ ±(1.2%+10)

• Capacitance: 60nF ±(5.0%+30); 600nF to 60uF ±(3.5%+8); 600uFto 60mF ±(5.0%+10)

• Frequency: 10HZ to 30MHz ±(0.5%+4)

• Temperature: -20°C to 400°C ±(1.0%+5); 400°C to 1000°C ±(1.5%+15)

• Transistor Test: Yes

• Diode Test: Yes

• Short Circuit Buzzer: Yes

• Auto Power Off: Yes

• Low Voltage Indication: Yes

• Live Wire Test: Yes

• NCV Function: Yes

• Battery: 1.5V AAA*4

• Accessories: Test Probes, Thermocouple, hFE Test Socket, USB Cable

• Dimensions: 182*90*46mm

• Weight: 320g (without battery)

Package includes:

• 1 x Multimeter (without Battery)

• 1 x Test Probes

• 1 x Thermocouple

• 1 x hFE Test Socket

• 1 x USB Cable
