Pro'sKit MT-7028 Multi-functional Network Wire Finder for RJ45 Lan & RJ11 / RJ12 Telephone Cable

Pro'sKit MT-7028 Multi-functional Network Wire Finder for RJ45 Lan & RJ11 / RJ12 Telephone Cable

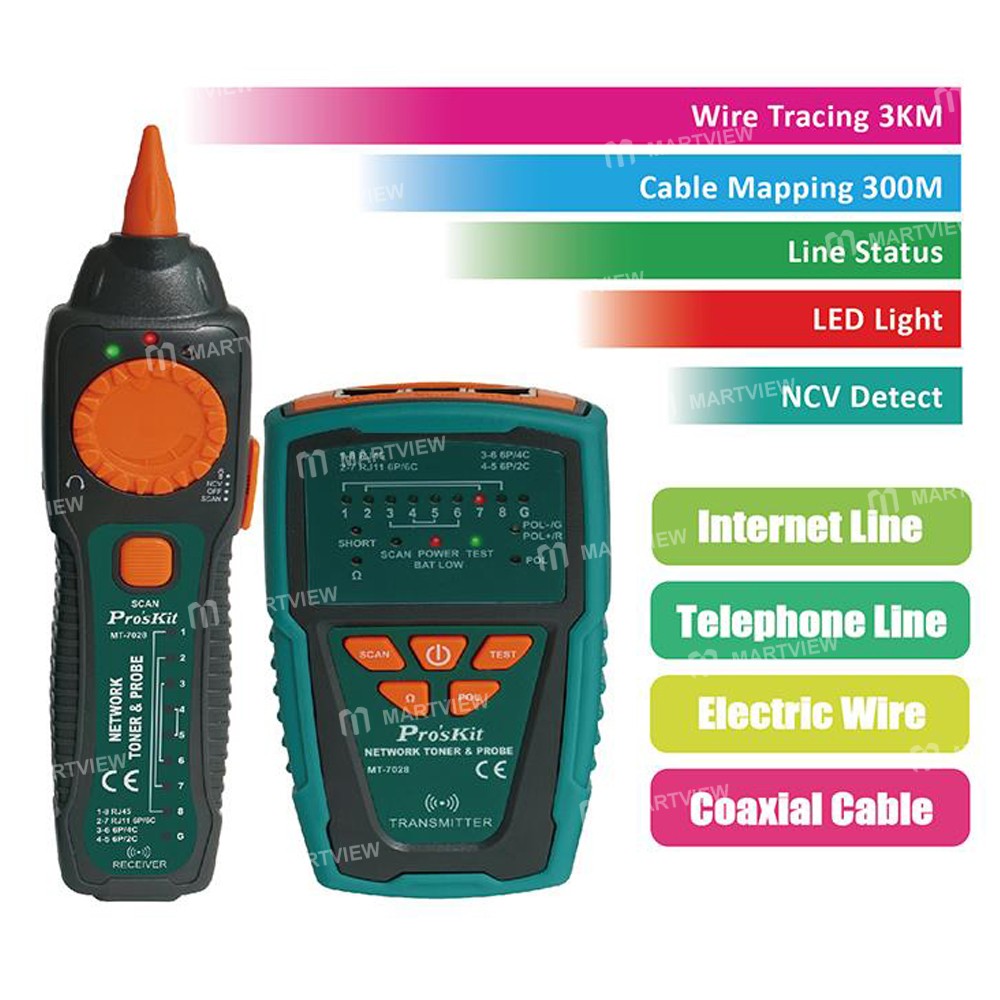

Features:

• The MT-7028 lets you easily locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens, and crossover on RJ45 Lan cable Cat 5. 5e. 6. 7 (UTP/STP)

• RJ11/12 Telephone cable Cat. 3 (2/4/6 pin) & normal solid/Stranded wire by alligator clips patch cord

• Ideal for all installation and maintenance fields of telecommunication, networking, datacom, audio/video, cable TV, all-weather cabling, etc.

• Wire Tracing up to 3KM: The tone and probe kit let you easily track wire directly in connection with live telecommunication equipment and router

• Cable Mapping & status Indication up to 300M, fast/slow scan function for choosing

• Display the result of pin-to-pin cable mapping, display cable status, and troubleshoot wiring for continuity, shorts, opens, and crossover

• Non-Contact Voltage detection

• Tests voltage from 90 ~ 1000V, special design to make sure the power is off before testing for circuit protection

• Polarity indication: Identify the telephone line polarity easily

• Energy saving: Automatically powers off after 1 hour of no operation

Specifications:

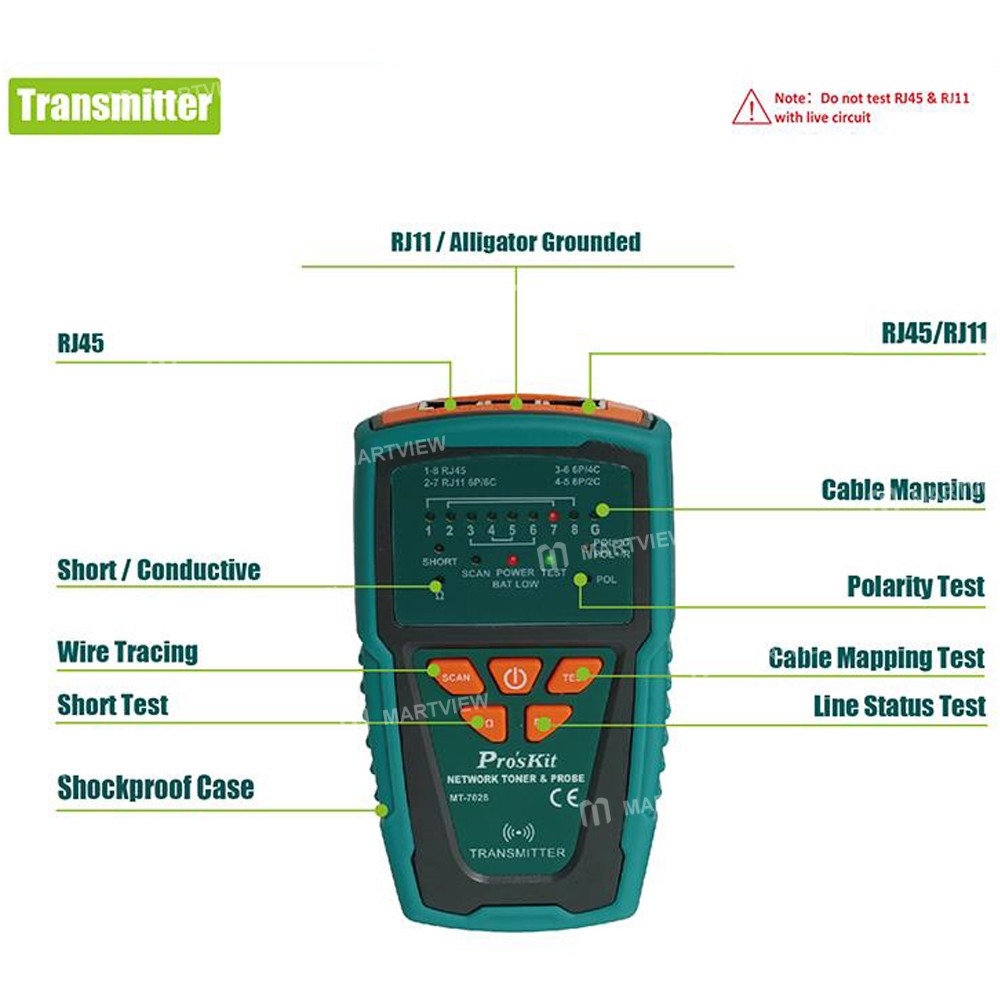

MT-7028 Transmitter:

• Frequency: 1kHz

• Max. distance of transmission &Cable map: ≧3KM & 300M

• Tone mode: Hi/Low two-note tone

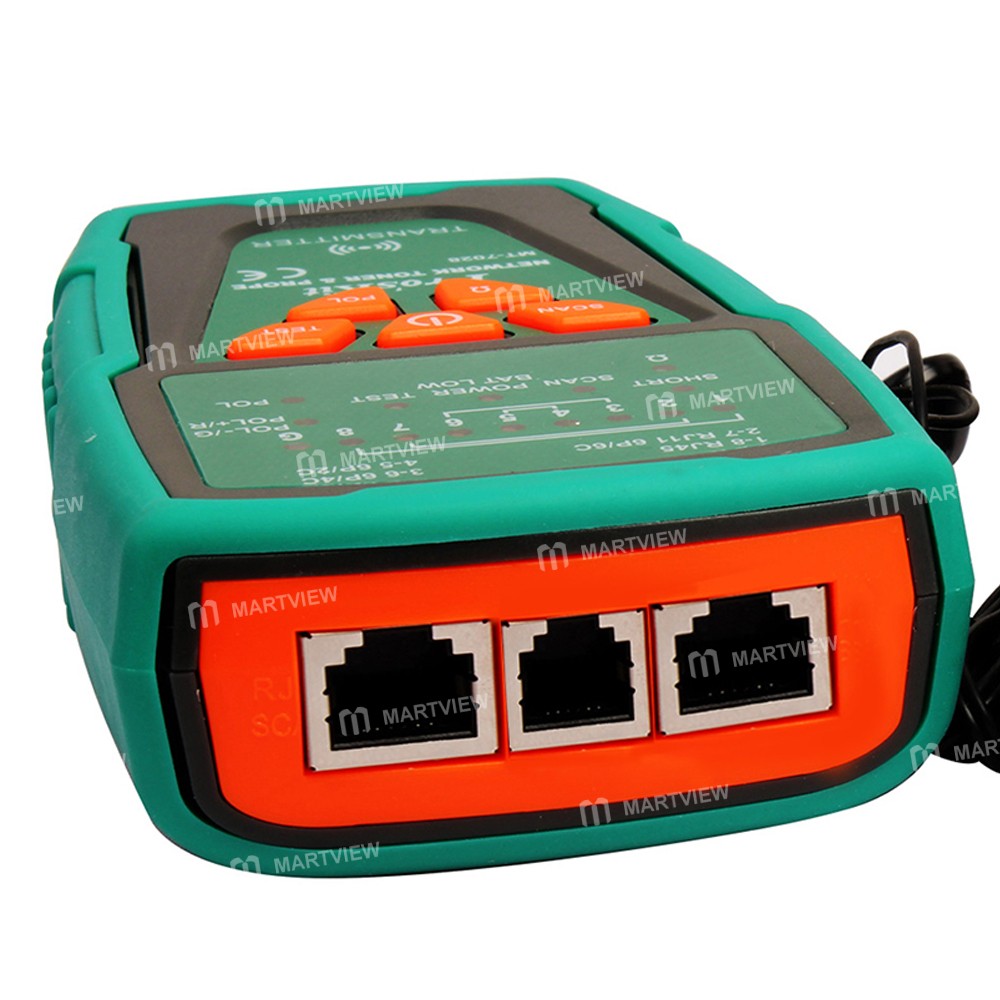

• Compatible connectors: RJ45(8 pin)/RJ11(6-pin) compatible connectors for RJ45(8-pin), RJ11/12(6P/2C/4C/6C) cable map and RJ45 tone, RJ-11(6-pin) connectors for RJ11/12(6P/2C/4C/6C) tone

• Cable types tested: RJ45 Lan cable Cat 5, 5e, 6, 7 (UTP/STP), RJ11/12 telephone cable  (6P/2C/4C/6C)

• Continuity test: 1 LED (≦300Ω), coaxial cable & normal solid/stranded wire by alligator clips patch cord

• Cable map & shielded indication: 8 LEDs & 1 LED, fast/slow dual speed

• Phone line polarity indication: 1 dual-color LED

• Other functions Live telecommunication equipment test and router test: Live telecommunication equipment test and router test, voltage protection AC 60V or DC 48V, auto power off, low battery display

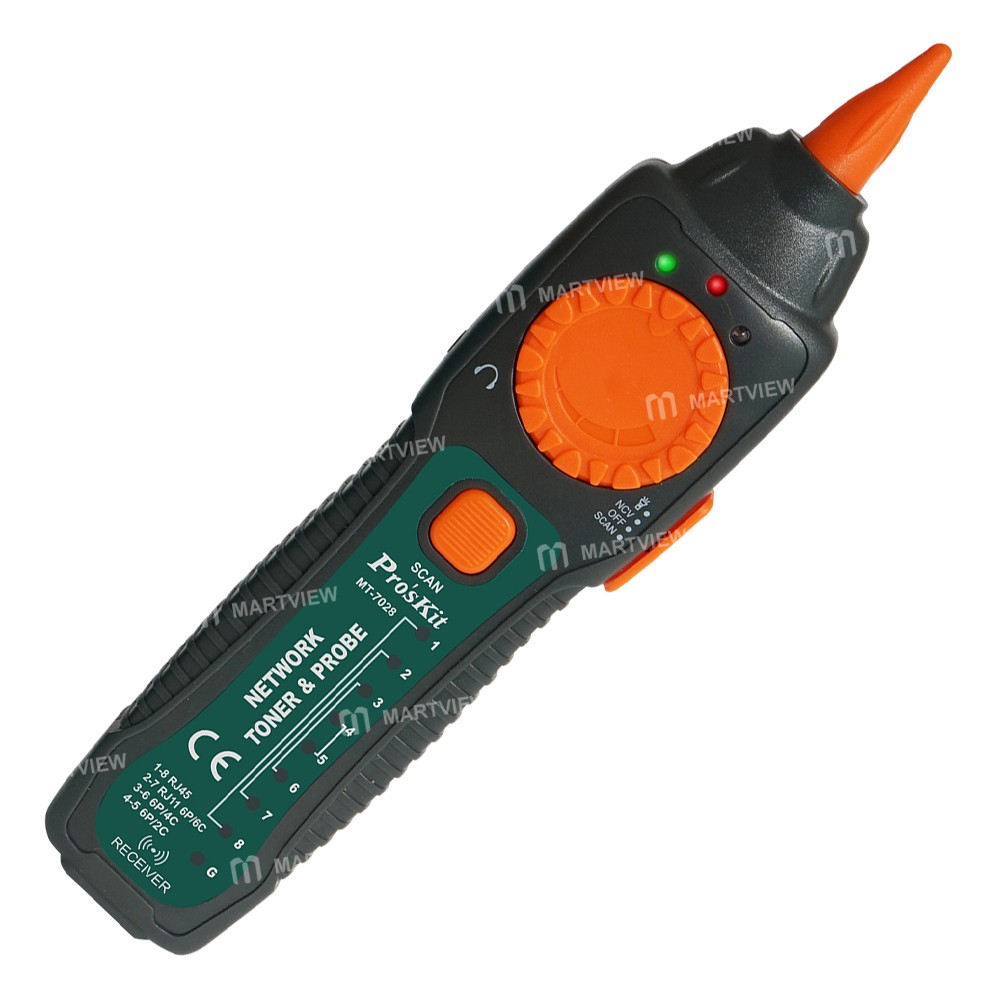

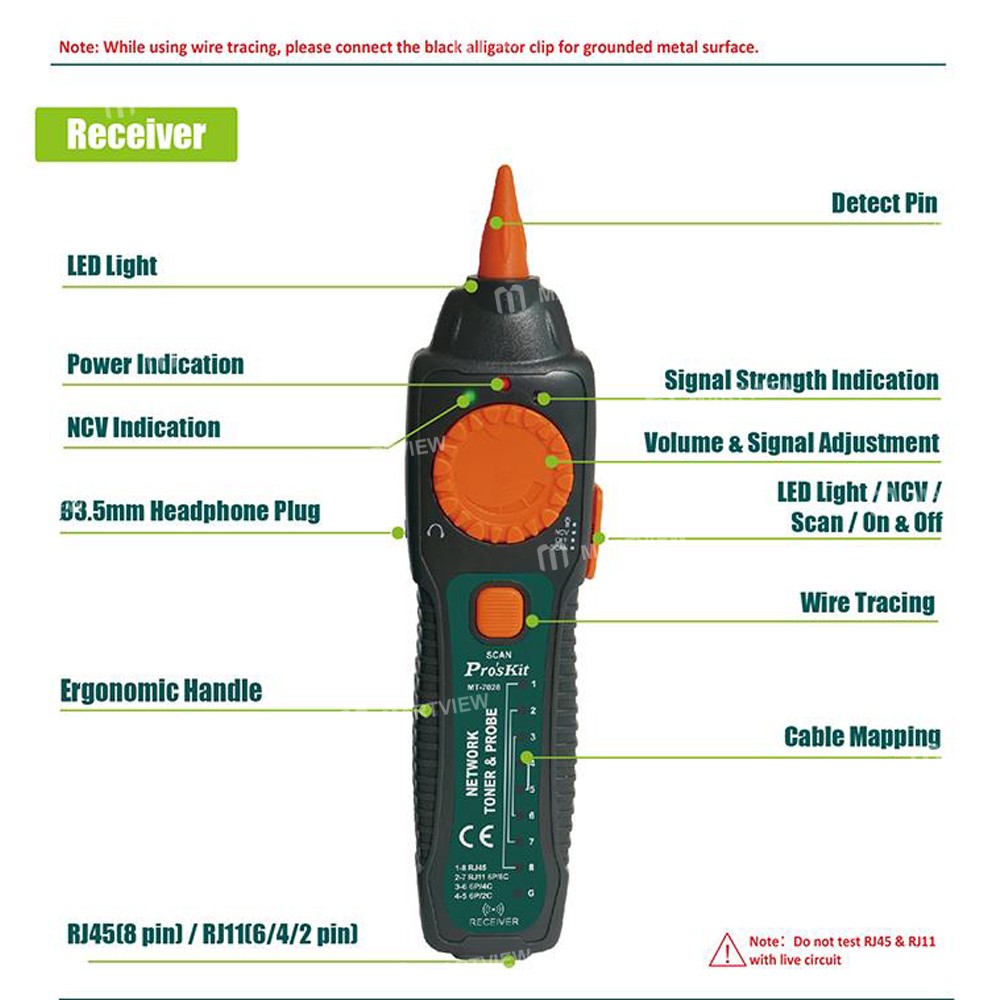

MT-7028 Receiver:

• Frequency: 1kHz

• Compatible connectors: RJ45(8 pin)/RJ11(6 pin)

• Signal status indication: 1 LED & Buzzer, building ear jack

• Cable map & Shielded indication: 8 LEDs & 1LED

• NCV indication: 1 LED (AC90~1000V)

• LED illumination: 1 LED

• Battery type: DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs)

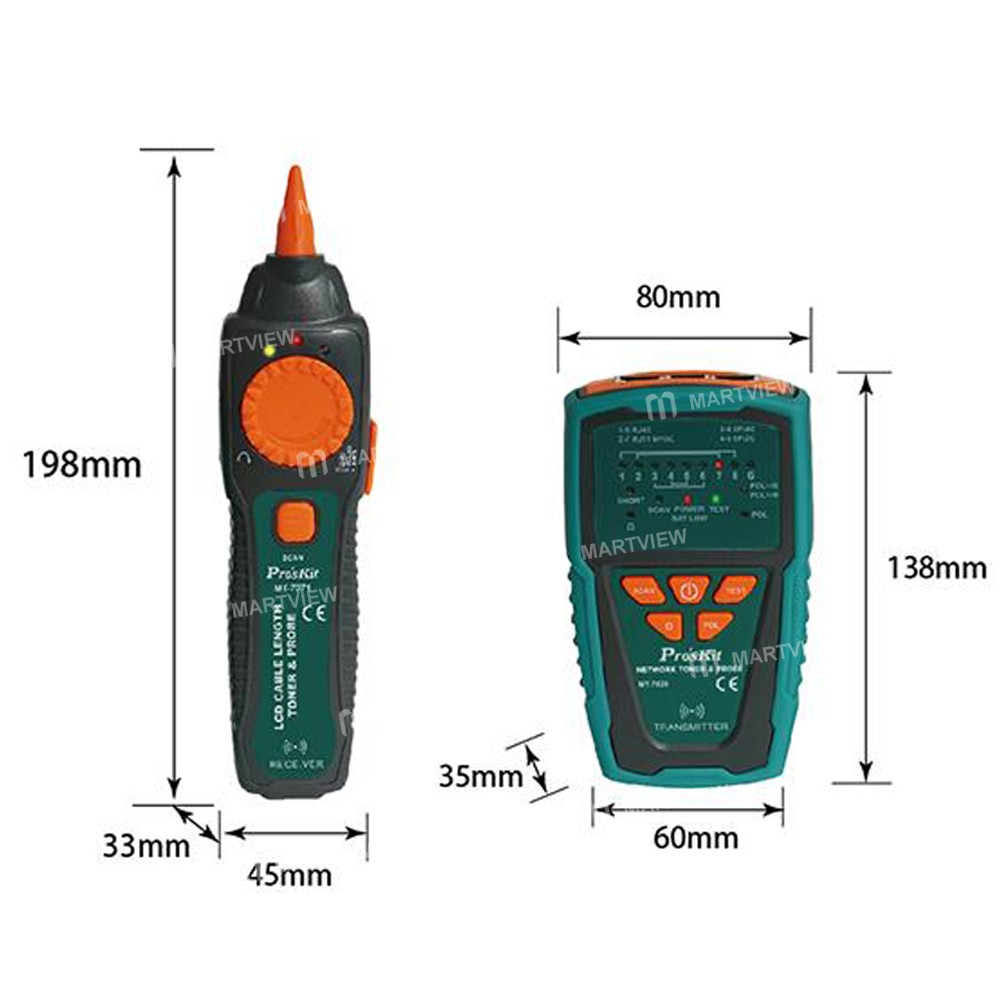

• Dimension: 198*45*33 mm

Package includes:

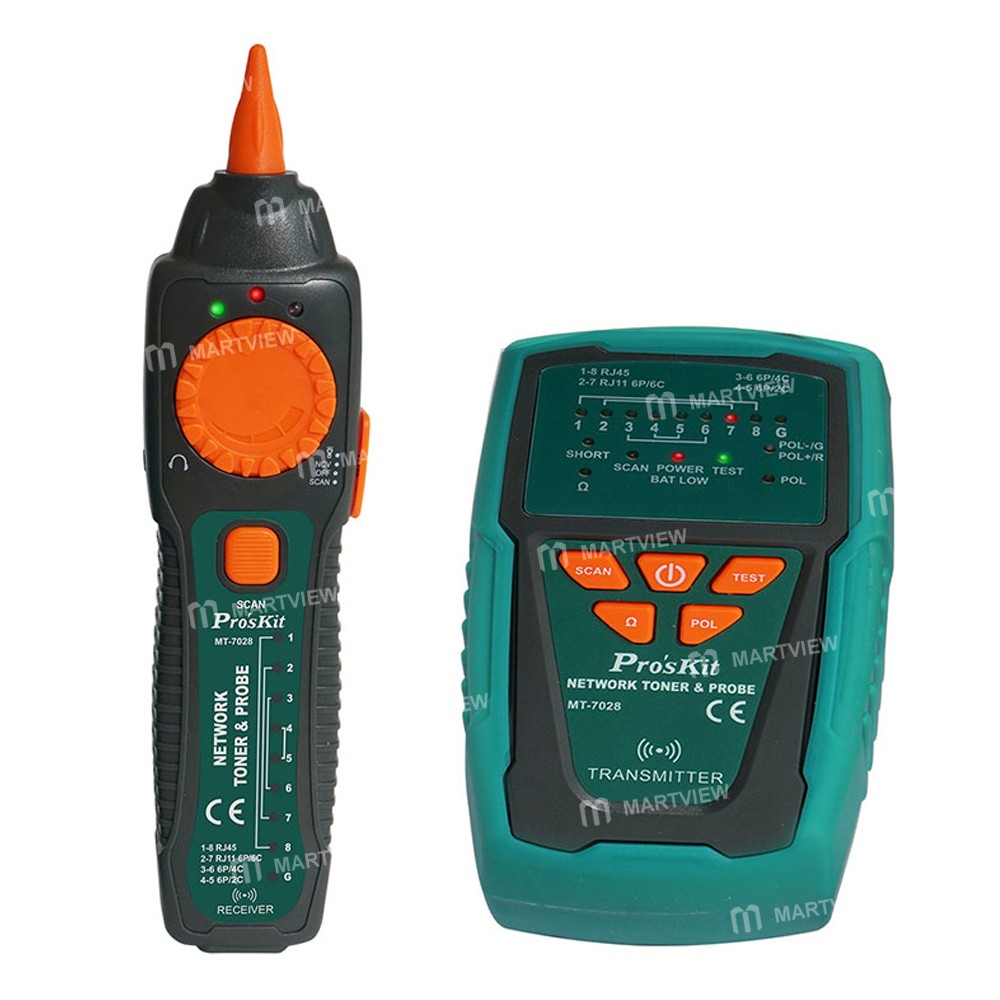

• 1 x Transmitter

• 1 x Receiver

• 1 x RJ45 Adapter Cable

• 1 x RJ11 Adaptor Cable

• 1 x Alligator Clip Adapter
