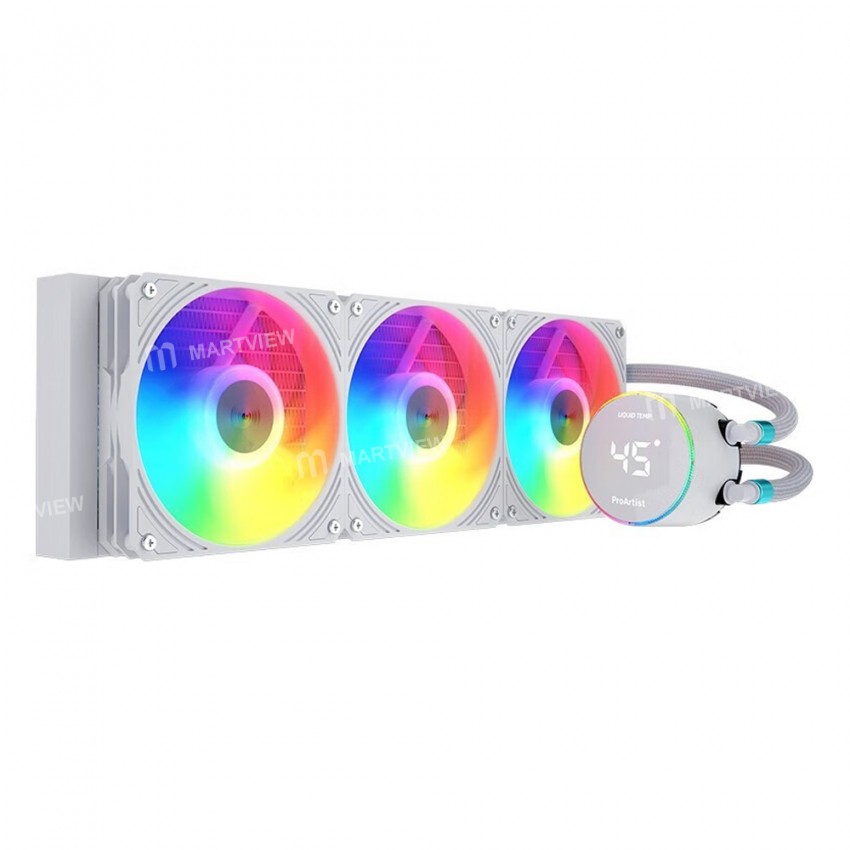

ProArtist GA5-360 CPU All-in-one Water-cooling Radiator for LGA 1200 / 1700 / AM4 / AM5

ProArtist GA5-360 CPU All-in-one Water-cooling Radiator for LGA 1200/1700/AM4/AM5

Features:

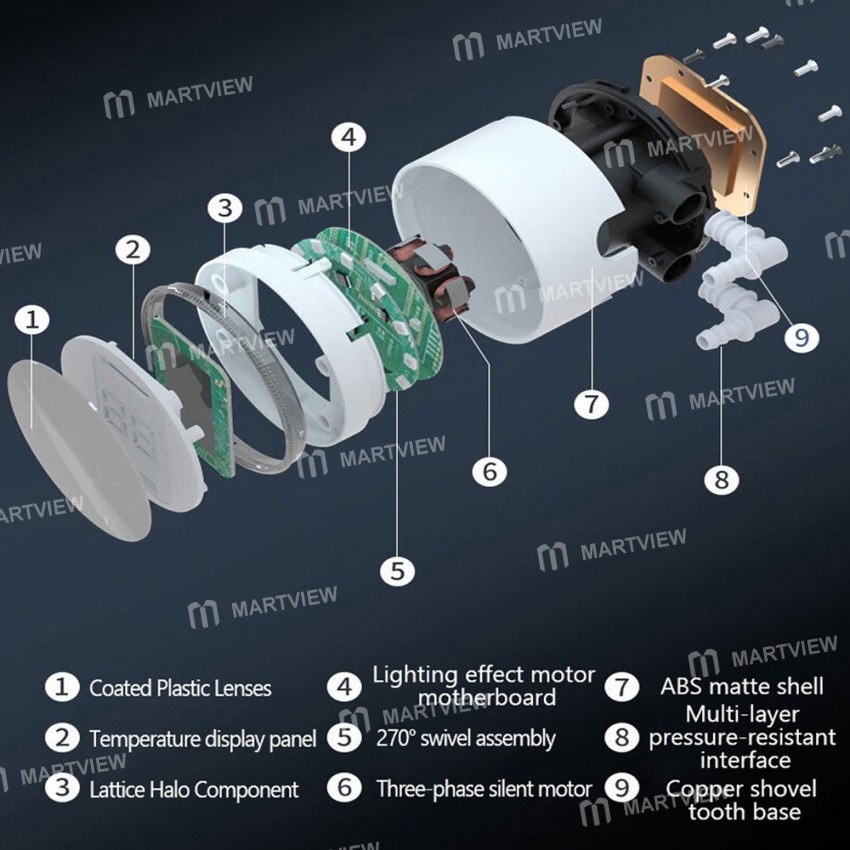

• ProArtist self-developed a new generation of cold heads, optimized for 13th-generation processors

• Temperature display function, real-time display of radiator water temperature

• One wire connection for a cold row, 3 fans require only one wire to connect to the motherboard, simple cable management, more tidy chassis

• The rotatable panel and cold head can be installed in multiple directions

• Synthetic material water pipes, EPDM+IIR material, rigid and flexible, refuse to leak

• Microchannel copper bottom, precision shoveling process, transfer CPU heat quickly

• Low-resistance water channel, regular thickness compatible with most case

• Shenguang Synchronization, PWM 800~2050RPM, automatic temperature control, and speed regulation

Specification:

• Product model: GRATIFY AIO 5

• Product type: Integrated water-cooled radiator

• Support platform: LGA1200/LGA1700/AM4/AM5

• Body weight: 1600g±10%

Water Drainage:

• Cold exhaust size: 397*120*27mm

• Cold exhaust material: Aluminium

• Cold exhaust weight: 600g±10%

• Length of water pipe: 450mm

• Water pipe material: EPDM+IIR

Pump:

• Cold head size: 72*72*60mm

• The service life of the water pump: 30000H

• Running noise: 29±2dB(A)

• Bottom material: Copper

• Input current: 0.35A±10%

• Input voltage: 12V

• Operating power: 4.2W±10%

• Full load speed: 2300RPM±10%

Fan:

• Fan size: 120*120*25mm

• Fan weight: 169g±10%

• Fan air volume: 72CFM±10%

• Fan air pressure: 2.45mm/H20±10%

• Fan noise: 31±3dB(A)

• Executive standards: GB4943.1-2011

• Input current: 0.3A±10%

• Input voltage: 12V

• Operating power: 3.6W±10%

• Full load speed: 2050RPM±10%

• Bearing type: MFDB

Package includes:

• 1 x Water-cooling Radiator
