QianLi iSocket 13 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 13 Mini / 13 / 13 Pro / 13Pro Max

qianli isocket-13-series-4-in-1-motherboard-layered-test-fixture-1

0 out of 5 stars

No review yet
Ready stock
NaN
As low as NaN
Worldwide shipping
ID: MV-22081698V4KF
Weight: 0.38 kg
QtyPriceDiscount
1
NaN
3
NaN
-2.5%
5
NaN
-4.1%
10
NaN
-6.6%
More discounts

Product details

Description

QianLi iSocket 13 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 13 Mini/13/13 Pro/13Pro Max

Features:

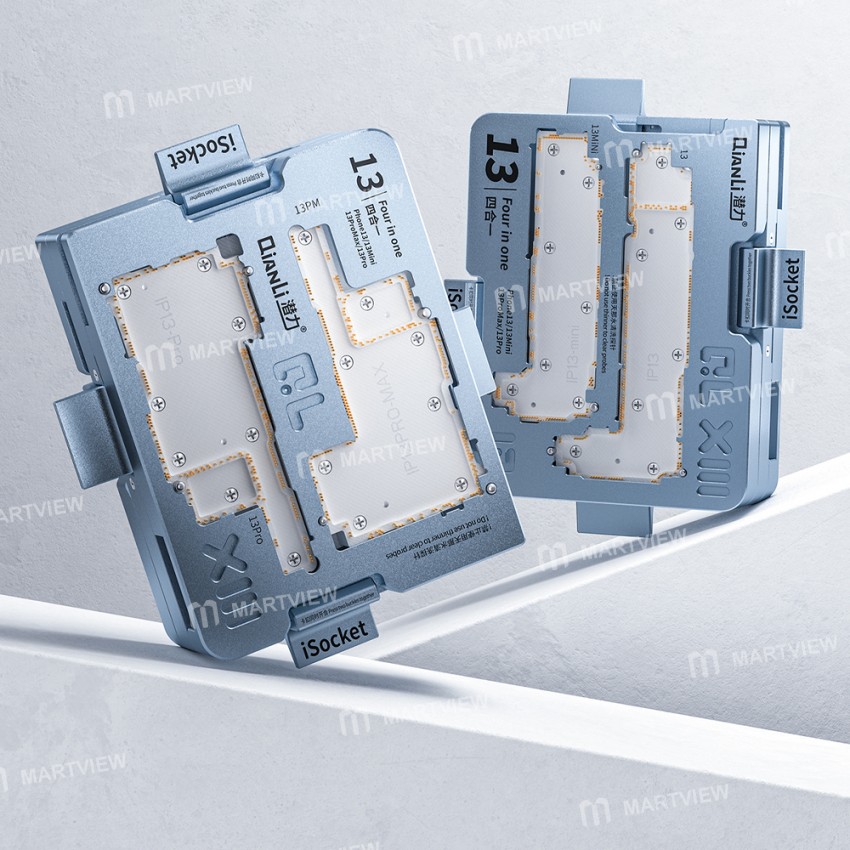

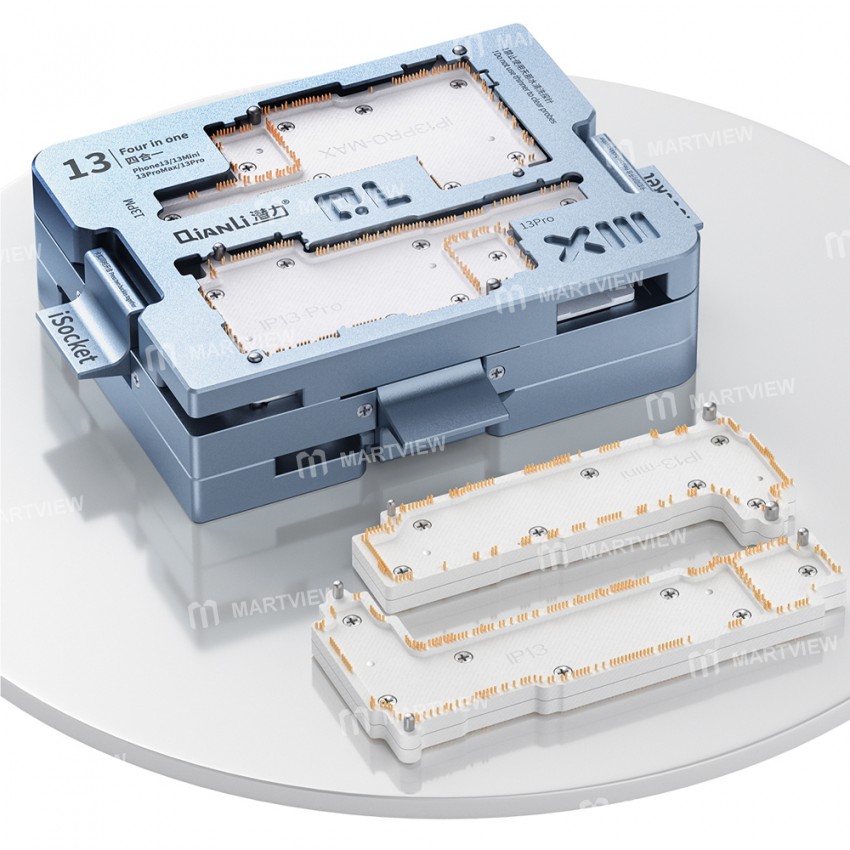

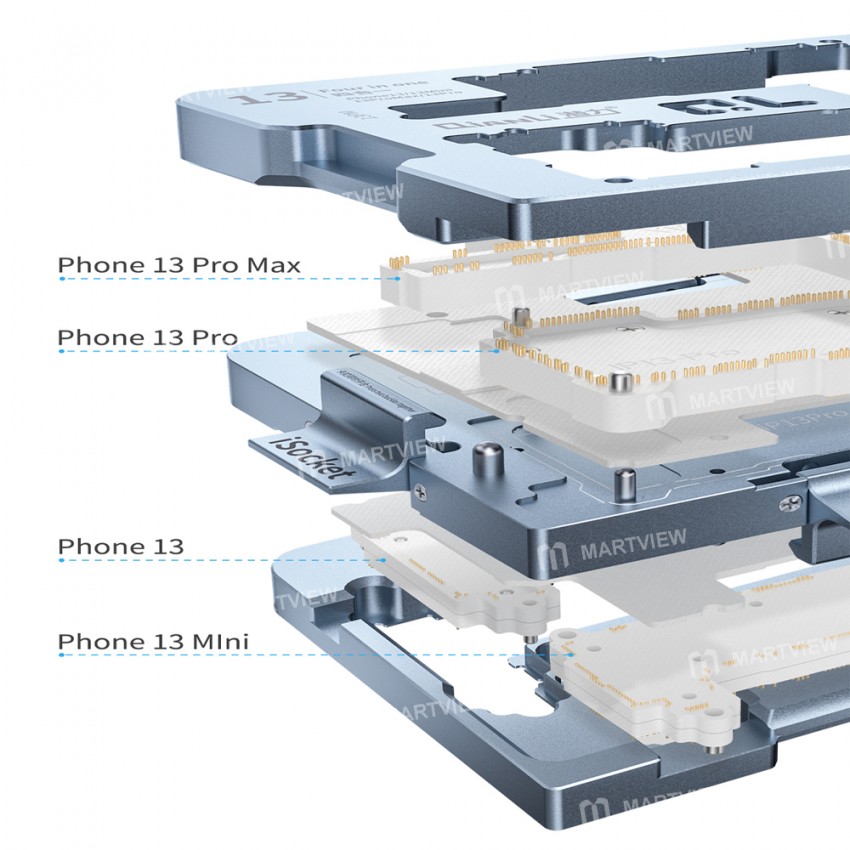

  • iSocket13 series four-in-one motherboard layered test stand, suitable for Phone13/13 Pro/13Pro Max/13 Mini
  • Solve the problem of maintenance personnel's testing of layered motherboards, save a lot of complicated processes, and make motherboard testing simple and fast
  • Reasonable use of limited space design, non-market patchwork, more stable design with heart
  • Simple and fast operation, easy to use
  • iSocket13 is designed in a light and compact shape, which can be directly placed under the microscope for observation to improve work efficiency

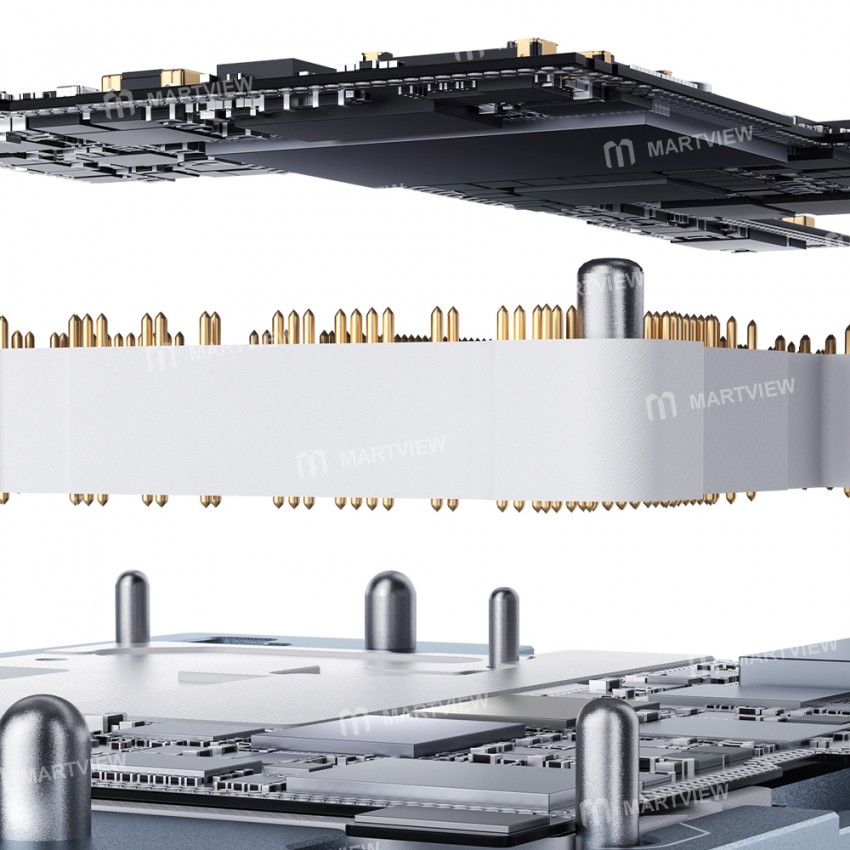

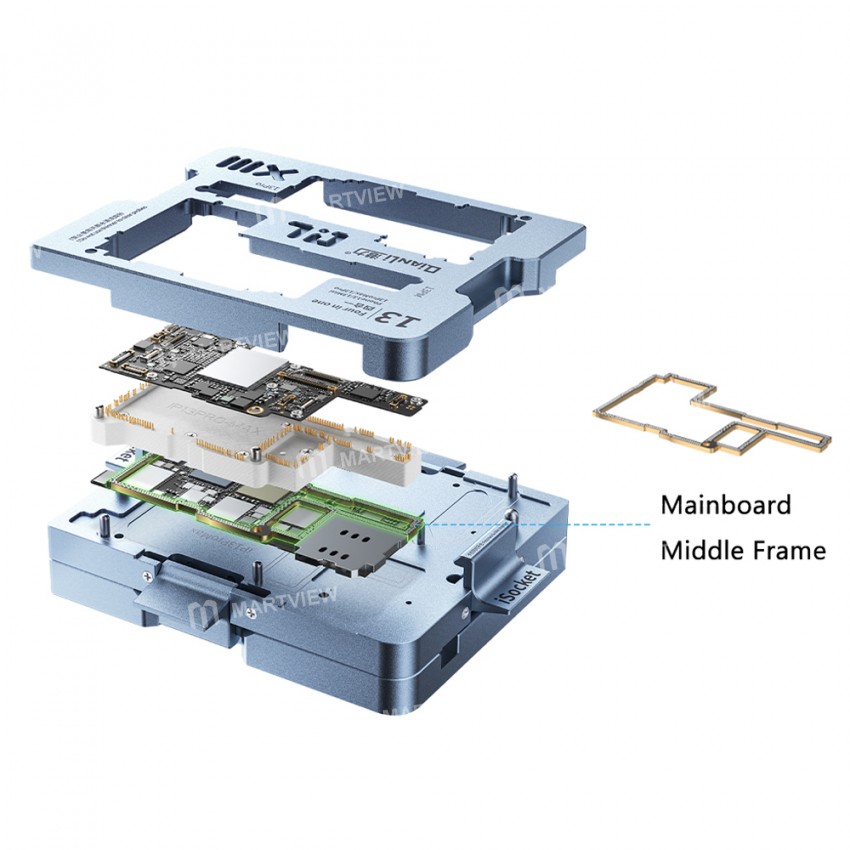

  • There is a middle frame, no need to place spacers, and the RF main board, pin board, and logic main board are laminated and stacked on the test frame base in turn.

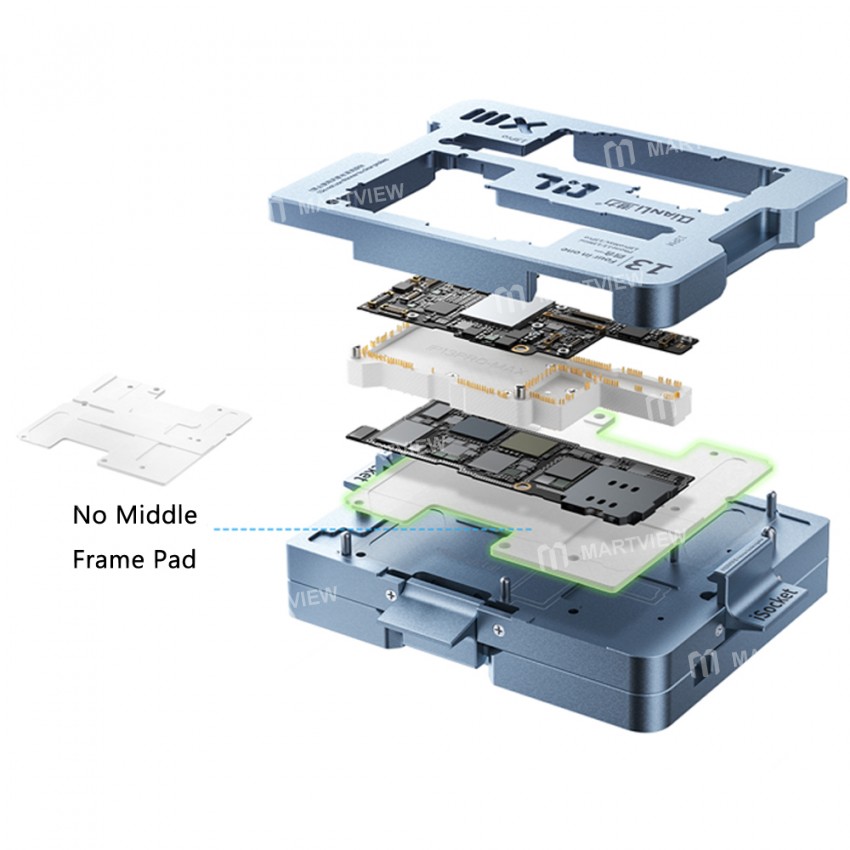

  • For use without a middle frame, first, place the gasket on the base of the test frame, and then place the RF motherboard, pin board, and logic motherboard on the base of the test frame.
  • The double-headed probe accurately aligns the small holes to improve the contact performance, the fixed buckle is buckled, the motherboard does not warp, and the test data is more accurate
  • High-precision CNC machine tool processing, control of every detail

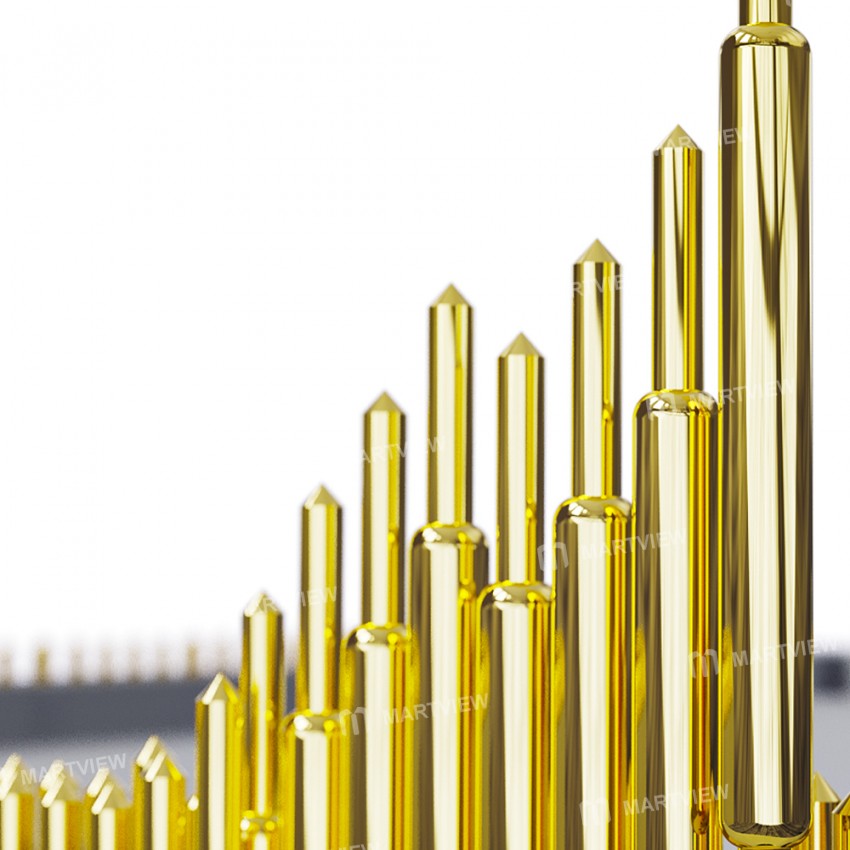

  • Using a high-quality beryllium copper spring probe, good conductivity, product overload stability, small deviation of detection value, more accurate, the tapered probe is not easy to get rosin, solder
  • The selection of materials for each component has undergone strict experimental tests, with high hardness, not easy to deform, and maximizes service life

Steps for usage:
  • Place the RF motherboard first (place the spacer if there is no middle frame on the motherboard)
  • Fasten the pin board on the RF motherboard
  • Then put the logic board on the pinboard
  • Align the top cover of the test stand and fasten the two wings, connect the power supply and the screen to start the test

Package includes:

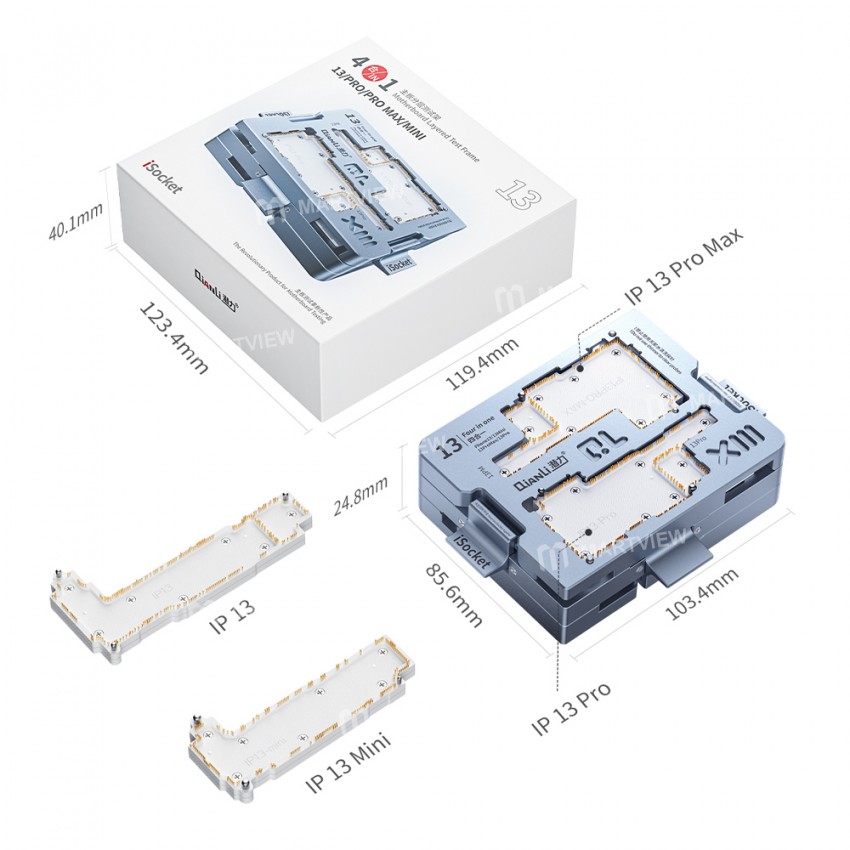

  • 1 x Test Fixture

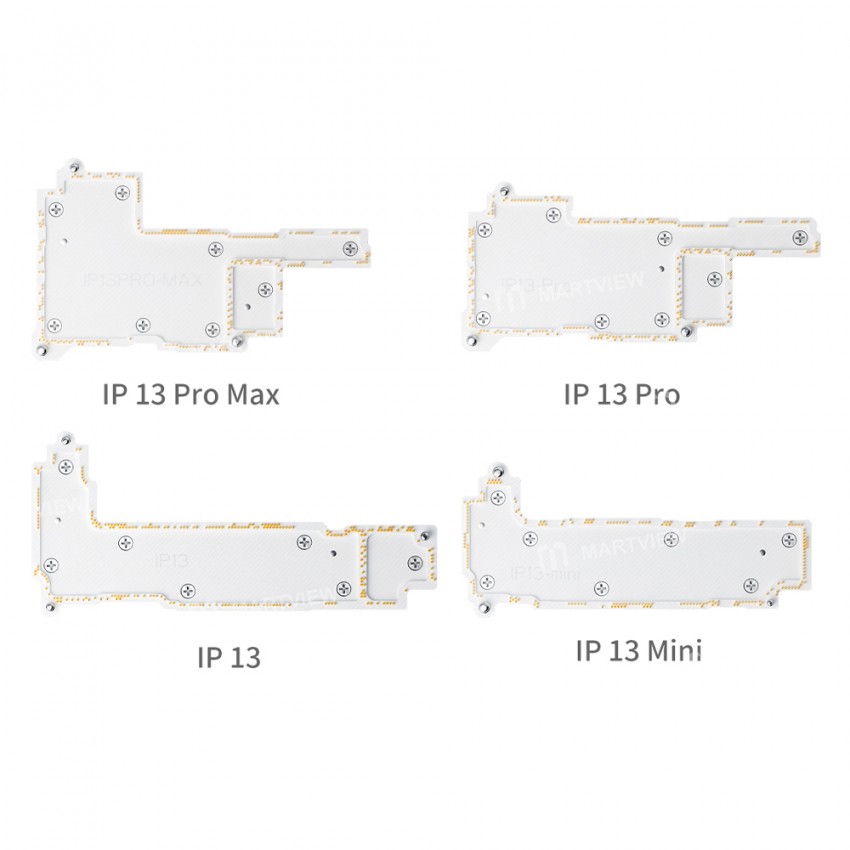

  • 4 x Pin board
