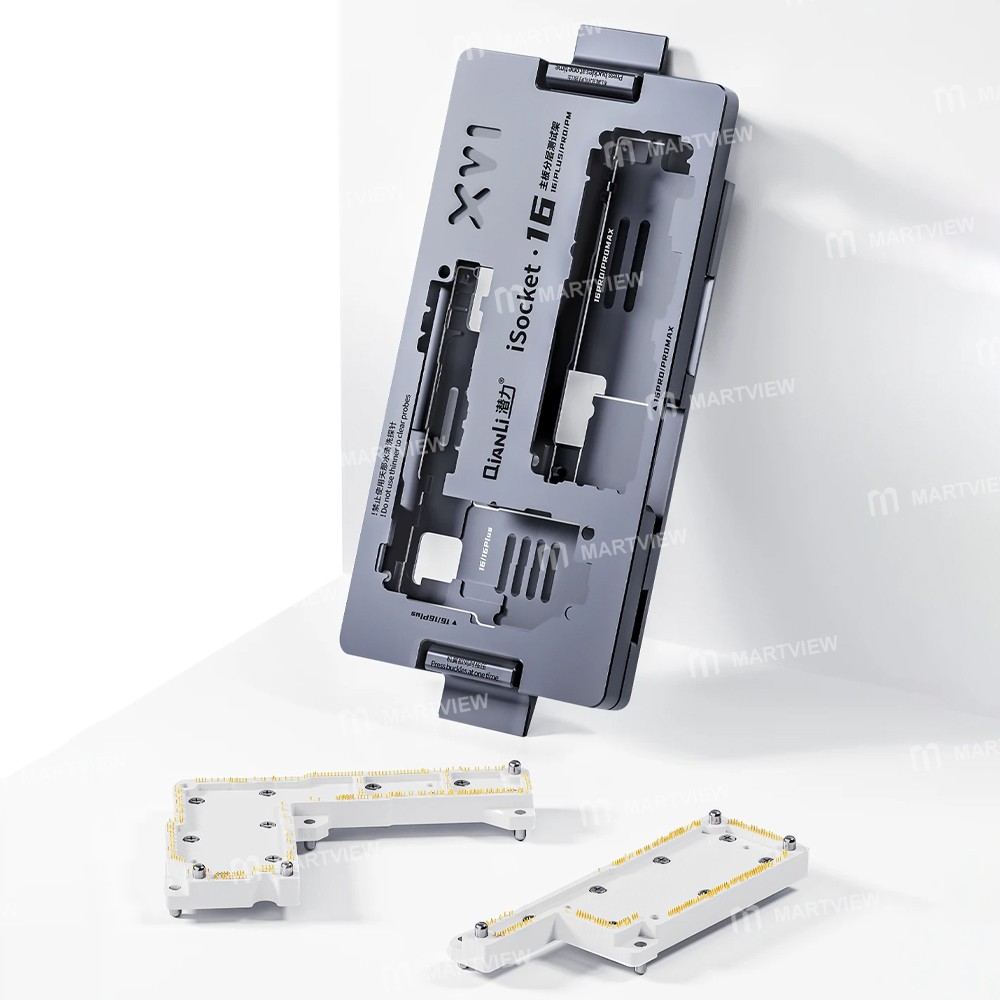

QianLi iSocket 16 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 16 / 16 Plus / 16 Pro / 16Pro Max

QianLi iSocket 16 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 16 / 16 Plus / 16 Pro / 16Pro Max

Features:

• QianLi iSocket 16 series motherboard layered test frame, easily solves the troublesome problem of motherboard testing, insists on using BeCu spring probes, applicable to iPhone16/16 Plus/16 Pro/16Pro Max

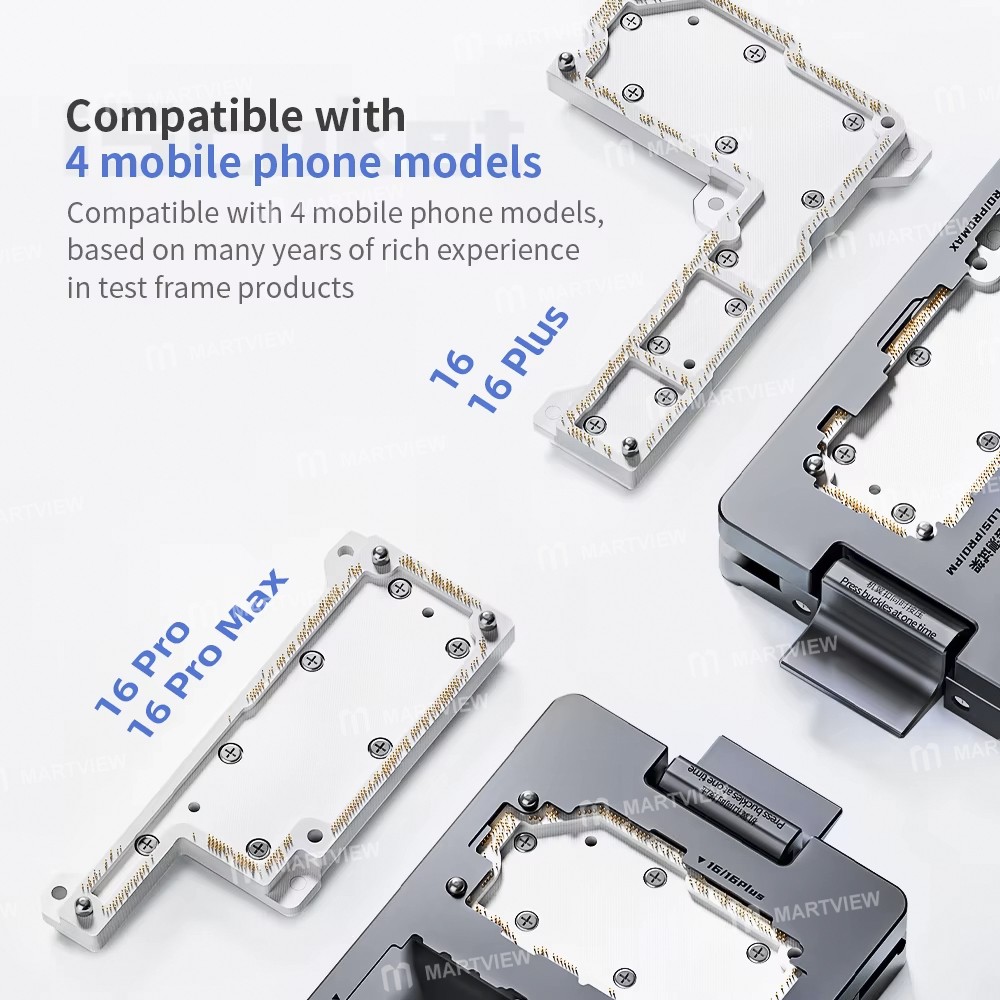

• Compatible with 4 mobile phone models, based on many years of rich experience in test frame products

• CNC high-precision machining controls every detail

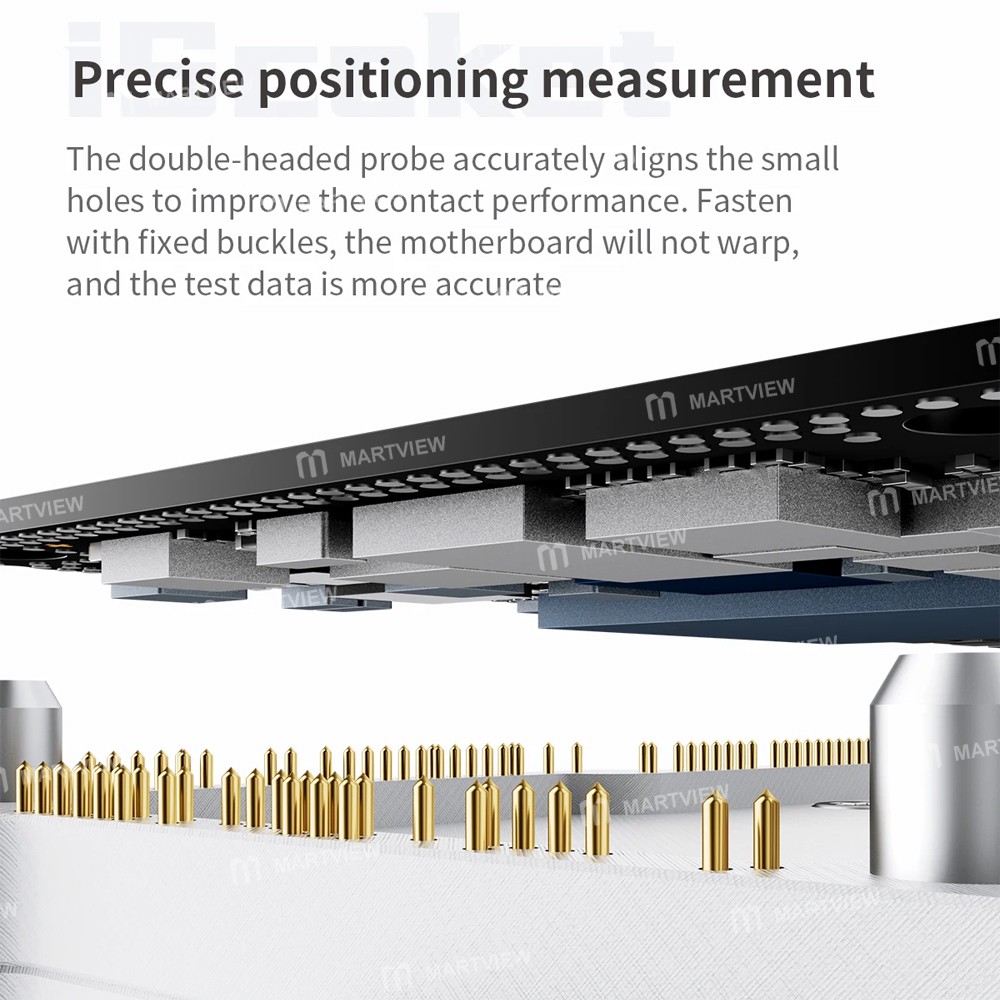

• The double-headed probe accurately aligns the small holes to improve the contact performance, fastens with fixed buckles, so  the motherboard will not warp, and the test data is more accurate

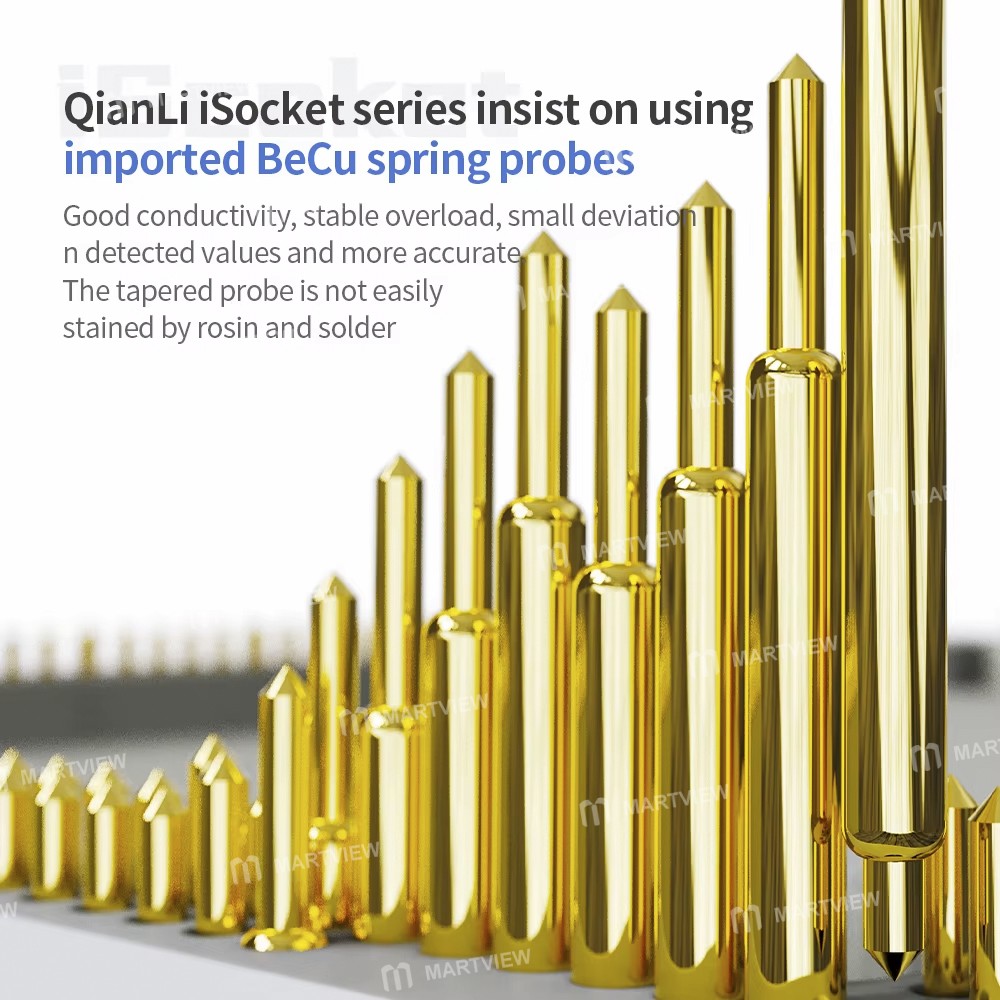

• With good conductivity, stable overload, small deviation in detected values, and more accuracy, the tapered probe is not easily stained by rosin and solder

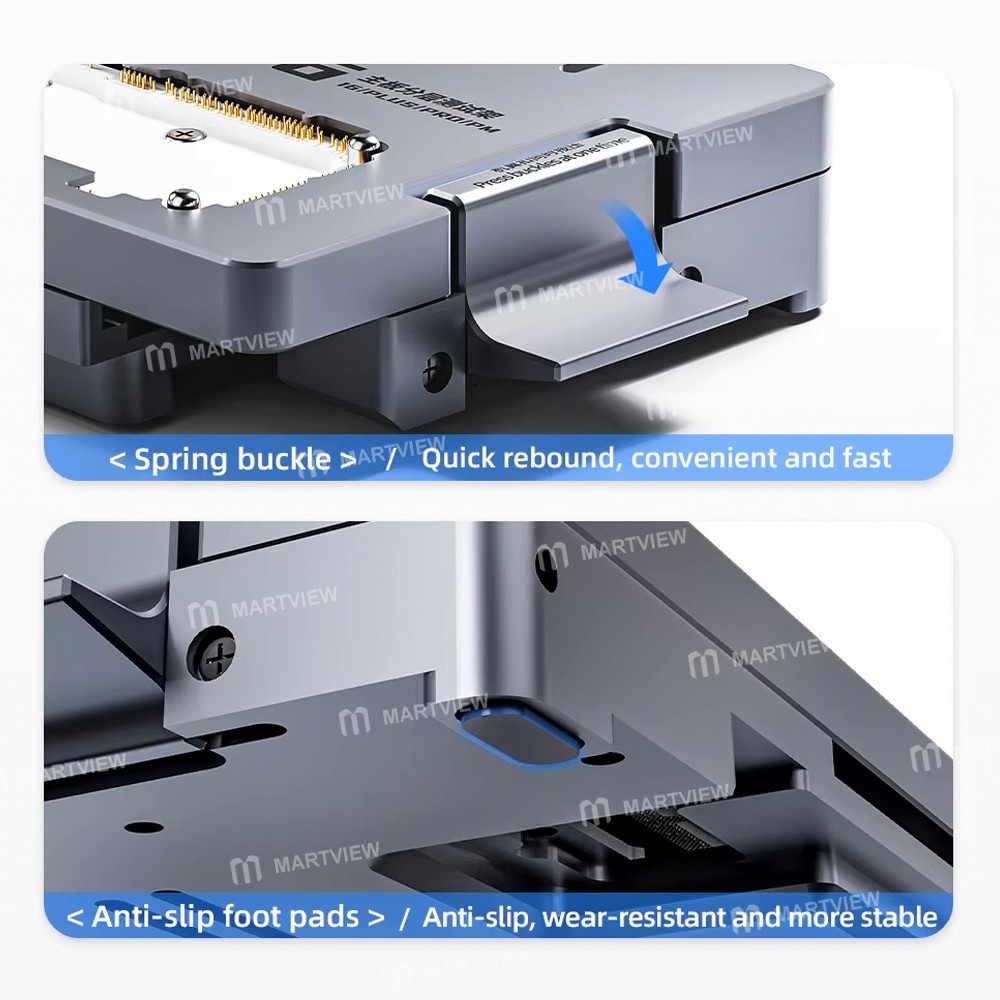

• Spring buckle, quick rebound, convenient and fast

• Anti-slip foot pads, anti-slip, wear-resistant and more stable

Steps:

• Place the lower motherboard at the base of the test stand

• Fasten the pin board above the lower motherboard

• Place the upper motherboard and buckle it on the pinboard

• Fasten the two wings of the upper cover of the test stand and connect the power supply and screen to start testing

Package includes:

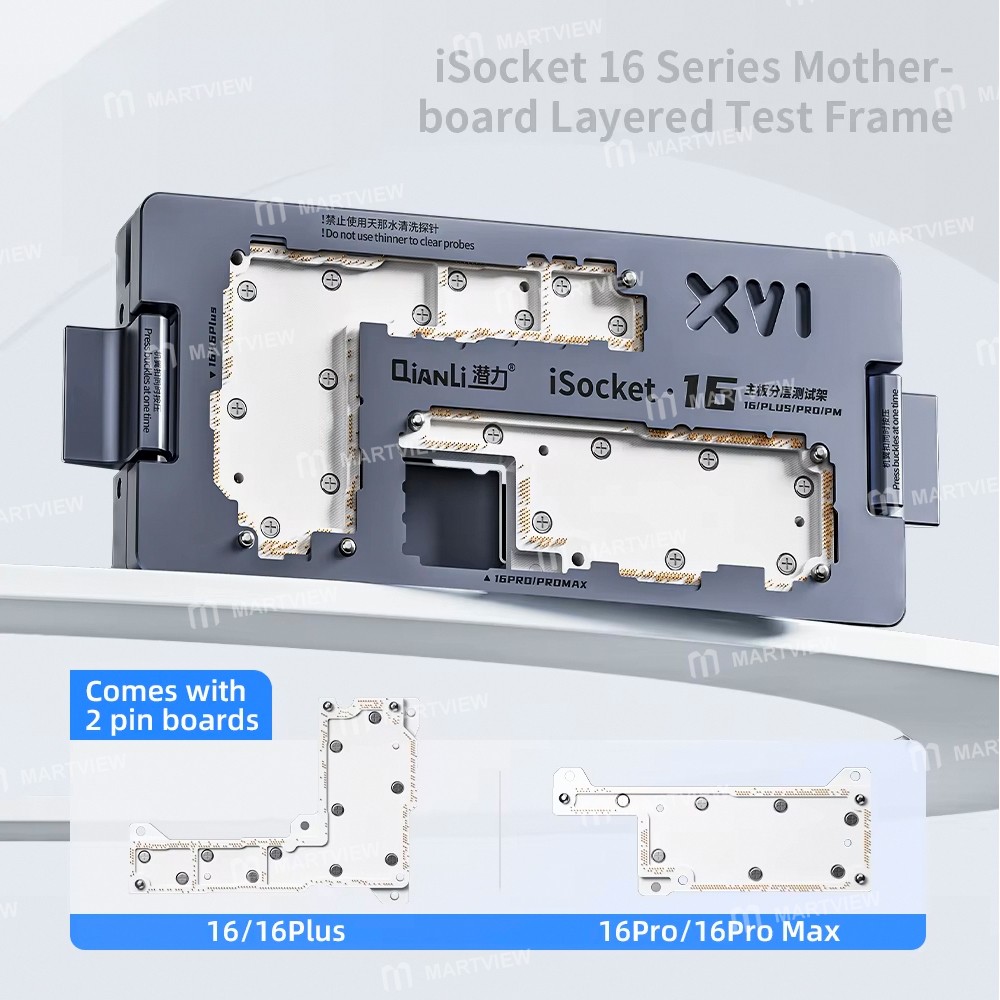

• 1 x Test Platform

• 2 x Pinboard
