Quick 8586D+ 2-in-1 Soldering Iron Hot Air Gun Lead-free Smart Digital Display Rework Station

Quick 8586D+ 2-in-1 Soldering Iron Hot Air Gun Lead-free Smart Digital Display Rework Station

Features:

• Precise temperature control / automatic sleep / encoder steples speed regulation / intelligent digital display / password protection/rotating soft wind

• Suitable for the desoldering of a variety of packaged components, suitable for maintenance/R&D electronic engineers use

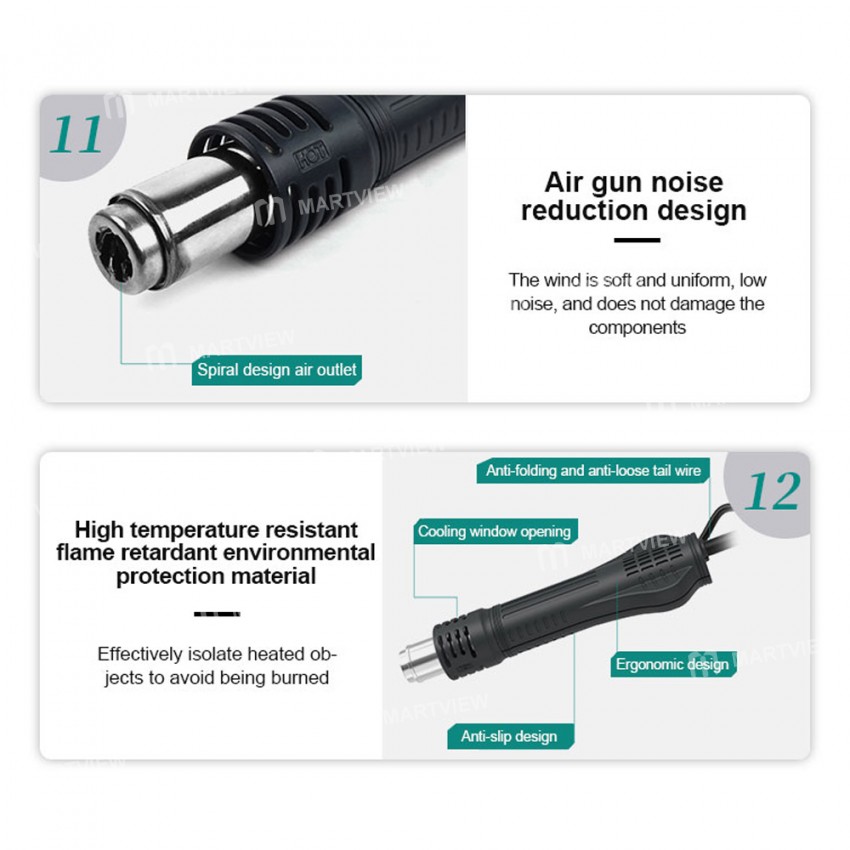

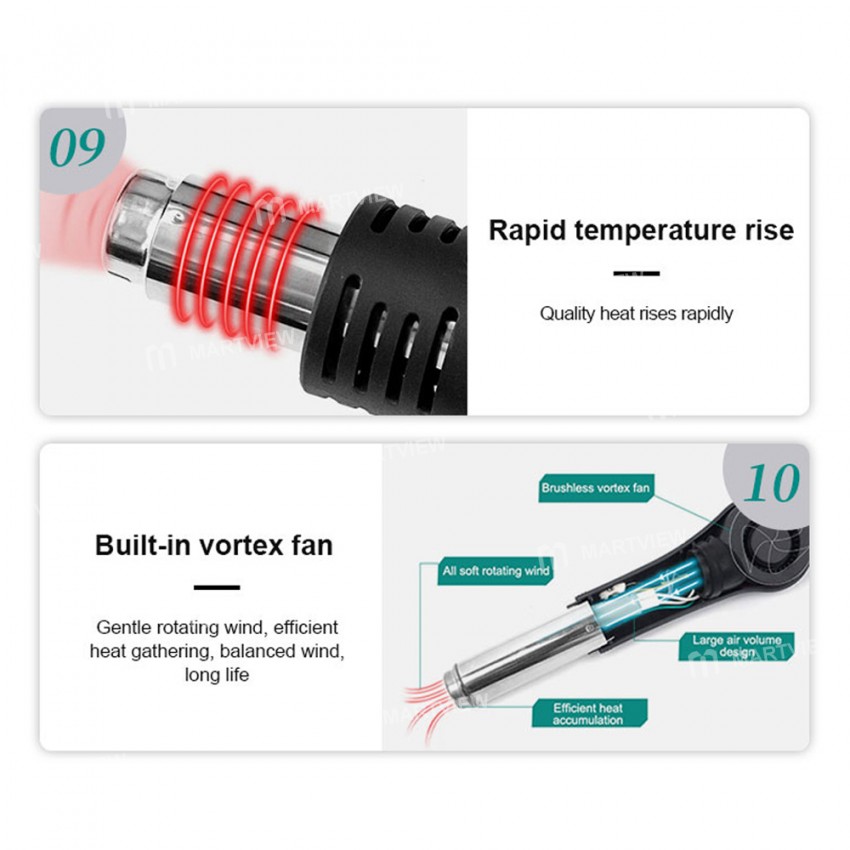

• Using brushless vortex fan, super high power 1000W, adjustable rotating airflow, large range, can be adapted to various purposes

• Can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboards, etc

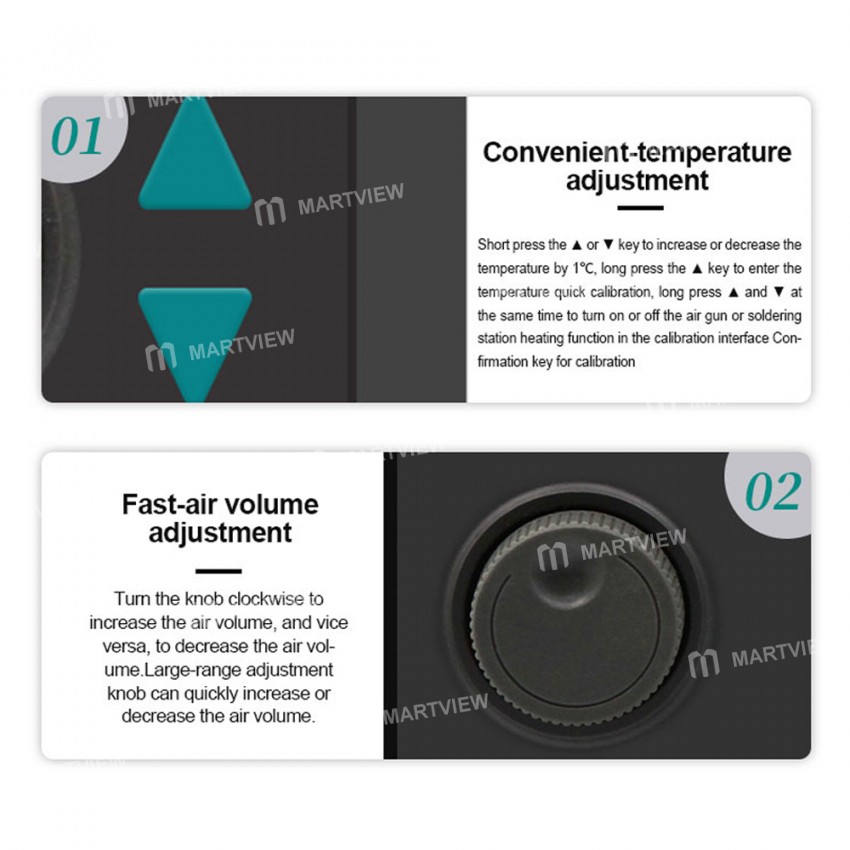

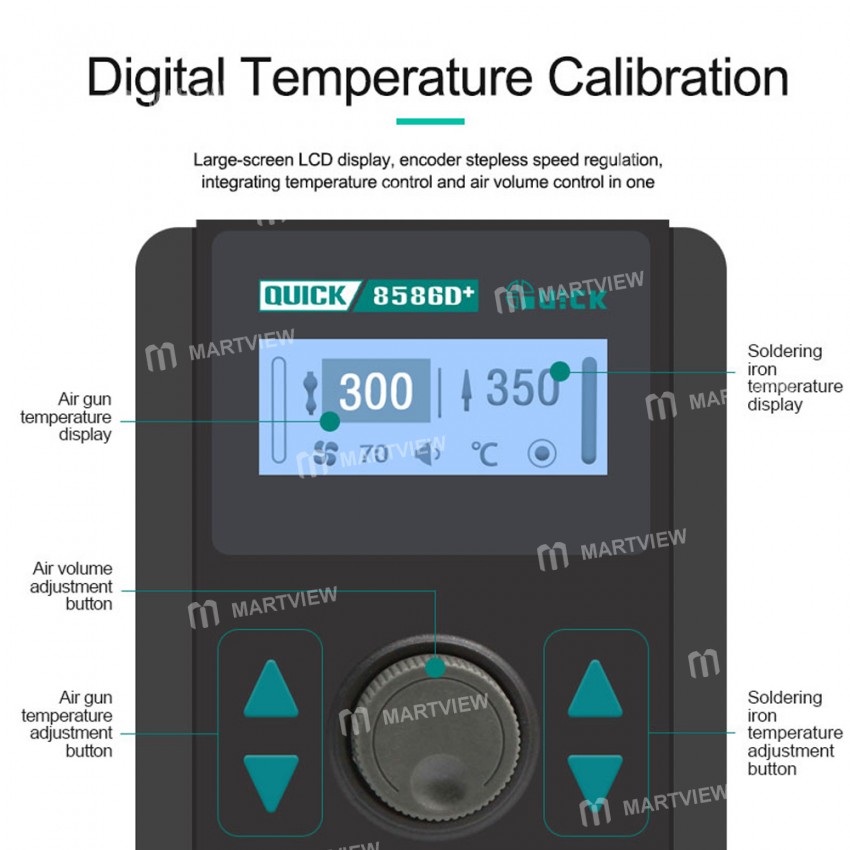

• Large-screen LCD, encoder step-less speed regulation, integrating temperature control and air volume control in one

• Ceramic skeleton, stable and rapid heating

• Support CH1/CH2/CH3 three-channel selection, and you can set the air volume/temperature of each channel, which is convenient for the next use of one key

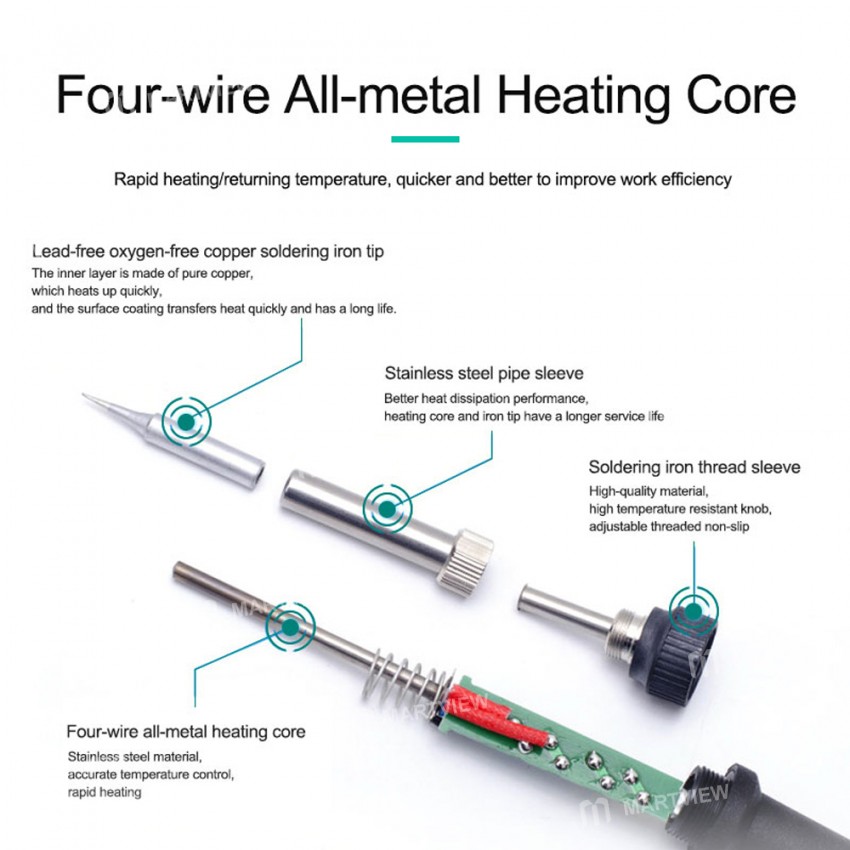

• Soldering iron tip the inner layer is made of pure copper, which heats up quickly, and the surface coating transfers heat quickly and has a long life.

• Soldering iron tip better heat dissipation performance, heating core, and iron tip have a longer service life

• Soldering iron tip handle made of high-quality material, high-temperature resistant knob, adjustable threaded non-slip

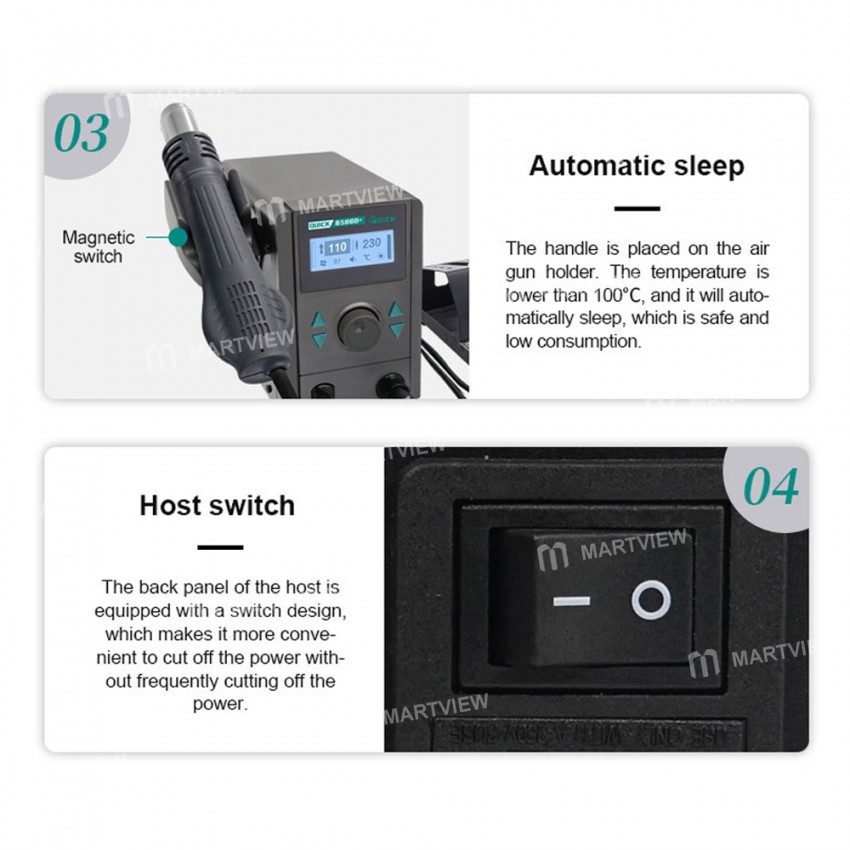

• Soldering iron tip magnetically controlled switch control, convenient real-time operation, the handle is placed on the handle rack to sleep immediately, with automatic sleep function, the parameters can be set in the sleep state

Specification:

• Brand: Quick

• Product name: Maintenance system

• Model: Quick 8586D+

• Display Type: LCD

• Power: 800W (70W soldering station)

• Operating voltage: 110V/220V

• Soldering station temperature: 100℃-480℃

• Air gun temperature: 100℃-500℃

• Air volume: 30L/min (Max)

• Temperature stability: ±5℃/(soldering station) ±2℃(still air, no load)

• Ambient temperature: 0-40℃

• Potential of welding tip to the ground: <2mV

• Resistance of welding tip to the ground: <2Ω

• Product size: 98*170*151mm

• Package size: 330*180*230mm

• Net weight: About 2.6kg

• Gross weight: About 3.0kg

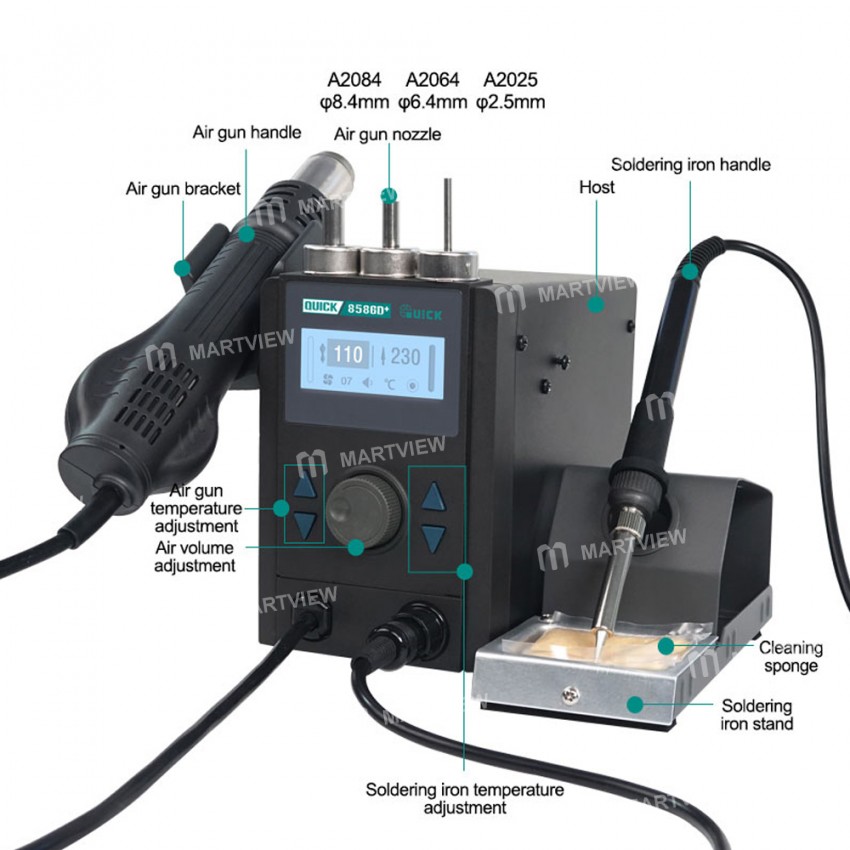

Package includes:

• 1 x Main unit

• 1 x Hot air gun handle

• 1 x Soldering iron tip

• 1 x Soldering iron tip handle

• 1 x Soldering iron tip handle holder

• 1 x Power cord

• 1 x Air gun holder

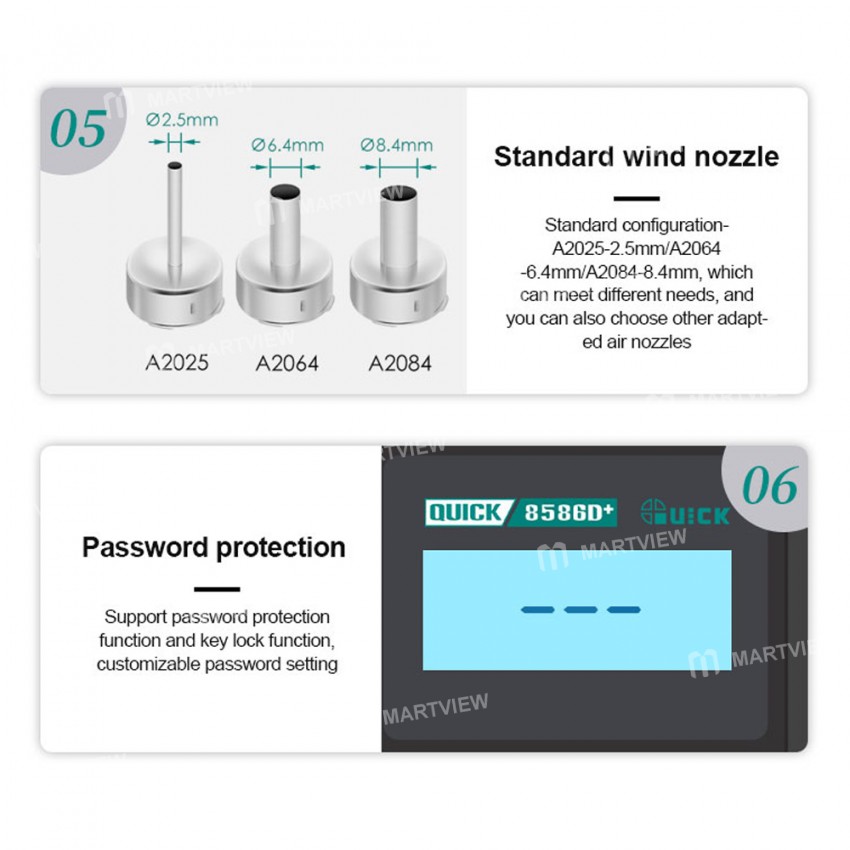

• 3 x Air nozzle
