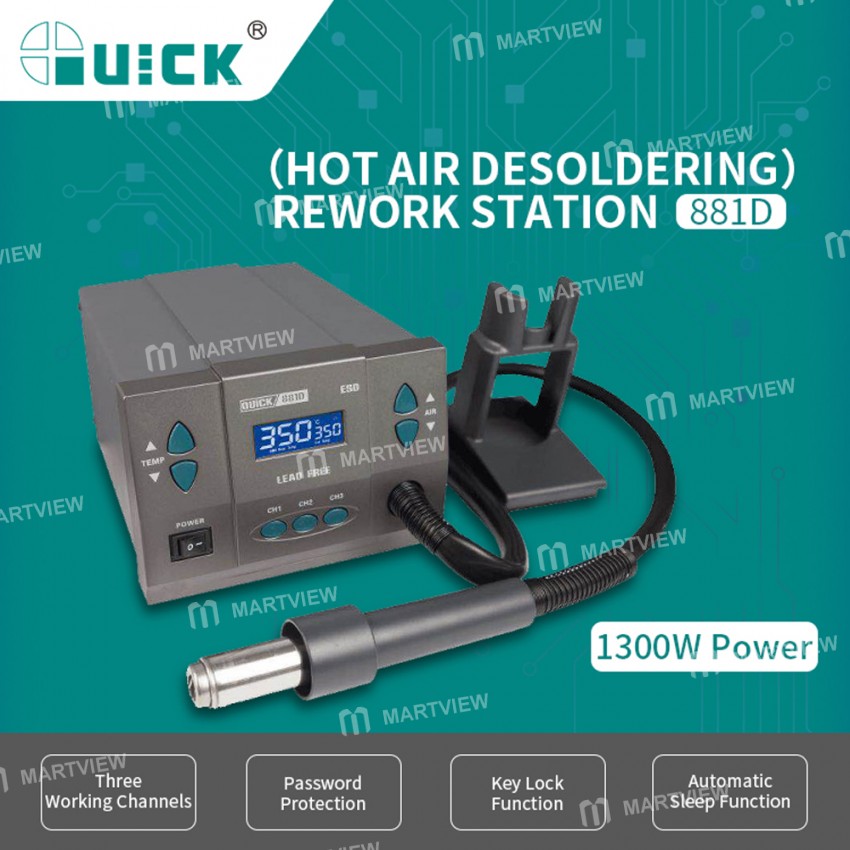

Quick 881D LED Display Hot Air Rework Station Lead-free Soldering Station

Quick 881D LED Display Hot Air Rework Station Lead-free Soldering Station

Feature:

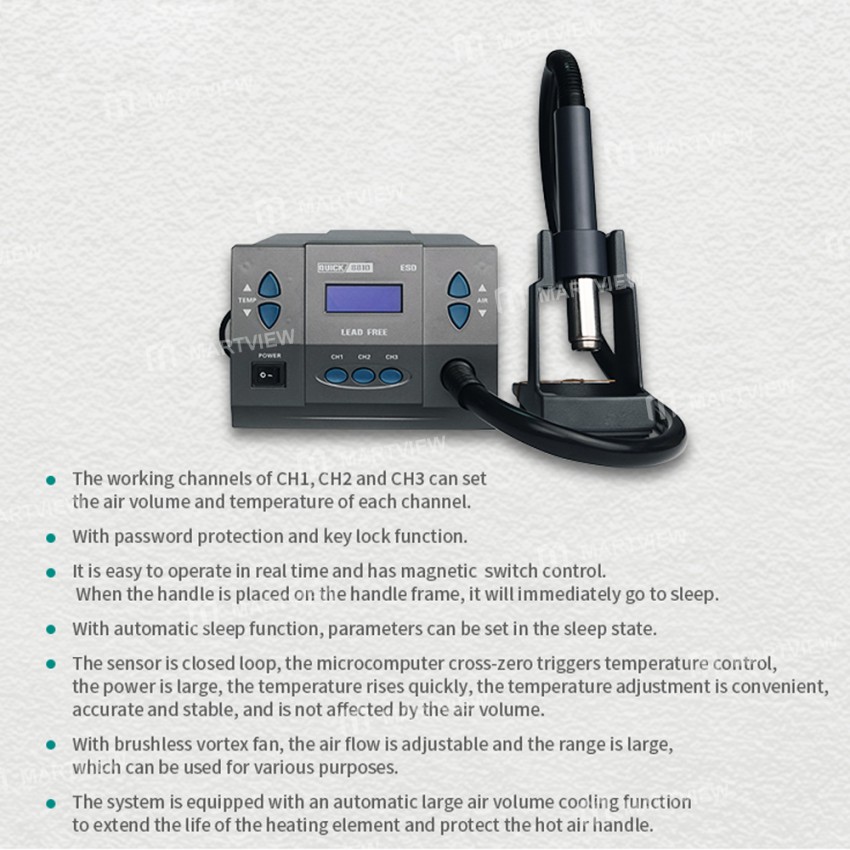

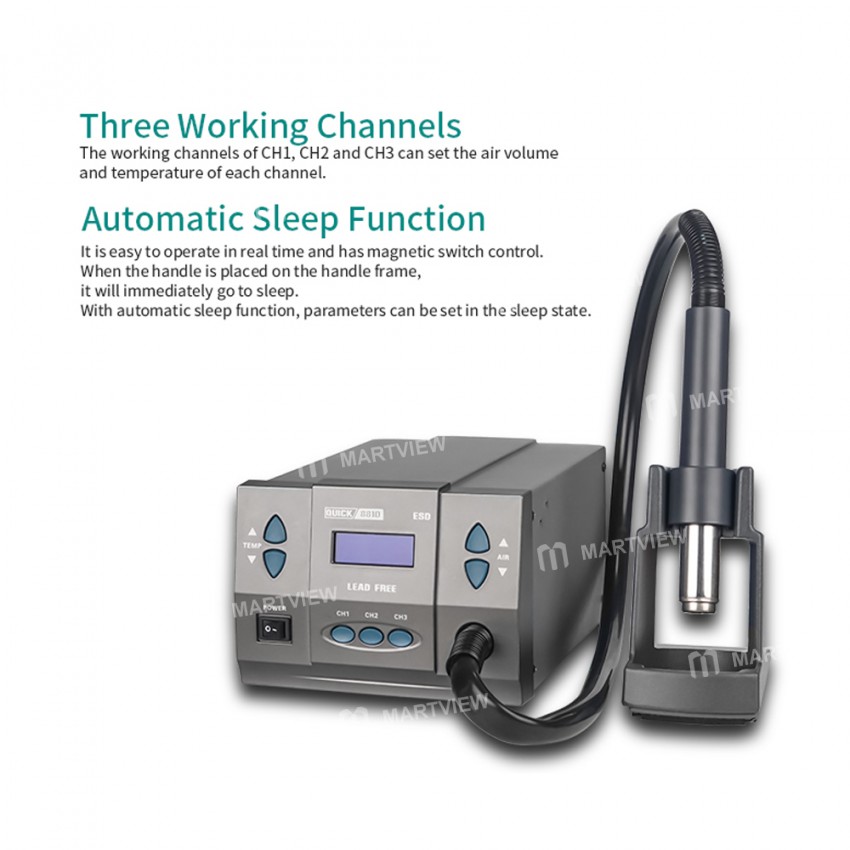

• The working channels of CH1, CH2, and CH3 can set the air volume and temperature of each channel.

• With password protection and key lock function.

• It is easy to operate in real-time and has magnetic switch control. When the handle is placed on the handle frame, it will immediately go to sleep.

• With automatic sleep function, parameters can be set in the sleep state.

• The sensor is closed-loop, the microcomputer cross-zero triggers temperature control, the power is large, the temperature rises quickly, the temperature adjustment is convenient, accurate and stable, and is not affected by the air volume.

• With a brushless vortex fan, the airflow is adjustable and the range is large, which can be used for various purposes.

• The system is equipped with an automatic large air volume cooling function to extend the life of the heating element and protect the hot air handle.

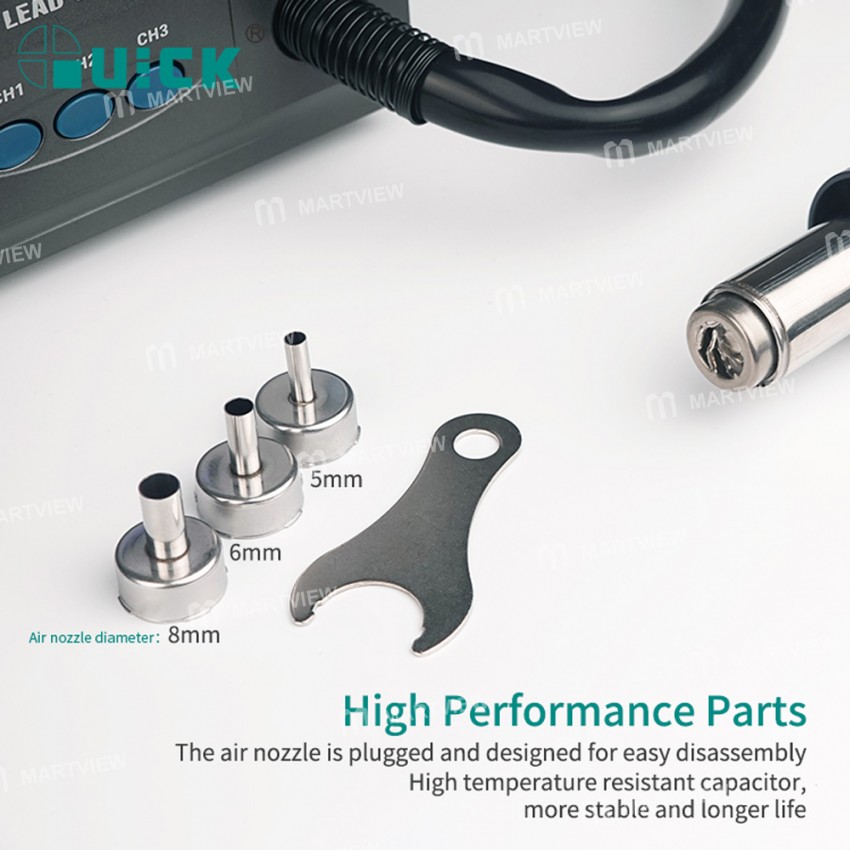

• The air nozzle is plugged and designed, easy to disassemble

• Replace the tuyere with the base, quick and convenient

• Large wind speed, stronger wind, low noise, and wide range

• High-temperature resistant capacitor, more stable and longer life

• The air nozzle is plugged and designed for easy disassembly

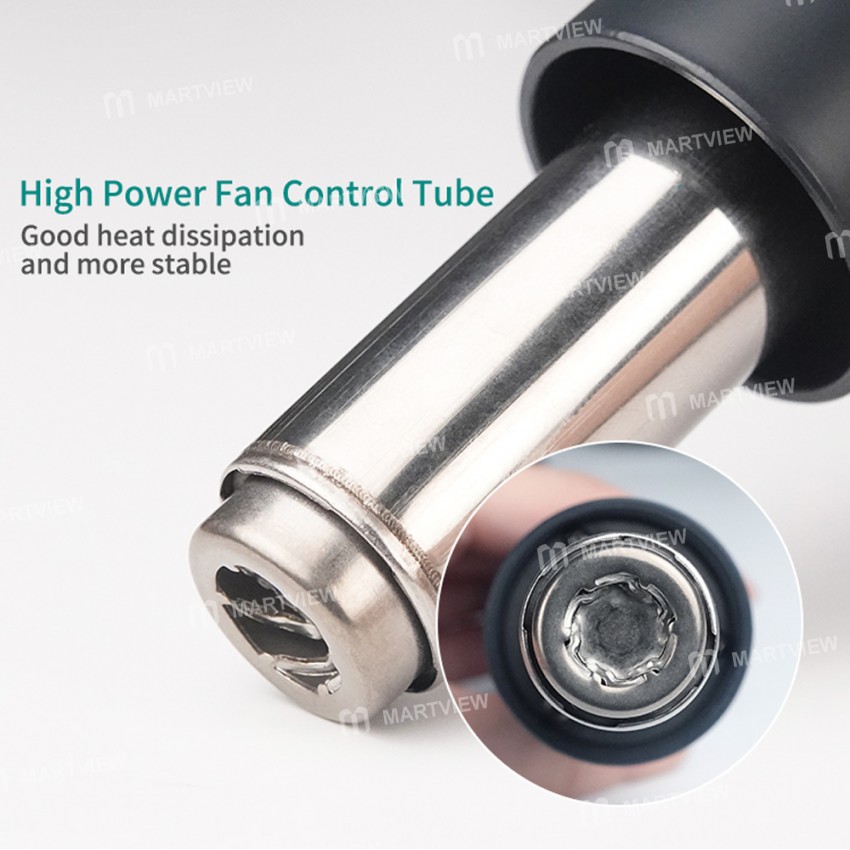

• High power fan control tube

• Good heat dissipation and more stable

• High power conversion rate, energy-saving, and environmental protection

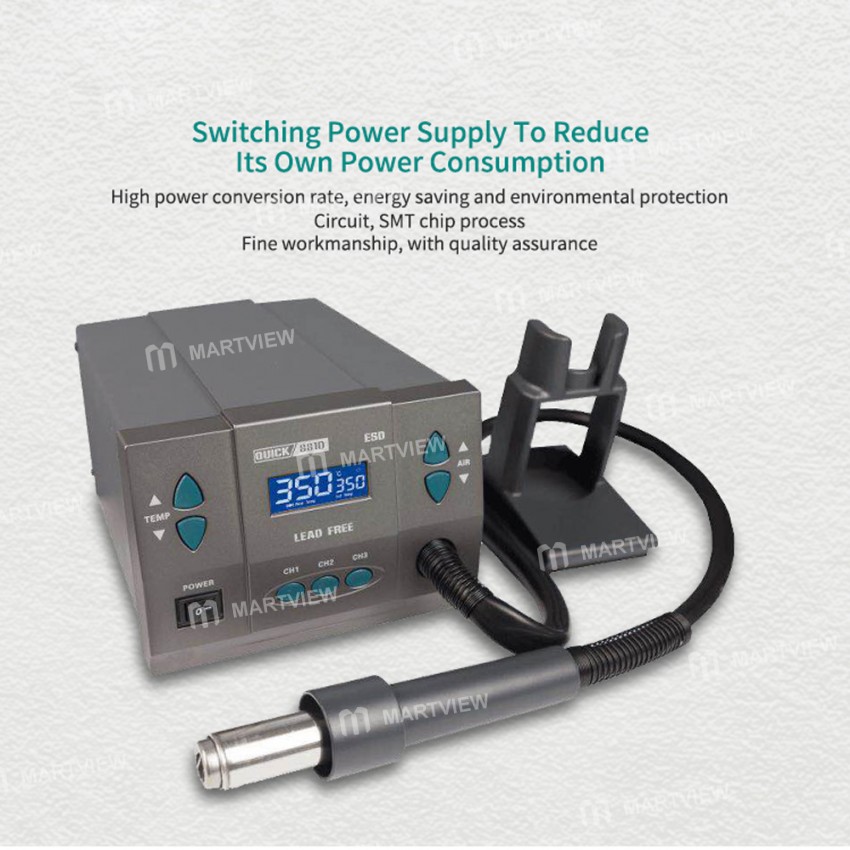

• Switching power supply to reduce its own power consumption

• Good choice for the circuit, SMT chip process

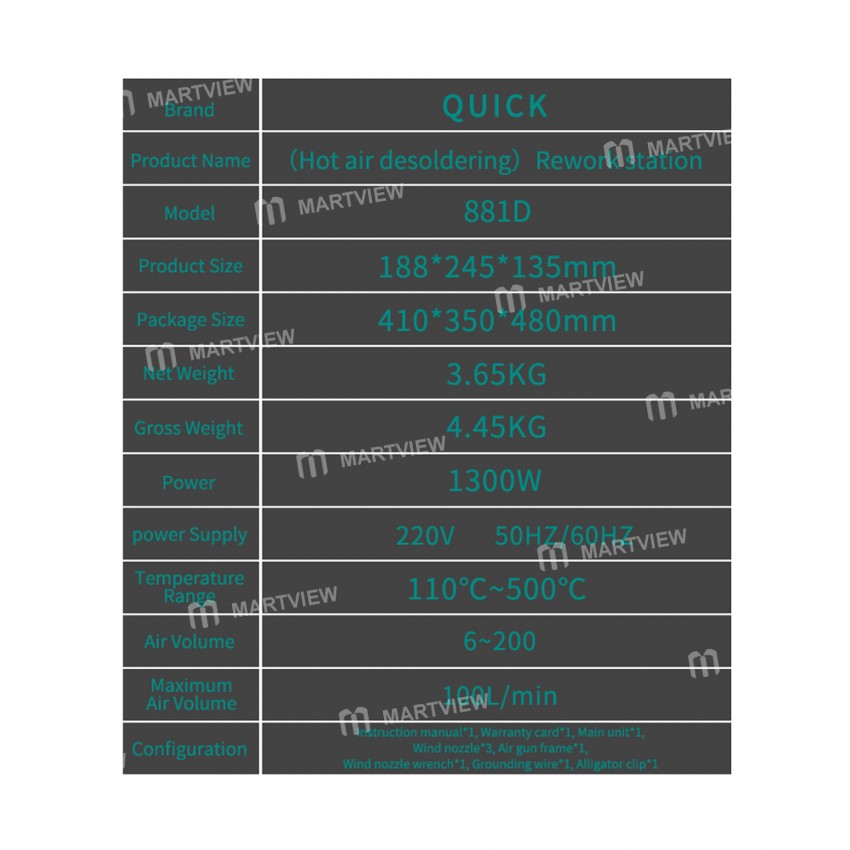

• Power: 1300W

• Voltage: AC 220V / 110V

• Temperature range: 100 °C ~ 500  °C

• Air volume ratio range: 1 to 200

• Maximum airflow: 120L / min

• Dimensions: 188 (L) times 245 (D) times 135 (H) mm

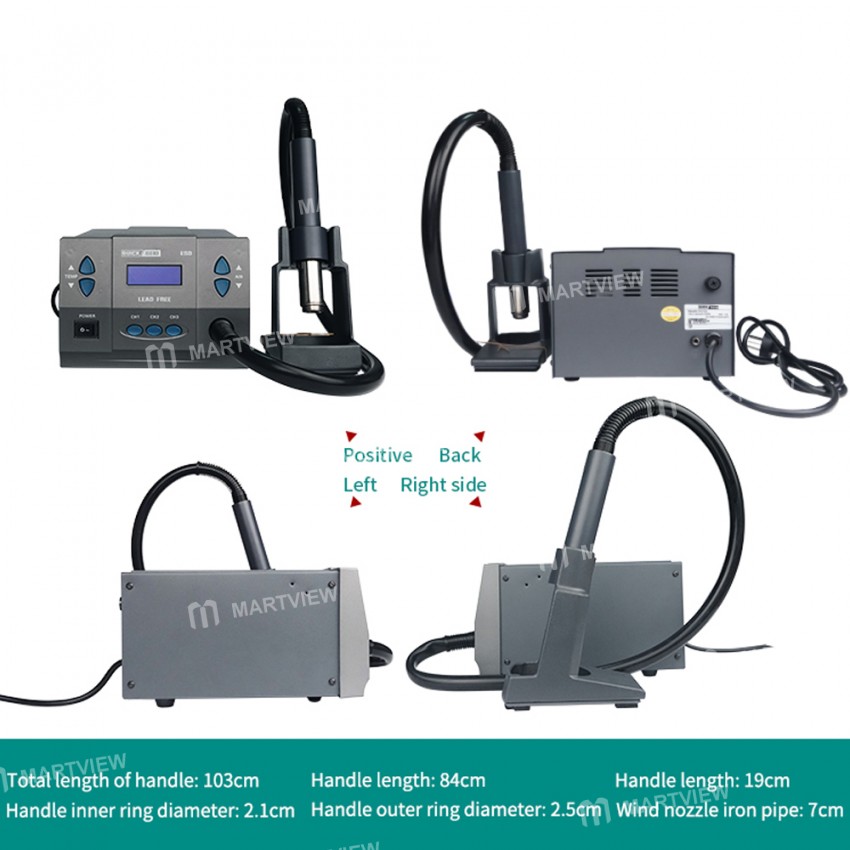

• The total length of handle: 103cm

• Handle length: 84cm

• Handle length: 19cm

• Handle inner ring diameter: 2.1cm

• Handle outer ring diameter: 2.5cm

• Wind nozzle iron pipe: 7cm


Packing includes :
1 x Quick 881D
1 x Air gun stand
3 x Nozzle
1 x Grounding wire
1 x Instruction manual
1 x Nozzle wrench
