Quick TV2 Diaphragm Type Tin Suction Gun Built-in Vacuum Pump with Automatic Sleep

Quick TV2 Diaphragm Type Tin Suction Gun Built-in Vacuum Pump with Automatic Sleep

Features:

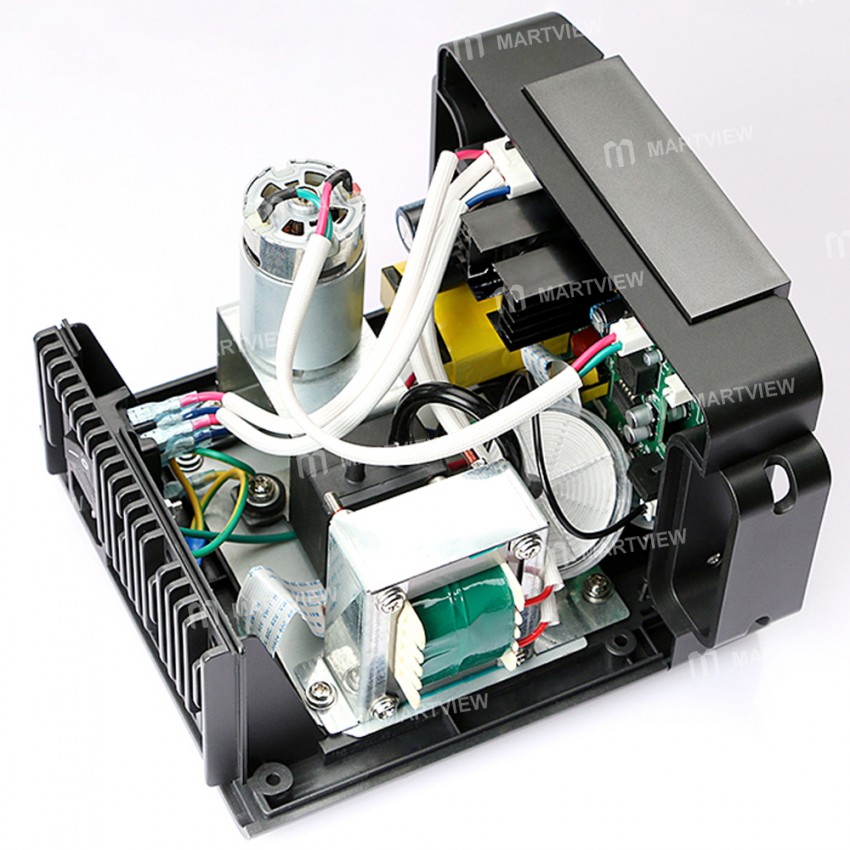

• Built-in unique vacuum pump, with stronger suction

• The heating system adopts a closed sensor circuit to control the temperature, and the temperature is accurate

• The heater uses a low-voltage power supply, which is completely isolated from the power grid, safe and reliable

• LCD display, key-type temperature adjustment, and automatic sleep function can be selected

• Digital temperature calibration is adopted to improve reliability

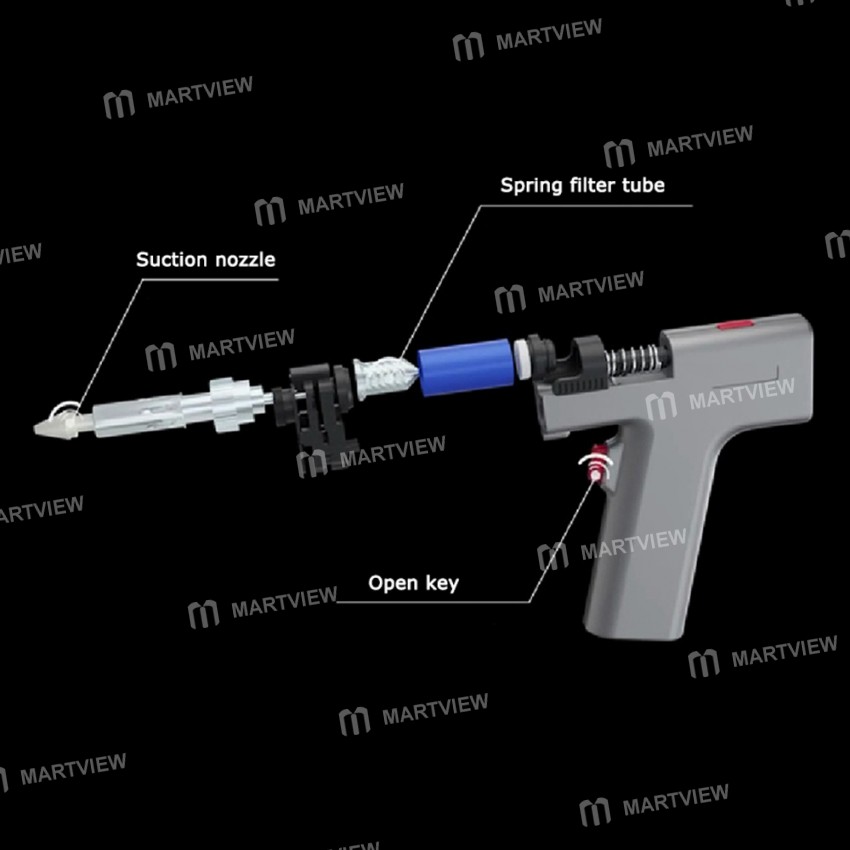

• The tin suction nozzle and heating tube are specially designed so that the solder can be sucked into the filter even if it is in a molten state without regular maintenance, and the work efficiency is high

• Anti-scald vacuum hose is used to prevent damage to contact heating parts

• The main machine adopts a lead-free soldering design, so long as a lead-free suction nozzle is used, it can realize truly lead-free low-temperature desoldering

Specification:

• Brand / Model: QUICK TV2

• Input voltage: AC 220V/50Hz

• Power: 200W

• Temperature range: 300~500° C

• Temperature stability: ±2°C (no air load)

• Handle model: TVS30

• Heating core model: TV30-03ZZ

• Suction nozzle: AN01 Series

• Power cord length: 1.8m

• Static wire length: 1.0m

• Handle cable length: handle length 1.2m/gas tube length 1.1m, outside diameter 6mm

• Host size: 189.6*189*134.3mm

• Package size: 335*380*225mm

• Weight: About 4.5kg

Package includes:

• 1 x Host

• 1 x Handle

• 1 x Handle bracket

• 1 x Silicone pad

• 1 x Power cord

• 1 x Static wire
