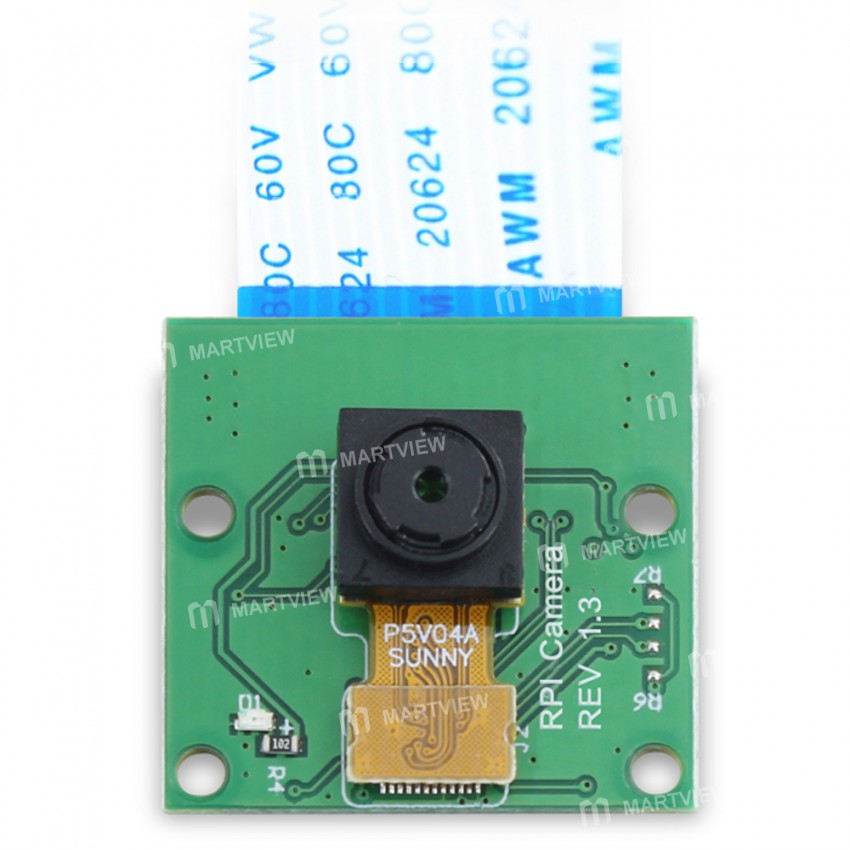

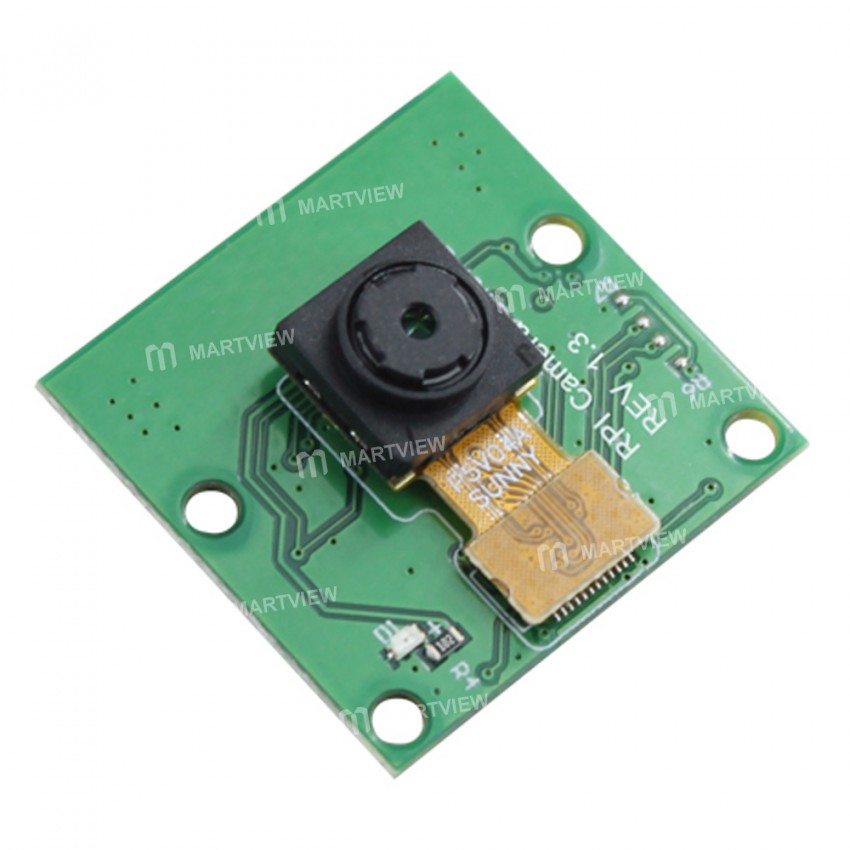

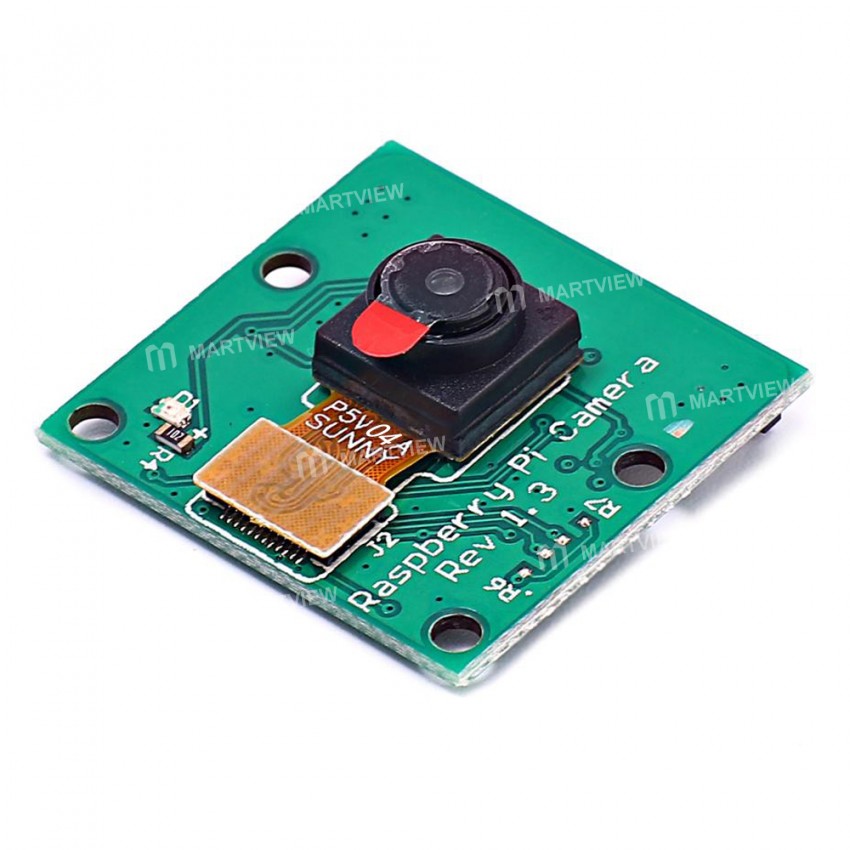

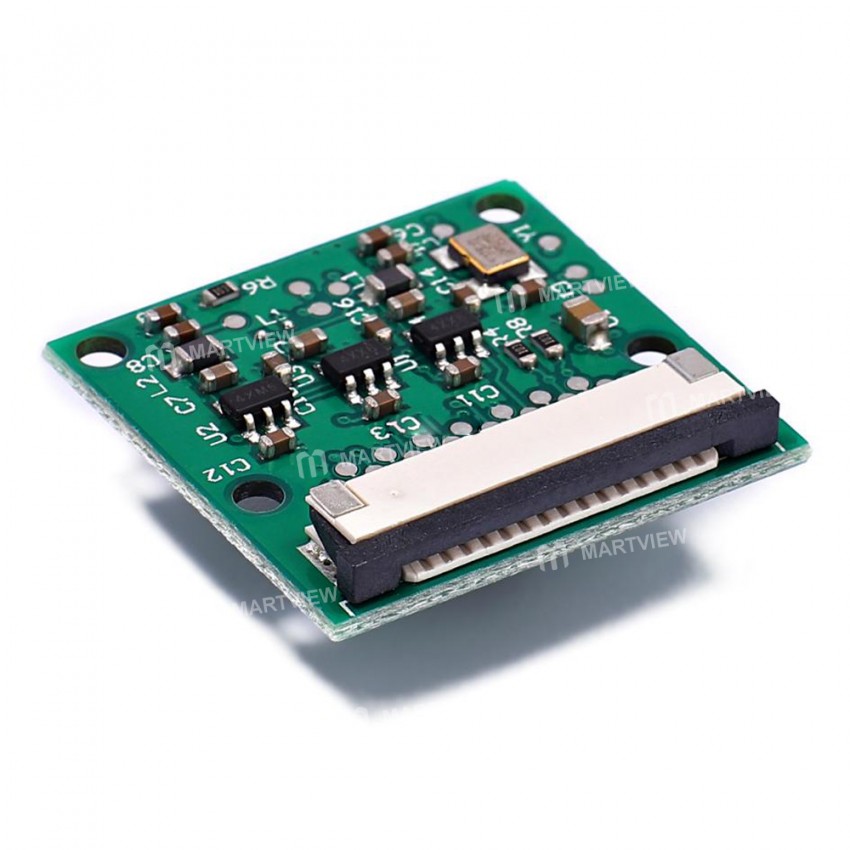

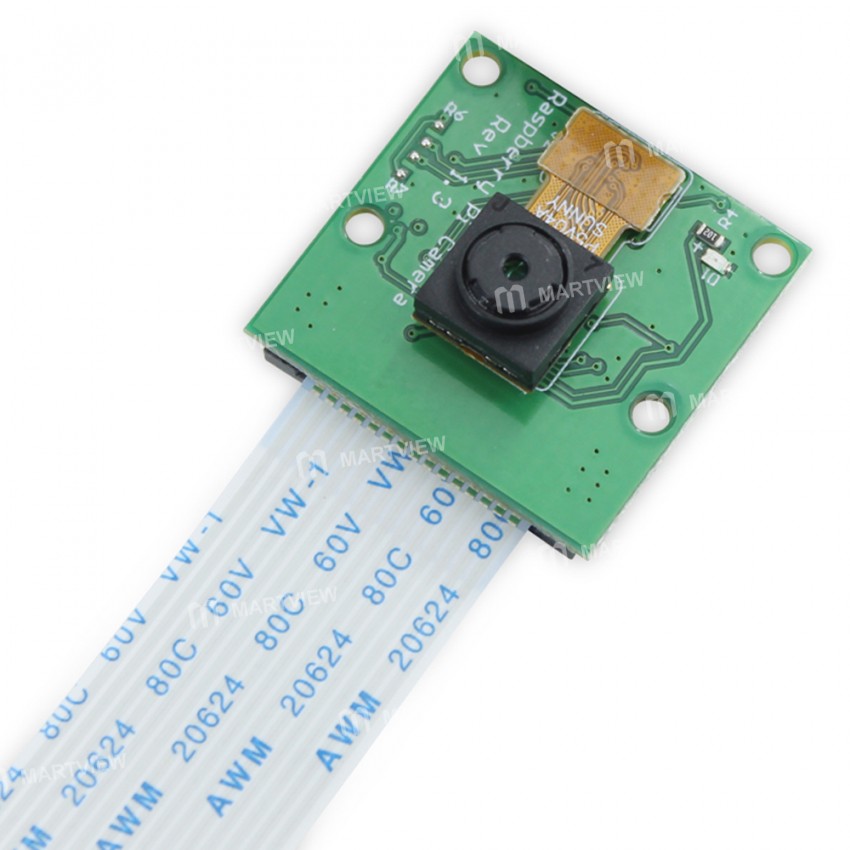

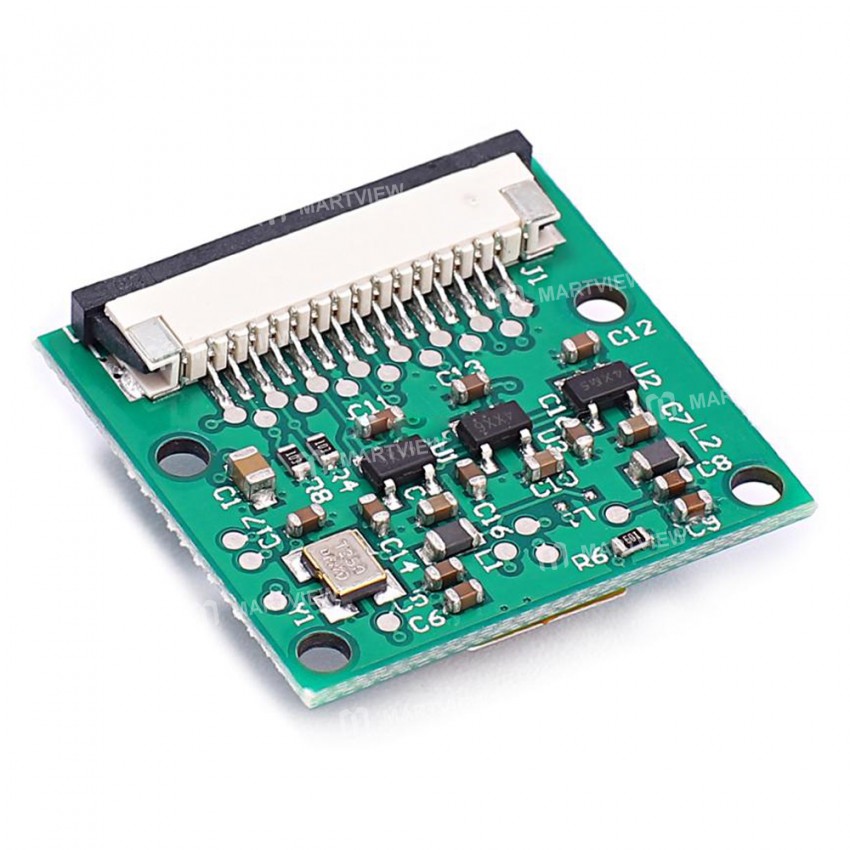

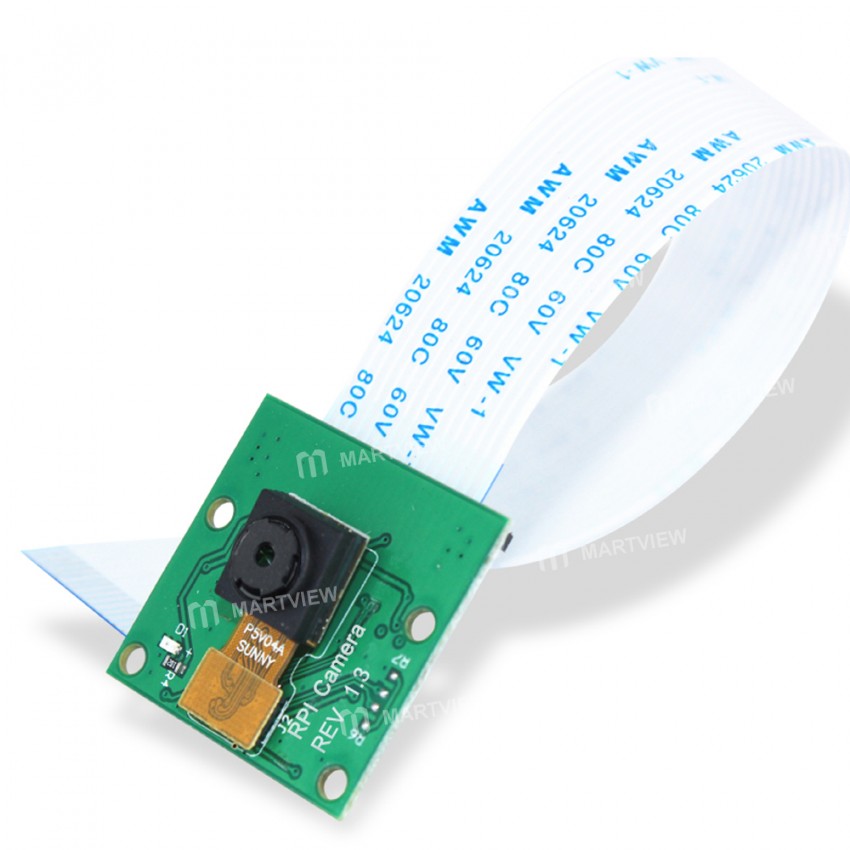

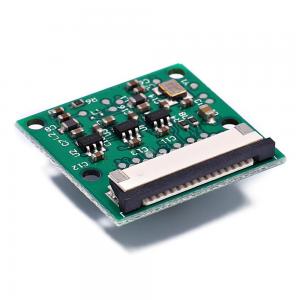

Raspberry Pi Model B 5-Million Pixels Mini Camera Module for Raspberry Pi 2B / 3B / 3B+ / 4B

Raspberry Pi Model B 5-Million Pixels Mini Camera Module for Raspberry Pi 2B/3B/3B+/4B
Use Zero v1.3 conversion cable for Raspberry Pi Zero/ZeroW

Specification:

• Photosensitive chip: OV5647

• Sensor type: OmniVision OV5647 Color CMOS QSXGA (5-megapixel)

• Sensor size: 3.67 x 2.74 mm (1/4" format)

• Shot: 1/4   5M

• Aperture: 2.9

• Focal length: 3.29

• FOV: 65 degree

• Pixel Count: 2592 x 1944

• Pixel Size: 1.4 x 1.4 um

• Lens: f=3.6 mm, f/2.9

• The angle of View: 54 x 41 degrees

• Field of View: 2.0 x 1.33 m at 2 m

• Full-frame SLR lens equivalent: 35 mm

• Fixed Focus: 1 m to infinity

• Video: 1080p at 30 fps with codec H.264 (AVC)

• Up to 90 fps Video at VGA

• Board size : 25 x 24 mm (not including flex cable)

• Support Raspberry Pi 3 Model B+

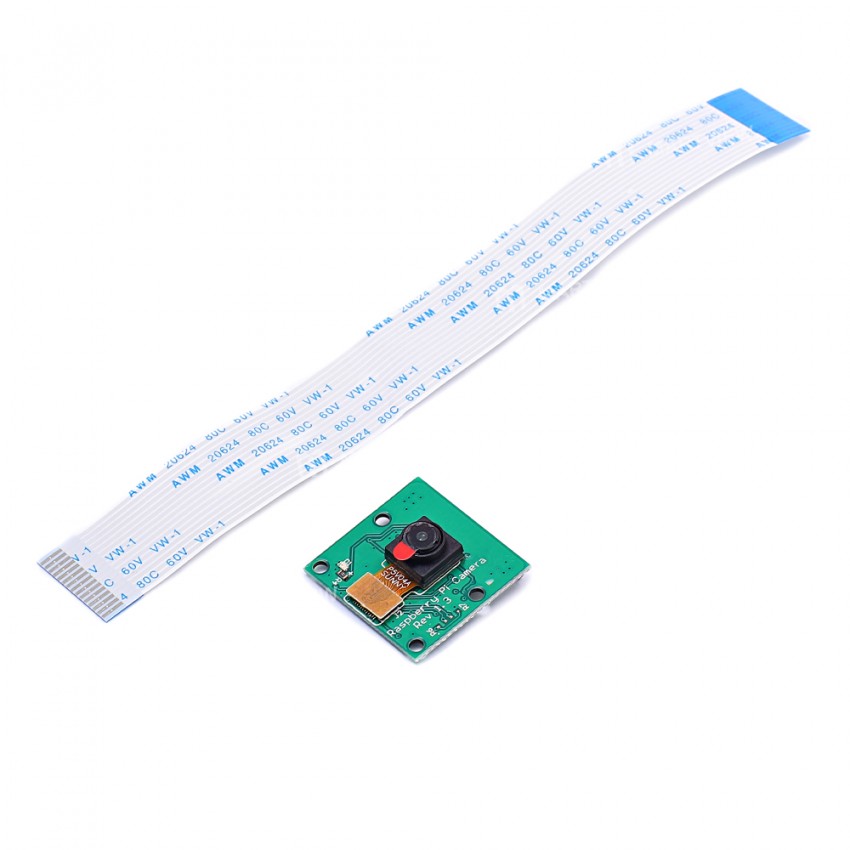

Package includes:

• 1 x Module

• 1 x Flex cable
