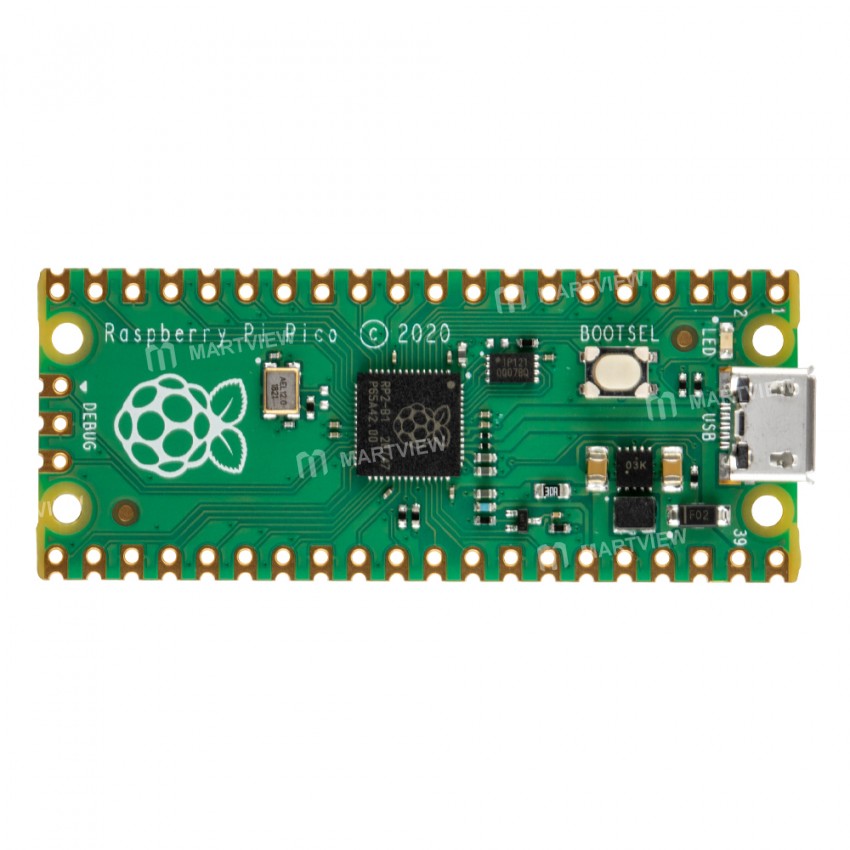

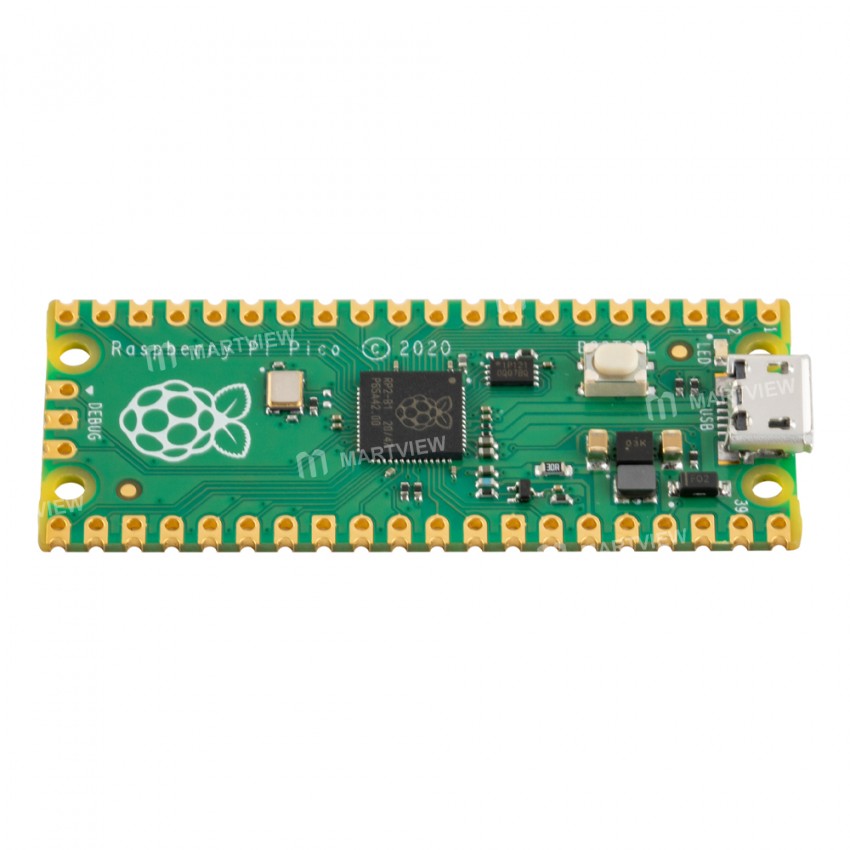

Raspberry Pi RP2040 Dual-Core Pico Development Board Supports Micro Python

Raspberry Pi RP2040 Dual-Core Pico Development Board Supports Micro Python

Features:

• The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip

• It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces

• The Raspberry Pi Pico features two ARM Cortex-M0+ cores running up to 133MHz; 256KB RAM; 30 GPIO pins, and a broad range of interfacing options.

• This is paired with 2MB of onboard QSPI Flash memory for code and data storage

• In addition to powerful hardware resources, Pico has rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK

• Pico has been designed to use either soldered 0.1'' pin-headers (it is one 0.1'' pitch wider than a standard 40-pin DIP package) or can be used as a surface-mountable 'module', as the user IO pins are also castellated

• There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow soldered SMT module

Specification:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

• 264KB of SRAM, and 2MB of onboard Flash memory

• The castellated module allows soldering directly to carrier boards

• USB 1.1 with device and host support

• Low-power sleep and dormant modes

• Drag-and-drop programming using mass storage over USB

• 26 × multi-function GPIO pins

• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

• Accurate clock and timer on-chip

• Temperature sensor

• Accelerated floating-point libraries on-chip

• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Package includes:

• 1 x Development Board
