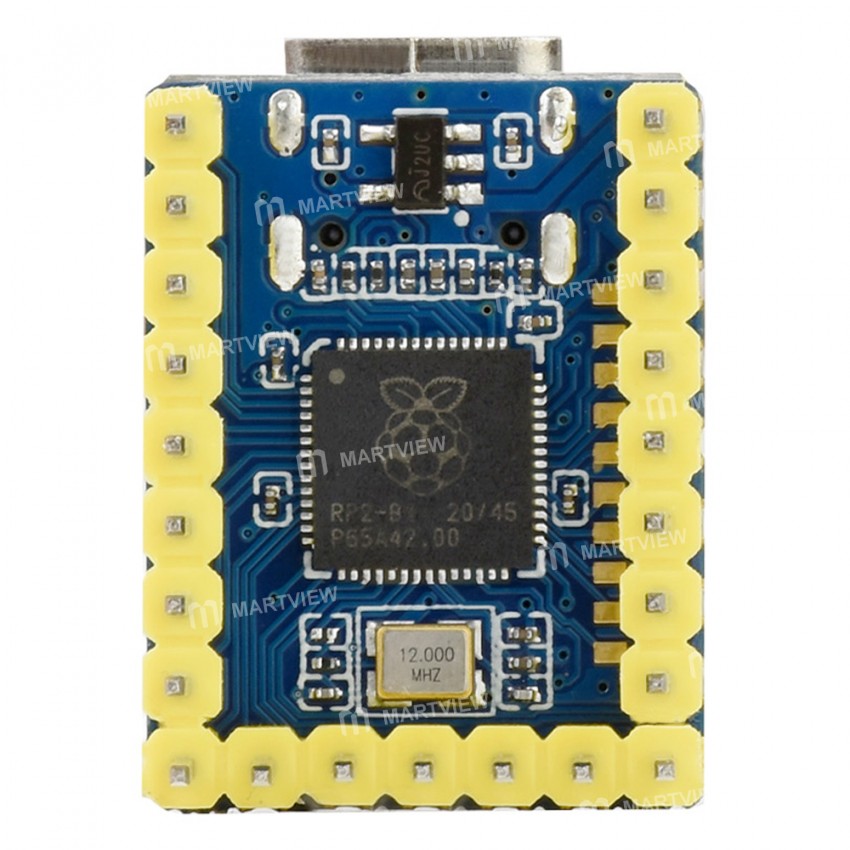

Raspberry Pi RP2040-Zero Microcontroller PICO Development Board

Raspberry Pi RP2040-Zero Microcontroller PICO Development Board

Features:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

• 264KB of SRAM, and 2MB of onboard Flash memory

• USB-C connector, keeps it up to date, easier to use

• The castellated module allows soldering directly to carrier boards

• USB 1.1 with device and host support

• Low-power sleep and dormant modes

• Drag-and-drop programming using mass storage over USB

• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)

• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels

• Accurate clock and timer on-chip

• Temperature sensor

• Accelerated floating-point libraries on-chip

• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Package includes:

• 1 x Board

• 1 x Pin
