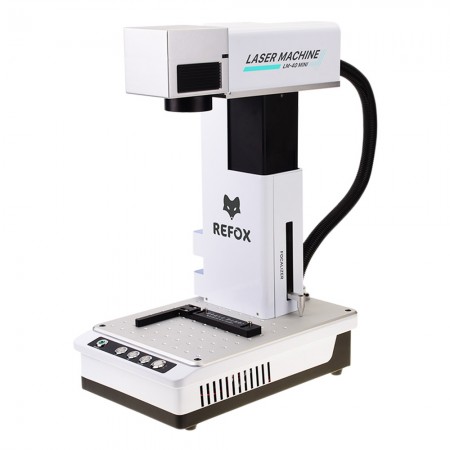

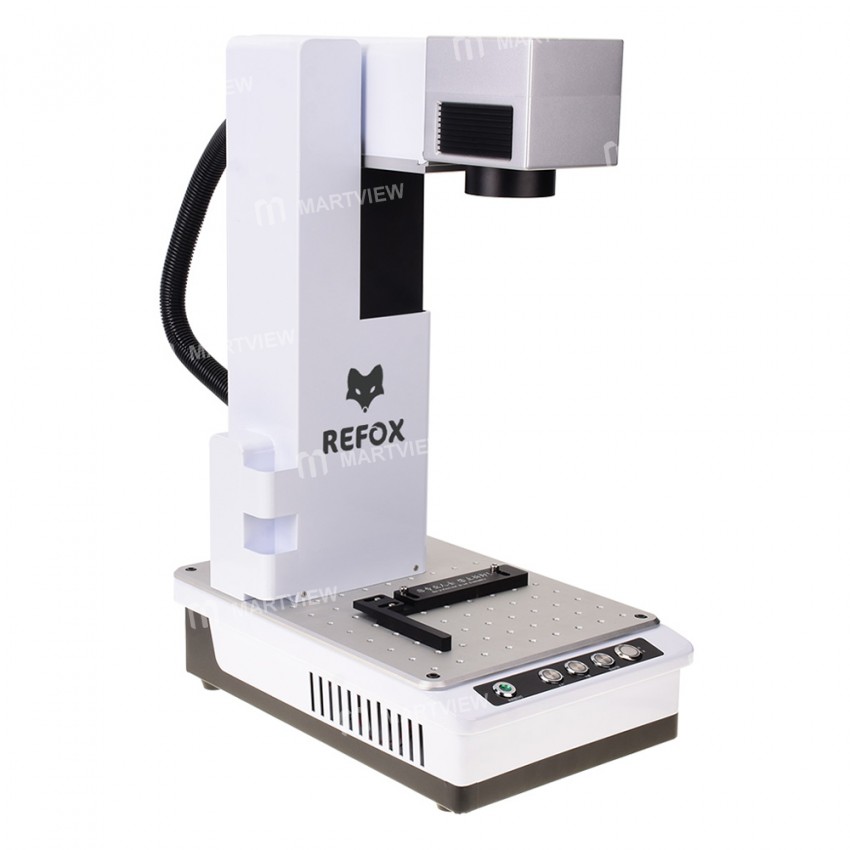

Refox LM-40 Mini Laser Marking Machine for Mobile Phone Back Glass Engraving / Removal

Refox LM-40 Mini Laser Marking Machine for Mobile Phone Back Glass Engraving / Removal

Features:

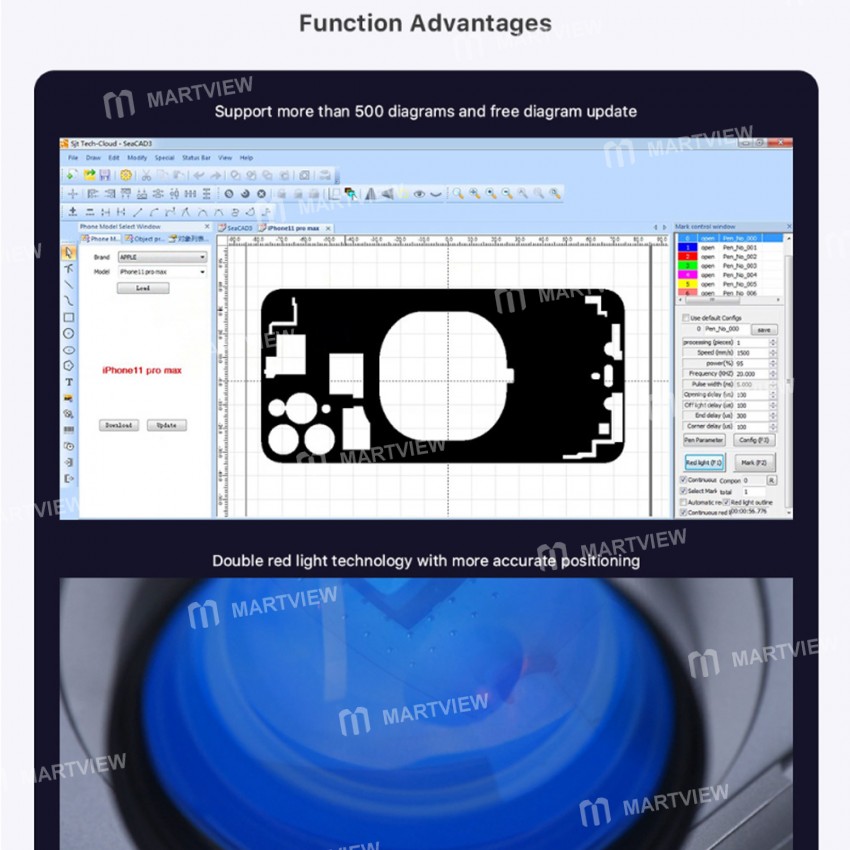

• Support 500+ types of drawings on the market, with free automatic drawing updates

• Support laser engraving on most metal and non-metal materials, with the ability to mark bar codes, numbers, characters, patterns, etc

• Support quick and safe replacement of mobile phone glass back covers, enhancing the user experience

• Fast, high accuracy, and good quality, lightweight design and low space requirements, simple operation and stable performance

• One-click accurate focus, focal length pins are highly accurate, intelligent sense

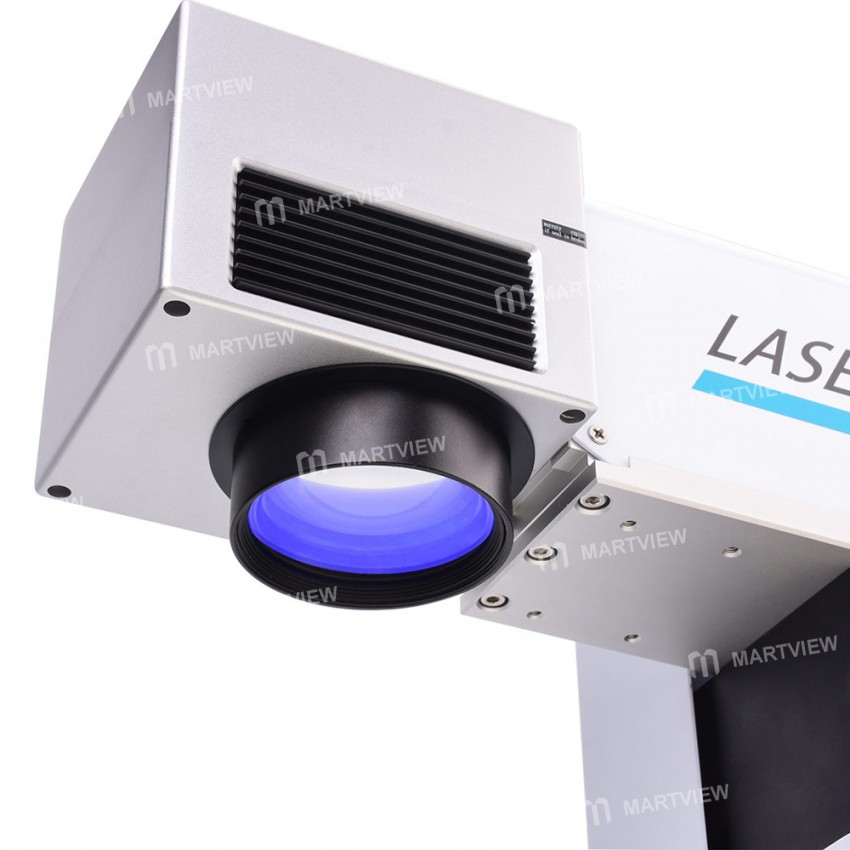

• Featured high-speed galvanometer, supports multiple times of etching 2-5 times higher than an ordinary galvanometer

• The professional workbench makes your equipment positioning more accurate and has a larger operating space

• Small dimensions and lightweight structure avoid your desktop from being a mess

Specification:

• Brand: REFOX

• Model: LM-40

• Product Name: Mini Laser Marking Machine

• Cooling Method: Built-in air cooling

• Optical Maser: Laser Diode, LD

• Ambient Temperature: -10℃ ~ 65℃

• Equipment Total Power: ≤ 800W

• Power Supply:110V/220V±10%, 50Hz±5%

• Laser Power: 6W

• Laser Wavelength:1.06μm

• Marking Speed: ≤10000mm/s

• Marking Accuracy: ≤0.001mm

• Marking Depth: 0.015-0.5mm

• Marking Line Width: 0.05-0.01mm

• Marking Format: 175mm x 175mm

• Repeatability: ≤0.001mm

• Product Size: 250*385*562mm

• Package Size: 645*575*360mm

• Net Weight: 15kg

Package includes:

• 1 x Laser Machine

• 1 x Power Cord
