Relife M-16 HDMI HD 4K 30fps Industrial Grade Electronic Microscope Camera

Relife M-16 HDMI HD 4K 30fps Industrial Grade Electronic Microscope Camera

Features:

• HDMI HD 30 frames /Original Sony chip/Sensor 1/2 inch

• High-definition electronic camera dedicated to trinocular microscopes

• 4K/30 frame output/Sony chip/Ultra HD Pixels

• Equipped with 1/2-inch Sony chip, high sensitivity, showing rich picture effects

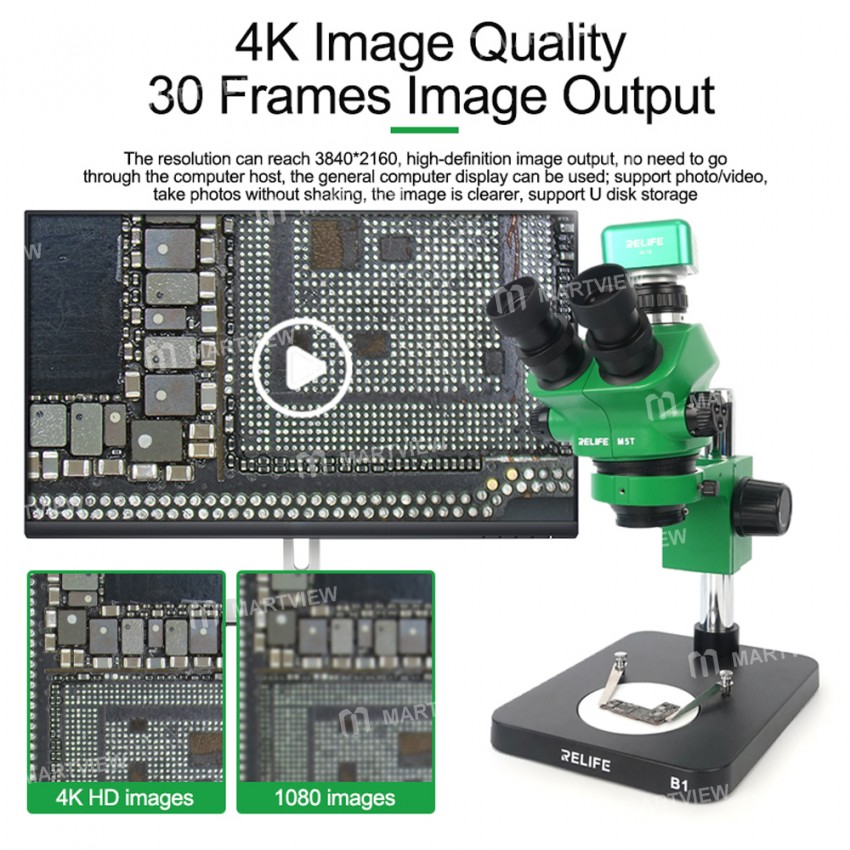

• 4K image quality 30 frames image output

• The resolution can reach 3840*2160, high-definition image output, no need to go through the computer host, the general computer display can be used

• Support photo/video, take photos without shaking, the image is clearer, support U disk storage

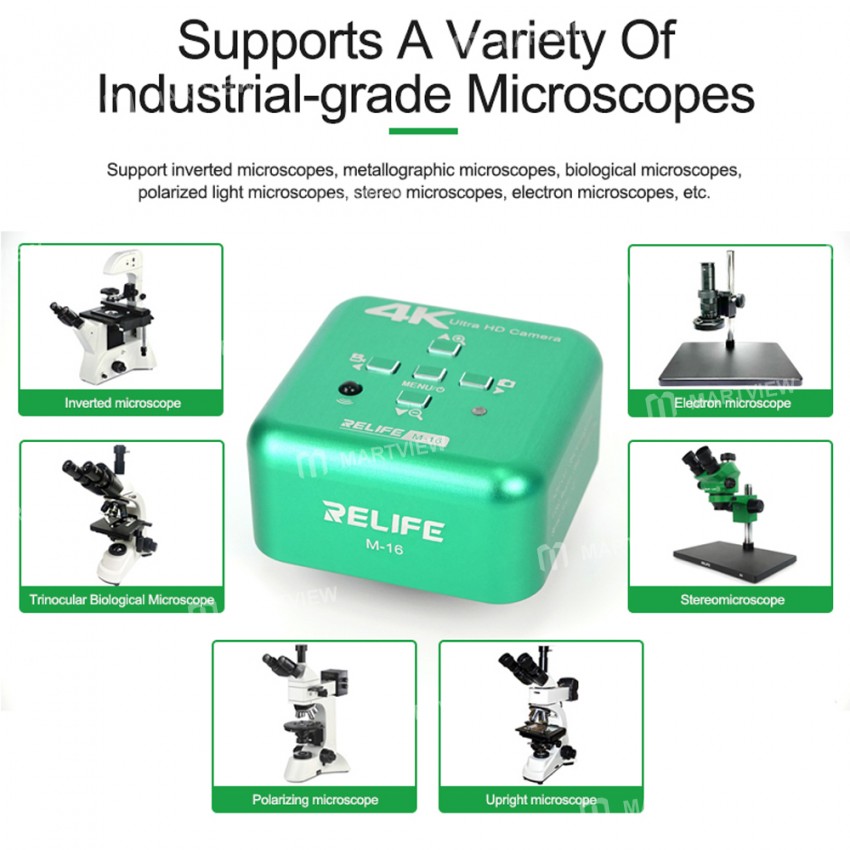

• Supports a variety of industrial-grade microscopes

• Support inverted microscopes, metallographic microscopes, biological microscopes, polarized light microscopes, stereo microscopes, electron microscopes, etc

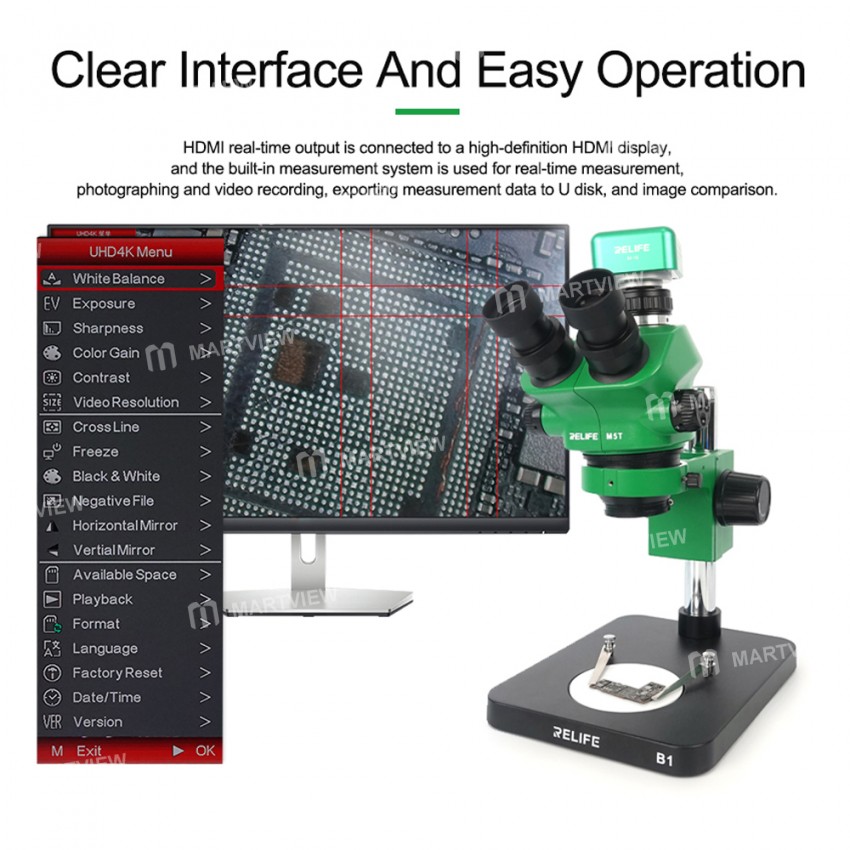

• Clear interface and easy operation

• HDMI real-time output is connected to a high-definition HDMI display, and the built-in measurement system is used for real-time measurement, photographing and video recording, exporting measurement data to U disk, and image comparison

• Support 10 horizontal and vertical lines/color/line width adjustable

Specification:

• Brand: Relife

• Product Name: HDMI HD 4K Camera

• Model: M-16

• Net Weight: About 205g

• Gross Weight: About 540g

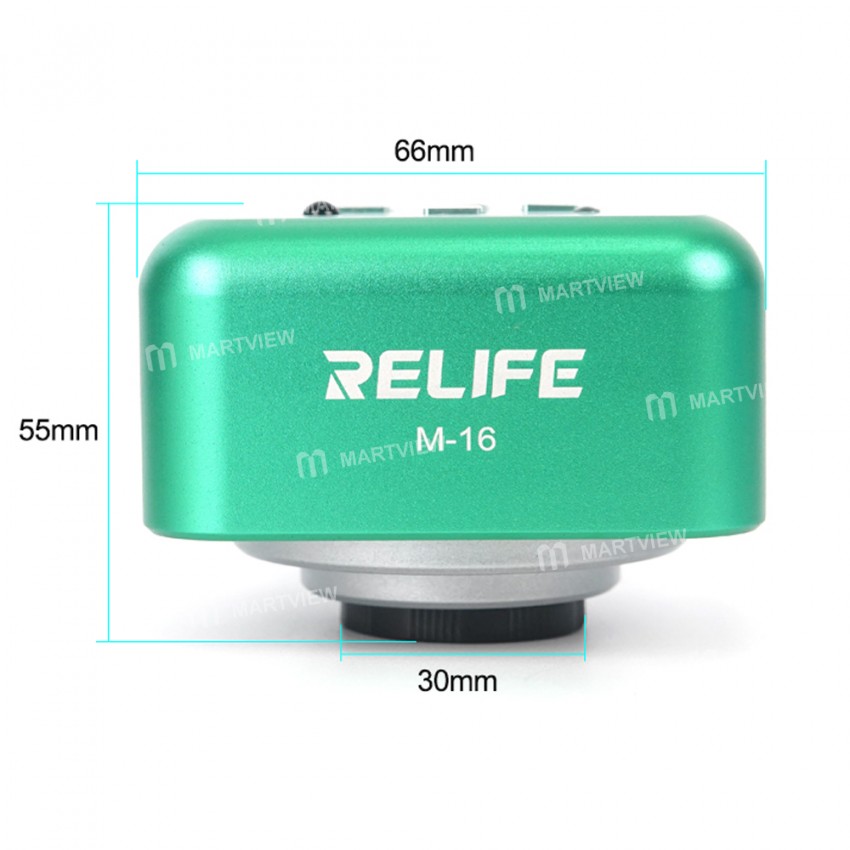

• Product Size: 66*66*40mm

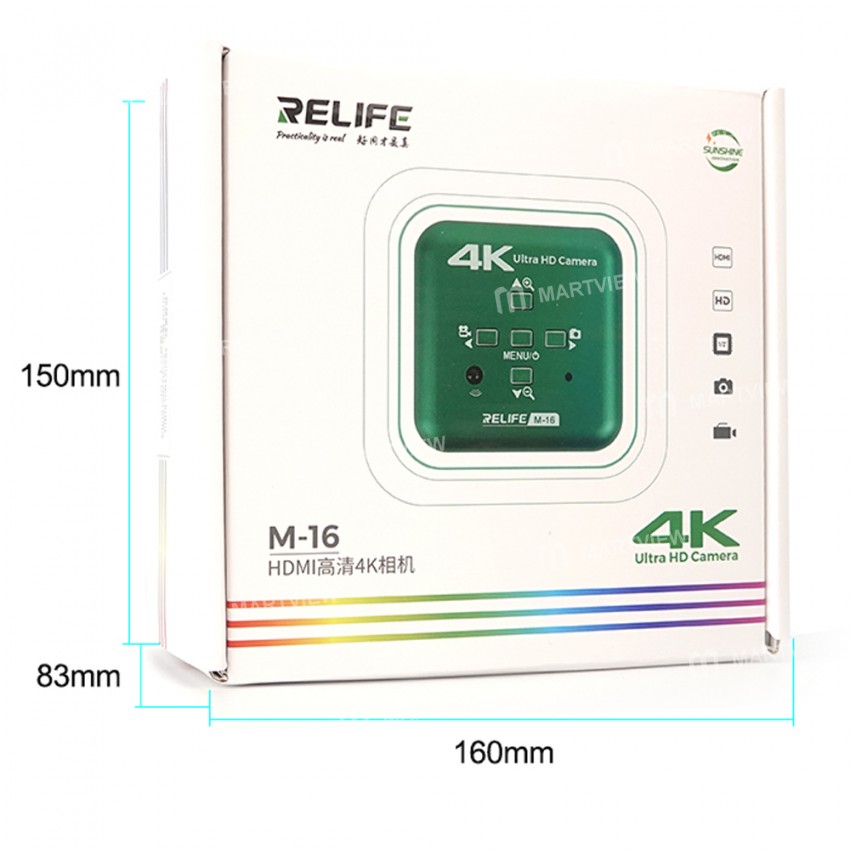

• Package Size: 150*83*160mm

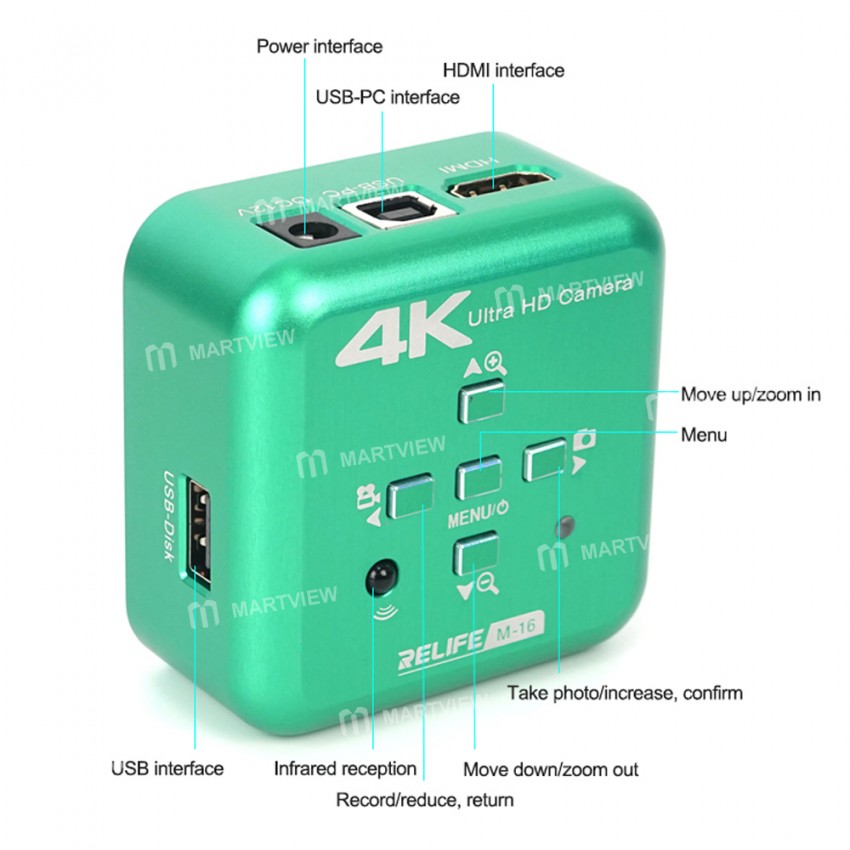

• Video Output: HDMI/USB-PC/U disk photo and video interface

• HDMI Output Resolution: 4k@30fps/1080@60fps

• USB-pc Output Resolution: 4k@25fps

• U Disk Video Resolution: 4k@30fps/1080@60fps

• Camera Interface: CS

• Operating Voltage: 12V

• Working Current: 200mA

• Photosensitive Size: 1/2 inch

• Cell Size: 2μm*2μm

• Effective Pixels: 4k/3840*2160

• Clarity: 2000 TVline

• Frame Rate: 4k@30fps/1080@60fps

• Scanning Method: Progressive line by line

• Shutter Type: Electronic shutter

• Dynamic Range: 78dB

• Signal To Noise Ratio: 40dB

• Menu Language: Chinese/English

• White Balance Mode: One-touch white balance/Manual/Auto

• Reduced Reflection Adjustment: Adjustable

• Removable Crosshair: Support 10 horizontal and vertical lines/color/linewidth adjustable configure

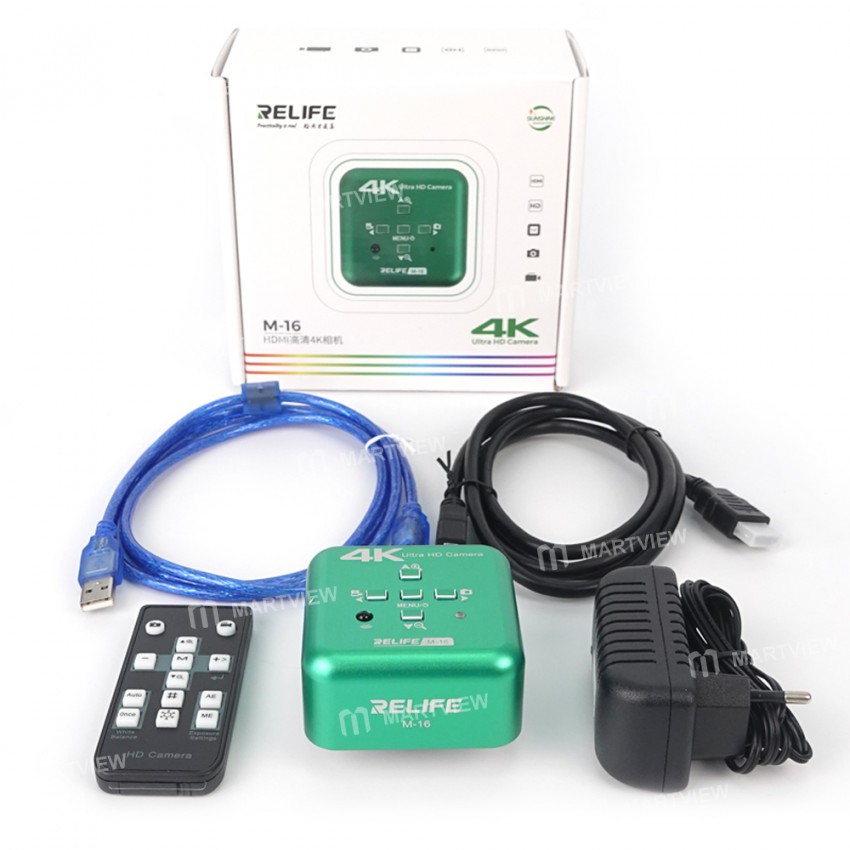

Package includes:

• 1 x Host

• 1 x HDMI Cable
• 1 x Remote Control

• 1 x Power Cord
