Relife RL-936WB Mini Battery Spot Welding Machine for Battery Chip Soldering Repair

Relife RL-936WB Mini Battery Spot Welding Machine for Battery Chip Soldering Repair

Features:

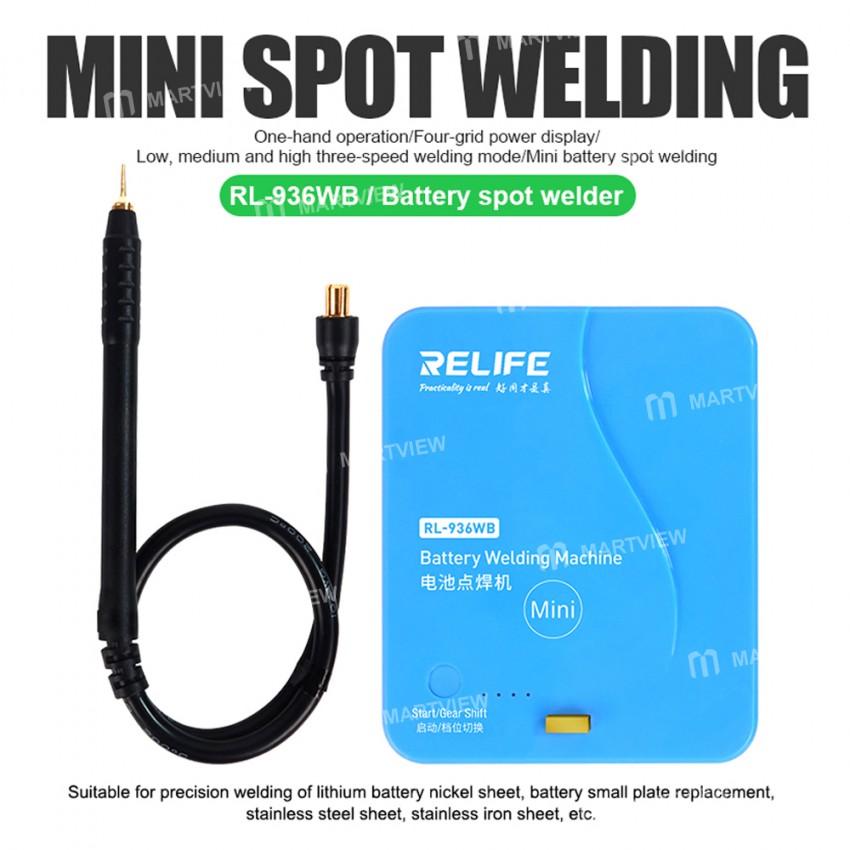

• RL-936WB Battery spot welder, One-hand operation/Four-grid power display/Low, medium, and high three-speed welding mode/Mini battery spot welding

• Suitable for precision welding of lithium battery nickel sheet, battery small plate replacement, stainless steel sheet, stainless iron sheet, etc

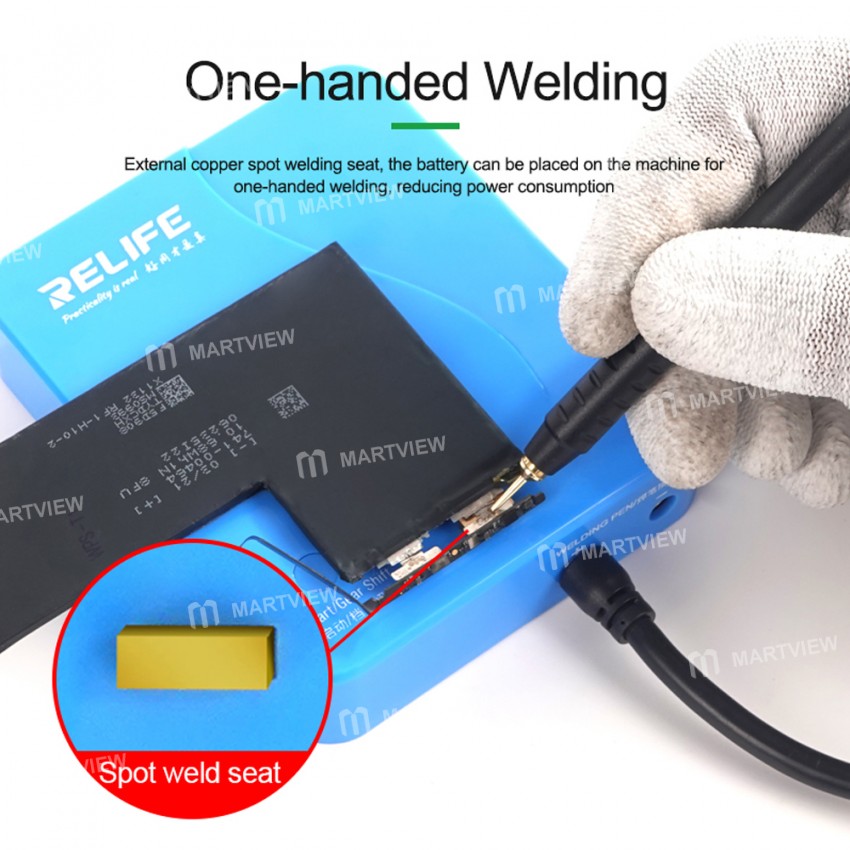

• External copper spot welding seat, the battery can be placed on the machine for one-handed welding, reducing power consumption

• Weldable to nickel mobile phone battery, support welding iPhone/Huawei/Xiaomi/OPPO/VIVO, and other mainstream mobile phone batteries

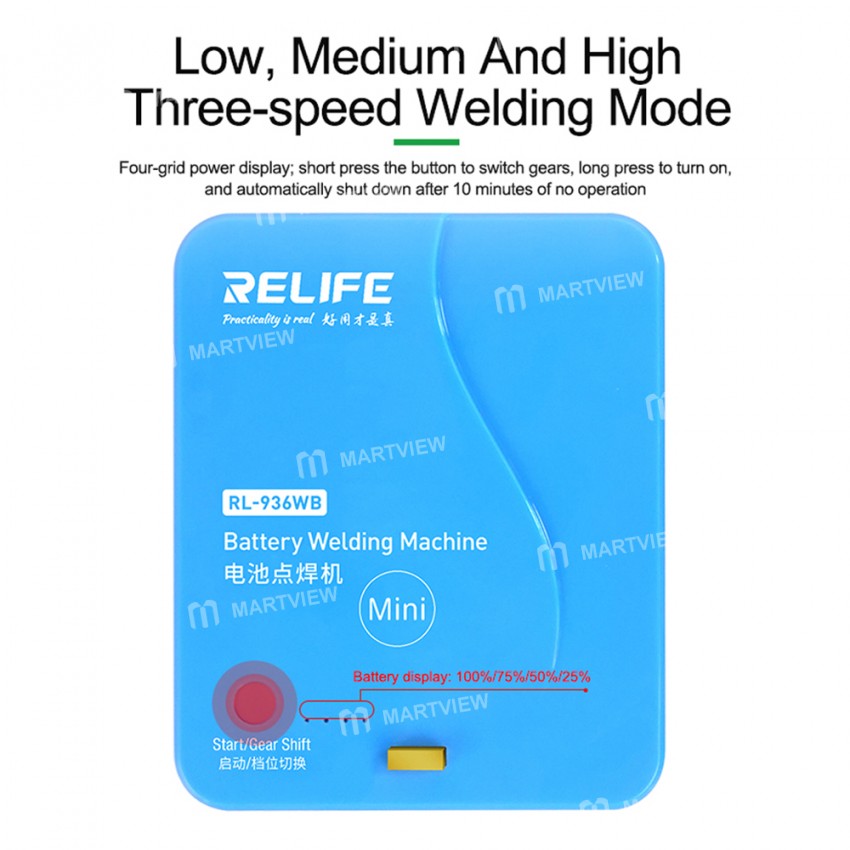

• Four-grid power display; short press the button to switch gears, long press to turn it on, and automatically shut down after 10 minutes of no operation

• Small and portable, conforming to the size of the human hand, more ergonomic design, bringing you a more comfortable experience

• Break the traditional soldering pen all-in-one, the pen tip is as fine as 1mm, and the soldering pen tip can be rotated and replaced quickly

• Built-in rechargeable lithium battery, longer battery life, USB charging plug, convenient and fast

Specification:

• Brand: Relife

• Product Name: Battery Spot Welder

• Model: RL-936WB

• Net Weight: About 145g

• Gross Weight: About 240g/set

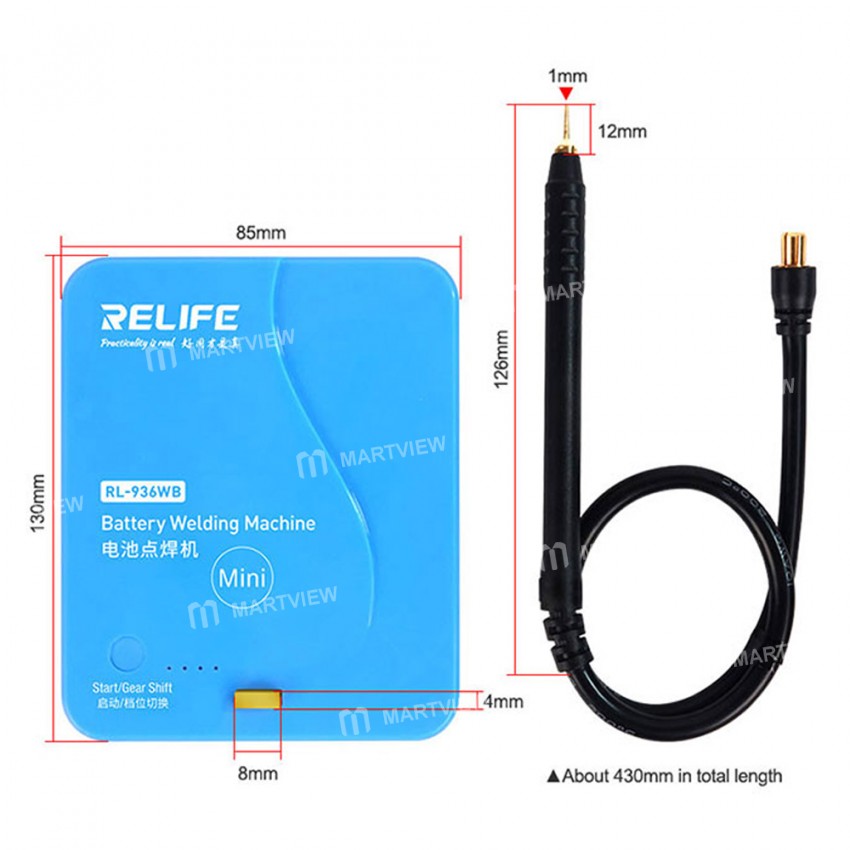

• Package Size: 130*85*23mm(4ost)

• Package Size: 165*113*27mm/set

• Other Sizes: About 430mm (Spot Welding Pen); About 950mm(Type-C Cable)

• Battery Capacity: 3800mAh

• Welding Output Current: 400A (Max)

• Welding Output Voltage: 4.2V (Max)

• Enter: Type-C 5V/2A(Max)

• Battery Level Display: 100%/75%/50%/25%

Package includes:

• 1 x Host

• 1 x Welding Test Lead

• 1 x Type-C Power Cord
