Relife RL-936WG High-Power 650A Double Pulse Battery Spot Welding Machine

Relife RL-936WG High-Power 650A Double Pulse Battery Spot Welding Machine

Features:

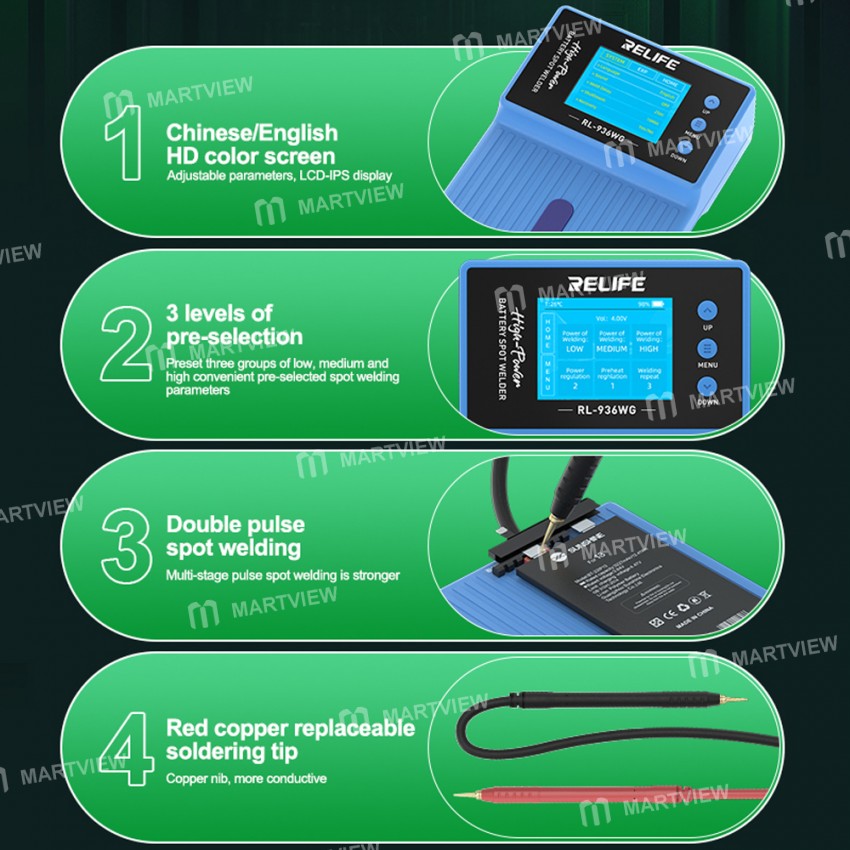

• Adjustable full-parameter color screen/Double pulse spot welding/Three levels of pre-selection

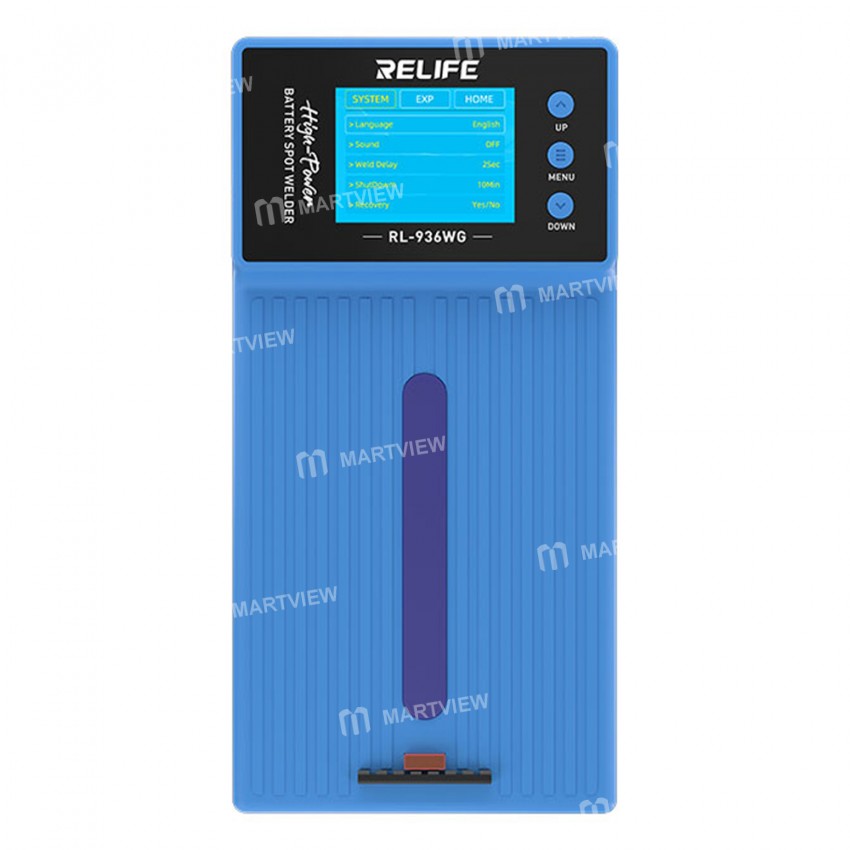

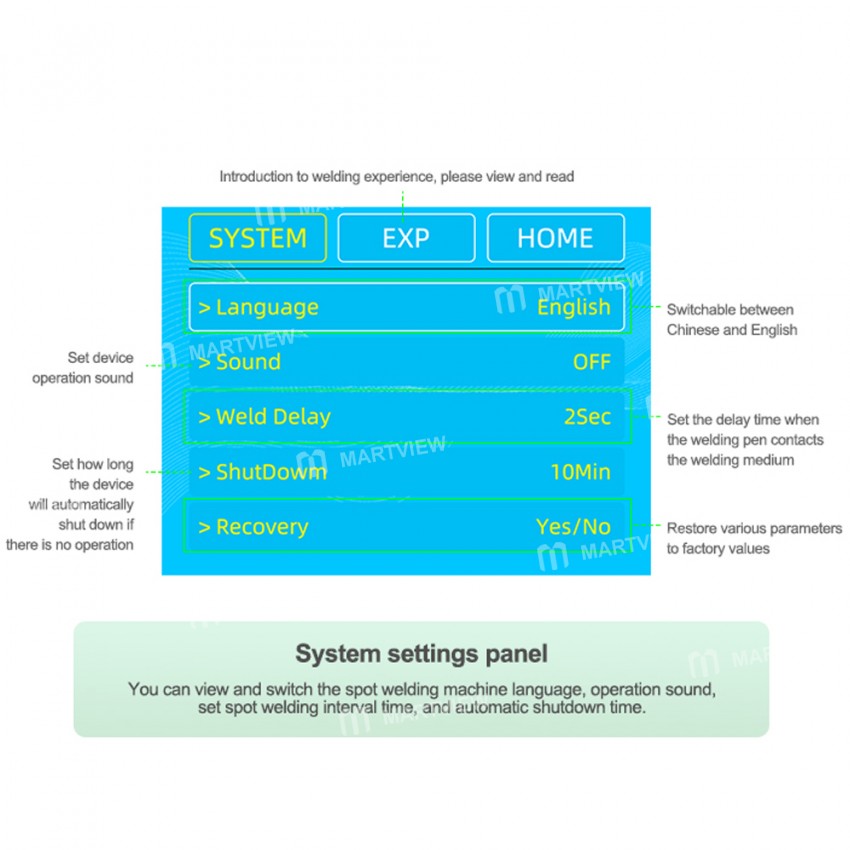

• Chinese/English HD color screen/Adjustable parameters, LCD-IPS display

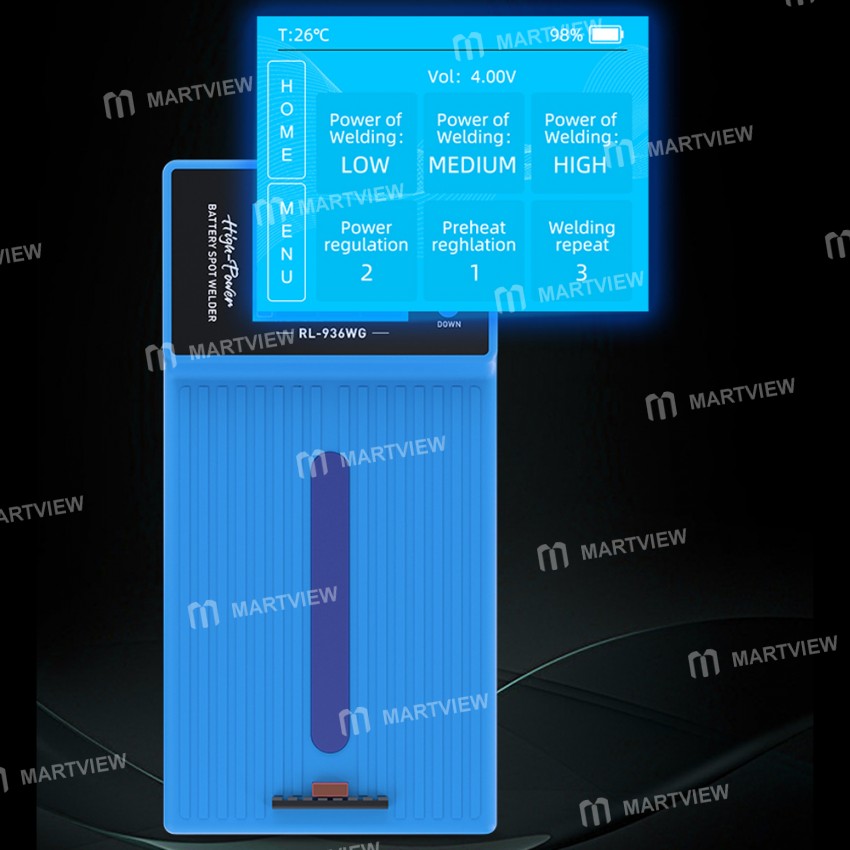

• Three levels of pre-selection, preset three groups of low, medium, and high convenient pre-selected spot welding parameters

• Double pulse spot welding, and multi-stage pulse spot welding are stronger

• Red copper replaceable soldering tip, copper nib, more conductive, 650A high magnification output, large capacity battery output, long battery life

• Excellent product design + sufficient high-quality materials, efficient operation, continuous welding without waiting

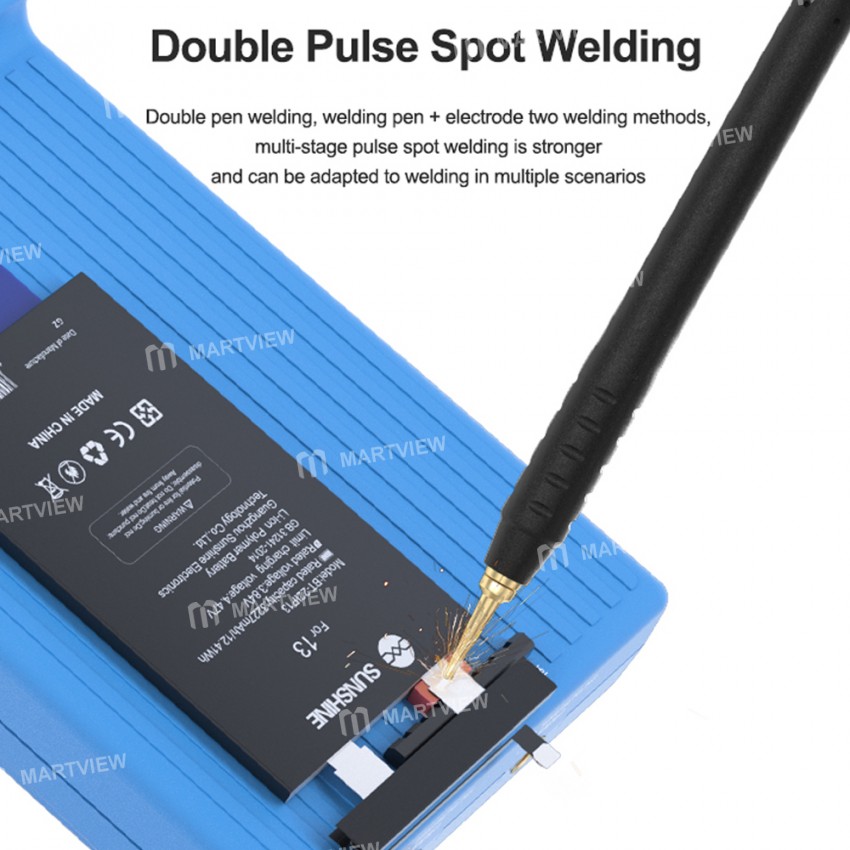

• Double pen welding, welding pen + electrode two welding methods, multi-stage pulse spot welding is stronger and can be adapted to welding in multiple scenarios

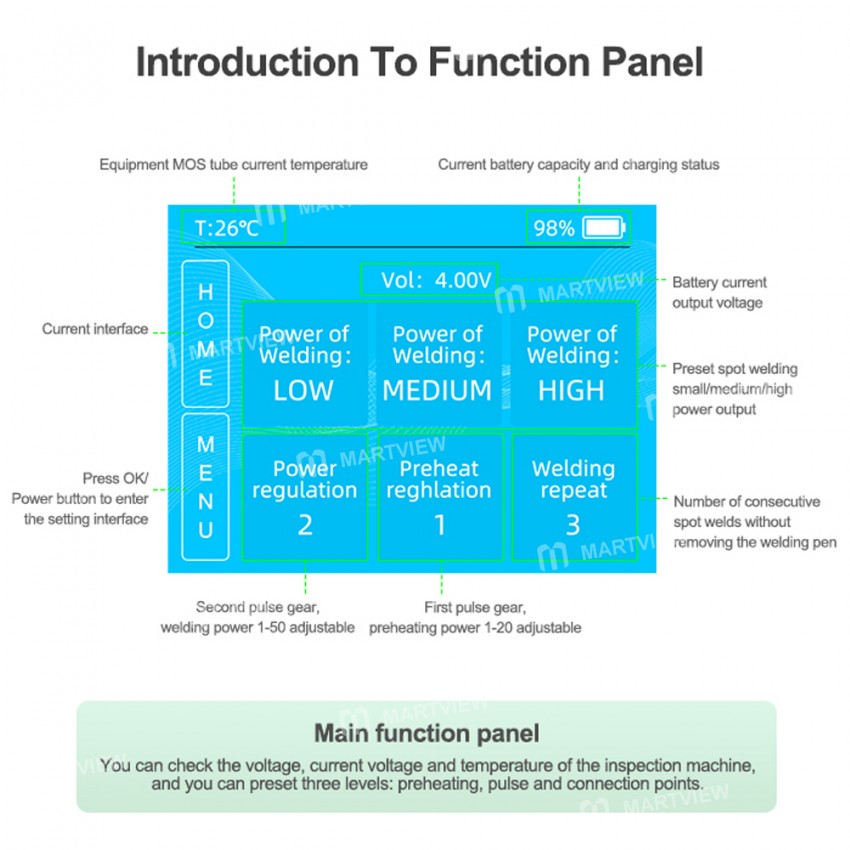

• You can check the voltage, current voltage, and temperature of the inspection machine, and you can preset three levels: preheating, pulse, and connection points

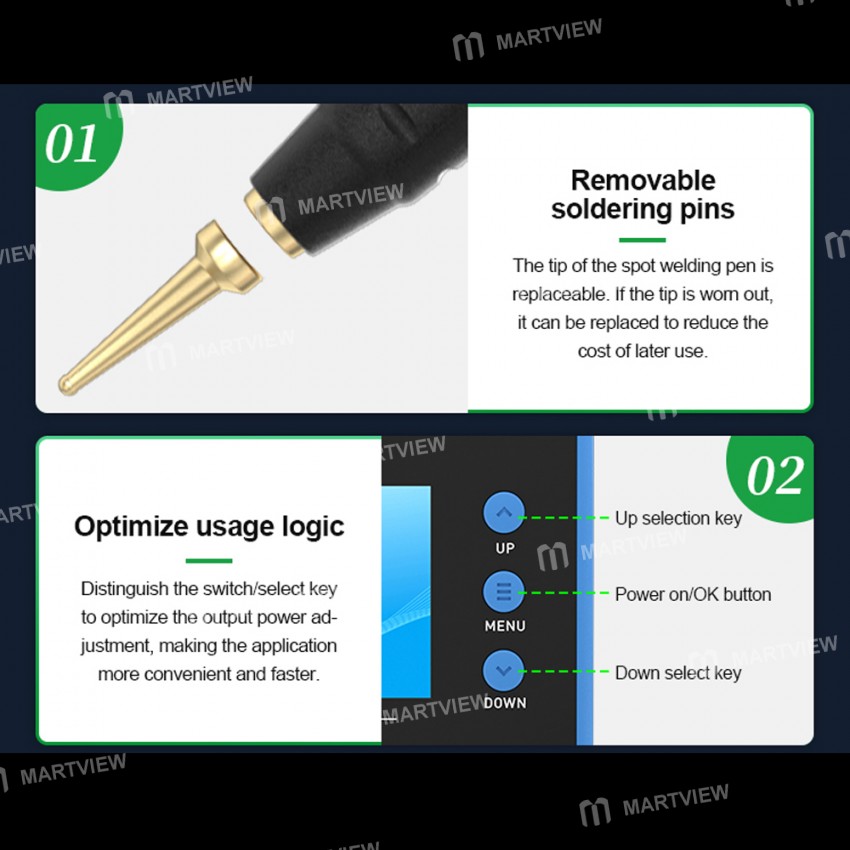

• The tip of the spot welding pen is replaceable. If the tip is worn out, it can be replaced to reduce the cost of later use

• Distinguish the switch/select key to optimize the output power adjustment, making the application more convenient and faster

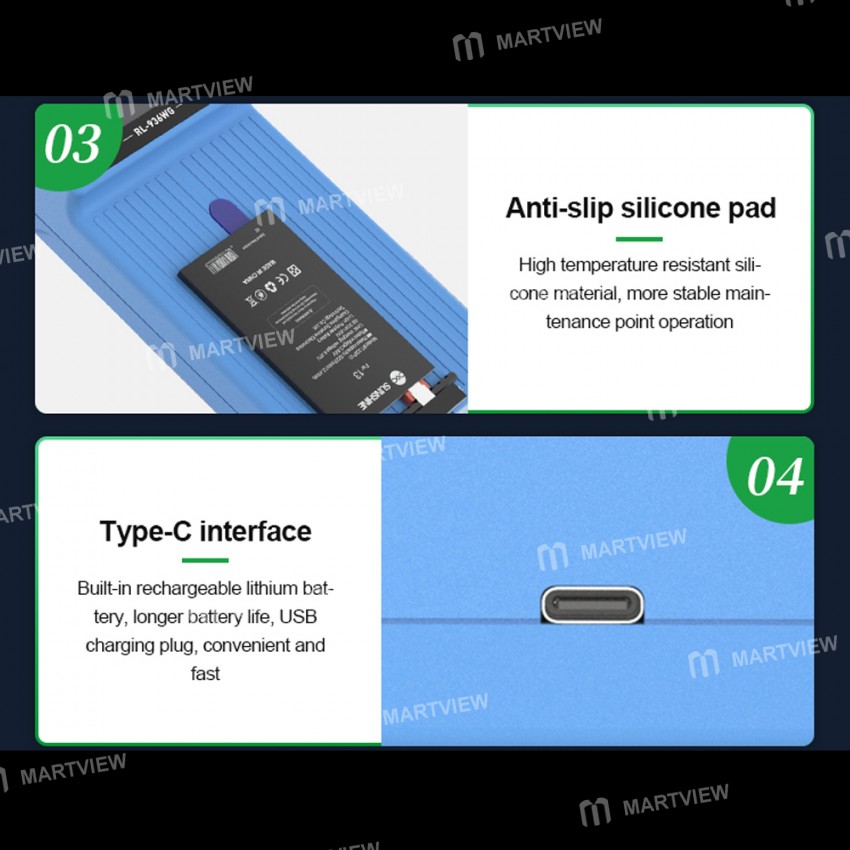

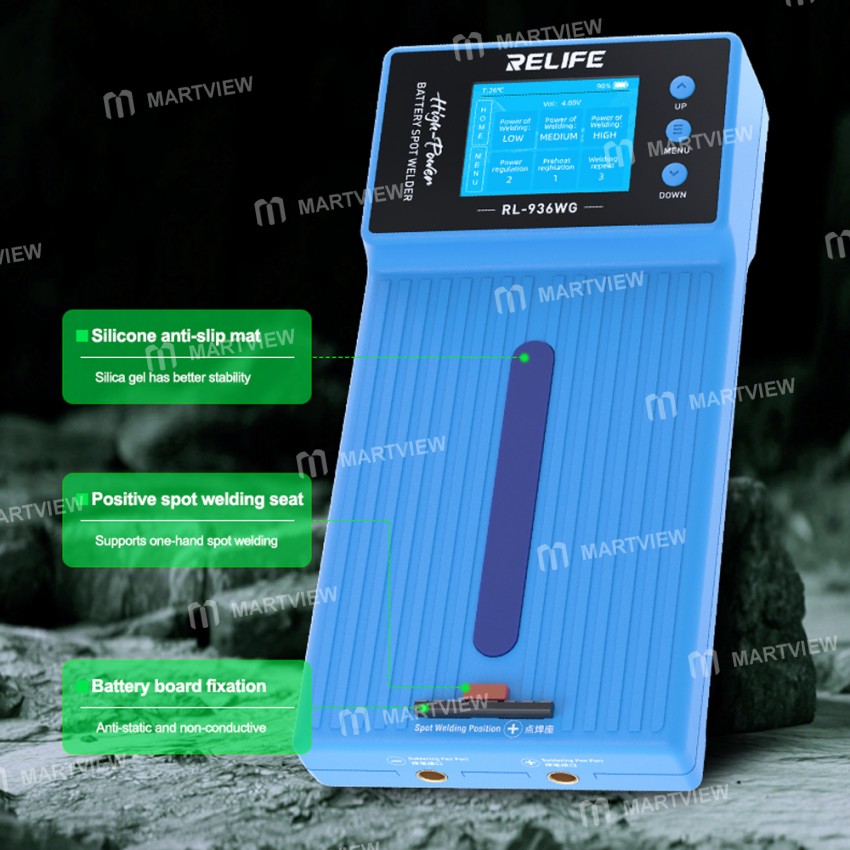

• High-temperature resistant silicone material, more stable maintenance point operation

• Built-in rechargeable lithium battery, longer battery life, USB charging plug, convenient and fast

Specifications:

• Brand: RELIFE

• Product name: High power battery spot welding machine

• Model: RL-936WG

• Net weight: ≈320g

• Soldering pen size: ≈420mm

• Charging cable length: ≈1020mm

• LCD size: 2.0 inches

• Package Size: 210*160*50mm

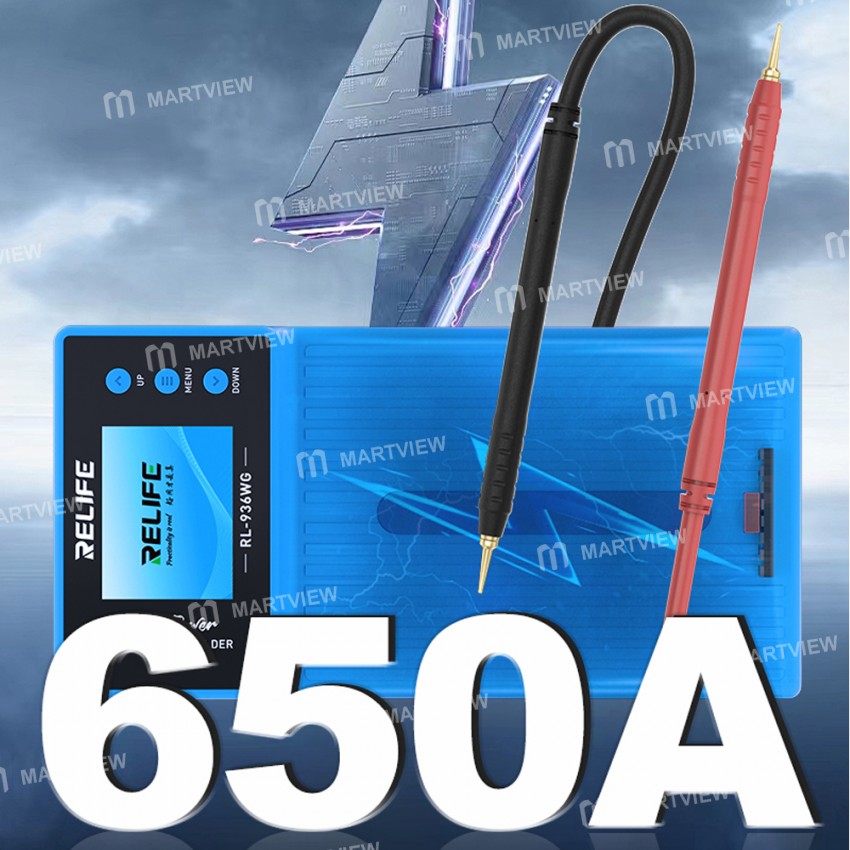

• Design current: 650A(Max)

• Input interface: Type-C charger

• Input parameters: 5V/3A(Max)

• The output voltage: 4.2V(Max)

• Battery: Lithium polymer battery

• Operating temperature: -10~60℃

• Charging temperature: 0~60℃

Package includes:

• 1 x Host

• 1 x Negative Electrode Welding Pen

• 1 x Positive Electrode Welding Pen

• 2 x Nickel Sheet

• 1 x Charging Cable
