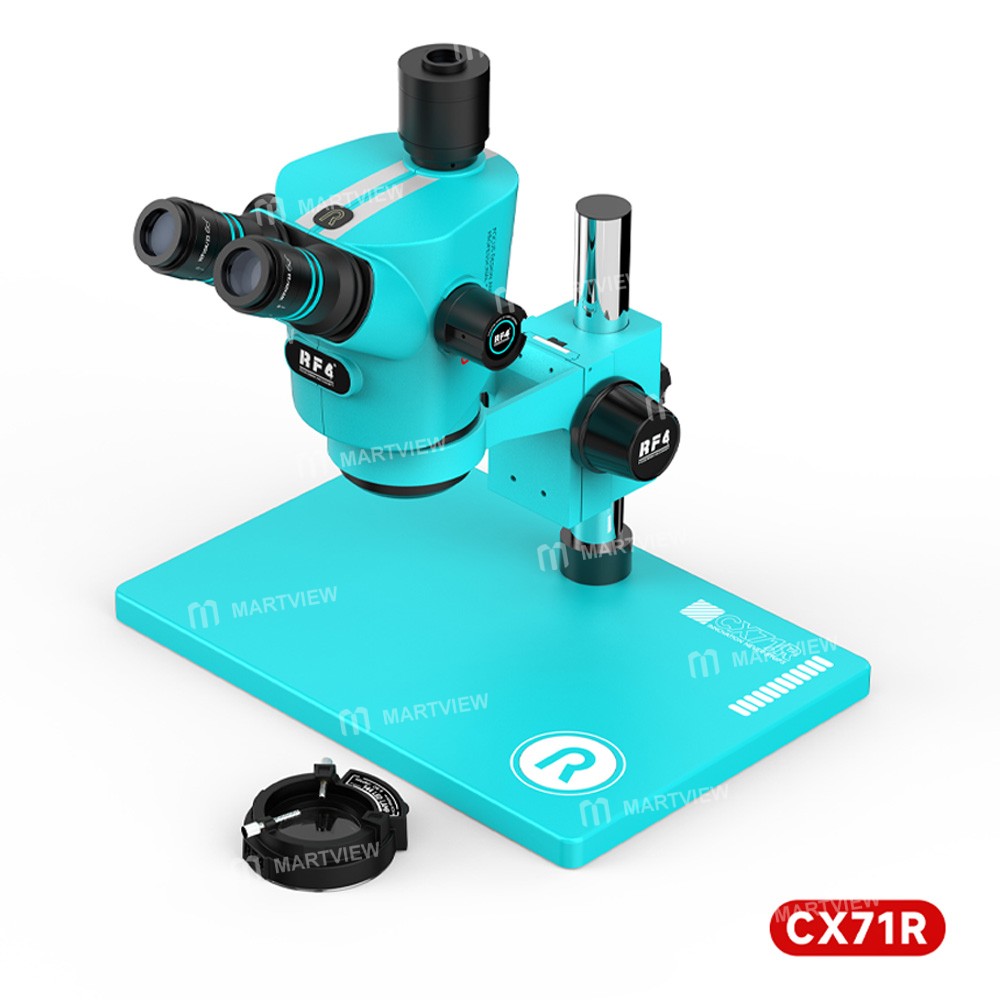

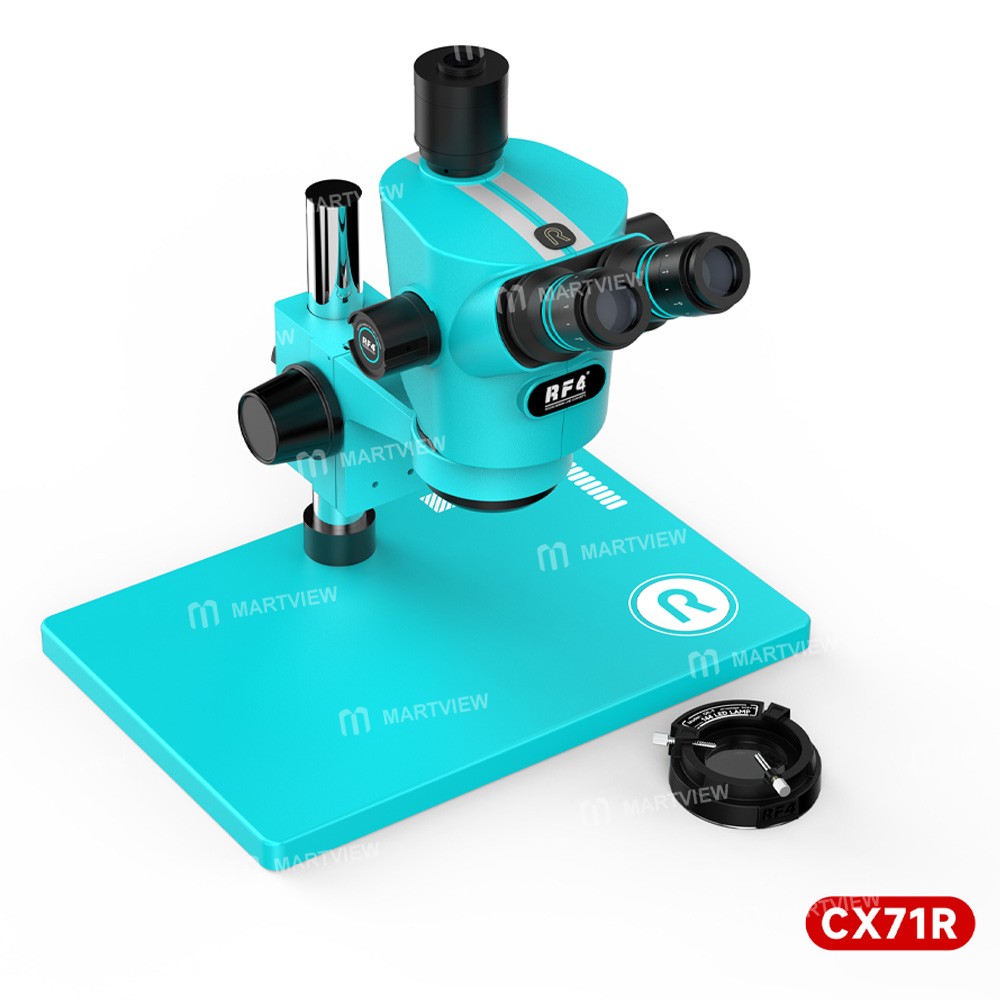

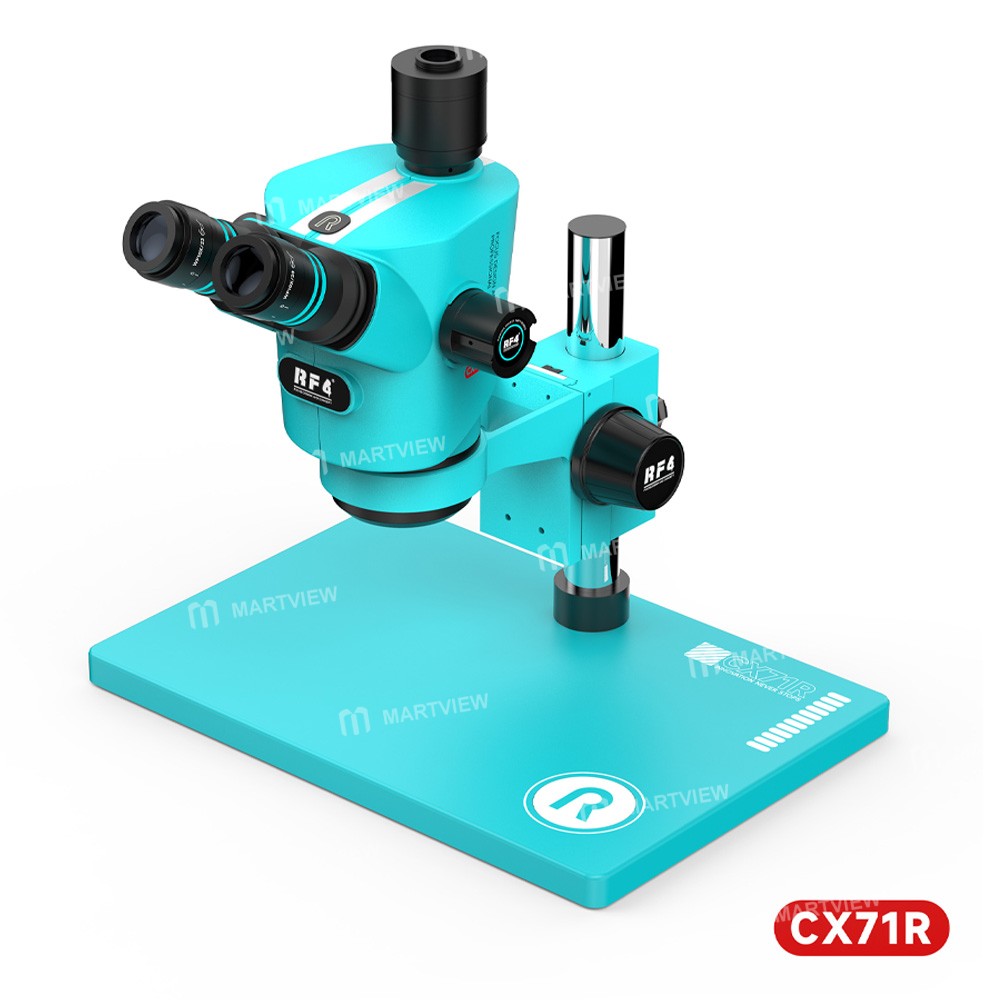

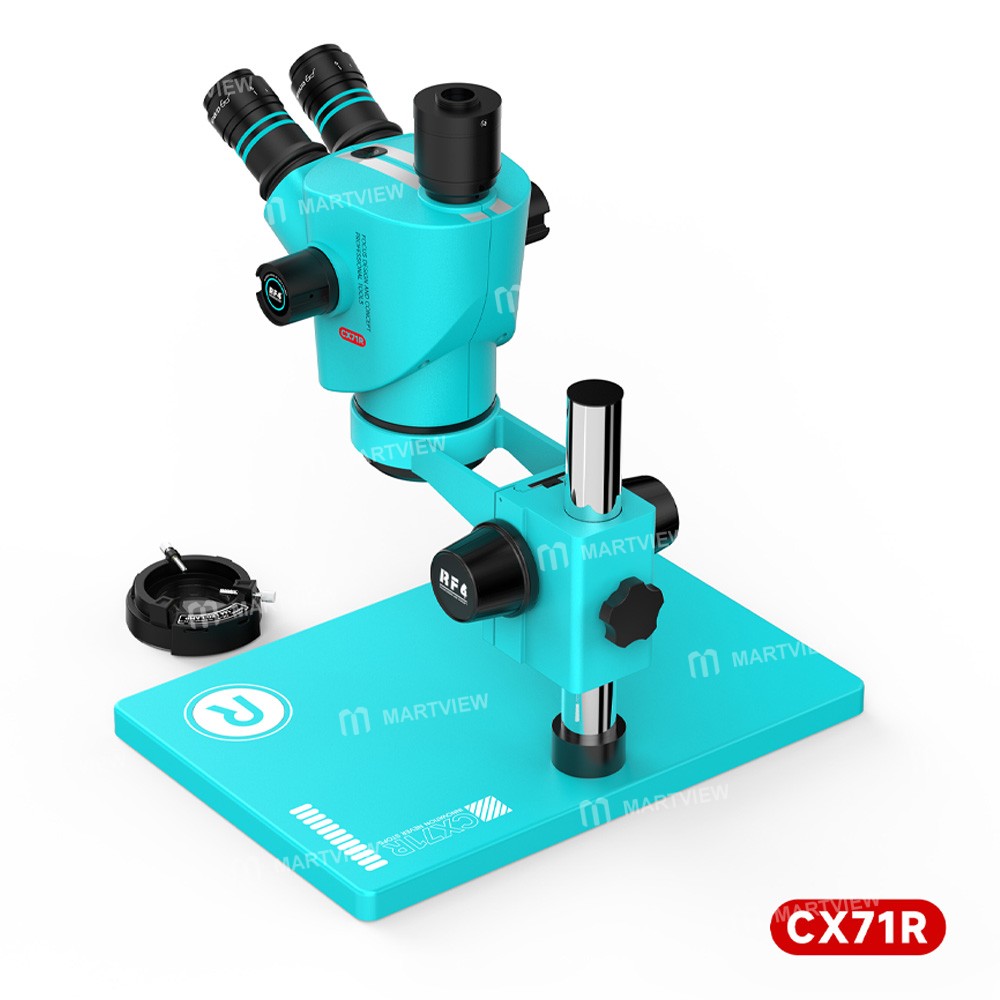

RF4 CX71R 6.5-65X Ergonomic Design Trinocular Stereo Microscope with Big Aluminum Alloy Base (Pre Order 5-7 Days)

RF4 CX71R 6.5-65X Ergonomic Design Trinocular Stereo Microscope with Big Aluminum Alloy Base

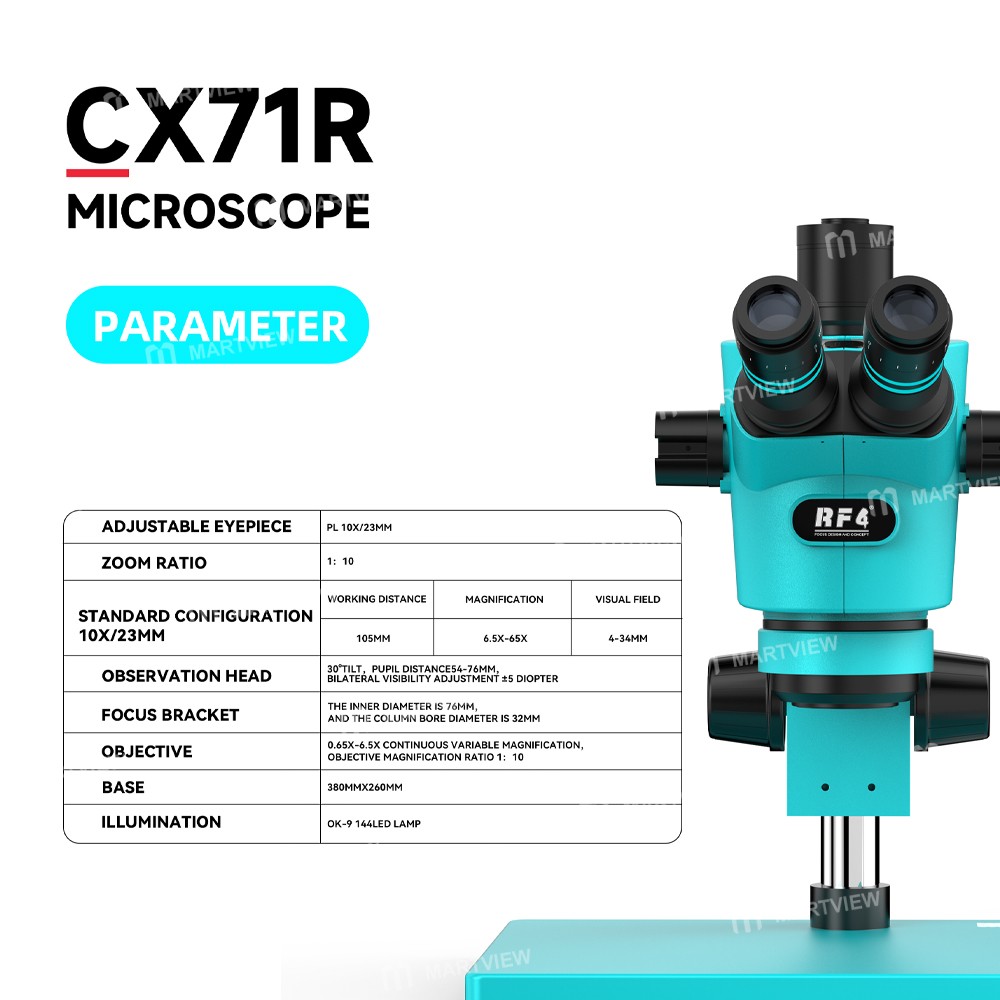

Specification:

• Magnification: Continuous zoom 6.5X to 65X

• Head: 30-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/23MM adjustable

• Objective: 0.65~6.5X

• Zoom Knob: Metal knob

• Camera connector: 0.48X CTV (Monitor and eyepiece Synchronous zoom)

• Accessories: 144 light dustproof lens / Leak-proof eye cup

Support Parameters:

• Column aperture: Φ25mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

• Base size: 380*260mm

Wide-angle Eyepieces 10X/23:

• Magnification: 10X

• Wide field of view 23mm

• Matching size: 30mm

• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.48X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

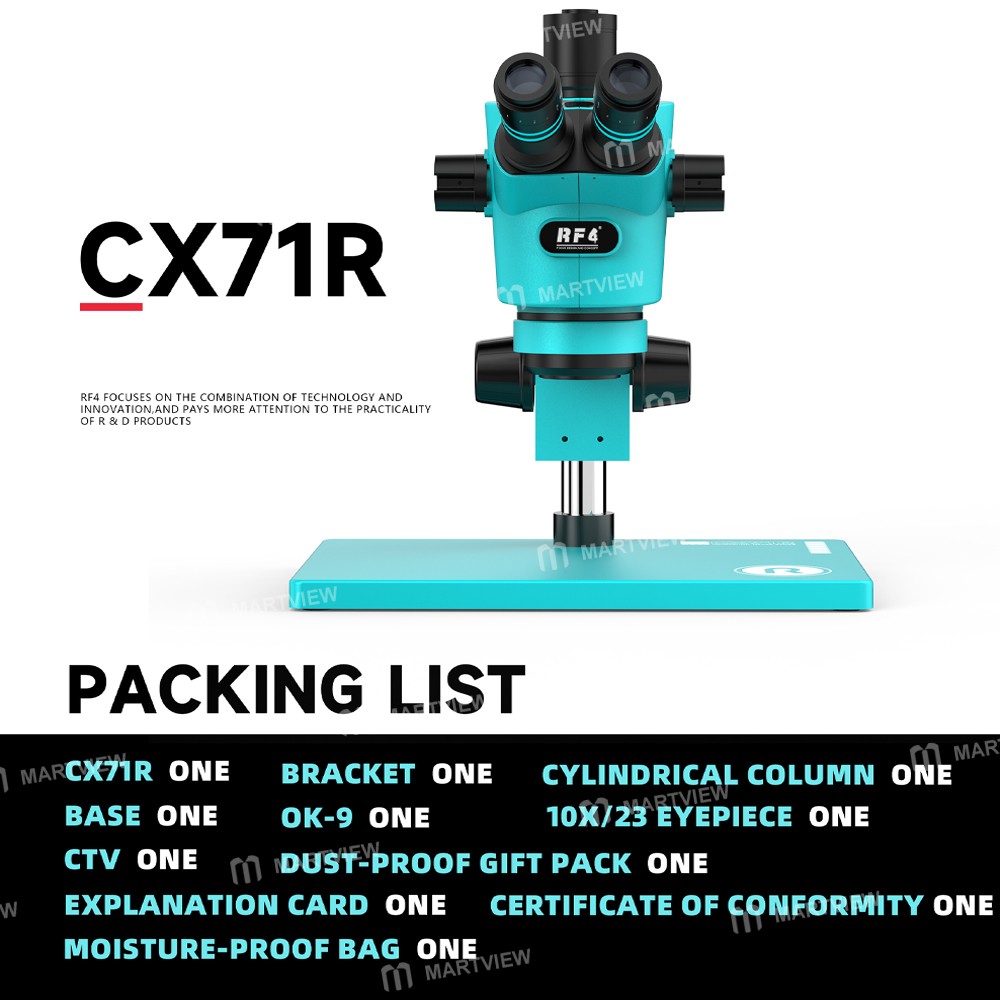

Package includes:

• 1 x Microscope

• 1 x Aluminum Alloy Plate

• 1 x 144 LED Light

• 1 x Dustproof Len

• 1 x 0.5X CTV Lens

• 1 x Silicone Pad

• 1 x Screw Pad
