RF4 High-definition Binocular Stereo Continuous Zoom Industrial Microscope for PCB Repair

RF4 High-definition Binocular Stereo Continuous Zoom Industrial Microscope for PCB Repair

The OK-8 Ring Light included in this product has been upgraded to the OK-9 Ring Light; for more information about the OK-9 Ring Light, please Click Here

Please note that the EM5 eye mask shown in the image has been upgraded to the EM6 eye mask. To learn more about or purchase the EM6 eye mask, please Click Here

Specification:

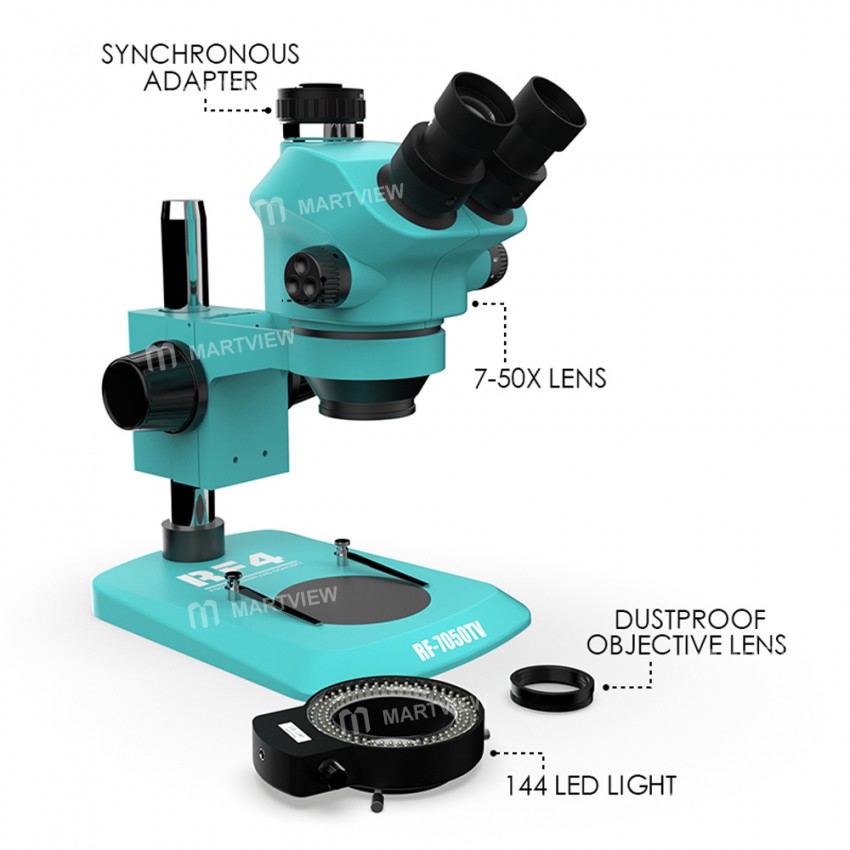

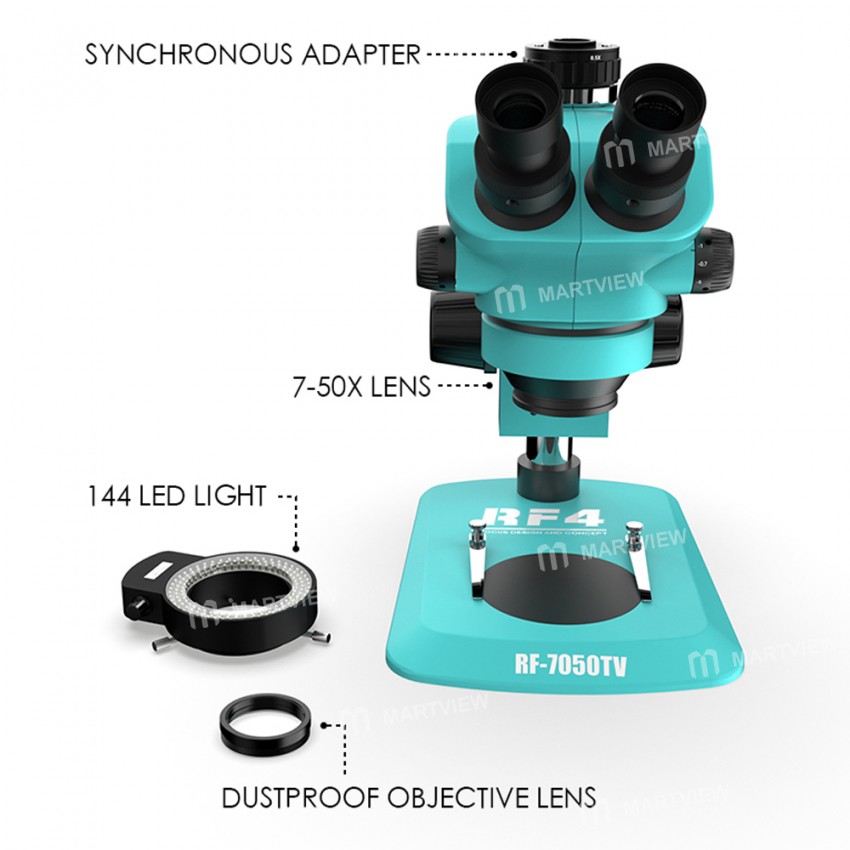

RF7050TV

• Magnification:continuous zoom 7X to 50X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Barlow Lens: 0.5X & 0.7&2.0X(optional)

• Objective: 0.7-5.0X

• Camera connector：1/2CTV

• Monitor and eyepiece. Synchronous zoom

• Camera:Different models optional

• Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate

• Accessories: 144 adjustable LED light & dustproof Lens

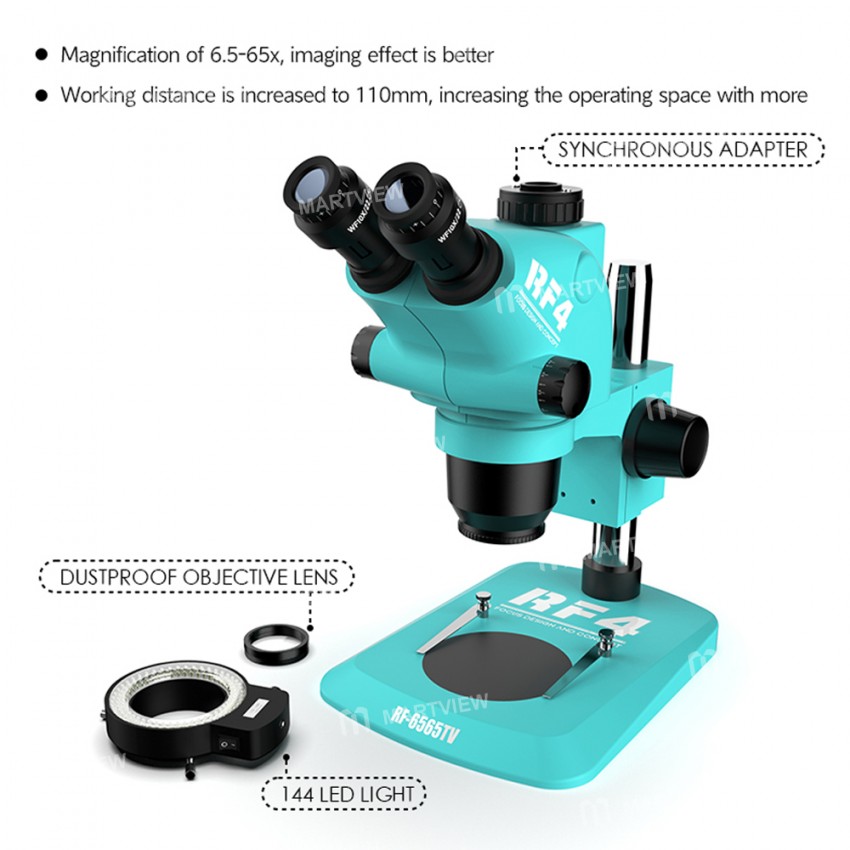

RF6565TV

• Magnification:big continuous zoom 6.5X to 65X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM Adjust the focal

• Barlow Lens: 0.5X & 0.7&2.0X(optional)

• Objective: 0.65-6.5X

• Camera connector：1/2CTV

• Monitor and eyepiece. Synchronous zoom

• Camera:Different models optional

• Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate

• Accessories: 144 adjustable led light & dustproof Lens

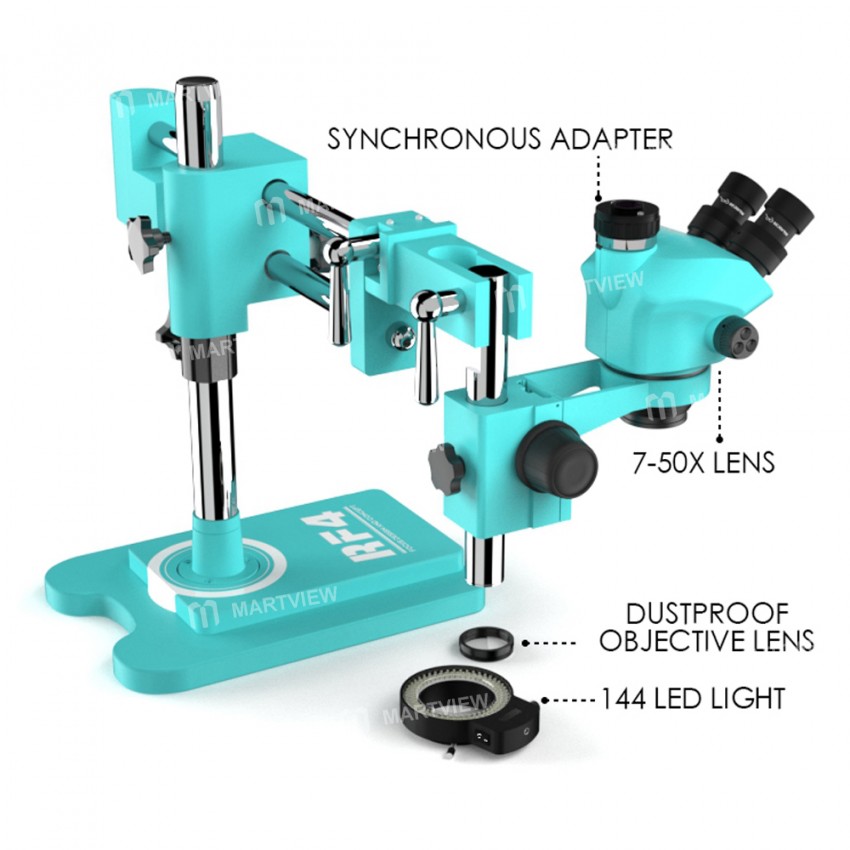

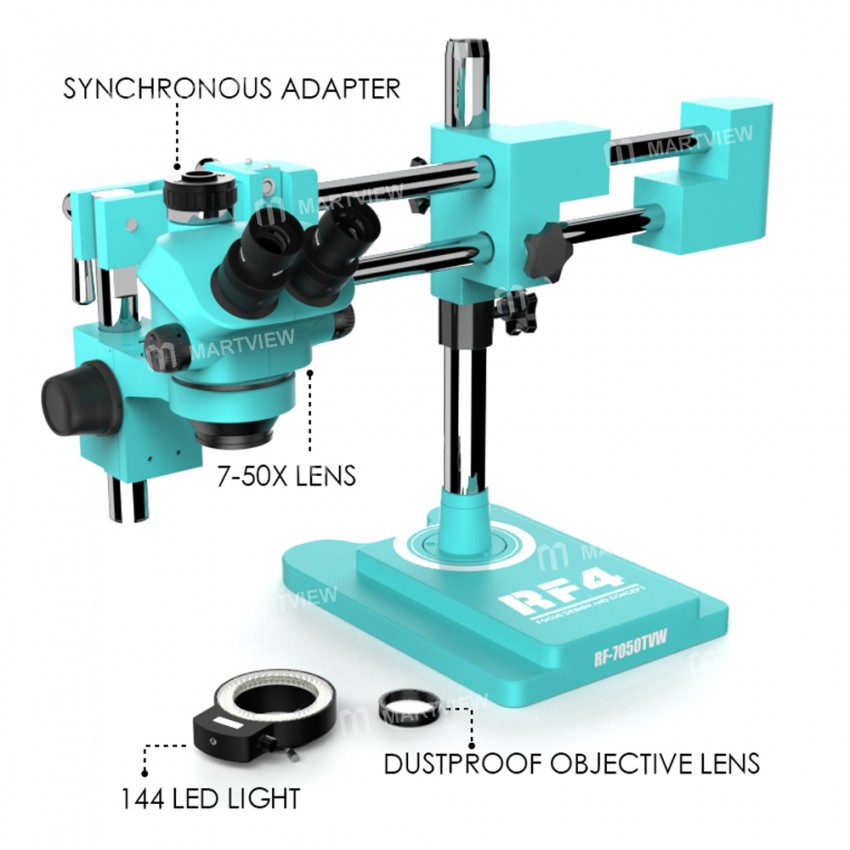

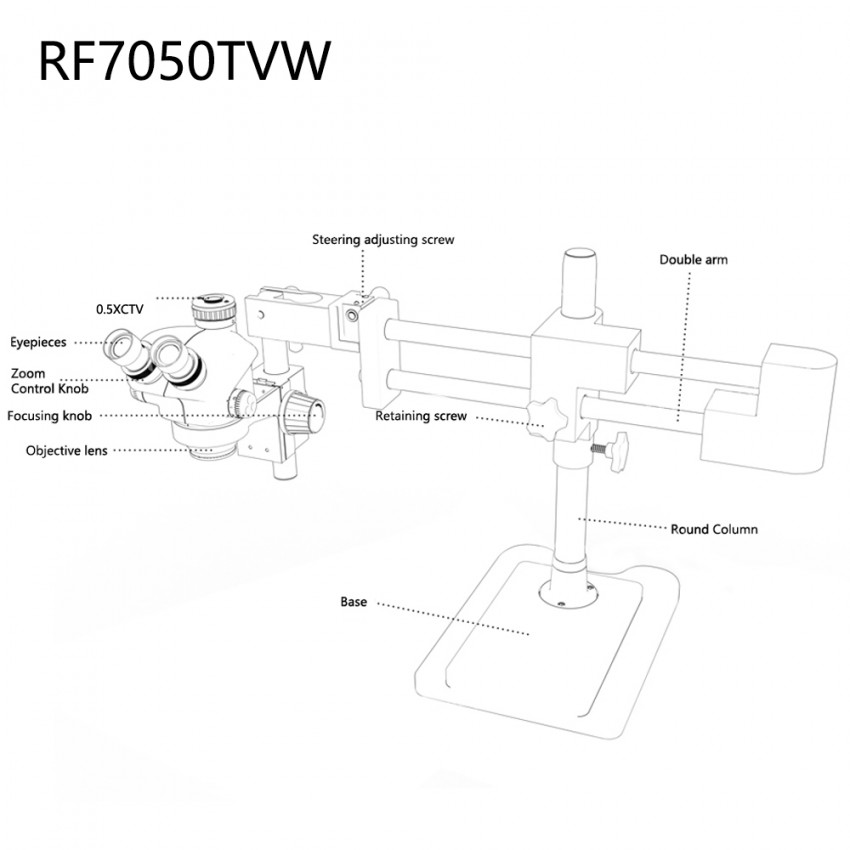

RF7050TVW

• Magnification:continuous zoom 7X to 50X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Barlow Lens: 0.5X & 0.7&2.0X(optional)

• Objective: 0.7-5.0X

• Camera connector：1/2CTV

• Monitor and eyepiece. Synchronous zoom

• Camera:Different models optional

• Boom Stand: 51cm double-arm (overall length: 76cm)

• 41cm high pillar, 200mm*245mm solid cast steel base

• Accessories: 144 adjustable led light & dustproof Lens

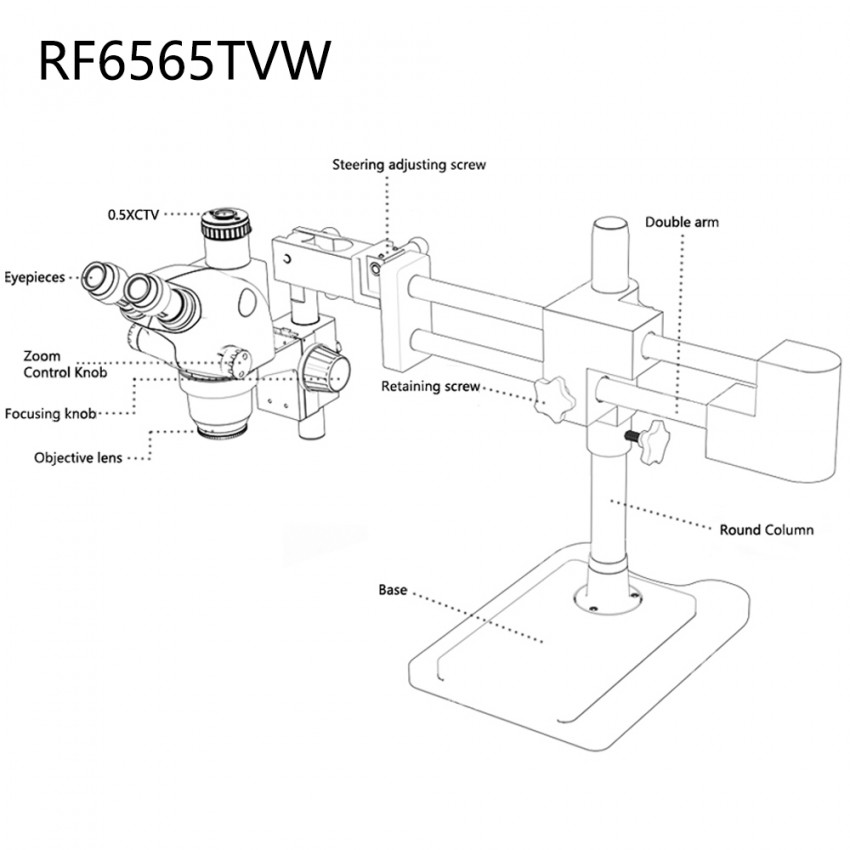

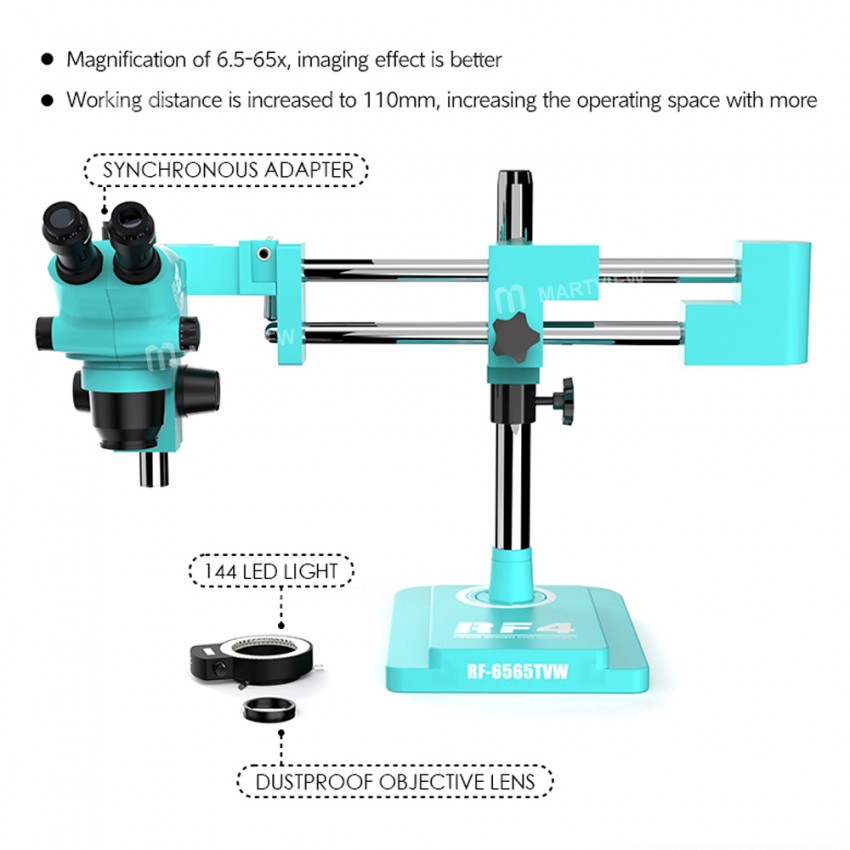

RF6565TVW

• Magnification: big continuous zoom 6.5X to 65X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM Adjust the focal Barlow Lens: 0.5X & 0.7&2.0X(optional)

• Objective: 0.65-6.5X

• Camera connector：1/2CTV

• Monitor and eye the piece. Synchronous zoom Camera: Different models optional

• Boom Stand: 51cm double-arm (overall length: 76cm) 41cm high pillar, 200mm*245mm solid cast steel base

• Accessories: 144 adjustable led light & dustproof Lens

0.5X CTV

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming

• Weight: 0.1kg

Package includes:

• 1 x Trinocular microscope(Magnification optional)

• 1 x Dust mirror

• 1 x Focus bracket

• 1 x Support bar

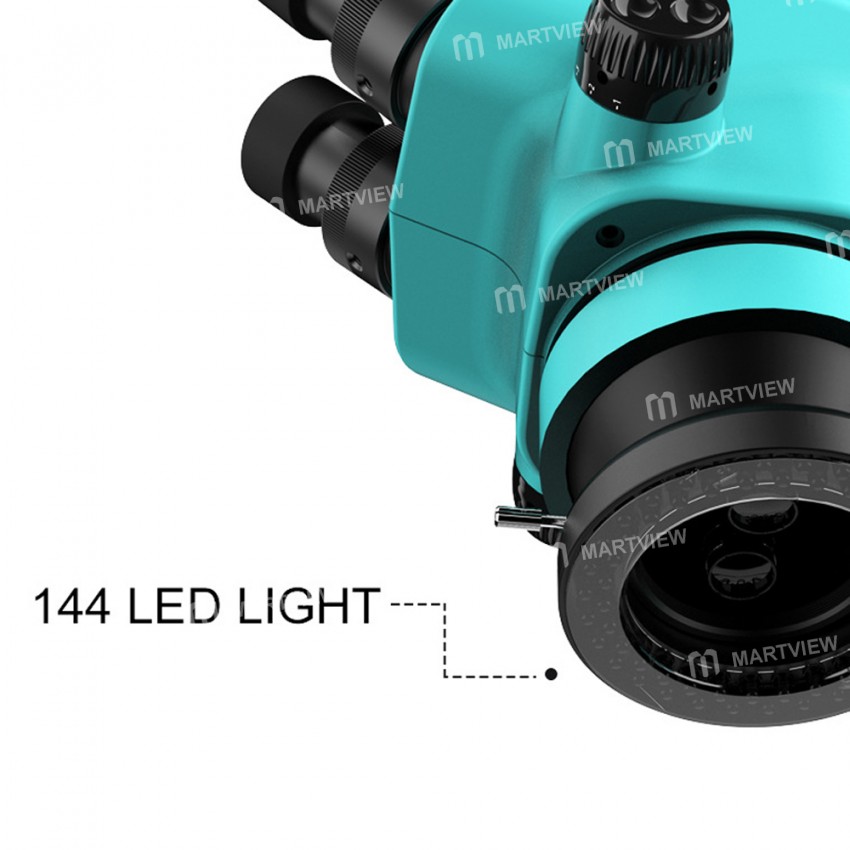

• 1 x 144LED Ring Light

• 1 x 0.5X CTV connector

• 1 x Double arm bar (optional)

• 1 x Base (optional)
