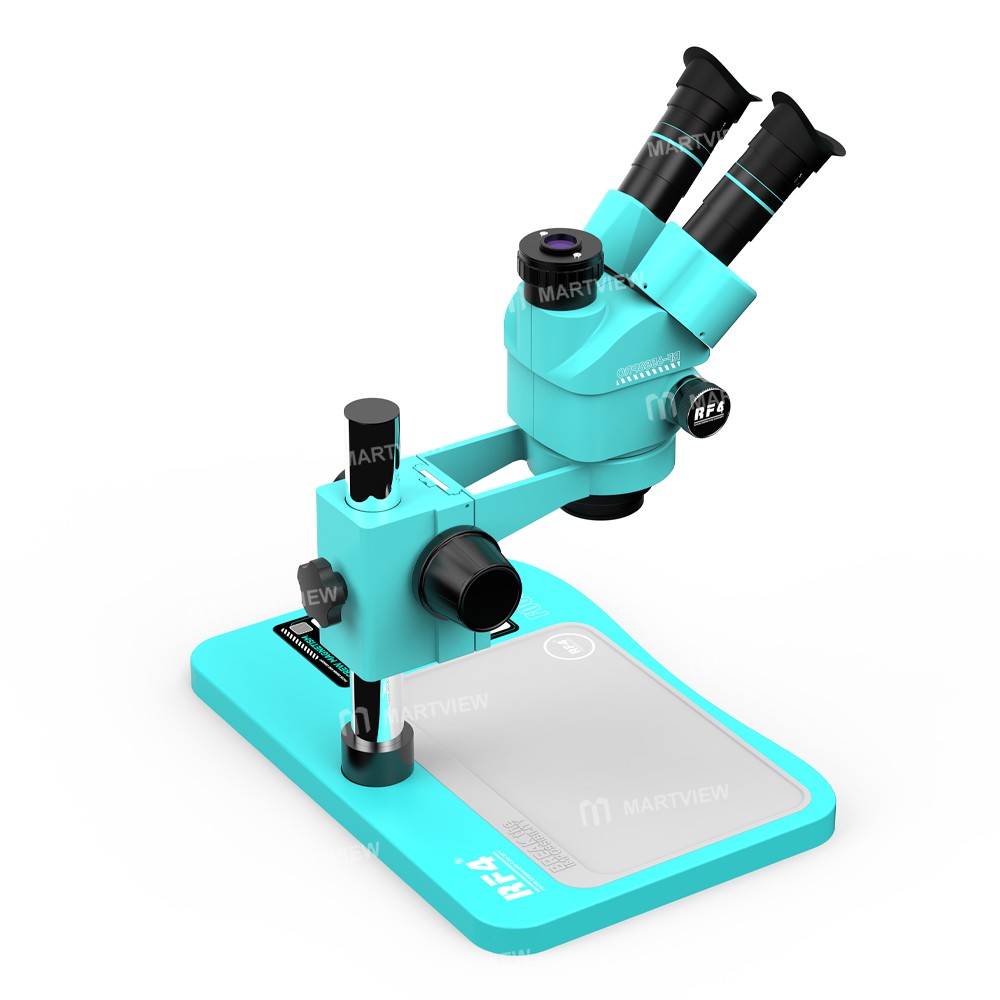

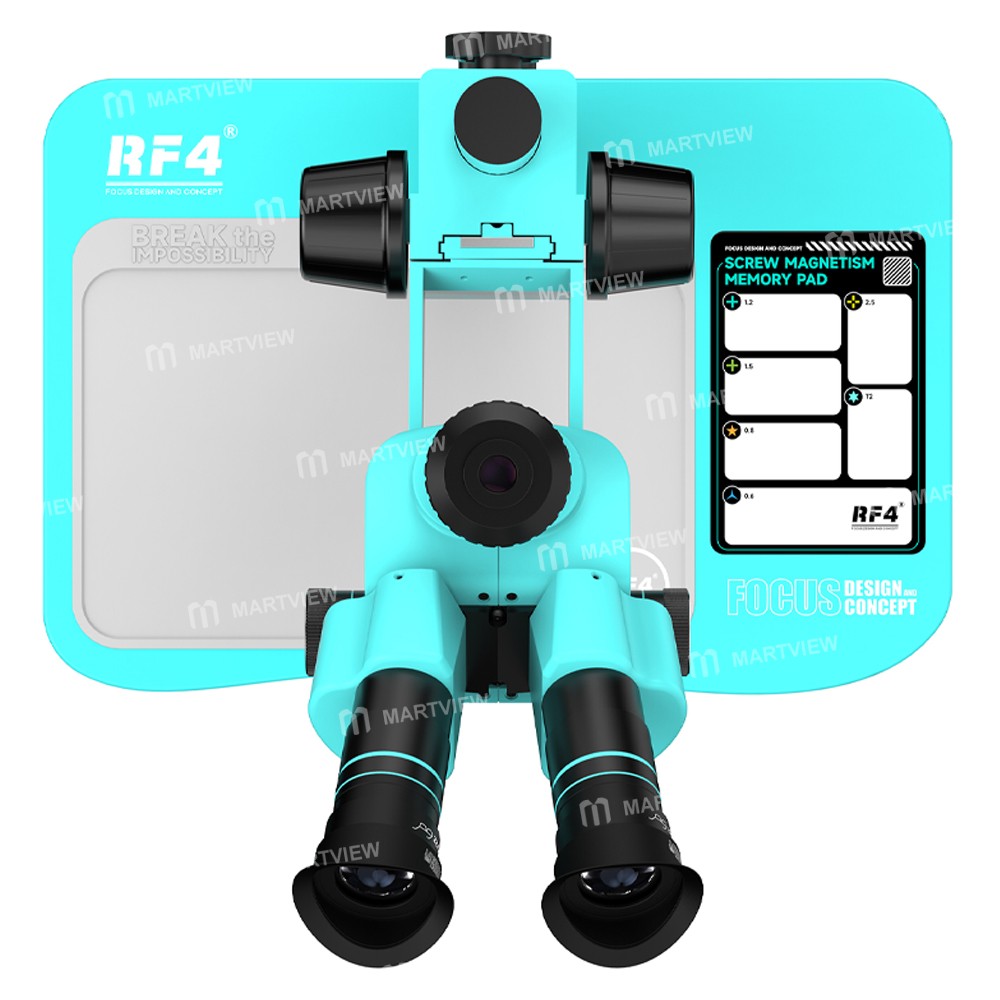

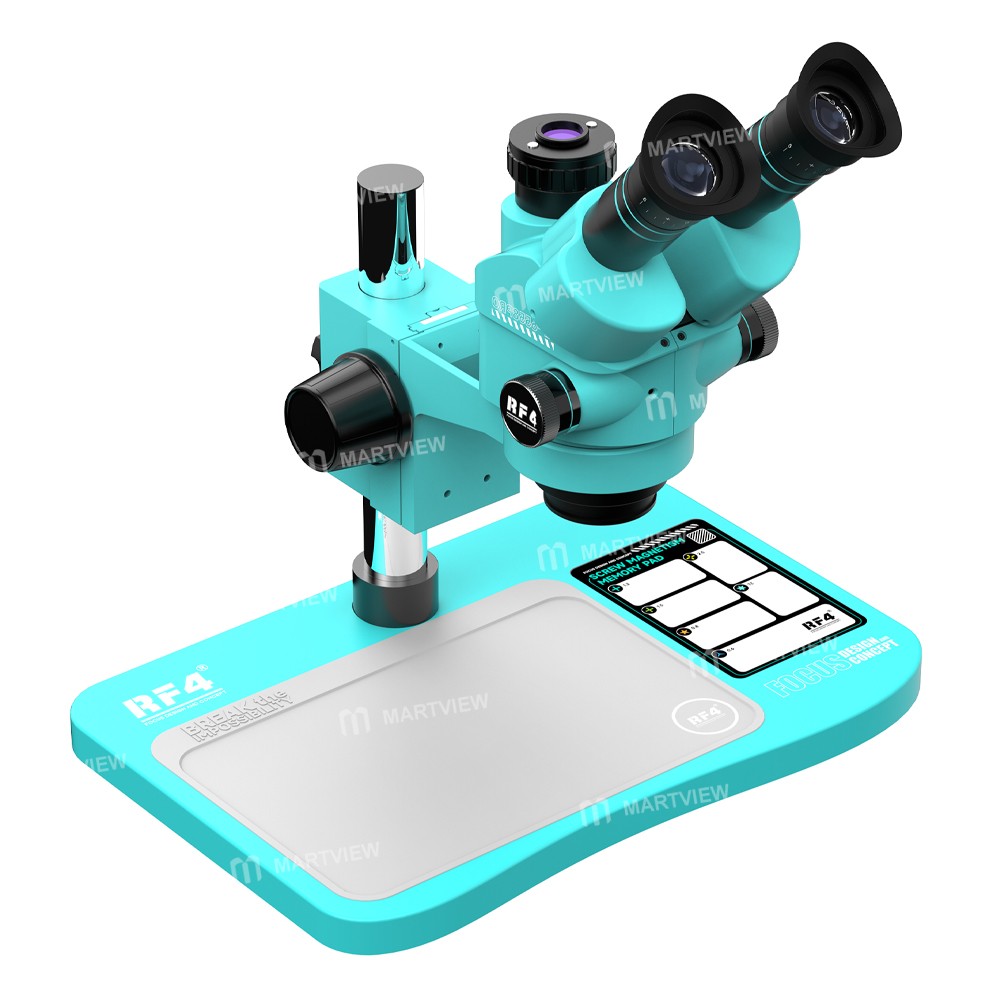

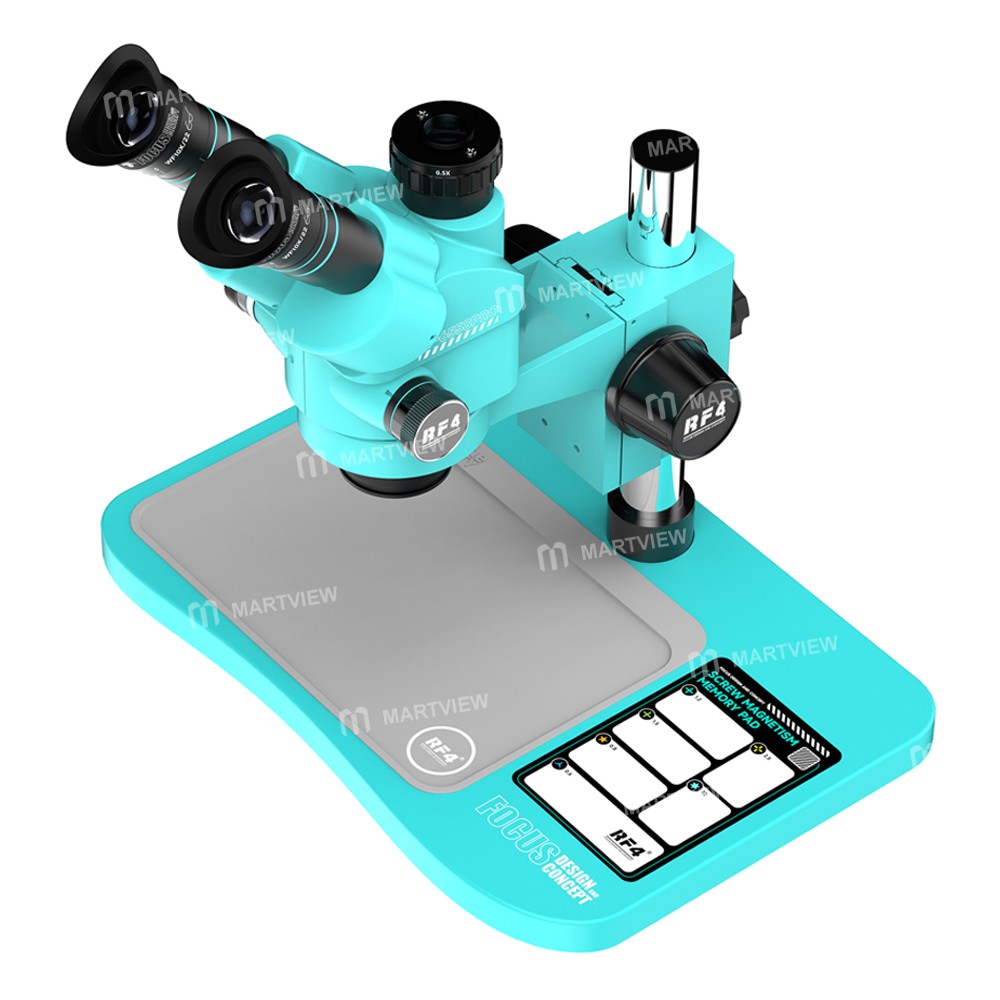

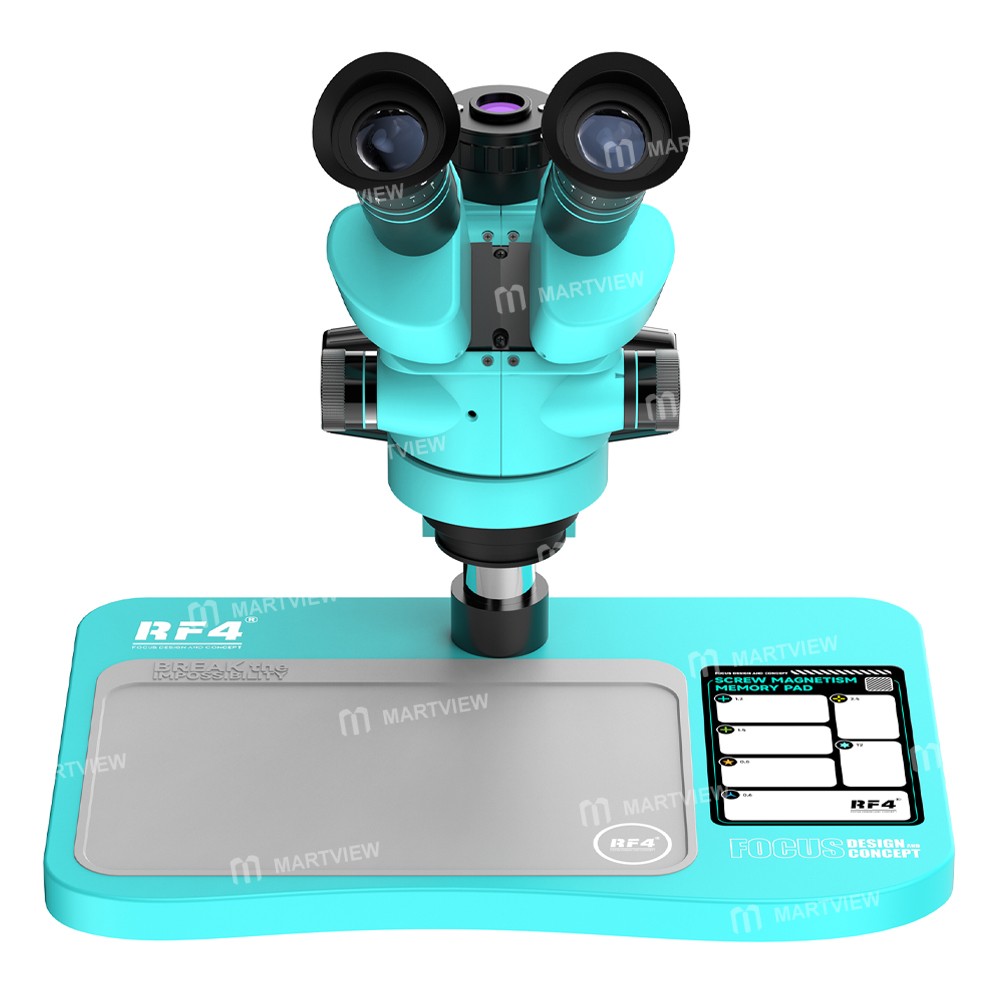

RF4 RF-6558Pro 6.5-58X Trinocular Stereo Microscope with Big Base & Silicone Pad & Screw Pad

RF4 RF-6558Pro 6.5-58X Trinocular Stereo Microscope with Big Base & Silicone Pad & Screw Pad

Please note that the EM5 eye mask shown in the image has been upgraded to the EM6 eye mask.

To learn more about or purchase the EM6 eye mask, please Click Here

Specification:

• Magnification: Continuous zoom 6.5X to 58X

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM adjustable

• Objective: 0.65~5.8X

• Zoom Knob: Metal knob

• Camera connector: 0.5X CTV (Monitor and eyepiece Synchronous zoom)

• Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup

Support Parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

• Base size: 380*260mm

Wide-angle Eyepieces 10X/22:

• Magnification: 10X

• Wide field of view 22mm

• Matching size: 30mm

• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz

• Output: DC 12V, Max 700mA

• Light color: White

• Number of lights: 144 LEDs

• Inside diameter: 60mm

Package includes:

• 1 x Microscope

• 1 x Aluminum Alloy Plate

• 1 x 144 LED Light

• 1 x Dustproof Len

• 1 x 0.5X CTV Lens

• 1 x Silicone Pad

• 1 x Screw Pad
