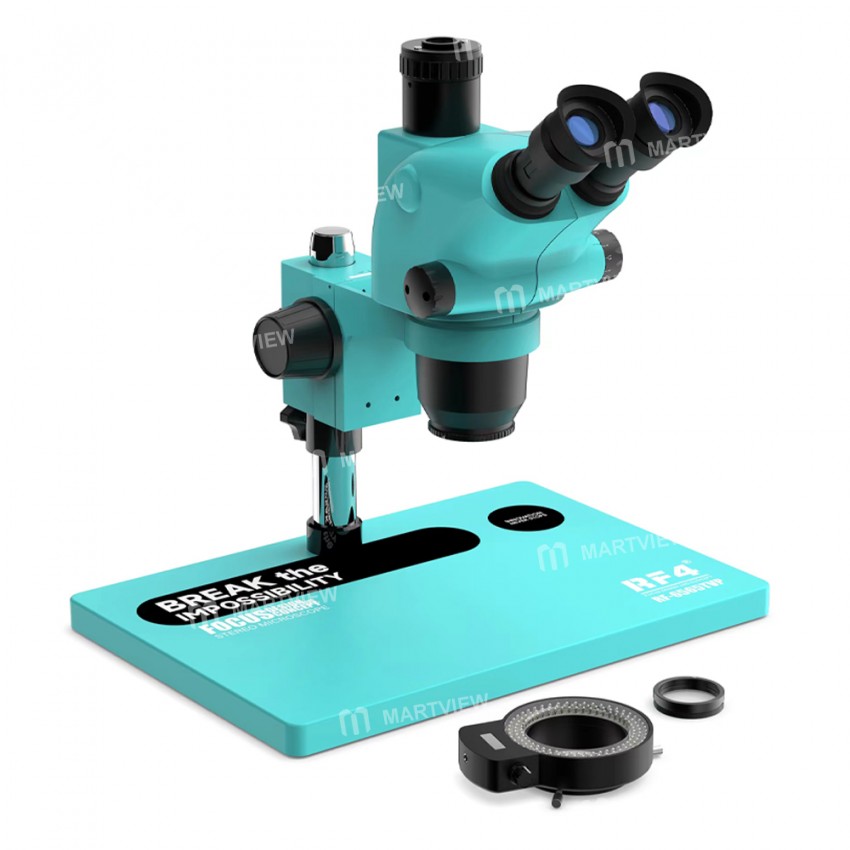

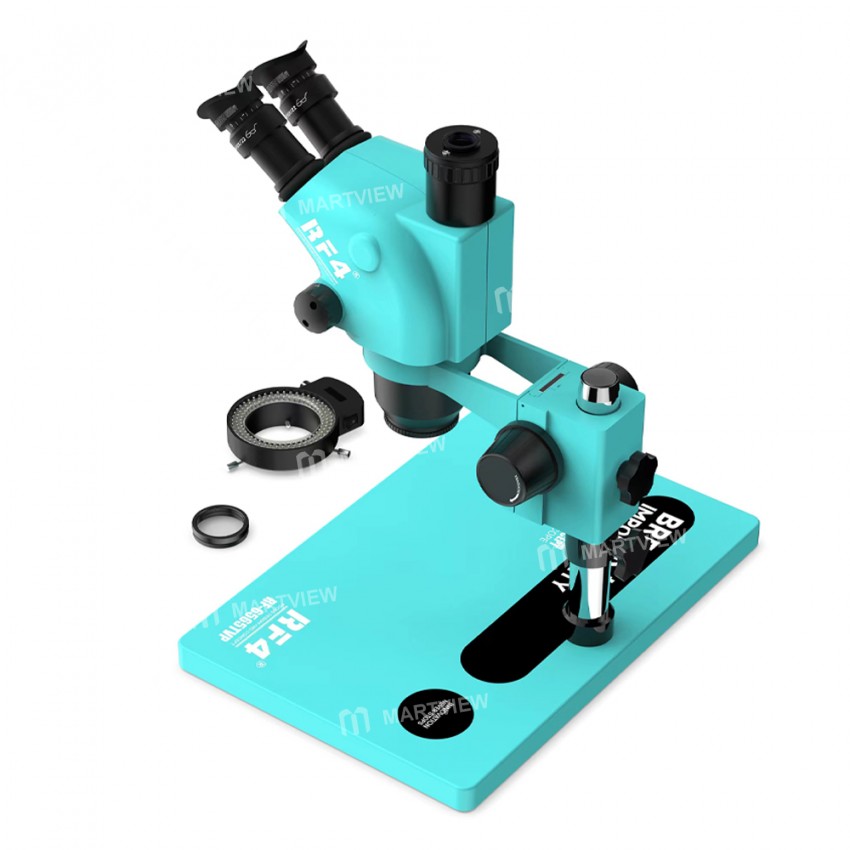

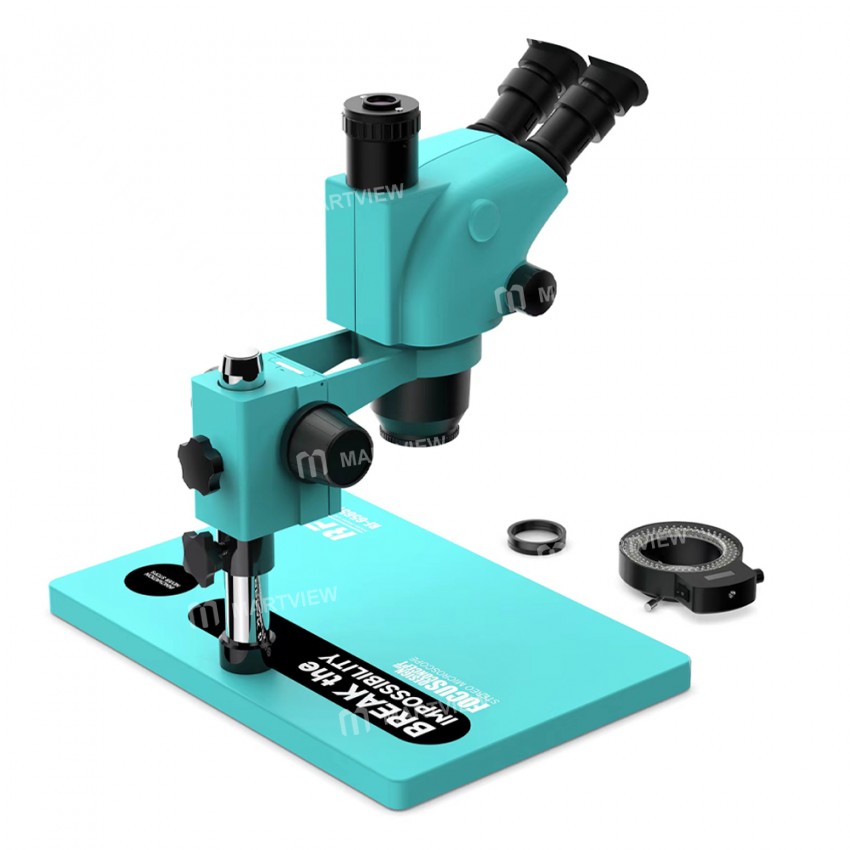

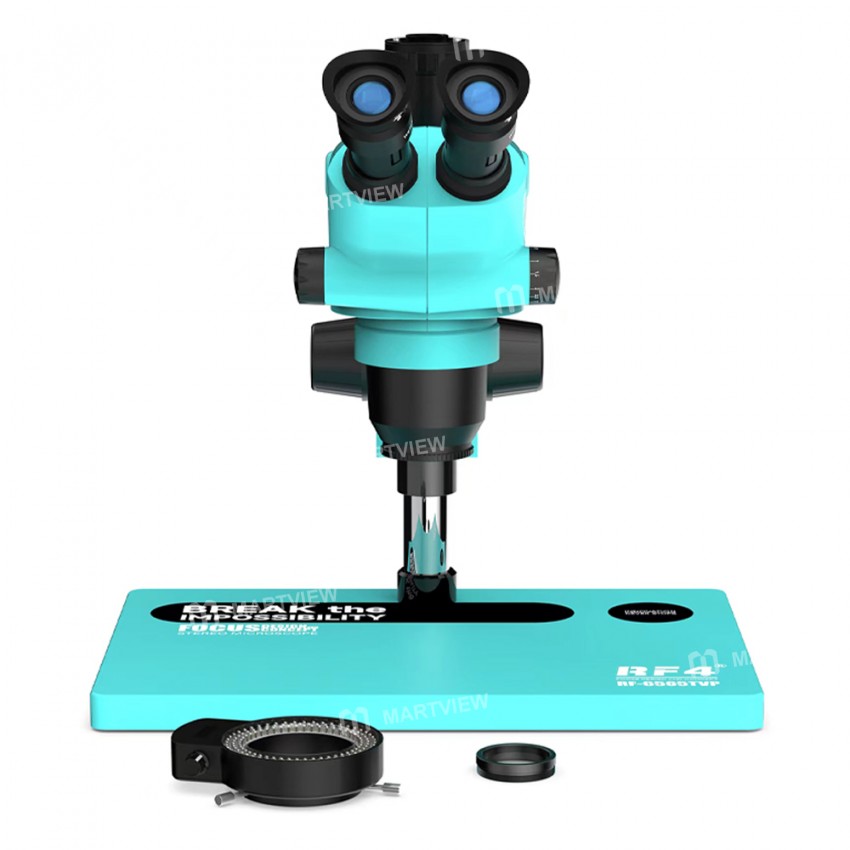

RF4 RF-6565TVP 6.5X-65X Trinocular Stereo Zoom Microscope with Big Aluminum Alloy Base

RF4 RF-6565TVP 6.5X-65X Trinocular Stereo Zoom Microscope with Big Aluminum Alloy Base

The OK-8 Ring Light included in this product has been upgraded to the OK-9 Ring Light; for more information about the OK-9 Ring Light, please Click Here

Specification:

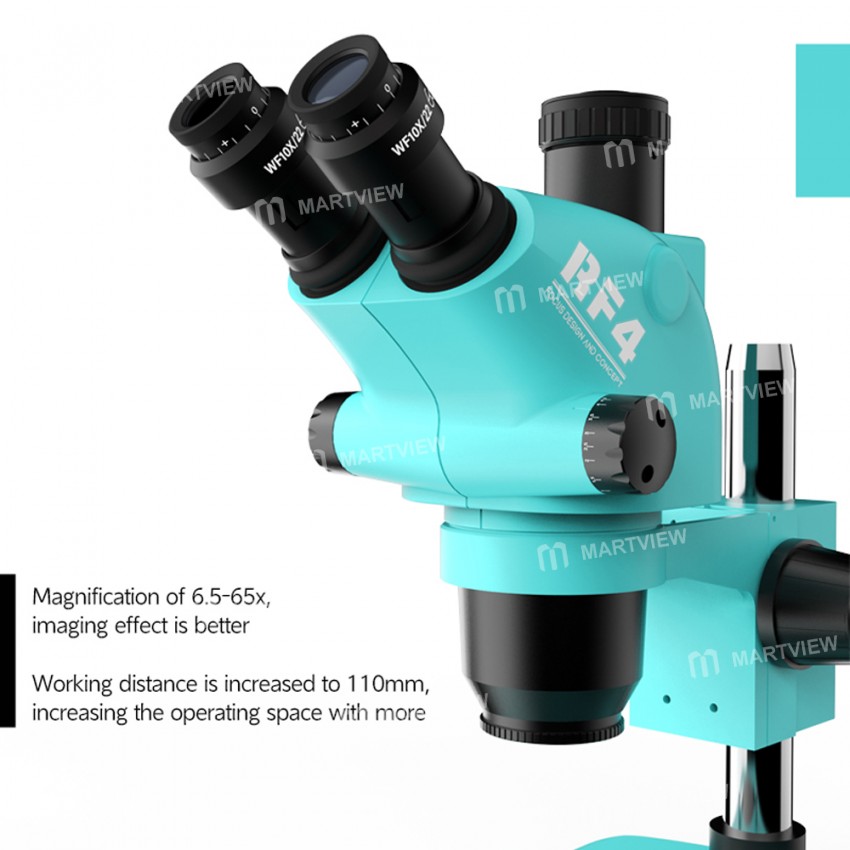

• Magnification: Continuous zoom 6.5X to 65X

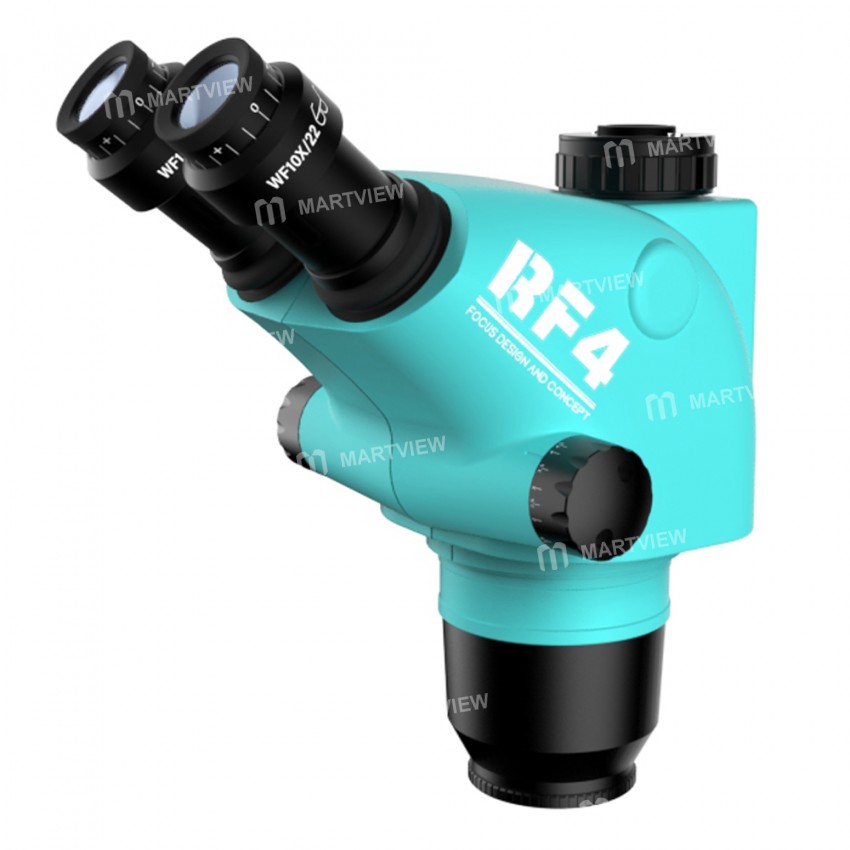

• Head: 45-degree inclined 360-degree swiveling trinocular

• Eyepiece: WF10X/22MM

• Objective: 0.65-6.5X

• Camera connector：1/2 CTV

• Base size: 380*260mm

• Accessories: 144 adjustable LED lights & dust proof Lens

LED Ring Light:

• Input: AC 100~240V

• Output: DC 12V

• Max output: 4.5W-6W

• LED: 144 LEDs

• Illumination: Over 30000-35000Lux

• Color Temperature: 6000-7000K

• Light color: Black

• Inside diameter: 60mm

• Package: 144-LED Lamp Ring

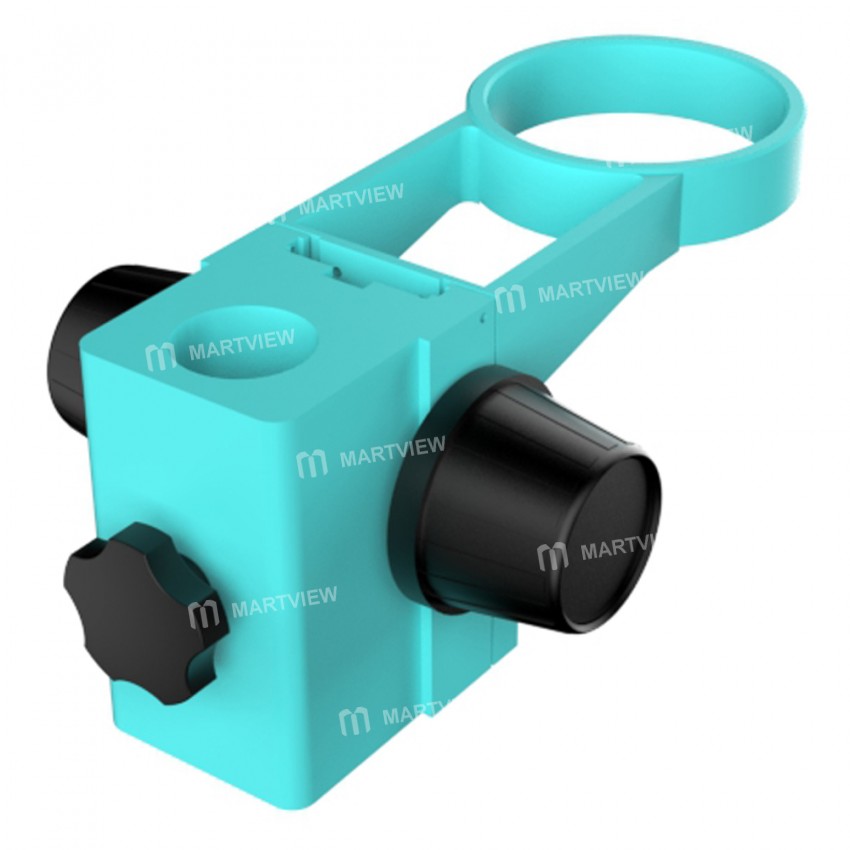

Support parameters:

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

The base parameters:

• Column height: 240mm

• Diameter: φ32mm

• Base: 380*260mm

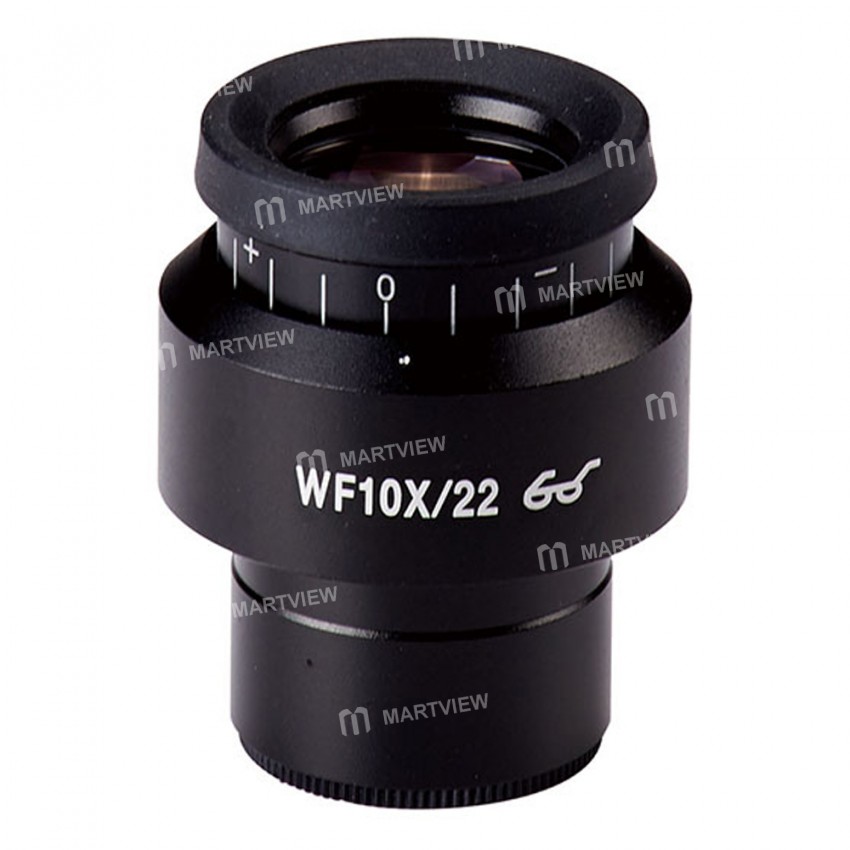

10X/22 Wide-angle Eyepieces:

• Magnification: 10X

• Wide Field Of View 22mm

• Matching size: 30mm

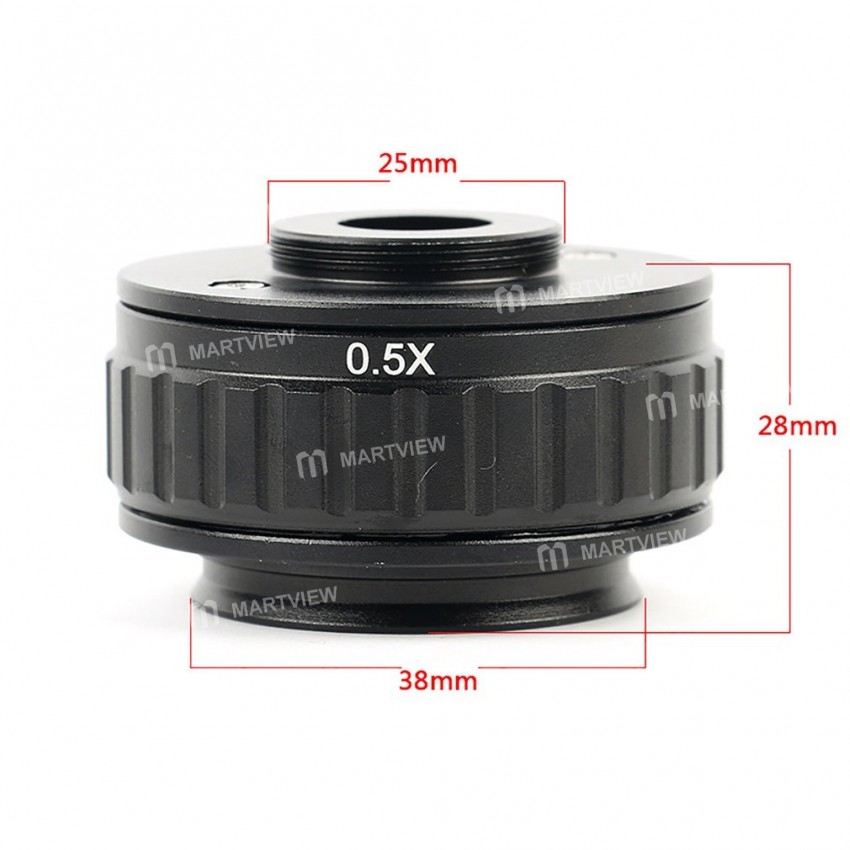

0.5X CTV:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet

• The adapter ring can use LCD to focus, this kind of focus method is manual focus

• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

Package includes:

• 1 x Microscope

• 1 x Column

• 1 x Base

• 1 x Synchronous Adapter

• 1 x Ring Light

• 1 x Dustproof  Len
